KubaP

Control Click on Buttons situated on a TToolBar

Recommended Posts

KubaP

I have a problem – I cannot click on a button which is situated on a toolbar. Normally I use function like ControlClick but one of the parameter is on which the AutoIt should click – I know that button situated on TToolBar1 is named TToolButton1 but I know that because I have codes of program. AutoIt Window Info. see only the TToolBar1 – do not see any of TToolButtons situated on that TToolBar.

So how can I click on a TToolButton? (Off course I do not wont to use MouseClick – because the position of controls can change in time).

Edited by KubaP

Share this post


Link to post
Share on other sites
Andreik

I have a problem I cannot click on a button which is situated on a toolbar. Normally I use function like ControlClick but one of the parameter is on which the AutoIt should click I now that button situated on TToolBar1 is named TToolButton1 but I know that because I have codes of program. AutoIt Window Info. see only the TToolBar1 do not see any of TToolButtons situated on that TToolBar.

So how can I click on a TToolButton? (Off course I do not wont to use MouseClick because the position of controls can change in time).

Try ControlClick ("TITLE","","[CLASSNN:TToolButton1]")

Change TITLE with your application title.


When the words fail... music speaks

Share this post


Link to post
Share on other sites
BrettF

Have you checked out the AutoIt Window tool? It is a tool the makes automation much easier. You will find it by looking in "Start -> All Programs -> AutoIt" or pressing Ctrl + F6 in SciTe.

Cheers,

Brett

Share this post


Link to post
Share on other sites
KubaP

Try ControlClick ("TITLE","","[CLASSNN:TToolButton1]")

Change TITLE with your application title.

Unfortunately it did not work ;)

I think that function ControlClick does not see that Button - AutoIt Window Info does not.

Pleas help me - I have been thinking about the solution for a long time and have no other ideas.

Share this post


Link to post
Share on other sites
KubaP

Have you checked out the AutoIt Window tool? It is a tool the makes automation much easier. You will find it by looking in "Start -> All Programs -> AutoIt" or pressing Ctrl + F6 in SciTe.

Cheers,

Brett

In my version of SciTe (Version 1.76) I have "AutoIt Window Info" so I think it is = "AutoIt Window tool".

Of course if you think that your version is better please tell me so - I will change on AutoIt window Tool.

Edited by KubaP

Share this post


Link to post
Share on other sites
sandyd

From what I know, AutoIT can only control STANDARD windows controls. A TToolbar sound like it is a Delphi control and as such may not be a standard windows control.

Anyone care to comment?


----[ SandyD ]---

Share this post


Link to post
Share on other sites
KubaP

From what I know, AutoIT can only control STANDARD windows controls. A TToolbar sound like it is a Delphi control and as such may not be a standard windows control.

Anyone care to comment?

Yes, it is Delphi control.

So I will not be able to control it by any function in AutoIt?

Share this post


Link to post
Share on other sites
DMEE

I have some experience with delphi toolbars and generally I use a x,y location within the toolbar. Sometime ago I noticed that the autoit info window however did show the text of the button, save for example. This would imply that "[TEXT:Save]" should work. I didn't have time to test it.

If you'll try, please let me know if it works


In the beginning there was nothing and then even that exploded - anonymous

Share this post


Link to post
Share on other sites
KubaP

I have some experience with delphi toolbars and generally I use a x,y location within the toolbar. Sometime ago I noticed that the autoit info window however did show the text of the button, save for example. This would imply that "[TEXT:Save]" should work. I didn't have time to test it.

If you'll try, please let me know if it works

Hmm,

I do not have any text on a ToolButtons

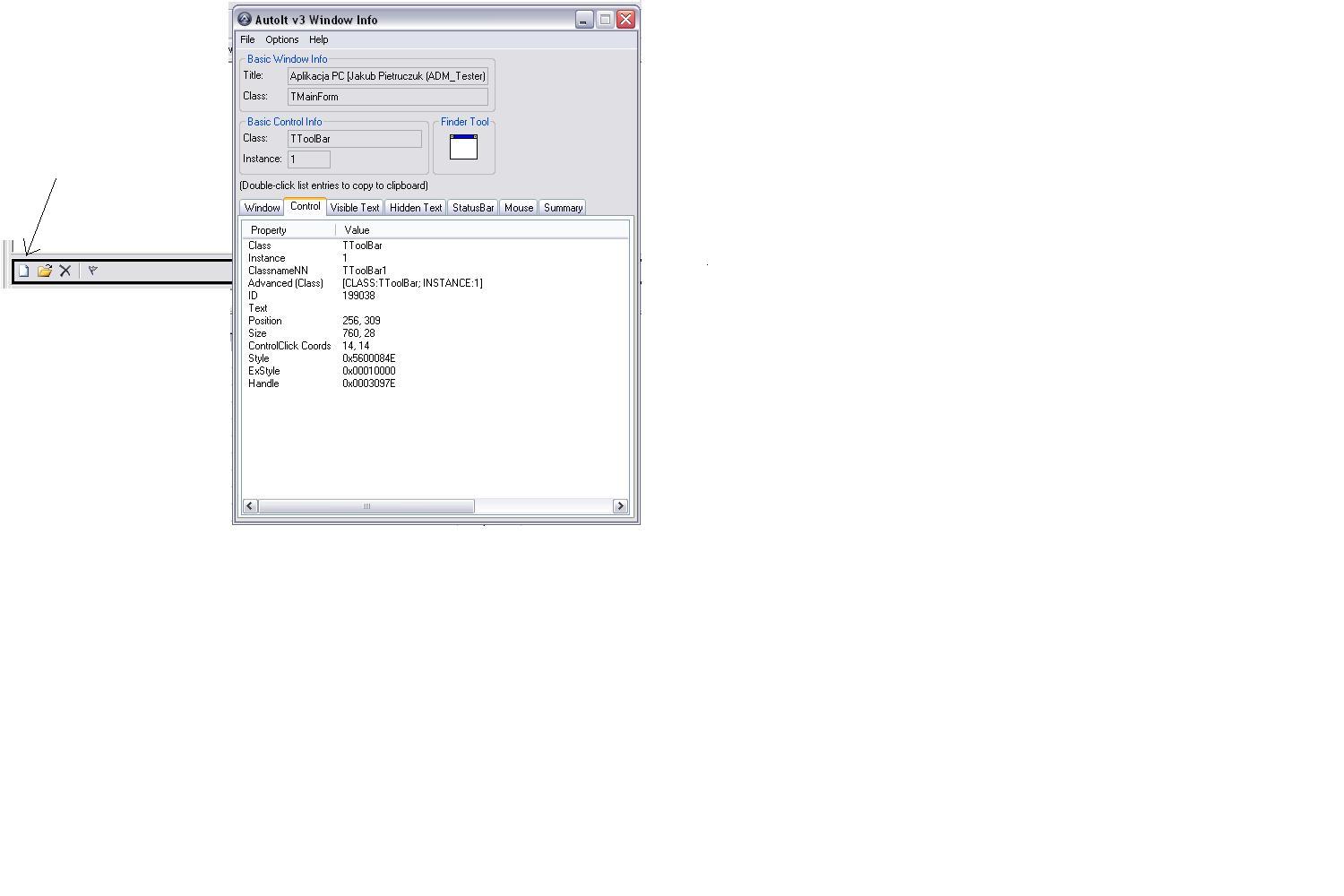

When I use AutoIT Windows Info. I see something like in appendix named AutoITWindowInfo.JPG.


Edited by KubaP
