Roebie

Login Problem

Recommended Posts

Roebie

Hi,

I'm very new to AutoIt: I've just started my first script.

I want my script to open an application (Axapta) and that works.

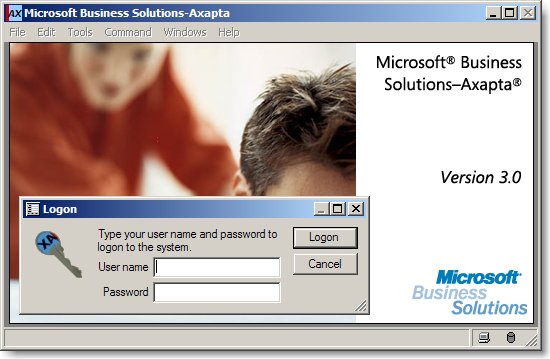

On opening Axapta shows a login window. The script sends login and password. This also works (or at least it seems to).

Then the script clicks to Logon button. This also works as Axapta replies.

It's the reply that troubles me. Axapta says the password is wrong, which I doubt.

If I copy it from the script and paste it into the password textbox, Axapta does accept it.

I've gone through both the manual and lots of topics on passwords in this subforum, but to no avail.

Could anyone help me out on what I'm doing wrong, please?

My code so far:

Dim $filename
Dim $params
Dim $error

$filename = "C:\Program Files\Navision\Axapta Client 3SP4\Bin\ax32.exe"
$params = "\\leuven1\data\apps\axaptacl\iconen\2T\dolmen\Axapta_Dolmen_ENG_2T_new.axc"

Run($filename & " " & $params)
Sleep(3000)

AutoItSetOption("WinTitleMatchMode", 4)

$handle = WinGetHandle("classname=AxaptaClientClassName")
If $error Then
    MsgBox(4096, "Error", "Could not find the correct window")
    Exit
EndIf

WinWaitActive($handle)
ControlSend($handle, "", "Edit1", "mylogin")
ControlSend($handle, "", "Edit2", "mypassword")
ControlClick($handle, "", "Button1")

Thanks very much in advance.


Share this post


Link to post
Share on other sites
martin

Hi,

I'm very new to AutoIt: I've just started my first script.

I want my script to open an application (Axapta) and that works.

On opening Axapta shows a login window. The script sends login and password. This also works (or at least it seems to).

Then the script clicks to Logon button. This also works as Axapta replies.

It's the reply that troubles me. Axapta says the password is wrong, which I doubt.

If I copy it from the script and paste it into the password textbox, Axapta does accept it.

I've gone through both the manual and lots of topics on passwords in this subforum, but to no avail.

Could anyone help me out on what I'm doing wrong, please?

My code so far:

Dim $filename
Dim $params
Dim $error

$filename = "C:\Program Files\Navision\Axapta Client 3SP4\Bin\ax32.exe"
$params = "\\leuven1\data\apps\axaptacl\iconen\2T\dolmen\Axapta_Dolmen_ENG_2T_new.axc"

Run($filename & " " & $params)
Sleep(3000)

AutoItSetOption("WinTitleMatchMode", 4)

$handle = WinGetHandle("classname=AxaptaClientClassName")
If $error Then
    MsgBox(4096, "Error", "Could not find the correct window")
    Exit
EndIf

WinWaitActive($handle)
ControlSend($handle, "", "Edit1", "mylogin")
ControlSend($handle, "", "Edit2", "mypassword")
ControlClick($handle, "", "Button1")

Thanks very much in advance.

I don't know, but your script is not quite right. $error is not ever going to be true; you need to remove the declaration and instead use @error. (See the help for WinGetHandle)

Is the title of the window actually "classname=AxaptaClientClassName"?

Or are you intending to have "[CLASS:AxaptaClientClassName]"? But presumably you have got that correct if the login name is entered ok.

Maybe the password has special characters in it which are interpreted by ControlSend, (assuming that "mypassword" is not what you actually use.) in which case you need

ControlSend($handle,"","Edit2","my+password",1)


Serial port communications UDF Includes functions for binary transmission and reception.printing UDF Useful for graphs, forms, labels, reports etc.Add User Call Tips to SciTE for functions in UDFs not included with AutoIt and for your own scripts.Functions with parameters in OnEvent mode and for Hot Keys One function replaces GuiSetOnEvent, GuiCtrlSetOnEvent and HotKeySet.UDF IsConnected2 for notification of status of connected state of many urls or IPs, without slowing the script.

Share this post


Link to post
Share on other sites
Roebie

Hi Martin,

I don't know, but your script is not quite right. $error is not ever going to be true; you need to remove the declaration and instead use @error. (See the help for WinGetHandle)

You're right of course about $error being wrong.

Is the title of the window actually "classname=AxaptaClientClassName"?

Or are you intending to have "[CLASS:AxaptaClientClassName]"? But presumably you have got that correct if the login name is entered ok.

No, the title is not "classname=AxaptaClientClassName". According to the example in the help for WinGetHandle this code is correct.

After reading "Windows Titles and Text (Advanced)" in the help (see the link Title special definition in the help for WinGetHandle),

I suppose my way of writing it is deprecated. I should probably use

Dim $filename
Dim $params

$filename = "C:\Program Files\Navision\Axapta Client 3SP4\Bin\ax32.exe"
$params = "\\leuven1\data\apps\axaptacl\iconen\2T\dolmen\Axapta_Dolmen_ENG_2T_new.axc"

Run($filename & " " & $params)
Sleep(3000)

$handle = WinGetHandle("[CLASS:AxaptaClientClassName]")
If @error Then
    MsgBox(4096, "Error", "Could not find the correct window")
    Exit
EndIf

WinWaitActive($handle)
ControlSend($handle, "", "Edit1", "mylogin")
ControlSend($handle, "", "Edit2", "mypassword")
ControlClick($handle, "", "Button1")

Maybe the password has special characters in it which are interpreted by ControlSend, (assuming that "mypassword" is not what you actually use.) in which case you need

ControlSend($handle,"","Edit2","my+password",1)

LOL, it's not "mypassword". But as in "mypassword" it does not contain any special characters, only the range [a-zA-Z0-9].

I've tried the 1 flag anyway, but that didn't help.

I also tried a suggestion made by the help on ControlSend to give focus to my Edit2 control first and that helped.

So the code looks like this now:

...
WinWaitActive($handle)
ControlSend($handle, "", "Edit1", "mylogin")
ControlFocus($handle, "", "Edit2")
ControlSend($handle, "", "Edit2", "mypassword")
ControlClick($handle, "", "Button1")

Thanks for you suggestions. They put me on the right track.

Share this post


Link to post
Share on other sites
Roebie

In case anyone has use for this, I made the code even shorter. This works too:

Dim $filename
Dim $params

$filename = "C:\Program Files\Navision\Axapta Client 3SP4\Bin\ax32.exe"
$params = "\\leuven1\data\apps\axaptacl\iconen\2T\dolmen\Axapta_Dolmen_ENG_2T_new.axc"

Run($filename & " " & $params)

WinWaitActive("[CLASS:AxaptaClientClassName]")
ControlSend("[LAST]", "", "Edit1", "mylogin")
ControlFocus("[LAST]", "", "Edit2")
ControlSend("[LAST]", "", "Edit2", "mypassword")
ControlClick("[LAST]", "", "Button1")
Edited by Roebie
