TrueSR

Cut png into pieces

Recommended Posts

TrueSR

Hey all,

I made a little script to cut png's into pieces, but it doesn't work like it should.

Here is an example and my script :

A png :

Posted Image

What I supposed to get after my script has run, is 4 png's :

The original, the left side, the right side and the center.

What I get :

The left side :

Posted Image

This is correct, this is exactly what i need.

The center :

Posted Image

It starts from the left, while it should display the center of the image, the size is correct.

The Right side is exactly the same as the left side.

Script :

#include <GDIPlus.au3>

; Load PNG file as GDI bitmap
_GDIPlus_Startup()
$gdi_pngSrc = @ScriptDir&"\back.png"
$gdi_hImage = _GDIPlus_ImageLoadFromFile($gdi_pngSrc)

; Extract image width and height from PNG
$gdi_imageWidth = _GDIPlus_ImageGetWidth($gdi_hImage)
$gdi_imageHeight = _GDIPlus_ImageGetHeight($gdi_hImage)

; Get Left, Right & Center from back.png
$gdi_hLeftImage = _ImageCut($gdi_hImage, 0, 0, 40, $gdi_imageHeight)
$gdi_hRightImage = _ImageCut($gdi_hImage, $gdi_imageWidth-40, 0, 40, $gdi_imageHeight)
$gdi_hCenterImage = _ImageCut($gdi_hImage, 40, 0, $gdi_imageWidth-80, $gdi_imageHeight)
_GDIPlus_ImageSaveToFile($gdi_hLeftImage, @ScriptDir&"\LEFT_1.png")
_GDIPlus_ImageSaveToFile($gdi_hRightImage, @ScriptDir&"\RIGHT_1.png")
_GDIPlus_ImageSaveToFile($gdi_hCenterImage, @ScriptDir&"\CENTER_1.png")

; Release resources
_GDIPlus_ImageDispose($gdi_hLeftImage)
_GDIPlus_ImageDispose($gdi_hRightImage)
_GDIPlus_ImageDispose($gdi_hCenterImage)
_GDIPlus_ImageDispose($gdi_hImage)

_GDIPlus_Shutdown()


Func _ImageCut($hImage, $iX, $iY, $iWidth, $iHeight)
    Local $iImageWidth, $iImageHeight, $hOldGC, $hNewGC, $hOldBmp, $hNewBmp
; Extract image width and height from PNG
    $iImageWidth = _GDIPlus_ImageGetWidth($hImage)
    $iImageHeight = _GDIPlus_ImageGetHeight($hImage)
; Create New image
    $hOldGC = _GDIPlus_ImageGetGraphicsContext($hImage); Get GC from $hImage
    $hOldBmp = _GDIPlus_BitmapCreateFromGraphics($iImageWidth, $iImageHeight, $hOldGC); Create Bmp from the old GC
    $hNewBmp = _GDIPlus_BitmapCloneArea($hOldBmp, $iX, $iY, $iWidth, $iHeight, $GDIP_PXF32ARGB); Get Piece of Bmp
    $hNewGC = _GDIPlus_ImageGetGraphicsContext($hNewBmp); Get GC from new created Bmp
    _GDIPlus_GraphicsDrawImage($hNewGC, $hImage, 0, 0); Draw the image, i don't really know why you have to use $hImage
    _GDIPlus_GraphicsDispose($hOldGC)
    _GDIPlus_GraphicsDispose($hNewGC)
    _GDIPlus_BitmapDispose($hOldBmp)
    Return $hNewBmp
EndFunc

It might be a small bug in my script that I just don't see, sorry if it is.

Thanks in advance.

Edited by TrueSR

Share this post


Link to post
Share on other sites
Malkey

Hey all,

I made a little script to cut png's into pieces, but it doesn't work like it should.

Here is an example and my script :

A png :

Posted Image

What I supposed to get after my script has run, is 4 png's :

The original, the left side, the right side and the center.

What I get :

The left side :

Posted Image

This is correct, this is exactly what i need.

The center :

Posted Image

It starts from the left, while it should display the center of the image, the size is correct.

The Right side is exactly the same as the left side.

Script :

#include <GDIPlus.au3>

; Load PNG file as GDI bitmap
_GDIPlus_Startup()
$gdi_pngSrc = @ScriptDir&"\back.png"
$gdi_hImage = _GDIPlus_ImageLoadFromFile($gdi_pngSrc)

; Extract image width and height from PNG
$gdi_imageWidth = _GDIPlus_ImageGetWidth($gdi_hImage)
$gdi_imageHeight = _GDIPlus_ImageGetHeight($gdi_hImage)

; Get Left, Right & Center from back.png
$gdi_hLeftImage = _ImageCut($gdi_hImage, 0, 0, 40, $gdi_imageHeight)
$gdi_hRightImage = _ImageCut($gdi_hImage, $gdi_imageWidth-40, 0, 40, $gdi_imageHeight)
$gdi_hCenterImage = _ImageCut($gdi_hImage, 40, 0, $gdi_imageWidth-80, $gdi_imageHeight)
_GDIPlus_ImageSaveToFile($gdi_hLeftImage, @ScriptDir&"\LEFT_1.png")
_GDIPlus_ImageSaveToFile($gdi_hRightImage, @ScriptDir&"\RIGHT_1.png")
_GDIPlus_ImageSaveToFile($gdi_hCenterImage, @ScriptDir&"\CENTER_1.png")

; Release resources
_GDIPlus_ImageDispose($gdi_hLeftImage)
_GDIPlus_ImageDispose($gdi_hRightImage)
_GDIPlus_ImageDispose($gdi_hCenterImage)
_GDIPlus_ImageDispose($gdi_hImage)

_GDIPlus_Shutdown()


Func _ImageCut($hImage, $iX, $iY, $iWidth, $iHeight)
    Local $iImageWidth, $iImageHeight, $hOldGC, $hNewGC, $hOldBmp, $hNewBmp
; Extract image width and height from PNG
    $iImageWidth = _GDIPlus_ImageGetWidth($hImage)
    $iImageHeight = _GDIPlus_ImageGetHeight($hImage)
; Create New image
    $hOldGC = _GDIPlus_ImageGetGraphicsContext($hImage); Get GC from $hImage
    $hOldBmp = _GDIPlus_BitmapCreateFromGraphics($iImageWidth, $iImageHeight, $hOldGC); Create Bmp from the old GC
    $hNewBmp = _GDIPlus_BitmapCloneArea($hOldBmp, $iX, $iY, $iWidth, $iHeight, $GDIP_PXF32ARGB); Get Piece of Bmp
    $hNewGC = _GDIPlus_ImageGetGraphicsContext($hNewBmp); Get GC from new created Bmp
    _GDIPlus_GraphicsDrawImage($hNewGC, $hImage, 0, 0); Draw the image, i don't really know why you have to use $hImage
    _GDIPlus_GraphicsDispose($hOldGC)
    _GDIPlus_GraphicsDispose($hNewGC)
    _GDIPlus_BitmapDispose($hOldBmp)
    Return $hNewBmp
EndFunc

It might be a small bug in my script that I just don't see, sorry if it is.

Thanks in advance.

Try this:-

#include <GDIPlus.au3>

; Load PNG file as GDI bitmap
_GDIPlus_Startup()
$gdi_pngSrc = @ScriptDir & "\back.png"
$gdi_hImage = _GDIPlus_ImageLoadFromFile($gdi_pngSrc)

; Extract image width and height from PNG
$gdi_imageWidth = _GDIPlus_ImageGetWidth($gdi_hImage)
$gdi_imageHeight = _GDIPlus_ImageGetHeight($gdi_hImage)

; Get Left, Right & Center from back.png
$gdi_hLeftImage = _ImageCut($gdi_hImage, 0, 0, 40, $gdi_imageHeight)
$gdi_hRightImage = _ImageCut($gdi_hImage, $gdi_imageWidth - 40, 0, 40, $gdi_imageHeight)
$gdi_hCenterImage = _ImageCut($gdi_hImage, 40, 0, $gdi_imageWidth - 80, $gdi_imageHeight)
_GDIPlus_ImageSaveToFile($gdi_hLeftImage, @ScriptDir & "\LEFT_1.png")
_GDIPlus_ImageSaveToFile($gdi_hRightImage, @ScriptDir & "\RIGHT_1.png")
_GDIPlus_ImageSaveToFile($gdi_hCenterImage, @ScriptDir & "\CENTER_1.png")

; Release resources
_WinAPI_DeleteObject($gdi_hLeftImage)
_WinAPI_DeleteObject($gdi_hRightImage)
_WinAPI_DeleteObject($gdi_hCenterImage)
_GDIPlus_ImageDispose($gdi_hImage)

_GDIPlus_Shutdown()


Func _ImageCut($hImage, $iX, $iY, $iWidth, $iHeight)
    Local $iImageWidth, $iImageHeight, $hOldGC, $hNewGC, $hOldBmp, $hNewBmp

    $iImageWidth = _GDIPlus_ImageGetWidth($hImage)
    $iImageHeight = _GDIPlus_ImageGetHeight($hImage)
    ; Create New image
    $hNewBmp = _GDIPlus_BitmapCloneArea($hImage, $iX, $iY, $iWidth, $iHeight, $GDIP_PXF32ARGB); Get Piece of Bmp
    $hNewGC = _GDIPlus_ImageGetGraphicsContext($hNewBmp); Get GC from new created Bmp
    _GDIPlus_GraphicsDispose($hNewGC)
    Return $hNewBmp
EndFunc   ;==>_ImageCut

Share this post


Link to post
Share on other sites
Malkey

I just realized the script can be further condensed.

#include <GDIPlus.au3>

; Load PNG file as GDI bitmap
_GDIPlus_Startup()
$gdi_pngSrc = @ScriptDir & "\back.png"
$gdi_hImage = _GDIPlus_ImageLoadFromFile($gdi_pngSrc)

; Extract image width and height from PNG
$gdi_imageWidth = _GDIPlus_ImageGetWidth($gdi_hImage)
$gdi_imageHeight = _GDIPlus_ImageGetHeight($gdi_hImage)

; Get Left, Right & Center from back.png
$gdi_hLeftImage = _GDIPlus_BitmapCloneArea($gdi_hImage, 0, 0, 40, $gdi_imageHeight, $GDIP_PXF32ARGB)
$gdi_hRightImage = _GDIPlus_BitmapCloneArea($gdi_hImage, $gdi_imageWidth - 40, 0, 40, $gdi_imageHeight, $GDIP_PXF32ARGB)
$gdi_hCenterImage = _GDIPlus_BitmapCloneArea($gdi_hImage, 40, 0, $gdi_imageWidth - 80, $gdi_imageHeight, $GDIP_PXF32ARGB)
_GDIPlus_ImageSaveToFile($gdi_hLeftImage, @ScriptDir & "\LEFT_1.png")
_GDIPlus_ImageSaveToFile($gdi_hRightImage, @ScriptDir & "\RIGHT_1.png")
_GDIPlus_ImageSaveToFile($gdi_hCenterImage, @ScriptDir & "\CENTER_1.png")

; Release resources
_WinAPI_DeleteObject($gdi_hLeftImage)
_WinAPI_DeleteObject($gdi_hRightImage)
_WinAPI_DeleteObject($gdi_hCenterImage)
_GDIPlus_ImageDispose($gdi_hImage)

_GDIPlus_Shutdown()

Share this post


Link to post
Share on other sites
TrueSR

I just realized the script can be further condensed.

#include <GDIPlus.au3>

; Load PNG file as GDI bitmap
_GDIPlus_Startup()
$gdi_pngSrc = @ScriptDir & "\back.png"
$gdi_hImage = _GDIPlus_ImageLoadFromFile($gdi_pngSrc)

; Extract image width and height from PNG
$gdi_imageWidth = _GDIPlus_ImageGetWidth($gdi_hImage)
$gdi_imageHeight = _GDIPlus_ImageGetHeight($gdi_hImage)

; Get Left, Right & Center from back.png
$gdi_hLeftImage = _GDIPlus_BitmapCloneArea($gdi_hImage, 0, 0, 40, $gdi_imageHeight, $GDIP_PXF32ARGB)
$gdi_hRightImage = _GDIPlus_BitmapCloneArea($gdi_hImage, $gdi_imageWidth - 40, 0, 40, $gdi_imageHeight, $GDIP_PXF32ARGB)
$gdi_hCenterImage = _GDIPlus_BitmapCloneArea($gdi_hImage, 40, 0, $gdi_imageWidth - 80, $gdi_imageHeight, $GDIP_PXF32ARGB)
_GDIPlus_ImageSaveToFile($gdi_hLeftImage, @ScriptDir & "\LEFT_1.png")
_GDIPlus_ImageSaveToFile($gdi_hRightImage, @ScriptDir & "\RIGHT_1.png")
_GDIPlus_ImageSaveToFile($gdi_hCenterImage, @ScriptDir & "\CENTER_1.png")

; Release resources
_WinAPI_DeleteObject($gdi_hLeftImage)
_WinAPI_DeleteObject($gdi_hRightImage)
_WinAPI_DeleteObject($gdi_hCenterImage)
_GDIPlus_ImageDispose($gdi_hImage)

_GDIPlus_Shutdown()
Thank you very much ! Works great.

If i only knew it was this simple, i didn't even know you can use _GDIPlus_BitmapCloneArea on an loaded image without the converting to a bitmap...

Edited by TrueSR

Share this post


Link to post
Share on other sites
Mallikarjun

Hi all,

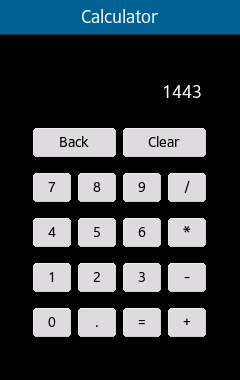

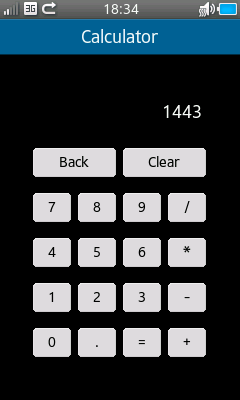

how to cut the top portion of the image......................Reply is should be appreciate..

Share this post


Link to post
Share on other sites
Mallikarjun

Thanks . I got it ..........................

Share this post


Link to post
Share on other sites
Mallikarjun

Hi,

I have a problem to cut the multiple images from the folder, plz check this code and tel me what is the wrong this code....................

..Problem is its not cutting and saving the all the image file from the folder..plz help me ..Reply should be appreciate..

Global $imgFile = "C:autoitTestcaseHistory" &@MDAY & @MON & @YEAR & "_" &@HOUR & @MIN &@SEC&".bmp"

Func imgcut1()

;$gdi_pngSrc = "C:ImagesCalculatorCalculator_09112011_150408.bmp"

;$file2=_FileListToArray("C:image2","*.bmp",1)

For $i=1 To 7

_GDIPlus_Startup()

$filesToArraylist=_FileListToArray("C:ImagesCalculator","*.bmp",1)

$Imagefiles = _GDIPlus_ImageLoadFromFile("C:ImagesCalculator" & $filesToArraylist[$i])

;MsgBox(0, "", $gdi_hImage)

; Extract image width and height from PNG

$Width = _GDIPlus_ImageGetWidth($Imagefiles)

$Height = _GDIPlus_ImageGetHeight($Imagefiles)

MsgBox(0, "", $gdi_pngSrc[$i])

; Get Left, Right & Center from back.png

$Topimgcut = _GDIPlus_BitmapCloneArea($gdi_hImage, 0, 20,$Width,$Height - 20, $GDIP_PXF32ARGB)

_GDIPlus_ImageSaveToFile($Topimgcut, $imgFile)

; Release resources

_WinAPI_DeleteObject($Topimgcut)

_GDIPlus_ImageDispose($Imagefiles)

Next

_GDIPlus_Shutdown()

EndFunc

Thanks&Regards

Mallikarjun

Edited by Mallikarjun

Share this post


Link to post
Share on other sites
Malkey

Try this.

#include <GDIPlus.au3>
#include <File.au3>

Local $sFolder = "C:\Images\Calculator\" ; @TempDir & "\" ;
Local $aFilesToArraylist = _FileListToArray($sFolder, "*.bmp", 1)

For $j = 1 To UBound($aFilesToArraylist) - 1
    ;ConsoleWrite($aFilesToArraylist[$j] & @LF)
    _ImageCut($ImageFileSrc, 7)
Next

; Cut Image file name, $SrceFile, into $NumPieces number of pieces.
; Returns $NumPieces files e.g. if $SrceFile = "c:\dir\image.bmp" with $NumPieces = 3 then 3 files will be returned
; named "c:\dir\image_00.bmp", "c:\dir\image_01.bmp", and "c:\dir\image_03.bmp"
Func _ImageCut($SrceFile, $NumPieces)
    Local $gdi_CutImage
    _GDIPlus_Startup()
    Local $gdi_hImage = _GDIPlus_ImageLoadFromFile($SrceFile)
    Local $gdi_imageWidth = _GDIPlus_ImageGetWidth($gdi_hImage)
    Local $gdi_imageHeight = _GDIPlus_ImageGetHeight($gdi_hImage)
    ConsoleWrite($gdi_imageWidth & " x " & $gdi_imageHeight & @LF)
    For $i = 0 To $NumPieces - 1
        $gdi_CutImage = _GDIPlus_BitmapCloneArea($gdi_hImage, 0, Int($gdi_imageHeight * $i / $NumPieces), $gdi_imageWidth, Ceiling($gdi_imageHeight / $NumPieces), $GDIP_PXF32ARGB)
        ;ConsoleWrite(0 & " " & Int($gdi_imageHeight * $i / $NumPieces) & "  " & $gdi_imageWidth & " " & Int($gdi_imageHeight * ($i + 1) / $NumPieces) & @LF)
        _GDIPlus_ImageSaveToFile($gdi_CutImage, StringRegExpReplace($SrceFile, "(.+\\)(.+)(\..*)", "$1${2}_" & StringRight("0" & $i, 2) & "$3"))
        _WinAPI_DeleteObject($gdi_CutImage)
    Next

    _GDIPlus_ImageDispose($gdi_hImage)
    _GDIPlus_Shutdown()
EndFunc   ;==>_ImageCut

Share this post


Link to post
Share on other sites
Mallikarjun

Hi, Malkey,

Thanks for Reply..............I want to cut the Top portion of the images and store it in to the same folder..... from your example i am not getting where the images are getting store

Please see the attached images..

#include <GDIPlus.au3>

#include<file.au3>

_GDIPlus_Startup()

;$gdi_pngSrc = @ScriptDir & "arjun1.bmp"

$gdi_pngSrc=_FileListToArray("C:ImagesCalculator","*.bmp",1)

;$file2=_FileListToArray("C:image2","*.bmp",1)

For $i=1 To $i=3

$gdi_hImage = _GDIPlus_ImageLoadFromFile($gdi_pngSrc[$i])

;MsgBox(0, "", $gdi_hImage)

; Extract image width and height from PNG

$gdi_imageWidth = _GDIPlus_ImageGetWidth($gdi_hImage)

$gdi_imageHeight = _GDIPlus_ImageGetHeight($gdi_hImage)

;MsgBox(0, "", $gdi_pngSrc[$i])

$TopImage1 = _GDIPlus_BitmapCloneArea($gdi_hImage, 0, 20,$gdi_imageWidth,$gdi_imageHeight - 20, $GDIP_PXF32ARGB)

_GDIPlus_ImageSaveToFile($TopImage1, $gdi_pngSrc) ;Here i want to save the images in same folder from which i would have taken,

_WinAPI_DeleteObject($TopImage1)

Next

_GDIPlus_ImageDispose($gdi_hImage)

_GDIPlus_Shutdown()

Thanks..

Mallikarjun

Befoure Cutting.bmp

After cutting.bmp

Edited by Mallikarjun

Share this post


Link to post
Share on other sites
Malkey

Referring to the For - Next loop. Instead of "UBound($gdi_pngSrc) - 1" being used, the first element of the array returned from _FileListToArray(), namely $gdi_pngSrc[0], could have been used.

#include <GDIPlus.au3>
#include<file.au3>
#include <Array.au3>

Local $gdi_hImage, $gdi_imageWidth, $gdi_imageHeight, $TopImage1

_GDIPlus_Startup()
;$gdi_pngSrc = @ScriptDir & "arjun1.bmp"
Local $gdi_pngSrc = _FileListToArray("C:ImagesCalculator", "*.bmp", 1)
;$file2=_FileListToArray("C:image2","*.bmp",1)

If IsArray($gdi_pngSrc) Then
    _ArrayDisplay($gdi_pngSrc) ; View contents of $gdi_pngSrc
Else
    MsgBox(0, "Error", "Files not found in directory")
EndIf

For $i = 1 To UBound($gdi_pngSrc) - 1

    $gdi_hImage = _GDIPlus_ImageLoadFromFile("C:ImagesCalculator" & $gdi_pngSrc[$i])

    ;MsgBox(0, "", $gdi_hImage)

    ; Extract image width and height from PNG
    $gdi_imageWidth = _GDIPlus_ImageGetWidth($gdi_hImage)
    $gdi_imageHeight = _GDIPlus_ImageGetHeight($gdi_hImage)
    ;MsgBox(0, "", $gdi_pngSrc[$i])

    $TopImage1 = _GDIPlus_BitmapCloneArea($gdi_hImage, 0, 20, $gdi_imageWidth, $gdi_imageHeight - 20, $GDIP_PXF32ARGB)

    _GDIPlus_ImageSaveToFile($TopImage1, "C:ImagesCalculatorimageTop" & $i & ".bmp") ; If not full path of file given then file is saved in script directory.

    _WinAPI_DeleteObject($TopImage1)
Next

_GDIPlus_ImageDispose($gdi_hImage)
_GDIPlus_Shutdown()

Edit: Added full file path to _GDIPlus_ImageLoadFromFile() function.

Edited by Malkey

Share this post


Link to post
Share on other sites
Mallikarjun

Thanks Mr. Malkey,

Its working exact as per my requirement thank u very much :D .................................

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
Sign in to follow this

×
