Yet Again SysListView32 issue

[hangama]

Hi,

I have gone through the forum, and found some answers which were supposed to solve my problem. I am a beginner, say 1 day old.

I have one application which has this SysListView32 control showing stocks data. I would like to get those stock data.

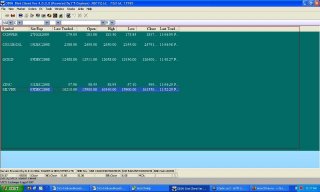

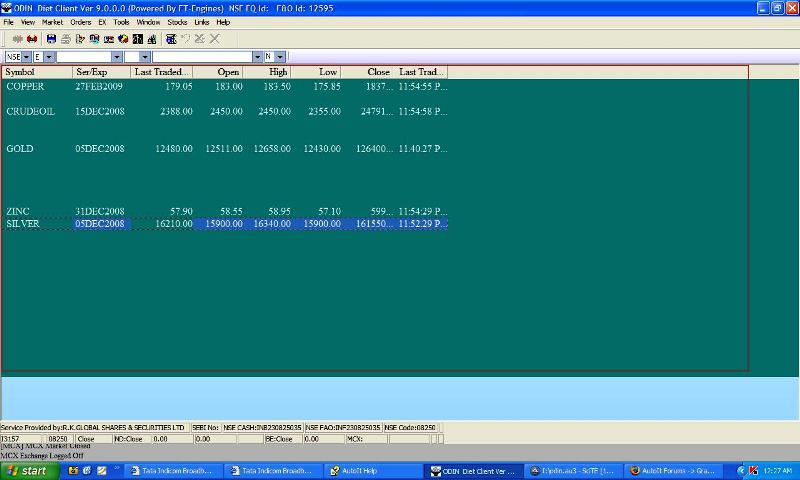

Attached is the snapshot of the application.

I have this code with me. I am able to get the itemcount/rowcount and column count properly, but when I do getItemText, I get only blanks.

#Include <WinAPI.au3>
#Include <GuiListView.au3>
local $handle, $var
local $title, $classDetails
$title = "ODIN  Diet Client Ver 9.0.0.0 "
$classDetails = "[CLASS:SysListView321; INSTANCE:1; ID:59648; CLASSNN:SysListView321]"
$handle = WinGetHandle($title)
local $listview,  $header
$listview = ControlGetHandle($title,"", $classDetails)
$header = _GUICtrlListView_GetHeader($listview)
local $rowcount
$rowcount = _GUICtrlListView_GetItemCount($listview)
local $columncount
$columncount = _GUICtrlListView_GetColumnCount($listview)
$var = ControlListView($title,"",$classDetails, "GetItemCount")
MsgBox(0,"Item Count",$var)
$var = ControlListView($title,"",$classDetails, "GetText",0,0)
MsgBox(0,"",$var)

Is my SubItem number correct. Kindly help me in clearing this.

The details about the control.

expandcollapse popup

>>>> Window <<<<
Title:  ODIN  Diet Client Ver 9.0.0.0 (Powered By FT-Engines)  NSE EQ Id:   F&O Id: 12595
Class:  Afx:400000:8:10011:0:1b01c9
Position:   -4, -4
Size:   1288, 746
Style:  0x15CF0000
ExStyle:    0x00000100
Handle: 0x000E0266

>>>> Control <<<<
Class:  SysListView32
Instance:   1
ClassnameNN:    SysListView321
Advanced (Class):   [CLASS:SysListView32; INSTANCE:1]
ID: 59648
Text:
Position:   2, 57
Size:   1280, 369
ControlClick Coords:    398, 144
Style:  0x5000040D
ExStyle:    0x00000000
Handle: 0x0006023A

>>>> Mouse <<<<
Position:   400, 247
Cursor ID:  0
Color:  0xFF0000

>>>> StatusBar <<<<
1:

>>>> Visible Text <<<<
Market Watch - COMM Quantity is in Term of  MCX:- Lots
NSE
E
N
N
ND:Close


>>>> Hidden Text <<<<
NDXSpot Ticker
Integrated Ticker

Thanks

[Zedna]

Try to use

$classDetails = "SysListView321"

There was some bug for situation you defined more informations in [] for control identification

[pranksterguru]

ok. i know its a very old thread.

but, i am also facing the same issue. i used the class type given by Zedna, but no use.

GetItemCount works perfectly but GetText always returns null. please help !!

[KaFu]

Maybe this remark from the help-file for ControlListView() applies to your situation?

"Some commands may fail when using a 32-bit AutoIt process to read from a 64-bit process. Likewise commands may fail when using a 64-bit AutoIt process to read from a 32-bit process."

[pranksterguru]

thanks for the quick reply..

my computer is 32 bit and my O/S and application is 32bit. i even tested this on my laptop which was born before 62bit existance.

to give more background of this situation, i have tried to get the text of this listview using API programming and UI programming and reading application memory and i had the same problem!! i am now trying AutoIt as my friend suggested that this works on all application.

do you think they are smart enough to control the data from being accessed from external application?

[pranksterguru]

not sure if this will help you but here you go... information regarding the control i am trying to access.

>>>> Window <<<<

Title: Angel Diet Contact us : 33551111 Email: ebroking@angelbroking.com (Powered By FT-Engines)

Class: Afx:00400000:8:00010003:00000000:4C3701F3

Position: -8, -8

Size: 1296, 1010

Style: 0x15CF0000

ExStyle: 0x00000100

Handle: 0x000F0398

>>>> Control <<<<

Class: SysListView32

Instance: 1

ClassnameNN: SysListView321

Name:

Advanced (Class): [CLASS:SysListView32; INSTANCE:1]

ID: 59648

Text:

Position: 10, 104

Size: 1264, 452

ControlClick Coords: 362, 182

Style: 0x5010040D

ExStyle: 0x00000000

Handle: 0x00010642

>>>> Mouse <<<<

Position: 372, 328

Cursor ID: 0

Color: 0x000000

>>>> StatusBar <<<<

1:

>>>> ToolsBar <<<<

>>>> Visible Text <<<<

BANKNIFT - Market Watch

Connection Toolbar

NSE

E

N

>>>> Hidden Text <<<<

NDXSpot Ticker

Condition Ticker

Integrated Ticker

Chart Line Toolbar

CE

N

F

CE

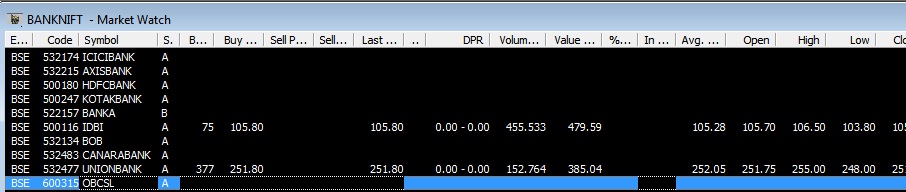

attaching the actual control's picture..!!

[Zedna]

Post your code ...

[adityaparakh]

Bump !
Facing same issue.
And same app ODIN Diet.

Tried to compile both

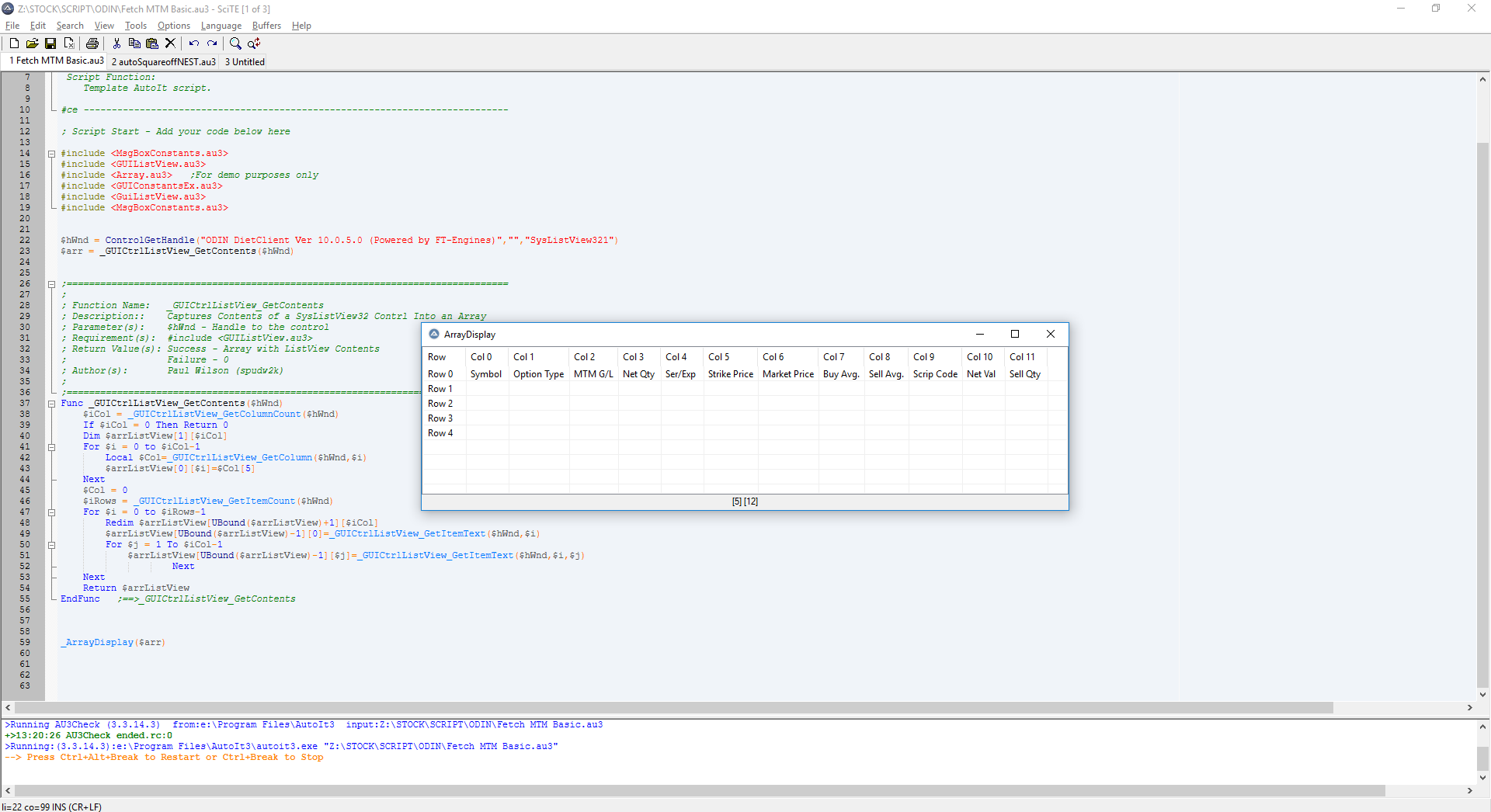

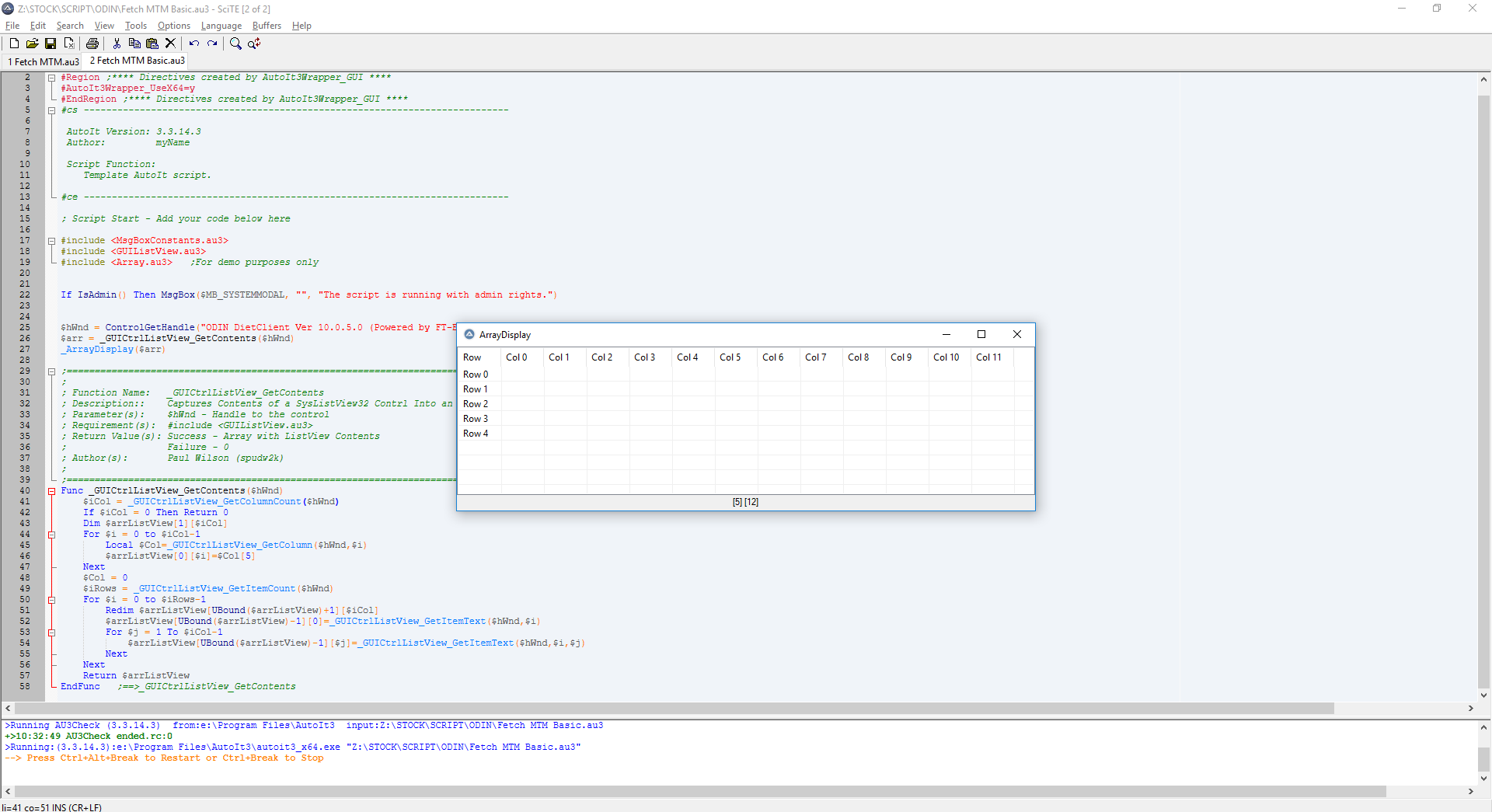

x86 - Data is blank. Header is displayed. Row Count and Column count are correct.
x64 - Data is blank. Header is blank. Row Count and Column count are correct.


expandcollapse popup

#include <MsgBoxConstants.au3>
#include <GUIListView.au3>
#include <Array.au3>   ;For demo purposes only
#include <GUIConstantsEx.au3>
#include <GuiListView.au3>
#include <MsgBoxConstants.au3>


$hWnd = ControlGetHandle("ODIN DietClient Ver 10.0.5.0 (Powered by FT-Engines)","","SysListView322")
$arr = _GUICtrlListView_GetContents($hWnd)


;===============================================================================
;
; Function Name:   _GUICtrlListView_GetContents
; Description::    Captures Contents of a SysListView32 Contrl Into an Array
; Parameter(s):    $hWnd - Handle to the control
; Requirement(s):  #include <GUIListView.au3>
; Return Value(s): Success - Array with ListView Contents
;                  Failure - 0
; Author(s):       Paul Wilson (spudw2k)
;
;===============================================================================
Func _GUICtrlListView_GetContents($hWnd)
    $iCol = _GUICtrlListView_GetColumnCount($hWnd)
    If $iCol = 0 Then Return 0
    Dim $arrListView[1][$iCol]
    For $i = 0 to $iCol-1
        Local $Col=_GUICtrlListView_GetColumn($hWnd,$i)
        $arrListView[0][$i]=$Col[5]
    Next
    $Col = 0
    $iRows = _GUICtrlListView_GetItemCount($hWnd)
    For $i = 0 to $iRows-1
        Redim $arrListView[UBound($arrListView)+1][$iCol]
        $arrListView[UBound($arrListView)-1][0]=_GUICtrlListView_GetItemText($hWnd,$i)
        For $j = 1 To $iCol-1
            $arrListView[UBound($arrListView)-1][$j]=_GUICtrlListView_GetItemText($hWnd,$i,$j)
                    Next
    Next
    Return $arrListView
EndFunc   ;==>_GUICtrlListView_GetContents



_ArrayDisplay($arr)



[Jos]

@adityaparakh,

Could you stop being impatient and NOT Cross-post your question while you have your own topic already open?
This is a very impolite and annoying behaviour!

Jos

[adityaparakh]

1 minute ago, Jos said:

@adityaparakh,

Could you stop being impatient and NOT Cross-post your question while you have your own topic already open?
This is a very impolite and annoying behaviour!

Jos

Ok , Sorry about that.
Been searching the forum.
Thought it might be relevant and wanted to highlight it to members  in this thread as well , as it was more specific to the issue.

Please dont mind. Apologize if it violates the Forum decorum.

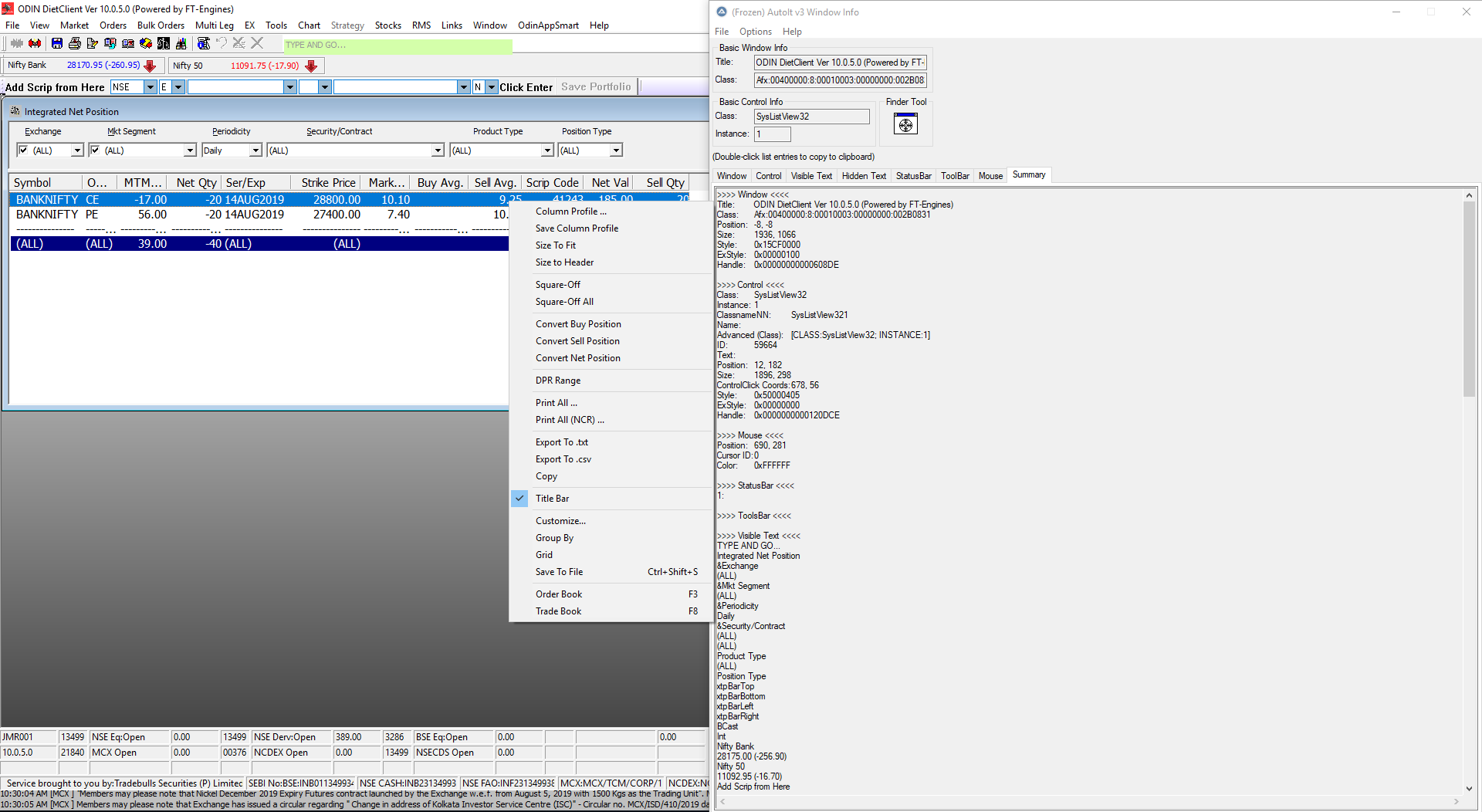

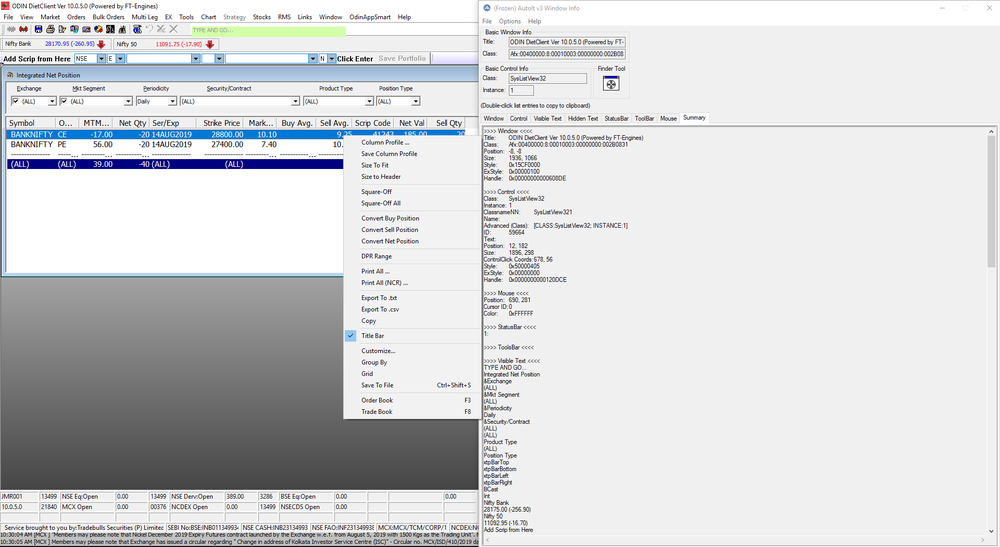

Can you please help. I am trying with Simple Spy / UI Automation.
