Voltage Regulator Calculator (LM317)

6 posts in this topic

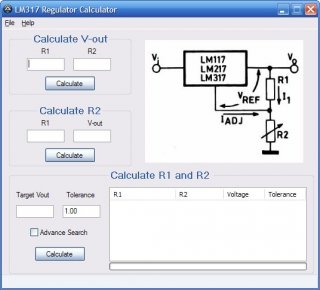

Heres my latest calculator for the LM317 voltage or current regulator. Just like my Resistance Calculator it includes an option to import a custom list of resistors. This is a very handy option when you only have certain resistor values and you want to find a Voltage output made up of only resistors you actually have. The "How to Use" section should explain everything you need to know about the calculator.(I Hope).. Please leave feedback on any suggestions or problems you might have. Thanks for looking.

#include <ButtonConstants.au3>
#include <EditConstants.au3>
#include <GUIConstantsEx.au3>
#include <GUIListBox.au3>
#include <ProgressConstants.au3>
#include <StaticConstants.au3>
#include <WindowsConstants.au3>
#include <array.au3>
#include <file.au3>
#include <GuiListView.au3>
#include <GuiStatusBar.au3>
#include <GuiEdit.au3>

$Gui = GUICreate("LM317 Regulator Calculator", 530, 453)
$I_V_R1 = GUICtrlCreateInput("", 42, 48, 63, 21)
$I_V_R2 = GUICtrlCreateInput("", 120, 48, 63, 21)
$Label1 = GUICtrlCreateLabel("R1", 66, 30, 18, 17)
$Label2 = GUICtrlCreateLabel("R2", 144, 30, 18, 17)
$B_Vcalc = GUICtrlCreateButton("Calculate", 72, 78, 85, 25, 0)
$Pic1 = GUICtrlCreatePic(@ScriptDir & '\voltage pic.jpg', 240, 18, 265, 205, BitOR($SS_NOTIFY, $WS_GROUP, $WS_CLIPSIBLINGS))
$Group1 = GUICtrlCreateGroup("Calculate V-out", 12, 6, 205, 103, $BS_CENTER)
GUICtrlSetFont(-1, 12, 800, 0, "MS Sans Serif")
GUICtrlCreateGroup("", -99, -99, 1, 1)
Global $List1 = GUICtrlCreateListView("R1|R2|Voltage|Tolerance", 180, 264, 331, 124)
_GUICtrlListView_SetColumnWidth ($List1, 0, 110)
_GUICtrlListView_SetColumnWidth ($List1, 1, 80)
_GUICtrlListView_SetColumnWidth ($List1, 2, 69)
_GUICtrlListView_SetColumnWidth ($List1, 3, 68)
Global $Progress1 = GUICtrlCreateProgress(180, 390, 331, 13, $PBS_SMOOTH)
$Group2 = GUICtrlCreateGroup("Calculate R2", 12, 126, 205, 103, $BS_CENTER)
GUICtrlSetFont(-1, 12, 800, 0, "MS Sans Serif")
GUICtrlCreateGroup("", -99, -99, 1, 1)
$I_R2_R1 = GUICtrlCreateInput("", 42, 168, 63, 21)
$I_R2_V = GUICtrlCreateInput("", 120, 168, 63, 21)
$Label3 = GUICtrlCreateLabel("R1", 66, 150, 18, 17)
$Label4 = GUICtrlCreateLabel("V-out", 144, 150, 29, 17)
$B_R2calc = GUICtrlCreateButton("Calculate", 72, 198, 85, 25, 0)
$I_TargetV = GUICtrlCreateInput("", 24, 294, 63, 21)
$Label5 = GUICtrlCreateLabel("Target Vout", 26, 270, 60, 17)
$I_Tolerance = GUICtrlCreateInput("1.00", 102, 294, 63, 21)
$Label6 = GUICtrlCreateLabel("Tolerance %", 104, 270, 60, 17)
$Checkbox1 = GUICtrlCreateCheckbox("Advanced Search", 48, 330, 103, 19)
$Group3 = GUICtrlCreateGroup("Calculate R1 and R2 ", 12, 234, 511, 175, $BS_CENTER)
GUICtrlSetFont(-1, 12, 800, 0, "MS Sans Serif")
$B_TargetV = GUICtrlCreateButton("Calculate", 55, 363, 85, 25, 0)
GUICtrlCreateGroup("", -99, -99, 1, 1)
$MenuItem1 = GUICtrlCreateMenu("&File")
$MenuItem6 = GUICtrlCreateMenu("&Help")
$MenuItem7 = GUICtrlCreateMenuitem("How to Use", $MenuItem6)
$MenuItem8 = GUICtrlCreateMenuitem("About", $MenuItem6)
$MenuItem2 = GUICtrlCreateMenuitem("Import Custom Resistor List", $MenuItem1)
$MenuItem3 = GUICtrlCreateMenuitem("Load Default Values", $MenuItem1)
$MenuItem5 = GUICtrlCreateMenuitem("View Loaded Resistor Values", $MenuItem1)
$MenuItem9 = GUICtrlCreateMenuitem("Current Regulator Calculator", $MenuItem1)
$MenuItem4 = GUICtrlCreateMenuitem("Exit", $MenuItem1)
Global $StatusBar1 = _GUICtrlStatusBar_Create ($Gui)
_GUICtrlStatusBar_SetMinHeight ($StatusBar1, 19)
GUISetState(@SW_SHOW)
Global $D_Resistors, $R1_Resistors, $ExtraR1s_Check = 0, $loadedvalues = 'Default Values'
_Load_Default_Values($D_Resistors)
_GUICtrlListView_RegisterSortCallBack ($List1)


While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $MenuItem7
            _Howtouse()
        Case $MenuItem9
            GUISetState(@SW_HIDE, $Gui)
            _Calc_Current()
            GUISetState(@SW_SHOW, $Gui)
        Case $List1
            _GUICtrlListView_SortItems ($List1, GUICtrlGetState($List1))
        Case $MenuItem3
            _Load_Default_Values($D_Resistors)
            $loadedvalues = 'Default Values'
            MsgBox(0, $loadedvalues & ' Imported!', UBound($D_Resistors) & ' Values have been Loaded')
            $ExtraR1s_Check = 0
        Case $MenuItem8
            MsgBox(0, 'About', 'LM317 Regulator Calculator' & @LF & @LF & 'Version 1.0' & @LF & @LF & 'Writen by Brian J Christy')
        Case $GUI_EVENT_CLOSE
            Exit
        Case $MenuItem4
            Exit
        Case $B_Vcalc
            $vR1 = GUICtrlRead($I_V_R1)
            $vR2 = GUICtrlRead($I_V_R2)
            _Format_View2Value($vR1)
            _Format_View2Value($vR2)
            $CalcV = _Calc_Voltage($vR1 & ',' & $vR2)
            MsgBox(0, 'Voltage', 'Vout = ' & $CalcV)
        Case $B_R2calc
            $rR1 = GUICtrlRead($I_R2_R1)
            _Format_View2Value($rR1)
            $R2 = _Calc_R2(GUICtrlRead($I_R2_V), $rR1)
            MsgBox(0, 'Resistor 2', 'R2 Value = ' & $R2)
        Case $B_TargetV
            Global $timeS = TimerInit()
            GUICtrlSetData($Progress1, 0)
            _GUICtrlListView_DeleteAllItems ($List1)
            _GUICtrlStatusBar_Destroy ($StatusBar1)
            $R1_Resistors = _V_R1_List($D_Resistors)
            Select
                Case GUICtrlRead($Checkbox1) = $GUI_CHECKED
                    If $ExtraR1s_Check = 0 Then
                        $R1_Resistors_Ext = $R1_Resistors
                        $StatusBar1 = _GUICtrlStatusBar_Create ($Gui)
                        _GUICtrlStatusBar_SetMinHeight ($StatusBar1, 19)
                        _GUICtrlStatusBar_SetText ($StatusBar1, '  Generating Extended R1 Values....')
                        _Find_R1_Extras1($D_Resistors, $R1_Resistors_Ext)
                        _GUICtrlStatusBar_Destroy ($StatusBar1)
                        $ExtraR1s_Check = 1
                    EndIf
                    $StatusBar1 = _GUICtrlStatusBar_Create ($Gui)
                    _GUICtrlStatusBar_SetMinHeight ($StatusBar1, 19)
                    _GUICtrlStatusBar_SetText ($StatusBar1, '  Performing Search....')
                    $values = _Find_Voltages_Extended($R1_Resistors_Ext, $D_Resistors, GUICtrlRead($I_TargetV), GUICtrlRead($I_Tolerance))
                    _GUICtrlStatusBar_Destroy ($StatusBar1)
                Case GUICtrlRead($Checkbox1) = $GUI_UNCHECKED
                    $StatusBar1 = _GUICtrlStatusBar_Create ($Gui)
                    _GUICtrlStatusBar_SetMinHeight ($StatusBar1, 19)
                    _GUICtrlStatusBar_SetText ($StatusBar1, '  Performing Search....')
                    $values = _Find_Voltages($R1_Resistors, $D_Resistors, GUICtrlRead($I_TargetV), GUICtrlRead($I_Tolerance))
            EndSelect
            Global $B_DESCENDING[_GUICtrlListView_GetColumnCount ($List1) ]
            _GUICtrlListView_SimpleSort ($List1, $B_DESCENDING, 3)
            _GUICtrlStatusBar_Destroy ($StatusBar1)
            $StatusBar1 = _GUICtrlStatusBar_Create ($Gui)
            _GUICtrlStatusBar_SetMinHeight ($StatusBar1, 19)
            _GUICtrlStatusBar_SetText ($StatusBar1, '  Finished!      Search took ' & Round((TimerDiff($timeS) / 1000), 2) & ' Seconds.        Combinations Found = ' & _GUICtrlListView_GetItemCount ($List1))
        Case $MenuItem5
            Dim $Atemp = $D_Resistors
            For $i = 0 To UBound($Atemp) - 1
                _Format_Value2View($Atemp[$i])
            Next
            _ArrayDisplay($Atemp, $loadedvalues)
        Case $MenuItem2
            Dim $R_Values_Temp
            _Import_Custom_Values($R_Values_Temp)
            If IsArray($R_Values_Temp) = 1 Then
                $D_Resistors = $R_Values_Temp
                $ExtraR1s_Check = 0
                $loadedvalues = 'Custom Values'
                MsgBox(0, 'Custom Values Imported!', UBound($D_Resistors) & ' Values have been Loaded')
            Else
                ContinueLoop
            EndIf
    EndSwitch
WEnd

Func _Howtouse()
    Local $hEdit, $hGUI, $HnMsg
    $hGUI = GUICreate("How to Use", 400, 270)
    $hEdit = GUICtrlCreateEdit("", 2, 2, 394, 260, BitOR($ES_WANTRETURN, $WS_VSCROLL))
    _GUICtrlEdit_SetMargins($hEdit, BitOR($EC_LEFTMARGIN, $EC_RIGHTMARGIN), 10, 10)
    _GUICtrlEdit_SetText($hEdit, '-General-' & @CRLF & 'All resistors imported or entered into any inputbox can be abbriviated with ' & _
    'a K for thousand or M for million. The Default Resistor Values include all values found in the RadioShack Assortment Pack. ' & _
    'Imported custom resistor lists must a .txt file and can only have one value per line.'& _
    @CRLF & @CRLF &'-R1 and R2 Calculator- '& @CRLF & 'This section of the Calculator will search the current loaded resistor list for ' & _
    'R1 and R2 combinations that equal the target voltage ouput that you select for the regulator. R1 will always be returned ' & _
    'in the range of 100 to 1000 ohms. When using the advanced search option R1 will be returned in the following format. ' & _
    '--> $R1 = (R,R). $R1 is equal to the two Resistors in parenthesis connected in parallel.' & @CRLf & @CRLf & _
    '-Current Calculator-' & @CRLf & 'Target Values are enter in as Amps. So if you want 10mA you must enter .010' )
    _GUICtrlEdit_SetReadOnly($hEdit, True)
    GUISetState(@SW_SHOW)
        While 1
        $HnMsg = GUIGetMsg()
        Switch $HnMsg
            Case $GUI_EVENT_CLOSE
                GUIDelete($hGUI)
                ExitLoop
        EndSwitch
    WEnd
    Return
EndFunc

Func _Calc_R2($Vout, $R1)
    Local $R2
    $R2 = ((($Vout / 1.25) - 1) * $R1)
    Return $R2
EndFunc   ;==>_Calc_R2

Func _Find_R1_Extras1($dResistors, ByRef $r1s)
    Local $done, $string, $combo[1], $iSet2[1], $iset = 2
    Local $rEx[1][2], $i = 0, $a, $pValue, $string, $max, $b = 0, $count = 0
    Do
        If $dResistors[$i] > 1000 Then ExitLoop
        If $dResistors[$i] < 100 Then
            _ArrayDelete($dResistors, $i)
            $i -= 1
        EndIf
        $i += 1
    Until $i = UBound($dResistors)
    For $i = 0 To $iset - 1
        _ArrayAdd($iSet2, '0')
    Next
    _ArrayDelete($iSet2, 0)
    Do
        $string = ''
        For $i = 0 To UBound($iSet2) - 1
            $string &= $dResistors[$iSet2[$i]] & ','
        Next
        $string = StringTrimRight($string, 1)
        $pValue = _Parallel_Value($string)
        If BitAND($pValue < 1000, $pValue > 100) Then
            $max = UBound($rEx)
            ReDim $rEx[$max + 1][2]
            $rEx[$b][0] = $pValue
            $rEx[$b][1] = $string
            $b += 1
        EndIf
        $count += 1
        _Shift($dResistors, $iSet2, $done)
    Until $done = 1
    _ArrayDelete($rEx, UBound($rEx))
    For $i = 0 To UBound($r1s) - 1
        $max = UBound($rEx)
        ReDim $rEx[$max + 1][2]
        $rEx[$max][0] = $r1s[$i]
        $rEx[$max][1] = ';' & $r1s[$i]
    Next
    $r1s = $rEx
    Return $r1s
EndFunc   ;==>_Find_R1_Extras1

Func _Shift(ByRef $array, ByRef $iset, ByRef $done)
    Local $l
    If $iset[0] = UBound($array) - 1 Then
        $done = 1
        Return
    EndIf
    $x = UBound($iset) - 1
    While $x <> 0
        If $iset[$x] <> UBound($array) - 1 Then
            $iset[$x] += 1
            Return
        EndIf
        $x -= 1
        If $iset[$x] <> UBound($array) - 1 Then
            $iset[$x] += 1
            $l = $x
            Do
                $iset[$l + 1] = $iset[$x]
                $l += 1
            Until $l = UBound($iset) - 1
            Return
        EndIf
    WEnd
EndFunc   ;==>_Shift

Func _Tolerance($value, $Target)
    Local $vTolerance
    Select
        Case $value > $Target
            $vTolerance = Round((($value - $Target) / $Target) * 100, 4)
        Case $value < $Target
            $vTolerance = Round((($Target - $value) / $Target) * 100, 4)
        Case $value = $Target
            $vTolerance = 0
    EndSelect
    Return $vTolerance
EndFunc   ;==>_Tolerance

Func _Find_Voltages($r1s, $Rs, $t_Voltage, $Tolerance)
    Local $array[1], $i, $a, $string, $voltage, $high, $low, $count = 0, $ProgressT = (UBound($Rs) * UBound($r1s))
    Local $tR1, $tR2, $pTolerance, $timertrack
    $high = $t_Voltage+ ($t_Voltage* ($Tolerance / 100))
    $low = $t_Voltage- ($t_Voltage* ($Tolerance / 100))
    For $i = 0 To UBound($r1s) - 1

        For $a = 0 To UBound($Rs) - 1
            $string = $r1s[$i] & ',' & $Rs[$a]
            $voltage = _Calc_Voltage($string)
            If BitAND(($voltage <= $high) , ($voltage >= $low)) Then
                $pTolerance = _Tolerance($voltage, $t_Voltage)
                $tR1 = $r1s[$i]
                $tR2 = $Rs[$a]
                _Format_Value2View($tR2)
                _Format_Value2View($tR1)
                GUICtrlCreateListViewItem($tR1 & '|' & $tR2 & '|' & $voltage & '|' & $pTolerance & '%', $List1)
            EndIf
            $count += 1
            If $timeS >= $timertrack Then
                GUICtrlSetData($Progress1, ($count / $ProgressT) * 100)
                $timertrack += 50
            EndIf
        Next
    Next
    Return $array
EndFunc   ;==>_Find_Voltages

Func _Find_Voltages_Extended($r1s, $Rs, $t_Voltage, $Tolerance)
    Local $array[1], $i, $a, $string, $voltage, $high, $low, $count = 0, $ProgressT = (UBound($Rs) * UBound($r1s))
    Local $tR1, $tR2, $left, $pTolerance, $ptimertrack = 0, $ltimertrack = 0
    $high = $t_Voltage+ ($t_Voltage* ($Tolerance / 100))
    $low = $t_Voltage- ($t_Voltage* ($Tolerance / 100))
    For $i = 0 To UBound($r1s) - 1
        For $a = 0 To UBound($Rs) - 1
            $string = $r1s[$i][0] & ',' & $Rs[$a]
            $voltage = _Calc_Voltage($string)
            If BitAND(($voltage <= $high) , ($voltage >= $low)) Then
                $pTolerance = _Tolerance($voltage, $t_Voltage)
                $left = StringLeft($r1s[$i][1], 1)
                $tR2 = $Rs[$a]
                _Format_Value2View($tR2)
                If $left = ';' Then
                    GUICtrlCreateListViewItem($r1s[$i][0] & '|' & $tR2 & '|' & $voltage & '|' & $pTolerance & '%', $List1)
                Else
                    $tR1 = $r1s[$i][1]
                    $tR1 = _Stringformat($tR1, 0)
                    GUICtrlCreateListViewItem($r1s[$i][0] & ' = (' & $tR1 & ')' & '|' & $tR2 & '|' & $voltage & '|' & $pTolerance & '%', $List1)
                EndIf
            EndIf
            $count += 1
            If $timeS >= $ptimertrack Then
                GUICtrlSetData($Progress1, ($count / $ProgressT) * 100)
                $ptimertrack += 100
            EndIf
        Next
    Next
    Return
EndFunc   ;==>_Find_Voltages_Extended

Func _Stringformat($string, $type)
    Local $Atemp, $newString
    $string = StringReplace($string, ' ', '')
    $Atemp = StringSplit($string, ',')
    If $type = 0 Then
        For $i = 1 To $Atemp[0]
            _Format_Value2View($Atemp[$i])
            $newString &= $Atemp[$i] & ','
        Next
        $newString = StringTrimRight($newString, 1)
        Return $newString
    EndIf
    If $type = 1 Then
        For $i = 1 To $Atemp[0]
            _Format_View2Value($Atemp[$i])
            $newString &= $Atemp[$i] & ','
        Next
        $newString = StringTrimRight($newString, 1)
        Return $newString
    EndIf
EndFunc   ;==>_Stringformat

Func _Calc_Current()
    Local $Resistor, $T_Current, $wattage, $Form1c, $Pic1c, $Label1c, $Label2c, $Input1c, $Button1c, $Label3c, $Label4c, $Label5c
    $Form1c = GUICreate("Current Regulator", 251, 239, 431, 321)
    $Pic1c = GUICtrlCreatePic(@ScriptDir & '\current pic.jpg', 18, 12, 211, 97, BitOR($SS_NOTIFY, $WS_GROUP, $WS_CLIPSIBLINGS))
    $Label1c = GUICtrlCreateLabel("", 12, 180, 225, 17)
    $Label2c = GUICtrlCreateLabel("", 12, 204, 226, 17)
    $Input1c = GUICtrlCreateInput("", 30, 144, 73, 21)
    $Button1c = GUICtrlCreateButton("Calculate", 126, 138, 91, 25, 0)
    $Label3c = GUICtrlCreateLabel("Target Current", 30, 127, 72, 17)
    GUISetState(@SW_SHOW)
    While 1
        $nMsg = GUIGetMsg()
        Switch $nMsg
            Case $GUI_EVENT_CLOSE
                GUIDelete($Form1c)
                ExitLoop
            Case $Button1c
                $T_Current = GUICtrlRead($Input1c)
                $Resistor = Round((1.25 / $T_Current), 3)
                $wattage = Round(($T_Current ^ 2) * $Resistor, 2)
                GUICtrlSetData($Label1c, "Resistor Value = " & $Resistor & ' ohms')
                GUICtrlSetData($Label2c, "Resistor Power Rating >= " & $wattage & ' Watts')
        EndSwitch
    WEnd
    Return
EndFunc   ;==>_Calc_Current

Func _V_R1_List($R_Array)
    Local $array[1], $i
    For $i = 0 To UBound($R_Array) - 1
        If $R_Array[$i] >= 100 Then
            _ArrayAdd($array, $R_Array[$i])
        EndIf
        If $R_Array[$i] > 1000 Then
            _ArrayDelete($array, $i)
            _ArrayDelete($array, 0)
            Return $array
        EndIf
    Next

EndFunc   ;==>_V_R1_List

Func _Calc_Voltage($Resistors)
    Local $voltage, $array
    $Resistors = StringReplace($Resistors, ' ', '')
    $array = StringSplit($Resistors, ',')
    $voltage = 1.25* (1+ (Number($array[2]) / Number($array[1])))
    Return Round($voltage, 3)
EndFunc   ;==>_Calc_Voltage

Func _Format_View2Value(ByRef $value)
    If StringInStr($value, 'k') <> 0 Then
        $value = StringReplace($value, 'k', '')
        $value *= 1000
    EndIf
    If StringInStr($value, 'm') <> 0 Then
        $value = StringReplace($value, 'm', '')
        $value *= 1000000
    EndIf
    Return $value
EndFunc   ;==>_Format_View2Value

Func _Format_Value2View(ByRef $value)
    Local $count
    $count = StringLen($value)
    Select
        Case $count > 6
            $value = (Number($value) / 1000000) & 'M'
            Return
        Case $count > 3
            If StringInStr($value, '.') <> 0 Then Return
            $value = (Number($value) / 1000) & 'K'
            Return
    EndSelect
EndFunc   ;==>_Format_Value2View

Func _Load_Default_Values(ByRef $RadioShack)
    Local $T_RadioShack[65] = [1, 2.2, 10, 15, 22, 33, 39, 47, 51, 68, 82, 100, 120, 150, 180, 220, 270, 300, 330, _
            390, 470, 510, 560, 680, 820, 1000, 1200, 1500, 1800, 2200, 2700, 3000, 3300, 3900, 4700, 5100, 5600, _
            6800, 8200, 10000, 12000, 15000, 18000, 22000, 27000, 33000, 39000, 47000, 51000, 56000, 68000, 82000, _
            100000, 120000, 150000, 180000, 220000, 270000, 330000, 1000000, 1500000, 2200000, 3300000, 4700000, 10000000]
    $RadioShack = $T_RadioShack
EndFunc   ;==>_Load_Default_Values

Func _Import_Custom_Values(ByRef $Custom)
    Local $R_V_Check, $file
    $file = FileOpenDialog("Select File to Import", @ScriptDir & "\", "Text files (*.txt)", 1)
    If $file = '' Then Return
    _FileReadToArray($file, $R_V_Check)
    _ArrayDelete($R_V_Check, 0)
    _ArrayDeleteBlanks($R_V_Check)
    For $i = 0 To UBound($R_V_Check) - 1
        $R_V_Check[$i] = Number(_Format_View2Value($R_V_Check[$i]))
    Next
    _ArraySort($R_V_Check, 0)
    $Custom = $R_V_Check
EndFunc   ;==>_Import_Custom_Values

Func _ArrayDeleteBlanks(ByRef $array)
    $i = 0
    Do
        If $array[$i] = '' Then
            _ArrayDelete($array, $i)
            $i -= 1
        EndIf
        $i += 1
    Until $i = UBound($array)
EndFunc   ;==>_ArrayDeleteBlanks

Func _Parallel_Value($Resistors)
    Local $string, $array
    $Resistors = StringReplace($Resistors, ' ', '')
    $array = StringSplit($Resistors, ',')
    For $i = 1 To $array[0]
        $string += (1 / $array[$i])
        If $i = $array[0] Then $string = 1 / $string
    Next
    If $string < 5 Then
        $string = Round($string, 4)
    Else
        $string = Round($string, 2)
    EndIf
    Return $string
EndFunc   ;==>_Parallel_Value


Voltage_Regulator_Calculator.zip

Share this post


Link to post
Share on other sites



Very nice. I wish I still had my Physics class. This would really help.


[left][sub]We're trapped in the belly of this horrible machine.[/sub][sup]And the machine is bleeding to death...[/sup][sup][/sup][/left]

Share this post


Link to post
Share on other sites

Nice indeed.

"Current source" or "Constant current" for that part would be maybe more correct. But only maybe.

Min, max values definitely.

5 from me.


♡♡♡

.

eMyvnE

Share this post


Link to post
Share on other sites

I like it! Would be cool to layout the the inputs on the image where they are relevant.. Just a thought.. :)

Share this post


Link to post
Share on other sites

#5 ·  Posted (edited)

I don't know if you can use this or not. I use it in my LED resistor calculator to get the next highest standard resistor value after the proper exact value has been calculated.

;
Func _NextHigherStandard($iR_Ohms)
   Local $iPower10 = 1, $sUnits
   While $iR_ohms > 8.2
      $iPower10 *= 10
      $iR_Ohms /= 10
   Wend
   If $iR_Ohms < 1.0 Then
      $iR_Ohms = 1.0
   ElseIf $iR_Ohms < 1.2 Then
      $iR_Ohms = 1.2
   ElseIf $iR_Ohms < 1.5 Then
      $iR_Ohms = 1.5
   ElseIf $iR_Ohms < 1.8 Then
      $iR_Ohms = 1.8
   ElseIf $iR_Ohms < 2.2 Then
      $iR_Ohms = 2.2
   ElseIf $iR_Ohms < 2.7 Then
      $iR_Ohms = 2.7
   ElseIf $iR_Ohms < 3.3 Then
      $iR_Ohms = 3.3
   ElseIf $iR_Ohms < 3.9 Then
      $iR_Ohms = 3.9
   ElseIf $iR_Ohms < 4.7 Then
      $iR_Ohms = 4.7
   ElseIf $iR_Ohms < 5.6 Then
      $iR_Ohms = 5.6
   ElseIf $iR_Ohms < 6.8 Then
      $iR_Ohms = 6.8
   Else
      $iR_Ohms = 8.2
   EndIf
   If $iPower10 >= 1000000 Then
      $sUnits = " Mega-ohm"
      $iPower10 /= 1000000
   ElseIf $iPower10 >= 1000 Then
      $sUnits = " Kilo-ohm"
      $iPower10 /= 1000
   Else
      $sUnits = " Ohm"
   EndIf
   $iR_Ohms *= $iPower10
   Return Round($iR_Ohms, 3) & $sUnits
EndFunc ;<==> _NextHigherStandard()
;
Edited by GEOSoft

George

Question about decompiling code? Read the decompiling FAQ and don't bother posting the question in the forums.

Be sure to read and follow the forum rules. -AKA the AutoIt Reading and Comprehension Skills test.***

The PCRE (Regular Expression) ToolKit for AutoIT - (Updated Oct 20, 2011 ver:3.0.1.13) - Please update your current version before filing any bug reports. The installer now includes both 32 and 64 bit versions. No change in version number.

Visit my Blog .. currently not active but it will soon be resplendent with news and views. Also please remove any links you may have to my website. it is soon to be closed and replaced with something else.

"Old age and treachery will always overcome youth and skill!"

Share this post


Link to post
Share on other sites

Thanks guys for looking and ideas. Geosoft, I like that find closest value Function. Ill save that. I know ill use it in the future or add it somehow to my resistance calculator. Thanks

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!


Register a new account

Sign in

Already have an account? Sign in here.


Sign In Now
Sign in to follow this
Followers 0
