Indigo

Window Info Control Style

10 posts in this topic

I am trying to automate a login process, but the screen I see while logging in does not register any pixel colors. All PixelGetColor(x,y) return white for the entire window. The screen does some checking for updates and the login button is disabled until the updates are complete. This update process can take 15 second or several minutes. The only difference I can see between disabled and enabled is the Control's Style property changes from 0x5E00000D (disabled) to 0x5600000D (enabled). How can I access this property from my AutoIt script?

I have the handle to the button(/image):

$handle = ControlGetHandle("Magic Online", "", "[CLASS:WindowsForms10.STATIC.app.0.378734a; INSTANCE:3]")

Share this post


Link to post
Share on other sites



Something like this:

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
Opt('MustDeclareVars', 1)

Global $hButton1, $hButton2, $hButton3, $iIs, $iStyle

GUICreate("GUI", -1, 120)

$hButton1 = GUICtrlCreateButton("Check State", 10, 30, 110)
$hButton2 = GUICtrlCreateButton("Change Style/State", 10, 70, 110)
$hButton3 = GUICtrlCreateButton("Test Button", 200, 40, 130, 40)

GUISetState()


While 1
    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            ExitLoop
        Case $hButton1
            $iStyle = _GetWindowStyle(GUICtrlGetHandle($hButton3))
            ConsoleWrite("Style of Test Button " & Ptr($iStyle) & @CRLF)
            If BitAND($iStyle, $WS_DISABLED) Then
                MsgBox(64, "Test Button is...", "Disabled")
            Else
                MsgBox(64, "Test Button is...", "Enabled")
            EndIf
        Case $hButton2
            If $iIs Then
                GUICtrlSetState($hButton3, $GUI_ENABLE)
                $iIs = False
            Else
                GUICtrlSetState($hButton3, $GUI_DISABLE)
                $iIs = True
            EndIf
        Case $hButton3
            ; nothing
    EndSwitch
WEnd



Func _GetWindowStyle($hWnd)

    Local $a_iCall = DllCall("user32.dll", "int", "GetWindowLong", _
            "hwnd", $hWnd, _
            "int", -16) ; GWL_STYLE

    If @error Or Not $a_iCall[0] Then
        Return SetError(1, 0, 0)
    EndIf

    Return SetError(0, 0, $a_iCall[0])

EndFunc   ;==>_GetWindowStyle

♡♡♡

.

eMyvnE

Share this post


Link to post
Share on other sites

trancexx,

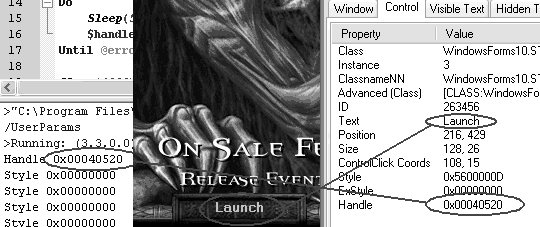

Thanks for the quick reply. I attempted to add your _GetWindowStyle function to my code. Attached is a screen print of the results. As you can see this application is far from a normal windows program, but somehow the AutoIt Windows Info application can see the Style of it. It seems as if I am getting the correct handle for the control, but the _GetWindowStyle simply return 0x00000000. I would appreciate any further thought you might have on the subject.

Indigo

Share this post


Link to post
Share on other sites

ooops, the image would help...

#include <GUIConstantsEx.au3>

#include <WindowsConstants.au3>

Global $handle, $iStyle, $Paused

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

HotKeySet("^{PAUSE}", "Terminate")

HotKeySet("{PAUSE}", "TogglePause")

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

Run("C:\Program Files\Wizards of the Coast\Magic Online III\Renamer.exe", "C:\Program Files\Wizards of the Coast\Magic Online III")

WinActivate("Magic Online")

WinActive("Magic Online")

Do

Sleep(500)

$handle = ControlGetHandle("Magic Online", "", "[CLASS:WindowsForms10.STATIC.app.0.378734a; INSTANCE:3]")

Until @error = 0

Sleep(1000)

ConsoleWrite("Handle " & Ptr($handle) & @CRLF)

Do

$iStyle = _GetWindowStyle(GUICtrlGetHandle($handle))

ConsoleWrite("Style " & Ptr($iStyle) & @CRLF)

Sleep(2000)

Until $iStyle = 0x5600000D

msgbox(0,"autoit", $iStyle)

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

Func _GetWindowStyle($hWnd)

Local $a_iCall = DllCall("user32.dll", "int", "GetWindowLong", _

"hwnd", $hWnd, _

"int", -16) ; GWL_STYLE

If @error Or Not $a_iCall[0] Then

Return SetError(1, 0, 0)

EndIf

Return SetError(0, 0, $a_iCall[0])

EndFunc ;==>_GetWindowStyle


Share this post


Link to post
Share on other sites

Try to call it with the handle without GuiCtrlGetHandle, just with the handle you got:

$iStyle = _GetWindowStyle($handle)

Share this post


Link to post
Share on other sites

Something like this:

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
Opt('MustDeclareVars', 1)

Global $hButton1, $hButton2, $hButton3, $iIs, $iStyle

GUICreate("GUI", -1, 120)

$hButton1 = GUICtrlCreateButton("Check State", 10, 30, 110)
$hButton2 = GUICtrlCreateButton("Change Style/State", 10, 70, 110)
$hButton3 = GUICtrlCreateButton("Test Button", 200, 40, 130, 40)

GUISetState()


While 1
    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            ExitLoop
        Case $hButton1
            $iStyle = _GetWindowStyle(GUICtrlGetHandle($hButton3))
            ConsoleWrite("Style of Test Button " & Ptr($iStyle) & @CRLF)
            If BitAND($iStyle, $WS_DISABLED) Then
                MsgBox(64, "Test Button is...", "Disabled")
            Else
                MsgBox(64, "Test Button is...", "Enabled")
            EndIf
        Case $hButton2
            If $iIs Then
                GUICtrlSetState($hButton3, $GUI_ENABLE)
                $iIs = False
            Else
                GUICtrlSetState($hButton3, $GUI_DISABLE)
                $iIs = True
            EndIf
        Case $hButton3
            ; nothing
    EndSwitch
WEnd



Func _GetWindowStyle($hWnd)

    Local $a_iCall = DllCall("user32.dll", "int", "GetWindowLong", _
            "hwnd", $hWnd, _
            "int", -16) ; GWL_STYLE

    If @error Or Not $a_iCall[0] Then
        Return SetError(1, 0, 0)
    EndIf

    Return SetError(0, 0, $a_iCall[0])

EndFunc   ;==>_GetWindowStyle

I am having the exact same problem with an automated login script for Magic Online. The Launch Button is not enabled until the downloads are complete. AutoIt v3 Window Info detects only one change in the properties of the control. The style changes from 0x5E00000D (disabled) to 0x5600000D (enabled). However, when I use DllCall("user32.dll", "int", "GetWindowLong", "hwnd", $hWnd, "int", -16) to get that value, it returns 0x5600000D whether the control is actually enabled or not. I also tried to use PixelChecksum() to test for the change in the pixels when the button goes from grayed to not grayed, but PixelCheckSum() seems to completely ignore the Magic Online window. I've exhausted my ideas. Any help would be appreciated.

Share this post


Link to post
Share on other sites

bump please help me. :D

Share this post


Link to post
Share on other sites

bump for great justice

Share this post


Link to post
Share on other sites

Still can't do it. :D

Share this post


Link to post
Share on other sites

#10 ·  Posted (edited)

Hi,

I encountered the same problem (I couldn't get the correct value with the above function) and found a solution so I post it here in case it can help anyone.

I wrote this little function (quick & dirty) that uses the GetWindowInfo function of user32.dll (MSDN GetWindowInfo).

It can be improved by adding error control, but it shows you how to get the info you want.

You must use the handle to your control as parameter (e.g. with ControlGetHandle). It returns the style value as it can be seen in Au3info, but you can change it to get the ExStyle or anything else returned by GetWindowInfo.

$hnd = ControlGetHandle('MyWindow', '', 'MyButton')
GetButtonStyle($hnd)

Func GetButtonStyle($handle)
    Local $PWINDOWINFO = "DWORD cbSize;" & _
                    "LONG left1;" & _
                    "LONG top1;" & _
                    "LONG right1;" & _
                    "LONG bottom1;" & _
                    "LONG left2;" & _
                    "LONG top2;" & _
                    "LONG right2;" & _
                    "LONG bottom2;" & _
                    "DWORD dwStyle;" & _
                    "DWORD dwExStyle;" & _
                    "DWORD dwWindowStatus;" & _
                    "UINT cxWindowBorders;" & _
                    "UINT cyWindowBorders;" & _
                    "UINT atomWindowType;" & _
                    "WORD wCreatorVersion;"
    Local $Struct = DllStructCreate($PWINDOWINFO)
    DllCall("user32.dll", "int", "GetWindowInfo", "hwnd", $hnd, "ptr", DllStructGetPtr($Struct))
    Return Hex(DllStructGetData($Struct, "dwStyle"))
EndFunc
Edited by Sam83
