electrico

Background in my exe

10 posts in this topic

Hi everybody. I am new and noob. I looked through the posts about adding background to the exe, tryed UDF, but it is too difficult for me. Can you please help me to add the background image to my script. I will post code and image.

This is my code. Image is attached. If you see stupidness in the code, please be so kind to fix it. Hope you will :)

CODE

#Autoit3Wrapper_UseUpx=n

#AutoIt3Wrapper_Run_After=ResHacker.exe -add %out%, %out%, image1.jpg, rcdata, TEST_JPG_1, 0

#AutoIt3Wrapper_run_after=upx.exe --best --compress-resources=0 "%out%"

#include "GUIConstantsEx.au3"

#include "StaticConstants.au3"

#include "resources.au3"

GUICreate("AGLONA Party 2009", 800, 520)

$picl = GuiCtrlCreatePic ("", 0,0,400,150)

GuiCtrlSetState (-1, $GUI_DISABLE)

_ResourceSetImageToCtrl ($picl, "TEST_JPG_1")

$labell = GUICtrlCreateLabel ("this is label over image",00,10,400,25,$$_CENTER)

GuiCtrlSetFont (-1, 14)

GUICtrlSetColor(-1, 0xffff00)

GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT)

GUICtrlCreateGroup("Tusovka", 45, 30, 210, 260)

$CheckBox1 = GUICtrlCreateCheckbox("Oleg", 70, 45, 100, 20)

$CheckBox2 = GUICtrlCreateCheckbox("Romanich", 70, 75, 100, 20)

$CheckBox3 = GUICtrlCreateCheckbox("Zenjka", 70, 105, 100, 20)

$CheckBox4 = GUICtrlCreateCheckbox("Shurik", 70, 135, 100, 20)

$CheckBox5 = GUICtrlCreateCheckbox("Petro", 70, 165, 100, 20)

$CheckBox6 = GUICtrlCreateCheckbox("", 70, 195, 17, 17)

GUICtrlCreateLabel("Pashka", 87, 197, 100, 20)

GUICtrlSetColor(-1, 0xff0000)

GUICtrlCreateGroup("Rasschet produktov", 300, 30, 480, 260)

GuiCtrlSetColor (-1, 0x000000)

GUISetState()

While 1

$msg = GUIGetMsg()

If $msg = $GUI_EVENT_CLOSE Then ExitLoop

WEnd


Share this post


Link to post
Share on other sites



#3 ·  Posted (edited)

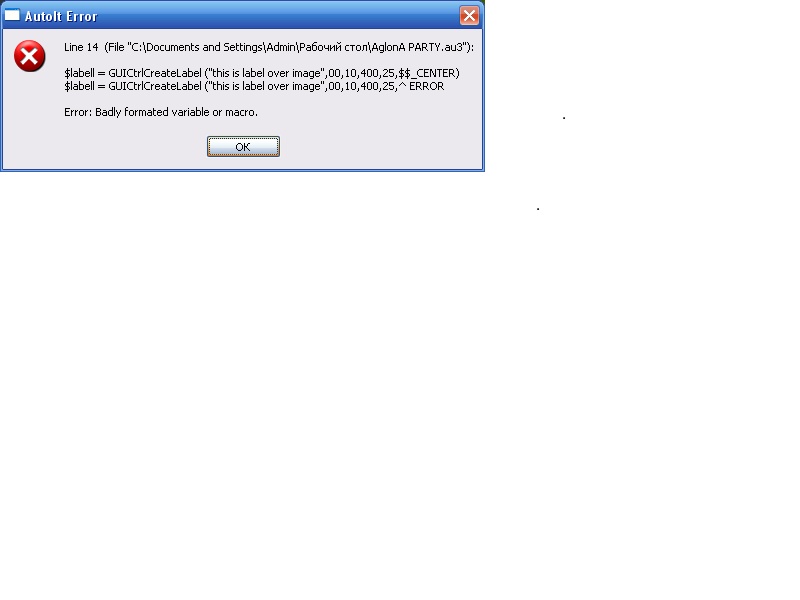

Zenda, are you sure the code is ok? I got an error, running the script.


Edited by electrico

Share this post


Link to post
Share on other sites

#4 ·  Posted (edited)

Here's another way...

#AutoIt3Wrapper_UseUpx=n
#AutoIt3Wrapper_Run_After=upx.exe --best --compress-resources=0 "%out%"

#include "GUIConstantsEx.au3"
#include "StaticConstants.au3"

$Logo_back = @TempDir & "\My-Back.jpg"
FileInstall("C:\Temp\My-back.jpg", $Logo_back) ; replace first parameter with the "Real" location of the picture

GUICreate("AGLONA Party 2009", 800, 520)
$picl = GUICtrlCreatePic($Logo_back, 0, 0, 400, 150)
GUICtrlSetState(-1, $GUI_DISABLE)
$labell = GUICtrlCreateLabel("this is label over image", 00, 10, 400, 25, $SS_CENTER)
GUICtrlSetFont(-1, 14)
GUICtrlSetColor(-1, 0xffff00)
GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT)
GUICtrlCreateGroup("Tusovka", 45, 30, 210, 260)
$CheckBox1 = GUICtrlCreateCheckbox("Oleg", 70, 45, 100, 20)
$CheckBox2 = GUICtrlCreateCheckbox("Romanich", 70, 75, 100, 20)
$CheckBox3 = GUICtrlCreateCheckbox("Zenjka", 70, 105, 100, 20)
$CheckBox4 = GUICtrlCreateCheckbox("Shurik", 70, 135, 100, 20)
$CheckBox5 = GUICtrlCreateCheckbox("Petro", 70, 165, 100, 20)
$CheckBox6 = GUICtrlCreateCheckbox("", 70, 195, 17, 17)
GUICtrlCreateLabel("Pashka", 87, 197, 100, 20)
GUICtrlSetColor(-1, 0xff0000)
GUICtrlCreateGroup("Rasschet produktov", 300, 30, 480, 260)
GUICtrlSetColor(-1, 0x000000)
GUISetState()


While 1
    $msg = GUIGetMsg()
    If $msg = $GUI_EVENT_CLOSE Then ExitLoop
WEnd

8)

Edited by Valuater


Share this post


Link to post
Share on other sites

#5 ·  Posted (edited)

Zenda, are you sure the code is ok? I got an error, running the script.

Use Scite and it will show you the error and the line it is on

you have...

$labell = GUICtrlCreateLabel ("this is label over image",00,10,400,25,$$_CENTER)

It should be....

$labell = GUICtrlCreateLabel("this is label over image", 00, 10, 400, 25, $SS_CENTER)

8)

Edited by Valuater


Share this post


Link to post
Share on other sites

#6 ·  Posted (edited)

Valuater, Zedna. Thank you all. Everything works fine with all two variants of code. Just help me how to make all my CheckBox variables white bacground, so they dont looks wrong in my added background of exe. :)

While you are replaying, (if you do) i will try to make it myself :party:

Edited by electrico

Share this post


Link to post
Share on other sites

Just do all the checkboxes like I showed you already

$CheckBox6 = GUICtrlCreateCheckbox("", 70, 195, 17, 17)
GUICtrlCreateLabel("Pashka", 87, 197, 100, 20)
GUICtrlSetColor(-1, 0xff0000) ; remove this for the others or use a different color
GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT) ; I just added this ( you used this above already )

8)



Share this post


Link to post
Share on other sites

#8 ·  Posted (edited)

Valuater, can you help me once more pls. I followed your advices and everything is Ok, but one thing isn't. It is like a small shadows around the checkboxes. I post this code, you can watch it yourself. Please help if you know how to remove this small checkbox surroundings.

CODE
#AutoIt3Wrapper_UseUpx=n

#AutoIt3Wrapper_Run_After=ResHacker.exe -add %out%, %out%, alus.jpg, rcdata, TEST_JPG_1, 0

#AutoIt3Wrapper_Run_After=upx.exe --best --compress-resources=0 "%out%"

#include "GUIConstantsEx.au3"

#include "StaticConstants.au3"

#include "resources.au3"

GUICreate("AGLONA Party 2009", 800, 520)

$picl = GUICtrlCreatePic("aglonaready.jpg", 0, 0, 800, 520)

GUICtrlSetState(-1, $GUI_DISABLE)

_ResourceSetImageToCtrl($picl, "TEST_JPG_1")

$labell = GUICtrlCreateLabel("", 00, 10, 400, 25, $SS_CENTER)

GUICtrlSetFont(-1, 14)

GUICtrlSetColor(-1, 0xffff00)

GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT)

GUICtrlCreateGroup("", 45, 35, 210, 260)

GuiCtrlCreateLabel("Òóñîâêà", 130, 27, 100, 20)

GUICtrlSetFont (-1, 9, 400)

GUICtrlSetBkColor (-1, $GUI_BKCOLOR_TRANSPARENT)

GUICtrlSetBkColor("Òóñîâêà", $GUI_BKCOLOR_TRANSPARENT)

$CheckBox1 = GUICtrlCreateCheckbox("", 70, 45, 17, 17)

GuiCtrlCreateLabel("Îëåã", 87, 47, 100, 20)

GUICtrlSetBkColor (-1, $GUI_BKCOLOR_TRANSPARENT)

GUICtrlSetBkColor("Îëåã", $GUI_BKCOLOR_TRANSPARENT)

$CheckBox2 = GUICtrlCreateCheckbox("", 70, 75, 17, 17)

GuiCtrlCreateLabel("Ðîìàíû÷", 87, 77, 100, 20)

GUICtrlSetBkColor (-1, $GUI_BKCOLOR_TRANSPARENT)

GUICtrlSetBkColor("Ðîìàíû÷", $GUI_BKCOLOR_TRANSPARENT)

$CheckBox3 = GUICtrlCreateCheckbox("", 70, 105, 17, 17)

GuiCtrlCreateLabel("Æåíüêà", 87, 107, 100, 20)

GUICtrlSetBkColor (-1, $GUI_BKCOLOR_TRANSPARENT)

GUICtrlSetBkColor("Æåíüêà", $GUI_BKCOLOR_TRANSPARENT)

$CheckBox4 = GUICtrlCreateCheckbox("", 70, 135, 17, 17)

GUICtrlCreateLabel("Øóðèê", 87, 137, 100, 20)

GUICtrlSetBkColor (-1, $GUI_BKCOLOR_TRANSPARENT)

GUICtrlSetBkColor("Øóðèê", $GUI_BKCOLOR_TRANSPARENT)

$CheckBox5 = GUICtrlCreateCheckbox("", 70, 165, 17, 17)

GuiCtrlCreateLabel("Ïåòðî", 87, 167, 100, 20)

GUICtrlSetBkColor (-1, $GUI_BKCOLOR_TRANSPARENT)

GUICtrlSetBkColor("Ïåòðî", $GUI_BKCOLOR_TRANSPARENT)

$CheckBox6 = GUICtrlCreateCheckbox("", 70, 195, 17, 17)

GUICtrlCreateLabel("Ïàâåë", 87, 197, 100, 20)

GUICtrlSetBkColor (-1, $GUI_BKCOLOR_TRANSPARENT)

GUICtrlSetBkColor("Ïàâåë", $GUI_BKCOLOR_TRANSPARENT)

GUICtrlSetColor(-1, 0xff0000)

GUICtrlSetBkColor (-1, $GUI_BKCOLOR_TRANSPARENT)

GUICtrlCreateGroup("", 300, 35, 460, 260)

GuiCtrlCreateLabel("Ðàññ÷¸ò ïðîäóêòîâ", 470, 27, 250, 20)

GUICtrlSetFont (-1, 9, 400, 0)

GUICtrlSetBkColor (-1, $GUI_BKCOLOR_TRANSPARENT)

GUICtrlSetBkColor("Ðàññ÷¸ò ïðîäóêòîâ", $GUI_BKCOLOR_TRANSPARENT)

;Input set Produkti i Toplivo

Local $input1, $input2, $input3, $input4, $input5, $input6, $input7, $input8

GuiCtrlCreateLabel ("Íàèìåíîâàíèå", 310, 45)

GuiCtrlSetBkColor (-1, $GUI_BKCOLOR_TRANSPARENT)

GuiCtrlSetColor (-1, 0x660000)

$input1 = GuiCtrlCreateInput ("", 310, 70, 100, 18)

$input2 = GuiCtrlCreateInput ("", 310, 100, 100, 18)

$input3 = GuiCtrlCreateInput ("", 310, 130, 100, 18)

$input4 = GuiCtrlCreateInput ("", 310, 160, 100, 18)

$input5 = GuiCtrlCreateInput ("", 310, 190, 100, 18)

$input6 = GuiCtrlCreateInput ("", 310, 220, 100, 18)

$input7 = GuiCtrlCreateInput ("", 310, 250, 100, 18)

GuiCtrlCreateLabel ("Òîïëèâî", 310, 300)

GuiCtrlSetFont (-1, 9, 400)

GuiCtrlSetColor (-1, 0x660000)

GUICtrlSetBkColor (-1, $GUI_BKCOLOR_TRANSPARENT)

$input8 = GuiCtrlCreateInput ("", 380, 300, 30, 20)

;Input end

;Input set Kolichestvo

Local $input9, $input10, $input11, $input12, $input13, $input14, $input15

GuiCtrlCreateLabel ("Êîëè÷åñòâî", 440, 45)

GUICtrlSetBkColor (-1, $GUI_BKCOLOR_TRANSPARENT)

GuiCtrlSetColor (-1, 0x660000)

$input9 = GuiCtrlCreateInput ("", 440, 70, 60, 18)

$input10 = GuiCtrlCreateInput ("", 440, 100, 60, 18)

$input11 = GuiCtrlCreateInput ("", 440, 130, 60, 18)

$input12 = GuiCtrlCreateInput ("", 440, 160, 60, 18)

$input13 = GuiCtrlCreateInput ("", 440, 190, 60, 18)

$input14 = GuiCtrlCreateInput ("", 440, 220, 60, 18)

$input15 = GuiCtrlCreateInput ("", 440, 250, 60, 18)

;Input end

;Input set Cena

Local $input16, $input17, $input18, $input19, $input20, $input21, $input22

GuiCtrlCreateLabel ("Öåíà", 530, 45)

GUICtrlSetBkColor (-1, $GUI_BKCOLOR_TRANSPARENT)

GuiCtrlSetColor (-1, 0x660000)

$input16 = GuiCtrlCreateInput ("", 530, 70, 40, 18)

$input17 = GuiCtrlCreateInput ("", 530, 100, 40, 18)

$input18 = GuiCtrlCreateInput ("", 530, 130, 40, 18)

$input19 = GuiCtrlCreateInput ("", 530, 160, 40, 18)

$input20 = GuiCtrlCreateInput ("", 530, 190, 40, 18)

$input21 = GuiCtrlCreateInput ("", 530, 220, 40, 18)

$input22 = GuiCtrlCreateInput ("", 530, 250, 40, 18)

;Input end

GUISetState()

While 1

$msg = GUIGetMsg()

If $msg = $GUI_EVENT_CLOSE Then ExitLoop

WEnd

Thank you !


Edited by electrico

Share this post


Link to post
Share on other sites

Just adjust the size of the control with the actual size of the ckeck-box

... example

$CheckBox1 = GUICtrlCreateCheckbox("", 70, 45, 13, 15)

8)



Share this post


Link to post
Share on other sites

You helped me. Thank you. Always at your service, if something needed.

Share this post


Link to post
Share on other sites
