nhardel

Having issues with TCP Client/Server setup

Recommended Posts

nhardel

I am having issues sending data in my test scripts. I use Kip's TCP.au3 to set everything up so I may have a variable overlapping somewhere. Looking for some guidence. I am able to get his example scripts to work which is what I based my work on. I am trying to have my clients in a sit and wait action until called and then have them call the server back. I have toyed with the idea with the client computers being the servers and having my actual data collection server be the client. Looking to use this in a 300+ network enviroment. Anyway back to my problem. All connections seem to go thru correctly but I never recieve the message from the sever. I verified the message is going out successfully based on the codes returned by _tcp_send. I think that the variable $hsocket is getting issued incorrectly. Thanks for looking. Any help appreciated.

Server.au3

CODE
#include <TCP.au3>

#Include <Array.au3>

#include <Date.au3>

Global $avClients[1][3] = [[0]]

$call = "10.144.77.163" ;client computer with agent

$hServer = _TCP_Server_Create(259); This server.

$hClient = _TCP_Client_Create($call, 159); A client connection to wakeup the agent.

ToolTip("CLIENT "&$hClient&": Connecting...",10,10)

SLEEP(1000)

_TCP_RegisterEvent($hClient, $TCP_CONNECT, "Connected")

_TCP_RegisterEvent($hServer, $TCP_NEWCLIENT, "NewClient")

_TCP_RegisterEvent($hServer, $TCP_DISCONNECT, "Disconnect")

While 1

Sleep(10)

WEnd

Func Connected($hSocket, $iError);

If not $iError Then; If there is no error...

ToolTip("Agent wokeup",10,10); ... we're connected.

SLEEP(1000)

Else; ,else...

ToolTip("CLIENT "&$hClient&": Could not connect. Are you sure this client has your agent?",10,10); ... we aren't.

SLEEP(1000)

EndIf

sleep(50)

_TCP_Client_Stop($hSocket)

EndFunc

Func NewClient($hSocket, $iError)

; Get parameters

Local $sDateTime = _NowCalc()

Local $sIP = _TCP_Server_ClientIP($hSocket)

; Add entry to global array

; 2D Array of connected clients:

; [0][0] = Count

; [n][0] = Socket

; [n][1] = Date/Time connected

; [n][2] = IP Address

ReDim $avClients[uBound($avClients) + 1][3]

$avClients[0][0] = UBound($avClients) - 1

$avClients[$avClients[0][0]][0] = $hSocket

$avClients[$avClients[0][0]][1] = $sDateTime

$avClients[$avClients[0][0]][2] = $sIP

; Notify operator

ToolTip("SERVER: New client connected:" & @CRLF & _

"Socket: " & $hSocket & @CRLF & _

"Date/Time: " & $sDateTime & @CRLF & _

"IP: " & $sIP, 10, 30)

sleep(2000)

; Send connection reply

_TCP_Send($hSocket, "Bleh!")

EndFunc ;==>NewClient

Func Disconnect($hSocket, $iError)

; Get parameters

Local $sDateTime = _NowCalc()

Local $iIndex = _ArraySearch($avClients, $hSocket, 1, 0, 0, 0, 1, 0)

If @error Then

MsgBox(16, "Error", "Diconnected socket not found in list.", 30)

Return

EndIf

Local $sConnTime = $avClients[$iIndex][1]

Local $sIP = $avClients[$iIndex][2]

; Remove entry from array

_ArrayDelete($avClients, $iIndex)

; Notify operator

ToolTip("SERVER: Client disconnected:" & @CRLF & _

"Socket: " & $hSocket & @CRLF & _

"Connected: " & $sConnTime & @CRLF & _

"Disconnected: " & $sDateTime & @CRLF & _

"IP: " & $sIP, 10, 30)

EndFunc ;==>Disconnect

Client.au3

CODE
#include "TCP.au3"

Global $server_disconnected = 0

$hServer = _TCP_Server_Create(159) ;Listen for main server instructions

_TCP_RegisterEvent($hServer, $TCP_NEWCLIENT, "WakeUP")

While 1

ToolTip("SERVER "&$hServer&": Listening...",10,10)

$server_disconnected = 0

sleep(10)

WEnd

Func Wakeup($hSocket, $iError) ;Main server says its time to go to work

ToolTip("SERVER: Waking up Client...",10,20)

SLEEP(1000)

$ServerIP = _TCP_Server_ClientIP($hSocket)

ToolTip("SERVER: Will connect to Server at "& $ServerIP ,10,30)

SLEEP(1000)

ToolTip("CLIENT: Connecting...",10,40)

SLEEP(1000)

$hClient = _TCP_Client_Create($ServerIP, 259); Create the client. Which will connect to the Main server address on port 259

_TCP_RegisterEvent($hClient, $TCP_RECEIVE, "Received"); Function "Received" will get called when something is received

_TCP_RegisterEvent($hClient, $TCP_CONNECT, "Connected"); And func "Connected" will get called when the client is connected.

_TCP_RegisterEvent($hClient, $TCP_DISCONNECT, "Disconnected"); And "Disconnected" will get called when the server disconnects us, or when the connection is lost.

While 1

ToolTip("CLIENT "&$hClient&": Listening...",10,10)

sleep(10)

if $server_disconnected = 1 then ExitLoop

WEnd

EndFunc

Func Connected($hSocket, $iError)

If not $iError Then; If there is no error...

ToolTip("CLIENT: Connected!",10,50); ... we're connected.

SLEEP(1000)

Else; ,else...

ToolTip("CLIENT: Could not connect. Are you sure the server is running?",10,50); ... we aren't.

SLEEP(1000)

EndIf

EndFunc

Func Received($hSocket, $sReceived, $iError)

MsgBox(1,"msg RECIEVED", "CLIENT: We received this: "& $sReceived)

ToolTip("CLIENT: We received this: "& $sReceived, 10,60)

EndFunc

Func Disconnected($hSocket, $iError)

ToolTip("CLIENT: Connection closed or lost.", 10,70)

SLEEP(1000)

$server_disconnected = 1

EndFunc

:D Thanks I am open to any ideas on a better system

Share this post


Link to post
Share on other sites
picaxe

I think _TCP_Send should be _TCP_Server_Send.

Share this post


Link to post
Share on other sites
nhardel

I think _TCP_Send should be _TCP_Server_Send.

I checked the TCP.au3 include Kip has _TCP_Send as the function, and like I said the examples that he has also uses _TCP_Send.

Check out your client! & the ip in "TCP.au3"

:D I'm not sure what you mean Are you saying that the actual include is broken?

Share this post


Link to post
Share on other sites
nhardel

I feel like a goofball. I still do not see my problem DCCD seems to have gotten my script to work but I can't find what he is refering to

Check out your client! & the ip in "TCP.au3"

Honestly, Im not sure what he is refering to :D

Im tired Hitting the sack Hopefully the AutoIt fairy will give me some inspiration while I sleep. :D

Share this post


Link to post
Share on other sites
nhardel

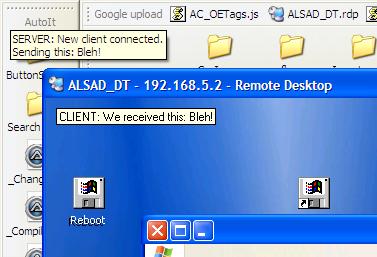

Check out your client! & the ip in "TCP.au3"

please see ... attached


I see that you got it to work. Could you be more direct in your pointing to the solution

Share this post


Link to post
Share on other sites
nhardel

Okay im still at it. :D

I have got the server to talk to the client but I cant seem to get the client to talk to the server I know it has to do with the $hsocket I am using the _TCP_Send for the client and using the socket returned _TCP_Client_Create for $hsocket. I dont know where to go from there. I feel as if it is staring me right back in my face. I am going to try to telnet to see if that helps track down the issue.

Share this post


Link to post
Share on other sites
colafrysen

Okay im still at it. :D

I have got the server to talk to the client but I cant seem to get the client to talk to the server I know it has to do with the $hsocket I am using the _TCP_Send for the client and using the socket returned _TCP_Client_Create for $hsocket. I dont know where to go from there. I feel as if it is staring me right back in my face. I am going to try to telnet to see if that helps track down the issue.

I don't know if this is the way you are meant to do, but in my PC Controller this was the function I used.

Client side script

Func _ConnectionEstablished($hSocket, $Conectionerror)
    If $Conectionerror Then
        $ConnectedSocket = -1
    Else
        $ConnectedSocket = $hSocket
    EndIf
EndFunc   ;==>_ConnectionEstablishedoÝ÷ Ø    ݶ§ºÇÓ~¢yÞr×J$zا¶¬zw_ºw-Äv+E¢¸(¶Ú-zYm«b­è"²×«yÛaÆ®¶­seõD5õ&Vv7FW$WfVçBb33c¶6ÆVçBÂb33cµD5ô4ôääT5BÂgV÷Cµô6öææV7FöäW7F&Æ6VBgV÷C²
Edited by colafrysen
