About This File

Dbug is graphical debugger for AutoIt.

Project started by @Heron in 2009 and now supported by @asdf8 and @valdemar1977.

Features

  • Debug the complete script or just parts of it
  • Display run status (line number of currently executed function)
  • GUI default always-on-top in the upper right corner for comfortable debugging
  • WM_NOTIFY and WM_COMMAND hook to prevent interference with possible message handlers
  • Display scope, type and value of variables, expressions, macro's and constants (global AND function local)

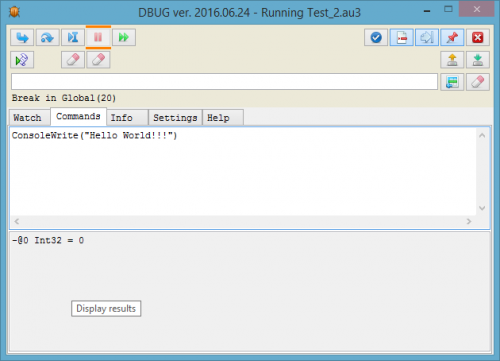

  • Execute commands in an immediate window. Can be expressions, functions and assignments
  • Detailed display of array, struct and object variables
  • Dynamic display of variable value in the source code (under cursor)

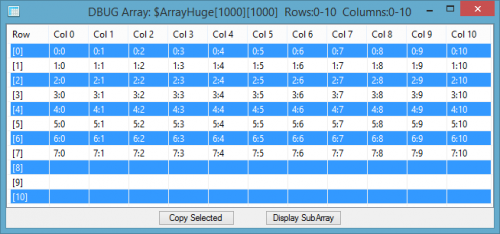

  • Array table viewer with ability to view the sub-arrays, the correct handling of macro @Error, @Extended and other changes

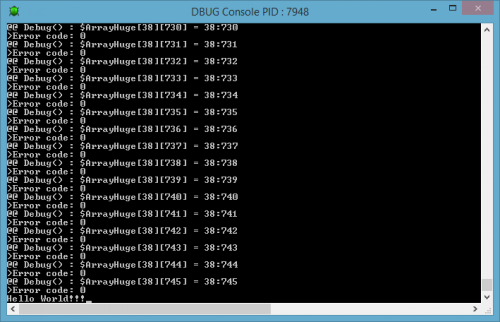

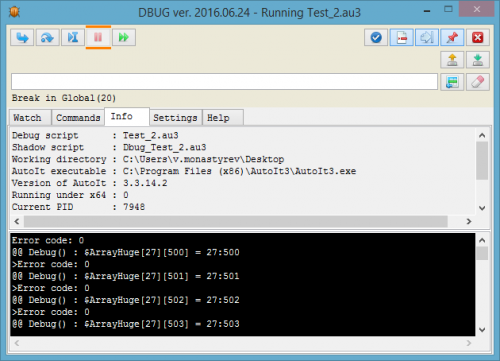

  • OEM and ANSI console output
  • Conditional breakpoints

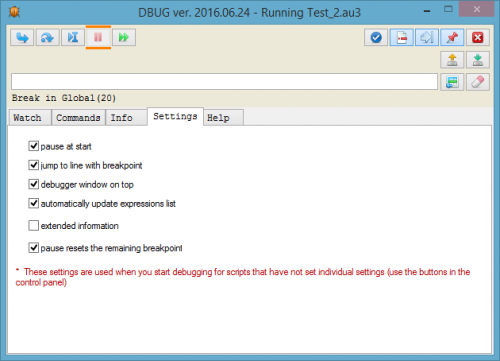

  • Saving settings and debugging state
  • and much more...

How to use

  • Extract from downloaded archive _Dbug.au3 to your Autoit include dir
  • Add #include <_Dbug.au3> in to your code and run code
  • Before compile or buid comment or remove #include <_Dbug.au3> from your code

What's New in Version 2018.05.24

Released

Changelog:

2018.05.24 - Fixed icon id's

2018.05.17 - Fixed problem with icl  (problem with wrong Dbug icon on the taskbar). Delete dbug.icl from your %TEMP% folder before start a new version.

Thank you @asdf8 for collaboration.

2018.04.25 - Fixed missed #Include <WinAPISysWin.au3>
