Scrolling Line Graph UDF

15 posts in this topic

#1 ·  Posted (edited)

Updated - 2/9/2010 - So there have been quite a few improvents since my last update 2 days ago. Added five new functions, User Calltips and Keywords, and also made changes to _SLG_UpdateGraph() and _SLG_CreateGraph() so be sure to look at the examples(and thumb) since they are new and show how too use the new functions.

5 new functions: _SLG_AddLine(), _SLG_SetLineValue(), _SLG_SetLineWidth(), _SLG_SetGridLineColor(), _SLG_EnableGridLines()-Thanks UEZ

Updated 2/7/2010 - made negative value ranges possible.

Here is a UDF I have been working on lately to help create scrolling line graphs. Like the ones you see for the CPU in Task Manager. Please let me know if you see or have any problems. I also want to thank and give some credit to monoceres for all his examples around the forums. I would have never made it this far without them. :D


Example 1

#include "SLG.au3"
Opt('GuiOnEventMode', 1)
$GUI = GUICreate("GDI+ Scrolling Line Graph", 628, 297, -1, -1, -1, $WS_EX_TOPMOST)
GUISetOnEvent(-3, '_Exit')
GUISetState()
$Increments = 100
$Graph1 = _SLG_CreateGraph($GUI, 18, 18, 596, 257, -100, 100, $Increments, -1,-1,-1,False)

While 1
    _SLG_SetLineValue($Graph1, Random(-100,100))
    _SLG_UpdateGraph($Graph1)
    Sleep(30)
WEnd

Func _Exit()
    Exit
EndFunc

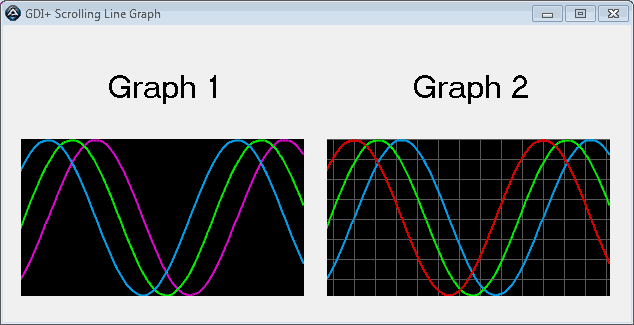

Example 2

#include <StaticConstants.au3>
#include "SLG.au3"
Opt('GuiOnEventMode', 1)
Const $cBlue = 0xFF00ACFF, $cGreen = 0xFF00FF00, $cPink = 0xFFF004DE, $cYellow = 0xFFFFFF00
Const $cGray = 0xFFADADAD, $cRed = 0xFFFF0000, $cPurple = 0xFF8000FF, $cOrange = 0xFFFF8000
Const $Pi = ACos(-1), $4Pi = $Pi / 4

$GUI = GUICreate("GDI+ Scrolling Line Graph", 628, 297, -1, -1, -1, $WS_EX_TOPMOST)
GUISetOnEvent(-3, '_Exit')
$Label1 = GUICtrlCreateLabel("Graph 1", 66, 36, 192, 53, BitOR($SS_CENTER, $SS_CENTERIMAGE))
GUICtrlSetFont(-1, 24, 400, 0, "MS Sans Serif")
$Label2 = GUICtrlCreateLabel("Graph 2", 372, 36, 192, 53, BitOR($SS_CENTER, $SS_CENTERIMAGE))
GUICtrlSetFont(-1, 24, 400, 0, "MS Sans Serif")
GUISetState()

$Increments = 85
$Graph1 = _SLG_CreateGraph($GUI, 18, 114, 283, 157, -1.01, 1.01, $Increments, $cPink, 2, -1, False)
$G1Line2 = _SLG_AddLine($Graph1, $cGreen)
$G1Line3 = _SLG_AddLine($Graph1, $cBlue)

$Graph2 = _SLG_CreateGraph($GUI, 324, 114, 283, 157, -1.01, 1.01, $Increments, $cBlue)
_SLG_SetGridLineColor($Graph2, 0xFF5C5C5C)
$G2Line2 = _SLG_AddLine($Graph2, $cGreen)
$G2Line3 = _SLG_AddLine($Graph2, $cRed)

While 1
    For $i = 0 To (2 * $Pi) Step 0.1

        _SLG_SetLineValue($Graph1, Sin($i))
        _SLG_SetLineValue($Graph2, Sin($i))

        For $Line = $G1Line2 To $G1Line3
            $y = Sin($i + ($4Pi * ($Line - 1)))
            _SLG_SetLineValue($Graph1, $y, $Line)
        Next
        For $Line = $G2Line2 To $G2Line3
            $y = Sin($i + ($4Pi * ($Line - 1)))
            _SLG_SetLineValue($Graph2, $y, $Line)
        Next

        _SLG_UpdateGraph($Graph1)
        _SLG_UpdateGraph($Graph2)
        Sleep(25)
    Next
WEnd

Func _Exit()
    Exit
EndFunc   ;==>_Exit

UDF

#Region Header
; #INDEX# =======================================================================================================================
; Title .........: SLG
; AutoIt Version : 3.3.4.0
; Language ......: English
; Description ...: Functions to assist in creating and updating Scrolling Line Graphs
; Author(s) .....: Beege
; ===============================================================================================================================

; #CURRENT# =====================================================================================================================
;_SLG_CreateGraph
;_SLG_UpdateGraph
;_SLG_ClearGraph
;_SLG_SetLineColor
;_SLG_SetYRange
;_SLG_SetBackGroundColor
;_SLG_AddLine
;_SLG_SetLineValue
;_SLG_SetLineWidth
;_SLG_EnableGridLines
;_SLG_SetGridLineColor
; ===============================================================================================================================

#Region User KeyWords and CallTips
#cs

Keywords:
au3.keywords.user.udfs= _slg_creategraph _slg_updategraph _slg_cleargraph \
_slg_setlinecolor _slg_setyrange _slg_setbackgroundcolor _slg_addline \
_slg_setlinevalue _slg_setlinewidth _slg_enablegridlines _slg_setgridlinecolor

CallTips:
_SLG_CreateGraph($hGUI, $iLeft, $iTop, $iWidth, $iHeight, $iY_Min, $iY_Max, $iIncrements, $Line_Color = 0xFF00FF00, $Line_Width = 2, $iBackGround = 0xFF000000, $bGridlines = True)
_SLG_UpdateGraph($iIndex)
_SLG_AddLine($iIndex, $Line_Color = 0xFF00FF00, $Line_Width = 2)
_SLG_ClearGraph($iIndex)
_SLG_SetLineValue($iIndex, $iValue, $iLine = 1)
_SLG_SetLineColor($iIndex, $iARGB, $iLine = 1)
_SLG_SetLineWidth($iIndex, $iWidth, $iLine = 1)
_SLG_SetYRange($iIndex, $iY_Min, $iY_Max)
_SLG_SetBackGroundColor($iIndex, $iARGB = 0xFF000000)
_SLG_SetGridLineColor($iIndex, $iARGB = Default)
_SLG_EnableGridLines($iIndex, $bGridlines = True)
#ce
#EndRegion

#include-once
#include <GDIPlus.au3>
#include <WindowsConstants.au3>
_GDIPlus_Startup()
OnAutoItExitRegister('_SLG_Exit')
#EndRegion Header

#Region Global Variables and Constants
Global Enum $g_hGraphic, $g_hBitmap, $g_hBuffer, $g_aPens, $g_iLeft, $g_iTop, $g_iWidth, $g_iHeight, $g_iIncrements, _
        $g_iIncrement_Size, $g_iShift_Distance, $g_iY, $g_iY_Last, $g_iY_Min, $g_iY_Max, $g_iY_Range, $g_hDC, $g_hGUI, $g_iBackColor, _
        $g_iX_counter, $g_iY_counter, $g_iX_counter_mem, $g_bGridlines, $g_iGridColor, $MAX
Global $aGraphs[1][$MAX]
$aGraphs[0][0] = 0
#cs

    $aGraphs[0][0]          = List Count
    [0][1-17]               = Nothing

    $aGraphs[$i][0]         = $Graphic Object Handle
    [$i][$g_hBitmap]        = Bitmap Object Handle
    [$i][$g_hBuffer]        = Buffer Handle
    [$i][$g_iLeft]          = Left
    [$i][$g_iTop]           = Top
    [$i][$g_iWidth]         = Width
    [$i][$g_iHeight]        = Height
    [$i][$g_iIncrements]    = Step Count
    [$i][$g_iIncrement_Size]= Step Size
    [$i][$g_iShift_Distance]= Shift Distance
    [$i][$g_iY_Min]         = Y Min
    [$i][$g_iY_Max]         = Y Max
    [$i][$g_iY_Range]       = Y Range
    [$i][$g_hDC]            = Display device context Handle
    [$i][$g_hGUI]           = GUI Handle
    [$i][$g_iBackColor]     = BackGround Color value
    [$i][$g_iY_Last]        = Array containing Last Y Cordnate for each Line
    [$i][$g_iY]             = Array containing Y Cordnate for each Line
    [$i][$g_aPens]          = Array containing Pen Handles for each Line
    [$i][$g_bGridlines]     = Draw GridLines flag
    [$i][$g_iGridColor]     = GridLines Color Value
    [$i][$g_iX_counter]     = Counter for X GridLines
    [$i][$g_iY_counter]     = Counter for Y GridLines
    [$i][$g_iX_counter_mem] = Original Counter Value

#ce
#EndRegion Global Variables and Constants

#Region Public Functions
; #FUNCTION# ====================================================================================================================
; Name...........: _SLG_CreateGraph
; Description ...: Creates a Scrolling Line Graph
; Syntax.........: _SLG_CreateGraph($hGUI, $iLeft, $iTop, $iWidth, $iHeight, $iY_Min, $iY_Max, $iIncrement_Total, $Line_Color = 0xFF00FF00, $iBackGround = 0xFF000000)
; Parameters ....: $hGUI        - Handle to parent or owner window
;                  $iLeft       - Left side of the graph
;                  $iTop        - Top side of the graph
;                  $iWidth      - Width of the graph
;                  $iHeight     - Height of the graph
;                  $iY_Min      - Minimum Y Value
;                  $iY_Max      - Maximum Y Value
;                  $iIncrements - How many parts the Graph is divided up into. More Parts means more history..
;                  $Line_Color  - Alpha, Red, Green and Blue Hex Value. (0xAARRGGBB). Default = Green
;                  $iLine_Width - Line Width. Default = 1
;                  $iBackGround - BackGround Color. Alpha, Red, Green and Blue Hex Value. (0xAARRGGBB). Default = Black
;                  $bGridlines  - Enable Gridlines. Default = True
; Return values .: Success      - Graph Index
; Author ........: Beege
; Remarks .......: Line index of line created is 1.
; ===============================================================================================================================
Func _SLG_CreateGraph($hGUI, $iLeft, $iTop, $iWidth, $iHeight, $iY_Min, $iY_Max, $iIncrements, $Line_Color = 0xFF00FF00, $iLine_Width = 2, $iBackGround = 0xFF000000, $bGridlines = True)

    ReDim $aGraphs[UBound($aGraphs) + 1][UBound($aGraphs, 2)]
    $aGraphs[0][0] += 1

    If $Line_Color = -1 Or $Line_Color = Default Then $Line_Color = 0xFF00FF00
    If $iBackGround = -1 Or $iBackGround = Default Then $iBackGround = 0xFF000000
    If $iLine_Width = -1 Or $iLine_Width = Default Then $iLine_Width = 2
    If $bGridlines = -1 Or $bGridlines = Default Then $bGridlines = True

    $aGraphs[$aGraphs[0][0]][$g_hGraphic] = _GDIPlus_GraphicsCreateFromHWND($hGUI)
    $aGraphs[$aGraphs[0][0]][$g_hBitmap] = _GDIPlus_BitmapCreateFromGraphics($iWidth, $iHeight, $aGraphs[$aGraphs[0][0]][$g_hGraphic])
    $aGraphs[$aGraphs[0][0]][$g_hBuffer] = _GDIPlus_ImageGetGraphicsContext($aGraphs[$aGraphs[0][0]][$g_hBitmap])
    $aGraphs[$aGraphs[0][0]][$g_iLeft] = $iLeft
    $aGraphs[$aGraphs[0][0]][$g_iTop] = $iTop
    $aGraphs[$aGraphs[0][0]][$g_iWidth] = $iWidth
    $aGraphs[$aGraphs[0][0]][$g_iHeight] = $iHeight
    $aGraphs[$aGraphs[0][0]][$g_iIncrements] = $iIncrements
    $aGraphs[$aGraphs[0][0]][$g_iIncrement_Size] = Int($iWidth / $iIncrements)
    $aGraphs[$aGraphs[0][0]][$g_iShift_Distance] = $iWidth - $aGraphs[$aGraphs[0][0]][$g_iIncrement_Size]
    _SLG_AddLine($aGraphs[0][0], $Line_Color, $iLine_Width)
    $aGraphs[$aGraphs[0][0]][$g_iY_Min] = $iY_Min
    $aGraphs[$aGraphs[0][0]][$g_iY_Max] = $iY_Max
    _SLG_SetYRange($aGraphs[0][0], $iY_Min, $iY_Max)
    $aGraphs[$aGraphs[0][0]][$g_hDC] = _WinAPI_GetDC($hGUI)
    $aGraphs[$aGraphs[0][0]][$g_hGUI] = $hGUI
    _SLG_SetBackGroundColor($aGraphs[0][0], BitOR($iBackGround, 0xFF000000))
    $aGraphs[$aGraphs[0][0]][$g_bGridlines] = $bGridlines
    $aGraphs[$aGraphs[0][0]][$g_iX_counter] = 20;$iX_c
    $aGraphs[$aGraphs[0][0]][$g_iX_counter_mem] = 20;$iX_c
    $aGraphs[$aGraphs[0][0]][$g_iY_counter] = 20;$iY_c
    $aGraphs[$aGraphs[0][0]][$g_iGridColor] = Default
    _GDIPlus_GraphicsSetSmoothingMode($aGraphs[$aGraphs[0][0]][$g_hBuffer], 2)

    _GDIPlus_GraphicsClear($aGraphs[$aGraphs[0][0]][$g_hBuffer], $aGraphs[$aGraphs[0][0]][$g_iBackColor]);
    If $bGridlines Then _FullGridLines($aGraphs[0][0])
    Return $aGraphs[0][0]

EndFunc   ;==>_SLG_CreateGraph

; #FUNCTION# ====================================================================================================================
; Name...........: _SLG_UpdateGraph
; Description ...: Updates Line Graph with new values
; Syntax.........: _SLG_UpdateGraph($iIndex, $iValue)
; Parameters ....: $iIndex      - Index returned from _SLG_CreateGraph()
; Return values .: Success      - 1
;                  Failure      - 0  and sets @ERROR:
;                               - 1 Invalid iIndex
; Author ........: Beege
; Remarks .......: All Lines of the graph must be updated before calling this function.
; ===============================================================================================================================
Func _SLG_UpdateGraph($iIndex)

    If $iIndex > $aGraphs[0][0] Then Return SetError(1, @extended, 0)

    Local $aLineY = $aGraphs[$iIndex][$g_iY]

    For $i = 1 To $aLineY[0]
        If Not $aLineY[$i] Then Return
    Next

    Local $hShift_Section = _GDIPlus_BitmapCloneArea($aGraphs[$iIndex][$g_hBitmap], $aGraphs[$iIndex][$g_iIncrement_Size], 0, $aGraphs[$iIndex][$g_iShift_Distance], $aGraphs[$iIndex][$g_iHeight]);
    _GDIPlus_GraphicsClear($aGraphs[$iIndex][$g_hBuffer], $aGraphs[$iIndex][$g_iBackColor]);
    _GDIPlus_GraphicsDrawImageRect($aGraphs[$iIndex][$g_hBuffer], $hShift_Section, 0, 0, $aGraphs[$iIndex][$g_iShift_Distance], $aGraphs[$iIndex][$g_iHeight])

    If $aGraphs[$iIndex][$g_bGridlines] Then _AddGridLines($iIndex)

    Local $aLineYLast = $aGraphs[$iIndex][$g_iY_Last]
    Local $aPens = $aGraphs[$iIndex][$g_aPens]

    For $i = 1 To $aLineYLast[0]
        _GDIPlus_GraphicsDrawLine($aGraphs[$iIndex][$g_hBuffer], $aGraphs[$iIndex][$g_iShift_Distance] - 1, $aLineYLast[$i], $aGraphs[$iIndex][$g_iWidth] - 1, $aLineY[$i], $aPens[$i])
    Next
    _WriteBuffer($iIndex)

    _GDIPlus_BitmapDispose($hShift_Section)
    For $i = 1 To $aLineY[0]
        $aLineYLast[$i] = $aLineY[$i]
    Next
    $aGraphs[$iIndex][$g_iY_Last] = $aLineYLast

    Return 1

EndFunc   ;==>_SLG_UpdateGraph

; #FUNCTION# ====================================================================================================================
; Name...........: _SLG_SetLineValue
; Description ...: Sets Line value
; Syntax.........: _SLG_SetLineValue($iIndex, $iValue, $iLine = 1)
; Parameters ....: $iIndex      - Index returned from _SLG_CreateGraph()
;                  $iValue      - Value to add to graph
;                  $iLine       - Line index returned from _SLG_AddLine()
; Return values .: Success      - 1
;                  Failure      - 0  and sets @ERROR:
;                               - 1 Invalid iIndex
; Author ........: Beege
; Remarks .......: If your graph only has 1 line then the line index is 1
; ===============================================================================================================================
Func _SLG_SetLineValue($iIndex, $iValue, $iLine = 1)

    If $iIndex > $aGraphs[0][0] Then Return SetError(1, @extended, 0)

    If $iValue > $aGraphs[$iIndex][$g_iY_Max] Then
        $iValue = $aGraphs[$iIndex][$g_iY_Max]
    ElseIf $iValue < $aGraphs[$iIndex][$g_iY_Min] Then
        $iValue = $aGraphs[$iIndex][$g_iY_Min]
    EndIf

    Local $Percent = Abs($iValue - $aGraphs[$iIndex][$g_iY_Min]) / $aGraphs[$iIndex][$g_iY_Range]
    If $Percent > .992 Then $Percent = .992

    Local $iY = Int($aGraphs[$iIndex][$g_iHeight] - ($Percent * $aGraphs[$iIndex][$g_iHeight]))

    Local $aLineYLast = $aGraphs[$iIndex][$g_iY_Last]

    If Not $aLineYLast[$iLine] Then
        $aLineYLast[$iLine] = $iY
        $aGraphs[$iIndex][$g_iY_Last] = $aLineYLast
        Return 0
    Else
        Local $aLineY = $aGraphs[$iIndex][$g_iY]
        $aLineY[$iLine] = $iY
        $aGraphs[$iIndex][$g_iY] = $aLineY
        Return 1
    EndIf

EndFunc   ;==>_SLG_SetLineValue

; #FUNCTION# ====================================================================================================================
; Name...........: _SLG_AddLine
; Description ...: Adds additional lines to the graph
; Syntax.........: _SLG_AddLine($iIndex, $Line_Color = 0xFF00FF00, $Line_Width = 1)
; Parameters ....: $iIndex      - Index returned from _SLG_CreateGraph()
;                  $iLine_Color - Alpha, Red, Green and Blue Hex Value. (0xAARRGGBB)
;                  $Line_Width  - Line Width
; Return values .: Success      - Line Index
;                  Failure      - 0  and sets @ERROR:
;                               - 1 Invalid iIndex
; Author ........: Beege
; Remarks .......: Every line must have its value set before you can call _SLG_UpdateGraph()
; ===============================================================================================================================
Func _SLG_AddLine($iIndex, $Line_Color = 0xFF00FF00, $Line_Width = 2)

    If $iIndex > $aGraphs[0][0] Then Return SetError(1, @extended, 0)

    If $Line_Color = -1 Or $Line_Color = Default Then $Line_Color = 0xFF00FF00
    If $Line_Width = -1 Or $Line_Width = Default Then $Line_Width = 1

    Local $aLinesY = $aGraphs[$iIndex][$g_iY]
    Local $aLinesYLast = $aGraphs[$iIndex][$g_iY_Last]
    Local $aPens = $aGraphs[$iIndex][$g_aPens]

    If Not IsArray($aLinesYLast) Then
        Local $aLinesY[1] = [0]
        Local $aLinesYLast[1] = [0]
        Local $aPens[1] = [0]
    EndIf

    ReDim $aLinesYLast[UBound($aLinesYLast) + 1]
    ReDim $aLinesY[UBound($aLinesY) + 1]
    ReDim $aPens[UBound($aPens) + 1]

    $aLinesYLast[0] += 1
    $aLinesY[0] += 1
    $aPens[0] += 1

    $aLinesYLast[$aLinesYLast[0]] = False
    $aLinesY[$aLinesY[0]] = False
    $aPens[$aPens[0]] = _GDIPlus_PenCreate($Line_Color, $Line_Width)

    $aGraphs[$iIndex][$g_iY_Last] = $aLinesYLast
    $aGraphs[$iIndex][$g_iY] = $aLinesY
    $aGraphs[$iIndex][$g_aPens] = $aPens

    Return $aLinesY[0]

EndFunc   ;==>_SLG_AddLine

; #FUNCTION# ====================================================================================================================
; Name...........: _SLG_SetLineColor
; Description ...: Sets Line Color of Graph
; Syntax.........: _SLG_SetLineColor($iIndex, $iARGB)
; Parameters ....: $iIndex      - Index returned from _SLG_CreateGraph()
;                  $iValue      - Alpha, Red, Green and Blue Hex Value. (0xAARRGGBB)
;                  $iLine       - Line index returned from _SLG_AddLine()
; Return values .: Success      - 1
;                  Failure      - 0  and sets @ERROR:
;                               - 1 Invalid iIndex
;                               - 2 Invalid iLine
;                               - 3 Error setting pen color
; Author ........: Beege
; Remarks .......: If your graph only has 1 line then the line index is 1
; ===============================================================================================================================
Func _SLG_SetLineColor($iIndex, $iARGB, $iLine = 1)

    If $iIndex > $aGraphs[0][0] Then Return SetError(1, @extended, 0)

    Local $aPens = $aGraphs[$iIndex][$g_aPens]
    If $iLine > $aPens[0] Then Return SetError(2, @extended, 0)

    _GDIPlus_PenSetColor($aPens[$iLine], $iARGB)
    If @error Then Return SetError(3, @extended, 0)

    Return 1

EndFunc   ;==>_SLG_SetLineColor

; #FUNCTION# ====================================================================================================================
; Name...........: _SLG_SetLineWidth
; Description ...: Sets Line Width
; Syntax.........: _SLG_SetLineWidth($iIndex, $iWidth, $iLine = 1)
; Parameters ....: $iIndex      - Index returned from _SLG_CreateGraph()
;                  $iValue      - Width of Line
;                  $iLine       - Line index returned from _SLG_AddLine()
; Return values .: Success      - 1
;                  Failure      - 0  and sets @ERROR:
;                               - 1 Invalid iIndex
;                               - 2 Invalid iLine index
;                               - 3 Error setting pen width
; Author ........: Beege
; Remarks .......: If your graph only has 1 line then the line index is 1
; ===============================================================================================================================
Func _SLG_SetLineWidth($iIndex, $iWidth, $iLine = 1)

    If $iIndex > $aGraphs[0][0] Then Return SetError(1, @extended, 0)

    Local $aPens = $aGraphs[$iIndex][$g_aPens]
    If $iLine > $aPens[0] Then Return SetError(2, @extended, 0)

    Local $aPens = $aGraphs[$iIndex][$g_aPens]
    _GDIPlus_PenSetWidth($aPens[$iLine], $iWidth)
    If @error Then Return SetError(3, @extended, 0)

    Return 1

EndFunc   ;==>_SLG_SetLineWidth

; #FUNCTION# ====================================================================================================================
; Name...........: _SLG_ClearGraph
; Description ...: Clears all data from Graph
; Syntax.........: _SLG_ClearGraph($iIndex)
; Parameters ....: $iIndex      - Index returned from _SLG_CreateGraph()
; Return values .: Success      - 1
;                  Failure      - 0  and sets @ERROR:
;                               - 1 Invalid iIndex
; Author ........: Beege
; Remarks .......: none
; ===============================================================================================================================
Func _SLG_ClearGraph($iIndex)

    If $iIndex > $aGraphs[0][0] Then Return SetError(1, @extended, 0)

    _GDIPlus_GraphicsClear($aGraphs[$iIndex][$g_hBuffer], $aGraphs[$iIndex][$g_iBackColor]);
    If $aGraphs[$iIndex][$g_bGridlines] Then _FullGridLines($iIndex)
    _WriteBuffer($iIndex)

    Return 1

EndFunc   ;==>_SLG_ClearGraph

; #FUNCTION# ====================================================================================================================
; Name...........: _SLG_SetYRange
; Description ...: Sets the Minimum and Maximum Y Values
; Syntax.........: _SLG_SetYRange($iIndex, $iY_Min, $iY_Max)
; Parameters ....: $iIndex      - Index returned from _SLG_CreateGraph()
;                  $iY_Min      - Minimum Y Value
;                  $iY_Max      - Maximum Y Value
; Return values .: Success      - 1
;                  Failure      - 0  and sets @ERROR:
;                               - 1 Invalid iIndex
; Author ........: Beege
; Remarks .......: User should most likly want to ClearGraph after changing Y Range
; ===============================================================================================================================
Func _SLG_SetYRange($iIndex, $iY_Min, $iY_Max)

    If $iIndex > $aGraphs[0][0] Then Return SetError(1, @extended, 0)

    $aGraphs[$iIndex][$g_iY_Min] = $iY_Min
    $aGraphs[$iIndex][$g_iY_Max] = $iY_Max
    $aGraphs[$iIndex][$g_iY_Range] = Abs($iY_Max - $iY_Min)

    Return 1

EndFunc   ;==>_SLG_SetYRange

; #FUNCTION# ====================================================================================================================
; Name...........: _SLG_SetBackGroundColor
; Description ...: Sets Graph BackGround Color
; Syntax.........: _SLG_SetBackGroundColor($iIndex, $iARGB = 0xFF000000)
; Parameters ....: $iIndex      - Index returned from _SLG_CreateGraph()
;                  $iARGB       - Alpha, Red, Green and Blue Hex Value. (0xAARRGGBB). Default = Black
; Return values .: Success      - 1
;                  Failure      - 0  and sets @ERROR:
;                               - 1 Invalid iIndex
; Author ........: Beege
; Remarks .......: All previous data will be cleared
; ===============================================================================================================================
Func _SLG_SetBackGroundColor($iIndex, $iARGB = 0xFF000000)

    If $iIndex > $aGraphs[0][0] Then Return SetError(1, @extended, 0)

    $aGraphs[$iIndex][$g_iBackColor] = $iARGB
    _SLG_ClearGraph($iIndex)

    Return 1

EndFunc   ;==>_SLG_SetBackGroundColor

; #FUNCTION# ====================================================================================================================
; Name...........: _SLG_SetGridLineColor($iIndex)
; Description ...: Sets Graph GridLines Color Value
; Syntax.........: _SLG_SetGridLineColor($iIndex, $iARGB = Default)
; Parameters ....: $iIndex      - Index returned from _SLG_CreateGraph()
;                  $iARGB       - Alpha, Red, Green and Blue Hex Value. (0xAARRGGBB). Default = Invert of Background Color.
; Return values .: Success      - 1
;                  Failure      - 0  and sets @ERROR:
;                               - 1 Invalid iIndex
; Author ........: Beege
; Remarks .......: All previous data will be cleared
; ===============================================================================================================================
Func _SLG_SetGridLineColor($iIndex, $iARGB = Default)

    If $iIndex > $aGraphs[0][0] Then Return SetError(1, @extended, 0)

    $aGraphs[$iIndex][$g_iGridColor] = $iARGB
    _SLG_ClearGraph($iIndex)

    Return 1

EndFunc   ;==>_SLG_SetGridLineColor

; #FUNCTION# ====================================================================================================================
; Name...........: _SLG_EnableGridLines
; Description ...: Enables or Disables Drawing of Gridlines for Graph
; Syntax.........: _SLG_EnableGridLines($iIndex, $bGridlines = True)
; Parameters ....: $iIndex      - Index returned from _SLG_CreateGraph()
;                  $bGridlines  - GridLines flag:
;                  |True  - GridLines will be drawn
;                  |False - GridLines will not be drawn
; Return values .: Success      - 1
;                  Failure      - 0  and sets @ERROR:
;                               - 1 Invalid iIndex
;                               - 2 Invalid $bGridlines Value
; Author ........: Beege
; Remarks .......: none
; ===============================================================================================================================
Func _SLG_EnableGridLines($iIndex, $bGridlines = True)

    If $iIndex > $aGraphs[0][0] Then Return SetError(1, @extended, 0)
    If $bGridlines <> True And $bGridlines <> False Then SetError(2, @extended, 0)

    $aGraphs[$iIndex][$g_bGridlines] = $bGridlines

    Return 1

EndFunc   ;==>_SLG_EnableGridLines

#EndRegion Public Functions
#Region Internel Functions
; #FUNCTION# ====================================================================================================================
; Author ........: UEZ
; Modified ......: Beege
; ===============================================================================================================================
Func _AddGridLines($iIndex)
    Local $iGridlineColor = $aGraphs[$iIndex][$g_iGridColor]
    If $iGridlineColor = Default Or $iGridlineColor = -1 Then $iGridlineColor = BitOR(0xFF000000, (0xFFFFFFFF - $aGraphs[$iIndex][$g_iBackColor]));Invert Background RGB

    Local $iY1, $hPen = _GDIPlus_PenCreate($iGridlineColor)

    For $iY1 = 0 To $aGraphs[$iIndex][$g_iHeight] Step $aGraphs[$iIndex][$g_iY_counter]
        _GDIPlus_GraphicsDrawLine($aGraphs[$iIndex][$g_hBuffer], $aGraphs[$iIndex][$g_iShift_Distance] - 1, $iY1, $aGraphs[$iIndex][$g_iWidth], $iY1, $hPen)
    Next
    If $aGraphs[$iIndex][$g_iX_counter] <= 0 Then
        _GDIPlus_GraphicsDrawLine($aGraphs[$iIndex][$g_hBuffer], $aGraphs[$iIndex][$g_iWidth] - 1, 0, $aGraphs[$iIndex][$g_iWidth] - 1, $aGraphs[$iIndex][$g_iHeight], $hPen)
        $aGraphs[$iIndex][$g_iX_counter] = $aGraphs[$iIndex][$g_iX_counter_mem]
    EndIf
    $aGraphs[$iIndex][$g_iX_counter] -= $aGraphs[$iIndex][$g_iIncrement_Size]

    _GDIPlus_PenDispose($hPen)

EndFunc   ;==>_AddGridLines

Func _FullGridLines($iIndex)
    Local $iGridlineColor = $aGraphs[$iIndex][$g_iGridColor]
    If $iGridlineColor = Default Or $iGridlineColor = -1 Then $iGridlineColor = BitOR(0xFF000000, (0xFFFFFFFF - $aGraphs[$iIndex][$g_iBackColor]));Invert Background RGB

    Local $iY1, $hPen = _GDIPlus_PenCreate($iGridlineColor)
    Local $hShift_Section = _GDIPlus_BitmapCloneArea($aGraphs[$iIndex][$g_hBitmap], 0, 0, $aGraphs[$iIndex][$g_iWidth], $aGraphs[$iIndex][$g_iHeight]);
    _GDIPlus_GraphicsClear($aGraphs[$iIndex][$g_hBuffer], $aGraphs[$iIndex][$g_iBackColor]);
    _GDIPlus_GraphicsDrawImageRect($aGraphs[$iIndex][$g_hBuffer], $hShift_Section, 0, 0, $aGraphs[$iIndex][$g_iWidth], $aGraphs[$iIndex][$g_iHeight])
    For $iY1 = 0 To $aGraphs[$iIndex][$g_iHeight] Step $aGraphs[$iIndex][$g_iY_counter]
        _GDIPlus_GraphicsDrawLine($aGraphs[$iIndex][$g_hBuffer], 0, $iY1, $aGraphs[$iIndex][$g_iWidth], $iY1, $hPen)
    Next

    For $iX = 0 To $aGraphs[$iIndex][$g_iWidth] Step $aGraphs[$iIndex][$g_iIncrement_Size]
        If $aGraphs[$iIndex][$g_iX_counter] <= 0 Then
            _GDIPlus_GraphicsDrawLine($aGraphs[$iIndex][$g_hBuffer], $iX, 0, $iX, $aGraphs[$iIndex][$g_iHeight], $hPen)
            $aGraphs[$iIndex][$g_iX_counter] = $aGraphs[$iIndex][$g_iX_counter_mem]
        EndIf
        $aGraphs[$iIndex][$g_iX_counter] -= $aGraphs[$iIndex][$g_iIncrement_Size]
    Next
    _WriteBuffer($iIndex)
    _GDIPlus_BitmapDispose($hShift_Section)
    _GDIPlus_PenDispose($hPen)

EndFunc   ;==>_FullGridLines

Func _WriteBuffer($iIndex)

    Local $hGDI_HBitmap, $hDC

    $hGDI_HBitmap = _GDIPlus_BitmapCreateHBITMAPFromBitmap($aGraphs[$iIndex][$g_hBitmap])
    $hDC = _WinAPI_CreateCompatibleDC($aGraphs[$iIndex][$g_hDC])
    _WinAPI_SelectObject($hDC, $hGDI_HBitmap)
    _WinAPI_BitBlt($aGraphs[$iIndex][$g_hDC], $aGraphs[$iIndex][$g_iLeft], $aGraphs[$iIndex][$g_iTop], $aGraphs[$iIndex][$g_iWidth], $aGraphs[$iIndex][$g_iHeight], $hDC, 0, 0, $SRCCOPY)
    _WinAPI_DeleteObject($hGDI_HBitmap)
    _WinAPI_DeleteDC($hDC)

EndFunc   ;==>_WriteBuffer

Func _SLG_Exit()

    Local $i, $j, $aPens

    If $aGraphs[0][0] Then
        For $i = 1 To $aGraphs[0][0]
            _GDIPlus_GraphicsDispose($aGraphs[$i][$g_hBuffer])
            _GDIPlus_BitmapDispose($aGraphs[$i][$g_hBitmap])
            _GDIPlus_GraphicsDispose($aGraphs[$i][$g_hGraphic])
            $aPens = $aGraphs[$i][$g_aPens]
            For $j = 1 To $aPens[0]
                _GDIPlus_PenDispose($aPens[$j])
            Next
            _WinAPI_ReleaseDC($aGraphs[$i][$g_hGUI], $aGraphs[$i][$g_hDC])
        Next
    EndIf

    _GDIPlus_Shutdown()

EndFunc   ;==>_SLG_Exit
#EndRegion Internel Functions

SLG.au3

Previous DL = 55

Edited by Beege
1 person likes this

Share this post


Link to post
Share on other sites



Very cool. 5 from me.

How to color surface below graph line (integral)?


♡♡♡

.

eMyvnE

Share this post


Link to post
Share on other sites

Thankyou! I'm not sure what you mean though. You talking about the backgound color?

Share this post


Link to post
Share on other sites

Thankyou! I'm not sure what you mean though. You talking about the backgound color?

No, no.

Link to what I mean.


♡♡♡

.

eMyvnE

Share this post


Link to post
Share on other sites

Oh geez. Your right! Im going to have to rethink my math on this one.. :D

Share this post


Link to post
Share on other sites

#6 ·  Posted (edited)

Why rethink the math? You've got the dots on the line, just draw a line to y=0.

Edit: 5 from me too :D...

Edited by KaFu

Share this post


Link to post
Share on other sites

#7 ·  Posted (edited)

Thankyou KaFu. The problem I didn't plan for is if the graph needs to include negative numbers. Say a range of -100 to 100. At the moment is going to put any negative value at 0. 0 is going to be the BOTTOM of the graph, and not middle like it should be. I can fix this though..

Edited by Beege

Share this post


Link to post
Share on other sites

Alright I fixed my math so you can now do negative values if needed.

Example - Sine Wave :D

#include "SLG.au3"
Opt('GUIOnEventMode', 1)

$GUI = GUICreate("GDI+ Scrolling Line Graph", 628, 297, -1, -1, -1, $WS_EX_TOPMOST)
GUISetOnEvent(-3, '_exit')
$Increments = 200
$Graph1 = _SLG_CreateGraph($GUI, 18, 114, 596, 157, -1.05, 1.05, $Increments)
GUISetState()

$2Pi = 2 * ACos(-1)

While True
    For $i = 0 To $2Pi Step 0.1
        _SLG_UpdateGraph($Graph1, Sin($i))
        Sleep(20)
    Next
WEnd

Func _exit()
    Exit
EndFunc   ;==>_exit

Share this post


Link to post
Share on other sites

#9 ·  Posted (edited)

I modified your UDF a little bit: :D

SLG.au3

;http://www.autoitscript.com/forum/index.php?showtopic=109599
#Region Header
; #INDEX# =======================================================================================================================
; Title .........: SLG
; AutoIt Version : 3.3.4.0
; Language ......: English
; Description ...: Functions to assist in creating and updating Scrolling Line Graphs
; Author(s) .....: Beege
; ===============================================================================================================================

; #CURRENT# =====================================================================================================================
;_SLG_CreateGraph
;_SLG_UpdateGraph
;_SLG_ClearGraph
;_SLG_SetLineColor
;_SLG_SetYRange
;_SLG_SetBackGroundColor
; ===============================================================================================================================

#include-once
#include <GDIPlus.au3>
#include <WindowsConstants.au3>
_GDIPlus_Startup()
OnAutoItExitRegister('_SLG_Exit')

#EndRegion

#Region Global Variables and Constants
Global Enum $g_hGraphic, $g_hBitmap, $g_hBuffer, $g_hPen, $g_iLeft, $g_iTop, $g_iWidth, $g_iHeight, $g_iIncrements, _
            $g_iIncrement_Size, $g_iShift_Distance, $g_iY_Last, $g_iY_Min, $g_iY_Max, $g_iY_Range, $g_hDC, $g_hGUI, $g_iBackColor, _
            $g_iX_counter, $g_iY_counter, $g_iX_counter_mem, $MAX
Global $aGraphs[1][$MAX]
$aGraphs[0][0] = 0
#cs

    $aGraphs[0][0]          = List Count
    [0][1-17]               = Nothing

    $aGraphs[$i][0]         = $Graphic Object Handle
    [$i][$g_hBitmap]        = Bitmap Object Handle
    [$i][$g_hBuffer]        = Buffer Handle
    [$i][$g_hPen]           = Pen Handle
    [$i][$g_iLeft]          = Left
    [$i][$g_iTop]           = Top
    [$i][$g_iWidth]         = Width
    [$i][$g_iHeight]        = Height
    [$i][$g_iIncrements]    = Step Count
    [$i][$g_iIncrement_Size]= Step Size
    [$i][$g_iShift_Distance]= Shift Distance
    [$i][$g_iY_Last]        = Last Y Cordnate
    [$i][$g_iY_Min]         = Y Min
    [$i][$g_iY_Max]         = Y Max
    [$i][$g_iY_Range]       = Y Range
    [$i][$g_hDC]            = Display device context Handle
    [$i][$g_hGUI]           = GUI Handle
    [$i][$g_iBackColor]     = BackGround Color value

#ce
#EndRegion

#Region Public Functions
; #FUNCTION# ====================================================================================================================
; Name...........: _SLG_CreateGraph
; Description ...: Creates a Scrolling Line Graph
; Syntax.........: _SLG_CreateGraph($hGUI, $iLeft, $iTop, $iWidth, $iHeight, $iY_Min, $iY_Max, $iIncrement_Total, $Line_Color = 0xFF00FF00, $iBackGround = 0xFF000000)
; Parameters ....: $hGUI        - Handle to parent or owner window
;   $iLeft      - Left side of the graph
;   $iTop       - Top side of the graph
;   $iWidth         - Width of the graph
;   $iHeight        - Height of the graph
;   $iY_Min         - Minimum Y Value
;   $iY_Max         - Maximum Y Value
;            $iIncrements - How many parts the Graph is divided up into.
;   $Line_Color - Alpha, Red, Green and Blue Hex Value. (0xAARRGGBB). Default = Green
;   $iBackGround    - BackGround Color. Alpha, Red, Green and Blue Hex Value. (0xAARRGGBB). Default = Black
; Return values .: Success  - Graph Index
; Author ........: Beege
; Remarks .......: none
; ===============================================================================================================================
Func _SLG_CreateGraph($hGUI, $iLeft, $iTop, $iWidth, $iHeight, $iY_Min, $iY_Max, $iIncrements, $Line_Color = 0xFF00FF00, $iBackGround = 0xFF000000, $iX_c = 20, $iY_c = 20, $iPen_size = 2, $iSmooth = 1)

    ReDim $aGraphs[UBound($aGraphs) + 1][UBound($aGraphs, 2)]
    $aGraphs[0][0] += 1

    $aGraphs[$aGraphs[0][0]][$g_hGraphic] = _GDIPlus_GraphicsCreateFromHWND($hGUI)
    $aGraphs[$aGraphs[0][0]][$g_hBitmap] = _GDIPlus_BitmapCreateFromGraphics($iWidth, $iHeight, $aGraphs[$aGraphs[0][0]][$g_hGraphic])
    $aGraphs[$aGraphs[0][0]][$g_hBuffer] = _GDIPlus_ImageGetGraphicsContext($aGraphs[$aGraphs[0][0]][$g_hBitmap])
    $aGraphs[$aGraphs[0][0]][$g_hPen] = _GDIPlus_PenCreate($Line_Color, $iPen_size)
    $aGraphs[$aGraphs[0][0]][$g_iLeft] = $iLeft
    $aGraphs[$aGraphs[0][0]][$g_iTop] = $iTop
    $aGraphs[$aGraphs[0][0]][$g_iWidth] = $iWidth
    $aGraphs[$aGraphs[0][0]][$g_iHeight] = $iHeight
    $aGraphs[$aGraphs[0][0]][$g_iIncrements] = $iIncrements
    $aGraphs[$aGraphs[0][0]][$g_iIncrement_Size] = Int($iWidth / $iIncrements)
    $aGraphs[$aGraphs[0][0]][$g_iShift_Distance] = $iWidth - $aGraphs[$aGraphs[0][0]][$g_iIncrement_Size]
    $aGraphs[$aGraphs[0][0]][$g_iY_Last] = False
    $aGraphs[$aGraphs[0][0]][$g_iY_Min] = $iY_Min
    $aGraphs[$aGraphs[0][0]][$g_iY_Max] = $iY_Max
    _SLG_SetYRange($aGraphs[0][0], $iY_Min, $iY_Max)
    $aGraphs[$aGraphs[0][0]][$g_hDC] = _WinAPI_GetDC($hGUI)
    $aGraphs[$aGraphs[0][0]][$g_hGUI] = $hGUI
    $aGraphs[$aGraphs[0][0]][$g_iBackColor] = 0xFF000000;BitOR($iBackGround, 0xFF000000)
    $aGraphs[$aGraphs[0][0]][$g_iX_counter] = $iX_c
    $aGraphs[$aGraphs[0][0]][$g_iX_counter_mem] = $iX_c
    $aGraphs[$aGraphs[0][0]][$g_iY_counter] = $iY_c
    If $iSmooth Then _GDIPlus_GraphicsSetSmoothingMode($aGraphs[$aGraphs[0][0]][$g_hBuffer], 2)
    _GDIPlus_GraphicsClear($aGraphs[$aGraphs[0][0]][$g_hBuffer], $aGraphs[$aGraphs[0][0]][$g_iBackColor]);

    Return $aGraphs[0][0]

EndFunc ;==>_SLG_CreateGraph

; #FUNCTION# ====================================================================================================================
; Name...........: _SLG_UpdateGraph
; Description ...: Updates Line Graph with new value
; Syntax.........: _SLG_UpdateGraph($iIndex, $iValue)
; Parameters ....: $iIndex      - Index returned from _SLG_CreateGraph()
;   $iValue         - Value to add to graph
; Return values .: Success  - 1
;   Failure     - 0 and sets @ERROR:
;                               - 1 Invalid iIndex
; Author ........: Beege
; Remarks .......: none
; ===============================================================================================================================
Func _SLG_UpdateGraph($iIndex, $iValue, $iback = 1)
    Local $i, $j
    If $iIndex > $aGraphs[0][0] Then Return SetError(1, @extended, 0)

    If $iValue > $aGraphs[$iIndex][$g_iY_Max] Then
        $iValue = $aGraphs[$iIndex][$g_iY_Max]
    ElseIf $iValue < $aGraphs[$iIndex][$g_iY_Min] Then
        $iValue = $aGraphs[$iIndex][$g_iY_Min]
    EndIf

    Local $Percent = Abs($iValue-$aGraphs[$iIndex][$g_iY_Min]) / $aGraphs[$iIndex][$g_iY_Range]
    If $Percent > .992 Then $Percent = .992

    Local $iY = Int($aGraphs[$iIndex][$g_iHeight] - ($Percent * $aGraphs[$iIndex][$g_iHeight]))

    If Not $aGraphs[$iIndex][$g_iY_Last] Then
        $aGraphs[$iIndex][$g_iY_Last] = $iY
        Return 1
    EndIf
    Local $hShift_Section = _GDIPlus_BitmapCloneArea($aGraphs[$iIndex][$g_hBitmap], $aGraphs[$iIndex][$g_iIncrement_Size], 0, $aGraphs[$iIndex][$g_iShift_Distance], $aGraphs[$iIndex][$g_iHeight]);
    _GDIPlus_GraphicsClear($aGraphs[$iIndex][$g_hBuffer], $aGraphs[$iIndex][$g_iBackColor]);
    _GDIPlus_GraphicsDrawImageRect($aGraphs[$iIndex][$g_hBuffer], $hShift_Section, 0, 0, $aGraphs[$iIndex][$g_iShift_Distance], $aGraphs[$iIndex][$g_iHeight])
    Local $hPen = _GDIPlus_PenCreate(0xFFA0A0A0)
    If $iback Then
        For $j = 0 To $aGraphs[$iIndex][$g_iHeight] Step $aGraphs[$iIndex][$g_iY_counter]
            _GDIPlus_GraphicsDrawLine($aGraphs[$iIndex][$g_hBuffer], $aGraphs[$iIndex][$g_iWidth] - $aGraphs[$iIndex][$g_iIncrement_Size] - 1, $j, $aGraphs[$iIndex][$g_iWidth], $j, $hPen)
        Next
        If $aGraphs[$iIndex][$g_iX_counter] <= 0 Then
            _GDIPlus_GraphicsDrawLine($aGraphs[$iIndex][$g_hBuffer], $aGraphs[$iIndex][$g_iWidth] - 1, 0, $aGraphs[$iIndex][$g_iWidth] - 1, $aGraphs[$iIndex][$g_iHeight], $hPen)
            $aGraphs[$iIndex][$g_iX_counter] = $aGraphs[$iIndex][$g_iX_counter_mem]
        EndIf
        $aGraphs[$iIndex][$g_iX_counter] -= $aGraphs[$iIndex][$g_iIncrement_Size]
    EndIf
    _GDIPlus_GraphicsDrawLine($aGraphs[$iIndex][$g_hBuffer], $aGraphs[$iIndex][$g_iShift_Distance], $aGraphs[$iIndex][$g_iY_Last], $aGraphs[$iIndex][$g_iWidth] - 1, $iY, $aGraphs[$iIndex][$g_hPen])
    _WriteBuffer($iIndex)
    _GDIPlus_PenDispose($hPen)
    _GDIPlus_BitmapDispose($hShift_Section)
    $aGraphs[$iIndex][$g_iY_Last] = $iY

    Return 1

EndFunc ;==>_SLG_UpdateGraph

; #FUNCTION# ====================================================================================================================
; Name...........: _SLG_SetLineColor
; Description ...: Sets Line Color of Graph
; Syntax.........: _SLG_SetLineColor($iIndex, $iARGB)
; Parameters ....: $iIndex      - Index returned from _SLG_CreateGraph()
;   $iValue         - Alpha, Red, Green and Blue Hex Value. (0xAARRGGBB)
; Return values .: Success  - 1
;   Failure     - 0 and sets @ERROR:
;                               - 1 Invalid iIndex
;                               - 2 Error setting pen color
; Author ........: Beege
; Remarks .......: none
; ===============================================================================================================================
Func _SLG_SetLineColor($iIndex, $iARGB)

    If $iIndex > $aGraphs[0][0] Then Return SetError(1, @extended, 0)

    _GDIPlus_PenSetColor($aGraphs[$iIndex][$g_hPen], $iARGB)
    If @error Then Return SetError(2, @extended, 0)

    Return 1

EndFunc ;==>_SLG_SetLineColor

; #FUNCTION# ====================================================================================================================
; Name...........: _SLG_ClearGraph
; Description ...: Clears all data from Graph
; Syntax.........: _SLG_ClearGraph($iIndex)
; Parameters ....: $iIndex      - Index returned from _SLG_CreateGraph()
; Return values .: Success  - 1
;   Failure     - 0 and sets @ERROR:
;                               - 1 Invalid iIndex
; Author ........: Beege
; Remarks .......: none
; ===============================================================================================================================
Func _SLG_ClearGraph($iIndex)

    If $iIndex > $aGraphs[0][0] Then Return SetError(1, @extended, 0)

    _GDIPlus_GraphicsClear($aGraphs[$iIndex][$g_hBuffer], $aGraphs[$iIndex][$g_iBackColor]);
    _WriteBuffer($iIndex)

    Return 1

EndFunc ;==>_SLG_ClearGraph

; #FUNCTION# ====================================================================================================================
; Name...........: _SLG_SetYRange
; Description ...: Sets the Minimum and Maximum Y Values
; Syntax.........: _SLG_SetYRange($iIndex, $iY_Min, $iY_Max)
; Parameters ....: $iIndex      - Index returned from _SLG_CreateGraph()
;   $iY_Min     - Minimum Y Value
;   $iY_Max     - Maximum Y Value
; Return values .: Success  - 1
;   Failure     - 0 and sets @ERROR:
;                               - 1 Invalid iIndex
; Author ........: Beege
; Remarks .......: User should most likly want to ClearGraph after changing Y Range
; ===============================================================================================================================
Func _SLG_SetYRange($iIndex, $iY_Min, $iY_Max)

    If $iIndex > $aGraphs[0][0] Then Return SetError(1, @extended, 0)

    $aGraphs[$iIndex][$g_iY_Min] = $iY_Min
    $aGraphs[$iIndex][$g_iY_Max] = $iY_Max
    $aGraphs[$iIndex][$g_iY_Range] = Abs($iY_Max - $iY_Min)

    Return 1

EndFunc ;==>_SLG_SetYRange

; #FUNCTION# ====================================================================================================================
; Name...........: _SLG_SetBackGroundColor
; Description ...: Sets Graph BackGround Color
; Syntax.........: _SLG_SetBackGroundColor($iIndex, $iARGB = 0xFF000000)
; Parameters ....: $iIndex      - Index returned from _SLG_CreateGraph()
;   $iARGB      - Alpha, Red, Green and Blue Hex Value. (0xAARRGGBB). Default = Black
; Return values .: Success  - 1
;   Failure     - 0 and sets @ERROR:
;                               - 1 Invalid iIndex
; Author ........: Beege
; Remarks .......: All previous data will be cleared
; ===============================================================================================================================
Func _SLG_SetBackGroundColor($iIndex, $iARGB = 0xFF000000)

    If $iIndex > $aGraphs[0][0] Then Return SetError(1, @extended, 0)

    $aGraphs[$iIndex][$g_iBackColor] = $iARGB
    _SLG_ClearGraph($iIndex)

    Return 1

EndFunc ;==>_SLG_SetBackGroundColor
#EndRegion
#Region Internel Functions
Func _WriteBuffer($iIndex)

    Local $hGDI_HBitmap, $hDC

    $hGDI_HBitmap = _GDIPlus_BitmapCreateHBITMAPFromBitmap($aGraphs[$iIndex][$g_hBitmap])
    $hDC = _WinAPI_CreateCompatibleDC($aGraphs[$iIndex][$g_hDC])
    _WinAPI_SelectObject($hDC, $hGDI_HBitmap)
    _WinAPI_BitBlt($aGraphs[$iIndex][$g_hDC], $aGraphs[$iIndex][$g_iLeft], $aGraphs[$iIndex][$g_iTop], $aGraphs[$iIndex][$g_iWidth], $aGraphs[$iIndex][$g_iHeight], $hDC, 0, 0, $SRCCOPY)
    _WinAPI_DeleteObject($hGDI_HBitmap)
    _WinAPI_DeleteDC($hDC)

EndFunc ;==>_WriteBuffer

Func _SLG_Exit()

    Local $i

    If $aGraphs[0][0] Then
        For $i = 1 To $aGraphs[0][0]
            _GDIPlus_GraphicsDispose($aGraphs[$i][$g_hBuffer])
            _GDIPlus_BitmapDispose($aGraphs[$i][$g_hBitmap])
            _GDIPlus_GraphicsDispose($aGraphs[$i][$g_hGraphic])
            _GDIPlus_PenDispose($aGraphs[$i][$g_hPen])
            _WinAPI_ReleaseDC($aGraphs[$i][$g_hGUI], $aGraphs[$i][$g_hDC])
        Next
    EndIf

    _GDIPlus_Shutdown()

EndFunc ;==>_SLG_Exit
#EndRegion Internel Functions

And here an example:

#include <StaticConstants.au3>
#include "SLG.au3"

Const $cBlue = 0xFF00ACFF, $cGreen = 0xFF00FF00, $cHOTPINK = 0xFFF004DE, $cBlack = 0xFF000000, $cGray = 0xFFADADAD
$GUI = GUICreate("GDI+ Scrolling Line Graph", 628, 297, -1, -1, -1, $WS_EX_TOPMOST)
$Label1 = GUICtrlCreateLabel("Graph 1", 66, 36, 192, 53, BitOR($SS_CENTER,$SS_CENTERIMAGE))
GUICtrlSetFont(-1, 24, 400, 0, "MS Sans Serif")
$Label2 = GUICtrlCreateLabel("Graph 2", 372, 36, 192, 53, BitOR($SS_CENTER,$SS_CENTERIMAGE))
GUICtrlSetFont(-1, 24, 400, 0, "MS Sans Serif")


$Increments = 80
$Graph1 = _SLG_CreateGraph($GUI, 18, 114, 283, 157, 0, 300, $Increments)
$Graph2 = _SLG_CreateGraph($GUI, 324, 114, 283, 157, 0, 300, $Increments, $cBlue)
GUISetState()

For $i = 1 To 30
    For $j = 1 To 10
    _SLG_UpdateGraph($Graph1, Random(0, 300))
    _SLG_UpdateGraph($Graph2, Random(0, 300), 0)
    Sleep(30)
    Next
    _SwapColors()
Next

_SLG_SetBackGroundColor($Graph1, $cHOTPINK)
_SLG_SetBackGroundColor($Graph2, $cBlue)
_SLG_SetLineColor($Graph1, $cBlack)
_SLG_SetLineColor($Graph2, $cBlack)

For $i = 1 To 400
    _SLG_UpdateGraph($Graph1, Random(0, 300))
    _SLG_UpdateGraph($Graph2, Random(0, 300), 0)
    Sleep(30)
Next


Func _SwapColors()
    Static $swap = -1
    $swap *= -1

    If $swap = -1 Then
    _SLG_SetLineColor($Graph1, $cHOTPINK)
    _SLG_SetLineColor($Graph2, $cBlue)
    Else
    _SLG_SetLineColor($Graph1, $cBlue)
    _SLG_SetLineColor($Graph2, $cHOTPINK)
    EndIf

EndFunc ;==>_SwapColors

I hope you are not angry about my modifications. :huggles:

UEZ

Edited by UEZ

Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯

Share this post


Link to post
Share on other sites

I hope you are not angry about my modifications. :huggles:

Not at all angry. This is exactly what I wanted to add but didn't know completely how to do it. Thanks so much! :D I will update the original very shortly. Just have a couple more things to add.

Share this post


Link to post
Share on other sites

See Top for Update:)

Share this post


Link to post
Share on other sites

#13 ·  Posted (edited)

Hey, I made a modification to your UDF. I wanted to get around using a sleep in my script so I added a timer. I have heard that people really hate timers but I hope this is a welcome change. :blink:

Here is a sample script:

#include <SLG.au3>
Opt('GuiOnEventMode', 1)
$GUI = GUICreate("GDI+ Scrolling Line Graph", 628, 297, -1, -1, -1, $WS_EX_TOPMOST)
GUISetOnEvent(-3, '_Exit')
GUISetState()
$Increments = 100
$Graph1 = _SLG_CreateGraph($GUI, 18, 18, 596, 257, -100, 100, $Increments, -1, -1, -1, True)
_SLG_SetGridLineColor($Graph1, 0xFF5C5C5C)

While 1
    $MemStats = MemGetStats()
    _SLG_SetLineValue($Graph1, $MemStats[0])
    _SLG_UpdateGraph($Graph1)
WEnd

Func _Exit()
    Exit
EndFunc   ;==>_Exit

Here is the UDF:

#Region Header
; #INDEX# =======================================================================================================================
; Title .........: SLG
; AutoIt Version : 3.3.4.0
; Language ......: English
; Description ...: Functions to assist in creating and updating Scrolling Line Graphs
; Author(s) .....: Beege
; ===============================================================================================================================

; #CURRENT# =====================================================================================================================
;_SLG_CreateGraph
;_SLG_UpdateGraph
;_SLG_ClearGraph
;_SLG_SetLineColor
;_SLG_SetYRange
;_SLG_SetBackGroundColor
;_SLG_AddLine
;_SLG_SetLineValue
;_SLG_SetLineWidth
;_SLG_EnableGridLines
;_SLG_SetGridLineColor
; ===============================================================================================================================

#Region User KeyWords and CallTips
#cs

    Keywords:
    au3.keywords.user.udfs= _slg_creategraph _slg_updategraph _slg_cleargraph \
    _slg_setlinecolor _slg_setyrange _slg_setbackgroundcolor _slg_addline \
    _slg_setlinevalue _slg_setlinewidth _slg_enablegridlines _slg_setgridlinecolor

    CallTips:
    _SLG_CreateGraph($hGUI, $iLeft, $iTop, $iWidth, $iHeight, $iY_Min, $iY_Max, $iIncrements, $Line_Color = 0xFF00FF00, $Line_Width = 2, $iBackGround = 0xFF000000, $bGridlines = True)
    _SLG_UpdateGraph($iIndex)
    _SLG_AddLine($iIndex, $Line_Color = 0xFF00FF00, $Line_Width = 2)
    _SLG_ClearGraph($iIndex)
    _SLG_SetLineValue($iIndex, $iValue, $iLine = 1)
    _SLG_SetLineColor($iIndex, $iARGB, $iLine = 1)
    _SLG_SetLineWidth($iIndex, $iWidth, $iLine = 1)
    _SLG_SetYRange($iIndex, $iY_Min, $iY_Max)
    _SLG_SetBackGroundColor($iIndex, $iARGB = 0xFF000000)
    _SLG_SetGridLineColor($iIndex, $iARGB = Default)
    _SLG_EnableGridLines($iIndex, $bGridlines = True)
#ce
#EndRegion User KeyWords and CallTips

#include-once
#include <GDIPlus.au3>
#include <WindowsConstants.au3>
_GDIPlus_Startup()
OnAutoItExitRegister('_SLG_Exit')
#EndRegion Header

#Region Global Variables and Constants
Global Enum $g_hGraphic, $g_hBitmap, $g_hBuffer, $g_aPens, $g_iLeft, $g_iTop, $g_iWidth, $g_iHeight, $g_iIncrements, _
        $g_iIncrement_Size, $g_iShift_Distance, $g_iY, $g_iY_Last, $g_iY_Min, $g_iY_Max, $g_iY_Range, $g_hDC, $g_hGUI, $g_iBackColor, _
        $g_iX_counter, $g_iY_counter, $g_iX_counter_mem, $g_bGridlines, $g_iGridColor, $MAX
Global $aGraphs[1][$MAX], $g_GraphSpeed_Counter, $g_GraphSpeedDef = 30
$aGraphs[0][0] = 0
#cs

    $aGraphs[0][0]          = List Count
    [0][1-17]               = Nothing

    $aGraphs[$i][0]         = $Graphic Object Handle
    [$i][$g_hBitmap]        = Bitmap Object Handle
    [$i][$g_hBuffer]        = Buffer Handle
    [$i][$g_iLeft]          = Left
    [$i][$g_iTop]           = Top
    [$i][$g_iWidth]         = Width
    [$i][$g_iHeight]        = Height
    [$i][$g_iIncrements]    = Step Count
    [$i][$g_iIncrement_Size]= Step Size
    [$i][$g_iShift_Distance]= Shift Distance
    [$i][$g_iY_Min]         = Y Min
    [$i][$g_iY_Max]         = Y Max
    [$i][$g_iY_Range]       = Y Range
    [$i][$g_hDC]            = Display device context Handle
    [$i][$g_hGUI]           = GUI Handle
    [$i][$g_iBackColor]     = BackGround Color value
    [$i][$g_iY_Last]        = Array containing Last Y Cordnate for each Line
    [$i][$g_iY]             = Array containing Y Cordnate for each Line
    [$i][$g_aPens]          = Array containing Pen Handles for each Line
    [$i][$g_bGridlines]     = Draw GridLines flag
    [$i][$g_iGridColor]     = GridLines Color Value
    [$i][$g_iX_counter]     = Counter for X GridLines
    [$i][$g_iY_counter]     = Counter for Y GridLines
    [$i][$g_iX_counter_mem] = Original Counter Value

#ce
#EndRegion Global Variables and Constants

#Region Public Functions
; #FUNCTION# ====================================================================================================================
; Name...........: _SLG_CreateGraph
; Description ...: Creates a Scrolling Line Graph
; Syntax.........: _SLG_CreateGraph($hGUI, $iLeft, $iTop, $iWidth, $iHeight, $iY_Min, $iY_Max, $iIncrement_Total, $Line_Color = 0xFF00FF00, $iBackGround = 0xFF000000)
; Parameters ....: $hGUI        - Handle to parent or owner window
;                  $iLeft       - Left side of the graph
;                  $iTop        - Top side of the graph
;                  $iWidth      - Width of the graph
;                  $iHeight     - Height of the graph
;                  $iY_Min      - Minimum Y Value
;                  $iY_Max      - Maximum Y Value
;                  $iIncrements - How many parts the Graph is divided up into. More Parts means more history..
;                  $Line_Color  - Alpha, Red, Green and Blue Hex Value. (0xAARRGGBB). Default = Green
;                  $iLine_Width - Line Width. Default = 1
;                  $iBackGround - BackGround Color. Alpha, Red, Green and Blue Hex Value. (0xAARRGGBB). Default = Black
;                  $bGridlines  - Enable Gridlines. Default = True
; Return values .: Success      - Graph Index
; Author ........: Beege
; Remarks .......: Line index of line created is 1.
; ===============================================================================================================================
Func _SLG_CreateGraph($hGUI, $iLeft, $iTop, $iWidth, $iHeight, $iY_Min, $iY_Max, $iIncrements, $Line_Color = 0xFF00FF00, $iLine_Width = 2, $iBackGround = 0xFF000000, $bGridlines = True)


    ReDim $aGraphs[UBound($aGraphs) + 1][UBound($aGraphs, 2)]
    $aGraphs[0][0] += 1

    If $Line_Color = -1 Or $Line_Color = Default Then $Line_Color = 0xFF00FF00
    If $iBackGround = -1 Or $iBackGround = Default Then $iBackGround = 0xFF000000
    If $iLine_Width = -1 Or $iLine_Width = Default Then $iLine_Width = 2
    If $bGridlines = -1 Or $bGridlines = Default Then $bGridlines = True

    $aGraphs[$aGraphs[0][0]][$g_hGraphic] = _GDIPlus_GraphicsCreateFromHWND($hGUI)
    $aGraphs[$aGraphs[0][0]][$g_hBitmap] = _GDIPlus_BitmapCreateFromGraphics($iWidth, $iHeight, $aGraphs[$aGraphs[0][0]][$g_hGraphic])
    $aGraphs[$aGraphs[0][0]][$g_hBuffer] = _GDIPlus_ImageGetGraphicsContext($aGraphs[$aGraphs[0][0]][$g_hBitmap])
    $aGraphs[$aGraphs[0][0]][$g_iLeft] = $iLeft
    $aGraphs[$aGraphs[0][0]][$g_iTop] = $iTop
    $aGraphs[$aGraphs[0][0]][$g_iWidth] = $iWidth
    $aGraphs[$aGraphs[0][0]][$g_iHeight] = $iHeight
    $aGraphs[$aGraphs[0][0]][$g_iIncrements] = $iIncrements
    $aGraphs[$aGraphs[0][0]][$g_iIncrement_Size] = Int($iWidth / $iIncrements)
    $aGraphs[$aGraphs[0][0]][$g_iShift_Distance] = $iWidth - $aGraphs[$aGraphs[0][0]][$g_iIncrement_Size]
    _SLG_AddLine($aGraphs[0][0], $Line_Color, $iLine_Width)
    $aGraphs[$aGraphs[0][0]][$g_iY_Min] = $iY_Min
    $aGraphs[$aGraphs[0][0]][$g_iY_Max] = $iY_Max
    _SLG_SetYRange($aGraphs[0][0], $iY_Min, $iY_Max)
    $aGraphs[$aGraphs[0][0]][$g_hDC] = _WinAPI_GetDC($hGUI)
    $aGraphs[$aGraphs[0][0]][$g_hGUI] = $hGUI
    _SLG_SetBackGroundColor($aGraphs[0][0], BitOR($iBackGround, 0xFF000000))
    $aGraphs[$aGraphs[0][0]][$g_bGridlines] = $bGridlines
    $aGraphs[$aGraphs[0][0]][$g_iX_counter] = 20;$iX_c
    $aGraphs[$aGraphs[0][0]][$g_iX_counter_mem] = 20;$iX_c
    $aGraphs[$aGraphs[0][0]][$g_iY_counter] = 20;$iY_c
    $aGraphs[$aGraphs[0][0]][$g_iGridColor] = Default
    _GDIPlus_GraphicsSetSmoothingMode($aGraphs[$aGraphs[0][0]][$g_hBuffer], 2)

    _GDIPlus_GraphicsClear($aGraphs[$aGraphs[0][0]][$g_hBuffer], $aGraphs[$aGraphs[0][0]][$g_iBackColor]);
    If $bGridlines Then _FullGridLines($aGraphs[0][0])
    Return $aGraphs[0][0]

EndFunc   ;==>_SLG_CreateGraph

; #FUNCTION# ====================================================================================================================
; Name...........: _SLG_UpdateGraph
; Description ...: Updates Line Graph with new values
; Syntax.........: _SLG_UpdateGraph($iIndex, $iValue)
; Parameters ....: $iIndex      - Index returned from _SLG_CreateGraph()
; Return values .: Success      - 1
;                  Failure      - 0  and sets @ERROR:
;                               - 1 Invalid iIndex
; Author ........: Beege
; Remarks .......: All Lines of the graph must be updated before calling this function.
; ===============================================================================================================================
Func _SLG_UpdateGraph($iIndex)
    If $g_GraphSpeed_Counter = "" Then $g_GraphSpeed_Counter = TimerInit()
    If TimerDiff($g_GraphSpeed_Counter) > $g_GraphSpeedDef Then
        $g_GraphSpeed_Counter = ""
        If $iIndex > $aGraphs[0][0] Then Return SetError(1, @extended, 0)

        Local $aLineY = $aGraphs[$iIndex][$g_iY]

        For $i = 1 To $aLineY[0]
            If Not $aLineY[$i] Then Return
        Next

        Local $hShift_Section = _GDIPlus_BitmapCloneArea($aGraphs[$iIndex][$g_hBitmap], $aGraphs[$iIndex][$g_iIncrement_Size], 0, $aGraphs[$iIndex][$g_iShift_Distance], $aGraphs[$iIndex][$g_iHeight]);
        _GDIPlus_GraphicsClear($aGraphs[$iIndex][$g_hBuffer], $aGraphs[$iIndex][$g_iBackColor]);
        _GDIPlus_GraphicsDrawImageRect($aGraphs[$iIndex][$g_hBuffer], $hShift_Section, 0, 0, $aGraphs[$iIndex][$g_iShift_Distance], $aGraphs[$iIndex][$g_iHeight])

        If $aGraphs[$iIndex][$g_bGridlines] Then _AddGridLines($iIndex)

        Local $aLineYLast = $aGraphs[$iIndex][$g_iY_Last]
        Local $aPens = $aGraphs[$iIndex][$g_aPens]

        For $i = 1 To $aLineYLast[0]
            _GDIPlus_GraphicsDrawLine($aGraphs[$iIndex][$g_hBuffer], $aGraphs[$iIndex][$g_iShift_Distance] - 1, $aLineYLast[$i], $aGraphs[$iIndex][$g_iWidth] - 1, $aLineY[$i], $aPens[$i])
        Next
        _WriteBuffer($iIndex)

        _GDIPlus_BitmapDispose($hShift_Section)
        For $i = 1 To $aLineY[0]
            $aLineYLast[$i] = $aLineY[$i]
        Next
        $aGraphs[$iIndex][$g_iY_Last] = $aLineYLast

        Return 1
    Else
        Return 0
    EndIf
EndFunc   ;==>_SLG_UpdateGraph

; #FUNCTION# ====================================================================================================================
; Name...........: _SLG_SetLineValue
; Description ...: Sets Line value
; Syntax.........: _SLG_SetLineValue($iIndex, $iValue, $iLine = 1)
; Parameters ....: $iIndex      - Index returned from _SLG_CreateGraph()
;                  $iValue      - Value to add to graph
;                  $iLine       - Line index returned from _SLG_AddLine()
; Return values .: Success      - 1
;                  Failure      - 0  and sets @ERROR:
;                               - 1 Invalid iIndex
; Author ........: Beege
; Remarks .......: If your graph only has 1 line then the line index is 1
; ===============================================================================================================================
Func _SLG_SetLineValue($iIndex, $iValue, $iLine = 1)

    If $iIndex > $aGraphs[0][0] Then Return SetError(1, @extended, 0)

    If $iValue > $aGraphs[$iIndex][$g_iY_Max] Then
        $iValue = $aGraphs[$iIndex][$g_iY_Max]
    ElseIf $iValue < $aGraphs[$iIndex][$g_iY_Min] Then
        $iValue = $aGraphs[$iIndex][$g_iY_Min]
    EndIf

    Local $Percent = Abs($iValue - $aGraphs[$iIndex][$g_iY_Min]) / $aGraphs[$iIndex][$g_iY_Range]
    If $Percent > .992 Then $Percent = .992

    Local $iY = Int($aGraphs[$iIndex][$g_iHeight] - ($Percent * $aGraphs[$iIndex][$g_iHeight]))

    Local $aLineYLast = $aGraphs[$iIndex][$g_iY_Last]

    If Not $aLineYLast[$iLine] Then
        $aLineYLast[$iLine] = $iY
        $aGraphs[$iIndex][$g_iY_Last] = $aLineYLast
        Return 0
    Else
        Local $aLineY = $aGraphs[$iIndex][$g_iY]
        $aLineY[$iLine] = $iY
        $aGraphs[$iIndex][$g_iY] = $aLineY
        Return 1
    EndIf

EndFunc   ;==>_SLG_SetLineValue

; #FUNCTION# ====================================================================================================================
; Name...........: _SLG_AddLine
; Description ...: Adds additional lines to the graph
; Syntax.........: _SLG_AddLine($iIndex, $Line_Color = 0xFF00FF00, $Line_Width = 1)
; Parameters ....: $iIndex      - Index returned from _SLG_CreateGraph()
;                  $iLine_Color - Alpha, Red, Green and Blue Hex Value. (0xAARRGGBB)
;                  $Line_Width  - Line Width
; Return values .: Success      - Line Index
;                  Failure      - 0  and sets @ERROR:
;                               - 1 Invalid iIndex
; Author ........: Beege
; Remarks .......: Every line must have its value set before you can call _SLG_UpdateGraph()
; ===============================================================================================================================
Func _SLG_AddLine($iIndex, $Line_Color = 0xFF00FF00, $Line_Width = 2)

    If $iIndex > $aGraphs[0][0] Then Return SetError(1, @extended, 0)

    If $Line_Color = -1 Or $Line_Color = Default Then $Line_Color = 0xFF00FF00
    If $Line_Width = -1 Or $Line_Width = Default Then $Line_Width = 1

    Local $aLinesY = $aGraphs[$iIndex][$g_iY]
    Local $aLinesYLast = $aGraphs[$iIndex][$g_iY_Last]
    Local $aPens = $aGraphs[$iIndex][$g_aPens]

    If Not IsArray($aLinesYLast) Then
        Local $aLinesY[1] = [0]
        Local $aLinesYLast[1] = [0]
        Local $aPens[1] = [0]
    EndIf

    ReDim $aLinesYLast[UBound($aLinesYLast) + 1]
    ReDim $aLinesY[UBound($aLinesY) + 1]
    ReDim $aPens[UBound($aPens) + 1]

    $aLinesYLast[0] += 1
    $aLinesY[0] += 1
    $aPens[0] += 1

    $aLinesYLast[$aLinesYLast[0]] = False
    $aLinesY[$aLinesY[0]] = False
    $aPens[$aPens[0]] = _GDIPlus_PenCreate($Line_Color, $Line_Width)

    $aGraphs[$iIndex][$g_iY_Last] = $aLinesYLast
    $aGraphs[$iIndex][$g_iY] = $aLinesY
    $aGraphs[$iIndex][$g_aPens] = $aPens

    Return $aLinesY[0]

EndFunc   ;==>_SLG_AddLine

; #FUNCTION# ====================================================================================================================
; Name...........: _SLG_SetLineColor
; Description ...: Sets Line Color of Graph
; Syntax.........: _SLG_SetLineColor($iIndex, $iARGB)
; Parameters ....: $iIndex      - Index returned from _SLG_CreateGraph()
;                  $iValue      - Alpha, Red, Green and Blue Hex Value. (0xAARRGGBB)
;                  $iLine       - Line index returned from _SLG_AddLine()
; Return values .: Success      - 1
;                  Failure      - 0  and sets @ERROR:
;                               - 1 Invalid iIndex
;                               - 2 Invalid iLine
;                               - 3 Error setting pen color
; Author ........: Beege
; Remarks .......: If your graph only has 1 line then the line index is 1
; ===============================================================================================================================
Func _SLG_SetLineColor($iIndex, $iARGB, $iLine = 1)

    If $iIndex > $aGraphs[0][0] Then Return SetError(1, @extended, 0)

    Local $aPens = $aGraphs[$iIndex][$g_aPens]
    If $iLine > $aPens[0] Then Return SetError(2, @extended, 0)

    _GDIPlus_PenSetColor($aPens[$iLine], $iARGB)
    If @error Then Return SetError(3, @extended, 0)

    Return 1

EndFunc   ;==>_SLG_SetLineColor

; #FUNCTION# ====================================================================================================================
; Name...........: _SLG_SetLineWidth
; Description ...: Sets Line Width
; Syntax.........: _SLG_SetLineWidth($iIndex, $iWidth, $iLine = 1)
; Parameters ....: $iIndex      - Index returned from _SLG_CreateGraph()
;                  $iValue      - Width of Line
;                  $iLine       - Line index returned from _SLG_AddLine()
; Return values .: Success      - 1
;                  Failure      - 0  and sets @ERROR:
;                               - 1 Invalid iIndex
;                               - 2 Invalid iLine index
;                               - 3 Error setting pen width
; Author ........: Beege
; Remarks .......: If your graph only has 1 line then the line index is 1
; ===============================================================================================================================
Func _SLG_SetLineWidth($iIndex, $iWidth, $iLine = 1)

    If $iIndex > $aGraphs[0][0] Then Return SetError(1, @extended, 0)

    Local $aPens = $aGraphs[$iIndex][$g_aPens]
    If $iLine > $aPens[0] Then Return SetError(2, @extended, 0)

    Local $aPens = $aGraphs[$iIndex][$g_aPens]
    _GDIPlus_PenSetWidth($aPens[$iLine], $iWidth)
    If @error Then Return SetError(3, @extended, 0)

    Return 1

EndFunc   ;==>_SLG_SetLineWidth

; #FUNCTION# ====================================================================================================================
; Name...........: _SLG_ClearGraph
; Description ...: Clears all data from Graph
; Syntax.........: _SLG_ClearGraph($iIndex)
; Parameters ....: $iIndex      - Index returned from _SLG_CreateGraph()
; Return values .: Success      - 1
;                  Failure      - 0  and sets @ERROR:
;                               - 1 Invalid iIndex
; Author ........: Beege
; Remarks .......: none
; ===============================================================================================================================
Func _SLG_ClearGraph($iIndex)

    If $iIndex > $aGraphs[0][0] Then Return SetError(1, @extended, 0)

    _GDIPlus_GraphicsClear($aGraphs[$iIndex][$g_hBuffer], $aGraphs[$iIndex][$g_iBackColor]);
    If $aGraphs[$iIndex][$g_bGridlines] Then _FullGridLines($iIndex)
    _WriteBuffer($iIndex)

    Return 1

EndFunc   ;==>_SLG_ClearGraph

; #FUNCTION# ====================================================================================================================
; Name...........: _SLG_SetYRange
; Description ...: Sets the Minimum and Maximum Y Values
; Syntax.........: _SLG_SetYRange($iIndex, $iY_Min, $iY_Max)
; Parameters ....: $iIndex      - Index returned from _SLG_CreateGraph()
;                  $iY_Min      - Minimum Y Value
;                  $iY_Max      - Maximum Y Value
; Return values .: Success      - 1
;                  Failure      - 0  and sets @ERROR:
;                               - 1 Invalid iIndex
; Author ........: Beege
; Remarks .......: User should most likly want to ClearGraph after changing Y Range
; ===============================================================================================================================
Func _SLG_SetYRange($iIndex, $iY_Min, $iY_Max)

    If $iIndex > $aGraphs[0][0] Then Return SetError(1, @extended, 0)

    $aGraphs[$iIndex][$g_iY_Min] = $iY_Min
    $aGraphs[$iIndex][$g_iY_Max] = $iY_Max
    $aGraphs[$iIndex][$g_iY_Range] = Abs($iY_Max - $iY_Min)

    Return 1

EndFunc   ;==>_SLG_SetYRange

; #FUNCTION# ====================================================================================================================
; Name...........: _SLG_SetBackGroundColor
; Description ...: Sets Graph BackGround Color
; Syntax.........: _SLG_SetBackGroundColor($iIndex, $iARGB = 0xFF000000)
; Parameters ....: $iIndex      - Index returned from _SLG_CreateGraph()
;                  $iARGB       - Alpha, Red, Green and Blue Hex Value. (0xAARRGGBB). Default = Black
; Return values .: Success      - 1
;                  Failure      - 0  and sets @ERROR:
;                               - 1 Invalid iIndex
; Author ........: Beege
; Remarks .......: All previous data will be cleared
; ===============================================================================================================================
Func _SLG_SetBackGroundColor($iIndex, $iARGB = 0xFF000000)

    If $iIndex > $aGraphs[0][0] Then Return SetError(1, @extended, 0)

    $aGraphs[$iIndex][$g_iBackColor] = $iARGB
    _SLG_ClearGraph($iIndex)

    Return 1

EndFunc   ;==>_SLG_SetBackGroundColor

; #FUNCTION# ====================================================================================================================
; Name...........: _SLG_SetGridLineColor($iIndex)
; Description ...: Sets Graph GridLines Color Value
; Syntax.........: _SLG_SetGridLineColor($iIndex, $iARGB = Default)
; Parameters ....: $iIndex      - Index returned from _SLG_CreateGraph()
;                  $iARGB       - Alpha, Red, Green and Blue Hex Value. (0xAARRGGBB). Default = Invert of Background Color.
; Return values .: Success      - 1
;                  Failure      - 0  and sets @ERROR:
;                               - 1 Invalid iIndex
; Author ........: Beege
; Remarks .......: All previous data will be cleared
; ===============================================================================================================================
Func _SLG_SetGridLineColor($iIndex, $iARGB = Default)

    If $iIndex > $aGraphs[0][0] Then Return SetError(1, @extended, 0)

    $aGraphs[$iIndex][$g_iGridColor] = $iARGB
    _SLG_ClearGraph($iIndex)

    Return 1

EndFunc   ;==>_SLG_SetGridLineColor

; #FUNCTION# ====================================================================================================================
; Name...........: _SLG_EnableGridLines
; Description ...: Enables or Disables Drawing of Gridlines for Graph
; Syntax.........: _SLG_EnableGridLines($iIndex, $bGridlines = True)
; Parameters ....: $iIndex      - Index returned from _SLG_CreateGraph()
;                  $bGridlines  - GridLines flag:
;                  |True  - GridLines will be drawn
;                  |False - GridLines will not be drawn
; Return values .: Success      - 1
;                  Failure      - 0  and sets @ERROR:
;                               - 1 Invalid iIndex
;                               - 2 Invalid $bGridlines Value
; Author ........: Beege
; Remarks .......: none
; ===============================================================================================================================
Func _SLG_EnableGridLines($iIndex, $bGridlines = True)

    If $iIndex > $aGraphs[0][0] Then Return SetError(1, @extended, 0)
    If $bGridlines <> True And $bGridlines <> False Then SetError(2, @extended, 0)

    $aGraphs[$iIndex][$g_bGridlines] = $bGridlines

    Return 1

EndFunc   ;==>_SLG_EnableGridLines

#EndRegion Public Functions
#Region Internel Functions
; #FUNCTION# ====================================================================================================================
; Author ........: UEZ
; Modified ......: Beege
; ===============================================================================================================================
Func _AddGridLines($iIndex)
    Local $iGridlineColor = $aGraphs[$iIndex][$g_iGridColor]
    If $iGridlineColor = Default Or $iGridlineColor = -1 Then $iGridlineColor = BitOR(0xFF000000, (0xFFFFFFFF - $aGraphs[$iIndex][$g_iBackColor]));Invert Background RGB

    Local $iY1, $hPen = _GDIPlus_PenCreate($iGridlineColor)

    For $iY1 = 0 To $aGraphs[$iIndex][$g_iHeight] Step $aGraphs[$iIndex][$g_iY_counter]
        _GDIPlus_GraphicsDrawLine($aGraphs[$iIndex][$g_hBuffer], $aGraphs[$iIndex][$g_iShift_Distance] - 1, $iY1, $aGraphs[$iIndex][$g_iWidth], $iY1, $hPen)
    Next
    If $aGraphs[$iIndex][$g_iX_counter] <= 0 Then
        _GDIPlus_GraphicsDrawLine($aGraphs[$iIndex][$g_hBuffer], $aGraphs[$iIndex][$g_iWidth] - 1, 0, $aGraphs[$iIndex][$g_iWidth] - 1, $aGraphs[$iIndex][$g_iHeight], $hPen)
        $aGraphs[$iIndex][$g_iX_counter] = $aGraphs[$iIndex][$g_iX_counter_mem]
    EndIf
    $aGraphs[$iIndex][$g_iX_counter] -= $aGraphs[$iIndex][$g_iIncrement_Size]

    _GDIPlus_PenDispose($hPen)

EndFunc   ;==>_AddGridLines

Func _FullGridLines($iIndex)
    Local $iGridlineColor = $aGraphs[$iIndex][$g_iGridColor]
    If $iGridlineColor = Default Or $iGridlineColor = -1 Then $iGridlineColor = BitOR(0xFF000000, (0xFFFFFFFF - $aGraphs[$iIndex][$g_iBackColor]));Invert Background RGB

    Local $iY1, $hPen = _GDIPlus_PenCreate($iGridlineColor)
    Local $hShift_Section = _GDIPlus_BitmapCloneArea($aGraphs[$iIndex][$g_hBitmap], 0, 0, $aGraphs[$iIndex][$g_iWidth], $aGraphs[$iIndex][$g_iHeight]);
    _GDIPlus_GraphicsClear($aGraphs[$iIndex][$g_hBuffer], $aGraphs[$iIndex][$g_iBackColor]);
    _GDIPlus_GraphicsDrawImageRect($aGraphs[$iIndex][$g_hBuffer], $hShift_Section, 0, 0, $aGraphs[$iIndex][$g_iWidth], $aGraphs[$iIndex][$g_iHeight])
    For $iY1 = 0 To $aGraphs[$iIndex][$g_iHeight] Step $aGraphs[$iIndex][$g_iY_counter]
        _GDIPlus_GraphicsDrawLine($aGraphs[$iIndex][$g_hBuffer], 0, $iY1, $aGraphs[$iIndex][$g_iWidth], $iY1, $hPen)
    Next

    For $iX = 0 To $aGraphs[$iIndex][$g_iWidth] Step $aGraphs[$iIndex][$g_iIncrement_Size]
        If $aGraphs[$iIndex][$g_iX_counter] <= 0 Then
            _GDIPlus_GraphicsDrawLine($aGraphs[$iIndex][$g_hBuffer], $iX, 0, $iX, $aGraphs[$iIndex][$g_iHeight], $hPen)
            $aGraphs[$iIndex][$g_iX_counter] = $aGraphs[$iIndex][$g_iX_counter_mem]
        EndIf
        $aGraphs[$iIndex][$g_iX_counter] -= $aGraphs[$iIndex][$g_iIncrement_Size]
    Next
    _WriteBuffer($iIndex)
    _GDIPlus_BitmapDispose($hShift_Section)
    _GDIPlus_PenDispose($hPen)

EndFunc   ;==>_FullGridLines

Func _WriteBuffer($iIndex)

    Local $hGDI_HBitmap, $hDC

    $hGDI_HBitmap = _GDIPlus_BitmapCreateHBITMAPFromBitmap($aGraphs[$iIndex][$g_hBitmap])
    $hDC = _WinAPI_CreateCompatibleDC($aGraphs[$iIndex][$g_hDC])
    _WinAPI_SelectObject($hDC, $hGDI_HBitmap)
    _WinAPI_BitBlt($aGraphs[$iIndex][$g_hDC], $aGraphs[$iIndex][$g_iLeft], $aGraphs[$iIndex][$g_iTop], $aGraphs[$iIndex][$g_iWidth], $aGraphs[$iIndex][$g_iHeight], $hDC, 0, 0, $SRCCOPY)
    _WinAPI_DeleteObject($hGDI_HBitmap)
    _WinAPI_DeleteDC($hDC)

EndFunc   ;==>_WriteBuffer

Func _SLG_Exit()

    Local $i, $j, $aPens

    If $aGraphs[0][0] Then
        For $i = 1 To $aGraphs[0][0]
            _GDIPlus_GraphicsDispose($aGraphs[$i][$g_hBuffer])
            _GDIPlus_BitmapDispose($aGraphs[$i][$g_hBitmap])
            _GDIPlus_GraphicsDispose($aGraphs[$i][$g_hGraphic])
            $aPens = $aGraphs[$i][$g_aPens]
            For $j = 1 To $aPens[0]
                _GDIPlus_PenDispose($aPens[$j])
            Next
            _WinAPI_ReleaseDC($aGraphs[$i][$g_hGUI], $aGraphs[$i][$g_hDC])
        Next
    EndIf

    _GDIPlus_Shutdown()

EndFunc   ;==>_SLG_Exit
#EndRegion Internel Functions

BTW love SLG. It was good enough to #Include <"SLG.au3">

Edited by ghetek

Share this post


Link to post
Share on other sites

BTW love SLG. It was good enough to #Include <"SLG.au3">

Thank you! Posted Image

About the timer, I think if you are going to go that route you you should have some other function or Parameter that allows the user to set the timer length.

Share this post


Link to post
Share on other sites

Sorry for raising up topic again, when I am using the numbers higher than 100, the line reaches the top at 100 and then it is just moving in the horizontal direction. Is it possible to change it?

#include "SLG.au3"
Opt('GuiOnEventMode', 1)
$GUI = GUICreate("GDI+ Scrolling Line Graph", 628, 297, -1, -1, -1, $WS_EX_TOPMOST)
GUISetOnEvent(-3, '_Exit')
GUISetState()
$Increments = 100
$Graph1 = _SLG_CreateGraph($GUI, 18, 18, 596, 257, -100, 100, $Increments, -1,-1,-1,False)
While 1
   for $i = 50 to 500
   _SLG_SetLineValue($Graph1, $i);Random(-100,100))
   _SLG_UpdateGraph($Graph1)
   Sleep(100)
   next
WEnd
Func _Exit()
   Exit
   EndFunc

Here is the link to the screenshothttp://imgbox.com/fX2AUbSh



Best thanx in advance!

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!


Register a new account

Sign in

Already have an account? Sign in here.


Sign In Now
