CH0VI3

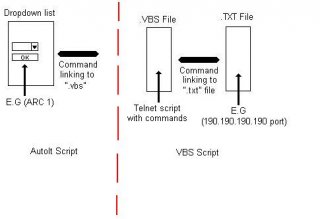

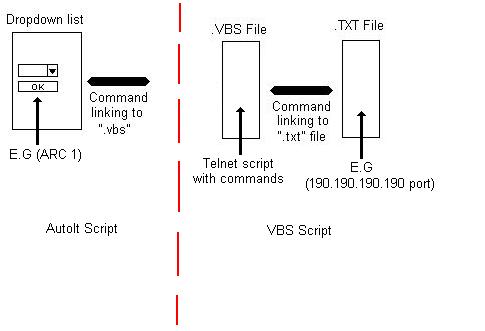

Connecting the dots

25 posts in this topic

Good Day All Good People,

This will be my first ever posting on any forum of any kind, so please bare with me. I am a complete newb at coding and have started learing and using

AutoIT and Koda. I am sorry if this was posted before, I have looked through the postings and did not find anything of this kind.If someone can help me with the following;

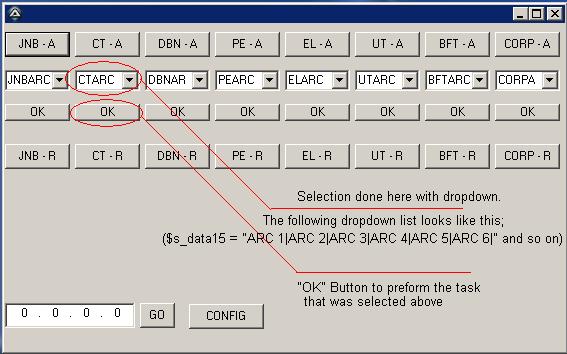

I need to select something from the dropdown list and then be able to click the button to preform the task at hand.And the second thing is when you type a IP address in the given box, and click the button next to it, it should preform a ping test on the "typed in ip".

#Region ;**** Directives created by AutoIt3Wrapper_GUI ****
#AutoIt3Wrapper_Version=beta
#AutoIt3Wrapper_Icon=..\..\..\..\..\Back Up\Archivers\logger.ico
#AutoIt3Wrapper_Outfile=Servers.exe
#AutoIt3Wrapper_Res_Description=Server Checks
#AutoIt3Wrapper_Res_Fileversion=1.0.0.0
#AutoIt3Wrapper_Res_LegalCopyright=CH0V!3
#AutoIt3Wrapper_Res_Language=1033
#AutoIt3Wrapper_Add_Constants=n
#AutoIt3Wrapper_Run_Tidy=y
#EndRegion ;**** Directives created by AutoIt3Wrapper_GUI ****
#include <ButtonConstants.au3>
#include <ComboConstants.au3>
#include <GUIConstantsEx.au3>
#include <GuiIPAddress.au3>
#include <WindowsConstants.au3>
#include <Process.au3>
$CCTV = GUICreate("RSA CCTV SERVERS", 560, 327, 200, 113, BitOR($WS_MAXIMIZEBOX, $WS_MINIMIZEBOX, $WS_SYSMENU, $WS_CAPTION, $WS_POPUP, $WS_POPUPWINDOW, $WS_GROUP, $WS_TABSTOP, $WS_BORDER, $WS_CLIPSIBLINGS))
$JNB = GUICtrlCreateButton("JNB - A", 0, 8, 65, 25)
GUICtrlSetCursor(-1, 0)
$CT = GUICtrlCreateButton("CT - A", 70, 8, 65, 25)
GUICtrlSetCursor(-1, 0)
$DBN = GUICtrlCreateButton("DBN - A", 140, 8, 65, 25)
GUICtrlSetCursor(-1, 0)
$PE = GUICtrlCreateButton("PE - A", 210, 8, 65, 25)
GUICtrlSetCursor(-1, 0)
$EL = GUICtrlCreateButton("EL - A", 280, 8, 65, 25)
GUICtrlSetCursor(-1, 0)
$UT = GUICtrlCreateButton("UT - A", 350, 8, 65, 25)
GUICtrlSetCursor(-1, 0)
$BFT = GUICtrlCreateButton("BFT - A", 420, 8, 65, 25)
GUICtrlSetCursor(-1, 0)
$CORP = GUICtrlCreateButton("CORP - A", 490, 8, 65, 25)
GUICtrlSetCursor(-1, 0)
$JNBARC = GUICtrlCreateCombo("JNBARC", 0, 46, 65, 25, BitOR($CBS_DROPDOWN, $CBS_AUTOHSCROLL))
GUICtrlSetData(-1, "ARC 1|ARC 2|ARC 3|ARC 4|ARC 5|ARC 6|ARC 7|ARC 8|ARC 9|ARC 10|ARC 11|ARC 12|ARC 13|ARC 14|ARC 15|ARC 16|ARC 17|ARC 18|ARC 19|ARC 20|ARC 21|ARC 22|ARC 23|ARC 24|ARC 25|ARC 26|ARC 27|ARC 28|ARC 29|ARC 30|ARC 31|ARC 32|ARC 33|ARC 34|ARC 35|ARC 36|ARC 37|ARC 38|ARC 39|ARC 40|ARC 41|ARC 42|ARC 43|ARC 44|ARC 45")
$CTARC = GUICtrlCreateCombo("CTARC", 70, 46, 65, 25, BitOR($CBS_DROPDOWN, $CBS_AUTOHSCROLL))
GUICtrlSetData(-1, "ARC 1|ARC 2|ARC 3|ARC 4|ARC 5|ARC 6|ARC 7|ARC 8|ARC 9|ARC 10|ARC 11|ARC 12|ARC 13|ARC 14|ARC 15|ARC 16|ARC 17|ARC 18|ARC 19|ARC 20|ARC 21|ARC 22|ARC 23|ARC 24|ARC 25|ARC 26|ARC 27|ARC 28|ARC 29|ARC 30|ARC 31|ARC 32|ARC 33|ARC 34|ARC 35")
$DBNARC = GUICtrlCreateCombo("DBNARC", 140, 46, 65, 25, BitOR($CBS_DROPDOWN, $CBS_AUTOHSCROLL))
GUICtrlSetData(-1, "ARC 1|ARC 2|ARC 3|ARC 4|ARC 5|ARC 6|ARC 7|ARC 8|ARC 9|ARC 10|ARC 11|ARC 12|ARC 13|ARC 14|ARC 15|ARC 16|ARC 17|ARC 18|ARC 19|ARC 20|ARC 21|ARC 22|ARC 23|ARC 24|ARC 25 ")
$PEARC = GUICtrlCreateCombo("PEARC", 210, 46, 65, 25, BitOR($CBS_DROPDOWN, $CBS_AUTOHSCROLL))
GUICtrlSetData(-1, "ARC 1|ARC 2|ARC 3|ARC 4|ARC 5|ARC 6|ARC 7|ARC 8|ARC 9|ARC 10|ARC 11|ARC 12|ARC 13|ARC 14|ARC 15")
$ELARC = GUICtrlCreateCombo("ELARC", 280, 46, 65, 25, BitOR($CBS_DROPDOWN, $CBS_AUTOHSCROLL))
GUICtrlSetData(-1, "ARC 1|ARC 2|ARC 3|ARC 4|ARC 5|ARC 6|ARC 7|ARC 8|ARC 9|ARC 10|ARC 11|ARC 12|ARC 13|ARC 14|ARC 15")
$UTARC = GUICtrlCreateCombo("UTARC", 350, 46, 65, 25, BitOR($CBS_DROPDOWN, $CBS_AUTOHSCROLL))
GUICtrlSetData(-1, "ARC 1|ARC 2|ARC 3|ARC 4|ARC 5|ARC 6|ARC 7|ARC 8|ARC 9|ARC 10|ARC 11|ARC 12|ARC 13|ARC 14|ARC 15")
$BFTARC = GUICtrlCreateCombo("BFTARC", 420, 46, 65, 25, BitOR($CBS_DROPDOWN, $CBS_AUTOHSCROLL))
GUICtrlSetData(-1, "ARC 1|ARC 2|ARC 3|ARC 4|ARC 5|ARC 6|ARC 7|ARC 8|ARC 9|ARC 10|ARC 11|ARC 12|ARC 13|ARC 14|ARC 15")
$CORPARC = GUICtrlCreateCombo("CORPARC", 490, 46, 65, 25, BitOR($CBS_DROPDOWN, $CBS_AUTOHSCROLL))
GUICtrlSetData(-1, "ARC 1|ARC 2|ARC 3|ARC 4|ARC 5|ARC 6|ARC 7|ARC 8|ARC 9|ARC 10|ARC 11|ARC 12|ARC 13|ARC 14|ARC 15")
$IPAddress1 = _GUICtrlIpAddress_Create($CCTV, 0, 279, 130, 25)
_GUICtrlIpAddress_Set($IPAddress1, "0.0.0.0")
$JNB1 = GUICtrlCreateButton("OK", 0, 80, 65, 17)
GUICtrlSetCursor(-1, 0)
$CT1 = GUICtrlCreateButton("OK", 70, 80, 65, 17)
GUICtrlSetCursor(-1, 0)
$DBN1 = GUICtrlCreateButton("OK", 140, 80, 65, 17)
GUICtrlSetCursor(-1, 0)
$PE1 = GUICtrlCreateButton("OK", 210, 80, 65, 17)
GUICtrlSetCursor(-1, 0)
$EL1 = GUICtrlCreateButton("OK", 280, 80, 65, 17)
GUICtrlSetCursor(-1, 0)
$UT1 = GUICtrlCreateButton("OK", 350, 80, 65, 17)
GUICtrlSetCursor(-1, 0)
$BFT1 = GUICtrlCreateButton("OK", 420, 80, 65, 17)
GUICtrlSetCursor(-1, 0)
$CORP1 = GUICtrlCreateButton("OK", 490, 80, 65, 17)
GUICtrlSetCursor(-1, 0)
$PINGB = GUICtrlCreateButton("GO", 135, 279, 35, 25)
GUICtrlSetCursor(-1, 0)
$JNBRAID = GUICtrlCreateButton("JNB - R", 0, 120, 65, 25)
GUICtrlSetCursor(-1, 0)
$CTRAID = GUICtrlCreateButton("CT - R", 70, 120, 65, 25)
GUICtrlSetCursor(-1, 0)
$DBNRAID = GUICtrlCreateButton("DBN - R", 140, 120, 65, 25)
GUICtrlSetCursor(-1, 0)
$PERAID = GUICtrlCreateButton("PE - R", 210, 120, 65, 25)
GUICtrlSetCursor(-1, 0)
$ELRAID = GUICtrlCreateButton("EL - R", 280, 120, 65, 25)
GUICtrlSetCursor(-1, 0)
$UTRAID = GUICtrlCreateButton("UT - R", 350, 120, 65, 25)
GUICtrlSetCursor(-1, 0)
$BFTRAID = GUICtrlCreateButton("BFT - R", 420, 120, 65, 25)
GUICtrlSetCursor(-1, 0)
$CORPRAID = GUICtrlCreateButton("CORP - R", 490, 120, 65, 25)
GUICtrlSetCursor(-1, 0)
$CONFIG = GUICtrlCreateButton("CONFIG", 184, 280, 75, 25)
GUICtrlSetCursor(-1, 0)
GUISetState(@SW_SHOW)
#EndRegion ### END Koda GUI section ###

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit

        Case $JNB
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\ORTIA.vbs"')

        Case $CT
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\CTIA.vbs"')

        Case $DBN
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\KSIA.vbs"')

        Case $PE
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\PEIA.vbs"')

        Case $EL
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\EL.vbs"')

        Case $UT
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\UIA.vbs"')

        Case $BFT
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\BFT.vbs"')

        Case $CORP
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\ACSAC.vbs"')

        Case $JNBRAID
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\ORTIA RAIDS.vbs"')

        Case $CTRAID
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\CTIA RAIDS.vbs"')

        Case $DBNRAID
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\KSIA RAIDS.vbs"')

        Case $PERAID
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\PEIA RAIDS.vbs"')

        Case $ELRAID
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\EL RAIDS.vbs"')

        Case $UTRAID
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\UIA RAIDS.vbs"')

        Case $BFTRAID
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\BFT RAIDS.vbs"')

        Case $CORPRAID
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\ACSAC RAIDS.vbs"')

        Case $PINGB
            RunWait(@ComSpec & '')

        Case $CONFIG
            Run("C:\SVR\Programe.exe")
    EndSwitch
WEnd

In advance thank for the efforts.

Share this post


Link to post
Share on other sites



#2 ·  Posted (edited)

You can use _GUICtrlComboBox_GetEditText() to obtain the selection from the combobox.

E.g.

$sel_JNBARC = GUICtrlComboBox_GetEditText($JNBARC)

For ping you can use something like this:

Case $PINGB
            $ip = _GUICtrlIpAddress_Get($IPAddress1)
            $ping = Ping($ip)
            If $ping Then
                MsgBox(0, "Information", $ip & " is online")
            Else
                MsgBox(0, "Information", $ip & " is not pingable")
            EndIf

Br,

UEZ

Edited by UEZ

Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯

Share this post


Link to post
Share on other sites

#include <ButtonConstants.au3>
#include <ComboConstants.au3>
#include <GUIConstantsEx.au3>
#include <GuiIPAddress.au3>
#include <WindowsConstants.au3>
#include <Process.au3>

$s_data15 = "ARC 1|ARC 2|ARC 3|ARC 4|ARC 5|ARC 6|ARC 7|ARC 8|ARC 9|ARC 10|ARC 11|ARC 12|ARC 13|ARC 14|ARC 15"
$s_data25 = $s_data15 & "|ARC 16|ARC 17|ARC 18|ARC 19|ARC 20|ARC 21|ARC 22|ARC 23|ARC 24|ARC 25 "
$s_data35 = $s_data25 & "|ARC 26|ARC 27|ARC 28|ARC 29|ARC 30|ARC 31|ARC 32|ARC 33|ARC 34|ARC 35"
$s_data45 = $s_data35 & "|ARC 36|ARC 37|ARC 38|ARC 39|ARC 40|ARC 41|ARC 42|ARC 43|ARC 44|ARC 45"
$CCTV = GUICreate("RSA CCTV SERVERS", 560, 327, 200, 113, BitOR($WS_MAXIMIZEBOX, $WS_MINIMIZEBOX, $WS_SYSMENU, $WS_CAPTION, $WS_POPUP, $WS_POPUPWINDOW, $WS_GROUP, $WS_TABSTOP, $WS_BORDER, $WS_CLIPSIBLINGS))
$JNB = GUICtrlCreateButton("JNB - A", 0, 8, 65, 25)
$CT = GUICtrlCreateButton("CT - A", 70, 8, 65, 25)
$DBN = GUICtrlCreateButton("DBN - A", 140, 8, 65, 25)
$PE = GUICtrlCreateButton("PE - A", 210, 8, 65, 25)
$EL = GUICtrlCreateButton("EL - A", 280, 8, 65, 25)
$UT = GUICtrlCreateButton("UT - A", 350, 8, 65, 25)
$BFT = GUICtrlCreateButton("BFT - A", 420, 8, 65, 25)
$CORP = GUICtrlCreateButton("CORP - A", 490, 8, 65, 25)
$JNBARC = GUICtrlCreateCombo("JNBARC", 0, 46, 65, 25, BitOR($CBS_DROPDOWN, $CBS_AUTOHSCROLL))
GUICtrlSetData(-1, $s_data45)
$CTARC = GUICtrlCreateCombo("CTARC", 70, 46, 65, 25, BitOR($CBS_DROPDOWN, $CBS_AUTOHSCROLL))
GUICtrlSetData(-1, $s_data35)
$DBNARC = GUICtrlCreateCombo("DBNARC", 140, 46, 65, 25, BitOR($CBS_DROPDOWN, $CBS_AUTOHSCROLL))
GUICtrlSetData(-1, $s_data25)
$PEARC = GUICtrlCreateCombo("PEARC", 210, 46, 65, 25, BitOR($CBS_DROPDOWN, $CBS_AUTOHSCROLL))
GUICtrlSetData(-1, $s_data15)
$ELARC = GUICtrlCreateCombo("ELARC", 280, 46, 65, 25, BitOR($CBS_DROPDOWN, $CBS_AUTOHSCROLL))
GUICtrlSetData(-1, $s_data15)
$UTARC = GUICtrlCreateCombo("UTARC", 350, 46, 65, 25, BitOR($CBS_DROPDOWN, $CBS_AUTOHSCROLL))
GUICtrlSetData(-1, $s_data15)
$BFTARC = GUICtrlCreateCombo("BFTARC", 420, 46, 65, 25, BitOR($CBS_DROPDOWN, $CBS_AUTOHSCROLL))
GUICtrlSetData(-1, $s_data15)
$CORPARC = GUICtrlCreateCombo("CORPARC", 490, 46, 65, 25, BitOR($CBS_DROPDOWN, $CBS_AUTOHSCROLL))
GUICtrlSetData(-1, $s_data15)
$IPAddress1 = _GUICtrlIpAddress_Create($CCTV, 0, 279, 130, 25)
_GUICtrlIpAddress_Set($IPAddress1, "0.0.0.0")
$JNB1 = GUICtrlCreateButton("OK", 0, 80, 65, 17)
$CT1 = GUICtrlCreateButton("OK", 70, 80, 65, 17)
$DBN1 = GUICtrlCreateButton("OK", 140, 80, 65, 17)
$PE1 = GUICtrlCreateButton("OK", 210, 80, 65, 17)
$EL1 = GUICtrlCreateButton("OK", 280, 80, 65, 17)
$UT1 = GUICtrlCreateButton("OK", 350, 80, 65, 17)
$BFT1 = GUICtrlCreateButton("OK", 420, 80, 65, 17)
$CORP1 = GUICtrlCreateButton("OK", 490, 80, 65, 17)
$PINGB = GUICtrlCreateButton("GO", 135, 279, 35, 25)
$JNBRAID = GUICtrlCreateButton("JNB - R", 0, 120, 65, 25)
$CTRAID = GUICtrlCreateButton("CT - R", 70, 120, 65, 25)
$DBNRAID = GUICtrlCreateButton("DBN - R", 140, 120, 65, 25)
$PERAID = GUICtrlCreateButton("PE - R", 210, 120, 65, 25)
$ELRAID = GUICtrlCreateButton("EL - R", 280, 120, 65, 25)
$UTRAID = GUICtrlCreateButton("UT - R", 350, 120, 65, 25)
$BFTRAID = GUICtrlCreateButton("BFT - R", 420, 120, 65, 25)
$CORPRAID = GUICtrlCreateButton("CORP - R", 490, 120, 65, 25)
$CONFIG = GUICtrlCreateButton("CONFIG", 184, 280, 75, 25)
GUISetState(@SW_SHOW)
#EndRegion ### END Koda GUI section ###

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit
        Case $JNB
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\ORTIA.vbs"')
        Case $CT
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\CTIA.vbs"')
        Case $DBN
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\KSIA.vbs"')
        Case $PE
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\PEIA.vbs"')
        Case $EL
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\EL.vbs"')
        Case $UT
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\UIA.vbs"')
        Case $BFT
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\BFT.vbs"')
        Case $CORP
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\ACSAC.vbs"')
        Case $JNBRAID
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\ORTIA RAIDS.vbs"')
        Case $CTRAID
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\CTIA RAIDS.vbs"')
        Case $DBNRAID
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\KSIA RAIDS.vbs"')
        Case $PERAID
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\PEIA RAIDS.vbs"')
        Case $ELRAID
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\EL RAIDS.vbs"')
        Case $UTRAID
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\UIA RAIDS.vbs"')
        Case $BFTRAID
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\BFT RAIDS.vbs"')
        Case $CORPRAID
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\ACSAC RAIDS.vbs"')
        Case $PINGB
            $s_ip = _GUICtrlIpAddress_Get($IPAddress1)
            If Ping($s_ip) > 0 Then
                MsgBox(0, "Ping Test", "Ping was okay")
            Else
                MsgBox(0, "Ping Test", "Ping was not okay")
            EndIf
        Case $CONFIG
            Run("C:\SVR\Programe.exe")
    EndSwitch
WEnd

To simplyfy your script a little... :)


Regards,Hannes[spoiler]If you can't convince them, confuse them![/spoiler]

Share this post


Link to post
Share on other sites

Thank you for the reply, will try this and come back to you.

Share this post


Link to post
Share on other sites

Thanx again, the dropbox and ping are both working.

One question only, after I selected the dropdown input how do i link that to the "OK" button so that it can preform a task.

(Same as the "$JNB = GUICtrlCreateButton("JNB - A", 0, 8, 65, 25)to do the task

Case $JNB RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\ORTIA.vbs"')"

Share this post


Link to post
Share on other sites

$s_data15 = "ARC 1|ARC 2|ARC 3|ARC 4|ARC 5|ARC 6|ARC 7|ARC 8|ARC 9|ARC 10|ARC 11|ARC 12|ARC 13|ARC 14|ARC 15"

$s_data25 = $s_data15 & "|ARC 16|ARC 17|ARC 18|ARC 19|ARC 20|ARC 21|ARC 22|ARC 23|ARC 24|ARC 25 "

$s_data35 = $s_data25 & "|ARC 26|ARC 27|ARC 28|ARC 29|ARC 30|ARC 31|ARC 32|ARC 33|ARC 34|ARC 35"

$s_data45 = $s_data35 & "|ARC 36|ARC 37|ARC 38|ARC 39|ARC 40|ARC 41|ARC 42|ARC 43|ARC 44|ARC 45"

After one of the above "ARC's"is selected in the dropdown, what string of code do I use to tell the "OK" what to do.

Please HELP !!!!!!!!!!

post-64028-0-15795100-1301897961_thumb.j

Share this post


Link to post
Share on other sites

$s_data15 = "ARC 1|ARC 2|ARC 3|ARC 4|ARC 5|ARC 6|ARC 7|ARC 8|ARC 9|ARC 10|ARC 11|ARC 12|ARC 13|ARC 14|ARC 15"

$s_data25 = $s_data15 & "|ARC 16|ARC 17|ARC 18|ARC 19|ARC 20|ARC 21|ARC 22|ARC 23|ARC 24|ARC 25 "

$s_data35 = $s_data25 & "|ARC 26|ARC 27|ARC 28|ARC 29|ARC 30|ARC 31|ARC 32|ARC 33|ARC 34|ARC 35"

$s_data45 = $s_data35 & "|ARC 36|ARC 37|ARC 38|ARC 39|ARC 40|ARC 41|ARC 42|ARC 43|ARC 44|ARC 45"

After one of the above "ARC's"is selected in the dropdown, what string of code do I use to tell the "OK" what to do.

Please HELP !!!!!!!!!!

Im not quite sure what you want to do.

Do you want to perform code when the dropdown is selected? Or do you want to find a way to retrieve what the user selected in the dropdown when you run the code???

Both are relatively easy; Im just not sure what you are trying to do.


ongoing projects:-firestorm: Largescale P2P Social NetworkCompleted Autoit Programs/Scripts: Variable Pickler | Networked Streaming Audio (in pure autoIT) | firenet p2p web messenger | Proxy Checker | Dynamic Execute() Code Generator | P2P UDF | Graph Theory Proof of Concept - Breadth First search

Share this post


Link to post
Share on other sites

#8 ·  Posted (edited)

Ok.

The structure you are using to get what is happening to buttons and what not is called polling for events.

It involves constantly checking if something is happened.

Whenever something happens, an event is generated, and is passed through

$nMsg = GUIGetMsg()

So the event is stored in $nMsg.

Now, all we need to do is see what generated that event.

Thats easy, because what $nMsg actually contains, is the handle to the thingie on the window that caused the event.

So if you want to check if the combo box created an event, you would look to see if $PEARC is equal to $nMsg.

In code, this would look like:

$nMsg = GUIGetMsg()
if $nMsg = $PEARC then Tooltip("THE COMBO BOX TRIGGERED AN EVENT!!!")

or, if your checking for events in bulk, as in your script...

$nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit
        Case $JNB
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\ORTIA.vbs"')
            ;OK HERE IT IS!!!!!
        Case $PEARC
            Tooltip("THE COMBO BOX TRIGGERED AN EVENT!!!")
    EndSwitch

As you can see in both of the examples, the code is checking for events, and then comparing it to see if it is equal to the handle of the combo box. if it is, then we know that the combobox triggered the event, therefore it must of been selected.

In these cases, when it is selected, it will run this code:

Tooltip("THE COMBO BOX TRIGGERED AN EVENT!!!")

To Get the contents of the Combo box and find out what the user actually selected, you must use a function. I cant remember what it is exactly off the top of my head, but I have a feeling it is...

$PEARC_Selection = GUiCtrlRead($PEARC)

Geddit?

You pass it the handle/variable of the control you want to read the data of, and it will tell you the contents, in this case setting the variable $PEARC_Selection.

Hope this helps,

Hypoz

Edited by hyperzap

ongoing projects:-firestorm: Largescale P2P Social NetworkCompleted Autoit Programs/Scripts: Variable Pickler | Networked Streaming Audio (in pure autoIT) | firenet p2p web messenger | Proxy Checker | Dynamic Execute() Code Generator | P2P UDF | Graph Theory Proof of Concept - Breadth First search

Share this post


Link to post
Share on other sites

Thank You very much hyperzap for your effords,

Yes the code you gave me does show that there was a trigger - ("THE COMBO BOX TRIGGERED AN EVENT!!!")but

I need the selected item in the dropbox to preform a task "Telnet IP.ADDRESS PORT, each "ARC" is a specified

device that I need to do some thing.Once this concept is working I can Implement this to do Remote Desktop as

well to the specified devices.

Kind Regards, :)

Share this post


Link to post
Share on other sites

Right. So firstly, you will need a spot for each of your buttons to perform its code, like have for all the other buttons. for example...

Case $PINGB
            ;Do our code here...

Now you need to have a way to detect the contents of the combo box and store it.

$PEARC_Selection = GUiCtrlRead($PEARC)

As before, stored as $PEARC_Selection.

Now, the easiest thing to do for your level is just to 'check' if this variable, $PEARC_Selection, is equal to whatever the task is, and then perform code for the specific task.

in code...

$nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit
        Case $JNB
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\ORTIA.vbs"')
        ;here we go!
        Case $UT1 ;If this button is pressed
            $PEARC_Selection = GUiCtrlRead($UTARC) ;We are getting the selection of the corresponding dropdown
            Switch $PEARC_Selection ;Does this look familiar???
                Case "ARC 27"
                   ToolTip("This is where we would put the code to correspond to this action, ARC 27.")
                Case "ARC 28"
                   ToolTip("This is where we would put the code to correspond to this action, ARC 28.")
            EndSwitch

I hope this answers your question. There are better solutions that do not involve so much copying and pasting by they involve combining logical comparisions, or loops, and you havent learnt that yet I dont think.


ongoing projects:-firestorm: Largescale P2P Social NetworkCompleted Autoit Programs/Scripts: Variable Pickler | Networked Streaming Audio (in pure autoIT) | firenet p2p web messenger | Proxy Checker | Dynamic Execute() Code Generator | P2P UDF | Graph Theory Proof of Concept - Breadth First search

Share this post


Link to post
Share on other sites

Thanx once again hyperzap,

I will have a look at this read up some more and come back to you.

The student is lurning...... lol

Share this post


Link to post
Share on other sites

Do you mean something like this:

#include <ComboConstants.au3>
#include <GuiComboBox.au3>
#include <GUIConstantsEx.au3>
#include <GuiIPAddress.au3>
#include <WindowsConstants.au3>

$s_data15 = "ARC 1|ARC 2|ARC 3|ARC 4|ARC 5|ARC 6|ARC 7|ARC 8|ARC 9|ARC 10|ARC 11|ARC 12|ARC 13|ARC 14|ARC 15"
$s_data25 = $s_data15 & "|ARC 16|ARC 17|ARC 18|ARC 19|ARC 20|ARC 21|ARC 22|ARC 23|ARC 24|ARC 25 "
$s_data35 = $s_data25 & "|ARC 26|ARC 27|ARC 28|ARC 29|ARC 30|ARC 31|ARC 32|ARC 33|ARC 34|ARC 35"
$s_data45 = $s_data35 & "|ARC 36|ARC 37|ARC 38|ARC 39|ARC 40|ARC 41|ARC 42|ARC 43|ARC 44|ARC 45"
$CCTV = GUICreate("RSA CCTV SERVERS", 560, 327, 200, 113, BitOR($WS_MAXIMIZEBOX, $WS_MINIMIZEBOX, $WS_SYSMENU, $WS_CAPTION, $WS_POPUP, $WS_POPUPWINDOW, $WS_GROUP, $WS_TABSTOP, $WS_BORDER, $WS_CLIPSIBLINGS))
$JNB = GUICtrlCreateButton("JNB - A", 0, 8, 65, 25)
$CT = GUICtrlCreateButton("CT - A", 70, 8, 65, 25)
$DBN = GUICtrlCreateButton("DBN - A", 140, 8, 65, 25)
$PE = GUICtrlCreateButton("PE - A", 210, 8, 65, 25)
$EL = GUICtrlCreateButton("EL - A", 280, 8, 65, 25)
$UT = GUICtrlCreateButton("UT - A", 350, 8, 65, 25)
$BFT = GUICtrlCreateButton("BFT - A", 420, 8, 65, 25)
$CORP = GUICtrlCreateButton("CORP - A", 490, 8, 65, 25)
$JNBARC = GUICtrlCreateCombo("JNBARC", 0, 46, 65, 25, BitOR($CBS_DROPDOWN, $CBS_AUTOHSCROLL))
GUICtrlSetData(-1, $s_data45)
$CTARC = GUICtrlCreateCombo("CTARC", 70, 46, 65, 25, BitOR($CBS_DROPDOWN, $CBS_AUTOHSCROLL))
GUICtrlSetData(-1, $s_data35)
$DBNARC = GUICtrlCreateCombo("DBNARC", 140, 46, 65, 25, BitOR($CBS_DROPDOWN, $CBS_AUTOHSCROLL))
GUICtrlSetData(-1, $s_data25)
$PEARC = GUICtrlCreateCombo("PEARC", 210, 46, 65, 25, BitOR($CBS_DROPDOWN, $CBS_AUTOHSCROLL))
GUICtrlSetData(-1, $s_data15)
$ELARC = GUICtrlCreateCombo("ELARC", 280, 46, 65, 25, BitOR($CBS_DROPDOWN, $CBS_AUTOHSCROLL))
GUICtrlSetData(-1, $s_data15)
$UTARC = GUICtrlCreateCombo("UTARC", 350, 46, 65, 25, BitOR($CBS_DROPDOWN, $CBS_AUTOHSCROLL))
GUICtrlSetData(-1, $s_data15)
$BFTARC = GUICtrlCreateCombo("BFTARC", 420, 46, 65, 25, BitOR($CBS_DROPDOWN, $CBS_AUTOHSCROLL))
GUICtrlSetData(-1, $s_data15)
$CORPARC = GUICtrlCreateCombo("CORPARC", 490, 46, 65, 25, BitOR($CBS_DROPDOWN, $CBS_AUTOHSCROLL))
GUICtrlSetData(-1, $s_data15)
$IPAddress1 = _GUICtrlIpAddress_Create($CCTV, 0, 279, 130, 25)
_GUICtrlIpAddress_Set($IPAddress1, "0.0.0.0")
$JNB1 = GUICtrlCreateButton("OK", 0, 80, 65, 17)
$CT1 = GUICtrlCreateButton("OK", 70, 80, 65, 17)
$DBN1 = GUICtrlCreateButton("OK", 140, 80, 65, 17)
$PE1 = GUICtrlCreateButton("OK", 210, 80, 65, 17)
$EL1 = GUICtrlCreateButton("OK", 280, 80, 65, 17)
$UT1 = GUICtrlCreateButton("OK", 350, 80, 65, 17)
$BFT1 = GUICtrlCreateButton("OK", 420, 80, 65, 17)
$CORP1 = GUICtrlCreateButton("OK", 490, 80, 65, 17)
$PINGB = GUICtrlCreateButton("GO", 135, 279, 35, 25)
$JNBRAID = GUICtrlCreateButton("JNB - R", 0, 120, 65, 25)
$CTRAID = GUICtrlCreateButton("CT - R", 70, 120, 65, 25)
$DBNRAID = GUICtrlCreateButton("DBN - R", 140, 120, 65, 25)
$PERAID = GUICtrlCreateButton("PE - R", 210, 120, 65, 25)
$ELRAID = GUICtrlCreateButton("EL - R", 280, 120, 65, 25)
$UTRAID = GUICtrlCreateButton("UT - R", 350, 120, 65, 25)
$BFTRAID = GUICtrlCreateButton("BFT - R", 420, 120, 65, 25)
$CORPRAID = GUICtrlCreateButton("CORP - R", 490, 120, 65, 25)
$CONFIG = GUICtrlCreateButton("CONFIG", 184, 280, 75, 25)
GUISetState(@SW_SHOW)
#EndRegion ### END Koda GUI section ###

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit
        Case $JNB
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\ORTIA.vbs"')
        Case $JNB1
            MsgBox(0, "Information", "OK was pressed. Combo value is: " & _GUICtrlComboBox_GetEditText($JNBARC))
        Case $CT
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\CTIA.vbs"')
        Case $DBN
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\KSIA.vbs"')
        Case $PE
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\PEIA.vbs"')
        Case $EL
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\EL.vbs"')
        Case $UT
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\UIA.vbs"')
        Case $BFT
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\BFT.vbs"')
        Case $CORP
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\ACSAC.vbs"')
        Case $JNBRAID
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\ORTIA RAIDS.vbs"')
        Case $CTRAID
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\CTIA RAIDS.vbs"')
        Case $DBNRAID
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\KSIA RAIDS.vbs"')
        Case $PERAID
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\PEIA RAIDS.vbs"')
        Case $ELRAID
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\EL RAIDS.vbs"')
        Case $UTRAID
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\UIA RAIDS.vbs"')
        Case $BFTRAID
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\BFT RAIDS.vbs"')
        Case $CORPRAID
            RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\ACSAC RAIDS.vbs"')
        Case $PINGB
            $s_ip = _GUICtrlIpAddress_Get($IPAddress1)
            If Ping($s_ip) > 0 Then
                MsgBox(0, "Ping Test", "Ping was okay")
            Else
                MsgBox(0, "Ping Test", "Ping was not okay")
            EndIf
        Case $CONFIG
            Run("C:\SVR\Programe.exe")
    EndSwitch
WEnd

You can select a value from 1st combobox and click the ok bottom below.

Br,

UEZ


Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯

Share this post


Link to post
Share on other sites

Hi UEZ,

Once again thank you for all your efforts on this.

Yes this brings up a MSG box, I have found a way to do what I need it to but it is long. Please have a at code below:

[autoit][/autoit]

This is what I came up with, I know that this is not the right way but this is how I have tried and it works.

If you have a look maybe you can simplify it better, all I need to do is link wat ever is chosen in the dropdown

box e.g. "ARC 1" links to IP address and when you click "OK" button it will then telnet to the server .......

Hopefully you can understand this better.

The student is learning more everyday. :)

Kind Regards

Share this post


Link to post
Share on other sites

#16 ·  Posted (edited)

I've some questions:

What do you mean with "ARC 1" links to IP address and when you click "OK" button it will then telnet to the server?

When you click on ok then this command should run?: telnet <ip associated with ARC 1>?

You are using these lines with :

...
        Case $JNB1 ;If this button is pressed
            $JNBARC_Selection = GUiCtrlRead($JNBARC) ;We are getting the selection of the corresponding dropdown
            Switch $JNBARC_Selection ;Does this look familiar???
            Case "ARC 1"
                   RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\ARC\JNB1.vbs"')
            Case "ARC 2"
                   RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\ARC\JNB2.vbs"')
            Case "ARC 3"
                   RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\ARC\JNB3.vbs"')
            Case "ARC 4"
                   RunWait(@ComSpec & ' /c WScript.exe "C:\SVR\ARC\JNB4.vbs"')
            Case "ARC 5"
...

What are these vbs scripts doing? Starting telnet? I would use instead of ARC x JNBx because you don't need to do all the case checks - just read out the selection and you have the name for the vbs!

Br,

UEZ

Edited by UEZ

Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯

Share this post


Link to post
Share on other sites

Hi UEZ,

If u run the .vbs script it opens a .txt file gets the IP address in it, then a telnet session and then sends commands that need to be done.

If you look at the picture you will see what I mean. Like I said in the beginning I am realy a newb when it comes to coding,

so I am learning more everyday on how to improve the method and what is the better commands to use.

The script I posted yesterday is a long winded way of completing the task at hand, but that is the only way I know how to do it.

Please let me know if you require any more info on this.

Thax again for all the efforts.

post-64028-0-69646400-1302070973_thumb.j

Share this post


Link to post
Share on other sites

Case $JNBRMT1
            $JNBRMT_Selection = GUiCtrlRead($JNBRMT)
                Switch $JNBRMT_Selection

            Case "ARC 1"
                   $sfileSpec = "C:\CCTV\Rmt\JNB\JNB1.ini"
        $file = FileOpen($sfileSpec, 0)

        If $file = -1 Then
            MsgBox(0, "Error", "Unable to open data file: '" & $sFileSpec & "'")
        Exit
    EndIf
While 2
        $sLine = FileReadLine($file)
        If @error = -1 Then ExitLoop

        $sWindowTitle = "Remote Desktop Connection" & $sLine

        $result = Run("C:\WINDOWS\system32\mstsc.exe" & $sLine)

        if $result <> 0 Then
            Sleep(500)

            WinActivate($sWindowTitle)
            Sleep(200)
            Else
            MsgBox(0, "Error", "Failed to run Telnet for server '" & $sLine & "'!")
        EndIf
    Wend
Hi good people,

I have struck a brick wall now. I need to open a "RDC" session and have a ip tiped in from a txt file.

Example:

I know that this one works for Telnet but I need some thing like this.

Thank in advance again. :unsure:

Share this post


Link to post
Share on other sites

Case $JNBRMT1
            $JNBRMT_Selection = GUiCtrlRead($JNBRMT)
                Switch $JNBRMT_Selection

            Case "ARC 1"
                   $sfileSpec = "C:\CCTV\Rmt\JNB\JNB1.ini"
        $file = FileOpen($sfileSpec, 0)

        If $file = -1 Then
            MsgBox(0, "Error", "Unable to open data file: '" & $sFileSpec & "'")
        Exit
    EndIf
While 2
        $sLine = FileReadLine($file)
        If @error = -1 Then ExitLoop

        $sWindowTitle = "Remote Desktop Connection" & $sLine

        $result = Run("C:\WINDOWS\system32\mstsc.exe" & $sLine)

        if $result <> 0 Then
            Sleep(500)

            WinActivate($sWindowTitle)
            Sleep(200)
            Else
            MsgBox(0, "Error", "Failed to run Telnet for server '" & $sLine & "'!")
        EndIf
    Wend
Hi good people,

I have struck a brick wall now. I need to open a "RDC" session and have a ip tiped in from a txt file.

Example:

I know that this one works for Telnet but I need some thing like this.

Thank in advance again. :unsure:

Sorry. I have apsolutely no experience with Remote Desktop.

ongoing projects:-firestorm: Largescale P2P Social NetworkCompleted Autoit Programs/Scripts: Variable Pickler | Networked Streaming Audio (in pure autoIT) | firenet p2p web messenger | Proxy Checker | Dynamic Execute() Code Generator | P2P UDF | Graph Theory Proof of Concept - Breadth First search

Share this post


Link to post
Share on other sites

Hi people,

Is there anyone that can maybe assist me with my problem please,

I need remote desktop to open and use the information provided by the dropdown tab and connect.

Thank you once again for any assistance in this matter. :unsure:

Kind Regards

CH0VI3

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!


Register a new account

Sign in

Already have an account? Sign in here.


Sign In Now
Sign in to follow this
Followers 0
