NunoBorges

Scroll bar and edit box readonly

Recommended Posts

NunoBorges

Viva,

Does anyone can help me:

- I have a readonly edit box, which receives data from a program, and when I do a click on it, the data in the edit box, are all changed.

Is there way to prevent this situation, keeping the scroll bar to work?

- On how to disable listview modifications, keeping the scroll bar to work?

If someone can lend a hand thanks.

Along attached an example of what I would have to work

grateful

Nuno

Share this post


Link to post
Share on other sites
NunoBorges

Sorry

Along attached an example of what I would have to work

grateful

Nuno

test.au3

Share this post


Link to post
Share on other sites
Melba23

NunoBorges,

To prevent changes to the ListView while retaining the working scrollbars, I suggest you use my GUIScrollbarsEx UDF (look in my sig) and create a scrolling child GUI to hold the disabled ListView.

This should give you the idea:

#cs
    _GUICtrlListViewSetItemSelState($ListView1, Change_DISABLE....

    When a process is running,
    what can i do like the above,
    to disable any change on the listview
#ce
#include <ButtonConstants.au3>
#include <Constants.au3>
#include <EditConstants.au3>
#include <GUIConstantsEx.au3>
#include <GuiListView.au3>
#include <ListViewConstants.au3>
#include <StaticConstants.au3>
#include <WinAPI.au3>
#include <WindowsConstants.au3>

#Include <GUIScrollBars_Ex.au3>

#region ### START Koda GUI section ### Form=C:\AutoIt NDB Kit\- 0 Exemplos\Form1.kxf
Global $Form1 = GUICreate("Form1", 223, 449, 192, 114)
Global $Label1 = GUICtrlCreateLabel("Label1", 11, 2, 200, 34, $SS_CENTER)
GUICtrlSetData($Label1, "click on the box down while a process is in progress.")

Global $Edit1 = GUICtrlCreateEdit("", 11, 48, 200, 80, BitOR($GUI_SS_DEFAULT_EDIT,$ES_READONLY))
GUICtrlSetTip(-1, "Click on here when it's running a process")
GUICtrlSetData(-1, "")

Global $Run = GUICtrlCreateButton("run /c ping www.db.pt", 11, 130, 200, 25)
Global $Label2 = GUICtrlCreateLabel("Use the above to run a process and wait until finished", 11, 162, 200, 34, $SS_CENTER)

Global $LVEnable = GUICtrlCreateButton("Enable Scroll", 11, 304, 75, 25)
Global $LVDisable = GUICtrlCreateButton("Disable Scroll", 136, 304, 75, 25)
Global $Stop = GUICtrlCreateButton("Stop", 72, 352, 75, 25)
GUISetState(@SW_SHOW)
#endregion ### END Koda GUI section ###

$hGUI_ListView = GUICreate("", 200, 100, 11, 204, $WS_POPUP, $WS_EX_MDICHILD, $Form1)
GUISetState(@SW_SHOW)
Global $ListView1 = GUICtrlCreateListView("Col1", 0, 0, 400, 300, BitOR($GUI_SS_DEFAULT_LISTVIEW, $LVS_AUTOARRANGE), $WS_EX_CLIENTEDGE)
_GUICtrlListView_SetExtendedListViewStyle($ListView1, BitOR($LVS_EX_GRIDLINES, $LVS_EX_CHECKBOXES, $LVS_EX_FULLROWSELECT))
GUICtrlSendMsg(-1, $LVM_SETCOLUMNWIDTH, 0, 220)
_Add_LV1_Items()
GUICtrlSetState($ListView1, $GUI_DISABLE)

_GUIScrollBars_Generate($hGUI_ListView, 400, 300)

GUISwitch($Form1)

Global $Pid, $line

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg

        Case $GUI_EVENT_CLOSE
            #cs
                If ProcessExists($Pid[1][0]) Then _
                ProcessClose($Pid[1][0])
            #ce
            Exit

        Case -100 To 0
            ContinueLoop

        Case $Run
            GUICtrlSetState($ListView1, $GUI_DISABLE)
            _Run_()
            GUICtrlSetState($ListView1, $GUI_ENABLE)

        Case $LVEnable
            MsgBox(528416, "How to?", "How to enable 'Just the Scroll Bar', or prevent changes on the list view" & @CRLF & "When a process is running")

        Case $LVDisable
            MsgBox(528416, "How to?", "How to disable changes on listview items," & @CRLF & "and 'Just enable the Scroll Bar'," & @CRLF & "When a process is running")

    EndSwitch
WEnd

Func _Run_()

    $pid_CMD = Run(@ComSpec & " /c ping www.db.pt", @TempDir, @SW_HIDE, $STDERR_CHILD + $STDOUT_CHILD)
    Sleep(5)
    $Pid = _WinAPI_EnumChildProcess($pid_CMD)

    While $pid_CMD

        $msg = GUIGetMsg()
        Select
            Case $msg = $Stop
                $Check_Stopped = True
                GUICtrlSetData($Edit1, @CRLF & @CRLF & "Stopped ... ", True)
                If ProcessExists($Pid[1][0]) Then _
                        ProcessClose($Pid[1][0])

            Case $msg = $GUI_EVENT_CLOSE
                If ProcessExists($Pid[1][0]) Then _
                        ProcessClose($Pid[1][0])
                GUIDelete()
                Exit
        EndSelect

        $line = StdoutRead($pid_CMD)
        If @error Then ExitLoop
        ;sleep(5)
        GUICtrlSetData($Edit1, $line, 1)
    WEnd

    While 1
        $line = StderrRead($Pid)
        If @error Then ExitLoop
        MsgBox(0, "STDERR read:", $line)
    WEnd

EndFunc   ;==>_Run_

Func _Add_LV1_Items()
    For $i = 0 To 10
        GUICtrlCreateListViewItem("Run cmd " & $i & "|", $ListView1)
    Next
    _GUICtrlListView_SetItemChecked($ListView1, 1, True)


EndFunc   ;==>_Add_LV1_Items

Func _WinAPI_EnumChildProcess($Pid = 0); good example from UEZ
    If Not $Pid Then
        $Pid = _WinAPI_GetCurrentProcessID()
        If Not $Pid Then Return SetError(1, 0, 0)
    EndIf

    Local $hSnapshot = DllCall('kernel32.dll', 'ptr', 'CreateToolhelp32Snapshot', 'dword', 0x00000002, 'dword', 0)
    If (@error) Or (Not $hSnapshot[0]) Then Return SetError(1, 0, 0)

    Local $tPROCESSENTRY32 = DllStructCreate('dword Size;dword Usage;dword ProcessID;ulong_ptr DefaultHeapID;dword ModuleID;dword Threads;dword ParentProcessID;long PriClassBase;dword Flags;wchar ExeFile[260]')
    Local $pPROCESSENTRY32 = DllStructGetPtr($tPROCESSENTRY32)
    Local $Ret, $Result[101][2] = [[0]]

    $hSnapshot = $hSnapshot[0]
    DllStructSetData($tPROCESSENTRY32, 'Size', DllStructGetSize($tPROCESSENTRY32))
    $Ret = DllCall('kernel32.dll', 'int', 'Process32FirstW', 'ptr', $hSnapshot, 'ptr', $pPROCESSENTRY32)
    While (Not @error) And ($Ret[0])
        If DllStructGetData($tPROCESSENTRY32, 'ParentProcessID') = $Pid Then
            $Result[0][0] += 1
            If $Result[0][0] > UBound($Result) - 1 Then
                ReDim $Result[$Result[0][0] + 100][2]
            EndIf
            $Result[$Result[0][0]][0] = DllStructGetData($tPROCESSENTRY32, 'ProcessID')
            $Result[$Result[0][0]][1] = DllStructGetData($tPROCESSENTRY32, 'ExeFile')
        EndIf
        $Ret = DllCall('kernel32.dll', 'int', 'Process32NextW', 'ptr', $hSnapshot, 'ptr', $pPROCESSENTRY32)
    WEnd
    _WinAPI_CloseHandle($hSnapshot)
    If $Result[0][0] Then
        ReDim $Result[$Result[0][0] + 1][2]
    Else
        Return SetError(1, 0, 0)
    EndIf
    Return $Result
EndFunc   ;==>_WinAPI_EnumChildProcess

I will look at the edit problem later. :)

M23

Edit: Added example. :mellow:

Edited by Melba23

Public_Domain.png.2d871819fcb9957cf44f4514551a2935.png Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind

Open spoiler to see my UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites
NunoBorges

Viva, Melba23

I'm already seeing what you mentioned

It's a very good job

Thanks

Share this post


Link to post
Share on other sites
Melba23

NunoBorges,

when I do a click on it, the data in the edit box, are all changed

Can you be more specific about the problem you have with the edit control? When I get input into the control I cannot make it "change" by "clicking" within it. :mellow:

M23


Public_Domain.png.2d871819fcb9957cf44f4514551a2935.png Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind

Open spoiler to see my UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites
NunoBorges

Viva,

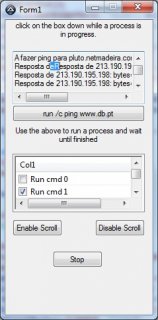

When you press "run ping", it will appear on the edit box some text.

At this moment do a mouse clik in the midle of some phrase, or in the midle of the address.

The next text you enter will be interspersed

Best regards

Nuno

post-66102-0-67427500-1313056078_thumb.j

Share this post


Link to post
Share on other sites
Melba23

NunoBorges,

The next text you enter will be interspersed

That is what you are asking AutoIt to do when you use the "default" flag with GUICtrlSetData: :)

"default [optional] [...] Edit, Input: If non-empty (""), the string is inserted at the current insertion point (caret)."

I assume you want to add new text to the end of the existing data - if so then you can use _GUICtrlEdit_AppendText to do this: :mellow:

_GUICtrlEdit_AppendText($Edit1, $line)
;GUICtrlSetData($Edit1, $line, 1)

Do not forget to add #Include <GuiEdit.au3> at the top of your script! :)

M23


Public_Domain.png.2d871819fcb9957cf44f4514551a2935.png Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind

Open spoiler to see my UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites
NunoBorges

Viva,

Yes is that, more "#Include <GuiEdit.au3>"

Thanks a lot

With your help the listview is fixed, using the WM_Notify with a:

Case $LVN_ITEMCHANGING

Return 1

Best regards

Share this post
