Brian39

Logitech webcam take photo

10 posts in this topic

Hi,

Does anyone know why I have to move the mouse over the "Take Photo" button (button turns blue) before it will take picture?

I use: ControlClick("Quick Capture", "", "Button1"). If the mouse is not put over the "Take Photo" button there is not taken any photo.

I would like not to use the mouse. Then it will work at any resolution.

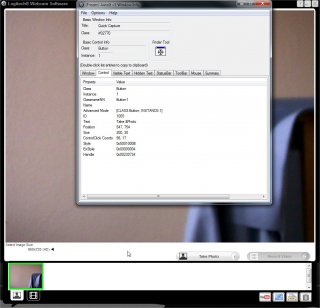

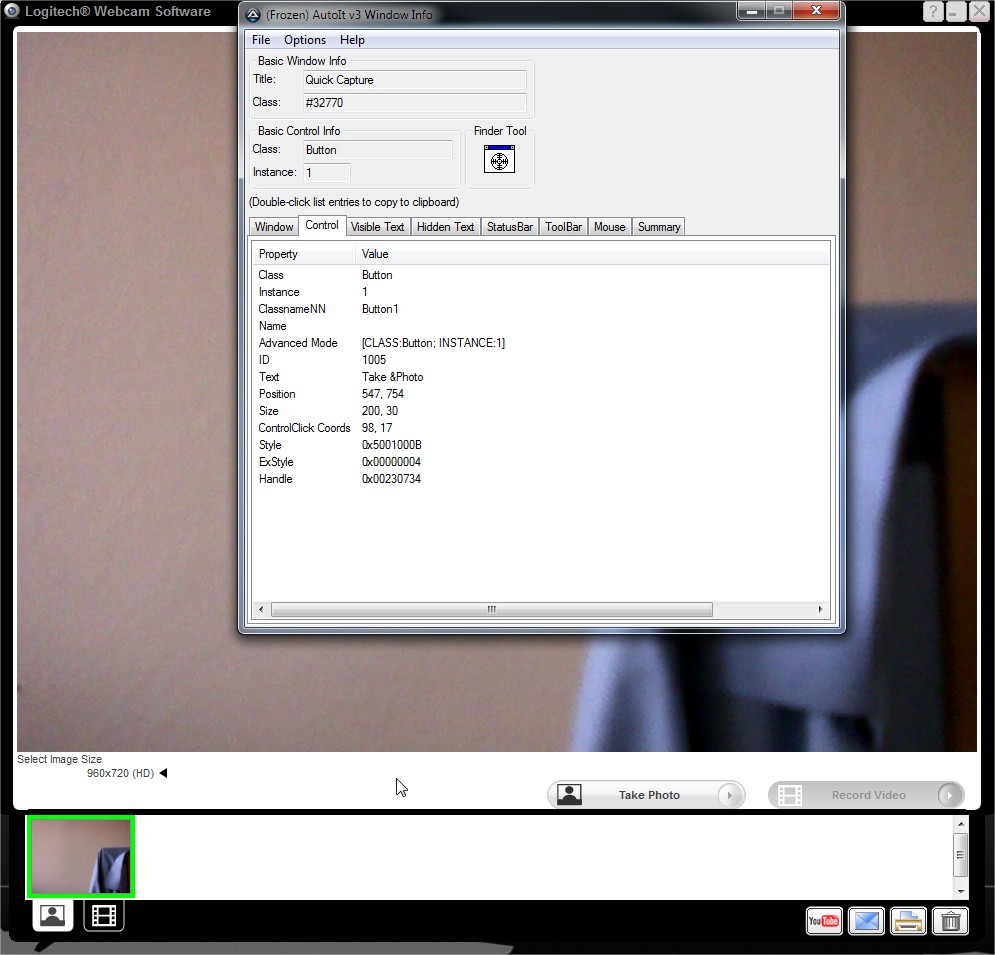

I have attached picture of info window.

post-58671-0-00317300-1315409896_thumb.j

Share this post


Link to post
Share on other sites



You're using the classnamenn parameter incorrectly I'm thinking, From the help file:

ControlSend("Untitled - Notepad", "", "[CLASSNN:Edit1]", "This is some text")

This is for Notepad, but I think if you change the "Button1" to "[CLASSNN:Button1]" instead or perhaps "[CLASS:Button; INSTANCE:1]" it might work. If you wanted to use the Text of the button, you'd have to change that to "Take &Photo" .

If I posted any code, assume that code was written using the latest release version unless stated otherwise. Also, if it doesn't work on XP I can't help with that because I don't have access to XP, and I'm not going to.
Give a programmer the correct code and he can do his work for a day. Teach a programmer to debug and he can do his work for a lifetime - by Chirag Gude
How to ask questions the smart way!

I hereby grant any person the right to use any code I post, that I am the original author of, on the autoitscript.com forums, unless I've specifically stated otherwise in the code or the thread post. If you do use my code all I ask, as a courtesy, is to make note of where you got it from.

Back up and restore Windows user files _Array.au3 - Modified array functions that include support for 2D arrays.  -  ColorChooser - An add-on for SciTE that pops up a color dialog so you can select and paste a color code into a script.  -  Customizable Splashscreen GUI w/Progress Bar - Create a custom "splash screen" GUI with a progress bar and custom label.  -  _FileGetProperty - Retrieve the properties of a file  -  SciTE Toolbar - A toolbar demo for use with the SciTE editor  -  GUIRegisterMsg demo - Demo script to show how to use the Windows messages to interact with controls and your GUI.  -   Latin Square password generator

Share this post


Link to post
Share on other sites

I usually have to use ControlFocus before ControlClick with radio buttons. Dont know why but it usually works.

Share this post


Link to post
Share on other sites

I have tried with:

ControlClick("Quick Capture", "", "[CLASSNN:Button1]")

That didn't work

Then

ControlFocus ( "Quick Capture", "", "[CLASSNN:Button1" )

ControlClick("Quick Capture", "", "[CLASSNN:Button1]")

That didn't work.

Share this post


Link to post
Share on other sites

why you didn't try AutoIt Window Info to find your control id?

then for example if your control's id is 1003 you can do it this way:

ControlClick("Quick Capture", "", 1003)

Share this post


Link to post
Share on other sites

why you didn't try AutoIt Window Info to find your control id?

then for example if your control's id is 1003 you can do it this way:

ControlClick("Quick Capture", "", 1003)

I tried that. But it only works if the mouse cursor is hold over the button. (when the mouse cursor is over the button - the button turns blue. And then ControlClick("Quick Capture", "", 1003) works.

But I would like to activate the button without moving the mouse.

Share this post


Link to post
Share on other sites

Have you tried sending the window itself an ALT-P? That button should activate by hitting Alt + P so if you send that to the window, you won't need controlclick. The window might also need to be the active window.


If I posted any code, assume that code was written using the latest release version unless stated otherwise. Also, if it doesn't work on XP I can't help with that because I don't have access to XP, and I'm not going to.
Give a programmer the correct code and he can do his work for a day. Teach a programmer to debug and he can do his work for a lifetime - by Chirag Gude
How to ask questions the smart way!

I hereby grant any person the right to use any code I post, that I am the original author of, on the autoitscript.com forums, unless I've specifically stated otherwise in the code or the thread post. If you do use my code all I ask, as a courtesy, is to make note of where you got it from.

Back up and restore Windows user files _Array.au3 - Modified array functions that include support for 2D arrays.  -  ColorChooser - An add-on for SciTE that pops up a color dialog so you can select and paste a color code into a script.  -  Customizable Splashscreen GUI w/Progress Bar - Create a custom "splash screen" GUI with a progress bar and custom label.  -  _FileGetProperty - Retrieve the properties of a file  -  SciTE Toolbar - A toolbar demo for use with the SciTE editor  -  GUIRegisterMsg demo - Demo script to show how to use the Windows messages to interact with controls and your GUI.  -   Latin Square password generator

Share this post


Link to post
Share on other sites

Have you tried sending the window itself an ALT-P? That button should activate by hitting Alt + P so if you send that to the window, you won't need controlclick. The window might also need to be the active window.

I have tried with hitting Alt + P. It works if I let the mouse cursor stay over the button before I press Alt + P. But as soon as the mouse is somewhere else on the screen while hitting Alt + P - it doesnt work.

Strange..... I have never seen this before. Only with this Logitech Webcam Software.

Share this post


Link to post
Share on other sites

I think you can use ControlGetPos() and then use MouseMove() and then perform a MouseClick().

Also you can you use this:

BlockInput(1)

BlockInput(0)

Share this post


Link to post
Share on other sites

I think you can use ControlGetPos() and then use MouseMove() and then perform a MouseClick().

Also you can you use this:

BlockInput(1)

BlockInput(0)

I didn't think of that. Perfect solution to this problem.

Thanks

Share this post


Link to post
Share on other sites
