davidkim

GDI Slider

Recommended Posts

davidkim

http://ho82.kr/au3/slide.swf

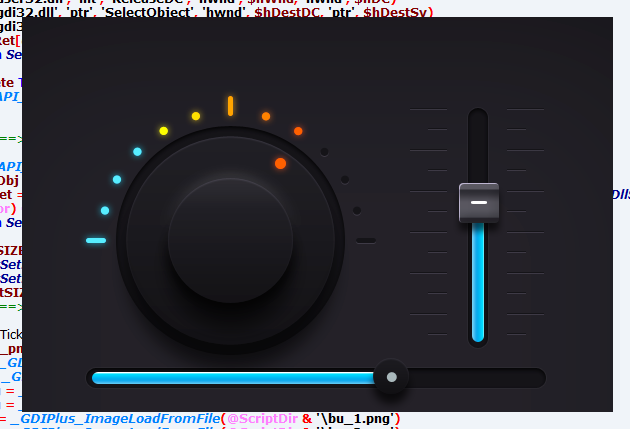

   Preview 1         Preview 2

slider download    Download is valid until 2013/10/23

code

#Region ;**** Directives created by AutoIt3Wrapper_GUI ****
#AutoIt3Wrapper_icon=C:\AutoIt3\Aut2Exe\Icons\SETUP09.ICO
#AutoIt3Wrapper_UseX64=n
#EndRegion ;**** Directives created by AutoIt3Wrapper_GUI ****
#Include <GDIPlus.au3>
#Include <WindowsConstants.au3>
#include <WinAPI.au3>
#include <GUIConstantsEx.au3>

Global Const $tagBITMAP = 'long bmType;long bmWidth;long bmHeight;long bmWidthBytes;ushort bmPlanes;ushort bmBitsPixel;ptr bmBits;'
Global Const $SC_DRAGMOVE = 0xF012

Global $tick_back_png,$tick_hi,$tick_wi,$tick1_png,$tick2_png,$bu1_png,$bu2_png
Global $tick = 295 ,$button = 0


Global $tx3 = 430
Global $y3
Global $bx3
Global $by3  = 341
Global $fDragging = False

HotKeySet("{ESC}",'_exit_')

_GDIPlus_Startup()
_LoadTick()


$tick_back_form = GUICreate('', 591, 395, -1, -1, $WS_POPUP, $WS_EX_LAYERED)
GUISetState()
setpng_back($tick_back_png,0)

$tick_form =  GUICreate("", 54, 55, 430 , 295,$WS_POPUP, BitOR($WS_EX_LAYERED, $WS_EX_MDICHILD), $tick_back_form)
GUISetState()
setpng_tick($tick_form,$tick1_png)


$button_form = GUICreate('', 54, 55, 50,341   ,$WS_POPUP, BitOR($WS_EX_LAYERED, $WS_EX_MDICHILD), $tick_back_form)
GUISetState()
setpng_tick($button_form,$bu1_png)

; if form movement size display/move limit
GUIRegisterMsg($WM_WINDOWPOSCHANGING, "WM_WINDOWPOSCHANGING")
;~ $SPI_GETDRAGFULLWINDOWS = 38
;~ $SPI_SETDRAGFULLWINDOWS = 37
Global $result = DllStructCreate("int")
       ; system value backup
DllCall("User32.dll", "int", "SystemParametersInfo", "int", 38, "int", 0, "ptr", DllStructGetPtr($result), "int", 0)
        ;windows move / mouse down and drag set value
DllCall("User32.dll", "int", "SystemParametersInfo", "int", 37, "int", 1, "ptr", 0, "int", 0)

While 1
   _ReduceMemory(@AutoItPID)
    $aMsg = GUIGetMsg(1)
    Switch $aMsg[1]
        Case $tick_back_form
            Switch $aMsg[0]
                Case $GUI_EVENT_PRIMARYDOWN
                    $fDragging = False  ;no tick/button to $WM_WINDOWPOSCHANGING
                    _SendMessage($tick_back_form, $WM_SYSCOMMAND, $SC_DRAGMOVE, 0) ;move can
            EndSwitch
        Case $tick_form
            Switch $aMsg[0]
                Case $GUI_EVENT_PRIMARYDOWN
                         setpng_tick($tick_form,$tick2_png) ; Lamp ON
                         $fDragging = True ; yes tick/button to $WM_WINDOWPOSCHANGING
                         $pos = WinGetPos($tick_back_form,'')
                         $tpos = WinGetPos($tick_form,'')
                         $y3 = $tpos[1]-$pos[1]
                          _SendMessage($tick_form, $WM_SYSCOMMAND, $SC_DRAGMOVE, 0) ; move can
                Case $GUI_EVENT_PRIMARYUP
                          setpng_tick($tick_form,$tick1_png) ; Lamp OFF
                          $fDragging = False
            EndSwitch
        Case $button_form
            Switch $aMsg[0]
                Case $GUI_EVENT_PRIMARYDOWN
                         setpng_tick($button_form,$bu2_png) ; Lamp ON
                         $fDragging = True ; yes tick/button to $WM_WINDOWPOSCHANGING
                         $pos = WinGetPos($tick_back_form,'')
                         $bpos = WinGetPos($button_form)
                         $bx3 = $bpos[0] - $pos[0]
                         _SendMessage($button_form, $WM_SYSCOMMAND, $SC_DRAGMOVE, 0)
                Case $GUI_EVENT_PRIMARYUP
                         setpng_tick($button_form,$bu1_png); Lamp OFF
                         $fDragging = False
            EndSwitch
    EndSwitch
WEnd

Func _exit_()
  DllCall("User32.dll", "int", "SystemParametersInfo", "int", 37, "int", DllStructGetData($result, 1), "ptr", 0, "int", 0)
  _GDIPlus_Shutdown()
  Exit
EndFunc

Func WM_WINDOWPOSCHANGING($hWnd, $Msg, $wParam, $lParam)
        If $hWnd = $tick_form And $fDragging = True Then ; move tick
                $pos = WinGetPos($tick_back_form,'')
                        $tpos = WinGetPos($tick_form)
                        Local $iY = $tpos[1]  ; now Y Pos
                        Local $iY_Min = $pos[1]+90 ; y min
                        Local $iY_Max = $pos[1]+300 ; y max
                        Local $stWinPos = DllStructCreate("uint;uint;int;int;int;int;uint", $lParam)
                        Local $NowPosition = $pos[0]+$tx3
                        Local $iLeft = DllStructGetData($stWinPos, 3)
                        Local $iTop = DllStructGetData($stWinPos, 4)
                        setpng_back($tick_back_png,210-($iY_Max-$iY),1) ; move area calc
                        $tick = 210-($iY_Max-$iY)        ; Last Position Store
                        If $iTop < $iY_Min Then DllStructSetData($stWinPos, 4, $iY_Min)
                        If $iTop > $iY_Max Then DllStructSetData($stWinPos, 4, $iY_Max)
                        If $iLeft <> $NowPosition Then DllStructSetData($stWinPos, 3, $pos[0]+$tx3) ; x position fixed
        EndIf

        If $hWnd = $button_form And $fDragging = True Then
                        $pos = WinGetPos($tick_back_form,'')
                        $bpos = WinGetPos($button_form)
                        Local $iX = $bpos[0]  ; now X Pos
                        Local $iX_Min = $pos[0]+50 ; x min
                        Local $iX_Max = $pos[0]+481 ; x max
                        Local $stWinPos = DllStructCreate("uint;uint;int;int;int;int;uint", $lParam)
                        Local $NowPosition = $pos[1]+$by3
                        Local $iLeft = DllStructGetData($stWinPos, 3)
                        Local $iTop = DllStructGetData($stWinPos, 4)
                        setpng_back($tick_back_png, 451-($iX_Max-$iX),2)  ; move area calc
                        $button = 451-($iX_Max-$iX)        ; Last Position Store
                        If $iLeft < $iX_Min Then DllStructSetData($stWinPos, 3, $iX_Min)
                        If $iLeft > $iX_Max Then DllStructSetData($stWinPos, 3, $iX_Max)
                        If $iTop <> $NowPosition Then DllStructSetData($stWinPos, 4, $pos[1]+$by3) ; y position fixed
        EndIf
EndFunc

Func _ReduceMemory($i_PID = -1)
    If $i_PID <> -1 Then
        Local $ai_Handle = DllCall("kernel32.dll", 'int', 'OpenProcess', 'int', 0x1f0fff, 'int', False, 'int', $i_PID)
        Local $ai_Return = DllCall("psapi.dll", 'int', 'EmptyWorkingSet', 'long', $ai_Handle[0])
        DllCall('kernel32.dll', 'int', 'CloseHandle', 'int', $ai_Handle[0])
    Else
        Local $ai_Return = DllCall("psapi.dll", 'int', 'EmptyWorkingSet', 'long', -1)
    EndIf
    Return $ai_Return[0]
EndFunc   ;==>_ReduceMemory

Func setpng_back($png,$hper,$mode = 0)
    Local $graph, $hImage
    $hImage = _GDIPlus_ImageClone($png)
    $graph = _GDIPlus_ImageGetGraphicsContext($hImage)  ; create memory blank area
        If $mode = 2  Then
            Set_Progress_W($graph,$hper,$tick_wi)
            Set_Progress_H($graph,$tick,$tick_hi)
        EndIf
        If $mode = 1 Then
            Set_Progress_H($graph,$hper,$tick_hi)
            Set_Progress_W($graph,$button,$tick_wi)
        EndIf
    _WinAPI_UpdateLayeredWindowEx($tick_back_form, _GDIPlus_BitmapCreateHBITMAPFromBitmap($hImage), 255, 1)
    _GDIPlus_GraphicsSetSmoothingMode($graph, 4)
    _GDIPlus_GraphicsDispose($graph)
    _GDIPlus_ImageDispose($hImage)
EndFunc


Func Set_Progress_W($graph,$ct,$png)
       _GDIPlus_GraphicsDrawImageRectRect($graph, $png, _
                                         0,  0 ,$ct,12, _
                                         70, 355 ,$ct ,12)
EndFunc

Func Set_Progress_H($graph,$ct,$png)
       _GDIPlus_GraphicsDrawImageRectRect($graph, $png, _
                                         0, $ct ,12,240-$ct , _
                                         450, $ct+95, 12 ,240-$ct)
EndFunc


Func setpng_tick($hForm,$png)
    Local $graph, $hImage
    $hImage = _GDIPlus_ImageClone($png)
    $graph = _GDIPlus_ImageGetGraphicsContext($hImage)
    _WinAPI_UpdateLayeredWindowEx($hForm, _GDIPlus_BitmapCreateHBITMAPFromBitmap($hImage), 255, 1)
    _GDIPlus_GraphicsSetSmoothingMode($graph, 4)
    _GDIPlus_GraphicsDispose($graph)
    _GDIPlus_ImageDispose($hImage)
EndFunc

Func _GDIPlus_ImageClone($hImage)
    Local $aResult = DllCall($ghGDIPDll, 'uint', 'GdipCloneImage', 'ptr', $hImage, 'ptr*', 0)
    If @error Then
       Return SetError(1, 0, 0)
    Else
        If $aResult[0] Then
           Return SetError($aResult[0], 0, 0)
        EndIf
    EndIf
    Return $aResult[2]
EndFunc   ;==>_GDIPlus_ImageClone

Func _WinAPI_UpdateLayeredWindowEx($hWnd, $hBitmap, $iOpacity = 255, $fDelete = 0)
    Local $Ret, $tSIZE, $tPOINT, $tBLENDFUNCTION, $hDC, $hDestDC, $hDestSv
    $Ret = DllCall('user32.dll', 'hwnd', 'GetDC', 'hwnd', $hWnd)
    $hDC = $Ret[0]
    $Ret = DllCall('gdi32.dll', 'hwnd', 'CreateCompatibleDC', 'hwnd', $hDC)
    $hDestDC = $Ret[0]
    $Ret = DllCall('gdi32.dll', 'hwnd', 'SelectObject', 'hwnd', $hDestDC, 'ptr', $hBitmap)
    $hDestSv = $Ret[0]
    $tSIZE = _WinAPI_GetBitmapDimension($hBitmap)
    $tPOINT = DllStructCreate($tagPOINT)
    $tBLENDFUNCTION = DllStructCreate($tagBLENDFUNCTION)
    DllStructSetData($tBLENDFUNCTION, 'Alpha', $iOpacity)
    DllStructSetData($tBLENDFUNCTION, 'Format', 1)
    $Ret = DllCall('user32.dll', 'int', 'UpdateLayeredWindow', 'hwnd', $hWnd, 'hwnd', $hDC, 'ptr', 0, 'ptr', DllStructGetPtr($tSIZE), 'hwnd', $hDestDC, 'ptr', DllStructGetPtr($tPOINT), 'dword', 0, 'ptr', DllStructGetPtr($tBLENDFUNCTION), 'dword', 0x02)
    DllCall('user32.dll', 'int', 'ReleaseDC', 'hwnd', $hWnd, 'hwnd', $hDC)
    DllCall('gdi32.dll', 'ptr', 'SelectObject', 'hwnd', $hDestDC, 'ptr', $hDestSv)
    DllCall('gdi32.dll', 'int', 'DeleteDC', 'hwnd', $hDestDC)
    If Not $Ret[0] Then
        Return SetError(1, 0, 0)
    EndIf
    If $fDelete Then
        _WinAPI_DeleteObject($hBitmap)
    EndIf
    Return 1
EndFunc   ;==>_WinAPI_UpdateLayeredWindowEx

Func _WinAPI_GetBitmapDimension($hBitmap)
    Local $tObj = DllStructCreate($tagBITMAP)
    Local $Ret = DllCall('gdi32.dll', 'int', 'GetObject', 'int', $hBitmap, 'int', DllStructGetSize($tObj), 'ptr', DllStructGetPtr($tObj))
    If (@error) Or (Not $Ret[0]) Then
        Return SetError(1, 0, 0)
    EndIf
    Local $tSIZE = DllStructCreate($tagSIZE)
    DllStructSetData($tSIZE, 1, DllStructGetData($tObj, 'bmWidth'))
    DllStructSetData($tSIZE, 2, DllStructGetData($tObj, 'bmHeight'))
    Return $tSIZE
EndFunc   ;==>_WinAPI_GetBitmapDimension

Func _LoadTick()
$tick_back_png = _GDIPlus_ImageLoadFromFile(@ScriptDir & '\tick_back.png')
$tick_hi = _GDIPlus_ImageLoadFromFile(@ScriptDir & '\tick_hi.png')
$tick_wi = _GDIPlus_ImageLoadFromFile(@ScriptDir & '\tick_wi.png')
$tick1_png = _GDIPlus_ImageLoadFromFile(@ScriptDir & '\tick_1.png')
$tick2_png = _GDIPlus_ImageLoadFromFile(@ScriptDir & '\tick_2.png')
$bu1_png = _GDIPlus_ImageLoadFromFile(@ScriptDir & '\bu_1.png')
$bu2_png = _GDIPlus_ImageLoadFromFile(@ScriptDir & '\bu_2.png')
EndFunc
Edited by davidkim
  • Like 2

I interest am many quite in AutoitScript.From that is [http://cafe.naver.com/autoitscript[/color]] Korea of cafe(blog) to be operating, [size="2"][color="#ff00ff"]English cannot well[/size].Many help it requests.To read, it stands it thanks.

Share this post


Link to post
Share on other sites
wakillon

Nicely done !

Is there a way to turn the button ?

:)


AutoIt 3.3.14.2 X86 - SciTE 3.6.0WIN 8.1 X64 - Other Example Scripts

Share this post


Link to post
Share on other sites
davidkim

Nicely done !

Is there a way to turn the button ?

:)

Dial Butto is Hard...


I interest am many quite in AutoitScript.From that is [http://cafe.naver.com/autoitscript[/color]] Korea of cafe(blog) to be operating, [size="2"][color="#ff00ff"]English cannot well[/size].Many help it requests.To read, it stands it thanks.

Share this post


Link to post
Share on other sites
jaberwacky

You could make it so that when the user clicks the button on the blue dot and then drags the mouse in a positive direction then the dial will rotate on its axis using a simple bresenham algorithm.  LIkewise for when the user drags the mouse left.  It's a start at least.

Share this post


Link to post
Share on other sites
davidkim

You could make it so that when the user clicks the button on the blue dot and then drags the mouse in a positive direction then the dial will rotate on its axis using a simple bresenham algorithm.  LIkewise for when the user drags the mouse left.  It's a start at least.

bresenham algorithm  : How to ??????

it can dragable dial button???


I interest am many quite in AutoitScript.From that is [http://cafe.naver.com/autoitscript[/color]] Korea of cafe(blog) to be operating, [size="2"][color="#ff00ff"]English cannot well[/size].Many help it requests.To read, it stands it thanks.

Share this post


Link to post
Share on other sites
UEZ

Dial Butto is Hard...

But I'm harder - die hardest.  :huh:



#Region ;**** Directives created by AutoIt3Wrapper_GUI ****
#AutoIt3Wrapper_icon=C:\AutoIt3\Aut2Exe\Icons\SETUP09.ICO
#AutoIt3Wrapper_UseX64=n
#EndRegion ;**** Directives created by AutoIt3Wrapper_GUI ****
#Include <GDIPlus.au3>
#Include <WindowsConstants.au3>
#include <WinAPI.au3>
#include <GUIConstantsEx.au3>

If @AutoItVersion < "3.3.9.18" Then Exit MsgBox(16, "Error", "AutoIt version 3.3.9.18 or higher needed!")

;~ Global Const $tagBITMAP = 'long bmType;long bmWidth;long bmHeight;long bmWidthBytes;ushort bmPlanes;ushort bmBitsPixel;ptr bmBits;'
Global Const $SC_DRAGMOVE = 0xF012

Global $tick_back_png,$tick_hi,$tick_wi,$tick1_png,$tick2_png,$bu1_png,$bu2_png
Global $tick = 295 ,$button = 0


Global $tx3 = 430
Global $y3
Global $bx3
Global $by3  = 341
Global $fDragging = False

HotKeySet("{ESC}",'_exit_')

_GDIPlus_Startup()
_LoadTick()


$tick_back_form = GUICreate('', 591, 395, -1, -1, $WS_POPUP, $WS_EX_LAYERED)
GUISetState()

Global $hImage_Btn = _GDIPlus_BitmapCreateFromScan0(211, 211)
Global $hCtxt_Btn = _GDIPlus_ImageGetGraphicsContext($hImage_Btn)
_GDIPlus_GraphicsDrawImageRectRect($hCtxt_Btn, $tick_back_png, 103, 118, 211, 211, 0, 0, 211, 211)
_GDIPlus_ImageDispose($hCtxt_Btn)

Setpng_back($tick_back_png,0, 0, -123)

$tick_form =  GUICreate("", 54, 55, 430 , 295,$WS_POPUP, BitOR($WS_EX_LAYERED, $WS_EX_MDICHILD), $tick_back_form)
GUISetState()
setpng_tick($tick_form,$tick1_png)


$button_form = GUICreate('', 54, 55, 50,341   ,$WS_POPUP, BitOR($WS_EX_LAYERED, $WS_EX_MDICHILD), $tick_back_form)
GUISetState()
setpng_tick($button_form,$bu1_png)

; if form movement size display/move limit
GUIRegisterMsg($WM_WINDOWPOSCHANGING, "WM_WINDOWPOSCHANGING")
;~ $SPI_GETDRAGFULLWINDOWS = 38
;~ $SPI_SETDRAGFULLWINDOWS = 37
Global $result = DllStructCreate("int")
       ; system value backup
DllCall("User32.dll", "int", "SystemParametersInfo", "int", 38, "int", 0, "ptr", DllStructGetPtr($result), "int", 0)
        ;windows move / mouse down and drag set value
DllCall("User32.dll", "int", "SystemParametersInfo", "int", 37, "int", 1, "ptr", 0, "int", 0)

While 1
;~    _ReduceMemory(@AutoItPID)
    $aMsg = GUIGetMsg(1)
    Switch $aMsg[1]
        Case $tick_back_form
            Switch $aMsg[0]
                Case $GUI_EVENT_PRIMARYDOWN
                    $fDragging = False  ;no tick/button to $WM_WINDOWPOSCHANGING
                    _SendMessage($tick_back_form, $WM_SYSCOMMAND, $SC_DRAGMOVE, 0) ;move can
            EndSwitch
        Case $tick_form
            Switch $aMsg[0]
                Case $GUI_EVENT_PRIMARYDOWN
                         setpng_tick($tick_form,$tick2_png) ; Lamp ON
                         $fDragging = True ; yes tick/button to $WM_WINDOWPOSCHANGING
                         $pos = WinGetPos($tick_back_form,'')
                         $tpos = WinGetPos($tick_form,'')
                         $y3 = $tpos[1]-$pos[1]
                          _SendMessage($tick_form, $WM_SYSCOMMAND, $SC_DRAGMOVE, 0) ; move can
                Case $GUI_EVENT_PRIMARYUP
                          setpng_tick($tick_form,$tick1_png) ; Lamp OFF
                          $fDragging = False
            EndSwitch
        Case $button_form
            Switch $aMsg[0]
                Case $GUI_EVENT_PRIMARYDOWN
                         setpng_tick($button_form,$bu2_png) ; Lamp ON
                         $fDragging = True ; yes tick/button to $WM_WINDOWPOSCHANGING
                         $pos = WinGetPos($tick_back_form,'')
                         $bpos = WinGetPos($button_form)
                         $bx3 = $bpos[0] - $pos[0]
                         _SendMessage($button_form, $WM_SYSCOMMAND, $SC_DRAGMOVE, 0)
                Case $GUI_EVENT_PRIMARYUP
                         setpng_tick($button_form,$bu1_png); Lamp OFF
                         $fDragging = False
            EndSwitch
    EndSwitch
WEnd

Func _exit_()
  DllCall("User32.dll", "int", "SystemParametersInfo", "int", 37, "int", DllStructGetData($result, 1), "ptr", 0, "int", 0)
  _GDIPlus_BitmapDispose($hImage_Btn)
  _GDIPlus_Shutdown()
  Exit
EndFunc

Func WM_WINDOWPOSCHANGING($hWnd, $Msg, $wParam, $lParam)
        If $hWnd = $tick_form And $fDragging = True Then ; move tick
                $pos = WinGetPos($tick_back_form,'')
                        $tpos = WinGetPos($tick_form)
                        Local $iY = $tpos[1]  ; now Y Pos
                        Local $iY_Min = $pos[1]+90 ; y min
                        Local $iY_Max = $pos[1]+300 ; y max
                        Local $stWinPos = DllStructCreate("uint;uint;int;int;int;int;uint", $lParam)
                        Local $NowPosition = $pos[0]+$tx3
                        Local $iLeft = DllStructGetData($stWinPos, 3)
                        Local $iTop = DllStructGetData($stWinPos, 4)
                        setpng_back($tick_back_png,210-($iY_Max-$iY),1, -500) ; move area calc
                        $tick = 210-($iY_Max-$iY)        ; Last Position Store
                        If $iTop < $iY_Min Then DllStructSetData($stWinPos, 4, $iY_Min)
                        If $iTop > $iY_Max Then DllStructSetData($stWinPos, 4, $iY_Max)
                        If $iLeft <> $NowPosition Then DllStructSetData($stWinPos, 3, $pos[0]+$tx3) ; x position fixed
        EndIf

        If $hWnd = $button_form And $fDragging = True Then
                        $pos = WinGetPos($tick_back_form,'')
                        $bpos = WinGetPos($button_form)
                        Local $iX = $bpos[0]  ; now X Pos
                        Local $iX_Min = $pos[0]+50 ; x min
                        Local $iX_Max = $pos[0]+481 ; x max
                        Local $stWinPos = DllStructCreate("uint;uint;int;int;int;int;uint", $lParam)
                        Local $NowPosition = $pos[1]+$by3
                        Local $iLeft = DllStructGetData($stWinPos, 3)
                        Local $iTop = DllStructGetData($stWinPos, 4)
                        $button = 451-($iX_Max-$iX)        ; Last Position Store
                        Local $fAngle = 180 * (-20 + $button) / 431 - 123
                        setpng_back($tick_back_png, 451-($iX_Max-$iX),2, $fAngle)  ; move area calc
                        If $iLeft < $iX_Min Then DllStructSetData($stWinPos, 3, $iX_Min)
                        If $iLeft > $iX_Max Then DllStructSetData($stWinPos, 3, $iX_Max)
                        If $iTop <> $NowPosition Then DllStructSetData($stWinPos, 4, $pos[1]+$by3) ; y position fixed
        EndIf
EndFunc

Func _ReduceMemory($i_PID = -1)
    If $i_PID <> -1 Then
        Local $ai_Handle = DllCall("kernel32.dll", 'int', 'OpenProcess', 'int', 0x1f0fff, 'int', False, 'int', $i_PID)
        Local $ai_Return = DllCall("psapi.dll", 'int', 'EmptyWorkingSet', 'long', $ai_Handle[0])
        DllCall('kernel32.dll', 'int', 'CloseHandle', 'int', $ai_Handle[0])
    Else
        Local $ai_Return = DllCall("psapi.dll", 'int', 'EmptyWorkingSet', 'long', -1)
    EndIf
    Return $ai_Return[0]
EndFunc   ;==>_ReduceMemory

Func setpng_back($png,$hper,$mode = 0, $f = 0)
    Local Static $fAngle
    If $f <> -500 Then $fAngle = $f
    Local $graph, $hImage, $hHBitmap
    $hImage = _GDIPlus_ImageClone($png)
    $graph = _GDIPlus_ImageGetGraphicsContext($hImage)  ; create memory blank area
        If $mode = 2  Then
            Set_Progress_W($graph,$hper,$tick_wi)
            Set_Progress_H($graph,$tick,$tick_hi)
        EndIf
        If $mode = 1 Then
            Set_Progress_H($graph,$hper,$tick_hi)
            Set_Progress_W($graph,$button,$tick_wi)
        EndIf
    If $fAngle <> -500 Then
        Local $hBmp_BG = _GDIPlus_ImageRotateAtPointEllipse($hImage_Btn, $fAngle) ;-123 to 57
        _GDIPlus_GraphicsDrawImageRectRect($graph, $hBmp_BG, 0, 0, 211, 211, 103, 118, 211, 211)
        _GDIPlus_BitmapDispose($hBmp_BG)
    EndIf
    $hHBitmap = _GDIPlus_BitmapCreateHBITMAPFromBitmap($hImage)
    _WinAPI_UpdateLayeredWindowEx($tick_back_form, $hHBitmap, 255, 1)
    _GDIPlus_GraphicsSetSmoothingMode($graph, 4)
    _GDIPlus_GraphicsDispose($graph)
    _GDIPlus_ImageDispose($hImage)
    _WinAPI_DeleteObject($hHBitmap)
EndFunc


Func Set_Progress_W($graph,$ct,$png)
       _GDIPlus_GraphicsDrawImageRectRect($graph, $png, _
                                         0,  0 ,$ct,12, _
                                         70, 355 ,$ct ,12)
EndFunc

Func Set_Progress_H($graph,$ct,$png)
       _GDIPlus_GraphicsDrawImageRectRect($graph, $png, _
                                         0, $ct ,12,240-$ct , _
                                         450, $ct+95, 12 ,240-$ct)
EndFunc


Func setpng_tick($hForm,$png)
    Local $graph, $hImage, $hHBitmap
    $hImage = _GDIPlus_ImageClone($png)
    $graph = _GDIPlus_ImageGetGraphicsContext($hImage)
    $hHBitmap = _GDIPlus_BitmapCreateHBITMAPFromBitmap($hImage)
    _WinAPI_UpdateLayeredWindowEx($hForm, $hHBitmap, 255, 1)
    _GDIPlus_GraphicsSetSmoothingMode($graph, 4)
    _GDIPlus_GraphicsDispose($graph)
    _GDIPlus_ImageDispose($hImage)
    _WinAPI_DeleteObject($hHBitmap)
EndFunc

Func _GDIPlus_ImageClone($hImage)
    Local $aResult = DllCall($ghGDIPDll, 'uint', 'GdipCloneImage', 'ptr', $hImage, 'ptr*', 0)
    If @error Then
       Return SetError(1, 0, 0)
    Else
        If $aResult[0] Then
           Return SetError($aResult[0], 0, 0)
        EndIf
    EndIf
    Return $aResult[2]
EndFunc   ;==>_GDIPlus_ImageClone

Func _WinAPI_UpdateLayeredWindowEx($hWnd, $hBitmap, $iOpacity = 255, $fDelete = 0)
    Local $Ret, $tSIZE, $tPOINT, $tBLENDFUNCTION, $hDC, $hDestDC, $hDestSv
    $Ret = DllCall('user32.dll', 'hwnd', 'GetDC', 'hwnd', $hWnd)
    $hDC = $Ret[0]
    $Ret = DllCall('gdi32.dll', 'hwnd', 'CreateCompatibleDC', 'hwnd', $hDC)
    $hDestDC = $Ret[0]
    $Ret = DllCall('gdi32.dll', 'hwnd', 'SelectObject', 'hwnd', $hDestDC, 'ptr', $hBitmap)
    $hDestSv = $Ret[0]
    $tSIZE = _WinAPI_GetBitmapDimension($hBitmap)
    $tPOINT = DllStructCreate($tagPOINT)
    $tBLENDFUNCTION = DllStructCreate($tagBLENDFUNCTION)
    DllStructSetData($tBLENDFUNCTION, 'Alpha', $iOpacity)
    DllStructSetData($tBLENDFUNCTION, 'Format', 1)
    $Ret = DllCall('user32.dll', 'int', 'UpdateLayeredWindow', 'hwnd', $hWnd, 'hwnd', $hDC, 'ptr', 0, 'ptr', DllStructGetPtr($tSIZE), 'hwnd', $hDestDC, 'ptr', DllStructGetPtr($tPOINT), 'dword', 0, 'ptr', DllStructGetPtr($tBLENDFUNCTION), 'dword', 0x02)
    DllCall('user32.dll', 'int', 'ReleaseDC', 'hwnd', $hWnd, 'hwnd', $hDC)
    DllCall('gdi32.dll', 'ptr', 'SelectObject', 'hwnd', $hDestDC, 'ptr', $hDestSv)
    DllCall('gdi32.dll', 'int', 'DeleteDC', 'hwnd', $hDestDC)
    If Not $Ret[0] Then
        Return SetError(1, 0, 0)
    EndIf
    If $fDelete Then
        _WinAPI_DeleteObject($hBitmap)
    EndIf
    Return 1
EndFunc   ;==>_WinAPI_UpdateLayeredWindowEx

;~ Func _WinAPI_GetBitmapDimension($hBitmap)
;~     Local $tObj = DllStructCreate($tagBITMAP)
;~     Local $Ret = DllCall('gdi32.dll', 'int', 'GetObject', 'int', $hBitmap, 'int', DllStructGetSize($tObj), 'ptr', DllStructGetPtr($tObj))
;~     If (@error) Or (Not $Ret[0]) Then
;~         Return SetError(1, 0, 0)
;~     EndIf
;~     Local $tSIZE = DllStructCreate($tagSIZE)
;~     DllStructSetData($tSIZE, 1, DllStructGetData($tObj, 'bmWidth'))
;~     DllStructSetData($tSIZE, 2, DllStructGetData($tObj, 'bmHeight'))
;~     Return $tSIZE
;~ EndFunc   ;==>_WinAPI_GetBitmapDimension

Func _LoadTick()
$tick_back_png = _GDIPlus_ImageLoadFromFile(@ScriptDir & '\tick_back.png')
$tick_hi = _GDIPlus_ImageLoadFromFile(@ScriptDir & '\tick_hi.png')
$tick_wi = _GDIPlus_ImageLoadFromFile(@ScriptDir & '\tick_wi.png')
$tick1_png = _GDIPlus_ImageLoadFromFile(@ScriptDir & '\tick_1.png')
$tick2_png = _GDIPlus_ImageLoadFromFile(@ScriptDir & '\tick_2.png')
$bu1_png = _GDIPlus_ImageLoadFromFile(@ScriptDir & '\bu_1.png')
$bu2_png = _GDIPlus_ImageLoadFromFile(@ScriptDir & '\bu_2.png')
EndFunc

Func _GDIPlus_ImageRotateAtPointEllipse($hImage, $fAngle, $iW = 211, $iH = 211); coded by UEZ
    Local $hBitmap = _GDIPlus_BitmapCreateFromScan0($iW, $iH)
    Local $hCtxt = _GDIPlus_ImageGetGraphicsContext($hBitmap)
    Local $hMatrix = _GDIPlus_MatrixCreate()
    _GDIPlus_MatrixTranslate($hMatrix, $iW / 2, $iH / 2)
    _GDIPlus_MatrixRotate($hMatrix, $fAngle)
    _GDIPlus_GraphicsSetTransform($hCtxt, $hMatrix)
    _GDIPlus_GraphicsDrawImage($hCtxt, $hImage, -$iW / 2, -$iH / 2)
    _GDIPlus_MatrixDispose($hMatrix)
    _GDIPlus_GraphicsDispose($hCtxt)
    Local $hTexture = _GDIPlus_TextureCreate($hBitmap)
    _GDIPlus_BitmapDispose($hBitmap)
    $hBitmap = _GDIPlus_BitmapCreateFromScan0($iW, $iH)
    $hCtxt = _GDIPlus_ImageGetGraphicsContext($hBitmap)
    _GDIPlus_GraphicsFillEllipse($hCtxt, 0, 0, $iW, $iH, $hTexture)
    _GDIPlus_GraphicsDispose($hCtxt)
    _GDIPlus_BrushDispose($hTexture)
    _GDIPlus_GraphicsDispose($hCtxt)
    Return $hBitmap
EndFunc
AutoIt version 3.3.9.18 or higher is needed!

Move horizontal slider.

Br,

UEZ

Edited by UEZ

Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯  ٩(●̮̮̃•̃)۶ ٩(-̮̮̃-̃)۶ૐ

Share this post


Link to post
Share on other sites
wakillon

Nice solution UEZ !  :thumbsup:

But my request was to add the possibility to turn button with the mouse... :D


AutoIt 3.3.14.2 X86 - SciTE 3.6.0WIN 8.1 X64 - Other Example Scripts

Share this post


Link to post
Share on other sites
UEZ

@wakillon,

homework for you to implement mousemovement. ;)

Shouldn't be a real challenge for you.  :D


Br,
UEZ

Edited by UEZ

Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯  ٩(●̮̮̃•̃)۶ ٩(-̮̮̃-̃)۶ૐ

Share this post


Link to post
Share on other sites
davidkim

But I'm harder - die hardest.  :huh:



#Region ;**** Directives created by AutoIt3Wrapper_GUI ****
#AutoIt3Wrapper_icon=C:\AutoIt3\Aut2Exe\Icons\SETUP09.ICO
#AutoIt3Wrapper_UseX64=n
#EndRegion ;**** Directives created by AutoIt3Wrapper_GUI ****
#Include <GDIPlus.au3>
#Include <WindowsConstants.au3>
#include <WinAPI.au3>
#include <GUIConstantsEx.au3>

If @AutoItVersion < "3.3.9.18" Then Exit MsgBox(16, "Error", "AutoIt version 3.3.9.18 or higher needed!")

;~ Global Const $tagBITMAP = 'long bmType;long bmWidth;long bmHeight;long bmWidthBytes;ushort bmPlanes;ushort bmBitsPixel;ptr bmBits;'
Global Const $SC_DRAGMOVE = 0xF012

Global $tick_back_png,$tick_hi,$tick_wi,$tick1_png,$tick2_png,$bu1_png,$bu2_png
Global $tick = 295 ,$button = 0


Global $tx3 = 430
Global $y3
Global $bx3
Global $by3  = 341
Global $fDragging = False

HotKeySet("{ESC}",'_exit_')

_GDIPlus_Startup()
_LoadTick()


$tick_back_form = GUICreate('', 591, 395, -1, -1, $WS_POPUP, $WS_EX_LAYERED)
GUISetState()

Global $hImage_Btn = _GDIPlus_BitmapCreateFromScan0(211, 211)
Global $hCtxt_Btn = _GDIPlus_ImageGetGraphicsContext($hImage_Btn)
_GDIPlus_GraphicsDrawImageRectRect($hCtxt_Btn, $tick_back_png, 103, 118, 211, 211, 0, 0, 211, 211)
_GDIPlus_ImageDispose($hCtxt_Btn)

Setpng_back($tick_back_png,0, 0, -123)

$tick_form =  GUICreate("", 54, 55, 430 , 295,$WS_POPUP, BitOR($WS_EX_LAYERED, $WS_EX_MDICHILD), $tick_back_form)
GUISetState()
setpng_tick($tick_form,$tick1_png)


$button_form = GUICreate('', 54, 55, 50,341   ,$WS_POPUP, BitOR($WS_EX_LAYERED, $WS_EX_MDICHILD), $tick_back_form)
GUISetState()
setpng_tick($button_form,$bu1_png)

; if form movement size display/move limit
GUIRegisterMsg($WM_WINDOWPOSCHANGING, "WM_WINDOWPOSCHANGING")
;~ $SPI_GETDRAGFULLWINDOWS = 38
;~ $SPI_SETDRAGFULLWINDOWS = 37
Global $result = DllStructCreate("int")
       ; system value backup
DllCall("User32.dll", "int", "SystemParametersInfo", "int", 38, "int", 0, "ptr", DllStructGetPtr($result), "int", 0)
        ;windows move / mouse down and drag set value
DllCall("User32.dll", "int", "SystemParametersInfo", "int", 37, "int", 1, "ptr", 0, "int", 0)

While 1
;~    _ReduceMemory(@AutoItPID)
    $aMsg = GUIGetMsg(1)
    Switch $aMsg[1]
        Case $tick_back_form
            Switch $aMsg[0]
                Case $GUI_EVENT_PRIMARYDOWN
                    $fDragging = False  ;no tick/button to $WM_WINDOWPOSCHANGING
                    _SendMessage($tick_back_form, $WM_SYSCOMMAND, $SC_DRAGMOVE, 0) ;move can
            EndSwitch
        Case $tick_form
            Switch $aMsg[0]
                Case $GUI_EVENT_PRIMARYDOWN
                         setpng_tick($tick_form,$tick2_png) ; Lamp ON
                         $fDragging = True ; yes tick/button to $WM_WINDOWPOSCHANGING
                         $pos = WinGetPos($tick_back_form,'')
                         $tpos = WinGetPos($tick_form,'')
                         $y3 = $tpos[1]-$pos[1]
                          _SendMessage($tick_form, $WM_SYSCOMMAND, $SC_DRAGMOVE, 0) ; move can
                Case $GUI_EVENT_PRIMARYUP
                          setpng_tick($tick_form,$tick1_png) ; Lamp OFF
                          $fDragging = False
            EndSwitch
        Case $button_form
            Switch $aMsg[0]
                Case $GUI_EVENT_PRIMARYDOWN
                         setpng_tick($button_form,$bu2_png) ; Lamp ON
                         $fDragging = True ; yes tick/button to $WM_WINDOWPOSCHANGING
                         $pos = WinGetPos($tick_back_form,'')
                         $bpos = WinGetPos($button_form)
                         $bx3 = $bpos[0] - $pos[0]
                         _SendMessage($button_form, $WM_SYSCOMMAND, $SC_DRAGMOVE, 0)
                Case $GUI_EVENT_PRIMARYUP
                         setpng_tick($button_form,$bu1_png); Lamp OFF
                         $fDragging = False
            EndSwitch
    EndSwitch
WEnd

Func _exit_()
  DllCall("User32.dll", "int", "SystemParametersInfo", "int", 37, "int", DllStructGetData($result, 1), "ptr", 0, "int", 0)
  _GDIPlus_BitmapDispose($hImage_Btn)
  _GDIPlus_Shutdown()
  Exit
EndFunc

Func WM_WINDOWPOSCHANGING($hWnd, $Msg, $wParam, $lParam)
        If $hWnd = $tick_form And $fDragging = True Then ; move tick
                $pos = WinGetPos($tick_back_form,'')
                        $tpos = WinGetPos($tick_form)
                        Local $iY = $tpos[1]  ; now Y Pos
                        Local $iY_Min = $pos[1]+90 ; y min
                        Local $iY_Max = $pos[1]+300 ; y max
                        Local $stWinPos = DllStructCreate("uint;uint;int;int;int;int;uint", $lParam)
                        Local $NowPosition = $pos[0]+$tx3
                        Local $iLeft = DllStructGetData($stWinPos, 3)
                        Local $iTop = DllStructGetData($stWinPos, 4)
                        setpng_back($tick_back_png,210-($iY_Max-$iY),1, -500) ; move area calc
                        $tick = 210-($iY_Max-$iY)        ; Last Position Store
                        If $iTop < $iY_Min Then DllStructSetData($stWinPos, 4, $iY_Min)
                        If $iTop > $iY_Max Then DllStructSetData($stWinPos, 4, $iY_Max)
                        If $iLeft <> $NowPosition Then DllStructSetData($stWinPos, 3, $pos[0]+$tx3) ; x position fixed
        EndIf

        If $hWnd = $button_form And $fDragging = True Then
                        $pos = WinGetPos($tick_back_form,'')
                        $bpos = WinGetPos($button_form)
                        Local $iX = $bpos[0]  ; now X Pos
                        Local $iX_Min = $pos[0]+50 ; x min
                        Local $iX_Max = $pos[0]+481 ; x max
                        Local $stWinPos = DllStructCreate("uint;uint;int;int;int;int;uint", $lParam)
                        Local $NowPosition = $pos[1]+$by3
                        Local $iLeft = DllStructGetData($stWinPos, 3)
                        Local $iTop = DllStructGetData($stWinPos, 4)
                        $button = 451-($iX_Max-$iX)        ; Last Position Store
                        Local $fAngle = 180 * (-20 + $button) / 431 - 123
                        setpng_back($tick_back_png, 451-($iX_Max-$iX),2, $fAngle)  ; move area calc
                        If $iLeft < $iX_Min Then DllStructSetData($stWinPos, 3, $iX_Min)
                        If $iLeft > $iX_Max Then DllStructSetData($stWinPos, 3, $iX_Max)
                        If $iTop <> $NowPosition Then DllStructSetData($stWinPos, 4, $pos[1]+$by3) ; y position fixed
        EndIf
EndFunc

Func _ReduceMemory($i_PID = -1)
    If $i_PID <> -1 Then
        Local $ai_Handle = DllCall("kernel32.dll", 'int', 'OpenProcess', 'int', 0x1f0fff, 'int', False, 'int', $i_PID)
        Local $ai_Return = DllCall("psapi.dll", 'int', 'EmptyWorkingSet', 'long', $ai_Handle[0])
        DllCall('kernel32.dll', 'int', 'CloseHandle', 'int', $ai_Handle[0])
    Else
        Local $ai_Return = DllCall("psapi.dll", 'int', 'EmptyWorkingSet', 'long', -1)
    EndIf
    Return $ai_Return[0]
EndFunc   ;==>_ReduceMemory

Func setpng_back($png,$hper,$mode = 0, $f = 0)
    Local Static $fAngle
    If $f <> -500 Then $fAngle = $f
    Local $graph, $hImage, $hHBitmap
    $hImage = _GDIPlus_ImageClone($png)
    $graph = _GDIPlus_ImageGetGraphicsContext($hImage)  ; create memory blank area
        If $mode = 2  Then
            Set_Progress_W($graph,$hper,$tick_wi)
            Set_Progress_H($graph,$tick,$tick_hi)
        EndIf
        If $mode = 1 Then
            Set_Progress_H($graph,$hper,$tick_hi)
            Set_Progress_W($graph,$button,$tick_wi)
        EndIf
    If $fAngle <> -500 Then
        Local $hBmp_BG = _GDIPlus_ImageRotateAtPointEllipse($hImage_Btn, $fAngle) ;-123 to 57
        _GDIPlus_GraphicsDrawImageRectRect($graph, $hBmp_BG, 0, 0, 211, 211, 103, 118, 211, 211)
        _GDIPlus_BitmapDispose($hBmp_BG)
    EndIf
    $hHBitmap = _GDIPlus_BitmapCreateHBITMAPFromBitmap($hImage)
    _WinAPI_UpdateLayeredWindowEx($tick_back_form, $hHBitmap, 255, 1)
    _GDIPlus_GraphicsSetSmoothingMode($graph, 4)
    _GDIPlus_GraphicsDispose($graph)
    _GDIPlus_ImageDispose($hImage)
    _WinAPI_DeleteObject($hHBitmap)
EndFunc


Func Set_Progress_W($graph,$ct,$png)
       _GDIPlus_GraphicsDrawImageRectRect($graph, $png, _
                                         0,  0 ,$ct,12, _
                                         70, 355 ,$ct ,12)
EndFunc

Func Set_Progress_H($graph,$ct,$png)
       _GDIPlus_GraphicsDrawImageRectRect($graph, $png, _
                                         0, $ct ,12,240-$ct , _
                                         450, $ct+95, 12 ,240-$ct)
EndFunc


Func setpng_tick($hForm,$png)
    Local $graph, $hImage, $hHBitmap
    $hImage = _GDIPlus_ImageClone($png)
    $graph = _GDIPlus_ImageGetGraphicsContext($hImage)
    $hHBitmap = _GDIPlus_BitmapCreateHBITMAPFromBitmap($hImage)
    _WinAPI_UpdateLayeredWindowEx($hForm, $hHBitmap, 255, 1)
    _GDIPlus_GraphicsSetSmoothingMode($graph, 4)
    _GDIPlus_GraphicsDispose($graph)
    _GDIPlus_ImageDispose($hImage)
    _WinAPI_DeleteObject($hHBitmap)
EndFunc

Func _GDIPlus_ImageClone($hImage)
    Local $aResult = DllCall($ghGDIPDll, 'uint', 'GdipCloneImage', 'ptr', $hImage, 'ptr*', 0)
    If @error Then
       Return SetError(1, 0, 0)
    Else
        If $aResult[0] Then
           Return SetError($aResult[0], 0, 0)
        EndIf
    EndIf
    Return $aResult[2]
EndFunc   ;==>_GDIPlus_ImageClone

Func _WinAPI_UpdateLayeredWindowEx($hWnd, $hBitmap, $iOpacity = 255, $fDelete = 0)
    Local $Ret, $tSIZE, $tPOINT, $tBLENDFUNCTION, $hDC, $hDestDC, $hDestSv
    $Ret = DllCall('user32.dll', 'hwnd', 'GetDC', 'hwnd', $hWnd)
    $hDC = $Ret[0]
    $Ret = DllCall('gdi32.dll', 'hwnd', 'CreateCompatibleDC', 'hwnd', $hDC)
    $hDestDC = $Ret[0]
    $Ret = DllCall('gdi32.dll', 'hwnd', 'SelectObject', 'hwnd', $hDestDC, 'ptr', $hBitmap)
    $hDestSv = $Ret[0]
    $tSIZE = _WinAPI_GetBitmapDimension($hBitmap)
    $tPOINT = DllStructCreate($tagPOINT)
    $tBLENDFUNCTION = DllStructCreate($tagBLENDFUNCTION)
    DllStructSetData($tBLENDFUNCTION, 'Alpha', $iOpacity)
    DllStructSetData($tBLENDFUNCTION, 'Format', 1)
    $Ret = DllCall('user32.dll', 'int', 'UpdateLayeredWindow', 'hwnd', $hWnd, 'hwnd', $hDC, 'ptr', 0, 'ptr', DllStructGetPtr($tSIZE), 'hwnd', $hDestDC, 'ptr', DllStructGetPtr($tPOINT), 'dword', 0, 'ptr', DllStructGetPtr($tBLENDFUNCTION), 'dword', 0x02)
    DllCall('user32.dll', 'int', 'ReleaseDC', 'hwnd', $hWnd, 'hwnd', $hDC)
    DllCall('gdi32.dll', 'ptr', 'SelectObject', 'hwnd', $hDestDC, 'ptr', $hDestSv)
    DllCall('gdi32.dll', 'int', 'DeleteDC', 'hwnd', $hDestDC)
    If Not $Ret[0] Then
        Return SetError(1, 0, 0)
    EndIf
    If $fDelete Then
        _WinAPI_DeleteObject($hBitmap)
    EndIf
    Return 1
EndFunc   ;==>_WinAPI_UpdateLayeredWindowEx

;~ Func _WinAPI_GetBitmapDimension($hBitmap)
;~     Local $tObj = DllStructCreate($tagBITMAP)
;~     Local $Ret = DllCall('gdi32.dll', 'int', 'GetObject', 'int', $hBitmap, 'int', DllStructGetSize($tObj), 'ptr', DllStructGetPtr($tObj))
;~     If (@error) Or (Not $Ret[0]) Then
;~         Return SetError(1, 0, 0)
;~     EndIf
;~     Local $tSIZE = DllStructCreate($tagSIZE)
;~     DllStructSetData($tSIZE, 1, DllStructGetData($tObj, 'bmWidth'))
;~     DllStructSetData($tSIZE, 2, DllStructGetData($tObj, 'bmHeight'))
;~     Return $tSIZE
;~ EndFunc   ;==>_WinAPI_GetBitmapDimension

Func _LoadTick()
$tick_back_png = _GDIPlus_ImageLoadFromFile(@ScriptDir & '\tick_back.png')
$tick_hi = _GDIPlus_ImageLoadFromFile(@ScriptDir & '\tick_hi.png')
$tick_wi = _GDIPlus_ImageLoadFromFile(@ScriptDir & '\tick_wi.png')
$tick1_png = _GDIPlus_ImageLoadFromFile(@ScriptDir & '\tick_1.png')
$tick2_png = _GDIPlus_ImageLoadFromFile(@ScriptDir & '\tick_2.png')
$bu1_png = _GDIPlus_ImageLoadFromFile(@ScriptDir & '\bu_1.png')
$bu2_png = _GDIPlus_ImageLoadFromFile(@ScriptDir & '\bu_2.png')
EndFunc

Func _GDIPlus_ImageRotateAtPointEllipse($hImage, $fAngle, $iW = 211, $iH = 211); coded by UEZ
    Local $hBitmap = _GDIPlus_BitmapCreateFromScan0($iW, $iH)
    Local $hCtxt = _GDIPlus_ImageGetGraphicsContext($hBitmap)
    Local $hMatrix = _GDIPlus_MatrixCreate()
    _GDIPlus_MatrixTranslate($hMatrix, $iW / 2, $iH / 2)
    _GDIPlus_MatrixRotate($hMatrix, $fAngle)
    _GDIPlus_GraphicsSetTransform($hCtxt, $hMatrix)
    _GDIPlus_GraphicsDrawImage($hCtxt, $hImage, -$iW / 2, -$iH / 2)
    _GDIPlus_MatrixDispose($hMatrix)
    _GDIPlus_GraphicsDispose($hCtxt)
    Local $hTexture = _GDIPlus_TextureCreate($hBitmap)
    _GDIPlus_BitmapDispose($hBitmap)
    $hBitmap = _GDIPlus_BitmapCreateFromScan0($iW, $iH)
    $hCtxt = _GDIPlus_ImageGetGraphicsContext($hBitmap)
    _GDIPlus_GraphicsFillEllipse($hCtxt, 0, 0, $iW, $iH, $hTexture)
    _GDIPlus_GraphicsDispose($hCtxt)
    _GDIPlus_BrushDispose($hTexture)
    _GDIPlus_GraphicsDispose($hCtxt)
    Return $hBitmap
EndFunc
AutoIt version 3.3.9.18 or higher is needed!

Move horizontal slider.

Br,

UEZ



Thank UEZ.   * ^^ *

Circular dial button I want to rotate and drag directly. ㅠ.ㅠ

http://ho82.kr/au3/slideUEZ.swf

Edited by davidkim

I interest am many quite in AutoitScript.From that is [http://cafe.naver.com/autoitscript[/color]] Korea of cafe(blog) to be operating, [size="2"][color="#ff00ff"]English cannot well[/size].Many help it requests.To read, it stands it thanks.

Share this post


Link to post
Share on other sites
UEZ

@davidkim:

Then try this:



#region ;**** Directives created by AutoIt3Wrapper_GUI ****
#AutoIt3Wrapper_icon=C:\AutoIt3\Aut2Exe\Icons\SETUP09.ICO
#AutoIt3Wrapper_UseX64=n
#endregion ;**** Directives created by AutoIt3Wrapper_GUI ****
#include <GDIPlus.au3>
#include <WindowsConstants.au3>
#include <WinAPI.au3>
#include <GUIConstantsEx.au3>

If @AutoItVersion < "3.3.9.18" Then Exit MsgBox(16, "Error", "AutoIt version 3.3.9.18 or higher needed!")

;~ Global Const $tagBITMAP = 'long bmType;long bmWidth;long bmHeight;long bmWidthBytes;ushort bmPlanes;ushort bmBitsPixel;ptr bmBits;'
Global Const $SC_DRAGMOVE = 0xF012

Global $tick_back_png, $tick_hi, $tick_wi, $tick1_png, $tick2_png, $bu1_png, $bu2_png
Global $tick = 295, $button = 0, $fDegree = 0, $iPrev = 0, $iSpeed = 2


Global $tx3 = 430
Global $y3
Global $bx3
Global $by3 = 341
Global $fDragging = False

HotKeySet("{ESC}", '_exit_')

_GDIPlus_Startup()
_LoadTick()


$tick_back_form = GUICreate('', 591, 395, -1, -1, $WS_POPUP, $WS_EX_LAYERED)
$label = GUICtrlCreateLabel("", 103, 118, 211, 211)
GUISetState()

Global $hImage_Btn = _GDIPlus_BitmapCreateFromScan0(211, 211)
Global $hCtxt_Btn = _GDIPlus_ImageGetGraphicsContext($hImage_Btn)
_GDIPlus_GraphicsDrawImageRectRect($hCtxt_Btn, $tick_back_png, 103, 118, 211, 211, 0, 0, 211, 211)
_GDIPlus_ImageDispose($hCtxt_Btn)
setpng_back($tick_back_png, 0, 0, $fDegree)

$tick_form = GUICreate("", 54, 55, 430, 295, $WS_POPUP, BitOR($WS_EX_LAYERED, $WS_EX_MDICHILD), $tick_back_form)
GUISetState()
setpng_tick($tick_form, $tick1_png)


$button_form = GUICreate('', 54, 55, 50, 341, $WS_POPUP, BitOR($WS_EX_LAYERED, $WS_EX_MDICHILD), $tick_back_form)
GUISetState()
setpng_tick($button_form, $bu1_png)

; if form movement size display/move limit
GUIRegisterMsg($WM_WINDOWPOSCHANGING, "WM_WINDOWPOSCHANGING")
;~ $SPI_GETDRAGFULLWINDOWS = 38
;~ $SPI_SETDRAGFULLWINDOWS = 37
Global $result = DllStructCreate("int"), $aCtrl
; system value backup
DllCall("User32.dll", "int", "SystemParametersInfo", "int", 38, "int", 0, "ptr", DllStructGetPtr($result), "int", 0)
;windows move / mouse down and drag set value
DllCall("User32.dll", "int", "SystemParametersInfo", "int", 37, "int", 1, "ptr", 0, "int", 0)

While 1
    $aMsg = GUIGetMsg(1)
    Switch $aMsg[1]
        Case $tick_back_form
            Switch $aMsg[0]
                Case $GUI_EVENT_PRIMARYDOWN
                    $fDragging = False ;no tick/button to $WM_WINDOWPOSCHANGING
                    $aCtrl = GUIGetCursorInfo($aMsg[1])
                    Switch $aCtrl[4]
                        Case $label
                            $iPrev = $aCtrl[0]
                            Do
                                $aCtrl = GUIGetCursorInfo($aMsg[1])
                                If $iPrev > $aCtrl[0] Then
                                    $fDegree -= $iSpeed
                                    $iPrev = $aCtrl[0]
                                EndIf
                                If $iPrev < $aCtrl[0] Then
                                    $fDegree += $iSpeed
                                    $iPrev = $aCtrl[0]
                                EndIf
                                setpng_back($tick_back_png, 0, 3, $fDegree)
                            Until Not $aCtrl[2] * Sleep(10)
                        Case Else
                        _SendMessage($tick_back_form, $WM_SYSCOMMAND, $SC_DRAGMOVE, 0) ;move can
                    EndSwitch
            EndSwitch
        Case $tick_form
            Switch $aMsg[0]
                Case $GUI_EVENT_PRIMARYDOWN
                    setpng_tick($tick_form, $tick2_png) ; Lamp ON
                    $fDragging = True ; yes tick/button to $WM_WINDOWPOSCHANGING
                    $pos = WinGetPos($tick_back_form, '')
                    $tpos = WinGetPos($tick_form, '')
                    $y3 = $tpos[1] - $pos[1]
                    _SendMessage($tick_form, $WM_SYSCOMMAND, $SC_DRAGMOVE, 0) ; move can
                Case $GUI_EVENT_PRIMARYUP
                    setpng_tick($tick_form, $tick1_png) ; Lamp OFF
                    $fDragging = False
            EndSwitch
        Case $button_form
            Switch $aMsg[0]
                Case $GUI_EVENT_PRIMARYDOWN
                    setpng_tick($button_form, $bu2_png) ; Lamp ON
                    $fDragging = True ; yes tick/button to $WM_WINDOWPOSCHANGING
                    $pos = WinGetPos($tick_back_form, '')
                    $bpos = WinGetPos($button_form)
                    $bx3 = $bpos[0] - $pos[0]
                    _SendMessage($button_form, $WM_SYSCOMMAND, $SC_DRAGMOVE, 0)
                Case $GUI_EVENT_PRIMARYUP
                    setpng_tick($button_form, $bu1_png); Lamp OFF
                    $fDragging = False
            EndSwitch
    EndSwitch
WEnd

Func _exit_()
    DllCall("User32.dll", "int", "SystemParametersInfo", "int", 37, "int", DllStructGetData($result, 1), "ptr", 0, "int", 0)
    _GDIPlus_BitmapDispose($hImage_Btn)
    _GDIPlus_Shutdown()
    Exit
EndFunc   ;==>_exit_

Func WM_WINDOWPOSCHANGING($hWnd, $Msg, $wParam, $lParam)
    If $hWnd = $tick_form And $fDragging = True Then ; move tick
        $pos = WinGetPos($tick_back_form, '')
        $tpos = WinGetPos($tick_form)
        Local $iY = $tpos[1] ; now Y Pos
        Local $iY_Min = $pos[1] + 90 ; y min
        Local $iY_Max = $pos[1] + 300 ; y max
        Local $stWinPos = DllStructCreate("uint;uint;int;int;int;int;uint", $lParam)
        Local $NowPosition = $pos[0] + $tx3
        Local $iLeft = DllStructGetData($stWinPos, 3)
        Local $iTop = DllStructGetData($stWinPos, 4)
        setpng_back($tick_back_png, 210 - ($iY_Max - $iY), 1, $fDegree) ; move area calc
        $tick = 210 - ($iY_Max - $iY) ; Last Position Store
        If $iTop < $iY_Min Then DllStructSetData($stWinPos, 4, $iY_Min)
        If $iTop > $iY_Max Then DllStructSetData($stWinPos, 4, $iY_Max)
        If $iLeft <> $NowPosition Then DllStructSetData($stWinPos, 3, $pos[0] + $tx3) ; x position fixed
    EndIf

    If $hWnd = $button_form And $fDragging = True Then
        $pos = WinGetPos($tick_back_form, '')
        $bpos = WinGetPos($button_form)
        Local $iX = $bpos[0] ; now X Pos
        Local $iX_Min = $pos[0] + 50 ; x min
        Local $iX_Max = $pos[0] + 481 ; x max
        Local $stWinPos = DllStructCreate("uint;uint;int;int;int;int;uint", $lParam)
        Local $NowPosition = $pos[1] + $by3
        Local $iLeft = DllStructGetData($stWinPos, 3)
        Local $iTop = DllStructGetData($stWinPos, 4)
        $button = 451 - ($iX_Max - $iX) ; Last Position Store
;~                      Local $fAngle = 180 * (-20 + $button) / 431 - 123
        setpng_back($tick_back_png, 451 - ($iX_Max - $iX), 2, $fDegree) ; move area calc
        If $iLeft < $iX_Min Then DllStructSetData($stWinPos, 3, $iX_Min)
        If $iLeft > $iX_Max Then DllStructSetData($stWinPos, 3, $iX_Max)
        If $iTop <> $NowPosition Then DllStructSetData($stWinPos, 4, $pos[1] + $by3) ; y position fixed
    EndIf
EndFunc   ;==>WM_WINDOWPOSCHANGING

Func setpng_back($png, $hper, $mode = 0, $fAngle = 0)
    If $fAngle < -123 Then $fAngle = -123
    If $fAngle > 57 Then $fAngle = 57
    Local $graph, $hImage, $hHBitmap
    $hImage = _GDIPlus_ImageClone($png)
    $graph = _GDIPlus_ImageGetGraphicsContext($hImage) ; create memory blank area
    If $mode = 3 Then
        Set_Progress_H($graph, $tick, $tick_hi)
        Set_Progress_W($graph, $button, $tick_wi)
    EndIf
 If $mode = 2 Then
        Set_Progress_W($graph, $hper, $tick_wi)
        Set_Progress_H($graph, $tick, $tick_hi)
    EndIf
    If $mode = 1 Then
        Set_Progress_H($graph, $hper, $tick_hi)
        Set_Progress_W($graph, $button, $tick_wi)
    EndIf
    Local $hBmp_BG = _GDIPlus_ImageRotateAtCenterEllipse($hImage_Btn, $fAngle) ;-123 to 57
    _GDIPlus_GraphicsDrawImageRectRect($graph, $hBmp_BG, 0, 0, 211, 211, 103, 118, 211, 211)
    _GDIPlus_BitmapDispose($hBmp_BG)
    $hHBitmap = _GDIPlus_BitmapCreateHBITMAPFromBitmap($hImage)
    _WinAPI_UpdateLayeredWindowEx($tick_back_form, $hHBitmap, 255, 1)
    _GDIPlus_GraphicsSetSmoothingMode($graph, 4)
    _GDIPlus_GraphicsDispose($graph)
    _GDIPlus_ImageDispose($hImage)
    _WinAPI_DeleteObject($hHBitmap)
EndFunc   ;==>setpng_back


Func Set_Progress_W($graph, $ct, $png)
    _GDIPlus_GraphicsDrawImageRectRect($graph, $png, _
            0, 0, $ct, 12, _
            70, 355, $ct, 12)
EndFunc   ;==>Set_Progress_W

Func Set_Progress_H($graph, $ct, $png)
    _GDIPlus_GraphicsDrawImageRectRect($graph, $png, _
            0, $ct, 12, 240 - $ct, _
            450, $ct + 95, 12, 240 - $ct)
EndFunc   ;==>Set_Progress_H

Func setpng_tick($hForm, $png)
    Local $graph, $hImage, $hHBitmap
    $hImage = _GDIPlus_ImageClone($png)
    $graph = _GDIPlus_ImageGetGraphicsContext($hImage)
    $hHBitmap = _GDIPlus_BitmapCreateHBITMAPFromBitmap($hImage)
    _WinAPI_UpdateLayeredWindowEx($hForm, $hHBitmap, 255, 1)
    _GDIPlus_GraphicsSetSmoothingMode($graph, 4)
    _GDIPlus_GraphicsDispose($graph)
    _GDIPlus_ImageDispose($hImage)
    _WinAPI_DeleteObject($hHBitmap)
EndFunc   ;==>setpng_tick

Func _GDIPlus_ImageClone($hImage)
    Local $aResult = DllCall($ghGDIPDll, 'uint', 'GdipCloneImage', 'ptr', $hImage, 'ptr*', 0)
    If @error Then
        Return SetError(1, 0, 0)
    Else
        If $aResult[0] Then
            Return SetError($aResult[0], 0, 0)
        EndIf
    EndIf
    Return $aResult[2]
EndFunc   ;==>_GDIPlus_ImageClone

Func _WinAPI_UpdateLayeredWindowEx($hWnd, $hBitmap, $iOpacity = 255, $fDelete = 0)
    Local $Ret, $tSIZE, $tPOINT, $tBLENDFUNCTION, $hDC, $hDestDC, $hDestSv
    $Ret = DllCall('user32.dll', 'hwnd', 'GetDC', 'hwnd', $hWnd)
    $hDC = $Ret[0]
    $Ret = DllCall('gdi32.dll', 'hwnd', 'CreateCompatibleDC', 'hwnd', $hDC)
    $hDestDC = $Ret[0]
    $Ret = DllCall('gdi32.dll', 'hwnd', 'SelectObject', 'hwnd', $hDestDC, 'ptr', $hBitmap)
    $hDestSv = $Ret[0]
    $tSIZE = _WinAPI_GetBitmapDimension($hBitmap)
    $tPOINT = DllStructCreate($tagPOINT)
    $tBLENDFUNCTION = DllStructCreate($tagBLENDFUNCTION)
    DllStructSetData($tBLENDFUNCTION, 'Alpha', $iOpacity)
    DllStructSetData($tBLENDFUNCTION, 'Format', 1)
    $Ret = DllCall('user32.dll', 'int', 'UpdateLayeredWindow', 'hwnd', $hWnd, 'hwnd', $hDC, 'ptr', 0, 'ptr', DllStructGetPtr($tSIZE), 'hwnd', $hDestDC, 'ptr', DllStructGetPtr($tPOINT), 'dword', 0, 'ptr', DllStructGetPtr($tBLENDFUNCTION), 'dword', 0x02)
    DllCall('user32.dll', 'int', 'ReleaseDC', 'hwnd', $hWnd, 'hwnd', $hDC)
    DllCall('gdi32.dll', 'ptr', 'SelectObject', 'hwnd', $hDestDC, 'ptr', $hDestSv)
    DllCall('gdi32.dll', 'int', 'DeleteDC', 'hwnd', $hDestDC)
    If Not $Ret[0] Then
        Return SetError(1, 0, 0)
    EndIf
    If $fDelete Then
        _WinAPI_DeleteObject($hBitmap)
    EndIf
    Return 1
EndFunc   ;==>_WinAPI_UpdateLayeredWindowEx

Func _LoadTick()
    $tick_back_png = _GDIPlus_ImageLoadFromFile(@ScriptDir & '\tick_back.png')
    $tick_hi = _GDIPlus_ImageLoadFromFile(@ScriptDir & '\tick_hi.png')
    $tick_wi = _GDIPlus_ImageLoadFromFile(@ScriptDir & '\tick_wi.png')
    $tick1_png = _GDIPlus_ImageLoadFromFile(@ScriptDir & '\tick_1.png')
    $tick2_png = _GDIPlus_ImageLoadFromFile(@ScriptDir & '\tick_2.png')
    $bu1_png = _GDIPlus_ImageLoadFromFile(@ScriptDir & '\bu_1.png')
    $bu2_png = _GDIPlus_ImageLoadFromFile(@ScriptDir & '\bu_2.png')
EndFunc   ;==>_LoadTick

Func _GDIPlus_ImageRotateAtCenterEllipse($hImage, $fAngle, $iW = 211, $iH = 211); coded by UEZ
    Local $hBitmap = _GDIPlus_BitmapCreateFromScan0($iW, $iH)
    Local $hCtxt = _GDIPlus_ImageGetGraphicsContext($hBitmap)
    Local $hMatrix = _GDIPlus_MatrixCreate()
    _GDIPlus_MatrixTranslate($hMatrix, $iW / 2, $iH / 2)
    _GDIPlus_MatrixRotate($hMatrix, $fAngle)
    _GDIPlus_GraphicsSetTransform($hCtxt, $hMatrix)
    _GDIPlus_GraphicsDrawImage($hCtxt, $hImage, -$iW / 2, -$iH / 2)
    _GDIPlus_MatrixDispose($hMatrix)
    _GDIPlus_GraphicsDispose($hCtxt)
    Local $hTexture = _GDIPlus_TextureCreate($hBitmap)
    _GDIPlus_BitmapDispose($hBitmap)
    $hBitmap = _GDIPlus_BitmapCreateFromScan0($iW, $iH)
    $hCtxt = _GDIPlus_ImageGetGraphicsContext($hBitmap)
    _GDIPlus_GraphicsFillEllipse($hCtxt, 0, 0, $iW, $iH, $hTexture)
    _GDIPlus_GraphicsDispose($hCtxt)
    _GDIPlus_BrushDispose($hTexture)
    _GDIPlus_GraphicsDispose($hCtxt)
    Return $hBitmap
EndFunc   ;==>_GDIPlus_ImageRotateAtCenterEllipse
Just press left mouse buttom over dial buttom and move mouse to the left or right.

Br,

UEZ

Edit: added suggestion from post#18

Edited by UEZ

Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯  ٩(●̮̮̃•̃)۶ ٩(-̮̮̃-̃)۶ૐ

Share this post


Link to post
Share on other sites
wakillon

@UEZ

Tested and approved !  :thumbsup:

Thanks.


AutoIt 3.3.14.2 X86 - SciTE 3.6.0WIN 8.1 X64 - Other Example Scripts

Share this post


Link to post
Share on other sites
UEZ

@UEZ



Tested and approved !  :thumbsup:



Thanks.



:sweating:

Br,

UEZ  :D


Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯  ٩(●̮̮̃•̃)۶ ٩(-̮̮̃-̃)۶ૐ

Share this post


Link to post
Share on other sites
jaberwacky

This doesn't show anything for me on Win7 x64 with 3.3.9.18.  I press alt+f5 to run and nothing appears.  I press f5 just for kicks and the comparison code at the top doesn't run either.

Share this post


Link to post
Share on other sites
UEZ

Sounds like that the images are not loaded.

Br,

UEZ


Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯  ٩(●̮̮̃•̃)۶ ٩(-̮̮̃-̃)۶ૐ

Share this post


Link to post
Share on other sites
wakillon

This doesn't show anything for me on Win7 x64 with 3.3.9.18.  I press alt+f5 to run and nothing appears.  I press f5 just for kicks and the comparison code at the top doesn't run either.



Do you download png files ? (link at the top of first post)

All is fine on win 7x64 with 3.3.9.18

Edited by wakillon

AutoIt 3.3.14.2 X86 - SciTE 3.6.0WIN 8.1 X64 - Other Example Scripts

Share this post


Link to post
Share on other sites
davidkim

@davidkim:

Then try this:



#region ;**** Directives created by AutoIt3Wrapper_GUI ****
#AutoIt3Wrapper_icon=C:\AutoIt3\Aut2Exe\Icons\SETUP09.ICO
#AutoIt3Wrapper_UseX64=n
#endregion ;**** Directives created by AutoIt3Wrapper_GUI ****
#include <GDIPlus.au3>
#include <WindowsConstants.au3>
#include <WinAPI.au3>
#include <GUIConstantsEx.au3>

If @AutoItVersion < "3.3.9.18" Then Exit MsgBox(16, "Error", "AutoIt version 3.3.9.18 or higher needed!")

;~ Global Const $tagBITMAP = 'long bmType;long bmWidth;long bmHeight;long bmWidthBytes;ushort bmPlanes;ushort bmBitsPixel;ptr bmBits;'
Global Const $SC_DRAGMOVE = 0xF012

Global $tick_back_png, $tick_hi, $tick_wi, $tick1_png, $tick2_png, $bu1_png, $bu2_png
Global $tick = 295, $button = 0, $fDegree = 0, $iPrev = 0, $iSpeed = 2


Global $tx3 = 430
Global $y3
Global $bx3
Global $by3 = 341
Global $fDragging = False

HotKeySet("{ESC}", '_exit_')

_GDIPlus_Startup()
_LoadTick()


$tick_back_form = GUICreate('', 591, 395, -1, -1, $WS_POPUP, $WS_EX_LAYERED)
$label = GUICtrlCreateLabel("", 103, 118, 211, 211)
GUISetState()

Global $hImage_Btn = _GDIPlus_BitmapCreateFromScan0(211, 211)
Global $hCtxt_Btn = _GDIPlus_ImageGetGraphicsContext($hImage_Btn)
_GDIPlus_GraphicsDrawImageRectRect($hCtxt_Btn, $tick_back_png, 103, 118, 211, 211, 0, 0, 211, 211)
_GDIPlus_ImageDispose($hCtxt_Btn)
setpng_back($tick_back_png, 0, 0, $fDegree)

$tick_form = GUICreate("", 54, 55, 430, 295, $WS_POPUP, BitOR($WS_EX_LAYERED, $WS_EX_MDICHILD), $tick_back_form)
GUISetState()
setpng_tick($tick_form, $tick1_png)


$button_form = GUICreate('', 54, 55, 50, 341, $WS_POPUP, BitOR($WS_EX_LAYERED, $WS_EX_MDICHILD), $tick_back_form)
GUISetState()
setpng_tick($button_form, $bu1_png)

; if form movement size display/move limit
GUIRegisterMsg($WM_WINDOWPOSCHANGING, "WM_WINDOWPOSCHANGING")
;~ $SPI_GETDRAGFULLWINDOWS = 38
;~ $SPI_SETDRAGFULLWINDOWS = 37
Global $result = DllStructCreate("int"), $aCtrl
; system value backup
DllCall("User32.dll", "int", "SystemParametersInfo", "int", 38, "int", 0, "ptr", DllStructGetPtr($result), "int", 0)
;windows move / mouse down and drag set value
DllCall("User32.dll", "int", "SystemParametersInfo", "int", 37, "int", 1, "ptr", 0, "int", 0)

While 1
    $aMsg = GUIGetMsg(1)
    Switch $aMsg[1]
        Case $tick_back_form
            Switch $aMsg[0]
                Case $GUI_EVENT_PRIMARYDOWN
                    $fDragging = False ;no tick/button to $WM_WINDOWPOSCHANGING
                    $aCtrl = GUIGetCursorInfo($aMsg[1])
                    Switch $aCtrl[4]
                        Case $label
                            $iPrev = $aCtrl[0]
                            Do
                                $aCtrl = GUIGetCursorInfo($aMsg[1])
                                If $iPrev > $aCtrl[0] Then
                                    $fDegree -= $iSpeed
                                    $iPrev = $aCtrl[0]
                                EndIf
                                If $iPrev < $aCtrl[0] Then
                                    $fDegree += $iSpeed
                                    $iPrev = $aCtrl[0]
                                EndIf
                                setpng_back($tick_back_png, 0, 0, $fDegree)
                            Until Not $aCtrl[2] * Sleep(10)
                        Case Else
                        _SendMessage($tick_back_form, $WM_SYSCOMMAND, $SC_DRAGMOVE, 0) ;move can
                    EndSwitch
            EndSwitch
        Case $tick_form
            Switch $aMsg[0]
                Case $GUI_EVENT_PRIMARYDOWN
                    setpng_tick($tick_form, $tick2_png) ; Lamp ON
                    $fDragging = True ; yes tick/button to $WM_WINDOWPOSCHANGING
                    $pos = WinGetPos($tick_back_form, '')
                    $tpos = WinGetPos($tick_form, '')
                    $y3 = $tpos[1] - $pos[1]
                    _SendMessage($tick_form, $WM_SYSCOMMAND, $SC_DRAGMOVE, 0) ; move can
                Case $GUI_EVENT_PRIMARYUP
                    setpng_tick($tick_form, $tick1_png) ; Lamp OFF
                    $fDragging = False
            EndSwitch
        Case $button_form
            Switch $aMsg[0]
                Case $GUI_EVENT_PRIMARYDOWN
                    setpng_tick($button_form, $bu2_png) ; Lamp ON
                    $fDragging = True ; yes tick/button to $WM_WINDOWPOSCHANGING
                    $pos = WinGetPos($tick_back_form, '')
                    $bpos = WinGetPos($button_form)
                    $bx3 = $bpos[0] - $pos[0]
                    _SendMessage($button_form, $WM_SYSCOMMAND, $SC_DRAGMOVE, 0)
                Case $GUI_EVENT_PRIMARYUP
                    setpng_tick($button_form, $bu1_png); Lamp OFF
                    $fDragging = False
            EndSwitch
    EndSwitch
WEnd

Func _exit_()
    DllCall("User32.dll", "int", "SystemParametersInfo", "int", 37, "int", DllStructGetData($result, 1), "ptr", 0, "int", 0)
    _GDIPlus_BitmapDispose($hImage_Btn)
    _GDIPlus_Shutdown()
    Exit
EndFunc   ;==>_exit_

Func WM_WINDOWPOSCHANGING($hWnd, $Msg, $wParam, $lParam)
    If $hWnd = $tick_form And $fDragging = True Then ; move tick
        $pos = WinGetPos($tick_back_form, '')
        $tpos = WinGetPos($tick_form)
        Local $iY = $tpos[1] ; now Y Pos
        Local $iY_Min = $pos[1] + 90 ; y min
        Local $iY_Max = $pos[1] + 300 ; y max
        Local $stWinPos = DllStructCreate("uint;uint;int;int;int;int;uint", $lParam)
        Local $NowPosition = $pos[0] + $tx3
        Local $iLeft = DllStructGetData($stWinPos, 3)
        Local $iTop = DllStructGetData($stWinPos, 4)
        setpng_back($tick_back_png, 210 - ($iY_Max - $iY), 1, $fDegree) ; move area calc
        $tick = 210 - ($iY_Max - $iY) ; Last Position Store
        If $iTop < $iY_Min Then DllStructSetData($stWinPos, 4, $iY_Min)
        If $iTop > $iY_Max Then DllStructSetData($stWinPos, 4, $iY_Max)
        If $iLeft <> $NowPosition Then DllStructSetData($stWinPos, 3, $pos[0] + $tx3) ; x position fixed
    EndIf

    If $hWnd = $button_form And $fDragging = True Then
        $pos = WinGetPos($tick_back_form, '')
        $bpos = WinGetPos($button_form)
        Local $iX = $bpos[0] ; now X Pos
        Local $iX_Min = $pos[0] + 50 ; x min
        Local $iX_Max = $pos[0] + 481 ; x max
        Local $stWinPos = DllStructCreate("uint;uint;int;int;int;int;uint", $lParam)
        Local $NowPosition = $pos[1] + $by3
        Local $iLeft = DllStructGetData($stWinPos, 3)
        Local $iTop = DllStructGetData($stWinPos, 4)
        $button = 451 - ($iX_Max - $iX) ; Last Position Store
;~                      Local $fAngle = 180 * (-20 + $button) / 431 - 123
        setpng_back($tick_back_png, 451 - ($iX_Max - $iX), 2, $fDegree) ; move area calc
        If $iLeft < $iX_Min Then DllStructSetData($stWinPos, 3, $iX_Min)
        If $iLeft > $iX_Max Then DllStructSetData($stWinPos, 3, $iX_Max)
        If $iTop <> $NowPosition Then DllStructSetData($stWinPos, 4, $pos[1] + $by3) ; y position fixed
    EndIf
EndFunc   ;==>WM_WINDOWPOSCHANGING

Func setpng_back($png, $hper, $mode = 0, $fAngle = 0)
    If $fAngle < -123 Then $fAngle = -123
    If $fAngle > 57 Then $fAngle = 57
    Local $graph, $hImage, $hHBitmap
    $hImage = _GDIPlus_ImageClone($png)
    $graph = _GDIPlus_ImageGetGraphicsContext($hImage) ; create memory blank area
    If $mode = 2 Then
        Set_Progress_W($graph, $hper, $tick_wi)
        Set_Progress_H($graph, $tick, $tick_hi)
    EndIf
    If $mode = 1 Then
        Set_Progress_H($graph, $hper, $tick_hi)
        Set_Progress_W($graph, $button, $tick_wi)
    EndIf
    Local $hBmp_BG = _GDIPlus_ImageRotateAtCenterEllipse($hImage_Btn, $fAngle) ;-123 to 57
    _GDIPlus_GraphicsDrawImageRectRect($graph, $hBmp_BG, 0, 0, 211, 211, 103, 118, 211, 211)
    _GDIPlus_BitmapDispose($hBmp_BG)
    $hHBitmap = _GDIPlus_BitmapCreateHBITMAPFromBitmap($hImage)
    _WinAPI_UpdateLayeredWindowEx($tick_back_form, $hHBitmap, 255, 1)
    _GDIPlus_GraphicsSetSmoothingMode($graph, 4)
    _GDIPlus_GraphicsDispose($graph)
    _GDIPlus_ImageDispose($hImage)
    _WinAPI_DeleteObject($hHBitmap)
EndFunc   ;==>setpng_back


Func Set_Progress_W($graph, $ct, $png)
    _GDIPlus_GraphicsDrawImageRectRect($graph, $png, _
            0, 0, $ct, 12, _
            70, 355, $ct, 12)
EndFunc   ;==>Set_Progress_W

Func Set_Progress_H($graph, $ct, $png)
    _GDIPlus_GraphicsDrawImageRectRect($graph, $png, _
            0, $ct, 12, 240 - $ct, _
            450, $ct + 95, 12, 240 - $ct)
EndFunc   ;==>Set_Progress_H

Func setpng_tick($hForm, $png)
    Local $graph, $hImage, $hHBitmap
    $hImage = _GDIPlus_ImageClone($png)
    $graph = _GDIPlus_ImageGetGraphicsContext($hImage)
    $hHBitmap = _GDIPlus_BitmapCreateHBITMAPFromBitmap($hImage)
    _WinAPI_UpdateLayeredWindowEx($hForm, $hHBitmap, 255, 1)
    _GDIPlus_GraphicsSetSmoothingMode($graph, 4)
    _GDIPlus_GraphicsDispose($graph)
    _GDIPlus_ImageDispose($hImage)
    _WinAPI_DeleteObject($hHBitmap)
EndFunc   ;==>setpng_tick

Func _GDIPlus_ImageClone($hImage)
    Local $aResult = DllCall($ghGDIPDll, 'uint', 'GdipCloneImage', 'ptr', $hImage, 'ptr*', 0)
    If @error Then
        Return SetError(1, 0, 0)
    Else
        If $aResult[0] Then
            Return SetError($aResult[0], 0, 0)
        EndIf
    EndIf
    Return $aResult[2]
EndFunc   ;==>_GDIPlus_ImageClone

Func _WinAPI_UpdateLayeredWindowEx($hWnd, $hBitmap, $iOpacity = 255, $fDelete = 0)
    Local $Ret, $tSIZE, $tPOINT, $tBLENDFUNCTION, $hDC, $hDestDC, $hDestSv
    $Ret = DllCall('user32.dll', 'hwnd', 'GetDC', 'hwnd', $hWnd)
    $hDC = $Ret[0]
    $Ret = DllCall('gdi32.dll', 'hwnd', 'CreateCompatibleDC', 'hwnd', $hDC)
    $hDestDC = $Ret[0]
    $Ret = DllCall('gdi32.dll', 'hwnd', 'SelectObject', 'hwnd', $hDestDC, 'ptr', $hBitmap)
    $hDestSv = $Ret[0]
    $tSIZE = _WinAPI_GetBitmapDimension($hBitmap)
    $tPOINT = DllStructCreate($tagPOINT)
    $tBLENDFUNCTION = DllStructCreate($tagBLENDFUNCTION)
    DllStructSetData($tBLENDFUNCTION, 'Alpha', $iOpacity)
    DllStructSetData($tBLENDFUNCTION, 'Format', 1)
    $Ret = DllCall('user32.dll', 'int', 'UpdateLayeredWindow', 'hwnd', $hWnd, 'hwnd', $hDC, 'ptr', 0, 'ptr', DllStructGetPtr($tSIZE), 'hwnd', $hDestDC, 'ptr', DllStructGetPtr($tPOINT), 'dword', 0, 'ptr', DllStructGetPtr($tBLENDFUNCTION), 'dword', 0x02)
    DllCall('user32.dll', 'int', 'ReleaseDC', 'hwnd', $hWnd, 'hwnd', $hDC)
    DllCall('gdi32.dll', 'ptr', 'SelectObject', 'hwnd', $hDestDC, 'ptr', $hDestSv)
    DllCall('gdi32.dll', 'int', 'DeleteDC', 'hwnd', $hDestDC)
    If Not $Ret[0] Then
        Return SetError(1, 0, 0)
    EndIf
    If $fDelete Then
        _WinAPI_DeleteObject($hBitmap)
    EndIf
    Return 1
EndFunc   ;==>_WinAPI_UpdateLayeredWindowEx

Func _LoadTick()
    $tick_back_png = _GDIPlus_ImageLoadFromFile(@ScriptDir & '\tick_back.png')
    $tick_hi = _GDIPlus_ImageLoadFromFile(@ScriptDir & '\tick_hi.png')
    $tick_wi = _GDIPlus_ImageLoadFromFile(@ScriptDir & '\tick_wi.png')
    $tick1_png = _GDIPlus_ImageLoadFromFile(@ScriptDir & '\tick_1.png')
    $tick2_png = _GDIPlus_ImageLoadFromFile(@ScriptDir & '\tick_2.png')
    $bu1_png = _GDIPlus_ImageLoadFromFile(@ScriptDir & '\bu_1.png')
    $bu2_png = _GDIPlus_ImageLoadFromFile(@ScriptDir & '\bu_2.png')
EndFunc   ;==>_LoadTick

Func _GDIPlus_ImageRotateAtCenterEllipse($hImage, $fAngle, $iW = 211, $iH = 211); coded by UEZ
    Local $hBitmap = _GDIPlus_BitmapCreateFromScan0($iW, $iH)
    Local $hCtxt = _GDIPlus_ImageGetGraphicsContext($hBitmap)
    Local $hMatrix = _GDIPlus_MatrixCreate()
    _GDIPlus_MatrixTranslate($hMatrix, $iW / 2, $iH / 2)
    _GDIPlus_MatrixRotate($hMatrix, $fAngle)
    _GDIPlus_GraphicsSetTransform($hCtxt, $hMatrix)
    _GDIPlus_GraphicsDrawImage($hCtxt, $hImage, -$iW / 2, -$iH / 2)
    _GDIPlus_MatrixDispose($hMatrix)
    _GDIPlus_GraphicsDispose($hCtxt)
    Local $hTexture = _GDIPlus_TextureCreate($hBitmap)
    _GDIPlus_BitmapDispose($hBitmap)
    $hBitmap = _GDIPlus_BitmapCreateFromScan0($iW, $iH)
    $hCtxt = _GDIPlus_ImageGetGraphicsContext($hBitmap)
    _GDIPlus_GraphicsFillEllipse($hCtxt, 0, 0, $iW, $iH, $hTexture)
    _GDIPlus_GraphicsDispose($hCtxt)
    _GDIPlus_BrushDispose($hTexture)
    _GDIPlus_GraphicsDispose($hCtxt)
    Return $hBitmap
EndFunc   ;==>_GDIPlus_ImageRotateAtCenterEllipse
Just press left mouse buttom over dial buttom and move mouse to the left or right.

Br,

UEZ



Thank UEZ.





Round the dial button and drag to rotate

I want to run smoothly.

drag round dial turn action to backup is $mode = 3 set..

setpng_back($tick_back_png, 0, 3, $fDegree)

Func setpng_back($png, $hper, $mode = 0, $fAngle = 0)

    If $fAngle < -123 Then $fAngle = -123

    If $fAngle > 57 Then $fAngle = 57

    Local $graph, $hImage, $hHBitmap

    $hImage = _GDIPlus_ImageClone($png)

    $graph = _GDIPlus_ImageGetGraphicsContext($hImage) ; create memory blank area

    If $mode = 3 Then

        Set_Progress_H($graph, $tick, $tick_hi)

        Set_Progress_W($graph, $button, $tick_wi)

    EndIf

 If $mode = 2 Then

        Set_Progress_W($graph, $hper, $tick_wi)

        Set_Progress_H($graph, $tick, $tick_hi)

    EndIf

    If $mode = 1 Then

        Set_Progress_H($graph, $hper, $tick_hi)

        Set_Progress_W($graph, $button, $tick_wi)

    EndIf

Edited by davidkim

I interest am many quite in AutoitScript.From that is [http://cafe.naver.com/autoitscript[/color]] Korea of cafe(blog) to be operating, [size="2"][color="#ff00ff"]English cannot well[/size].Many help it requests.To read, it stands it thanks.

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
Sign in to follow this

×
