MetroGUI UDF v5.1 - Windows 10 style buttons, toggles, radios, menu etc.

BBs19

By BBs19
in AutoIt Example Scripts

 Share

Recommended Posts

auto-it-tous Seeker

auto-it-tous

Posted
Posted

hi

this is a nice udf

but..it will make some error for GUICtrlSlider function

after mouse to click the slider

the slider thumbmark will not display.

t think ....may be you must to write the slider function of your udf.

HA..HA..HA..

-Everything are starting by the dreams.-Everybody is working with computer.-Everydays will auto because we need it. Come on..Let's doing...AUTOIT....^^"..just a little idea..a little A.D.

  • 6 months later...
  • Replies 305
  • Created
  • Last Reply

Top Posters In This Topic

Top Posters In This Topic

Popular Posts

BBs19
BBs19

Features: Create modern looking borderless and resizable GUIs with control buttons (Close,Maximize/Restore,Minimize, Fullscreen, Menu) True borderless, resizeable GUI with full support fo

0xC0FFEE
0xC0FFEE

Come checkout my Metro GUI designer. User Interface Builder

BBs19
BBs19

I know I disappointed some of you guys with this version as you were waiting for the requested features like Sliders, InputBox, Support for tabbing through controls and other stuff. I spent a lot of t

Posted Images

Parsix Adventurer

Parsix

Posted
Posted
On 10/18/2017 at 5:46 PM, NHD said:

Hi,

Give you some solution for tab control from me.






FlatTab.au3

#include-once
#include <GDIPlus.au3>
#include <Array.au3>
#include "GUICtrlOnHover.au3"

Global $FlatUIColor = DllStructCreate("struct;float back;float fore;float frame;endstruct;")
$FlatUIColor.back = 0x3C4649
$FlatUIColor.fore = 0x23A86D ;0x3498db
$FlatUIColor.frame = 0x2D2F31

Global Const $tObjTabEx = "hwnd hwnd;byte ctrl;byte ctab;" & _
                        "byte count;byte current;int next;" & _
                        "int width;int x;int y;"
Global Const $tObjTabBtnEx = "byte ctrl;byte ctab;byte idtab;" & _
                        "wchar text[255];"
Global $____aTabList[1] = [0]
Global $____aTabBtnList[1] = [0]

Func FlatTab_Create($hWnd, $Left, $Top, $Width, $Height)
    GUISwitch($hWnd)

    Local $oObj = DllStructCreate($tObjTabEx)
    _ArrayAdd($____aTabList, $oObj)
    $____aTabList[0] += 1
    $oObj.hwnd = $hWnd

    $oObj.ctrl = GUICtrlCreatePic("", $Left, $Top+25, $Width, $Height-50)
    GUICtrlSetResizing($oObj.ctrl, 802)
    GUICtrlSetState($oObj.ctrl, 128)
    $oObj.ctab = GUICtrlCreateTab(-99, -99, 1, 1)
    GUICtrlSetState($oObj.ctab, 128)

    Local $aBmp = _GDIPlus_BitmapCreateFromScan0($Width, $Height-50)
    Local $hGfx = _GDIPlus_ImageGetGraphicsContext($aBmp)
    Local $hPen = _GDIPlus_PenCreate($FlatUIColor.frame+0xFF000000, 4)
    Local $hBrush = _GDIPlus_BrushCreateSolid($FlatUIColor.frame+0xFF000000)
    _GDIPlus_GraphicsDrawRect($hGfx, 0, 0, $Width, $Height-50, $hPen)
    _GDIPlus_GraphicsFillRect($hGfx, 0, 0, $Width, $Height-50, $hBrush)
    _GDIPlus_GraphicsClear($hGfx, $FlatUIColor.frame+0xFF000000)
    Local $hBmp = _GDIPlus_BitmapCreateDIBFromBitmap($aBmp)
    _GDIPlus_BitmapDispose($aBmp)
    _GDIPlus_GraphicsDispose($hGfx)
    _GDIPlus_PenDispose($hPen)
    _WinAPI_DeleteObject(GUICtrlSendMsg($oObj.ctrl, 0x0172, 0, $hBmp))
    _WinAPI_DeleteObject($hBmp)

    $oObj.width = $Width
    $oObj.x = $Left
    $oObj.y = $Top
    $oObj.current = ""
    $oObj.count = 0
    $oObj.next = $Left

    Return $oObj
EndFunc

Func FlatTab_AddTab($Ctrl, $Text)
    GUISwitch($Ctrl.hwnd)
    GUICtrlCreateTabItem("")

    Local $oObj = DllStructCreate($tObjTabBtnEx)
    _ArrayAdd($____aTabBtnList, $oObj)
    $____aTabBtnList[0] += 1
    $oObj.ctrl = GUICtrlCreatePic("", $Ctrl.next, $Ctrl.y, 80, 25)
    GUICtrlSetResizing($oObj.ctrl, 802)
    _GUICtrl_OnHoverRegister($oObj.ctrl, 'FlatTab_EventHover', 'FlatTab_EventHover', 'FlatTab_EventClick', 'FlatTab_EventClick')
    $oObj.count +=1
    $oObj.idtab = GUICtrlCreateTabItem($oObj.count)
    $oObj.text = $Text

    If $Ctrl.current <> "" Then
        Local $Prev = FlatTab_GetObjTabBtnFromCtrl($Ctrl.current)
        FlatTab_Draw($Prev.ctrl, $Prev.text, 0xFFFFFFFF, $FlatUIColor.fore+0xFF000000)
    EndIf
    FlatTab_Draw($oObj.ctrl, $Text, 0xFFFFFFFF, $FlatUIColor.frame+0xFF000000)

    $Ctrl.current = $oObj.ctrl
    $oObj.ctab = $Ctrl.ctab
    $Ctrl.next += 80
    GUICtrlSetState($oObj.idtab, 16)
    Return $oObj.idtab
EndFunc

Func FlatTab_EventHover($Ctrl, $Mode)
    Local $Obj1 = FlatTab_GetObjTabFromCtrl($Ctrl)
    If $Obj1.current = $Ctrl Then Return
    Local $Obj2 = FlatTab_GetObjTabBtnFromCtrl($Ctrl)
    Switch $Mode
        Case 1
            FlatTab_Draw($Ctrl, $Obj2.text, 0xFFFFFFFF, $FlatUIColor.fore+0xFF151515)
        Case 2
            FlatTab_Draw($Ctrl, $Obj2.text, 0xFFFFFFFF, $FlatUIColor.fore+0xFF000000)
    EndSwitch
EndFunc

Func FlatTab_EventClick($Ctrl, $Mode)
    If $Mode = 2 Then
        Local $Obj1 = FlatTab_GetObjTabFromCtrl($Ctrl)
        If $Obj1.current = $Ctrl Then Return
        Local $Obj2 = FlatTab_GetObjTabBtnFromCtrl($Ctrl)
        Local $Obj3 = FlatTab_GetObjTabBtnFromCtrl($Obj1.current)
        FlatTab_Draw($Ctrl, $Obj2.text, 0xFFFFFFFF, $FlatUIColor.frame+0xFF000000)
        FlatTab_Draw($Obj3.ctrl, $Obj3.text, 0xFFFFFFFF, $FlatUIColor.fore+0xFF000000)
        GUICtrlSetState($Obj2.idtab, 16)
        $Obj1.current = $Ctrl
    EndIf
EndFunc

Func FlatTab_GetObjTabFromCtrl($Ctrl)
    Local $Obj2, $Index
    Local $Obj = FlatTab_GetObjTabBtnFromCtrl($Ctrl)

    If $____aTabList[0] = 0 Then Return False

    For $Index = $____aTabList[0] To 1 Step -1
        $Obj2 = $____aTabList[$Index]
        If $Obj2.ctab == $Obj.ctab Then Return $____aTabList[$Index]
    Next

    Return False
EndFunc

Func FlatTab_GetObjTabBtnFromCtrl($Ctrl)
    Local $Obj, $Index

    If $____aTabBtnList[0] = 0 Then Return False
    For $Index = $____aTabBtnList[0] To 1 Step -1
        $Obj = $____aTabBtnList[$Index]
        If $Obj.ctrl == $Ctrl Then Return $____aTabBtnList[$Index]
    Next

    Return False
EndFunc

Func FlatTab_Draw($iCtrl, $Text, $Color = 0xFFFFFFFF, $BgColor = 0x00FFFFFF)
    Local $hWnd = _WinAPI_GetParent(GUICtrlGetHandle($iCtrl))
    Local $aPos = ControlGetPos($hWnd, "", $iCtrl)
    Local $hFormat = _GDIPlus_StringFormatCreate()
    Local $hFamily = _GDIPlus_FontFamilyCreate("Segoe UI Semibold")
    Local $hFont =  _GDIPlus_FontCreate($hFamily, 10, 0)
    Local $tLayout = _GDIPlus_RectFCreate(0, 0, $aPos[2], $aPos[3])
    _GDIPlus_StringFormatSetAlign($hFormat, 1)
    _GDIPlus_StringFormatSetLineAlign($hFormat, 1)
    Local $aBitmaps = _GDIPlus_BitmapCreateFromScan0($aPos[2], $aPos[3])
    Local $aGfxCtxt = _GDIPlus_ImageGetGraphicsContext($aBitmaps)
    _GDIPlus_GraphicsSetSmoothingMode($aGfxCtxt, 2)
    _GDIPlus_GraphicsSetTextRenderingHint($aGfxCtxt, 5)
    _GDIPlus_GraphicsClear($aGfxCtxt, $BgColor)
    Local $hBrushColor = _GDIPlus_BrushCreateSolid($Color)
    _GDIPlus_GraphicsDrawStringEx($aGfxCtxt, $Text, $hFont, $tLayout, $hFormat, $hBrushColor)
    Local $aHBitmaps = _GDIPlus_BitmapCreateDIBFromBitmap($aBitmaps)
    _GDIPlus_BrushDispose($hBrushColor)
    _GDIPlus_FontDispose($hFont)
    _GDIPlus_BitmapDispose($aBitmaps)
    _GDIPlus_GraphicsDispose($aGfxCtxt)
    _GDIPlus_FontFamilyDispose($hFamily)
    _GDIPlus_StringFormatDispose($hFormat)
    _WinAPI_DeleteObject(GUICtrlSendMsg($iCtrl, 0x0172, 0, $aHBitmaps))
    _WinAPI_DeleteObject($aHBitmaps)
EndFunc



FlatTab_Example.au3

#include "FlatTabEx.au3"
#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>

_GDIPlus_Startup();

Global $hGUI = GUICreate("FlatTab Example", 450, 290);
GUISetBkColor(0x3C4649, $hGUI);
GUISetFont(10, 400, 0, "Segoe UI", $hGUI, 5);


Global $Tab = FlatTab_Create($hGUI, 10, 10, 430, 290);
;=================================================
FlatTab_AddTab($Tab, "Tab 1");
GUICtrlCreateLabel("This is Tab 1", 30, 50);
GUICtrlSetColor(-1, 0xFFFFFF);
GUICtrlCreateButton("Button 1", 30, 100, 75, 25);
GUICtrlCreateButton("Button 2", 120, 100, 75, 25);
;=================================================
FlatTab_AddTab($Tab, "Tab 2");
GUICtrlCreateLabel("This is Tab 2", 30, 50);
GUICtrlSetColor(-1, 0xFFFFFF);
GUICtrlCreateButton("Button 3", 210, 100, 75, 25);
GUICtrlCreateButton("Button 4", 30, 150, 75, 25);
;=================================================
FlatTab_AddTab($Tab, "Tab 3");
GUICtrlCreateLabel("This is Tab 3", 30, 50);
GUICtrlSetColor(-1, 0xFFFFFF);
GUICtrlCreateButton("Button 5", 120, 150, 75, 25);
GUICtrlCreateButton("Button 6", 210, 150, 75, 25);
;=================================================
GUICtrlCreateTabItem("");

GUISetState();

Do
    Sleep(10);
Until GUIGetMsg() = -3;







Hi

i use GUIFlatButton in this Sample

GUIFlatButton not show correct



1- shown when mouse hovered on it

2- it shown on other tabs

How to fix this problem

i have this problem with other GDI+ forms





Check-Problem.zip

  • 2 months later...
Parsix Adventurer

Parsix

Posted
Posted (edited)
On 10/18/2017 at 5:46 PM, NHD said:

Hi,

Give you some solution for tab control from me.






FlatTab.au3

#include-once
#include <GDIPlus.au3>
#include <Array.au3>
#include "GUICtrlOnHover.au3"

Global $FlatUIColor = DllStructCreate("struct;float back;float fore;float frame;endstruct;")
$FlatUIColor.back = 0x3C4649
$FlatUIColor.fore = 0x23A86D ;0x3498db
$FlatUIColor.frame = 0x2D2F31

Global Const $tObjTabEx = "hwnd hwnd;byte ctrl;byte ctab;" & _
                        "byte count;byte current;int next;" & _
                        "int width;int x;int y;"
Global Const $tObjTabBtnEx = "byte ctrl;byte ctab;byte idtab;" & _
                        "wchar text[255];"
Global $____aTabList[1] = [0]
Global $____aTabBtnList[1] = [0]

Func FlatTab_Create($hWnd, $Left, $Top, $Width, $Height)
    GUISwitch($hWnd)

    Local $oObj = DllStructCreate($tObjTabEx)
    _ArrayAdd($____aTabList, $oObj)
    $____aTabList[0] += 1
    $oObj.hwnd = $hWnd

    $oObj.ctrl = GUICtrlCreatePic("", $Left, $Top+25, $Width, $Height-50)
    GUICtrlSetResizing($oObj.ctrl, 802)
    GUICtrlSetState($oObj.ctrl, 128)
    $oObj.ctab = GUICtrlCreateTab(-99, -99, 1, 1)
    GUICtrlSetState($oObj.ctab, 128)

    Local $aBmp = _GDIPlus_BitmapCreateFromScan0($Width, $Height-50)
    Local $hGfx = _GDIPlus_ImageGetGraphicsContext($aBmp)
    Local $hPen = _GDIPlus_PenCreate($FlatUIColor.frame+0xFF000000, 4)
    Local $hBrush = _GDIPlus_BrushCreateSolid($FlatUIColor.frame+0xFF000000)
    _GDIPlus_GraphicsDrawRect($hGfx, 0, 0, $Width, $Height-50, $hPen)
    _GDIPlus_GraphicsFillRect($hGfx, 0, 0, $Width, $Height-50, $hBrush)
    _GDIPlus_GraphicsClear($hGfx, $FlatUIColor.frame+0xFF000000)
    Local $hBmp = _GDIPlus_BitmapCreateDIBFromBitmap($aBmp)
    _GDIPlus_BitmapDispose($aBmp)
    _GDIPlus_GraphicsDispose($hGfx)
    _GDIPlus_PenDispose($hPen)
    _WinAPI_DeleteObject(GUICtrlSendMsg($oObj.ctrl, 0x0172, 0, $hBmp))
    _WinAPI_DeleteObject($hBmp)

    $oObj.width = $Width
    $oObj.x = $Left
    $oObj.y = $Top
    $oObj.current = ""
    $oObj.count = 0
    $oObj.next = $Left

    Return $oObj
EndFunc

Func FlatTab_AddTab($Ctrl, $Text)
    GUISwitch($Ctrl.hwnd)
    GUICtrlCreateTabItem("")

    Local $oObj = DllStructCreate($tObjTabBtnEx)
    _ArrayAdd($____aTabBtnList, $oObj)
    $____aTabBtnList[0] += 1
    $oObj.ctrl = GUICtrlCreatePic("", $Ctrl.next, $Ctrl.y, 80, 25)
    GUICtrlSetResizing($oObj.ctrl, 802)
    _GUICtrl_OnHoverRegister($oObj.ctrl, 'FlatTab_EventHover', 'FlatTab_EventHover', 'FlatTab_EventClick', 'FlatTab_EventClick')
    $oObj.count +=1
    $oObj.idtab = GUICtrlCreateTabItem($oObj.count)
    $oObj.text = $Text

    If $Ctrl.current <> "" Then
        Local $Prev = FlatTab_GetObjTabBtnFromCtrl($Ctrl.current)
        FlatTab_Draw($Prev.ctrl, $Prev.text, 0xFFFFFFFF, $FlatUIColor.fore+0xFF000000)
    EndIf
    FlatTab_Draw($oObj.ctrl, $Text, 0xFFFFFFFF, $FlatUIColor.frame+0xFF000000)

    $Ctrl.current = $oObj.ctrl
    $oObj.ctab = $Ctrl.ctab
    $Ctrl.next += 80
    GUICtrlSetState($oObj.idtab, 16)
    Return $oObj.idtab
EndFunc

Func FlatTab_EventHover($Ctrl, $Mode)
    Local $Obj1 = FlatTab_GetObjTabFromCtrl($Ctrl)
    If $Obj1.current = $Ctrl Then Return
    Local $Obj2 = FlatTab_GetObjTabBtnFromCtrl($Ctrl)
    Switch $Mode
        Case 1
            FlatTab_Draw($Ctrl, $Obj2.text, 0xFFFFFFFF, $FlatUIColor.fore+0xFF151515)
        Case 2
            FlatTab_Draw($Ctrl, $Obj2.text, 0xFFFFFFFF, $FlatUIColor.fore+0xFF000000)
    EndSwitch
EndFunc

Func FlatTab_EventClick($Ctrl, $Mode)
    If $Mode = 2 Then
        Local $Obj1 = FlatTab_GetObjTabFromCtrl($Ctrl)
        If $Obj1.current = $Ctrl Then Return
        Local $Obj2 = FlatTab_GetObjTabBtnFromCtrl($Ctrl)
        Local $Obj3 = FlatTab_GetObjTabBtnFromCtrl($Obj1.current)
        FlatTab_Draw($Ctrl, $Obj2.text, 0xFFFFFFFF, $FlatUIColor.frame+0xFF000000)
        FlatTab_Draw($Obj3.ctrl, $Obj3.text, 0xFFFFFFFF, $FlatUIColor.fore+0xFF000000)
        GUICtrlSetState($Obj2.idtab, 16)
        $Obj1.current = $Ctrl
    EndIf
EndFunc

Func FlatTab_GetObjTabFromCtrl($Ctrl)
    Local $Obj2, $Index
    Local $Obj = FlatTab_GetObjTabBtnFromCtrl($Ctrl)

    If $____aTabList[0] = 0 Then Return False

    For $Index = $____aTabList[0] To 1 Step -1
        $Obj2 = $____aTabList[$Index]
        If $Obj2.ctab == $Obj.ctab Then Return $____aTabList[$Index]
    Next

    Return False
EndFunc

Func FlatTab_GetObjTabBtnFromCtrl($Ctrl)
    Local $Obj, $Index

    If $____aTabBtnList[0] = 0 Then Return False
    For $Index = $____aTabBtnList[0] To 1 Step -1
        $Obj = $____aTabBtnList[$Index]
        If $Obj.ctrl == $Ctrl Then Return $____aTabBtnList[$Index]
    Next

    Return False
EndFunc

Func FlatTab_Draw($iCtrl, $Text, $Color = 0xFFFFFFFF, $BgColor = 0x00FFFFFF)
    Local $hWnd = _WinAPI_GetParent(GUICtrlGetHandle($iCtrl))
    Local $aPos = ControlGetPos($hWnd, "", $iCtrl)
    Local $hFormat = _GDIPlus_StringFormatCreate()
    Local $hFamily = _GDIPlus_FontFamilyCreate("Segoe UI Semibold")
    Local $hFont =  _GDIPlus_FontCreate($hFamily, 10, 0)
    Local $tLayout = _GDIPlus_RectFCreate(0, 0, $aPos[2], $aPos[3])
    _GDIPlus_StringFormatSetAlign($hFormat, 1)
    _GDIPlus_StringFormatSetLineAlign($hFormat, 1)
    Local $aBitmaps = _GDIPlus_BitmapCreateFromScan0($aPos[2], $aPos[3])
    Local $aGfxCtxt = _GDIPlus_ImageGetGraphicsContext($aBitmaps)
    _GDIPlus_GraphicsSetSmoothingMode($aGfxCtxt, 2)
    _GDIPlus_GraphicsSetTextRenderingHint($aGfxCtxt, 5)
    _GDIPlus_GraphicsClear($aGfxCtxt, $BgColor)
    Local $hBrushColor = _GDIPlus_BrushCreateSolid($Color)
    _GDIPlus_GraphicsDrawStringEx($aGfxCtxt, $Text, $hFont, $tLayout, $hFormat, $hBrushColor)
    Local $aHBitmaps = _GDIPlus_BitmapCreateDIBFromBitmap($aBitmaps)
    _GDIPlus_BrushDispose($hBrushColor)
    _GDIPlus_FontDispose($hFont)
    _GDIPlus_BitmapDispose($aBitmaps)
    _GDIPlus_GraphicsDispose($aGfxCtxt)
    _GDIPlus_FontFamilyDispose($hFamily)
    _GDIPlus_StringFormatDispose($hFormat)
    _WinAPI_DeleteObject(GUICtrlSendMsg($iCtrl, 0x0172, 0, $aHBitmaps))
    _WinAPI_DeleteObject($aHBitmaps)
EndFunc



FlatTab_Example.au3

#include "FlatTabEx.au3"
#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>

_GDIPlus_Startup();

Global $hGUI = GUICreate("FlatTab Example", 450, 290);
GUISetBkColor(0x3C4649, $hGUI);
GUISetFont(10, 400, 0, "Segoe UI", $hGUI, 5);


Global $Tab = FlatTab_Create($hGUI, 10, 10, 430, 290);
;=================================================
FlatTab_AddTab($Tab, "Tab 1");
GUICtrlCreateLabel("This is Tab 1", 30, 50);
GUICtrlSetColor(-1, 0xFFFFFF);
GUICtrlCreateButton("Button 1", 30, 100, 75, 25);
GUICtrlCreateButton("Button 2", 120, 100, 75, 25);
;=================================================
FlatTab_AddTab($Tab, "Tab 2");
GUICtrlCreateLabel("This is Tab 2", 30, 50);
GUICtrlSetColor(-1, 0xFFFFFF);
GUICtrlCreateButton("Button 3", 210, 100, 75, 25);
GUICtrlCreateButton("Button 4", 30, 150, 75, 25);
;=================================================
FlatTab_AddTab($Tab, "Tab 3");
GUICtrlCreateLabel("This is Tab 3", 30, 50);
GUICtrlSetColor(-1, 0xFFFFFF);
GUICtrlCreateButton("Button 5", 120, 150, 75, 25);
GUICtrlCreateButton("Button 6", 210, 150, 75, 25);
;=================================================
GUICtrlCreateTabItem("");

GUISetState();

Do
    Sleep(10);
Until GUIGetMsg() = -3;







how to set as default tab?

Can anyone help?

Edited by Parsix
  • 3 months later...
TesterMachine Seeker

TesterMachine

Posted
Posted

I have a problem... when executing the example it sends the following error:

Local $aResult = DllCall($__g_hGDIPDll, "int", "GdipGetDpiX", "handle", $hGfx, "float*", 0)
Local $aResult = DllCall(^ ERROR

  • Moderators
Melba23 Universalist

Melba23

Posted
  • Moderators
Posted

TesrerMachine,

Are you running a very old version of AutoIt?   Because a long time ago $__g_hGDIPDll replaced $ghGDIPDll in the GDI libraries and it looks as if you might still be using the old versions.

M23

Public_Domain.png.2d871819fcb9957cf44f4514551a2935.png Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind

Open spoiler to see my UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



TesterMachine Seeker

TesterMachine

Posted
Posted
2 minutes ago, Melba23 said:

TesrerMachine,

Are you running a very old version of AutoIt?   Because a long time ago $__g_hGDIPDll replaced $ghGDIPDll in the GDI libraries and it looks as if you might still be using the old versions.

M23

sorry I'm a bit new to AutoIT and well... checking AutoUpdateIt marks version 3.3.10.1

I will update to another more recent version, thanks Melba23

  • 2 months later...
kaz Wayfarer

kaz

Posted
Posted (edited)

I try to add a group under control, but event are no longer working.

Controls events outside group are working perfectly but not inside.

Is it possible when gdi control over gdi graphic (only) to make events working ?


Edited by kaz
  • 4 weeks later...
pat4005 Seeker

pat4005

Posted
Posted
On 8/10/2022 at 12:13 AM, kaz said:

I try to add a group under control, but event are no longer working.

Controls events outside group are working perfectly but not inside.

Is it possible when gdi control over gdi graphic (only) to make events working ?


How do you draw such group? I mean why is it looks so nice, with background color, rounded corners, outline, etc..?

kaz Wayfarer

kaz

Posted
Posted
On 9/3/2022 at 2:21 PM, pat4005 said:

How do you draw such group? I mean why is it looks so nice, with background color, rounded corners, outline, etc..?

Hello, and Sory for the delay.

I changed a litle bit the original metro_gui udf, with starting a new theme and this function



Func _CreateGroup($Text, $Left, $Top, $Width, $Height)

    Local $Group_Array[4]


    $Group_Array[1] = False ; Set hover OFF
    $Group_Array[2] = "0" ; Type
;~  $Group_Array[15] = GetCurrentGUI()

    $Group_Color = "0xFF" & Hex($Group_Color, 6)


    $rayon = 20
    $diam = $rayon * 2

    Local $Brush_group = _GDIPlus_BrushCreateSolid($Group_Color)
    Local $hDrawPen  = _GDIPlus_PenCreate(StringReplace($hDrawPen_Color, "0x", "0xFF"), 1 ) ; taille pen contour mouse out

    local $Group_Graphic = _iGraphicCreate($Width, $Height, StringReplace($GUIThemeColor, "0x", "0xFF"), 5, 5 )


    ;Default hover state
    Local $hPath1 = _GDIPlus_PathCreate()

    _GDIPlus_PathAddArc($hPath1, $Width - $diam - 1, 0, $diam, $diam, 270, 90)
    _GDIPlus_PathAddArc($hPath1, $Width - $diam - 1, $Height - $diam - 1, $diam, $diam, 0, 90)
    _GDIPlus_PathAddArc($hPath1, 0, $Height - $diam - 1, $diam  , $diam  , 90, 90)
    _GDIPlus_PathAddArc($hPath1, 0, 0 , $diam,  $diam, 180, 90)

    _GDIPlus_PathCloseFigure($hPath1)
    _GDIPlus_GraphicsFillPath($Group_Graphic[0], $hPath1, $Brush_group)
    _GDIPlus_GraphicsDrawPath($Group_Graphic[0], $hPath1, $hDrawPen)


    _GDIPlus_BrushDispose($Brush_group)
    _GDIPlus_PenDispose($hDrawPen)
    _GDIPlus_PathDispose($hPath1)

    ;Set graphic and return Bitmap handle
    $Group_Array[0] = GUICtrlCreatePic("", $Left, $Top, $Width, $Height)
    $Group_Array[3] = _iGraphicCreateBitmapHandle($Group_Array[0], $Group_Graphic)

    ;Set GUI Resizing
    GUICtrlSetResizing($Group_Array[0], 768)

    Return $Group_Array[0]

EndFunc
Case "LightGray"
            $GUIThemeColor = "0xEAEAEA"
            $FontThemeColor = "0x000000"
            $ButtonTextColor = "0x000000"

            $ActiveColor = "0xFFFFFF"
            $InactiveColor = "0xE0E0E0"
            $hDrawPen_Color = "0xBDBDBD"


            $GUIBorderColor = "0xD8D8D8"
            $ButtonBKColor = "0xE0E0E0"

            $Group_Color  = "0xF6F6F6"


            $CB_Radio_Color = "0xFFFFFF"
            $CB_Radio_Hover_Color = "0xE8E8E8"
            $CB_Radio_CheckMark_Color = "0xffff"

I tried to obtain something near macOS style...

boyhong Seeker

boyhong

Posted
Posted

First of all, thank you for your help.... I removed the maximize button, but the window will be maximized in full screen at once. Can you do this without full screen:

Quote

$Control_Buttons = _Metro_AddControlButtons(True, False, True, False, False)



  • 7 months later...
gmmg Seeker

gmmg

Posted
Posted

Hello together,

how can i change the Text from the _Metro_CreateButton at runtime?

Example:

$button = _Metro_CreateButton("", bla, bla, bla ... etc)

If $var < 100 then $button txt = "<100"

If $var > 100 then $button txt = ">100"

greetings,

marcel

Skeletor Universalist

Skeletor

Posted
Posted (edited)

I just wanted to show a display of one of my programs. I'm looking into changing all my programs to look similar. Also Im planning on making this theme setup automated, like after you create a UI in Koda, applying the MetroUI theme... lets see if I have time for this.

So this program allows me to change the drive letter of my external drives quickly.


Edited by Skeletor

Kind Regards
Skeletor

"Coffee: my defense against going postal."

Microsoft Office Splash Screen | Basic Notepad Program (Beginner) | Transparent Splash Screen | Full Screen UI

Skeletor Universalist

Skeletor

Posted
Posted

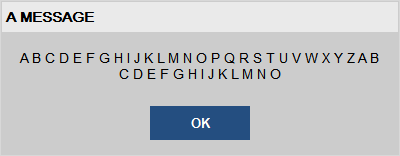

@gmmg You could add $SS_CENTER for the following to the MetroGUI_UDF.au3

GUICtrlCreateLabel($Text, 15 * $msgbDPI, 50 * $msgbDPI, $LabelSize[2], $LabelSize[3], $SS_CENTER, 0x00100000)

However, the message box will only center once it reaches a certain amount of characters per line. Others may have a better solution.






Kind Regards
Skeletor

"Coffee: my defense against going postal."

Microsoft Office Splash Screen | Basic Notepad Program (Beginner) | Transparent Splash Screen | Full Screen UI

gmmg Seeker

gmmg

Posted
Posted (edited)

@Skeletor:

thanks, i try it :)

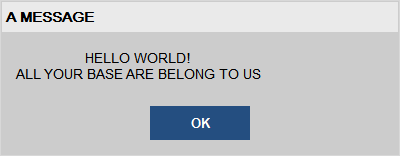

I have changed the code in my MetroGUI_UDF.au3 to the following.

;GUICtrlCreateLabel($Text, 20, ($mHeight / 2) -30, $mWidth - 40, 40, 0x01, 0x00100000) ;Center Text


If StringLen($Text) <= 52 Then GUICtrlCreateLabel($Text, 20, ($mHeight / 2) -20, $mWidth - 40, 40, 0x01, 0x00100000) ;Center Text
If StringLen($Text) > 52 Then GUICtrlCreateLabel($Text, 20, ($mHeight / 2) -30, $mWidth - 40, 40, 0x01, 0x00100000) ;Center Text

KR,

gmmg

Edited by gmmg
  • 3 weeks later...
Skeletor Universalist

Skeletor

Posted
Posted

WinAPI_GetCapture Already defined

Came across this issue within the SSCtrlHover.au3 file, I commented it out and it worked fine.
Not sure if anyone else has this issue. This also affected the example script as well.


;~ Func _WinAPI_GetCapture()
;~  Return DllCall("user32.dll", "HWND", "GetCapture")[0]
;~ EndFunc   ;==>_WinAPI_GetCapture



Kind Regards
Skeletor

"Coffee: my defense against going postal."

Microsoft Office Splash Screen | Basic Notepad Program (Beginner) | Transparent Splash Screen | Full Screen UI

  • 3 months later...
roccos34 Seeker

roccos34

Posted
Posted (edited)

I encountered problems with the latest releases of Autoit 3.3.16.0 and 3.3.16.1 (in the latter version I found a function with a duplicate name on the libraries). I wonder whether a compatible version will be released soon, perhaps with Window 11 style. Thanks

Edited by roccos34
  • 6 months later...

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
 Share
Go to topic listing
×
×
  • Create New...
