Luigi

Nerds in Math, help me to draw a secant

Recommended Posts

Luigi

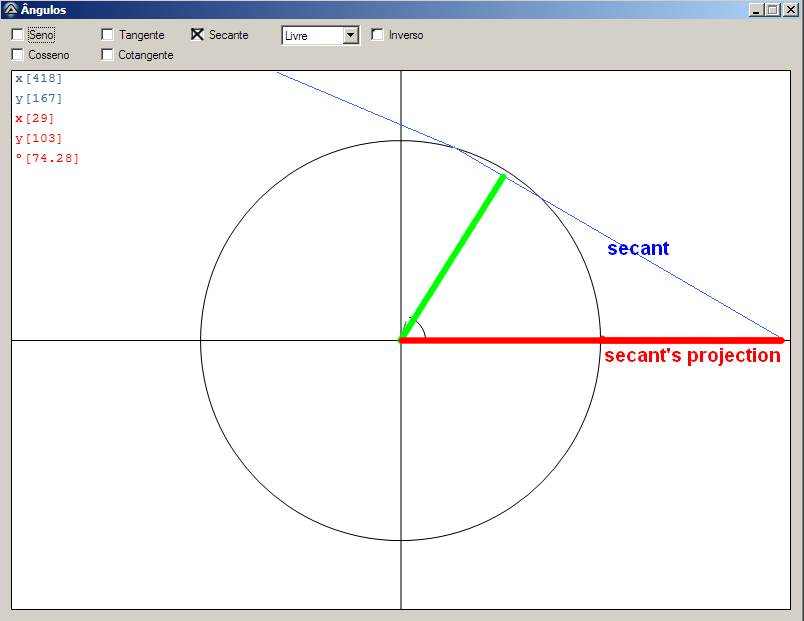

Hi, I don't have idea how to draw a secant line in this script... someone can help me?

Regards,

Luigi

#include <Array.au3>
#include <Misc.au3>
#include <GDIPlus.au3>
#include <GUIConstantsEx.au3>
#include <GuiComboBoxEx.au3>
Global $hGui, $hMsg, $active = True
Global $hGraphic, $hPen, $hPen2, $hBitmap, $hBackbuffer, $width = 350, $height = 300, $hCursor, $mouse[4], $xx2, $yy2

Global $mapa[10][10]
Global $largura = 800, $altura = 600, $limites[6]

Global Const $PI = 3.1415926535897932384626433832795
Global Const $radToDeg = 180 / $PI

$hGui = GUICreate('Ângulos', $largura, $altura)
Global $hSeno = GUICtrlCreateCheckbox('Seno', 10, 5, 80, 20)
Global $hCos = GUICtrlCreateCheckbox('Cosseno', 10, 25, 80, 20)
Global $hTan = GUICtrlCreateCheckbox('Tangente', 100, 5, 80, 20)
Global $hCot = GUICtrlCreateCheckbox('Cotangente', 100, 25, 80, 20)
Global $hSec = GUICtrlCreateCheckbox('Secante', 190, 5, 80, 20)
Global $hPasso = GUICtrlCreateCombo('', 280, 5, 80, 20, $CBS_DROPDOWNLIST)
Global $hInvertido = GUICtrlCreateCheckbox('Inverso', 370, 5, 80, 20)
GUICtrlSetData($hPasso, 'Livre|1|5|10|15|30', 'Livre')

Global $iSeno = 0, $iCos = 0, $iTan = 0, $iCot = 0, $iSec = 0, $iInverso = 0
GUISetState(@SW_SHOWNORMAL)

_GDIPlus_Startup()
$hGraphic = _GDIPlus_GraphicsCreateFromHWND($hGui)
$hBitmap = _GDIPlus_BitmapCreateFromGraphics($largura - 20, $altura - 60, $hGraphic)

_limites()

Func _limites()
    $limites[0] = 10
    $limites[1] = 50
    $limites[2] = $largura - 20
    $limites[3] = $altura - 50
    $limites[4] = ($largura - 20) / 2
    $limites[5] = ($altura - 50) / 2
    ;_ArrayDisplay($limites)
EndFunc   ;==>_limites
$hBackbuffer = _GDIPlus_ImageGetGraphicsContext($hBitmap)

$hPen = _GDIPlus_PenCreate()
$hPen2 = _GDIPlus_PenCreate(0xFFFF0000, 3)
$hPen3 = _GDIPlus_PenCreate(0xFF00FF00)
_GDIPlus_GraphicsClear($hBackbuffer)
_GDIPlus_GraphicsSetSmoothingMode($hBackbuffer, 2)

Global $hBrush_01 = _GDIPlus_BrushCreateSolid(0xFF336699)
Global $hBrush_02 = _GDIPlus_BrushCreateSolid(0xFFFF0000)
Global $hBrush_03 = _GDIPlus_BrushCreateSolid(0xFF00FF00)
Global $hFamily = _GDIPlus_FontFamilyCreate('Courier New')
Global $hFont = _GDIPlus_FontCreate($hFamily, 10)
Global $hPosX = _GDIPlus_RectFCreate(2, 0, 120, 15)
Global $hPosY = _GDIPlus_RectFCreate(2, 20, 120, 15)
Global $hAng = _GDIPlus_RectFCreate(2, 80, 120, 15)
Global $hInv = _GDIPlus_RectFCreate(2, 100, 120, 15)

Global $hPosX1 = _GDIPlus_RectFCreate(2, 40, 120, 15)
Global $hPosY1 = _GDIPlus_RectFCreate(2, 60, 120, 15)
Global $hStringFormat = _GDIPlus_StringFormatCreate()

Global $start = TimerInit()
While 1
    $hMsg = GUIGetMsg()
    Switch $hMsg
        Case $GUI_EVENT_CLOSE
            _exit()
        Case $hSeno
            $iSeno = _Iif($iSeno == 0, 1, 0)
        Case $hCos
            $iCos = _Iif($iCos == 0, 1, 0)
        Case $hTan
            $iTan = _Iif($iTan == 0, 1, 0)
        Case $hCot
            $iCot = _Iif($iCot == 0, 1, 0)
        Case $hSec
            $iSec = _Iif($iSec == 0, 1, 0)
        Case $hInvertido
            $iInverso = _Iif($iInverso == 0, 1, 0)
    EndSwitch

    $hCursor = GUIGetCursorInfo()
    If Not $hCursor Then
        $mouse[0] = $hCursor[0] - $limites[0]
        $mouse[1] = $hCursor[1] - $limites[1]
    EndIf

    If WinActive($hGui) Then
        If Not $active Then $active = True
        If TimerDiff($start) >= 10 Then
            _update()
            $start = TimerInit()
        EndIf
    ElseIf Not WinActive($hGui) And $active Then
        $active = False
    EndIf
WEnd

Func _update()
    _GDIPlus_GraphicsClear($hBackbuffer, 0xF0FFFFFF)
    ;_GDIPlus_StringFormatSetAlign($hStringFormat, 1)
    _GDIPlus_GraphicsDrawStringEx($hBackbuffer, 'x[' & $mouse[0] & ']', $hFont, $hPosX, $hStringFormat, $hBrush_01)
    _GDIPlus_GraphicsDrawStringEx($hBackbuffer, 'y[' & $mouse[1] & ']', $hFont, $hPosY, $hStringFormat, $hBrush_01)
    _GDIPlus_GraphicsDrawStringEx($hBackbuffer, 'x[' & $mouse[0] - 389 & ']', $hFont, $hPosX1, $hStringFormat, $hBrush_02)
    _GDIPlus_GraphicsDrawStringEx($hBackbuffer, 'y[' & - ($mouse[1] - 270) & ']', $hFont, $hPosY1, $hStringFormat, $hBrush_02)
    $ang = _ang(0, 0, $mouse[0] - 389, -($mouse[1] - 270))
    _GDIPlus_GraphicsDrawStringEx($hBackbuffer, 'º[' & $ang[0] & ']', $hFont, $hAng, $hStringFormat, $hBrush_02)


    _box($hBackbuffer, 0, 0, $largura - 21, $altura - 61)
    _GDIPlus_GraphicsDrawLine($hBackbuffer, ($largura - 21) / 2, 0, ($largura - 21) / 2, $altura - 60, $hPen)

    _GDIPlus_GraphicsDrawLine($hBackbuffer, 0, ($altura - 60) / 2, $largura - 21, ($altura - 60) / 2, $hPen)
    _GDIPlus_GraphicsDrawEllipse($hBackbuffer, ($largura - 20) / 2 - 200 - 1, ($altura - 60) / 2 - 200, 400, 400)
    ;_GDIPlus_GraphicsDrawLine($hBackbuffer, ($largura - 21) / 2, ($altura - 60) / 2, $mouse[0], $mouse[1], $hPen2)
    $cos = Int(200 * Cos(($ang[0] / 180) * $PI))
    $sen = Int(200 * Sin(($ang[0] / 180) * $PI))
    $tan = Int(200 * ($sen / $cos))
    $cot = Int(200 * ($cos / $sen))

    _GDIPlus_GraphicsDrawPie($hBackbuffer, ($largura - 20) / 2 - 1 - 25, ($altura - 60) / 2 - 25, 50, 50, 0, -$ang[0])

    If $iSeno Then
        _GDIPlus_GraphicsDrawLine($hBackbuffer, ($largura - 20) / 2 - 1, ($altura - 60) / 2, 389, 270 - $sen, $hPen2)
        _GDIPlus_GraphicsDrawLine($hBackbuffer, 389 + $cos, 270 - $sen, 389, 270 - $sen, $hPen)
    EndIf

    If $iCos Then
        _GDIPlus_GraphicsDrawLine($hBackbuffer, ($largura - 20) / 2 - 1, ($altura - 60) / 2, 389 + $cos, 270, $hPen2)
        _GDIPlus_GraphicsDrawLine($hBackbuffer, 389 + $cos, 270 - $sen, 389 + $cos, 270, $hPen)
    EndIf

    If $iTan Then
        _GDIPlus_GraphicsDrawLine($hBackbuffer, 189, 1, 189, 538, $hPen)
        _GDIPlus_GraphicsDrawLine($hBackbuffer, 589, 1, 589, 538, $hPen)
        If $cos > 0 Then
            _GDIPlus_GraphicsDrawLine($hBackbuffer, 589, 270 - $tan, 589, 270, $hPen2)
            _GDIPlus_GraphicsDrawLine($hBackbuffer, 389 + $cos, 270 - $sen, 589, 270 - $tan, $hPen)
        Else
            _GDIPlus_GraphicsDrawLine($hBackbuffer, 189, 270 + $tan, 189, 270, $hPen2)
            _GDIPlus_GraphicsDrawLine($hBackbuffer, 389 + $cos, 270 - $sen, 189, 270 + $tan, $hPen)
        EndIf
    EndIf

    If $iCot Then
        _GDIPlus_GraphicsDrawLine($hBackbuffer, 1, 70, 778, 70, $hPen)
        _GDIPlus_GraphicsDrawLine($hBackbuffer, 1, 470, 778, 470, $hPen)
        If $sen > 0 Then
            _GDIPlus_GraphicsDrawLine($hBackbuffer, ($largura - 20) / 2 - 1, 70, ($largura - 20) / 2 - 1 + $cot, 70, $hPen2)
            _GDIPlus_GraphicsDrawLine($hBackbuffer, 389 + $cos, 270 - $sen, ($largura - 20) / 2 - 1 + $cot, 70, $hPen)
        Else
            _GDIPlus_GraphicsDrawLine($hBackbuffer, ($largura - 20) / 2 - 1, 470, ($largura - 20) / 2 - 1 - $cot, 470, $hPen2)
            _GDIPlus_GraphicsDrawLine($hBackbuffer, 389 + $cos, 270 - $sen, ($largura - 20) / 2 - 1 - $cot, 470, $hPen)
        EndIf
    EndIf

    If $iSec Then
        Local $resposta = ''
        Select
            Case $ang[0] == 0 Or $ang[0] = 360
                $resposta = '#1 secante[não existe]'
            Case $ang[0] > 0 And $ang[0] < 90
                $resposta = '#2 secante[' & $ang[0] & '] angulo[' & 90 + $ang[0] & ']'
            Case $ang[0] == 90 Or $ang[0] == 180
                $resposta = '#3 secante[não existe]'
            Case $ang[0] > 90 And $ang[0] < 180
                $resposta = '#4 secante[' & $ang[0] & '] angulo[' & $ang[0] - 90 & ']'
            Case $ang[0] > 180 And $ang[0] < 270
                $resposta = '#5 secante[' & $ang[0] & ']'
            Case $ang[0] > 270 And $ang[0] < 360
                $resposta = '#6 secante[' & $ang[0] & ']'
        EndSelect

        $nn1 = 389 + 0 + 1 / Int(200 * Cos(($ang[0] / 180) * $PI))
        $nn2 = 270 + 0 - $sen

        ConsoleWrite('nn1[' & $nn1 & '] nn2[' & $nn2 & ']' & @LF)
        _GDIPlus_GraphicsDrawLine($hBackbuffer, 389 + $cos, 270 - $sen, $nn1, $nn2, $hPen2)
;~      _GDIPlus_GraphicsDrawEllipse($hBackbuffer, ($largura - 20) / 2 - 250 - 1, ($altura - 60) / 2 - 250, 500, 500)
        ConsoleWrite($resposta & @LF)
    EndIf

    If $iInverso Then
        Local $invertido = _Iif($ang[0] > 180, $ang[0] - 180, 180 + $ang[0])
        $invertido = _Iif($invertido = 360, 0, $invertido)
        $invertido = StringFormat('%.2f', $invertido)
        _GDIPlus_GraphicsDrawLine($hBackbuffer, ($largura - 20) / 2 - 1, ($altura - 60) / 2, 389 - $cos, 270 + $sen, $hPen3)
        _GDIPlus_GraphicsDrawStringEx($hBackbuffer, 'º[' & $invertido & ']', $hFont, $hInv, $hStringFormat, $hBrush_03)
    EndIf
    _GDIPlus_GraphicsDrawLine($hBackbuffer, ($largura - 20) / 2 - 1, ($altura - 60) / 2, 389 + $cos, 270 - $sen, $hPen3)

    _GDIPlus_GraphicsDrawImageRect($hGraphic, $hBitmap, 10, 50, $largura - 20, $altura - 60)
EndFunc   ;==>_update

Func _exit()
    _GDIPlus_BrushDispose($hBrush_01)
    _GDIPlus_BrushDispose($hBrush_02)
    _GDIPlus_BrushDispose($hBrush_03)
    _GDIPlus_FontFamilyDispose($hFamily)
    _GDIPlus_FontDispose($hFont)
    _GDIPlus_StringFormatDispose($hStringFormat)

    _GDIPlus_GraphicsDispose($hBackbuffer)
    _GDIPlus_BitmapDispose($hBitmap)
    _GDIPlus_PenDispose($hPen)
    _GDIPlus_PenDispose($hPen2)
    _GDIPlus_PenDispose($hPen3)
    _GDIPlus_GraphicsDispose($hGraphic)
    _GDIPlus_Shutdown()
    Exit
EndFunc   ;==>_exit

Func _box($hToGraphic, $ix1, $iy1, $il, $ia)
    Local $aBox[5][2]
    $aBox[0][0] = 4
    $aBox[1][0] = $ix1
    $aBox[1][1] = $iy1
    $aBox[2][0] = $ix1 + $il
    $aBox[2][1] = $iy1
    $aBox[3][0] = $ix1 + $il
    $aBox[3][1] = $iy1 + $ia
    $aBox[4][0] = $ix1
    $aBox[4][1] = $iy1 + $ia
    _GDIPlus_GraphicsDrawPolygon($hToGraphic, $aBox)
EndFunc   ;==>_box

Func _ang($xx1, $yy1, $xx2, $yy2)
    Local $arr[2], $ca = Abs($yy2 - $yy1), $co = Abs($xx2 - $xx1)
    Select
        Case $xx1 > $xx2
            Select
                Case $yy1 < $yy2
                    $arr[0] = ATan(($co) / ($ca)) * $radToDeg + 90
                Case $yy1 == $yy2
                    $arr[0] = 180
                Case $yy1 > $yy2
                    $arr[0] = 270 - ATan(($co) / ($ca)) * $radToDeg
            EndSelect
        Case $xx1 == $xx2
            Select
                Case $yy1 < $yy2
                    $arr[0] = 90
                Case $yy1 == $yy2
                    $arr[0] = 0
                Case $yy1 > $yy2
                    $arr[0] = 270
            EndSelect
        Case $xx1 < $xx2
            Select
                Case $yy1 < $yy2
                    $arr[0] = 90 - ATan(($co) / ($ca)) * $radToDeg
                Case $yy1 == $yy2
                    $arr[0] = 0
                Case $yy1 > $yy2
                    $arr[0] = ATan(($co) / ($ca)) * $radToDeg + 270
                    ;$arr[0] = 270 - ATan(($co) / ($ca)) * $radToDeg
            EndSelect
    EndSelect
    $arr[0] = StringFormat('%.2f', $arr[0])
    $arr[1] = Sqrt($co ^ 2 + $ca ^ 2)
    Return $arr
EndFunc   ;==>_ang

Func _Iif($aa, $bb, $cc)
    If $aa Then Return $bb
    Return $cc
EndFunc   ;==>_Iif
Edited by Luigi

Visit my repository

Share this post


Link to post
Share on other sites
martin

I would draw them more like this, but you need something to show which which line length is divided by which other line length.

#include <Array.au3>
#include <Misc.au3>
#include <GDIPlus.au3>
#include <GUIConstantsEx.au3>
#include <GuiComboBoxEx.au3>
Global $hGui, $hMsg, $active = True
Global $hGraphic, $hPen, $hPen2, $hBitmap, $hBackbuffer, $width = 350, $height = 300, $hCursor, $mouse[4], $xx2, $yy2

Global $mapa[10][10]
Global $largura = 800, $altura = 600, $limites[6]

Global Const $PI = 3.1415926535897932384626433832795
Global Const $radToDeg = 180 / $PI

$hGui = GUICreate('Ângulos', $largura, $altura)
Global $hSeno = GUICtrlCreateCheckbox('Seno', 10, 5, 80, 20)
Global $hCos = GUICtrlCreateCheckbox('Cosseno', 10, 25, 80, 20)
Global $hTan = GUICtrlCreateCheckbox('Tangente', 100, 5, 80, 20)
Global $hCot = GUICtrlCreateCheckbox('Cotangente', 100, 25, 80, 20)
Global $hSec = GUICtrlCreateCheckbox('Secante', 190, 5, 80, 20)
Global $hPasso = GUICtrlCreateCombo('', 280, 5, 80, 20, $CBS_DROPDOWNLIST)
Global $hInvertido = GUICtrlCreateCheckbox('Inverso', 370, 5, 80, 20)
GUICtrlSetData($hPasso, 'Livre|1|5|10|15|30', 'Livre')

Global $iSeno = 0, $iCos = 0, $iTan = 0, $iCot = 0, $iSec = 0, $iInverso = 0
GUISetState(@SW_SHOWNORMAL)

_GDIPlus_Startup()
$hGraphic = _GDIPlus_GraphicsCreateFromHWND($hGui)
$hBitmap = _GDIPlus_BitmapCreateFromGraphics($largura - 20, $altura - 60, $hGraphic)

_limites()

Func _limites()
    $limites[0] = 10
    $limites[1] = 50
    $limites[2] = $largura - 20
    $limites[3] = $altura - 50
    $limites[4] = ($largura - 20) / 2
    $limites[5] = ($altura - 50) / 2
    ;_ArrayDisplay($limites)
EndFunc   ;==>_limites
$hBackbuffer = _GDIPlus_ImageGetGraphicsContext($hBitmap)

$hPen = _GDIPlus_PenCreate()
$hPen2 = _GDIPlus_PenCreate(0xFFFF0000, 3)
$hPen3 = _GDIPlus_PenCreate(0xFF00FF00)
_GDIPlus_GraphicsClear($hBackbuffer)
_GDIPlus_GraphicsSetSmoothingMode($hBackbuffer, 2)

Global $hBrush_01 = _GDIPlus_BrushCreateSolid(0xFF336699)
Global $hBrush_02 = _GDIPlus_BrushCreateSolid(0xFFFF0000)
Global $hBrush_03 = _GDIPlus_BrushCreateSolid(0xFF00FF00)
Global $hFamily = _GDIPlus_FontFamilyCreate('Courier New')
Global $hFont = _GDIPlus_FontCreate($hFamily, 10)
Global $hPosX = _GDIPlus_RectFCreate(2, 0, 120, 15)
Global $hPosY = _GDIPlus_RectFCreate(2, 20, 120, 15)
Global $hAng = _GDIPlus_RectFCreate(2, 80, 120, 15)
Global $hInv = _GDIPlus_RectFCreate(2, 100, 120, 15)

Global $hPosX1 = _GDIPlus_RectFCreate(2, 40, 120, 15)
Global $hPosY1 = _GDIPlus_RectFCreate(2, 60, 120, 15)
Global $hStringFormat = _GDIPlus_StringFormatCreate()

Global $start = TimerInit()
While 1
    $hMsg = GUIGetMsg()
    Switch $hMsg
        Case $GUI_EVENT_CLOSE
            _exit()
        Case $hSeno
            $iSeno = _Iif($iSeno == 0, 1, 0)
        Case $hCos
            $iCos = _Iif($iCos == 0, 1, 0)
        Case $hTan
            $iTan = _Iif($iTan == 0, 1, 0)
        Case $hCot
            $iCot = _Iif($iCot == 0, 1, 0)
        Case $hSec
            $iSec = _Iif($iSec == 0, 1, 0)
        Case $hInvertido
            $iInverso = _Iif($iInverso == 0, 1, 0)
    EndSwitch

    $hCursor = GUIGetCursorInfo()
    If Not $hCursor Then
        $mouse[0] = $hCursor[0] - $limites[0]
        $mouse[1] = $hCursor[1] - $limites[1]
    EndIf

    If WinActive($hGui) Then
        If Not $active Then $active = True
        If TimerDiff($start) >= 10 Then
            _update()
            $start = TimerInit()
        EndIf
    ElseIf Not WinActive($hGui) And $active Then
        $active = False
    EndIf
WEnd

Func _update()
    _GDIPlus_GraphicsClear($hBackbuffer, 0xF0FFFFFF)
    ;_GDIPlus_StringFormatSetAlign($hStringFormat, 1)
    _GDIPlus_GraphicsDrawStringEx($hBackbuffer, 'x[' & $mouse[0] & ']', $hFont, $hPosX, $hStringFormat, $hBrush_01)
    _GDIPlus_GraphicsDrawStringEx($hBackbuffer, 'y[' & $mouse[1] & ']', $hFont, $hPosY, $hStringFormat, $hBrush_01)
    _GDIPlus_GraphicsDrawStringEx($hBackbuffer, 'x[' & $mouse[0] - 389 & ']', $hFont, $hPosX1, $hStringFormat, $hBrush_02)
    _GDIPlus_GraphicsDrawStringEx($hBackbuffer, 'y[' & - ($mouse[1] - 270) & ']', $hFont, $hPosY1, $hStringFormat, $hBrush_02)
    $ang = _ang(0, 0, $mouse[0] - 389, -($mouse[1] - 270))
    _GDIPlus_GraphicsDrawStringEx($hBackbuffer, 'º[' & $ang[0] & ']', $hFont, $hAng, $hStringFormat, $hBrush_02)


    _box($hBackbuffer, 0, 0, $largura - 21, $altura - 61)
    _GDIPlus_GraphicsDrawLine($hBackbuffer, ($largura - 21) / 2, 0, ($largura - 21) / 2, $altura - 60, $hPen)

    _GDIPlus_GraphicsDrawLine($hBackbuffer, 0, ($altura - 60) / 2, $largura - 21, ($altura - 60) / 2, $hPen)
    _GDIPlus_GraphicsDrawEllipse($hBackbuffer, ($largura - 20) / 2 - 200 - 1, ($altura - 60) / 2 - 200, 400, 400)
    ;_GDIPlus_GraphicsDrawLine($hBackbuffer, ($largura - 21) / 2, ($altura - 60) / 2, $mouse[0], $mouse[1], $hPen2)
    $cos = Int(200 * Cos(($ang[0] / 180) * $PI))
    $sen = Int(200 * Sin(($ang[0] / 180) * $PI))
    $tan = Int(200 * ($sen / $cos))
    $cot = Int(200 * ($cos / $sen))

    _GDIPlus_GraphicsDrawPie($hBackbuffer, ($largura - 20) / 2 - 1 - 25, ($altura - 60) / 2 - 25, 50, 50, 0, -$ang[0])

    If $iSeno Then
        _GDIPlus_GraphicsDrawLine($hBackbuffer, ($largura - 20) / 2 - 1 + $cos, ($altura - 60) / 2, 389+$cos, 270 - $sen, $hPen2)
        _GDIPlus_GraphicsDrawLine($hBackbuffer, ($largura - 20) / 2 - 1 , ($altura - 60) / 2, 389+$cos, 270-$sen, $hPen2)
        ;_GDIPlus_GraphicsDrawLine($hBackbuffer, 389 + $cos, 270 - $sen, 389, 270 - $sen, $hPen)
    EndIf

    If $iCos Then
        _GDIPlus_GraphicsDrawLine($hBackbuffer, ($largura - 20) / 2 - 1, ($altura - 60) / 2, 389 + $cos, 270, $hPen2)
        _GDIPlus_GraphicsDrawLine($hBackbuffer, ($largura - 20) / 2 - 1 , ($altura - 60) / 2, 389+$cos, 270-$sen, $hPen2)
        _GDIPlus_GraphicsDrawLine($hBackbuffer, 389 + $cos, 270 - $sen, 389 + $cos, 270, $hPen)
    EndIf

    If $iTan Then
        _GDIPlus_GraphicsDrawLine($hBackbuffer, ($largura - 20) / 2 - 1 + $cos, ($altura - 60) / 2, 389+$cos, 270 - $sen, $hPen2)
        _GDIPlus_GraphicsDrawLine($hBackbuffer, ($largura - 20) / 2 - 1 + $cos, ($altura - 60) / 2, 389, 270, $hPen2)
    EndIf

    If $iCot Then
        _GDIPlus_GraphicsDrawLine($hBackbuffer, ($largura - 20) / 2 - 1 + $cos, ($altura - 60) / 2, 389+$cos, 270 - $sen, $hPen2)
        _GDIPlus_GraphicsDrawLine($hBackbuffer, ($largura - 20) / 2 - 1 + $cos, ($altura - 60) / 2, 389, 270, $hPen2)
    EndIf

    If $iSec Then

        Local $resposta = ''
        Select
            Case $ang[0] == 0 Or $ang[0] = 360
                $resposta = '#1 secante[não existe]'
            Case $ang[0] > 0 And $ang[0] < 90
                $resposta = '#2 secante[' & $ang[0] & '] angulo[' & 90 + $ang[0] & ']'
            Case $ang[0] == 90 Or $ang[0] == 180
                $resposta = '#3 secante[não existe]'
            Case $ang[0] > 90 And $ang[0] < 180
                $resposta = '#4 secante[' & $ang[0] & '] angulo[' & $ang[0] - 90 & ']'
            Case $ang[0] > 180 And $ang[0] < 270
                $resposta = '#5 secante[' & $ang[0] & ']'
            Case $ang[0] > 270 And $ang[0] < 360
                $resposta = '#6 secante[' & $ang[0] & ']'
        EndSelect

        $nn1 = 389 + 0 + 1 / Int(200 * Cos(($ang[0] / 180) * $PI))
        $nn2 = 270 + 0 - $sen

        ConsoleWrite('nn1[' & $nn1 & '] nn2[' & $nn2 & ']' & @LF)
        _GDIPlus_GraphicsDrawLine($hBackbuffer, ($largura - 20) / 2 - 1, ($altura - 60) / 2, 389 + $cos, 270, $hPen2)
        _GDIPlus_GraphicsDrawLine($hBackbuffer, ($largura - 20) / 2 - 1 , ($altura - 60) / 2, 389+$cos, 270-$sen, $hPen2)
        _GDIPlus_GraphicsDrawLine($hBackbuffer, 389 + $cos, 270 - $sen, 389 + $cos, 270, $hPen)
        ;_GDIPlus_GraphicsDrawLine($hBackbuffer, 389 + $cos, 270 - $sen, $nn1, $nn2, $hPen2)
;~      _GDIPlus_GraphicsDrawEllipse($hBackbuffer, ($largura - 20) / 2 - 250 - 1, ($altura - 60) / 2 - 250, 500, 500)
        ConsoleWrite($resposta & @LF)
    EndIf

    If $iInverso Then
        Local $invertido = _Iif($ang[0] > 180, $ang[0] - 180, 180 + $ang[0])
        $invertido = _Iif($invertido = 360, 0, $invertido)
        $invertido = StringFormat('%.2f', $invertido)
        _GDIPlus_GraphicsDrawLine($hBackbuffer, ($largura - 20) / 2 - 1, ($altura - 60) / 2, 389 - $cos, 270 + $sen, $hPen3)
        _GDIPlus_GraphicsDrawStringEx($hBackbuffer, 'º[' & $invertido & ']', $hFont, $hInv, $hStringFormat, $hBrush_03)
    EndIf
    _GDIPlus_GraphicsDrawLine($hBackbuffer, ($largura - 20) / 2 - 1, ($altura - 60) / 2, 389 + $cos, 270 - $sen, $hPen3)

    _GDIPlus_GraphicsDrawImageRect($hGraphic, $hBitmap, 10, 50, $largura - 20, $altura - 60)
EndFunc   ;==>_update

Func _exit()
    _GDIPlus_BrushDispose($hBrush_01)
    _GDIPlus_BrushDispose($hBrush_02)
    _GDIPlus_BrushDispose($hBrush_03)
    _GDIPlus_FontFamilyDispose($hFamily)
    _GDIPlus_FontDispose($hFont)
    _GDIPlus_StringFormatDispose($hStringFormat)

    _GDIPlus_GraphicsDispose($hBackbuffer)
    _GDIPlus_BitmapDispose($hBitmap)
    _GDIPlus_PenDispose($hPen)
    _GDIPlus_PenDispose($hPen2)
    _GDIPlus_PenDispose($hPen3)
    _GDIPlus_GraphicsDispose($hGraphic)
    _GDIPlus_Shutdown()
    Exit
EndFunc   ;==>_exit

Func _box($hToGraphic, $ix1, $iy1, $il, $ia)
    Local $aBox[5][2]
    $aBox[0][0] = 4
    $aBox[1][0] = $ix1
    $aBox[1][1] = $iy1
    $aBox[2][0] = $ix1 + $il
    $aBox[2][1] = $iy1
    $aBox[3][0] = $ix1 + $il
    $aBox[3][1] = $iy1 + $ia
    $aBox[4][0] = $ix1
    $aBox[4][1] = $iy1 + $ia
    _GDIPlus_GraphicsDrawPolygon($hToGraphic, $aBox)
EndFunc   ;==>_box

Func _ang($xx1, $yy1, $xx2, $yy2)
    Local $arr[2], $ca = Abs($yy2 - $yy1), $co = Abs($xx2 - $xx1)
    Select
        Case $xx1 > $xx2
            Select
                Case $yy1 < $yy2
                    $arr[0] = ATan(($co) / ($ca)) * $radToDeg + 90
                Case $yy1 == $yy2
                    $arr[0] = 180
                Case $yy1 > $yy2
                    $arr[0] = 270 - ATan(($co) / ($ca)) * $radToDeg
            EndSelect
        Case $xx1 == $xx2
            Select
                Case $yy1 < $yy2
                    $arr[0] = 90
                Case $yy1 == $yy2
                    $arr[0] = 0
                Case $yy1 > $yy2
                    $arr[0] = 270
            EndSelect
        Case $xx1 < $xx2
            Select
                Case $yy1 < $yy2
                    $arr[0] = 90 - ATan(($co) / ($ca)) * $radToDeg
                Case $yy1 == $yy2
                    $arr[0] = 0
                Case $yy1 > $yy2
                    $arr[0] = ATan(($co) / ($ca)) * $radToDeg + 270
                    ;$arr[0] = 270 - ATan(($co) / ($ca)) * $radToDeg
            EndSelect
    EndSelect
    $arr[0] = StringFormat('%.2f', $arr[0])
    $arr[1] = Sqrt($co ^ 2 + $ca ^ 2)
    Return $arr
EndFunc   ;==>_ang

Func _Iif($aa, $bb, $cc)
    If $aa Then Return $bb
    Return $cc
EndFunc   ;==>_Iif

Serial port communications UDF Includes functions for binary transmission and reception.printing UDF Useful for graphs, forms, labels, reports etc.Add User Call Tips to SciTE for functions in UDFs not included with AutoIt and for your own scripts.Functions with parameters in OnEvent mode and for Hot Keys One function replaces GuiSetOnEvent, GuiCtrlSetOnEvent and HotKeySet.UDF IsConnected2 for notification of status of connected state of many urls or IPs, without slowing the script.

Share this post


Link to post
Share on other sites
Luigi

@martin, thank you for your reply...

Maybe I was wrong, I not math expert, I study trigonometry many many many years ago...

But I thinking draw something like this...

This is right?

post-53968-0-50485200-1409410715_thumb.j

Edited by Detefon

Visit my repository

Share this post


Link to post
Share on other sites
martin

A secant is the inverse of cos, so to me the two sides which should be shown are the hypotenuse and the adjacent.  For tan and cotan the sides are opposite and adjacent, for sin they are opposite and hypotenuse.

The red line you have drawn has a length

Rad * sec(angle) - Rad

  or

(Rad/cos(angle))  - Rad

which has no significane to me.


Serial port communications UDF Includes functions for binary transmission and reception.printing UDF Useful for graphs, forms, labels, reports etc.Add User Call Tips to SciTE for functions in UDFs not included with AutoIt and for your own scripts.Functions with parameters in OnEvent mode and for Hot Keys One function replaces GuiSetOnEvent, GuiCtrlSetOnEvent and HotKeySet.UDF IsConnected2 for notification of status of connected state of many urls or IPs, without slowing the script.

Share this post


Link to post
Share on other sites
Luigi

@martin, forgive-me, you are write, the red line significat none, I thinking now is write? the pic was update.

Edited by Detefon

Visit my repository

Share this post


Link to post
Share on other sites
martin

Yes, I think that's right now.

Maybe I understand how you are drawing things now. Are you making it so that the value is always

(red line length)/(green line length)

?


Serial port communications UDF Includes functions for binary transmission and reception.printing UDF Useful for graphs, forms, labels, reports etc.Add User Call Tips to SciTE for functions in UDFs not included with AutoIt and for your own scripts.Functions with parameters in OnEvent mode and for Hot Keys One function replaces GuiSetOnEvent, GuiCtrlSetOnEvent and HotKeySet.UDF IsConnected2 for notification of status of connected state of many urls or IPs, without slowing the script.

Share this post


Link to post
Share on other sites
Luigi

I do not try draw the red line, yet, but is easy (I thinking), it is a cos inverse... ok, easy to plot in graph...

So... I do not have idea how to draw a full blue line... (secant label)
On half is a secante properly, it is easy, we talking about it.

The middle point, it's easy too.

The rest, the upper part, I don't have idea! Fear! m(o.O)m



Visit my repository

Share this post


Link to post
Share on other sites
Luigi

One half's blue line is ready, miss the other part...

Hum... I thinking... the another half is a co-sec point! I try later, need movie!

#include <Array.au3>
#include <Misc.au3>
#include <GDIPlus.au3>
#include <GUIConstantsEx.au3>
#include <GuiComboBoxEx.au3>
Global $hGui, $hMsg, $active = True
Global $hGraphic, $hPen, $hPen2, $hBitmap, $hBackbuffer, $width = 350, $height = 300, $hCursor, $mouse[4], $xx2, $yy2

Global $mapa[10][10]
Global $largura = 800, $altura = 600, $limites[6]

Global Const $PI = 3.1415926535897932384626433832795
Global Const $radToDeg = 180 / $PI

$hGui = GUICreate('Ângulos', $largura, $altura)
Global $hSeno = GUICtrlCreateCheckbox('Seno', 10, 5, 80, 20)
Global $hCos = GUICtrlCreateCheckbox('Cosseno', 10, 25, 80, 20)
Global $hTan = GUICtrlCreateCheckbox('Tangente', 100, 5, 80, 20)
Global $hCot = GUICtrlCreateCheckbox('Cotangente', 100, 25, 80, 20)
Global $hSec = GUICtrlCreateCheckbox('Secante', 190, 5, 80, 20)
Global $hPasso = GUICtrlCreateCombo('', 280, 5, 80, 20, $CBS_DROPDOWNLIST)
Global $hInvertido = GUICtrlCreateCheckbox('Inverso', 370, 5, 80, 20)
GUICtrlSetData($hPasso, 'Livre|1|5|10|15|30', 'Livre')

Global $iSeno = 0, $iCos = 0, $iTan = 0, $iCot = 0, $iSec = 0, $iInverso = 0
GUISetState(@SW_SHOWNORMAL)

_GDIPlus_Startup()
$hGraphic = _GDIPlus_GraphicsCreateFromHWND($hGui)
$hBitmap = _GDIPlus_BitmapCreateFromGraphics($largura - 20, $altura - 60, $hGraphic)

_limites()

Func _limites()
    $limites[0] = 10
    $limites[1] = 50
    $limites[2] = $largura - 20
    $limites[3] = $altura - 50
    $limites[4] = ($largura - 20) / 2
    $limites[5] = ($altura - 50) / 2
    ;_ArrayDisplay($limites)
EndFunc   ;==>_limites
$hBackbuffer = _GDIPlus_ImageGetGraphicsContext($hBitmap)

$hPen = _GDIPlus_PenCreate()
$hPen2 = _GDIPlus_PenCreate(0xFFFF0000, 3)
$hPen3 = _GDIPlus_PenCreate(0xFF00FF00)
$hPen4 = _GDIPlus_PenCreate(0xFF0000FF)
_GDIPlus_GraphicsClear($hBackbuffer)
_GDIPlus_GraphicsSetSmoothingMode($hBackbuffer, 2)

Global $hBrush_01 = _GDIPlus_BrushCreateSolid(0xFF336699)
Global $hBrush_02 = _GDIPlus_BrushCreateSolid(0xFFFF0000)
Global $hBrush_03 = _GDIPlus_BrushCreateSolid(0xFF00FF00)
Global $hFamily = _GDIPlus_FontFamilyCreate('Courier New')
Global $hFont = _GDIPlus_FontCreate($hFamily, 10)
Global $hPosX = _GDIPlus_RectFCreate(2, 0, 120, 15)
Global $hPosY = _GDIPlus_RectFCreate(2, 20, 120, 15)
Global $hAng = _GDIPlus_RectFCreate(2, 80, 120, 15)
Global $hInv = _GDIPlus_RectFCreate(2, 100, 120, 15)

Global $hPosX1 = _GDIPlus_RectFCreate(2, 40, 120, 15)
Global $hPosY1 = _GDIPlus_RectFCreate(2, 60, 120, 15)
Global $hStringFormat = _GDIPlus_StringFormatCreate()

Global $start = TimerInit()
While 1
    $hMsg = GUIGetMsg()
    Switch $hMsg
        Case $GUI_EVENT_CLOSE
            _exit()
        Case $hSeno
            $iSeno = _Iif($iSeno == 0, 1, 0)
        Case $hCos
            $iCos = _Iif($iCos == 0, 1, 0)
        Case $hTan
            $iTan = _Iif($iTan == 0, 1, 0)
        Case $hCot
            $iCot = _Iif($iCot == 0, 1, 0)
        Case $hSec
            $iSec = _Iif($iSec == 0, 1, 0)
        Case $hInvertido
            $iInverso = _Iif($iInverso == 0, 1, 0)
    EndSwitch

    $hCursor = GUIGetCursorInfo()
    If Not $hCursor Then
        $mouse[0] = $hCursor[0] - $limites[0]
        $mouse[1] = $hCursor[1] - $limites[1]
    EndIf

    If WinActive($hGui) Then
        If Not $active Then $active = True
        If TimerDiff($start) >= 10 Then
            _update()
            $start = TimerInit()
        EndIf
    ElseIf Not WinActive($hGui) And $active Then
        $active = False
    EndIf
WEnd

Func _update()
    _GDIPlus_GraphicsClear($hBackbuffer, 0xF0FFFFFF)
    ;_GDIPlus_StringFormatSetAlign($hStringFormat, 1)
    _GDIPlus_GraphicsDrawStringEx($hBackbuffer, 'x[' & $mouse[0] & ']', $hFont, $hPosX, $hStringFormat, $hBrush_01)
    _GDIPlus_GraphicsDrawStringEx($hBackbuffer, 'y[' & $mouse[1] & ']', $hFont, $hPosY, $hStringFormat, $hBrush_01)
    _GDIPlus_GraphicsDrawStringEx($hBackbuffer, 'x[' & $mouse[0] - 389 & ']', $hFont, $hPosX1, $hStringFormat, $hBrush_02)
    _GDIPlus_GraphicsDrawStringEx($hBackbuffer, 'y[' & - ($mouse[1] - 270) & ']', $hFont, $hPosY1, $hStringFormat, $hBrush_02)
    $ang = _ang(0, 0, $mouse[0] - 389, -($mouse[1] - 270))
    _GDIPlus_GraphicsDrawStringEx($hBackbuffer, 'º[' & $ang[0] & ']', $hFont, $hAng, $hStringFormat, $hBrush_02)


    _box($hBackbuffer, 0, 0, $largura - 21, $altura - 61)
    _GDIPlus_GraphicsDrawLine($hBackbuffer, ($largura - 21) / 2, 0, ($largura - 21) / 2, $altura - 60, $hPen)

    _GDIPlus_GraphicsDrawLine($hBackbuffer, 0, ($altura - 60) / 2, $largura - 21, ($altura - 60) / 2, $hPen)
    _GDIPlus_GraphicsDrawEllipse($hBackbuffer, ($largura - 20) / 2 - 200 - 1, ($altura - 60) / 2 - 200, 400, 400)
    ;_GDIPlus_GraphicsDrawLine($hBackbuffer, ($largura - 21) / 2, ($altura - 60) / 2, $mouse[0], $mouse[1], $hPen2)
    $cos = Int(200 * Cos(($ang[0] / 180) * $PI))
    $sen = Int(200 * Sin(($ang[0] / 180) * $PI))
    $tan = Int(200 * ($sen / $cos))
    $cot = Int(200 * ($cos / $sen))
    $sec = Int(200 * (1 / (Cos(($ang[0] / 180) * $PI))))

    _GDIPlus_GraphicsDrawPie($hBackbuffer, ($largura - 20) / 2 - 1 - 25, ($altura - 60) / 2 - 25, 50, 50, 0, -$ang[0])

    If $iSeno Then
        _GDIPlus_GraphicsDrawLine($hBackbuffer, ($largura - 20) / 2 - 1, ($altura - 60) / 2, 389, 270 - $sen, $hPen2)
        _GDIPlus_GraphicsDrawLine($hBackbuffer, 389 + $cos, 270 - $sen, 389, 270 - $sen, $hPen)
    EndIf

    If $iCos Then
        _GDIPlus_GraphicsDrawLine($hBackbuffer, ($largura - 20) / 2 - 1, ($altura - 60) / 2, 389 + $cos, 270, $hPen2)
        _GDIPlus_GraphicsDrawLine($hBackbuffer, 389 + $cos, 270 - $sen, 389 + $cos, 270, $hPen)
    EndIf

    If $iTan Then
        _GDIPlus_GraphicsDrawLine($hBackbuffer, 189, 1, 189, 538, $hPen)
        _GDIPlus_GraphicsDrawLine($hBackbuffer, 589, 1, 589, 538, $hPen)
        If $cos > 0 Then
            _GDIPlus_GraphicsDrawLine($hBackbuffer, 589, 270 - $tan, 589, 270, $hPen2)
            _GDIPlus_GraphicsDrawLine($hBackbuffer, 389 + $cos, 270 - $sen, 589, 270 - $tan, $hPen)
        Else
            _GDIPlus_GraphicsDrawLine($hBackbuffer, 189, 270 + $tan, 189, 270, $hPen2)
            _GDIPlus_GraphicsDrawLine($hBackbuffer, 389 + $cos, 270 - $sen, 189, 270 + $tan, $hPen)
        EndIf
    EndIf

    If $iCot Then
        _GDIPlus_GraphicsDrawLine($hBackbuffer, 1, 70, 778, 70, $hPen)
        _GDIPlus_GraphicsDrawLine($hBackbuffer, 1, 470, 778, 470, $hPen)
        If $sen > 0 Then
            _GDIPlus_GraphicsDrawLine($hBackbuffer, ($largura - 20) / 2 - 1, 70, ($largura - 20) / 2 - 1 + $cot, 70, $hPen2)
            _GDIPlus_GraphicsDrawLine($hBackbuffer, 389 + $cos, 270 - $sen, ($largura - 20) / 2 - 1 + $cot, 70, $hPen)
        Else
            _GDIPlus_GraphicsDrawLine($hBackbuffer, ($largura - 20) / 2 - 1, 470, ($largura - 20) / 2 - 1 - $cot, 470, $hPen2)
            _GDIPlus_GraphicsDrawLine($hBackbuffer, 389 + $cos, 270 - $sen, ($largura - 20) / 2 - 1 - $cot, 470, $hPen)
        EndIf
    EndIf

    If $iSec Then
        Local $resposta = ''
        Select
            Case $ang[0] == 0 Or $ang[0] = 360
                $resposta = '#1 secante[não existe]'
            Case $ang[0] > 0 And $ang[0] < 90
                $resposta = '#2 secante[' & $ang[0] & '] angulo[' & 90 + $ang[0] & ']'
            Case $ang[0] == 90 Or $ang[0] == 180
                $resposta = '#3 secante[não existe]'
            Case $ang[0] > 90 And $ang[0] < 180
                $resposta = '#4 secante[' & $ang[0] & '] angulo[' & $ang[0] - 90 & ']'
            Case $ang[0] > 180 And $ang[0] < 270
                $resposta = '#5 secante[' & $ang[0] & ']'
            Case $ang[0] > 270 And $ang[0] < 360
                $resposta = '#6 secante[' & $ang[0] & ']'
        EndSelect

        $nn1 = 389 + 0 + 1 / Int(200 * Cos(($ang[0] / 180) * $PI))
        $nn2 = 270 + 0 - $sen

        ConsoleWrite('nn1[' & $nn1 & '] nn2[' & $nn2 & ']' & @LF)
        _GDIPlus_GraphicsDrawLine($hBackbuffer, 389 + $sec, 270, 389, 270, $hPen2)
        _GDIPlus_GraphicsDrawLine($hBackbuffer, 389 + $sec, 270, 389 + $cos, 270 - $sen, $hPen4)
;~      _GDIPlus_GraphicsDrawEllipse($hBackbuffer, ($largura - 20) / 2 - 250 - 1, ($altura - 60) / 2 - 250, 500, 500)
    EndIf

    If $iInverso Then
        Local $invertido = _Iif($ang[0] > 180, $ang[0] - 180, 180 + $ang[0])
        $invertido = _Iif($invertido = 360, 0, $invertido)
        $invertido = StringFormat('%.2f', $invertido)
        _GDIPlus_GraphicsDrawLine($hBackbuffer, ($largura - 20) / 2 - 1, ($altura - 60) / 2, 389 - $cos, 270 + $sen, $hPen3)
        _GDIPlus_GraphicsDrawStringEx($hBackbuffer, 'º[' & $invertido & ']', $hFont, $hInv, $hStringFormat, $hBrush_03)
    EndIf
    _GDIPlus_GraphicsDrawLine($hBackbuffer, ($largura - 20) / 2 - 1, ($altura - 60) / 2, 389 + $cos, 270 - $sen, $hPen3)

    _GDIPlus_GraphicsDrawImageRect($hGraphic, $hBitmap, 10, 50, $largura - 20, $altura - 60)
EndFunc   ;==>_update

Func _exit()
    _GDIPlus_BrushDispose($hBrush_01)
    _GDIPlus_BrushDispose($hBrush_02)
    _GDIPlus_BrushDispose($hBrush_03)
    _GDIPlus_FontFamilyDispose($hFamily)
    _GDIPlus_FontDispose($hFont)
    _GDIPlus_StringFormatDispose($hStringFormat)

    _GDIPlus_GraphicsDispose($hBackbuffer)
    _GDIPlus_BitmapDispose($hBitmap)
    _GDIPlus_PenDispose($hPen)
    _GDIPlus_PenDispose($hPen2)
    _GDIPlus_PenDispose($hPen3)
    _GDIPlus_GraphicsDispose($hGraphic)
    _GDIPlus_Shutdown()
    Exit
EndFunc   ;==>_exit

Func _box($hToGraphic, $ix1, $iy1, $il, $ia)
    Local $aBox[5][2]
    $aBox[0][0] = 4
    $aBox[1][0] = $ix1
    $aBox[1][1] = $iy1
    $aBox[2][0] = $ix1 + $il
    $aBox[2][1] = $iy1
    $aBox[3][0] = $ix1 + $il
    $aBox[3][1] = $iy1 + $ia
    $aBox[4][0] = $ix1
    $aBox[4][1] = $iy1 + $ia
    _GDIPlus_GraphicsDrawPolygon($hToGraphic, $aBox)
EndFunc   ;==>_box

Func _ang($xx1, $yy1, $xx2, $yy2)
    Local $arr[2], $ca = Abs($yy2 - $yy1), $co = Abs($xx2 - $xx1)
    Select
        Case $xx1 > $xx2
            Select
                Case $yy1 < $yy2
                    $arr[0] = ATan(($co) / ($ca)) * $radToDeg + 90
                Case $yy1 == $yy2
                    $arr[0] = 180
                Case $yy1 > $yy2
                    $arr[0] = 270 - ATan(($co) / ($ca)) * $radToDeg
            EndSelect
        Case $xx1 == $xx2
            Select
                Case $yy1 < $yy2
                    $arr[0] = 90
                Case $yy1 == $yy2
                    $arr[0] = 0
                Case $yy1 > $yy2
                    $arr[0] = 270
            EndSelect
        Case $xx1 < $xx2
            Select
                Case $yy1 < $yy2
                    $arr[0] = 90 - ATan(($co) / ($ca)) * $radToDeg
                Case $yy1 == $yy2
                    $arr[0] = 0
                Case $yy1 > $yy2
                    $arr[0] = ATan(($co) / ($ca)) * $radToDeg + 270
                    ;$arr[0] = 270 - ATan(($co) / ($ca)) * $radToDeg
            EndSelect
    EndSelect
    $arr[0] = StringFormat('%.2f', $arr[0])
    $arr[1] = Sqrt($co ^ 2 + $ca ^ 2)
    Return $arr
EndFunc   ;==>_ang

Func _Iif($aa, $bb, $cc)
    If $aa Then Return $bb
    Return $cc
EndFunc   ;==>_Iif
Edited by Detefon

Visit my repository

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
Sign in to follow this

×
