TheDcoder

Edit Box Colours

16 posts in this topic

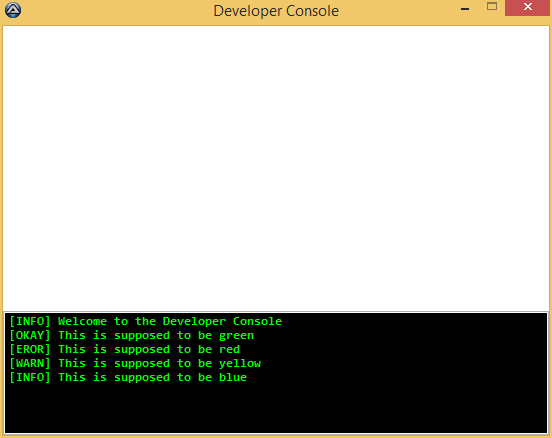

Hello, Today I have a new question about edit box control, please look at the image below:

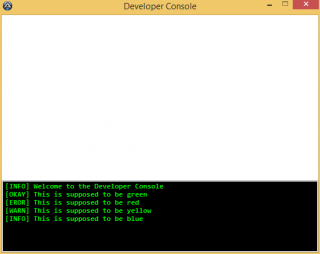

post-89462-0-31115300-1425292947_thumb.p

I want the colors as specified for each event....

Code for the edit box:

$output_terminal = GUICtrlCreateEdit("[INFO] Welcome to the Developer Console" & @CRLF,0,285,546,124,2048,-1)

Code for the function which is used by the whole program:

Func SendEvent($type, $msg)
    If $type = 0 Then $type = '[OKAY] '
    If $type = 1 Then $type = '[EROR] '
    If $type = 2 Then $type = '[WARN] '
    If $type = 3 Then $type = '[INFO] '
    GUICtrlSetData($output_terminal, $type & $msg & @CRLF, 1)
EndFunc

Thanks in advance :)


AutoIt.4.Life Clubrooms - Life is like a Donut (secret key)

Spoiler

My contributions to the AutoIt Community

Some messages & Apologizes:

If I hurt you, Please accept my apologies, I never (regardless of the situation) mean to hurt anybody!!!

Also, I am very busy with my project so I will appear in the last row of the online list, if you want to contact me: Email@TheDcoder.xyz

Or you can have a nice chat with me in freenode, I use the same nick on freenode too!


PLEASE JOIN ##AutoIt AND HELP THE IRC AUTOIT COMMUNITY!

Share this post


Link to post
Share on other sites



TheDcoder,

If you want different colours for each line type then you will need a RichEdit control. :)

Or you can use multiple labels and scroll. Here is an example script showing how you can do this - you need my Scrollbars UDF: ;)

#include <GUIConstantsEx.au3>

#Include <GuiScrollBars_Ex.au3>

Global $iLines = 50 ; Number of items in GUI

; Create GUI
$hGUI = GUICreate("Scroll Colour Line List", 400, 400)

; Create "list" with coloured lines
For $i = 0 To $iLines - 1
    GUICtrlCreateLabel("This is line " & $i, 10, 10 + ($i * 20), 380, 20)
    GUICtrlSetColor(-1, Random(0, 0xFFFFFF, 1))
Next

GUISetState()

; Generate scrollbars
_GUIScrollbars_Generate($hGui, 0, 4 + ($iLines * 20)) ; Just this one line is all you need to get scrollbars !!!!!!!!!!!!!!!!!!!!!!!!!!

While 1
    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            Exit
    EndSwitch
WEnd
M23

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

@Melba23 Can you give me a example for Rich Edit Box too :unsure:?


AutoIt.4.Life Clubrooms - Life is like a Donut (secret key)

Spoiler

My contributions to the AutoIt Community

Some messages & Apologizes:

If I hurt you, Please accept my apologies, I never (regardless of the situation) mean to hurt anybody!!!

Also, I am very busy with my project so I will appear in the last row of the online list, if you want to contact me: Email@TheDcoder.xyz

Or you can have a nice chat with me in freenode, I use the same nick on freenode too!


PLEASE JOIN ##AutoIt AND HELP THE IRC AUTOIT COMMUNITY!

Share this post


Link to post
Share on other sites

TheDcoder,

Feeling lazy today? :whistle:

Go look at the RichEdit examples in the Help file and come back if you have problems. :)

M23

P.S. Or you could look >here. ;)


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

Let me say it again, You are the best Melba!!!!


AutoIt.4.Life Clubrooms - Life is like a Donut (secret key)

Spoiler

My contributions to the AutoIt Community

Some messages & Apologizes:

If I hurt you, Please accept my apologies, I never (regardless of the situation) mean to hurt anybody!!!

Also, I am very busy with my project so I will appear in the last row of the online list, if you want to contact me: Email@TheDcoder.xyz

Or you can have a nice chat with me in freenode, I use the same nick on freenode too!


PLEASE JOIN ##AutoIt AND HELP THE IRC AUTOIT COMMUNITY!

Share this post


Link to post
Share on other sites

There is a small glitch in your _GUICtrlRichEdit_WriteLine Function, It does not accept @CRLF

here is my line of code:

_GUICtrlRichEdit_WriteLine($output_terminal, $type & $msg & @CRLF, 0, "", $colour)

AutoIt.4.Life Clubrooms - Life is like a Donut (secret key)

Spoiler

My contributions to the AutoIt Community

Some messages & Apologizes:

If I hurt you, Please accept my apologies, I never (regardless of the situation) mean to hurt anybody!!!

Also, I am very busy with my project so I will appear in the last row of the online list, if you want to contact me: Email@TheDcoder.xyz

Or you can have a nice chat with me in freenode, I use the same nick on freenode too!


PLEASE JOIN ##AutoIt AND HELP THE IRC AUTOIT COMMUNITY!

Share this post


Link to post
Share on other sites

TheDcoder,



It does not accept @CRLF

Seeing as the example script to which I linked uses @CRLF in every call to the function without any difficulty, I find that a little hard to believe. ;)

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

#8 ·  Posted (edited)

@Melba23

My GUICreateOutputTerminal function: (Used to create Terminal)

Func GUICreateOutputTerminal()
    $return = _GUICtrlRichEdit_Create($main_GUI, "", 0, 285, 546, 124, $ES_READONLY)
    _GUICtrlRichEdit_SetFont($return, Default, "Consolas")
    Local $RGB[3]
    $RGB[0] = 0
    $RGB[1] = 0
    $RGB[2] = 0
    $colour = _ColorSetCOLORREF($RGB)
    _GUICtrlRichEdit_SetBkColor($return, $colour)
    Return $return
EndFunc ;= OutputTerminal

My SendEvent funtion: (Used to send events with ease)

Func SendEvent($type, $msg)
    Local $colour
    If $type = 0 Then
        $type = '[OKAY] '
        $colour = 0x00FF000
    ElseIf $type = 1 Then
        $type = '[EROR] '
        $colour = 0xFF0000
    ElseIf $type = 2 Then
        $type = '[WARN] '
        $colour = 0xFFFF00
    ElseIf $type = 3 Then
        $type = '[INFO] '
        $colour = 0x4545FF
    EndIf
    _GUICtrlRichEdit_WriteLine($output_terminal, $type & $msg & @CRLF, 0, "", $colour)
EndFunc ;= SendEvent



Your _GUICtrlRichEdit_WriteLine function: (Your function)

Func _GUICtrlRichEdit_WriteLine($hWnd, $sText, $iIncrement = 0, $sAttrib = "", $iColor = -1)

    ; Count the @CRLFs
    StringReplace(_GUICtrlRichEdit_GetText($hWnd, True), @CRLF, "")
    Local $iLines = @extended
    ; Adjust the text char count to account for the @CRLFs
    Local $iEndPoint = _GUICtrlRichEdit_GetTextLength($hWnd, True, True) - $iLines
    ; Add new text
    _GUICtrlRichEdit_AppendText($hWnd, $sText & @CRLF)
    ; Select text between old and new end points
    _GuiCtrlRichEdit_SetSel($hWnd, $iEndPoint, -1)
    ; Convert colour from RGB to BGR
    $iColor = Hex($iColor, 6)
    $iColor = '0x' & StringMid($iColor, 5, 2) & StringMid($iColor, 3, 2) & StringMid($iColor, 1, 2)
    ; Set colour
    If $iColor <> -1 Then _GuiCtrlRichEdit_SetCharColor($hWnd, $iColor)
    ; Set size
    If $iIncrement <> 0 Then _GUICtrlRichEdit_ChangeFontSize($hWnd, $iIncrement)
    ; Set weight
    If $sAttrib <> "" Then _GUICtrlRichEdit_SetCharAttributes($hWnd, $sAttrib)
    ; Clear selection
    _GUICtrlRichEdit_Deselect($hWnd)

EndFunc

What do you think is wrong :unsure:?

Edited by TheDcoder

AutoIt.4.Life Clubrooms - Life is like a Donut (secret key)

Spoiler

My contributions to the AutoIt Community

Some messages & Apologizes:

If I hurt you, Please accept my apologies, I never (regardless of the situation) mean to hurt anybody!!!

Also, I am very busy with my project so I will appear in the last row of the online list, if you want to contact me: Email@TheDcoder.xyz

Or you can have a nice chat with me in freenode, I use the same nick on freenode too!


PLEASE JOIN ##AutoIt AND HELP THE IRC AUTOIT COMMUNITY!

Share this post


Link to post
Share on other sites

TheDcoder,



What do you think is wrong :unsure:>

No idea from those snippets - I have no idea how they all fit together as neither of the first two appear to have any relationship to each other. :wacko:

Post the whole script and I might be able to offer an suggestion. ;)

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

I have no idea how they all fit together as neither of the first two appear to have any relationship to each other. :wacko:

The first one is my function to send events to the terminal & the second is to create the terminal

Can I PM you the whole script? b/c I don't want others who are using my software can get the source code..


AutoIt.4.Life Clubrooms - Life is like a Donut (secret key)

Spoiler

My contributions to the AutoIt Community

Some messages & Apologizes:

If I hurt you, Please accept my apologies, I never (regardless of the situation) mean to hurt anybody!!!

Also, I am very busy with my project so I will appear in the last row of the online list, if you want to contact me: Email@TheDcoder.xyz

Or you can have a nice chat with me in freenode, I use the same nick on freenode too!


PLEASE JOIN ##AutoIt AND HELP THE IRC AUTOIT COMMUNITY!

Share this post


Link to post
Share on other sites

TheDcoder,

By all means PM me the script. :)

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

TheDcoder,

That was easy - you need to add the $ES_MULTILINE style to your RichEdit control so that it recognises @CRLF. ;)

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

That was easy - you need to add the $ES_MULTILINE style to your RichEdit control so that it recognises @CRLF. ;)

Thanks :thumbsup:, but why did you not recognize the error by looking at the code for GUICreateOutputTerminal function :blink:


AutoIt.4.Life Clubrooms - Life is like a Donut (secret key)

Spoiler

My contributions to the AutoIt Community

Some messages & Apologizes:

If I hurt you, Please accept my apologies, I never (regardless of the situation) mean to hurt anybody!!!

Also, I am very busy with my project so I will appear in the last row of the online list, if you want to contact me: Email@TheDcoder.xyz

Or you can have a nice chat with me in freenode, I use the same nick on freenode too!


PLEASE JOIN ##AutoIt AND HELP THE IRC AUTOIT COMMUNITY!

Share this post


Link to post
Share on other sites

TheDcoder,

In a perfect world I might well have done so - but I did not. Besides, I find it much easier to deal with whole scripts so that I can run them and see what happens - that way I can adjust things as I go along to confirm that I am on the right track (or not!). Debugging is an art, not an exact science, and I prefer seeing the whole picture. ;)

M23

1 person likes this

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

Now after adding $ES_MULTILINE, its adding an extra @CRLF for me.... (Fixed this by removing @CRLF in the SendEvent function)


AutoIt.4.Life Clubrooms - Life is like a Donut (secret key)

Spoiler

My contributions to the AutoIt Community

Some messages & Apologizes:

If I hurt you, Please accept my apologies, I never (regardless of the situation) mean to hurt anybody!!!

Also, I am very busy with my project so I will appear in the last row of the online list, if you want to contact me: Email@TheDcoder.xyz

Or you can have a nice chat with me in freenode, I use the same nick on freenode too!


PLEASE JOIN ##AutoIt AND HELP THE IRC AUTOIT COMMUNITY!

Share this post


Link to post
Share on other sites

Before:

post-89462-0-31115300-1425292947_thumb.p

After:



AutoIt.4.Life Clubrooms - Life is like a Donut (secret key)

Spoiler

My contributions to the AutoIt Community

Some messages & Apologizes:

If I hurt you, Please accept my apologies, I never (regardless of the situation) mean to hurt anybody!!!

Also, I am very busy with my project so I will appear in the last row of the online list, if you want to contact me: Email@TheDcoder.xyz

Or you can have a nice chat with me in freenode, I use the same nick on freenode too!


PLEASE JOIN ##AutoIt AND HELP THE IRC AUTOIT COMMUNITY!

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!


Register a new account

Sign in

Already have an account? Sign in here.


Sign In Now

  • Similar Content

    • RaiNote
      By RaiNote
      Hi,
      is there a way to convert this Code to an Code which can make more than one Color in one line?
      Func _GUICtrlRichEdit_WriteLine($hWnd, $sText, $iIncrement = 0, $sAttrib = "", $iColor = -1) ; Count the @CRLFs StringReplace(_GUICtrlRichEdit_GetText($hWnd, True), @CRLF, "") Local $iLines = @extended ; Adjust the text char count to account for the @CRLFs Local $iEndPoint = _GUICtrlRichEdit_GetTextLength($hWnd, True, True) - $iLines ; Add new text _GUICtrlRichEdit_AppendText($hWnd, $sText & @CRLF) ; Select text between old and new end points _GuiCtrlRichEdit_SetSel($hWnd, $iEndPoint, -1) ; Convert colour from RGB to BGR $iColor = Hex($iColor, 6) $iColor = '0x' & StringMid($iColor, 5, 2) & StringMid($iColor, 3, 2) & StringMid($iColor, 1, 2) ; Set colour If $iColor <> -1 Then _GuiCtrlRichEdit_SetCharColor($hWnd, $iColor) ; Set size If $iIncrement <> 0 Then _GUICtrlRichEdit_ChangeFontSize($hWnd, $iIncrement) ; Set weight If $sAttrib <> "" Then _GUICtrlRichEdit_SetCharAttributes($hWnd, $sAttrib) ; Clear selection _GUICtrlRichEdit_Deselect($hWnd) EndFunc
