GDI+ & LAYERED Window == No Live Preview?

Recommended Posts

Taz77

Hi, since days I have a problem which I get not solved.
The problem is that the content of the second GUI does not show in the Live Preview, when the window is minimized.

(The second GUI is, required to get the transparency for the GUI)



That is the example GUI:
_Frage2-Gui.thumb.png.925773fabd1c5a35ce

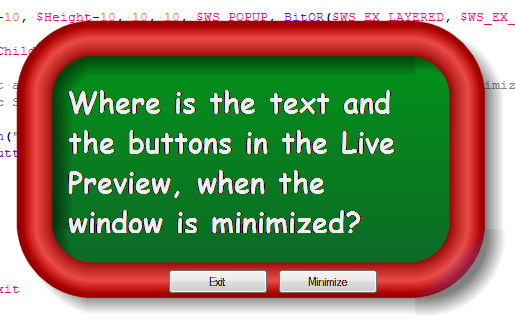

So it looks right:
_Frage2.thumb.png.8f5de218d1acd1b6c91373



But when the GUI is minimized, looks like this:
_Frage2_Min.thumb.png.a626df7c4a50e0e2ad



Source Code:

#include <WindowsConstants.au3>
#include <GUIConstantsEx.au3>
#include <GDIPlus.au3>

Func _MaxInt($iNum1, $iNum2)
    Return ($iNum1 > $iNum2) ? $iNum1 : $iNum2
EndFunc

Func _SetBmp($hGUI, $hImage, $iWidth, $iHeight, $iOpacity = 255)
    Local $hScrDC = _WinAPI_GetDC($hGUI)
    Local $hMemDC = _WinAPI_CreateCompatibleDC($hScrDC)
    Local $hBitmap = _GDIPlus_BitmapCreateHBITMAPFromBitmap($hImage)
    Local $hOld = _WinAPI_SelectObject($hMemDC, $hBitmap)
    Local $tSize = DllStructCreate("long X;long Y")
    Local $pSize = DllStructGetPtr($tSize)
    DllStructSetData($tSize, "X", $iWidth)
    DllStructSetData($tSize, "Y", $iHeight)

    Local $tSource = DllStructCreate("long X;long Y")
    Local $pSource = DllStructGetPtr($tSource)
    Local $tBlend = DllStructCreate("byte Op;byte Flags;byte Alpha;byte Format")
    Local $pBlend = DllStructGetPtr($tBlend)
    DllStructSetData($tBlend, "Alpha", $iOpacity)
    DllStructSetData($tBlend, "Format", 1)

    _WinAPI_UpdateLayeredWindow($hGUI, $hScrDC, 0, $pSize, $hMemDC, $pSource, 0, $pBlend, 0x02)
    _WinAPI_ReleaseDC(0, $hScrDC)
    _WinAPI_SelectObject($hMemDC, $hOld)
    _WinAPI_DeleteObject($hBitmap)
    _WinAPI_DeleteDC($hMemDC)
EndFunc

Func _DrawItems(ByRef $hImage, $iWidth, $iHeight, $hGui)
    Local Enum $Bitmap, $x, $y, $Width, $Height
    #forceref $x, $y

    Local $aData[9][5] = [[0, 0, 0, 76, 76],[0, 77, 0, 1, 60],[0, 87, 0, 96, 76],[0, 0, 76, 76, 1],[1, 0, 0, 0, 0],  [0, 87, 76, 96, 1],[0, 0, 87, 76, 87],[0, 77, 87, 1, 87],[0, 87, 87, 96, 87]]
    Local $WidthSteps = _MaxInt(Round(($iWidth - ($aData[0][$Width] + $aData[2][$Width])) / $aData[1][$Width], 0), 0)
    Local $HeightSteps = _MaxInt(Round(($iHeight - ($aData[0][$Height] + $aData[6][$Height])) / $aData[3][$Height], 0), 0)
    Local $WidthTotal = $aData[0][$Width] + $aData[2][$Width] + ($WidthSteps * $aData[1][$Width])
    Local $HeightTotal = $aData[0][$Height] + $aData[6][$Height] + ($HeightSteps * $aData[3][$Height])

    Local $hWindow = _GDIPlus_GraphicsCreateFromHWND($hGui)
    Local $hBmp = _GDIPlus_BitmapCreateFromGraphics($WidthTotal, $HeightTotal, $hWindow)
    Local $hGraphic = _GDIPlus_ImageGetGraphicsContext($hBmp)
    Local $hBrush = _GDIPlus_LineBrushCreateFromRect(_GDIPlus_RectFCreate(0, 0, $iWidth, $iHeight), 0xFF009917, 0xFF0F6029, 1)


    For $i = 0 To UBound($aData) - 1
        If $aData[$i][0] <> 1 Then
            $aData[$i][0] = _GDIPlus_BitmapCloneArea($hImage, $aData[$i][1], $aData[$i][2], $aData[$i][3], $aData[$i][4], $GDIP_PXF32ARGB)
        EndIf
    Next

    _GDIPlus_GraphicsFillRect($hGraphic, 30, 30, $iWidth-80, $iHeight-70, $hBrush)

    ; Left: Top, Bottom
    _GDIPlus_GraphicsDrawImageRect($hGraphic, $aData[0][$Bitmap], 0, 0, $aData[0][$Width], $aData[0][$Height])
    _GDIPlus_GraphicsDrawImageRect($hGraphic, $aData[6][$Bitmap], 0, $HeightTotal-$aData[6][$Height], $aData[6][$Width], $aData[6][$Height])

    ; Right: Top, Bottom
    _GDIPlus_GraphicsDrawImageRect($hGraphic, $aData[2][$Bitmap], $WidthTotal-$aData[2][$Width], 0, $aData[2][$Width], $aData[2][$Height])
    _GDIPlus_GraphicsDrawImageRect($hGraphic, $aData[8][$Bitmap], $WidthTotal-$aData[8][$Width], $HeightTotal-$aData[8][$Height], $aData[8][$Width], $aData[8][$Height])

    ; Center: Top, Bottom
    For $i = 0 To $WidthSteps - 1
        _GDIPlus_GraphicsDrawImageRect($hGraphic, $aData[1][$Bitmap], $aData[0][$Width] + ($i * $aData[1][$Width]), 0, $aData[1][$Width], $aData[1][$Height])
        _GDIPlus_GraphicsDrawImageRect($hGraphic, $aData[7][$Bitmap], $aData[3][$Width] + ($i * $aData[7][$Width]), $HeightTotal - $aData[7][$Height], $aData[7][$Width], $aData[7][$Height])
    Next

    ; Center: Left, Right
    For $i = 0 To $HeightSteps - 1
        _GDIPlus_GraphicsDrawImageRect($hGraphic, $aData[3][$Bitmap], 0, $aData[0][$Height] + ($i * $aData[3][$Height]), $aData[3][$Width], $aData[3][$Height])
        _GDIPlus_GraphicsDrawImageRect($hGraphic, $aData[5][$Bitmap], $WidthTotal - $aData[5][$Width], $aData[2][$Height] + ($i * $aData[5][$Height]), $aData[5][$Width], $aData[5][$Height])
    Next

    For $i = 0 To UBound($aData) - 1
        If $aData[$i][0] <> 1 Then
            _GDIPlus_ImageDispose($aData[$i][0])
        EndIf
    Next

    _GDIPlus_BrushDispose($hBrush)
    _GDIPlus_GraphicsDispose($hGraphic)
    _GDIPlus_GraphicsDispose($hWindow)

    Return $hBmp
EndFunc


_GDIPlus_Startup()

Global $Image = _GDIPlus_ImageLoadFromFile(StringRegExpReplace(@AutoItExe, "(?i)AutoIt(?:[\dx_]+)\.exe", "Examples\\GUI\\Torus.png"))
Global $Width = 500, $Height = 300
Global $Gui = GUICreate("Test Gui", $Width, $Height, -1, -1, BitOR($WS_POPUP, $WS_GROUP, $WS_SYSMENU), $WS_EX_LAYERED)
Global $Bmp = _DrawItems($Image, $Width, $Height, $Gui)

_SetBmp($Gui, $Bmp, $Width, $Height)
_GDIPlus_ImageDispose($Image)
_GDIPlus_ImageDispose($Bmp)

Global $Child = GUICreate("", $Width-10, $Height-10, 10, 10, $WS_POPUP, BitOR($WS_EX_LAYERED, $WS_EX_MDICHILD), $Gui)
GUISetBkColor(0x000000, $Child)
_WinAPI_SetLayeredWindowAttributes($Child, 0x000000, 255)

GUICtrlCreateLabel("Where is the text and the buttons in the Live Preview, when the window is minimized?", 50, 58, 360, 152)
GUICtrlSetFont(-1, 22, 800, 0, "Comic Sans Ms")
GUICtrlSetColor(-1, 0xEEEEEE)
Global $BtnExit = GUICtrlCreateButton("Exit", 150, 246, 100, 25)
Global $BtnMinimize = GUICtrlCreateButton("Minimize", 260, 246, 100, 25)

GUISetState(@SW_SHOW, $Gui)
GUISetState(@SW_SHOW, $Child)

While 1
    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE, $BtnExit
            ExitLoop
        Case $BtnMinimize
            WinSetState($Gui, "", @SW_MINIMIZE)
    EndSwitch
WEnd

_GDIPlus_Shutdown()
GUIDelete($Gui)
GUIDelete($Child)



I hope you can help me:)

PS: Sorry my English is not really good

Share this post


Link to post
Share on other sites
texan

Did you ever figure this out? I have a similar issue. Noticed it only occurs when using a basic theme in Windows 7 but works fine when using one of the Aero themes.

Share this post


Link to post
Share on other sites
UEZ

Why do you think that this preview issue is related to AutoIt?


Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯  ٩(●̮̮̃•̃)۶ ٩(-̮̮̃-̃)۶ૐ

Share this post


Link to post
Share on other sites
UEZ

Not working on Win8 / Win10.



Why don't you draw the text onto the bitmap and display only one GUI?

Edited by UEZ
