[SOLVED] Change tray menu text color

9 posts in this topic

#1 ·  Posted (edited)

I've found a way to change the back ground color but not a way to change the text color of the menu.

I've found this in the helpfile to change the background.

#NoTrayIcon
#include <MsgBoxConstants.au3>
#include <TrayConstants.au3> ; Required for the $TRAY_ICONSTATE_SHOW constant.

Opt("TrayMenuMode", 3) ; The default tray menu items will not be shown and items are not checked when selected. These are options 1 and 2 for TrayMenuMode.

Global Const $MIM_APPLYTOSUBMENUS = 0x80000000, $MIM_BACKGROUND = 0x00000002 ; Constants required for SetMenuColor

Example()

Func Example()
    Local $idSettings = TrayCreateMenu("Settings") ; Create a tray menu sub menu with two sub items.
    Local $idDisplay = TrayCreateItem("Display", $idSettings)
    Local $idPrinter = TrayCreateItem("Printer", $idSettings)
    TrayCreateItem("") ; Create a separator line.

    Local $idAbout = TrayCreateItem("About")
    TrayCreateItem("") ; Create a separator line.

    Local $idExit = TrayCreateItem("Exit")

    TraySetState($TRAY_ICONSTATE_SHOW) ; Show the tray menu.

    SetMenuColor(0, 0xEEBB99) ; BGR color value, '0' refers to the tray menu itself.
    SetMenuColor($idSettings, 0x66BB99); BGR color value for the 'Settings' menu.

    While 1
        Switch TrayGetMsg()
            Case $idAbout ; Display a message box about the AutoIt version and installation path of the AutoIt executable.
                MsgBox($MB_SYSTEMMODAL, "", "AutoIt tray menu example." & @CRLF & @CRLF & _
                        "Version: " & @AutoItVersion & @CRLF & _
                        "Install Path: " & StringLeft(@AutoItExe, StringInStr(@AutoItExe, "\", 0, -1) - 1)) ; Find the folder of a full path.

            Case $idDisplay, $idPrinter
                MsgBox($MB_SYSTEMMODAL, "", "A sub menu item was selected from the tray menu.")

            Case $idExit ; Exit the loop.
                ExitLoop
        EndSwitch
    WEnd
EndFunc   ;==>Example

Func SetMenuColor($iMenuID, $iColor)
    Local $hMenu = TrayItemGetHandle($iMenuID) ; Get the internal menu handle

    Local $hBrush = DllCall("gdi32.dll", "hwnd", "CreateSolidBrush", "int", $iColor)
    $hBrush = $hBrush[0]

    Local $tMenuInfo = DllStructCreate("dword;dword;dword;uint;ptr;dword;ptr")
    DllStructSetData($tMenuInfo, 1, DllStructGetSize($tMenuInfo))
    DllStructSetData($tMenuInfo, 2, BitOR($MIM_APPLYTOSUBMENUS, $MIM_BACKGROUND))
    DllStructSetData($tMenuInfo, 5, $hBrush)

    DllCall("user32.dll", "int", "SetMenuInfo", "hwnd", $hMenu, "struct*", $tMenuInfo)
EndFunc   ;==>SetMenuColor

I want to have a black menu with a white font (the same as windows 10 uses in the taskbar menu's)

Have some on has a idea how to do this?

Edited by nend

Share this post


Link to post
Share on other sites



Something like this here?






Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯  ٩(●̮̮̃•̃)۶ ٩(-̮̮̃-̃)۶ૐ

Share this post


Link to post
Share on other sites
13 hours ago, UEZ said:

Something like this here?





Thanks UEZ but....... I think you read over it, what I'am looking at is a Tray Menu with black background and white text (font).

Were you linked to is a Popup, do you have a idea?



Share this post


Link to post
Share on other sites

To get a similar W10 effect I would use a self create GUI instead of the build-in tray menu because the tray menu is limited.

Something like this here:



or this here:



In these examples you have the full control over the result.


Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯  ٩(●̮̮̃•̃)۶ ٩(-̮̮̃-̃)۶ૐ

Share this post


Link to post
Share on other sites

@UEZ

If I understand it correct this is'nt possible to do with the traymenu and if I want to have it I have to build it from scratch?

I will look into that but I use a menu system with more than 300 entry and I think it's a bit hard to build, but I wil give it try.

 Thank for the help!

Share this post


Link to post
Share on other sites

#6 ·  Posted (edited)

16 minutes ago, nend said:

If I understand it correct this is'nt possible to do with the traymenu and if I want to have it I have to build it from scratch?

I never thought about to change the text color of a tray menu entry. Maybe it is possible - maybe not.

16 minutes ago, nend said:

I will look into that but I use a menu system with more than 300 entry and I think it's a bit hard to build, but I wil give it try.

With this amount of entries it makes no sense to use the self-built GDI+ GUIs.

Edited by UEZ

Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯  ٩(●̮̮̃•̃)۶ ٩(-̮̮̃-̃)۶ૐ

Share this post


Link to post
Share on other sites
2 minutes ago, UEZ said:

I never thought about to change the bg color of a tray menu. Maybe it is possible - maybe not.

With this amount of entries it makes no sense to use the self-built GDI+ GUIs.

The background color is'nt difficult to change it (it's a peace of code from the helpfile, see the first post) but the problem is if I make the background black the text is also black and won't be vissible.

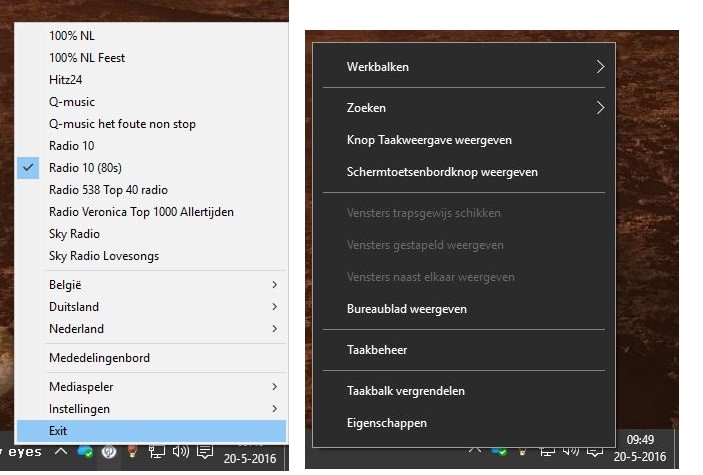

Here a screenshot with what I try to do.

Left the menu which Atoit make                        Right Tray menu with colors which I want to have

Naamloos.jpg.834e799c4e39b48ce28301214b4

But If it is'nt possible to do I don't have to look futher into this.

Share this post


Link to post
Share on other sites

Maybe ModernMenuRaw by Holger will do the trick.





1 person likes this

Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯  ٩(●̮̮̃•̃)۶ ٩(-̮̮̃-̃)۶ૐ

Share this post


Link to post
Share on other sites

@UEZ Thanks thats what I'am looking for.
