PINTO1927 Posted May 24, 2016 Posted May 24, 2016 Hi guys, I would like to make a gui borderless viewing a png image with transparent background. pretty much has to be visible only the png image with no background..you have any simple example? Thank's GUICtrlCreatePic still it provides the image with the background...
AutoBert Posted May 24, 2016 Posted May 24, 2016 (edited) Here is a small example (from @UEZ: expandcollapse popup#include <ButtonConstants.au3> #include <MsgBoxConstants.au3> #include <StructureConstants.au3> #include <WinAPIConstants.au3> #include <GDIPlus.au3> #include <GUIConstantsEx.au3> #include <WindowsConstants.au3> _GDIPlus_Startup() Global Const $SC_DRAGMOVE = 0xF012 Global $iW, $iH, $hImage, $hBitmap, $hGUI $hImage = _GDIPlus_BitmapCreateFromFile("C:\Program Files\AutoIt3\Examples\GUI\Torus.png") $hBitmap = _GDIPlus_BitmapCreateHBITMAPFromBitmap($hImage) $iW = _GDIPlus_ImageGetWidth($hImage) $iH = _GDIPlus_ImageGetHeight($hImage) $hGUI = GUICreate("", $iW, $iH, -1, -1, $WS_POPUP, $WS_EX_LAYERED) GUISetState() _WinAPI_BitmapDisplayTransparentInGUI($hBitmap, $hGUI) GUIRegisterMsg($WM_LBUTTONDOWN, "_WM_LBUTTONDOWN") Do Until GUIGetMsg() = $GUI_EVENT_CLOSE _WinAPI_DeleteObject($hBitmap) _GDIPlus_BitmapDispose($hImage) _GDIPlus_Shutdown() GUIDelete() Func _WinAPI_BitmapDisplayTransparentInGUI(ByRef $hHBitmap, ByRef $hGUI, $iOpacity = 0xFF, $bReleaseGDI = True) If Not BitAND(GUIGetStyle($hGUI)[1], $WS_EX_LAYERED) = $WS_EX_LAYERED Then Return SetError(1, 0, 0) Local $tDim = DllStructCreate($tagBITMAP) If Not _WinAPI_GetObject($hHBitmap, DllStructGetSize($tDim), DllStructGetPtr($tDim)) Then Return SetError(2, 0, 0) Local $tSize = DllStructCreate($tagSIZE), $tSource = DllStructCreate($tagPOINT), $tBlend = DllStructCreate($tagBLENDFUNCTION) Local Const $hScrDC = _WinAPI_GetDC(0), $hMemDC = _WinAPI_CreateCompatibleDC($hScrDC), $hOld = _WinAPI_SelectObject($hMemDC, $hHBitmap) $tSize.X = $tDim.bmWidth $tSize.Y = $tDim.bmHeight $tBlend.Alpha = $iOpacity $tBlend.Format = 1 _WinAPI_UpdateLayeredWindow($hGUI, $hScrDC, 0, DllStructGetPtr($tSize), $hMemDC, DllStructGetPtr($tSource), 0, DllStructGetPtr($tBlend), $ULW_ALPHA) _WinAPI_ReleaseDC(0, $hScrDC) _WinAPI_SelectObject($hMemDC, $hOld) _WinAPI_DeleteDC($hMemDC) If $bReleaseGDI Then _WinAPI_DeleteObject($hHBitmap) Return True EndFunc Func _WM_LBUTTONDOWN($hWnd, $iMsg, $wParam, $lParam) _SendMessage($hGUI, $WM_SYSCOMMAND, $SC_DRAGMOVE, 0) EndFunc ;==>_WM_LBUTTONDOWN Edit: after some changes (upgrades) you have to insert: #include <WinAPISysWin.au3> at top of script "#include section" Edited May 29, 2024 by AutoBert JoeBar, ioa747, Parsix and 1 other 4
nend Posted May 24, 2016 Posted May 24, 2016 (edited) Here a other example I also think it is from UEZ expandcollapse popup#include <GDIPlus.au3> #include <GUIConstantsEx.au3> #include <WindowsConstants.au3> _GDIPlus_Startup() $hSplashlogo = _GDIPlus_ImageLoadFromFile("C:\Program Files (x86)\AutoIt3\Examples\GUI\Torus.png") $logoheight = (@DesktopHeight/2) - (_GDIPlus_ImageGetHeight($hSplashlogo)/2) - 50 $logowidth = (@DesktopWidth /2) - (_GDIPlus_ImageGetWidth($hSplashlogo)/2) $SplashGUIlogo = GUICreate("", _GDIPlus_ImageGetWidth($hSplashlogo), _GDIPlus_ImageGetHeight($hSplashlogo), $logowidth, $logoheight, $WS_POPUP, BitOR($WS_EX_LAYERED,$WS_EX_TOOLWINDOW)) _SetBitmap($SplashGUIlogo, $hSplashlogo, 255, _GDIPlus_ImageGetWidth($hSplashlogo), _GDIPlus_ImageGetHeight($hSplashlogo)) GUISetState(@SW_SHOWNA, $SplashGUIlogo) While 1 Sleep(20) WEnd _GDIPlus_Shutdown() Func _SetBitmap($hGUI, $hImage, $iOpacity, $n_width = 200, $n_height = 200) Local $hScrDC, $hMemDC, $hBitmap, $hOld, $pSize, $tSize, $pSource, $tSource, $pBlend, $tBlend $hScrDC = _WinAPI_GetDC(0) $hMemDC = _WinAPI_CreateCompatibleDC($hScrDC) $hBitmap = _GDIPlus_BitmapCreateHBITMAPFromBitmap($hImage) $hOld = _WinAPI_SelectObject($hMemDC, $hBitmap) $tSize = DllStructCreate($tagSIZE) $pSize = DllStructGetPtr($tSize) DllStructSetData($tSize, "X", $n_width) DllStructSetData($tSize, "Y", $n_height) $tSource = DllStructCreate($tagPOINT) $pSource = DllStructGetPtr($tSource) $tBlend = DllStructCreate($tagBLENDFUNCTION) $pBlend = DllStructGetPtr($tBlend) DllStructSetData($tBlend, "Alpha", $iOpacity) DllStructSetData($tBlend, "Format", 1) _WinAPI_UpdateLayeredWindow($hGUI, $hScrDC, 0, $pSize, $hMemDC, $pSource, 0, $pBlend, $ULW_ALPHA) _WinAPI_ReleaseDC(0, $hScrDC) _WinAPI_SelectObject($hMemDC, $hOld) _WinAPI_DeleteObject($hBitmap) _WinAPI_DeleteDC($hMemDC) EndFunc ;==>_SetBitmap Edited May 24, 2016 by nend edumanilha 1
AutoBert Posted June 7, 2018 Posted June 7, 2018 By using/adding the extended Style $WS_EX_TOPMOST with GuiCreate in my posted example: $hGUI = GUICreate("", $iW, $iH, -1, -1, $WS_POPUP, BitOR($WS_EX_LAYERED,$WS_EX_TOPMOST))
Hotzenplotz Posted March 2, 2021 Posted March 2, 2021 On 5/24/2016 at 3:27 PM, nend said: Here a other example I also think it is from UEZ expandcollapse popup#include <GDIPlus.au3> #include <GUIConstantsEx.au3> #include <WindowsConstants.au3> _GDIPlus_Startup() $hSplashlogo = _GDIPlus_ImageLoadFromFile("C:\Program Files (x86)\AutoIt3\Examples\GUI\Torus.png") $logoheight = (@DesktopHeight/2) - (_GDIPlus_ImageGetHeight($hSplashlogo)/2) - 50 $logowidth = (@DesktopWidth /2) - (_GDIPlus_ImageGetWidth($hSplashlogo)/2) $SplashGUIlogo = GUICreate("", _GDIPlus_ImageGetWidth($hSplashlogo), _GDIPlus_ImageGetHeight($hSplashlogo), $logowidth, $logoheight, $WS_POPUP, BitOR($WS_EX_LAYERED,$WS_EX_TOOLWINDOW)) _SetBitmap($SplashGUIlogo, $hSplashlogo, 255, _GDIPlus_ImageGetWidth($hSplashlogo), _GDIPlus_ImageGetHeight($hSplashlogo)) GUISetState(@SW_SHOWNA, $SplashGUIlogo) While 1 Sleep(20) WEnd _GDIPlus_Shutdown() Func _SetBitmap($hGUI, $hImage, $iOpacity, $n_width = 200, $n_height = 200) Local $hScrDC, $hMemDC, $hBitmap, $hOld, $pSize, $tSize, $pSource, $tSource, $pBlend, $tBlend $hScrDC = _WinAPI_GetDC(0) $hMemDC = _WinAPI_CreateCompatibleDC($hScrDC) $hBitmap = _GDIPlus_BitmapCreateHBITMAPFromBitmap($hImage) $hOld = _WinAPI_SelectObject($hMemDC, $hBitmap) $tSize = DllStructCreate($tagSIZE) $pSize = DllStructGetPtr($tSize) DllStructSetData($tSize, "X", $n_width) DllStructSetData($tSize, "Y", $n_height) $tSource = DllStructCreate($tagPOINT) $pSource = DllStructGetPtr($tSource) $tBlend = DllStructCreate($tagBLENDFUNCTION) $pBlend = DllStructGetPtr($tBlend) DllStructSetData($tBlend, "Alpha", $iOpacity) DllStructSetData($tBlend, "Format", 1) _WinAPI_UpdateLayeredWindow($hGUI, $hScrDC, 0, $pSize, $hMemDC, $pSource, 0, $pBlend, $ULW_ALPHA) _WinAPI_ReleaseDC(0, $hScrDC) _WinAPI_SelectObject($hMemDC, $hOld) _WinAPI_DeleteObject($hBitmap) _WinAPI_DeleteDC($hMemDC) EndFunc ;==>_SetBitmap i know this nearly 5 years ago, but can maybe @UEZ explain me how to get on top of this gui comboboxes or sliders or labels Best Regards
Hotzenplotz Posted March 3, 2021 Posted March 3, 2021 good Morning i managed to get label working but i mess up the same way with combobox
UEZ Posted March 3, 2021 Posted March 3, 2021 (edited) Hi Räuber @Hotzenplotz try this: expandcollapse popup#include <GDIPlus.au3> #include <GUIConstantsEx.au3> #include <StaticConstants.au3> #include <WinAPIConstants.au3> #include <WinAPISysWin.au3> #include <WindowsConstants.au3> _GDIPlus_Startup() Global Const $SC_DRAGMOVE = 0xF012 $hSplashlogo = _GDIPlus_ImageLoadFromFile("C:\Program Files (x86)\AutoIt3\Examples\GUI\Torus.png") $iw = _GDIPlus_ImageGetWidth($hSplashlogo) $ih = _GDIPlus_ImageGetHeight($hSplashlogo) $SplashGUIlogo = GUICreate("", $iw, $ih, -1, -1, $WS_POPUP, $WS_EX_LAYERED) _SetBitmap($SplashGUIlogo, $hSplashlogo, 255, $iw, $ih) $hGUI_c = GUICreate("Test", $iw, $ih, 0, 0, $WS_POPUP, BitOR($WS_EX_LAYERED, $WS_EX_MDICHILD), $SplashGUIlogo) GUISetBkColor(0x123456, $hGUI_c) _WinAPI_SetLayeredWindowAttributes($hGUI_c, 0x123456) $idComboBox = GUICtrlCreateCombo("Item 1", $iw / 2 - 35, 20, 50, 20) GUICtrlSetData($idComboBox, "Item 2|Exit", "Item 2") $idButton_Close = GUICtrlCreateButton("X", $iw / 2 - 30, $ih - 60, 35, 25) $idLabel = GUICtrlCreateLabel("Test GUI", 0, $ih / 2 - 15, $iw - 20, 20, BitOR($SS_CENTER, $SS_CENTERIMAGE, $SS_SUNKEN)) GUICtrlSetBkColor(-1, 0x404040) GUICtrlSetColor(-1, 0xFFFFFF) GUISetState(@SW_SHOWNA, $SplashGUIlogo) GUISetState(@SW_SHOW, $hGUI_c) GUIRegisterMsg($WM_LBUTTONDOWN, "_WM_LBUTTONDOWN") While 1 Switch GUIGetMsg() Case $GUI_EVENT_CLOSE, $idButton_Close ExitLoop Case $idComboBox $sComboRead = GUICtrlRead($idComboBox) If $sComboRead = "Exit" Then ExitLoop EndSwitch WEnd GUIDelete($hGUI_c) GUIDelete($SplashGUIlogo) _GDIPlus_ImageDispose($hSplashlogo) _GDIPlus_Shutdown() Exit Func _WM_LBUTTONDOWN($hWnd, $iMsg, $wParam, $lParam) _SendMessage($SplashGUIlogo, $WM_SYSCOMMAND, $SC_DRAGMOVE, 0) EndFunc ;==>_WM_LBUTTONDOWN Func _SetBitmap($hGUI, $hImage, $iOpacity, $n_width = 200, $n_height = 200) Local $hScrDC, $hMemDC, $hBitmap, $hOld, $pSize, $tSize, $pSource, $tSource, $pBlend, $tBlend $hScrDC = _WinAPI_GetDC(0) $hMemDC = _WinAPI_CreateCompatibleDC($hScrDC) $hBitmap = _GDIPlus_BitmapCreateHBITMAPFromBitmap($hImage) $hOld = _WinAPI_SelectObject($hMemDC, $hBitmap) $tSize = DllStructCreate($tagSIZE) $pSize = DllStructGetPtr($tSize) DllStructSetData($tSize, "X", $n_width) DllStructSetData($tSize, "Y", $n_height) $tSource = DllStructCreate($tagPOINT) $pSource = DllStructGetPtr($tSource) $tBlend = DllStructCreate($tagBLENDFUNCTION) $pBlend = DllStructGetPtr($tBlend) DllStructSetData($tBlend, "Alpha", $iOpacity) DllStructSetData($tBlend, "Format", 1) _WinAPI_UpdateLayeredWindow($hGUI, $hScrDC, 0, $pSize, $hMemDC, $pSource, 0, $pBlend, $ULW_ALPHA) _WinAPI_ReleaseDC(0, $hScrDC) _WinAPI_SelectObject($hMemDC, $hOld) _WinAPI_DeleteObject($hBitmap) _WinAPI_DeleteDC($hMemDC) EndFunc ;==>_SetBitmap Should look like this: Edited March 3, 2021 by UEZ pixelsearch and Parsix 1 1 Please don't send me any personal message and ask for support! I will not reply! Selection of finest graphical examples at Codepen.io The own fart smells best! ✌Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!¯\_(ツ)_/¯ ٩(●̮̮̃•̃)۶ ٩(-̮̮̃-̃)۶ૐ
pixelsearch Posted March 3, 2021 Posted March 3, 2021 UEZ ended before us This is what I had so far, based on AutoBert's 1st post above (another script by UEZ), after having added this : $hGUI2 = GUICreate("GUI2", 120, 120, -1, -1, $WS_POPUP, BitOr($WS_EX_LAYERED, $WS_EX_MDICHILD), $hGUI) GUISetBkColor( 0xABCDEF, $hGUI2) ; transparent _WinAPI_SetLayeredWindowAttributes($hGUI2, 0xABCDEF) GUICtrlCreateLabel("HELLO THERE", 60, 12, 60, 60) GUICtrlSetColor(-1, 0xFFFF00) ; yellow GUICtrlSetFont(-1, 10, 600) GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT) @UEZ : could you please explain BitOR($WS_POPUP, $WS_CHILD) in your script ? I always read that these two shouldn't be found together, also it seems to work with $WS_POPUP only. Thanks ! "I think you are searching a bug where there is no bug... don't listen to bad advice."
UEZ Posted March 3, 2021 Posted March 3, 2021 (edited) 21 minutes ago, pixelsearch said: @UEZ : could you please explain BitOR($WS_POPUP, $WS_CHILD) in your script ? I always read that these two shouldn't be found together, also it seems to work with $WS_POPUP only. Thanks ! This is a leftover from the coding session - can be removed as MS states: "The window is a child window. A window with this style cannot have a menu bar. This style cannot be used with the WS_POPUP style." Edited March 3, 2021 by UEZ Please don't send me any personal message and ask for support! I will not reply! Selection of finest graphical examples at Codepen.io The own fart smells best! ✌Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!¯\_(ツ)_/¯ ٩(●̮̮̃•̃)۶ ٩(-̮̮̃-̃)۶ૐ
pixelsearch Posted March 3, 2021 Posted March 3, 2021 Great ! Glad to have you back "I think you are searching a bug where there is no bug... don't listen to bad advice."
Hotzenplotz Posted March 3, 2021 Posted March 3, 2021 Just now, pixelsearch said: Great ! Glad to have you back Yes also i am new here read alot posts and used a lot of the knowledge of @uez till now. Danke das du @UEZmir geholfen hast. mit deinen script hier ist mein projekt nahezu perfekt für mich
Hotzenplotz Posted March 3, 2021 Posted March 3, 2021 another question, why this works $close = GUICtrlCreateButton("", 363, 622, 75,35) GUICtrlSetOnEvent($close, "Close") GUICtrlSetTip($close, "Ausschalten") but if i try this with GUICtrlCreateLabel the event not is not working Best Regards
Hotzenplotz Posted March 3, 2021 Posted March 3, 2021 5 minutes ago, Hotzenplotz said: another question, why this works $close = GUICtrlCreateButton("", 363, 622, 75,35) GUICtrlSetOnEvent($close, "Close") GUICtrlSetTip($close, "Ausschalten") but if i try this with GUICtrlCreateLabel the event not is not working Best Regards seems the label must have a text to work, can i get it working without a text
pixelsearch Posted March 4, 2021 Posted March 4, 2021 (edited) @Hotzenplotz : probably because you created the label without caption, like this : $idLabel = GUICtrlCreateLabel("", ...) Just add some spaces as caption (" ", ...) using the _StringRepeat() function if you prefer, maybe add a $SS_SUNKEN style to the label during the coding session, to display a border around your label etc... @UEZ : in your script just above, or even in your other script found in AutoBert's post at the beginning of this thread, can't we bypass the functions _SetBitmap() or _WinAPI_BitmapDisplayTransparentInGUI() and replace them with a one-liner _WinAPI_UpdateLayeredWindowEx(), like this : #include <GDIPlus.au3> #include <GUIConstantsEx.au3> #include <WinAPISysWin.au3> #include <WindowsConstants.au3> Global Const $SC_DRAGMOVE = 0xF012 Global $hGUI $sFileName = @ScriptDir & "\torus.png" If Not FileExists($sFileName) Then Exit MsgBox(0, "Exit", "Image not found") _GDIPlus_Startup() $hImage = _GDIPlus_BitmapCreateFromFile($sFileName) $hBitmap = _GDIPlus_BitmapCreateHBITMAPFromBitmap($hImage) $iW = _GDIPlus_ImageGetWidth($hImage) $iH = _GDIPlus_ImageGetHeight($hImage) $hGUI = GUICreate("", $iW, $iH, -1, -1, $WS_POPUP, BitOr($WS_EX_LAYERED, $WS_EX_TOPMOST)) _WinAPI_UpdateLayeredWindowEx($hGUI, -1, -1, $hBitmap) ; <============================= GUISetState(@SW_SHOW) GUIRegisterMsg($WM_LBUTTONDOWN, "_WM_LBUTTONDOWN") Do Until GUIGetMsg() = $GUI_EVENT_CLOSE GUIDelete() _WinAPI_DeleteObject($hBitmap) _GDIPlus_BitmapDispose($hImage) _GDIPlus_Shutdown() Func _WM_LBUTTONDOWN($hWnd, $iMsg, $wParam, $lParam) _SendMessage($hGUI, $WM_SYSCOMMAND, $SC_DRAGMOVE, 0) EndFunc ;==>_WM_LBUTTONDOWN Thanks for your advice Edited March 4, 2021 by pixelsearch added exit test (in case image not found) NassauSky 1 "I think you are searching a bug where there is no bug... don't listen to bad advice."
UEZ Posted March 4, 2021 Posted March 4, 2021 3 hours ago, pixelsearch said: @UEZ : in your script just above, or even in your other script found in AutoBert's post at the beginning of this thread, can't we bypass the functions _SetBitmap() or _WinAPI_BitmapDisplayTransparentInGUI() and replace them with a one-liner _WinAPI_UpdateLayeredWindowEx(), like this : You are right, under the hood it is the same function. I don't know each of the Winapi GDI function which Yashied has added to his famous WinAPIEx UDF. WinAPIEx UDF was added to Autoit meanwhile. NassauSky and pixelsearch 2 Please don't send me any personal message and ask for support! I will not reply! Selection of finest graphical examples at Codepen.io The own fart smells best! ✌Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!¯\_(ツ)_/¯ ٩(●̮̮̃•̃)۶ ٩(-̮̮̃-̃)۶ૐ
Hotzenplotz Posted March 4, 2021 Posted March 4, 2021 (edited) @pixelsearch thanks, some things to easy if you know them ^^ now finally i am nearly finished, but i have one annoying thing. if i start the script its an streaming radio, i put in labels to switch between favorite stations, and if i change the stations the name of it and fav numbers are shown on the script in an other label with text. the strange thing is after i start the script and i press a fav then it change the station but the label with the info stays empty until i press the fav again, then the info is shown.' Solution found in call the guis into the fav functions Edited March 4, 2021 by Hotzenplotz solution found

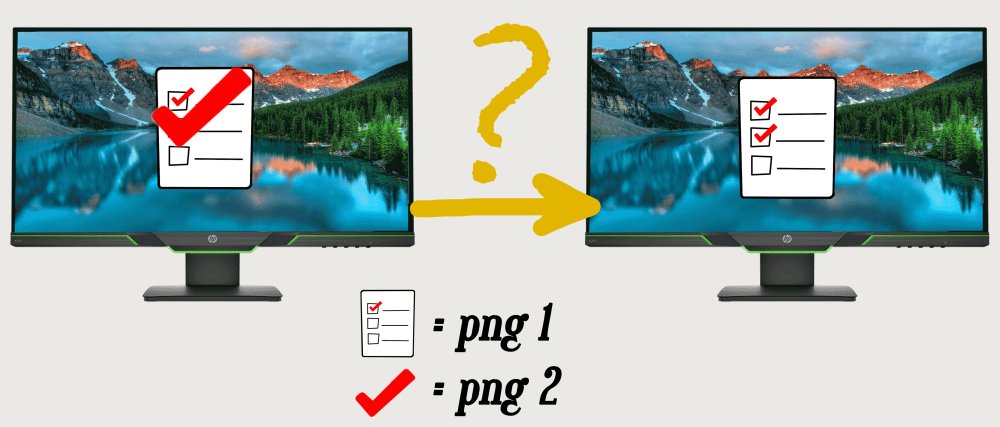

JippyJouns Posted July 29, 2022 Posted July 29, 2022 Hello, after such a long time, the posts here have been very helpful for me today. Thanks for that. I can now display .png files with transparency. My question about this: Can I also display a transparent png scaled? I want it to scale proportionally to the resolution (or number of pixels). That shouldn't be a problem if I could even manage to scale a png in any way when displaying it. It's easy with jpg's, but as a beginner I still don't have a solution for png's. If anyone wants to try it out, here is my example script, which I adapted from the examples above for this purpose without knowing much about it: 2in1 (haha).au3 I've simplified my question here: 2in1 (haha).au3
