donhorn20

How to Return the value "Simple Volume Size in MB"?

8 posts in this topic

#1 ·  Posted (edited)

How can I get the "Simple Volume Size in MB" for and Disk # I select. The value I am talking about is seen when you open Disk Management, select your disk, right-click >  "New Simple Volume...".

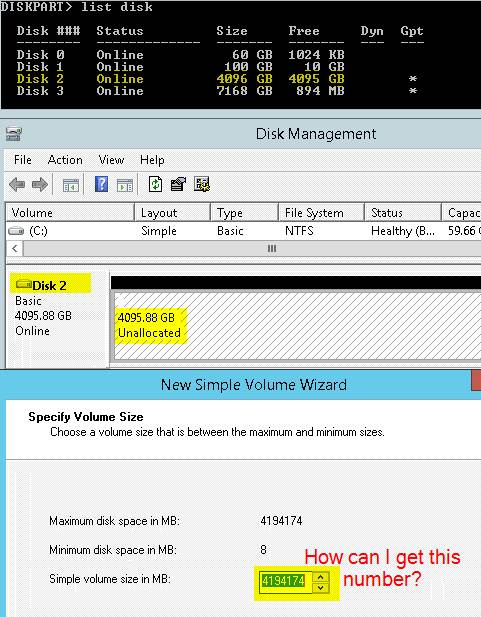

I would like to enter the desired disk number via an input box. Then return this "Simple Volume Size in MB" value. I don't want the DISKPART size as that is rounded (see picture). I already have script that extracts that, but I found out I need even more precise values. Any ideas of how to get this information? Been reading up on _WinAPI_GetDiskFreeSpaceEx() and _WinAPI_GetDriveNumber(), but I am not seeing how I could use these to get my results. One thing to note is these drives won't have drive letters associated with them at any point, so drive letter searching is useless.




Edited by donhorn20
upload picture

Share this post


Link to post
Share on other sites



2 minutes ago, JLogan3o13 said:

Which picture would that be?

Sorry about that. I realized I didn't attach it after I posted. It's there now on the original post.

Share this post


Link to post
Share on other sites

#4 ·  Posted (edited)

Your 4095.88 is simply 4194174 / 1024. You could do that through some simple math.

Edited by JLogan3o13

When you're dead, you don't know you're dead - it's only difficult for those that know you. It's the same way when you're stupid...

My Scripts: SCCM UDFInclude Source with Compiled Script, Windows Firewall UDF

Share this post


Link to post
Share on other sites

If your disk is NTFS or FAT or similar, you can use my BuildPartitionTable UDF (link in my sig) to get disk/partition sizes exact to the byte.

Share this post


Link to post
Share on other sites
13 hours ago, JLogan3o13 said:

Your 4095.88 is simply 4194174 / 1024. You could do that through some simple math.

Thanks JLogan3o13 for the reply. I do understand that simple math will get me that value. Maybe I wasn't clear enough in my original post. How can I extract the number 4194174 or 4095.88 when only providing the disk number to my interface?

Scenario, a person enters the Disk number into an input field. I want to get the results of the disk 2, in this case the returned value could be 4194174 or if there is a way I can read from the disk management "Disk 2" section take the 4095.88 value, then I can do the math in the background to retain my results.

Any ideas where I can find either one of these stored values, and how to extract them?

Share this post


Link to post
Share on other sites

#7 ·  Posted (edited)

You could pull this information from WMI (search the forum for scriptomatic if you are unfamiliar). Something like this would get the information you're after:

Const $wbemFlagReturnImmediately = 0x10
Const $wbemFlagForwardOnly = 0x20
Local $oWMI, $oDrives, $sID, $sName, $iSizeinBytes

$oWMI = ObjGet("winmgmts:\\.\root\cimv2")
    If IsObj($oWMI) Then
        $oDrives = $oWMI.ExecQuery("SELECT * FROM Win32_DiskDrive", "WQL", $wbemFlagReturnImmediately + $wbemFlagForwardOnly)
            If IsObj($oDrives) Then
                For $sDrive In $oDrives
                    If $sDrive.Index = 0 Then
                        $sID = $sDrive.DeviceID
                        $sName = $sDrive.Caption
                        $iSizeinBytes = $sDrive.Size
                        ConsoleWrite("ID: " & $sID & @CRLF & "Drive Index: " & "Drive Name: " & $sName & @CRLF & "Drive Size in Bytes: " & $iSizeinBytes & @CRLF)
                    EndIf
                Next
            Else
                ConsoleWriteError("Unable to pull Disk Info" & @CRLF)
            EndIf
    Else
        ConsoleWriteError("Unable to connect to WMI" & @CRLF)
    EndIf

You should be able to easily adapt this to a GUI, and change the If $sDrive.Index = 0 statement to something like If $sDrive.Index = GuiCtrlRead(<input field on your GUI>)

Edited by JLogan3o13

When you're dead, you don't know you're dead - it's only difficult for those that know you. It's the same way when you're stupid...

My Scripts: SCCM UDFInclude Source with Compiled Script, Windows Firewall UDF

Share this post


Link to post
Share on other sites

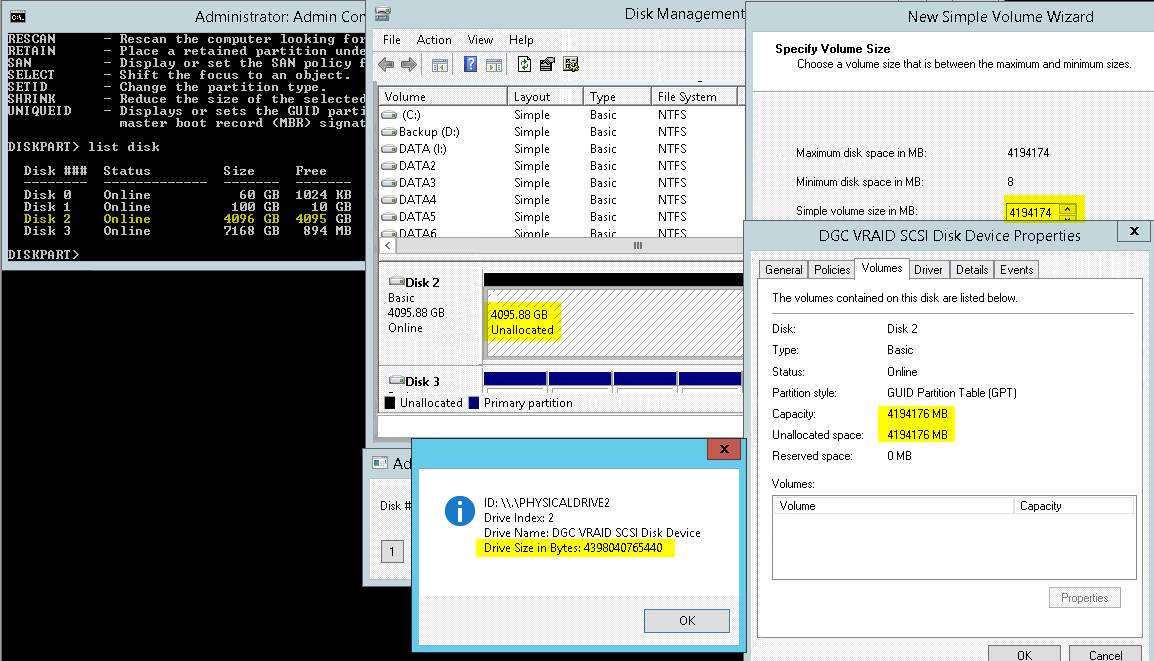

Well I looked into Scriptomatic and tried out the code you provided. It does return the drive size in bytes, but it still is the incorrect value being captured. I even tried the Win32_Volume to see if it would produce different results. But I still get the same output. Check out what I mean.

Scriptomatic returns size in Bytes = 4398040765440

I convert that to MB 4398040765440 / 1048576 = 4194298.520507813 MB

Notice this isn't even close to what the Windows Properties shows for this volume. As a matter of fact you get different results depending on how you look at the volume. Ultimately I need to find a way to get 4095.88 GB or 4194174 MB based off of disk # selected. Right now I am not seeing an easy way of extracting that data. Have you guys seen this type of discrepancy before? Here is the code with a simple input box if you want to see your own results.



#include <ButtonConstants.au3>
#include <GUIConstants.au3>
#include <GUIConstantsEx.au3>
#include <MsgBoxConstants.au3>
#include <WinAPIFiles.au3>
#include <WindowsConstants.au3>


Opt("GUICoordMode", 1)
Opt("GUIOnEventMode", 1) ;0=disabled, 1=OnEvent mode enabled
Opt("GUICloseOnEsc", 1) ;Send $GUI_EVENT_CLOSE message when ESC is pressed


$GUI = GUICreate("", 175, 100)
GUISetOnEvent($GUI_EVENT_CLOSE, "_Exit")
$Label_DiskStart = GUICtrlCreateLabel("Disk #", 10, 20, 50, 17) ;Disk Start Label
GUICtrlSetState(-1, $GUI_SHOW) ;Label
$Input_DiskStart = GUICtrlCreateInput("", 60, 17, 65, 21, $ES_NUMBER) ;DiskStart Input / Numbers Only
GUICtrlSetState(-1, $GUI_SHOW) ;Label
$Button_Execute1 = GUICtrlCreateButton("Execute", 10, 60, 50, 25) ;Execute Button on left
GUICtrlSetOnEvent(-1, "_Button1") ;Execute button calls the _Button function
$Button_Close = GUICtrlCreateButton("Exit", 100, 60, 50, 25) ;Close Button
GUICtrlSetOnEvent(-1, "_Exit") ;Close button calls _Exit function
GUISetState()


While 1

WEnd


Func _Button1()
Const $wbemFlagReturnImmediately = 0x10
Const $wbemFlagForwardOnly = 0x20
Local $oWMI, $oDrives, $sID, $sName, $iSizeinBytes, $Output

$oWMI = ObjGet("winmgmts:\\.\root\cimv2")

    If IsObj($oWMI) Then
        $oDrives = $oWMI.ExecQuery("SELECT * FROM Win32_DiskDrive", "WQL", $wbemFlagReturnImmediately + $wbemFlagForwardOnly)
            If IsObj($oDrives) Then
                For $sDrive In $oDrives
                    If $sDrive.Index = GUICtrlRead($Input_DiskStart) Then
                        $sID = $sDrive.DeviceID
                        $sName = $sDrive.Caption
                        $iSizeinBytes = $sDrive.Size
                        $sIndex = $sDrive.Index
                        ConsoleWriteLine("ID: " & $sID & @CRLF & "Drive Index: " & $sIndex & @CRLF & "Drive Name: " & $sName & @CRLF & "Drive Size in Bytes: " & $iSizeinBytes & @CRLF)
                    EndIf
                Next
            Else
                ConsoleWriteLine("Unable to pull Disk Info" & @CRLF)
            EndIf
    Else
        ConsoleWriteLine("Unable to connect to WMI" & @CRLF)
    EndIf
EndFunc

Func consolewriteline($text)
    ConsoleWrite($text & @CRLF)
    MsgBox(64,"",$text & @CRLF)
EndFunc   ;==>consolewriteline


Func _Exit() ;Exits Application
    Exit
EndFunc   ;==>_Exit



2016-11-11 17.jpg
