Which Way... to CPU usage Specific Process?

7 posts in this topic

#1 ·  Posted

I find two solution to do it, but I need to profile a specific process, 4 example notepad.exe... Maybe https://www.autoitscript.com/autoit3/docs/functions/ProcessList.htm

#Julien

Func _Processor_Usage()
Local $s_Text = ''
Dim $Obj_WMIService = ObjGet('winmgmts:\\' & @ComputerName & '\root\cimv2');
If (IsObj($Obj_WMIService)) And (Not @error) Then
    Dim $Col_Items = $Obj_WMIService.ExecQuery('SELECT * FROM Win32_PerfFormattedData_PerfOS_Processor')

    Local $Obj_Item
    For $Obj_Item In $Col_Items
        Local $s_Text = $Obj_Item.PercentProcessorTime & '%'
    Next

    Return String($s_Text)
Else
    Return 0
EndIf
EndFunc

or

$aUsage = _GetCPUUsage()
For $i = 1 To $aUsage[0]
    ConsoleWrite('CPU #' & $i & ' - ' & $aUsage[$i] & '%' & @CRLF)
Next


;#####################################################################
;# Function: _GetCPUUsage()
;# Gets the utilization of the CPU, compatible with multicore
;# Return:   Array
;#           Array[0] Count of CPU, error if negative
;#           Array[n] Utilization of CPU #n in percent
;# Error:    -1 Error at 1st Dll-Call
;#           -2 Error at 2nd Dll-Call
;#           -3 Error at 3rd Dll-Call
;# Author:   Bitboy  (AutoIt.de)
;#####################################################################
Func _GetCPUUsage()
    Local Const $SYSTEM_PROCESSOR_PERFORMANCE_INFORMATION = 8
    Local Const $SYSTEM_TIME_INFO = 3
    Local Const $tagS_SPPI = "int64 IdleTime;int64 KernelTime;int64 UserTime;int64 DpcTime;int64 InterruptTime;long InterruptCount"

    Local $CpuNum, $IdleOldArr[1],$IdleNewArr[1], $tmpStruct
    Local $timediff = 0, $starttime = 0
    Local $S_SYSTEM_TIME_INFORMATION, $S_SYSTEM_PROCESSOR_PERFORMANCE_INFORMATION
    Local $RetArr[1]

    Local $S_SYSTEM_INFO = DllStructCreate("ushort dwOemId;short wProcessorArchitecture;dword dwPageSize;ptr lpMinimumApplicationAddress;" & _
    "ptr lpMaximumApplicationAddress;long_ptr dwActiveProcessorMask;dword dwNumberOfProcessors;dword dwProcessorType;dword dwAllocationGranularity;" & _
    "short wProcessorLevel;short wProcessorRevision")

    $err = DllCall("Kernel32.dll", "none", "GetSystemInfo", "ptr",DllStructGetPtr($S_SYSTEM_INFO))

    If @error Or Not IsArray($err) Then
        Return $RetArr[0] = -1
    Else
        $CpuNum = DllStructGetData($S_SYSTEM_INFO, "dwNumberOfProcessors")
        ReDim $RetArr[$CpuNum+1]
        $RetArr[0] = $CpuNum
    EndIf
    $S_SYSTEM_INFO = 0

    While 1
        $S_SYSTEM_PROCESSOR_PERFORMANCE_INFORMATION = DllStructCreate($tagS_SPPI)
        $StructSize = DllStructGetSize($S_SYSTEM_PROCESSOR_PERFORMANCE_INFORMATION)
        $S_SYSTEM_PROCESSOR_PERFORMANCE_INFORMATION = DllStructCreate("byte puffer[" & $StructSize * $CpuNum & "]")
        $pointer = DllStructGetPtr($S_SYSTEM_PROCESSOR_PERFORMANCE_INFORMATION)

        $err = DllCall("ntdll.dll", "int", "NtQuerySystemInformation", _
            "int", $SYSTEM_PROCESSOR_PERFORMANCE_INFORMATION, _
            "ptr", DllStructGetPtr($S_SYSTEM_PROCESSOR_PERFORMANCE_INFORMATION), _
            "int", DllStructGetSize($S_SYSTEM_PROCESSOR_PERFORMANCE_INFORMATION), _
            "int", 0)

        If $err[0] Then
            Return $RetArr[0] = -2
        EndIf

        Local $S_SYSTEM_TIME_INFORMATION = DllStructCreate("int64;int64;int64;uint;int")
        $err = DllCall("ntdll.dll", "int", "NtQuerySystemInformation", _
            "int", $SYSTEM_TIME_INFO, _
            "ptr", DllStructGetPtr($S_SYSTEM_TIME_INFORMATION), _
            "int", DllStructGetSize($S_SYSTEM_TIME_INFORMATION), _
            "int", 0)

        If $err[0] Then
            Return $RetArr[0] = -3
        EndIf

        If $starttime = 0 Then
            ReDim $IdleOldArr[$CpuNum]
            For $i = 0 to $CpuNum -1
                $tmpStruct = DllStructCreate($tagS_SPPI, $Pointer + $i*$StructSize)
                $IdleOldArr[$i] = DllStructGetData($tmpStruct,"IdleTime")
            Next
            $starttime = DllStructGetData($S_SYSTEM_TIME_INFORMATION, 2)
            Sleep(100)
        Else
            ReDim $IdleNewArr[$CpuNum]
            For $i = 0 to $CpuNum -1
                $tmpStruct = DllStructCreate($tagS_SPPI, $Pointer + $i*$StructSize)
                $IdleNewArr[$i] = DllStructGetData($tmpStruct,"IdleTime")
            Next

            $timediff = DllStructGetData($S_SYSTEM_TIME_INFORMATION, 2) - $starttime

            For $i=0 to $CpuNum -1
                $RetArr[$i+1] = Round(100-(($IdleNewArr[$i] - $IdleOldArr[$i]) * 100 / $timediff))
            Next

            Return $RetArr
        EndIf

        $S_SYSTEM_PROCESSOR_PERFORMANCE_INFORMATION = 0
        $S_SYSTEM_TIME_INFORMATION = 0
        $tmpStruct = 0
    WEnd
EndFunc



Share this post


Link to post
Share on other sites



#2 ·  Posted

#include <WinAPISys.au3>
#include <WinAPIProc.au3>

$PID = ProcessExists("notepad.exe")

While Sleep(500)
  ToolTip(_GetProcUsage($PID))
WEnd

Func _GetProcUsage($PID)
  If Not ProcessExists($PID) Then Return -1
  Local Static $Prev1, $Prev2
  Local $Time1 = _WinAPI_GetProcessTimes($PID)
  Local $Time2 = _WinAPI_GetSystemTimes()
  If Not IsArray($Time1) Or Not IsArray($Time2) Then Return -1
  $Time1 = $Time1[1] + $Time1[2]
  $Time2 = $Time2[1] + $Time2[2]
  $CPU = Round(($Time1 - $Prev1) / ($Time2 - $Prev2) * 100)
  $Prev1 = $Time1
  $Prev2 = $Time2
  Return $CPU
EndFunc



Share this post


Link to post
Share on other sites

#3 ·  Posted

Thx... But I talk about CPU % USAGE and not TIME.

Share this post


Link to post
Share on other sites

#4 ·  Posted

@rootx

The function returns how much the process loads the CPU. Is it not what you want?

Share this post


Link to post
Share on other sites

#5 ·  Posted (edited)

mmm.. I'm not sure I understand " how much the process loads the CPU " because I mean CPU % USAGE

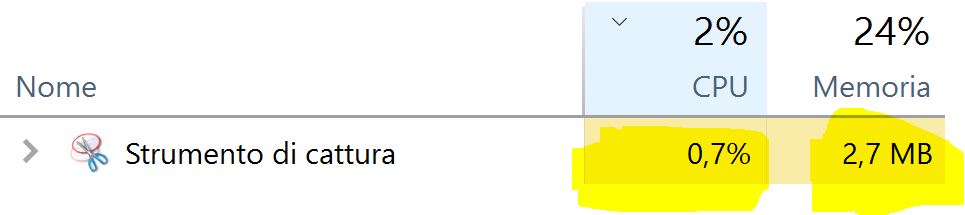

to remove all doubt.. I want to run an external process and understand how much CPU and memory use




Edited by rootx

Share this post


Link to post
Share on other sites

#6 ·  Posted

@rootx

Run the script and compare tooltip text with CPU value


Share this post


Link to post
Share on other sites

#7 ·  Posted (edited)

#include <WinAPISys.au3>
#include <WinAPIProc.au3>
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <WindowsConstants.au3>
#Region ### START Koda GUI section ### Form=

$Form1 = GUICreate("Form1", 370, 72, 192, 124)
$Label1 = GUICtrlCreateLabel("", 16, 16, 340, 17)
$bt = GUICtrlCreateButton("start", 16,40, 340, 30)
GUISetState(@SW_SHOW)
#EndRegion ### END Koda GUI section ###

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit
        Case $bt
            $PID = ProcessExists("vlc.exe")
            While Sleep(500)
                GUICtrlSetData($Label1,_GetProcUsage($PID))
            WEnd
    EndSwitch
WEnd

Func _GetProcUsage($PID)
  If Not ProcessExists($PID) Then Return -1
  Local Static $Prev1, $Prev2
  Local $Time1 = _WinAPI_GetProcessTimes($PID)
  Local $Time2 = _WinAPI_GetSystemTimes()
  If Not IsArray($Time1) Or Not IsArray($Time2) Then Return -1
  $Time1 = $Time1[1] + $Time1[2]
  $Time2 = $Time2[1] + $Time2[2]
  $CPU = Round(($Time1 - $Prev1) / ($Time2 - $Prev2) * 100)
  $Prev1 = $Time1
  $Prev2 = $Time2
  Return $CPU
EndFunc

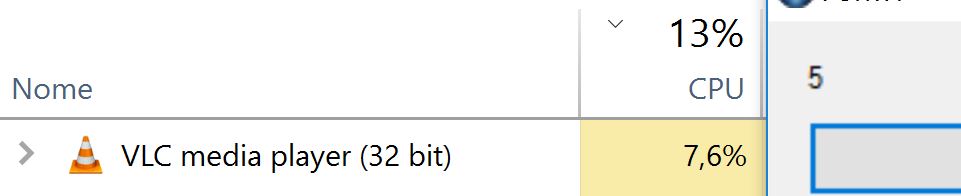

Thx, but why is not precise?




Edited by rootx
