Glenn6788

_IEFormSetElementValue help

16 posts in this topic

#1 ·  Posted

hello. I recently cooked the hard drive on my laptop and am having some trouble re-creating my old scripts. I am having trouble setting the text in a form element from whatever is copied on the clipboard. The form doesn't have a name so I was using _IEFormGetCollection from memory,



I am trying to set the value for "LocOrLP" to what I have copied from the clipboard. Below is my html and autoit code.



<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head id="Head1"><title>
    WAX RF


 <meta http-equiv="IB_Scanner" content="Enabled" /><meta http-equiv="IB_ScannerNavigate" content="Javascript: SubmitFormBarcode();" /><meta http-equiv="IB_OnKey13" content="Javascript: SubmitForm('ENTERPRESSED')" /><meta http-equiv="IB_OnKey9" content="Javascript: HandleTab()" /><meta http-equiv="IB_OnKey112" content="Javascript:IBKeyHandler('Override')" /><meta http-equiv="IB_OnKey114" content="Javascript:IBKeyHandler('Back')" /><meta http-equiv="IB_OnKey115" content="Javascript:IBKeyHandler('Cancel')" /><meta http-equiv="IB_OnKey113" content="Javascript:IBKeyHandler('OK')" /><meta http-equiv="IB_OnKey116" content="Javascript:IBKeyHandler('Done')" /><meta http-equiv="IB_OnKey119" content="Javascript:IBKeyHandler('ShortPick')" /><meta http-equiv="IB_OnKey120" content="Javascript:IBKeyHandler('Full')" /><meta http-equiv="IB_OnKey123" content="Javascript:IBKeyHandler('Skip')" /></head>
<body onload="init();">
    <div class="waxMainRFWrap">
        <form action="/Execute/Display" class="waxMainRFForm" method="post" onsubmit="return SubmitForm('ENTERPRESSED')"><input id="ClickedButton" name="ClickedButton" type="hidden" value="" />
        <input id="IsMenu" name="IsMenu" type="hidden" value="False" />


<table class="waxMainRFTable">



<tr class="waxMainRFTableRow">



                <td colspan="2" class="waxMainRFTableCell">
            <label class="waxLabel" id="MovementLbl" style="color:Black;">Move Unit or LP-</label>



        </td>


</tr>



<tr class="waxMainRFTableRow">



                <td colspan="2" class="waxMainRFTableCell">
            <label class="waxLabel" id="FromLbl" style="color:Black;">From Information</label>



        </td>


</tr>



<tr class="waxMainRFTableRow">



                <td class="waxMainRFTableCell">

          <label class="waxTextLabel" for="LocOrLP">Loc / LP / Con</label>


        </td>



                <td class="waxMainRFTableCell">

          <input class="waxText"  type="text" name="LocOrLP" id="LocOrLP" value="" maxlength="25" />



        </td>


</tr>
#include <IE.au3>
#Region --- Au3Recorder generated code Start (v3.3.9.5 KeyboardLayout=00000409)  ---

#Region --- Internal functions Au3Recorder Start ---
Func _Au3RecordSetup()
    Opt('WinWaitDelay', 100)
    Opt('WinDetectHiddenText', 1)
    Opt('MouseCoordMode', 0)
    Local $aResult = DllCall('User32.dll', 'int', 'GetKeyboardLayoutNameW', 'wstr', '')
    If $aResult[1] <> '00000409' Then
        MsgBox(64, 'Warning', 'Recording has been done under a different Keyboard layout' & @CRLF & '(00000409->' & $aResult[1] & ')')
    EndIf

EndFunc   ;==>_Au3RecordSetup

Func _WinWaitActivate($title, $text, $timeout = 0)
    WinWait($title, $text, $timeout)
    If Not WinActive($title, $text) Then WinActivate($title, $text)
    WinWaitActive($title, $text, $timeout)
EndFunc   ;==>_WinWaitActivate

_Au3RecordSetup()
#EndRegion --- Internal functions Au3Recorder Start ---


HotKeySet("{ESC}", "Terminate")

$i = 0
$repeats = InputBox("Repeats", "How many Loops would you like Glenn?", "")




$oIE = _IECreate("http://au1kathmap51p.kathmandu.com:8080/Execute/Display")
_IELoadWait($oIE)
Sleep(200)
Send("02515")
Sleep(100)
Send("{ENTER}")
Sleep(200)
_IELoadWait($oIE)
Send("02515")
Sleep(100)
Send("{ENTER}")
Sleep(200)
_IELoadWait($oIE)
Sleep(1000)
Send("2")
_IELoadWait($oIE)
Sleep(1000)
Send("6")
_IELoadWait($oIE)
Sleep(1000)
Send("5")
Sleep(1000)
_IELoadWait($oIE)


While ($i < $repeats)


    _WinWaitActivate("Locations - Excel", "")
    Send("{CTRLDOWN}c{CTRLUP}")
    Send("{DOWN}")
    $sData = ClipGet()
    _WinWaitActivate("WAX RF - Internet Explorer", "")



    $oQuery = _IEFormElementGetCollection($oIE)


    $oSubmit = _IEFormElementGetObjByName($oQuery, "LocOrLP")


    _IEFormElementSetValue($oSubmit, $sData) ; Getting the error here


    $i = ($i + 1)

WEnd

Func Terminate()
    Exit 0
EndFunc   ;==>Terminate


_WinWaitActivate("WAX RF - Internet Explorer", "")



WAX RF.htm

Share this post


Link to post
Share on other sites



#3 ·  Posted

Thanks for the reply Subz. I tried putting the index for _IEFormGetCollection to 0. It gets rid of the error but still doesn't set the value in the form. I put in a msgbox to check that it is converting the clipboard to a variable. Not sure why it's still not working?

Share this post


Link to post
Share on other sites

#4 ·  Posted

Do you have the Excel file that you're using so I can test?

Share this post


Link to post
Share on other sites

#5 ·  Posted

If you don't want to use Excel UDF you could use the following:

While ($i < $repeats)
    _WinWaitActivate("Locations - Excel", "")
    Sleep(100)
    ClipPut("")
    Do
        Sleep(100)
        Send("^c")
        $sData = ClipGet()
    Until $sData
    Send("{DOWN}")
    _WinWaitActivate("WAX RF - Internet Explorer", "")
    $oForm = _IEFormGetCollection($oIE, 0)
    $oSubmit = _IEFormElementGetObjByName($oForm, "LocOrLP")
    _IEFormElementSetValue($oSubmit, $sData)
    $i += 1
WEnd



Share this post


Link to post
Share on other sites

#7 ·  Posted

Which is strange because using your .htm file it fills out fine for me, using any of the code I posted above.

1 person likes this

Share this post


Link to post
Share on other sites

#8 ·  Posted

Definitely. I just changed from windows 7 to 8.1 enterprise. Wondering if its something to do with that? It is making me crazy this thing :(

Share this post


Link to post
Share on other sites

#9 ·  Posted

do I need to make a new variable like $oIE

I am still on the same url but have navigated through different menus since _IECreate

From memory I didn't have to do this last time.



Share this post


Link to post
Share on other sites

#10 ·  Posted

What does the following return when running in Scite:

While ($i < $repeats)
    _WinWaitActivate("Locations - Excel", "")
    Sleep(100)
    ClipPut("")
    Do
        Sleep(100)
        Send("^c")
        $sData = ClipGet()
    Until $sData
    Send("{DOWN}")
    _WinWaitActivate("WAX RF - Internet Explorer", "")
    $oForm = _IEFormGetCollection($oIE, 0)
    For $oName in $oForm
        ConsoleWrite($oName.Name & @CRLF)
    Next
    $oSubmit = _IEFormElementGetObjByName($oForm, "LocOrLP")
    _IEFormElementSetValue($oSubmit, $sData)
    $i += 1
WEnd



Share this post


Link to post
Share on other sites

#11 ·  Posted

it works in scite but claps out when I run the script.

Share this post


Link to post
Share on other sites

#12 ·  Posted

Can you change ConsoleWrite to MsgBox and check that it's returning form names?

Share this post


Link to post
Share on other sites

#13 ·  Posted

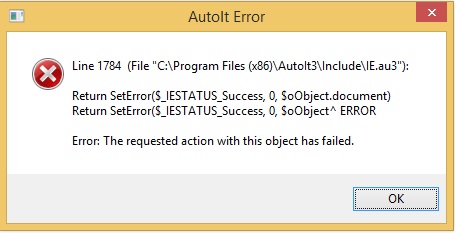

Attached is the error I get


Share this post


Link to post
Share on other sites

#14 ·  Posted

So can try the following

While ($i < $repeats)
    _WinWaitActivate("Locations - Excel", "")
    Sleep(100)
    ClipPut("")
    Do
        Sleep(100)
        Send("^c")
        $sData = ClipGet()
    Until $sData
    Send("{DOWN}")
    _WinWaitActivate("WAX RF - Internet Explorer", "")
    $oIE = _IEAttach("WAX RF - Internet Explorer")
    $oForm = _IEFormGetCollection($oIE, 0)
    For $oName in $oForm
        MsgBox(64, "Obj Name", $oName.Name)
    Next
    $oSubmit = _IEFormElementGetObjByName($oForm, "LocOrLP")
    _IEFormElementSetValue($oSubmit, $sData)
    $i += 1
WEnd

Share this post


Link to post
Share on other sites

#15 ·  Posted

I think its something to do with IE.au3 compatibility with windows 8.1 and IE11

I don't seem to get errors when I add

#RequireAdmin

Kinda sucks though because I'm already a local admin.





Share this post


Link to post
Share on other sites

#16 ·  Posted

I'm on Windows 10 Enterprise x64 with IE 11 and don't appear to have any issues.
