Entering data from 5 text files into GUI, one line of each file per loop. I'm stuck.

Recommended Posts

Hello everyone,

I am quite new to AutoIT and scripting, so I apologize in advance if my question is dumb. I hope I can explain it well.

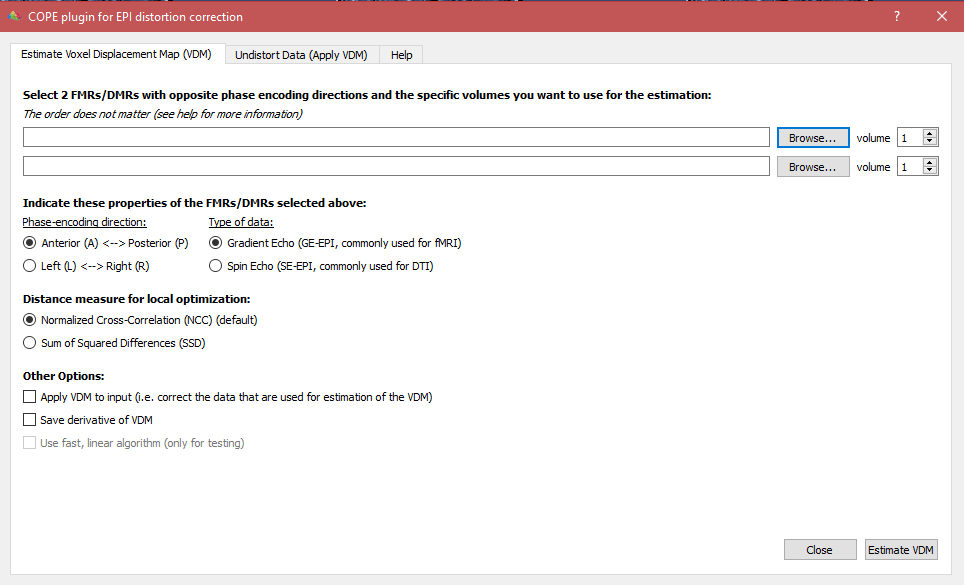

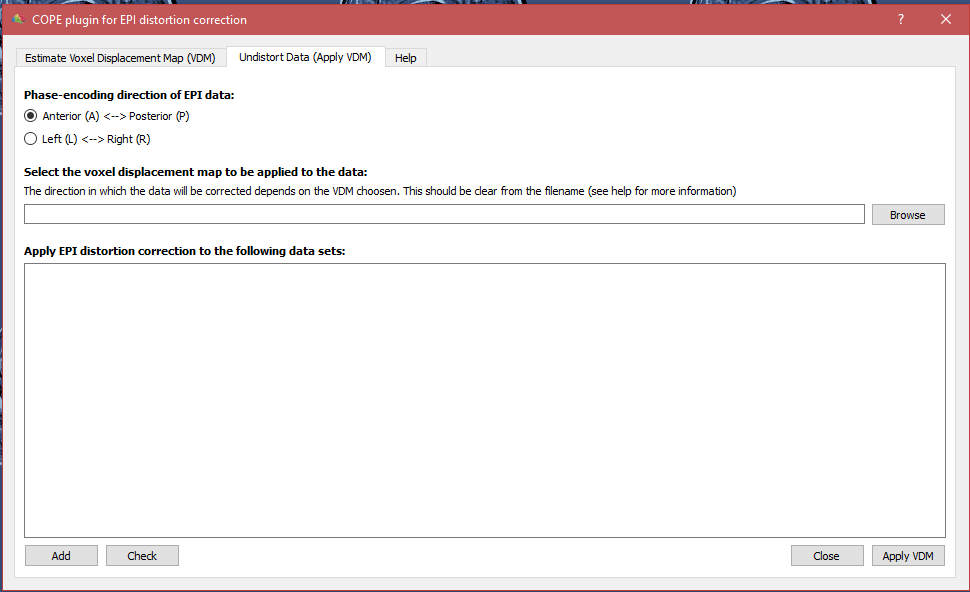

I am working with BrainVoyager, software for MRI data analysis. I need to automate a process with AutoIT that requires manual selection of 5 different files for each subject, 80+ subjects in total. The analysis needs to run for each subject separately. I am attaching the GUIs for clarity.
What I want to achieve is have AutoIT click on the "Browse..." and "Add" buttons, and enter each file path for me.
My idea was to have 5 separate txt files. Each of them has 80 lines, and each line contains the path to one subject's data. I wanted to make it so for each loop, only the first line from the 5 txt files is entered in the system dialogue, then only the second, then the third, until it reaches the end.
I got stuck on figuring out how to do this with more than one file. I've previously used the below code to do the same for just one txt file, and I don't quite know how to modify it. I would very much appreciate your guidance, and thank you so much in advance!
$file = "D:\AutoIT\data.txt"

FileOpen($file, 0)
Global $filenames[_FileCountLines($file)
For $ii = 1 to _FileCountLines($file)
    $filenames[$ii-1] = FileReadLine($file, $ii)

for $fc= 0 To (UBound($filenames)-1)





Link to post
Share on other sites

Welcome to the autoit forum

Do you need to process 5 paths at each run ?
Please give an example of five paths in two or three lines, so we can see a pattern or the relation

path1, path2, path3, path4, path5
path1 ...


Edited by Deye
Link to post
Share on other sites


The code you posted does not do anything.  Also the array declaration is wrong.  Here is an example of populating 5 controls on a gui from 5 different files...

#include <GUIConstantsEx.au3>


; create test files

Local $str
For $1 = 1 To 5
    For $2 = 1 To 80
        $str &= 'File ' & $1 & ' line ' & StringFormat('%02i', $2) & @CRLF
    FileWrite(@ScriptDir & '\test file #' & $1 & '.txt', $str)
    $str = ''

; create a gui with 5 edit controls for display purposes

Local $left = 10
Local $gui010 = GUICreate('5 file test', 570)

Local $actlids[5]
For $1 = 0 To 4
    $actlids[$1] = GUICtrlCreateEdit('', $left, 10, 110, 300)
    $left += 110


; read each file to an edit control

For $1 = 1 To 5
    GUICtrlSetData($actlids[$1 - 1], FileRead(@ScriptDir & '\test file #' & $1 & '.txt'))

While 1
    Switch GUIGetMsg()
        Case $gui_event_close

Needless to say, this is one of many ways to do this, if this is what you want.  If not, it may give you some ideas.

Good Luck,


Forum Rules         Procedure for posting code

"I like pigs.  Dogs look up to us.  Cats look down on us.  Pigs treat us as equals."

- Sir Winston Churchill

Link to post
Share on other sites

here's another way...

#include <file.au3>
#include <array.au3>

$Form1 = GUICreate("Form1", 320, 133, 192, 124)
$txt1 = GUICtrlCreateInput("field1", 16, 8, 289, 21)
$txt2 = GUICtrlCreateInput("field2", 16, 32, 289, 21)
$txt3 = GUICtrlCreateInput("field3", 16, 56, 289, 21)
$txt4 = GUICtrlCreateInput("field4", 16, 80, 289, 21)
$txt5 = GUICtrlCreateInput("field5", 16, 104, 289, 21)


;arrays to hold contents of files
Dim $aF1, $aF2, $aF3, $aF4, $aF5

;read files to array
_FileReadToArray(@ScriptDir & "\file1.txt",$aF1)
_FileReadToArray(@ScriptDir & "\file2.txt",$aF2)
_FileReadToArray(@ScriptDir & "\file3.txt",$aF3)
_FileReadToArray(@ScriptDir & "\file4.txt",$aF4)
_FileReadToArray(@ScriptDir & "\file5.txt",$aF5)

;write a line from each file to gui
for $x = 1 to 80
    for $y = 1 to 5

;delete data files
for $x = 1 to 5
    FileDelete(@ScriptDir & "\file" & $x & ".txt")

;like it says
Func MakeDataFiles()
    for $x = 1 to 5
        if FileExists(@ScriptDir & "\file" & $x & ".txt") then return 0

    local $filecontents
    for $y = 1 to 5                         ;file number
        $filecontents = ""
        for $x = 1 to 80                    ;line number
            $filecontents &= "File " & $y & "  -  Line " & $x & @CRLF
        FileWrite(@ScriptDir & "\file" & $y & ".txt",$filecontents)
    Return 1


Link to post
Share on other sites
