Mousemove With Pixelcheck Until find point


Recommended Posts

My program idea is to get the nearest points of my start mark


My Background:
 -there are no controls in this website to check.
- I already tried pixel search, but it has bad accuracy
- I think Imagesearch will be also bad.

- Already Tried Geocoder  sites, but it does not show street number for all coordinates



My Code:

HotKeySet('{f5}', 'start')
HotKeySet('{esc}', '_exe')
 Func _exe()
     Exit
 EndFunc
While 1
    Sleep(3000)
Wend
Func start()
    Global $c[2] = [954, 613];My Middle Screen
     FindYellow(-1,0,-1, 0) ;Search Left

EndFunc
Func FindYellow($Val_X,$Val_Y , $ChangeX , $ChangeY )
    MouseMove( $c[0] ,  $c[1],0 )
    $Val_X = 0

    Do
        $PinX = $c[0] + $Val_X
        $PinY = $c[1] + $Val_Y
    ;   print('Val_X',$Val_X )
    ;   print('Val_Y',$Val_Y )
        print('$PinY', $PinX)
        print('$PinY', $PinY)
        ToolTip('Checking....', 0, 0)
        Global  $Chkcolor = PixelGetColor($PinX,$PinY );0x8F8E65
        If $Chkcolor =  '12237499' Then ;White Street Line
            click($PinX,$PinY )
            print('FindYellow_ UP  Found At: ' , $PinX & ',' & $PinY )
            ExitLoop
            Return True
            Else
            ;   print('ChkColor', $Hex  )
        EndIf
        ;MouseMove( $PinX , $PinY,0 )
    Print('Current Color',$Chkcolor )
    ;   Sleep(2)
    $Val_X += $ChangeX
    $Val_Y += $ChangeY

        ;Sleep(5)
    Until  $PinY <= 0 Or $PinY >=  @DesktopHeight Or $PinX >= @DesktopWidth Or $PinX <= 0
;MouseMove( $PinX , $PinY,0 )
        ToolTip('', 0, 0)
MsgBox(0, 0, 'Done')
EndFunc



Func Pix_GroupYellow()
Global $Yellow_Array[1] = [0xB9B8B9]

Global $Hex = '0x'& Hex($Chkcolor, 6)
For $i = 0 To UBound($Yellow_Array) -1
    If  $Hex = $Yellow_Array[$i] Then
        MsgBox(0, 0,'Group Pix ok')
        Return True
        ExitLoop
    EndIf
Next


EndFunc

Func Print($Txt,$Func="")
    ConsoleWrite($Txt& '= ' )
    ConsoleWrite($Func &@CRLF)
EndFunc

Website:

https://geoportal.gisqatar.org.qa/qmape/index.html

What I need:

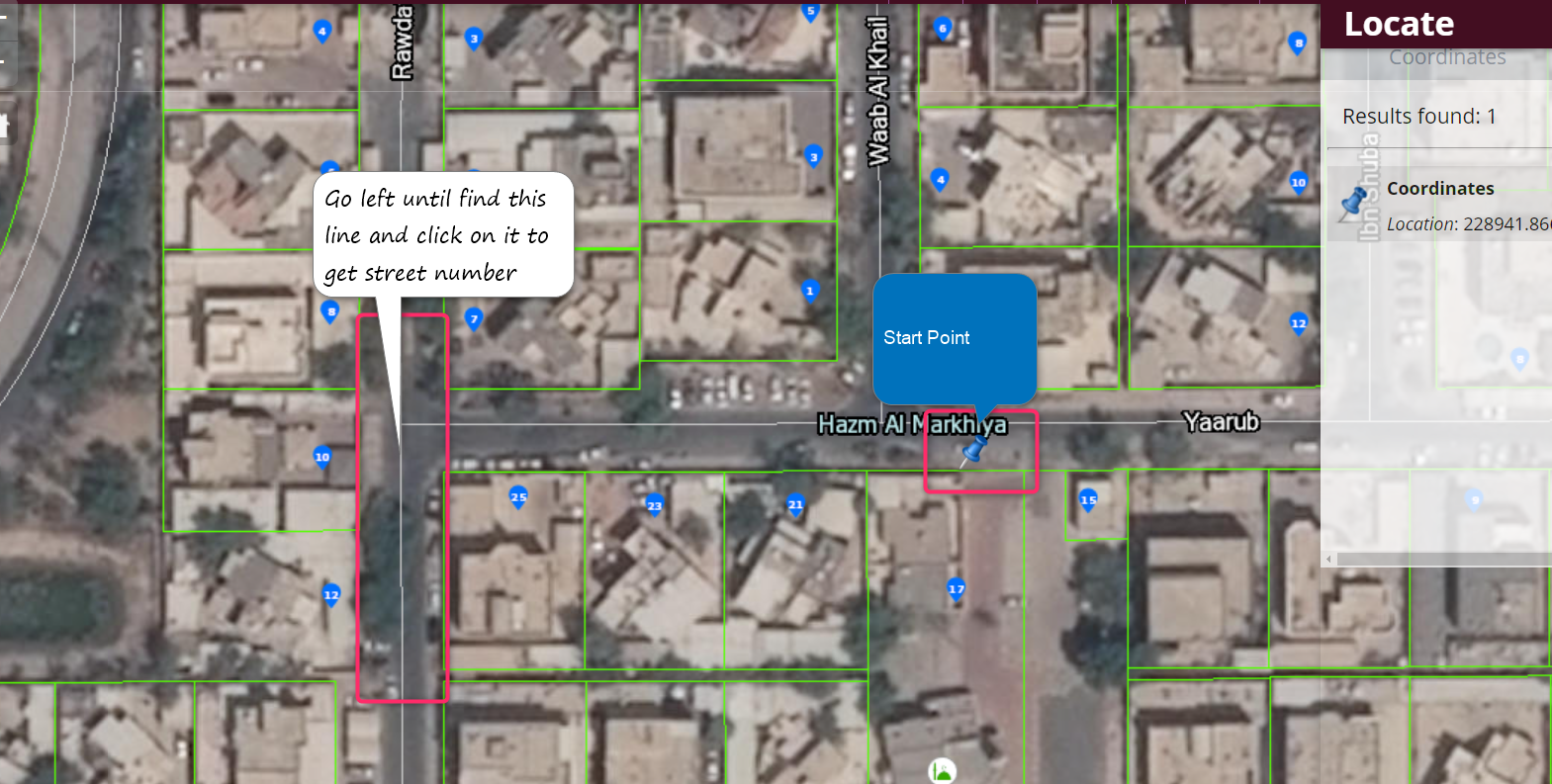

Some way to checking process faster, Or anyway to achieve the main purpose (click on nearest point of start mark)
