WM_NOTIFY , what's the needed iCode


Go to solution Solved by AutoBert,

Recommended Posts

I am writing a iconLVw4.au3, it work's fine with this

Func WM_NOTIFY($hWnd, $iMsg, $iwParam, $ilParam)
    Local $hWndFrom, $iIDFrom, $iCode, $tNMHDR, $hWndListView, $sIcon, $tInfo, $iIndex, $iSub, $sRes, $aPos
    $sDLLName = GUICtrlRead($Combo)
    $hWndListView = $hListview
    If Not IsHWnd($hListview) Then $hWndListView = GUICtrlGetHandle($hListview)
    $tNMHDR = DllStructCreate($tagNMHDR, $ilParam)
    $hWndFrom = HWnd(DllStructGetData($tNMHDR, "hWndFrom"))
    $iIDFrom = DllStructGetData($tNMHDR, "IDFrom")
    $iCode = DllStructGetData($tNMHDR, "Code")
    Switch $hWndFrom
        Case $hWndListView
            Switch $iCode
                Case $NM_RCLICK ; Sent by a list-view control when the user clicks an item with the right mouse button
                    $tInfo = DllStructCreate($tagNMITEMACTIVATE, $ilParam)
                    $iIndex = DllStructGetData($tInfo, "Index")
                    $iSub = DllStructGetData($tInfo, "SubItem")
                    $sRes = _GUICtrlListView_GetItemText($hListview, $iIndex, $iSub)
                    ConsoleWrite($iCode & @TAB & 'iIndex: ' & $iIndex & @TAB & 'iSub: ' &$iSub & @TAB & 'Text: ' & $sRes & @CRLF)
                    if $iSub > 0 Then
                        GUICtrlSetData($inpID, $sRes)
                        $sIcon = @SystemDir & '\' & $sDLLName
                        $sRes = -(1 + $sRes)
                        ConsoleWrite($sIcon & @TAB & $sRes & @CRLF)
                        GUICtrlSetImage($IconPreview, $sIcon, $sRes)
                    EndIf
                Case  Else      ;TO DO check out what's the best msg for get both idex + subindex
                                ;$LVN_GETINFOTIPA, $LVN_GETINFOTIPW, $NM_HOVER didn't work for subindex
                    $tInfo = DllStructCreate($tagNMITEMACTIVATE, $ilParam)
                    $iIndex = DllStructGetData($tInfo, "Index")
                    $iSub = DllStructGetData($tInfo, "SubItem")
                    $sRes = _GUICtrlListView_GetItemText($hListview, $iIndex, $iSub)
                    ConsoleWrite($iCode & @TAB & 'ItemIndex: ' & $iIndex & @TAB & 'SubIndex: ' &$iSub & @TAB & 'Text: ' & $sRes & @CRLF)
                    $aPos = MouseGetPos()
                    If $iSub = 0 Then
                        ToolTip('Zum späteren Speichern an-"Checken" (Mehrfachspeichern) um ganze Zeile zum Speichern zu übernehmen')
                    Else
                        ToolTip('Rechtsklick um IconID für (Einzel-) Speichern zu übernehmen', $aPos[0]+20, $aPos[1]+10)
                    EndIf
;                   Return 0
            EndSwitch
    EndSwitch
    Return $GUI_RUNDEFMSG
EndFunc   ;==>WM_NOTIFY

the iCode $NM_RCLICK works and also to geting the info with case else is working. But the ToolTips are a little bit nervous (flickring).  So i am searching for a better way.

The console output for a short test-session:

>"C:\Program Files (x86)\AutoIt3\SciTE\..\AutoIt3.exe" "C:\Program Files (x86)\AutoIt3\SciTE\AutoIt3Wrapper\AutoIt3Wrapper.au3" /run /prod /ErrorStdOut /in "C:\Users\(len)Bert\AutoIt\Icon-Viewer\iconLVw4.au3" /UserParams
+>18:15:53 Starting AutoIt3Wrapper (21.316.1639.1) from:SciTE.exe (4.4.6.0)  Keyboard:00000407  OS:WIN_10/2009  CPU:X64 OS:X64  Environment(Language:0407)  CodePage:0  utf8.auto.check:4
+>         SciTEDir => C:\Program Files (x86)\AutoIt3\SciTE   UserDir => C:\Users\(len)Bert\AppData\Local\AutoIt v3\SciTE\AutoIt3Wrapper   SCITE_USERHOME => C:\Users\(len)Bert\AppData\Local\AutoIt v3\SciTE
>Running AU3Check (3.3.16.0)  from:C:\Program Files (x86)\AutoIt3  input:C:\Users\(len)Bert\AutoIt\Icon-Viewer\iconLVw4.au3
+>18:15:55 AU3Check ended.rc:0
>Running:(3.3.16.0):C:\Program Files (x86)\AutoIt3\autoit3_x64.exe "C:\Users\(len)Bert\AutoIt\Icon-Viewer\iconLVw4.au3";NM_RClick
C:\WINDOWS\system32\shell32.dll -140
-121    ItemIndex: 8    SubIndex: 12    Text:  139
-121    ItemIndex: 8    SubIndex: 12    Text:  139
-121    ItemIndex: 8    SubIndex: 12    Text:  139
-121    ItemIndex: 7    SubIndex: 12    Text:  123
-121    ItemIndex: 7    SubIndex: 12    Text:  123
-121    ItemIndex: 6    SubIndex: 13    Text:  108
-121    ItemIndex: 6    SubIndex: 14    Text:  109
-121    ItemIndex: 5    SubIndex: 14    Text:  93
-121    ItemIndex: 5    SubIndex: 15    Text:  94
-121    ItemIndex: 4    SubIndex: 15    Text:  78
-121    ItemIndex: 4    SubIndex: 15    Text:  78
-121    ItemIndex: 4    SubIndex: 15    Text:  78
-121    ItemIndex: 3    SubIndex: 15    Text:  62
-121    ItemIndex: 3    SubIndex: 16    Text:  63
-121    ItemIndex: 2    SubIndex: 16    Text:  47
-121    ItemIndex: 2    SubIndex: 16    Text:  47
-121    ItemIndex: 2    SubIndex: 16    Text:  47
-12 ItemIndex: 1    SubIndex: 32763 Text:
-12 ItemIndex: 65537    SubIndex: 32763 Text:
-121    ItemIndex: 2    SubIndex: 16    Text:  47
-121    ItemIndex: 2    SubIndex: 16    Text:  47
-8  ItemIndex: 0    SubIndex: 0 Text:
-12 ItemIndex: 1    SubIndex: 0 Text:
-12 ItemIndex: 65537    SubIndex: 0 Text:
-12 ItemIndex: 65537    SubIndex: 0 Text:
shell32.dll | 139|  32x32|32x32
C:\Users\(len)Bert\Pictures\Icons\shell32_139.ico



Link to post
Share on other sites

It looks like you are getting some interference with some random notification codes that you don't care about - like the "-12" when crossing the border between items. I would use $LVN_HOTTRACK for what you are trying to accomplish.

Case  $LVN_HOTTRACK
;~                  $tInfo = DllStructCreate($tagNMITEMACTIVATE, $ilParam)
                    $tInfo = DllStructCreate($tagNMLISTVIEW, $ilParam)
                    $iIndex = DllStructGetData($tInfo, "Index")
                    $iSub = DllStructGetData($tInfo, "SubItem")


But now there is still another issue. For some reason, the tagNMLISTVIEW struct is returning sub-item 0 about half-way through sub-item 1, depending on how wide the column is set. No idea what is going on there, but one easy way to solve this is to use _GUICtrlListView_SubItemHitTest instead.

Case  $LVN_HOTTRACK
;~                  $tInfo = DllStructCreate($tagNMITEMACTIVATE, $ilParam)
;~                  $tInfo = DllStructCreate($tagNMLISTVIEW, $ilParam)
;~                  $iIndex = DllStructGetData($tInfo, "Index")
;~                  $iSub = DllStructGetData($tInfo, "SubItem")
                    Local $aSubItemHitTest = _GUICtrlListView_SubItemHitTest($hListview)
                    If $aSubItemHitTest[0] <> -1 Then
                        $iIndex = $aSubItemHitTest[0]
                        $iSub = $aSubItemHitTest[1]

                        $sRes = _GUICtrlListView_GetItemText($hListview, $iIndex, $iSub)
                        ConsoleWrite('Code: ' & $iCode & @TAB & 'ItemIndex: ' & $iIndex & @TAB & 'SubIndex: ' &$iSub & @TAB & 'Text: ' & $sRes & @CRLF)
                        $aPos = MouseGetPos()
                        If $iSub = 0 Then
                            ToolTip('Zum späteren Speichern an-"Checken" (Mehrfachspeichern) um ganze Zeile zum Speichern zu übernehmen'); _
                        ;& @CRLF & '                      bzw. Rechtsklick auf SubItem um IconID für (Einzel-) Speichern zu übernehmen')
                        Else
                            ToolTip('Rechtsklick um IconID für (Einzel-) Speichern zu übernehmen', $aPos[0]+20, $aPos[1]+10)
                        EndIf
                    Else
                        ToolTip('')
                    EndIf

So now it is not quite as flaky. But as for the general flickering, that is something I have not figured out how to solve yet.

Link to post
Share on other sites
11 hours ago, kurtykurtyboy said:

It looks like you are getting some interference with some random notification codes that you don't care about - like the "-12" when crossing the border between items. I would use $LVN_HOTTRACK for what you are trying to accomplish.

Thanks, exactly what i searched.

11 hours ago, kurtykurtyboy said:

No idea what is going on there, but one easy way to solve this is to use _GUICtrlListView_SubItemHitTest instead.

inserting your code-snipet didn't work.

But changing $NM_CLICK to $LVN_HOTTRACK in the _GUICtrlListView_SubItemHitTest Examle works, so i can check out whats needed.

Link to post
Share on other sites
  • Solution
36 minutes ago, AutoBert said:

But changing $NM_CLICK to $LVN_HOTTRACK in the _GUICtrlListView_SubItemHitTest Examle works, so i can check out whats needed.

I got the right idea, only reacting when realy needed:

Func WM_NOTIFY($hWnd, $iMsg, $iwParam, $ilParam)
    Local $hWndFrom, $iIDFrom, $iCode, $tNMHDR, $hWndListView, $sIcon, $tInfo, $iIndex, $iSub, $sRes, $aPos
    $sDLLName = GUICtrlRead($Combo)
    $hWndListView = $hListview
    If Not IsHWnd($hListview) Then $hWndListView = GUICtrlGetHandle($hListview)
    $tNMHDR = DllStructCreate($tagNMHDR, $ilParam)
    $hWndFrom = HWnd(DllStructGetData($tNMHDR, "hWndFrom"))
    $iIDFrom = DllStructGetData($tNMHDR, "IDFrom")
    $iCode = DllStructGetData($tNMHDR, "Code")
    Switch $hWndFrom
        Case $hWndListView
            Switch $iCode
                #cs
                Case $LVN_COLUMNCLICK ; A column was clicked <== Diese Nachricht erreicht die Funktion nicht mehr
                    Local $tInfo = DllStructCreate($tagNMLISTVIEW, $ilParam)
                    ConsoleWrite('GUIRegisterMsg: $LVN_COLUMNCLICK -->Column: ' & DllStructGetData($tInfo, "SubItem") & @CRLF)
                #ce
                Case $NM_RCLICK ; Sent by a list-view control when the user clicks an item with the right mouse button
                    $tInfo = DllStructCreate($tagNMITEMACTIVATE, $ilParam)
                    $iIndex = DllStructGetData($tInfo, "Index")
                    $iSub = DllStructGetData($tInfo, "SubItem")
                    $sRes = _GUICtrlListView_GetItemText($hListview, $iIndex, $iSub)
                    ConsoleWrite($iCode & @TAB & 'iIndex: ' & $iIndex & @TAB & 'iSub: ' & $iSub & @TAB & 'Text: ' & $sRes & @CRLF)
                    If $iSub > 0 Then
                        GUICtrlSetData($inpID, $sRes)
                        $sIcon = @SystemDir & '\' & $sDLLName
                        $sRes = -(1 + $sRes)
                        ConsoleWrite($sIcon & @TAB & $sRes & @CRLF)
                        GUICtrlSetImage($IconPreview, $sIcon, $sRes)
                    EndIf
                Case $LVN_HOTTRACK
                    $tInfo = DllStructCreate($tagNMITEMACTIVATE, $ilParam)
                    $iIndex = DllStructGetData($tInfo, "Index")
                    $iSub = DllStructGetData($tInfo, "SubItem")
                    If ($iIndex <> -1) And (($iIndex <> $iOldIndex) Or ($iSub <> $iOldSub)) Then

                        $sRes = _GUICtrlListView_GetItemText($hListview, $iIndex, $iSub)
                        ConsoleWrite($iCode & @TAB & 'ItemIndex: ' & $iIndex & @TAB & 'SubIndex: ' & $iSub & @TAB & 'Text: ' & $sRes & @CRLF)
                        $aPos = MouseGetPos()
                        If $iSub = 0 Then
                            ToolTip('Zum späteren Speichern an-"Checken" (Mehrfachspeichern) um ganze Zeile zum Speichern zu übernehmen', $aPos[0])
                        Else
                            ToolTip('Rechtsklick um IconID für (Einzel-) Speichern zu übernehmen', $aPos[0] + 20, $aPos[1] + 10)
                        EndIf
                    EndIf
                    $iOldIndex = $iIndex
                    $iOldSub = $iSub
                Case $NM_KILLFOCUS ; The control has lost the input focus
                    ToolTip('')
            EndSwitch
        Case Else
            ToolTip('')
    EndSwitch
    Return $GUI_RUNDEFMSG
EndFunc   ;==>WM_NOTIFY

and the flickr is away.

Link to post
Share on other sites

I'm glad you were able to come up with a solution that worked for you!

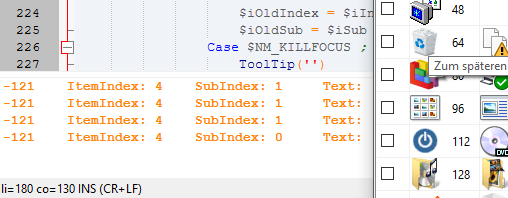

Still, it is strange that the lParam struct is still behaving strangely. Notice in this screenshot how the tooltip has already switched and it is reporting SubIndex: 0 even though my mouse is still well inside SubIndex: 1. Maybe it's just my PC..


Link to post
Share on other sites
18 hours ago, kurtykurtyboy said:

Maybe it's just my PC..

No isn't it. I set future useof  _GUICtrlListView_SubItemHitTest on my TO-DO list. But as the ToolTips are just a small help and there are geater bugs it must wait.
