!>AutoIT3.exe ended.rc:-1073741819 happened when running same code on older Intel platform

jackylee0908 · June 1, 2023

Hi sir,

I can run below code normally on Intel 12th generation processor platform with Windows 11 Pro OS, below code is about to create CRC32 checksum data from selected folder.

#Region ;**** Directives created by AutoIt3Wrapper_GUI ****
;#AutoIt3Wrapper_icon=..\..\Project.ICONS\Key.ico
;#AutoIt3Wrapper_outfile=checksum_creator_1.0.exe
;#AutoIt3Wrapper_Res_Description=Checksum Creator
;#AutoIt3Wrapper_Res_Fileversion=1.0.0.0
;#AutoIt3Wrapper_Res_LegalCopyright=Checksum Creator
;#AutoIt3Wrapper_Run_Au3Stripper=y
;#Au3Stripper_Parameters=/mo /soi
#EndRegion ;**** Directives created by AutoIt3Wrapper_GUI ****

#include <File.au3>
#include <Array.au3>

$directory_to_open = FileSelectFolder("Find directory to create checksum for?", @HomeDrive,2)

If @error Then
    Exit
Else
    $check = _ChecksumCreate($directory_to_open)
    If $check = -1 Then
        MsgBox(0, "Creation of Checksum - Failed", "Creating of Checksum have failed or was not possible.")
    Else
        MsgBox(0, "Creation of Checksum - Passed", "Creationg of Checksum is done.")
    EndIf
EndIf

Func _ChecksumCreate($sDirectory, $exceptions = ".CHM|.JPG|.BAT|.NFO|.M3U|.SFV")
    Local $sfv_file_name = StringTrimLeft($sDirectory, StringInStr($sDirectory, "\", 1, -1)) & ".sfv"
    Local $file_list = _FileListToArray($sDirectory, "*.*", 1)
    Local $sfv_create[1]
    $exceptions = StringSplit($exceptions, "|", 1)
    If @error = 1 Then Return SetError(-1, 0, 1)
    For $a = 1 To $file_list[0]
        Local $exception_status = False
        For $b = 1 To $exceptions[0]
            If StringRight($file_list[$a], 4) = $exceptions[$b] Then
                $exception_status = True
                ExitLoop
            EndIf
        Next
        If $exception_status = False Then
            $checksum_return = _ChecksumGetInfo($sDirectory & "\" & $file_list[$a])
            _ArrayAdd($sfv_create, $file_list[$a] & " " & $checksum_return)
        EndIf
    Next
    $sfv_create[0] = UBound($sfv_create) - 1
    _ArrayInsert ($sfv_create, 1, "; This file holds checksum for all the files in the directory.")
    _FileWriteFromArray($sDirectory & "\" & $sfv_file_name, $sfv_create, 1)
EndFunc   ;==>_ChecksumCreate

Func _ChecksumVerify($sFileSFV)
    ; Returns 0 if success
    ; Returns $array of failed files if there was at least one failure
    ; Return 1 if file doesn't exists or something else is wrong with the file
    Local $sfv_file_list
    Local $sfv_failed[1], $sfv_passed[1]
    Local $sFileSFVDirectory = StringLeft($sFileSFV, StringInStr($sFileSFV, "\", 1, -1) - 1)
    Local $status = _FileReadToArray($sFileSFV, $sfv_file_list)
    If $status = 0 Then Return SetError(1, 0, -1)
    For $a = 1 To $sfv_file_list[0]
        If StringLeft($sfv_file_list[$a], 1) <> ";" And StringLeft($sfv_file_list[$a], 1) <> "" Then
            $sfv_line_split = StringSplit($sfv_file_list[$a], " ", 1)
            If $sfv_line_split[0] = 2 Then
                $checksum_return = _ChecksumGetInfo($sFileSFVDirectory & "\" & $sfv_line_split[1])
                If $checksum_return = $sfv_line_split[2] Then
                    ;ConsoleWrite(@CR & $sfv_line_split[1] & " -> PASSED")
                    _ArrayAdd($sfv_passed, $sfv_line_split[1])
                Else
                    ;ConsoleWrite(@CR & $sfv_line_split[1] & " -> FAILED")
                    _ArrayAdd($sfv_failed, $sfv_line_split[1])
                EndIf
            EndIf
        EndIf
    Next
    $sfv_failed[0] = UBound($sfv_failed) - 1
    $sfv_passed[0] = UBound($sfv_passed) - 1
    If $sfv_failed[0] = 0 Then
        Return 0
    Else
        Return $sfv_failed
    EndIf
EndFunc   ;==>_ChecksumVerify

Func _ChecksumGetInfo($sFile)
    Local $nBufSize = 16384 * 8
    Local $CRC32 = 0
    If $sFile = "" Then Return SetError(1, 0, -1)
    Local $hFile = FileOpen($sFile, 16)
    For $i = 1 To Ceiling(FileGetSize($sFile) / $nBufSize)
        $CRC32 = _FastCRC32(FileRead($hFile, $nBufSize), BitNOT($CRC32))
    Next
    FileClose($hFile)
    Return Hex($CRC32, 8)
EndFunc   ;==>_ChecksumGetInfo

Func _FastCRC32($vBuffer, $nCRC32 = 0xFFFFFFFF)
    Local $nLen, $vTemp
    If DllStructGetSize($vBuffer) = 0 Then ; String passed
        If IsBinary($vBuffer) Then
            $nLen = BinaryLen($vBuffer)
        Else
            $nLen = StringLen($vBuffer)
        EndIf
        $vTemp = DllStructCreate("byte[" & $nLen & "]")
        DllStructSetData($vTemp, 1, $vBuffer)
        $vBuffer = $vTemp
    EndIf

    ; Machine code hex strings (created by Laszlo)
    Local $CRC32Init = "0x33C06A088BC85AF6C101740AD1E981F12083B8EDEB02D1E94A75EC8B542404890C82403D0001000072D8C3"
    Local $CRC32Exec = "0x558BEC33C039450C7627568B4D080FB60C08334D108B55108B751481E1FF000000C1EA0833148E403B450C89551072DB5E8B4510F7D05DC3"

    ; Create machine code stubs
    Local $CRC32InitCode = DllStructCreate("byte[" & BinaryLen($CRC32Init) & "]")
    DllStructSetData($CRC32InitCode, 1, $CRC32Init)
    Local $CRC32ExecCode = DllStructCreate("byte[" & BinaryLen($CRC32Exec) & "]")
    DllStructSetData($CRC32ExecCode, 1, $CRC32Exec)

    ; Structure for CRC32 Lookup table
    Local $CRC32LookupTable = DllStructCreate("int[" & 256 & "]")

    ; CallWindowProc under WinXP can have 0 or 4 parameters only, so pad remain params with zeros
    ; Execute stub for fill lookup table
    DllCall("user32.dll", "int", "CallWindowProc", "ptr", DllStructGetPtr($CRC32InitCode), _
            "ptr", DllStructGetPtr($CRC32LookupTable), _
            "int", 0, _
            "int", 0, _
            "int", 0)
    ; Execute main stub
    Local $ret = DllCall("user32.dll", "uint", "CallWindowProc", "ptr", DllStructGetPtr($CRC32ExecCode), _
            "ptr", DllStructGetPtr($vBuffer), _
            "uint", DllStructGetSize($vBuffer), _
            "uint", $nCRC32, _
            "ptr", DllStructGetPtr($CRC32LookupTable))
    Return $ret[0]
EndFunc   ;==>_FastCRC32

>"C:\Program Files (x86)\AutoIt3\SciTE\..\AutoIt3.exe" "C:\Program Files (x86)\AutoIt3\SciTE\AutoIt3Wrapper\AutoIt3Wrapper.au3" /run /prod /ErrorStdOut /in "C:\SynologyDrive\Test Tools\AutoIt3 codes\checksum_creator_1.0.au3" /UserParams
+>16:57:46 Starting AutoIt3Wrapper (21.316.1639.1) from:SciTE.exe (4.4.6.0)  Keyboard:00000404  OS:WIN_11/2009  CPU:X64 OS:X64  Environment(Language:0409)  CodePage:0  utf8.auto.check:4
+>         SciTEDir => C:\Program Files (x86)\AutoIt3\SciTE   UserDir => C:\Users\s5814\AppData\Local\AutoIt v3\SciTE\AutoIt3Wrapper   SCITE_USERHOME => C:\Users\s5814\AppData\Local\AutoIt v3\SciTE
>Running AU3Check (3.3.16.1)  from:C:\Program Files (x86)\AutoIt3  input:C:\SynologyDrive\Test Tools\AutoIt3 codes\checksum_creator_1.0.au3
+>16:57:47 AU3Check ended.rc:0
>Running:(3.3.16.1):C:\Program Files (x86)\AutoIt3\autoit3.exe "C:\SynologyDrive\Test Tools\AutoIt3 codes\checksum_creator_1.0.au3"
+>Setting Hotkeys...--> Press Ctrl+Alt+Break to Restart or Ctrl+BREAK to Stop.
+>16:57:52 AutoIt3.exe ended.rc:0
+>16:57:52 AutoIt3Wrapper Finished.
>Exit code: 0    Time: 5.807

But, when I try to run same code on HPE DL380p Gen8 Server which is the product launched in year 2012(pretty old), the code couldn't executed properly with Windows Server 2022 Datacenter, and there is an error message appeared from console.

>"C:\Program Files (x86)\AutoIt3\SciTE\..\AutoIt3.exe" "C:\Program Files (x86)\AutoIt3\SciTE\AutoIt3Wrapper\AutoIt3Wrapper.au3" /run /prod /ErrorStdOut /in "C:\Users\Administrator\Desktop\checksum_creator_1.0.au3" /UserParams
+>16:55:14 Starting AutoIt3Wrapper (21.316.1639.1) from:SciTE.exe (4.4.6.0)  Keyboard:00000409  OS:WIN_2022/2009  CPU:X64 OS:X64  Environment(Language:0409)  CodePage:0  utf8.auto.check:4
+>         SciTEDir => C:\Program Files (x86)\AutoIt3\SciTE   UserDir => C:\Users\Administrator\AppData\Local\AutoIt v3\SciTE\AutoIt3Wrapper   SCITE_USERHOME => C:\Users\Administrator\AppData\Local\AutoIt v3\SciTE
>Running AU3Check (3.3.16.1)  from:C:\Program Files (x86)\AutoIt3  input:C:\Users\Administrator\Desktop\checksum_creator_1.0.au3
+>16:55:14 AU3Check ended.rc:0
>Running:(3.3.16.1):C:\Program Files (x86)\AutoIt3\autoit3.exe "C:\Users\Administrator\Desktop\checksum_creator_1.0.au3"
+>Setting Hotkeys...--> Press Ctrl+Alt+Break to Restart or Ctrl+BREAK to Stop.
!>16:55:22 AutoIt3.exe ended.rc:-1073741819
+>16:55:22 AutoIt3Wrapper Finished.
>Exit code: 3221225477    Time: 9.418

I just googled and found similar issue which happened years ago(see below links), and from that topic it seems that related heavy usage of DllCallbackRegister.

https://github.com/genius257/AutoItObject-Internal/issues/5

I've no idea if my code also is limited with the HW, say that the code could not work with older platform which is with lower performance than recent computers. Or, does it related to the OS? But no matter on Windows 11 Pro or Windows Server 2022 Datacenter, both are with x64.

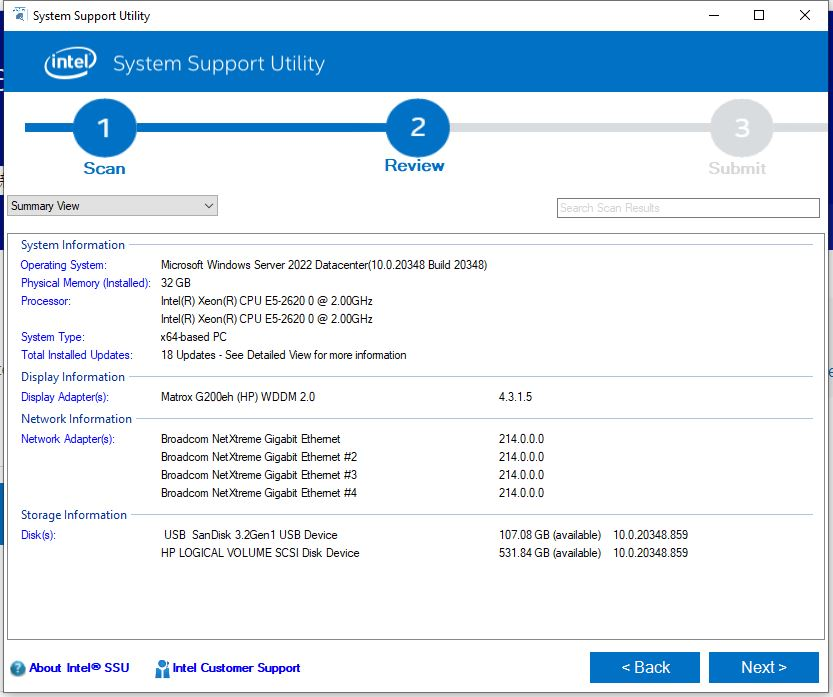

Below is the simple information about the old platform.


Do you have any suggestion for me to resolve this problem?

Thanks,

Jacky

Edited June 1, 2023 by jackylee0908

Danp2 · June 1, 2023

Quote

Local $file_list = _FileListToArray($sDirectory, "*.*", 1)

You should add some error checking here because your subsequent code will fail if the user selected an empty directory.

Beyond that, I would suggest that you add some logging to the code so that you can identify which line is causing the crash.

argumentum · June 1, 2023

8 hours ago, jackylee0908 said:
Func _FastCRC32($vBuffer, $nCRC32 = 0xFFFFFFFF)

#include <WinAPISys.au3>
Func _CRC32ofStr($sStr)
    Local $bData = StringToBinary($sStr)
    Local $iLength = BinaryLen($bData), $tData
    If $iLength = 0 Then Return SetError(1, 0, 0)
    $tData = DllStructCreate('byte data[' & $iLength & ']')
    $tData.data = $bData
    Return Hex(_WinAPI_ComputeCrc32(DllStructGetPtr($tData), $iLength), 8)
EndFunc   ;==>_CRC32ofStr

hope this fixes it ( have not tried your code but I figure that may be it )

Edit: look at this topic/204067-file-checksum

Edited June 1, 2023 by argumentum
oops

jackylee0908 · June 5, 2023

On 6/2/2023 at 1:10 AM, argumentum said:

#include <WinAPISys.au3>
Func _CRC32ofStr($sStr)
    Local $bData = StringToBinary($sStr)
    Local $iLength = BinaryLen($bData), $tData
    If $iLength = 0 Then Return SetError(1, 0, 0)
    $tData = DllStructCreate('byte data[' & $iLength & ']')
    $tData.data = $bData
    Return Hex(_WinAPI_ComputeCrc32(DllStructGetPtr($tData), $iLength), 8)
EndFunc   ;==>_CRC32ofStr

hope this fixes it ( have not tried your code but I figure that may be it )

Edit: look at this topic/204067-file-checksum

Hi @argumentum

Thanks for your comment, but since I am new on AutoIT, and the code was referred from this forum, do you mind help to modify the code I posted on above, then I can try it directly.

Appreciated your help!

argumentum · June 5, 2023

#include <APIConstants.au3>
#include <WinAPIEx.au3>


ConsoleWrite(@CRLF & _CRC32ForFile(@ScriptFullPath) & @CRLF & @CRLF) ; basically this. You code the rest.

; #FUNCTION# ====================================================================================================================
; Name ..........: _CRC32ForFile
; Description ...: Calculates CRC32 value for the specific file.
; Syntax ........: _CRC32ForFile($sFilePath)
; Parameters ....: $sFilePath           - Full path to the file to process.
;                  $iPercentageRead     - [optional] Percentage of file to read. Default is 100.
; Return values .: Success - Returns CRC32 value in the form of a hex string
;                          - Sets @error to 0
;                  Failure - Returns empty string and sets @error:
;                  |1 - CreateFile function or call to it failed.
;                  |2 - CreateFileMapping function or call to it failed.
;                  |3 - MapViewOfFile function or call to it failed.
;                  |4 - RtlComputeCrc32 function or call to it failed.
; Author ........: trancexx
; Modified ......: guinness
; Link ..........: http://www.autoitscript.com/forum/topic/95558-crc32-md4-md5-sha1-for-files/
; Example .......: No
; ===============================================================================================================================
Func _CRC32ForFile($sFilePath, $iPercentageRead = 100)
    $iPercentageRead = Int($iPercentageRead)
    If ($iPercentageRead > 100) Or ($iPercentageRead <= 0) Then
        $iPercentageRead = 100
    EndIf
    $iPercentageRead = ($iPercentageRead / 100) * FileGetSize($sFilePath)
    Local $iError = 0
    Local Const $hFilePath = _WinAPI_CreateFileEx($sFilePath, $OPEN_EXISTING, $GENERIC_READ, BitOR($FILE_SHARE_READ, $FILE_SHARE_WRITE), $SECURITY_ANONYMOUS, 0, 0)
    If @error Then
        Return SetError(1, 0, '')
    EndIf

    Local Const $hFilePathMappingObject = _WinAPI_CreateFileMapping($hFilePath, 0, 0, $PAGE_READONLY)
    $iError = @error
    _WinAPI_CloseHandle($hFilePath)
    If $iError Then
        Return SetError(2, 0, '')
    EndIf

    Local Const $pFilePath = _WinAPI_MapViewOfFile($hFilePathMappingObject, 0, $iPercentageRead, $FILE_MAP_READ)
    $iError = @error
    _WinAPI_CloseHandle($hFilePathMappingObject)
    If $iError Then
        Return SetError(3, 0, '')
    EndIf

    Local Const $iBufferSize = $iPercentageRead ; FileGetSize($sFilePath)
    Local Const $iCRC32 = _WinAPI_ComputeCrc32($pFilePath, $iBufferSize)
    $iError = @error
    _WinAPI_UnmapViewOfFile($pFilePath)
    _WinAPI_CloseHandle($hFilePathMappingObject)
    If $iError Then
        Return SetError(4, 0, '')
    EndIf
    Return SetError(0, 0, Hex($iCRC32, 8))
EndFunc   ;==>_CRC32ForFile

This CRC32 should work without crashing if the file will fit in memory. Other than that, I'd use something coded just for that. You'll have to search online.
Now if you like to use MD5 or SHA1 then you can use the _Crypt_HashFile() functions from the help file. That will give you a better collision resolution than CRC32.

jackylee0908 · June 6, 2023

Hi @argumentum

Thanks, it works for me, but when I add to check a file checksum by "If", and seems it does not work for me, the part code is as below.

$file_to_open = "c:\dmcheck\dmcheck.sfv"

ConsoleWrite(@CRLF & _CRC32ForFile($file_to_open) & @CRLF & @CRLF) ; basically this. You code the rest.

$v1 = _CRC32ForFile($file_to_open)

ConsoleWrite($v1)

If Not $v1 = "E1866101" Then
    MsgBox(262160, "FAIL", "File check failed.")
Else
    MsgBox(262160, "PASS", "File check passed.")
EndIf

And here is the output.

>"C:\Program Files (x86)\AutoIt3\SciTE\..\AutoIt3.exe" "C:\Program Files (x86)\AutoIt3\SciTE\AutoIt3Wrapper\AutoIt3Wrapper.au3" /run /prod /ErrorStdOut /in "C:\SynologyDrive\Test Tools\AutoIt3 codes\temp36-crc32 for file.au3" /UserParams
+>09:27:46 Starting AutoIt3Wrapper (21.316.1639.1) from:SciTE.exe (4.4.6.0)  Keyboard:00000404  OS:WIN_11/2009  CPU:X64 OS:X64  Environment(Language:0409)  CodePage:0  utf8.auto.check:4
+>         SciTEDir => C:\Program Files (x86)\AutoIt3\SciTE   UserDir => C:\Users\s5814\AppData\Local\AutoIt v3\SciTE\AutoIt3Wrapper   SCITE_USERHOME => C:\Users\s5814\AppData\Local\AutoIt v3\SciTE
>Running AU3Check (3.3.16.1)  from:C:\Program Files (x86)\AutoIt3  input:C:\SynologyDrive\Test Tools\AutoIt3 codes\temp36-crc32 for file.au3
+>09:27:47 AU3Check ended.rc:0
>Running:(3.3.16.1):C:\Program Files (x86)\AutoIt3\autoit3.exe "C:\SynologyDrive\Test Tools\AutoIt3 codes\temp36-crc32 for file.au3"
+>Setting Hotkeys...--> Press Ctrl+Alt+Break to Restart or Ctrl+BREAK to Stop.

CBB2BF83

CBB2BF83+>09:27:55 AutoIt3.exe ended.rc:0
+>09:27:55 AutoIt3Wrapper Finished.
>Exit code: 0    Time: 9.729

I set the file checksum value = E1866101, but the file checksum actually is with value CBB2BF83, but it always show PASS result, please digit me where the code is wrong, thanks!

Edited June 6, 2023 by jackylee0908

argumentum · June 6, 2023

..use this ( https://www.nirsoft.net/utils/hash_my_files.html ) and if the 2 values are different then something is wrong.
Furthermore, I'll give you another, slower but similar code. See how all the outputs match or not

#include <APIConstants.au3>
#include <WinAPIEx.au3>
ConsoleWrite(@CRLF & _CRC32ofFile(@AutoItExe) & @CRLF & @CRLF & TimerDiff($hTimer) & @CRLF)
Func _CRC32ofFile($sFileFullPath)
    Local $sFile, $hFile = FileOpen($sFileFullPath, 512) ; Use ANSI reading mode.
    $sFile = FileRead($hFile)
    FileClose($hFile)
    Return _CRC32ofStr($sFile)
EndFunc
Func _CRC32ofStr($sStr)
    Local $bData = StringToBinary($sStr)
    Local $iLength = BinaryLen($bData), $tData
    If $iLength = 0 Then Return SetError(1, 0, 0)
    $tData = DllStructCreate('byte data[' & $iLength & ']')
    $tData.data = $bData
    Return Hex(_WinAPI_ComputeCrc32(DllStructGetPtr($tData), $iLength), 8)
EndFunc   ;==>_CRC32ofStr

argumentum · June 6, 2023

I'd use this command line utility ( CRC32.EXE ) to check the files. Is fast and does not have to read the file to memory.

jackylee0908 · June 6, 2023

Hi @argumentum

Thanks, I have found what problem it is, below is the workable code.

$file_to_open = "c:\dmcheck\dmcheck.sfv"

ConsoleWrite(@CRLF & _CRC32ForFile($file_to_open) & @CRLF & @CRLF) ; basically this. You code the rest.

$v1 = _CRC32ForFile($file_to_open)
$v2 = "E1866101"

If $v1 == $v2 Then
    MsgBox(262160, "PASS", "File check passed.")
Else
    MsgBox(262160, "FAIL", "File check failed.")
EndIf

The "If" should with "==" but not "=".

Anyway, thanks for your suggestion, I appreciated.

Sign In

!>AutoIT3.exe ended.rc:-1073741819 happened when running same code on older Intel platform

Recommended Posts

jackylee0908

Link to comment

Share on other sites

Danp2

Link to comment

Share on other sites

argumentum

Link to comment

Share on other sites

jackylee0908

Link to comment

Share on other sites

argumentum

Link to comment

Share on other sites

jackylee0908

Link to comment

Share on other sites

argumentum

Link to comment

Share on other sites

argumentum

Link to comment

Share on other sites

jackylee0908

Link to comment

Share on other sites

Create an account or sign in to comment

Create an account

Sign in

Recently Browsing 0 members

Browse

AutoIt Resources

Release

Beta
