ListViewSubItem and Icon

11 posts in this topic

I am writing an application that loops through a list of servers running some checks.

I decided to use a listview to display the results. The intention is for the listview to have 2 colums. 1 for the task that is running and 1 for the result.

The task should be displayed in the listview whilst running and the result column populated when the task has finished. The results column should display only an icon of a tick or cross.

My problem is that I don't seem to be able to make a ListViewSubItem have an icon associated with it.

Can anybody help?

Share this post


Link to post
Share on other sites



Hi,

For working scripts, see also "SearchMiner" from my signature, and [the link above pooints to gary's working script too, but there is a comment on difficulty changing dynamically which is not warranted...]

ExIcons7.zip

Best, Randall

Share this post


Link to post
Share on other sites

Hi,

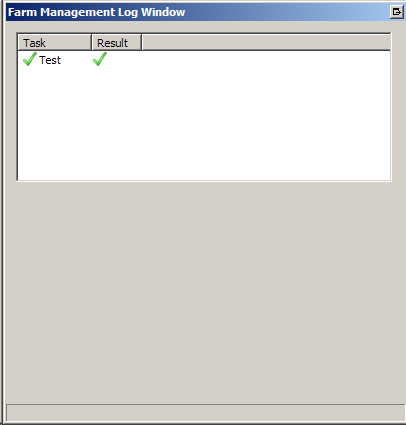

Thanks for your help so far. I have attached a screenshot with what I have so far. As you can see the green tick appears in both columns. Is there a way to only have it appear in the 'Result' column and not the 'Task' column?


Share this post


Link to post
Share on other sites

#5 ·  Posted (edited)

Hi,

Thanks for your help so far. I have attached a screenshot with what I have so far. As you can see the green tick appears in both columns. Is there a way to only have it appear in the 'Result' column and not the 'Task' column?

Post your script to get help.

Edited by Zedna

Share this post


Link to post
Share on other sites

#6 ·  Posted (edited)

The code needs tidying up but here it is: -

#include <GuiStatusBar.au3>
#include <GuiConstants.au3>
#include <GuiListView.au3>

$hwndMain = 0
$hwndProgress = 0
$lblProgress = 0
$hwndSB = 0
$cidLVW = 0
$hwndLVW = 0
$TICK_ICO = @tempdir & "\tick.ico"
$CROSS_ICO = @tempdir & "\cross.ico"
$LVW_HEAD = "Task|Result"
Const $LVM_SETIMAGELIST = ($LVM_FIRST + 3)
Const $LVIF_IMAGE = 0x0002
Const $LVM_SETITEM = ($LVM_FIRST + 6)

CreateMainWindow()

GUICtrlCreateListViewItem("Test", $cidLVW)
sleep(2000)
_GUICtrlListViewSetItemImage($hwndLVW, 0, 1, 0) ; listview handle, index, subitem, image index
while 1
   sleep(100)
wend


;==========================================================================
; Aim:      To create the main window that will house all of the logging
;==========================================================================
Func CreateMainWindow()

   $hwndMain = GUICreate("Farm Management Log Window", -1, -1, -1, -1, $WS_CAPTION)
   $hwndSB = _GUICtrlStatusBarCreate($hwndMain, -1, "")
   ;GUISetState(@SW_SHOW, $hwndMain)
   $pos = WinGetPos($hwndMain)
   $left = 10
   $top = 10
   $width = $pos[2] - ($left * 3)
   $cidLVW = GUICtrlCreateListView($LVW_HEAD, $left, $top, $width)
   GUICtrlSendMsg($cidLVW, $LVM_SETEXTENDEDLISTVIEWSTYLE, $LVS_EX_SUBITEMIMAGES, $LVS_EX_SUBITEMIMAGES)
   $hwndLVW = ControlGetHandle($hwndMain, "", $cidLVW)
   $h_images = _GUICtrlListViewCreateImageList(16, 16, 0x0021, 0, 4, $LVSIL_SMALL) ;create the imagelist
   _GUICtrlListViewImageListAdd($h_images, @scriptdir & "\tick.ico")
   _GUICtrlListViewImageListAdd($h_images, @scriptdir & "\cross.ico")
   _GuiCtrlListViewSetImageList($hwndLVW, $h_images, $LVSIL_SMALL)
   GUISetState()

EndFunc

;
;
;
Func ProgressUpdate($text)

   _GUICtrlStatusBarSetText($hwndSB, $text)

EndFunc

#region Image Lists ***********************************************************************************************
Func _GUICtrlListViewCreateImageList($iCX = 16, $iCY = 16, $iFlags = 0x0021, $iInitial = 4, $iGrow = 4, $iType = 0)
    Local $h_images, $aResult
    If @error Then Return SetError(-1, -1, 0)
    $h_images = DllCall("ComCtl32.dll", "hwnd", "ImageList_Create", "int", $iCX, "int", $iCY, _
            "int", $iFlags, "int", $iInitial, "int", $iGrow)
    If @error Then Return SetError(-1, -1, 0)
    $h_images = $h_images[0]
    Return $h_images
EndFunc   ;==>_GUICtrlListViewCreateImageList

Func _GUICtrlListViewDestroyImageList($h_images)
    Local $result = DllCall("ComCtl32.dll", "int", "ImageList_Destroy", "hwnd", $h_images)
    If @error Then Return SetError(-1, -1, 0)
    Return $result[0]
EndFunc   ;==>_GUICtrlListViewDestroyImageList

Func _GuiCtrlListViewSetImageList($h_LV, $h_images, $iType = 0)
    Local $iResult = _SendMessage($h_LV, $LVM_SETIMAGELIST, $iType, $h_images)
    If @error Then
        Return SetError(-1, -1, 0)
    EndIf
    Return $iResult
EndFunc   ;==>_GuiCtrlListViewSetImageList

Func _GUICtrlListViewImageListAdd($hImageList, $szFile, $nIconID = -1, $i_Width = -1, $i_Height = -1, $Mask = 0)
    Local $result
    Local $ext = StringLower(StringRight($szFile, 3))
    If $ext = "ico" Or $ext = "cur" Or $ext = "exe" Or $ext = "dll" Then
        If $nIconID = -1 Then $nIconID = 0
        Local $hIcon = DllStructCreate("int")
        $result = DllCall("shell32.dll", "int", "ExtractIconEx", "str", $szFile, "int", $nIconID, "hwnd", 0, "ptr", DllStructGetPtr($hIcon), "int", 1)
        If @error Then Return SetError(-1, -1, 0)
        $result = $result[0]
        If $result > 0 Then
            Local $icon_handle = DllStructGetData($hIcon, 1)
            $result = DllCall("ComCtl32.dll", "int", "ImageList_ReplaceIcon", "hwnd", $hImageList, "int", -1, _
                    "hwnd", $icon_handle)
            If @error Then Return SetError(-1, -1, 0)
            DllCall("user32.dll", "int", "DestroyIcon", "hwnd", $icon_handle)
            If @error Then Return SetError(-1, -1, 0)
            Return $result[0]
        EndIf
    ElseIf $ext = "bmp" Then
        Local $fuLoad = $LR_LOADFROMFILE
        If $i_Width = -1 Then $i_Width = 20
        If $i_Height = -1 Then $i_Height = 20
        Local $h_Bitmap = DllCall('user32.dll', 'hwnd', 'LoadImage', 'hwnd', 0, 'str', $szFile, _
                'int', 0, 'int', $i_Width, 'int', $i_Height, 'int', $fuLoad)
        If @error Then Return SetError(-1, -1, 0)
        $result = DllCall("ComCtl32.dll", "int", "ImageList_Add", "hwnd", $hImageList, "hwnd", $h_Bitmap[0], "hwnd", $Mask)
        If @error Then Return SetError(-1, -1, 0)
        DllCall('gdi32.dll', 'int', 'DeleteObject', 'hwnd', $h_Bitmap[0])
        Return $result[0]
    EndIf
EndFunc   ;==>_GUICtrlListViewImageListAdd

Func _GUICtrlListViewImageListRemove($hImageList, $iIndex = -1) ; -1 removes all images
    Local $result = DllCall("ComCtl32.dll", "int", "ImageList_Remove", "hwnd", $hImageList, "int", $iIndex)
    If @error Then Return SetError(-1, -1, 0)
    Return $result[0]
EndFunc   ;==>_GUICtrlListViewImageListRemove

Func _GUICtrlListViewReleaseBitMap(ByRef $hLVBitmap)
    DllCall('gdi32.dll', 'int', 'DeleteObject', 'hwnd', $hLVBitmap)
    If @error Then Return SetError(-1, -1, 0)
EndFunc   ;==>_GUICtrlListViewReleaseBitMap
#endregion Images Lists ***********************************************************************************************

Func _GUICtrlListViewSetItemImage($h_ListView, $i_index = 0, $i_subindex = 0, $i_IconIdex = 0)
    If Not IsHWnd($h_ListView) Then Return SetError(-1, -1, 0)

    Local $LVITEM_pointer, $iResult, $struct_LVITEM
    $struct_LVITEM = DllStructCreate("int;int;int;int;int;ptr;int;int;int;int")
    If @error Then
        Return SetError(-1, -1, 0)
    EndIf
    DllStructSetData($struct_LVITEM, $LVI_MASK, $LVIF_IMAGE)
    DllStructSetData($struct_LVITEM, $LVI_IITEM, $i_index)
    DllStructSetData($struct_LVITEM, $LVI_ISUBITEM, $i_subindex)
    DllStructSetData($struct_LVITEM, $LVI_IIMAGE, $i_IconIdex)
    $LVITEM_pointer = DllStructGetPtr($struct_LVITEM)
    If @error Then Return SetError(-1, -1, 0)
    $iResult = _SendMessage($h_ListView, $LVM_SETITEM, 0, $LVITEM_pointer)
    If @error Then Return SetError(-1, -1, 0)
    ;****************************************************************************************
EndFunc   ;==>_GUICtrlListViewSetItemImage
Edited by cojms1

Share this post


Link to post
Share on other sites

Hi,

youneed to itmize your added images;

global $image_indexes[3], $image_indexes2[5]

_GUICtrlListViewSetItemImage($hwndLVW, 0, 0, $image_indexes[0]) ; listview handle, index, subitem, image index

_GUICtrlListViewSetItemImage($hwndLVW, 0, 1,$image_indexes[1]) ; listview handle, index, subitem, image index

$image_indexes[0]=_GUICtrlListViewImageListAdd($h_images, $ar_Images[0][0], $ar_Images[1][0] )

$image_indexes[1]=_GUICtrlListViewImageListAdd($h_images, $ar_Images[0][1] , $ar_Images[1][1])

;~ $image_indexes[0]=_GUICtrlListViewImageListAdd($h_images, @scriptdir & "\tick.ico")

;~ $image_indexes[1]=_GUICtrlListViewImageListAdd($h_images, @scriptdir & "\cross.ico")

working modified script;

; iconsLVcojms1.au3
#include <GuiStatusBar.au3>
#include <GuiConstants.au3>
#include <GuiListView.au3>
#include <array.au3>

$hwndMain = 0
$hwndProgress = 0
$lblProgress = 0
$hwndSB = 0
$cidLVW = 0
$hwndLVW = 0
$TICK_ICO = @tempdir & "\tick.ico"
$CROSS_ICO = @tempdir & "\cross.ico"
$LVW_HEAD = "Task|Result"
Global $ar_Images[2][2] = [[ @WindowsDir & "\Cursors\arrow_m.cur", "shell32.dll"], [0, 22]], $s_ExtImages, $szIconFileDef, $nIconDef;,$h_Gui,$ListView
;~ _ArrayDisplay($ar_Images)
global $image_indexes[3], $image_indexes2[5]
Const $LVM_SETIMAGELIST = ($LVM_FIRST + 3)
Const $LVIF_IMAGE = 0x0002
Const $LVM_SETITEM = ($LVM_FIRST + 6)
Global Const $LR_LOADFROMFILE = 0x0010
Global Const $LR_LOADMAP3DCOLORS = 0x1000
Global Const $LR_DEFAULTSIZE = 0x0040
Global Const $LR_LOADTRANSPARENT = 0x20
;~ Global Const $LVM_GETIMAGELIST = ($LVM_FIRST + 2)
;~ Global Const $LVM_SETIMAGELIST = ($LVM_FIRST + 3)
#endregion End Global variables
Global Const $WM_KEYDOWN = 0x0100
Global Const $LVN_ENDLABELEDITA = (-106)
Global $bUPDATELOSTFOCUS = True ;not save editing if another cell is clicked
Global $bEDITondblclick = True ;Must dblclick to edit
Global $old_col
Global $LISTVIEWCTRL = -999
Global $Gui, $editFlag
Global $editCtrl ;= the CtrlId of the editing control.
Global $LVcolControl[1] = [0] ;0= edit, 1= combo, 2= calendar 99 = readonly
Global $lvEdit, $lvCombo, $lvDate
Global $LVINFO[10];
CreateMainWindow()

GUICtrlCreateListViewItem("Test|test2", $cidLVW)
;~ sleep(2000)
_GUICtrlListViewSetItemImage($hwndLVW, 0, 0, $image_indexes[0]) ; listview handle, index, subitem, image index
_GUICtrlListViewSetItemImage($hwndLVW, 0, 1,$image_indexes[1]) ; listview handle, index, subitem, image index
while 1
   sleep(100)
wend


;==========================================================================
; Aim:      To create the main window that will house all of the logging
;==========================================================================
Func CreateMainWindow()

   $hwndMain = GUICreate("Farm Management Log Window", -1, -1, -1, -1, $WS_CAPTION)
   $hwndSB = _GUICtrlStatusBarCreate($hwndMain, -1, "")
   ;GUISetState(@SW_SHOW, $hwndMain)
   $pos = WinGetPos($hwndMain)
   $left = 10
   $top = 10
   $width = $pos[2] - ($left * 3)
   $cidLVW = GUICtrlCreateListView($LVW_HEAD, $left, $top, $width)
   GUICtrlSendMsg($cidLVW, $LVM_SETEXTENDEDLISTVIEWSTYLE, $LVS_EX_SUBITEMIMAGES, $LVS_EX_SUBITEMIMAGES)
   $hwndLVW = ControlGetHandle($hwndMain, "", $cidLVW)
   $h_images = _GUICtrlListViewCreateImageList(16, 16, 0x0021, 0, 4, $LVSIL_SMALL) ;create the imagelist
   $image_indexes[0]=_GUICtrlListViewImageListAdd($h_images, $ar_Images[0][0], $ar_Images[1][0] )
   $image_indexes[1]=_GUICtrlListViewImageListAdd($h_images, $ar_Images[0][1] , $ar_Images[1][1])
;~    $image_indexes[0]=_GUICtrlListViewImageListAdd($h_images, @scriptdir & "\tick.ico")
;~    $image_indexes[1]=_GUICtrlListViewImageListAdd($h_images, @scriptdir & "\cross.ico")
   _GuiCtrlListViewSetImageList($hwndLVW, $h_images, $LVSIL_SMALL)
   GUISetState()

EndFunc

;
;
;
Func ProgressUpdate($text)

   _GUICtrlStatusBarSetText($hwndSB, $text)

EndFunc

#region Image Lists ***********************************************************************************************
Func _GUICtrlListViewCreateImageList($iCX = 16, $iCY = 16, $iFlags = 0x0021, $iInitial = 4, $iGrow = 4, $iType = 0)
    Local $h_images, $aResult
    If @error Then Return SetError(-1, -1, 0)
    $h_images = DllCall("ComCtl32.dll", "hwnd", "ImageList_Create", "int", $iCX, "int", $iCY, _
            "int", $iFlags, "int", $iInitial, "int", $iGrow)
    If @error Then Return SetError(-1, -1, 0)
    $h_images = $h_images[0]
    Return $h_images
EndFunc   ;==>_GUICtrlListViewCreateImageList

Func _GUICtrlListViewDestroyImageList($h_images)
    Local $result = DllCall("ComCtl32.dll", "int", "ImageList_Destroy", "hwnd", $h_images)
    If @error Then Return SetError(-1, -1, 0)
    Return $result[0]
EndFunc   ;==>_GUICtrlListViewDestroyImageList

Func _GuiCtrlListViewSetImageList($h_LV, $h_images, $iType = 0)
    Local $iResult = _SendMessage($h_LV, $LVM_SETIMAGELIST, $iType, $h_images)
    If @error Then
        Return SetError(-1, -1, 0)
    EndIf
    Return $iResult
EndFunc   ;==>_GuiCtrlListViewSetImageList

Func _GUICtrlListViewImageListAdd($hImageList, $szFile, $nIconID = -1, $i_Width = -1, $i_Height = -1, $Mask = 0)
    Local $result
    Local $ext = StringLower(StringRight($szFile, 3))
    If $ext = "ico" Or $ext = "cur" Or $ext = "exe" Or $ext = "dll" Then
        If $nIconID = -1 Then $nIconID = 0
        Local $hIcon = DllStructCreate("int")
        $result = DllCall("shell32.dll", "int", "ExtractIconEx", "str", $szFile, "int", $nIconID, "hwnd", 0, "ptr", DllStructGetPtr($hIcon), "int", 1)
        If @error Then Return SetError(-1, -1, 0)
        $result = $result[0]
        If $result > 0 Then
            Local $icon_handle = DllStructGetData($hIcon, 1)
            $result = DllCall("ComCtl32.dll", "int", "ImageList_ReplaceIcon", "hwnd", $hImageList, "int", -1, _
                    "hwnd", $icon_handle)
            If @error Then Return SetError(-1, -1, 0)
            DllCall("user32.dll", "int", "DestroyIcon", "hwnd", $icon_handle)
            If @error Then Return SetError(-1, -1, 0)
            Return $result[0]
        EndIf
    ElseIf $ext = "bmp" Then
        Local $fuLoad = $LR_LOADFROMFILE
        If $i_Width = -1 Then $i_Width = 20
        If $i_Height = -1 Then $i_Height = 20
        Local $h_Bitmap = DllCall('user32.dll', 'hwnd', 'LoadImage', 'hwnd', 0, 'str', $szFile, _
                'int', 0, 'int', $i_Width, 'int', $i_Height, 'int', $fuLoad)
        If @error Then Return SetError(-1, -1, 0)
        $result = DllCall("ComCtl32.dll", "int", "ImageList_Add", "hwnd", $hImageList, "hwnd", $h_Bitmap[0], "hwnd", $Mask)
        If @error Then Return SetError(-1, -1, 0)
        DllCall('gdi32.dll', 'int', 'DeleteObject', 'hwnd', $h_Bitmap[0])
        Return $result[0]
    EndIf
EndFunc   ;==>_GUICtrlListViewImageListAdd

Func _GUICtrlListViewImageListRemove($hImageList, $iIndex = -1) ; -1 removes all images
    Local $result = DllCall("ComCtl32.dll", "int", "ImageList_Remove", "hwnd", $hImageList, "int", $iIndex)
    If @error Then Return SetError(-1, -1, 0)
    Return $result[0]
EndFunc   ;==>_GUICtrlListViewImageListRemove

Func _GUICtrlListViewReleaseBitMap(ByRef $hLVBitmap)
    DllCall('gdi32.dll', 'int', 'DeleteObject', 'hwnd', $hLVBitmap)
    If @error Then Return SetError(-1, -1, 0)
EndFunc   ;==>_GUICtrlListViewReleaseBitMap
#endregion Images Lists ***********************************************************************************************

Func _GUICtrlListViewSetItemImage($h_ListView, $i_index = 0, $i_subindex = 0, $i_IconIdex = 0)
    If Not IsHWnd($h_ListView) Then Return SetError(-1, -1, 0)

    Local $LVITEM_pointer, $iResult, $struct_LVITEM
    $struct_LVITEM = DllStructCreate("int;int;int;int;int;ptr;int;int;int;int")
    If @error Then
        Return SetError(-1, -1, 0)
    EndIf
    DllStructSetData($struct_LVITEM, $LVI_MASK, $LVIF_IMAGE)
    DllStructSetData($struct_LVITEM, $LVI_IITEM, $i_index)
    DllStructSetData($struct_LVITEM, $LVI_ISUBITEM, $i_subindex)
    DllStructSetData($struct_LVITEM, $LVI_IIMAGE, $i_IconIdex)
    $LVITEM_pointer = DllStructGetPtr($struct_LVITEM)
    If @error Then Return SetError(-1, -1, 0)
    $iResult = _SendMessage($h_ListView, $LVM_SETITEM, 0, $LVITEM_pointer)
    If @error Then Return SetError(-1, -1, 0)
    ;****************************************************************************************
EndFunc   ;==>_GUICtrlListViewSetItemImage
best, Randall

Share this post


Link to post
Share on other sites

hi,

Sorry if I made that more complex than necessary; [i keep 2 arrys of my added image values, so the direct values don't work for me, but they do in your simpler example...]

_GUICtrlListViewSetItemImage($hwndLVW, 0, 0, 0) ; listview handle, index, subitem, image index
_GUICtrlListViewSetItemImage($hwndLVW, 0, 1,1) ; listview handle, index, subitem, image index

Randall

Share this post


Link to post
Share on other sites

#9 ·  Posted (edited)

@randallc

Thanks for the response. I have looked at the script but that also adds an icon to the ListViewItem as well as the ListViewSubItem. I tried removing the line that placed an icon on the ListViewItem but that still resulted in icon being placed on it.

I'm hoping to have no icon on the ListViewItem and an icon on the ListViewSubItem. Is this possible? All examples I have found seem to have an icon on items and subitems or just on items.

Edited by cojms1

Share this post


Link to post
Share on other sites

@randallc

Thanks for the response. I have looked at the script but that also adds an icon to the ListViewItem as well as the ListViewSubItem. I tried removing the line that placed an icon on the ListViewItem but that still resulted in icon being placed on it.

I'm hoping to have no icon on the ListViewItem and an icon on the ListViewSubItem. Is this possible? All examples I have found seem to have an icon on items and subitems or just on items.

Works in 3.2.5.5 latest beta; though it leaves a gap on the item line wide enough for an image!

Best, randall

Share this post


Link to post
Share on other sites

@randallc

Many thanks randallc. I have just downloaded the beta and it works. As you have said though there is that space.

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!


Register a new account

Sign in

Already have an account? Sign in here.


Sign In Now
Sign in to follow this
Followers 0
