Noobster24

Get icon from every filetype

6 posts in this topic

#1 ·  Posted (edited)

Hi,

when you explore your computer with Windows Explorer, you'll notice that almost every file (with a certain filetype) has is icon.

Now my problem:

I have a $listview, I use a combination of For and _FileListToArray() to ouput the files and directories in a certain directory / on a certain drive. I use GuiCtrlSetImage() to put an image in the listview, but this doesn't show me an image file of that file:

GUICtrlSetImage (-1, $location & $filearray[$i]) ;for instance d:\games\myblablafile.php

How can I put the icon of every filetype in the listview? (If it's a .doc-file show the M$ Word icon, if it's Adobe Photoshop 2, show that icon etc.)

Anyone got an idea?

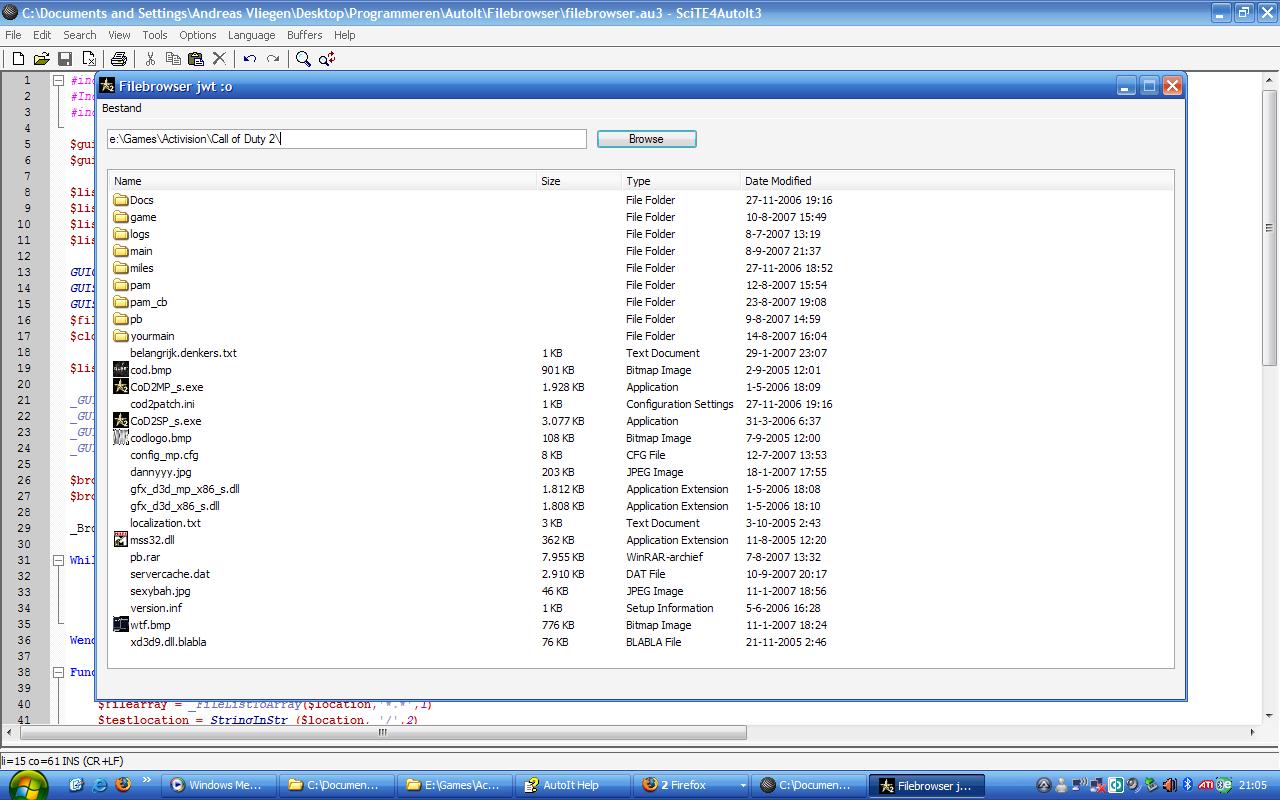

I added a screen to clear things up..


Edited by Noobster24

Programs so far:Teh Serializer - Search for licenses for Nero - Windows - Office - Alcohol etc.

Share this post


Link to post
Share on other sites



#3 ·  Posted (edited)

This is better:

GUICtrlSetImage (-1, "D:\games\call of duty 2\cod2_mp.exe", 1)
Hi thanks for the reply, but my explanation sucked. Take a lot at the screenshot in my first post.

It shows the icons of certain files (like bmp & exe), but no icons of .cfg or .php etc. (But in Windows Explorer it does..)

Something like this:

http://www.pocketpcdn.com/articles/systemimages.html

but then so than I can use it in Autoit.

Edited by Noobster24

Programs so far:Teh Serializer - Search for licenses for Nero - Windows - Office - Alcohol etc.

Share this post


Link to post
Share on other sites

is there any update on that thread, need this functionality too.


$a=StringSplit("547275737420796F757220546563686E6F6C75737421","")For $b=1 To UBound($a)+(-1*-1*-1)step(2^4/8);&$b+=1*2/40*µ&Asc(4)Assign("c",Eval("c")&Chr(Dec($a[$b]&$a[$b+1])))''Chr("a")&"HI"Next;time_U&r34d,ths,U-may=get$the&c.l.u.e;b3st-regards,JRSmile;MsgBox(0x000000,"",Eval("c"));PiEs:d0nt+*b3.s4d.4ft3r.1st-try:-)

Share this post


Link to post
Share on other sites

ha i would like to know how to do this as well i want to implement it into a media player i'm working on....

i know you wonder why/how but i know what my plans r...


[center][/center]

Share this post


Link to post
Share on other sites

Hi,

Check this example (the functions _FileGetType() and _FileGetIcon isn't mine (sorry, but i can't remember ho's), i just change them a litle):

#include <GUIConstants.au3>

$FileFolderFullPath = @ScriptFullPath

GUICreate("Get File/Folder Type & Icon", 300, 150)

$GetIcoArr = _FileGetIcon($FileFolderFullPath)

GUICtrlCreateButton("", 130, 50, 32, 32, $BS_ICON)
GUICtrlSetImage(-1, $GetIcoArr[1], $GetIcoArr[2], 0)

GUICtrlCreateLabel(_FileGetType($FileFolderFullPath), 75, 90, 140, 20, $SS_CENTER)

GUISetState()

While 1
    $Msg = GUIGetMsg()
    If $Msg = -3 Then Exit
WEnd

Func _FileGetType($FilePathOrExt)
    Local $Old_Opt_EES = Opt("ExpandEnvStrings", 1)
    Local $RegDefault, $RegType="", $Ext
    If _IsFolder($FilePathOrExt) Then
        $RegDefault = RegRead("HKCR\Folder", "")
        If $RegDefault <> "" Then $RegType = $RegDefault
    Else
        $Ext = StringRegExpReplace($FilePathOrExt, '^.*\.', '.')
        If $Ext = $FilePathOrExt Then
            $ExtSaerch = FileFindFirstFile($FilePathOrExt & ".*")
            $Ext = StringRegExpReplace(FileFindNextFile($ExtSaerch), '^.*\.', '.')
            $FilePathOrExt &= $Ext
        EndIf
        $RegDefault = RegRead("HKCR\" & $Ext, "")
        If $RegDefault <> "" Then $RegType = RegRead("HKCR\" & $RegDefault, "")
        If $RegType = "" Then $RegType = $Ext & "-File"
    EndIf
    Opt("ExpandEnvStrings", $Old_Opt_EES)
    Return $RegType
EndFunc

Func _FileGetIcon($szFile)
    Local $Old_Opt_EES = Opt("ExpandEnvStrings", 1)
    Local $szRegDefault = "", $szDefIcon = "", $szExt, $szIconFile, $nIcon=0
    Local $RetArr[3]

    If _IsFolder($szFile) Then
        $szRegDefault = RegRead("HKCR\Folder", "")
        If $szRegDefault <> "" Then $szDefIcon = RegRead("HKCR\Folder\DefaultIcon", "")
    Else
        $szExt = StringRegExpReplace($szFile, '^.*\.', '.')

        If $szExt = ".lnk" Then
            Local $LnkInfoArr = FileGetShortcut($szFile)
            If Not @error Then
                Local $RetArr[3] = [2, $LnkInfoArr[4], $LnkInfoArr[5]]
                Return $RetArr
            EndIf
        EndIf

        If $szExt = $szFile Then
            $szExt = FileFindFirstFile($szFile & ".*")
            $szExt = StringRegExpReplace(FileFindNextFile($szExt), '^.*\.', '.')
            $szFile &= $szExt
        EndIf
        $szRegDefault = RegRead("HKCU\Software\Microsoft\Windows\CurrentVersion\Explorer\FileExts\" & $szExt, "ProgID")
        If $szRegDefault = "" Then $szRegDefault = RegRead("HKCR\" & $szExt, "")
        If $szRegDefault <> "" Then $szDefIcon = RegRead("HKCR\" & $szRegDefault & "\DefaultIcon", "")
    EndIf
    If $szDefIcon = "" Then
        $szIconFile = "shell32.dll"
    ElseIf $szDefIcon <> "%1" Then
        If StringRegExpReplace($szFile, "^.*\\", "") = "shell32.dll" Then
            $szIconFile = $szFile
            $nIcon = 0
        Else
            $arSplit = StringSplit($szDefIcon, ",")
            If IsArray($arSplit) Then
                $szIconFile = $arSplit[1]
                If $arSplit[0] > 1 Then $nIcon = $arSplit[2]
            Else
                Opt("ExpandEnvStrings", $Old_Opt_EES)
                Return SetError(1, 0, $RetArr)
            EndIf
        EndIf
    ElseIf $szDefIcon = "%1" Then
        $szIconFile = $szFile
        $nIcon = 0
    EndIf
    Opt("ExpandEnvStrings", $Old_Opt_EES)
    Local $RetArr[3] = [2, $szIconFile, $nIcon]
    Return $RetArr
EndFunc

Func _IsFolder($name)
    Return StringInStr(FileGetAttrib($name), "D")
EndFunc
