andybiochem

Gif image over graphics

Recommended Posts

andybiochem

Hi guys,

Hope someone can point me in the direction with this little issue....

The following script creates a window with a graphic that you can set coordinates for a line to appear in it.

CODE
#include <GUIConstants.au3>

Opt("GUIOnEventMode", 1)

GUICreate("Form1", 402, 454, 193, 115)

GUISetOnEvent($GUI_EVENT_CLOSE, "close")

$Input1 = GUICtrlCreateInput("30", 45, 330, 141, 21)

$Input2 = GUICtrlCreateInput("30", 45, 360, 141, 21)

$Graphic1 = GUICtrlCreateGraphic(45, 15, 300, 300)

GUICtrlSetBkColor(-1, 0xFFFFFF)

GUICtrlSetColor(-1, 0)

GUICtrlCreateButton("go", 300, 330)

GUICtrlSetOnEvent(-1, "go")

GUISetState()

Func go()

GUICtrlCreateGraphic(45, 15, 300, 300)

GUICtrlSetBkColor(-1,0xFFFFFF)

GUICtrlSetColor(-1, 0)

$x2 = GUICtrlRead($Input1)

$y2 = GUICtrlRead($Input2)

GUICtrlSetGraphic(-1, $GUI_GR_LINE, $x2, $y2)

GUICtrlSetColor(-1, 0)

GUICtrlCreateLabel("", 45, GUICtrlRead($Input1), 300, 1) ;----line that has problem

EndFunc

While 1

Sleep(100)

WEnd

Func close()

Exit

EndFunc

This works fine the first time you press "go", however when you input new coordinates in the two boxes, the old horizontal line (the guictrlcreatelabel) stays in its old position as well as the new.....

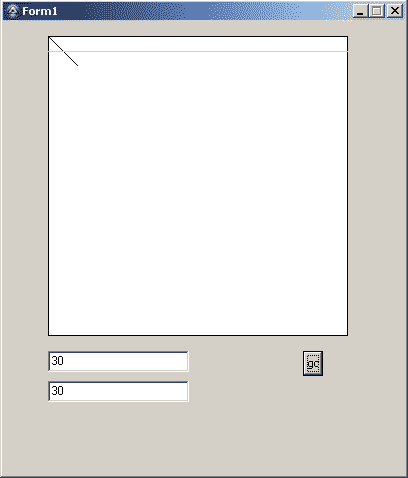

run first time>>>>>>>post-29091-1195210454_thumb.gif

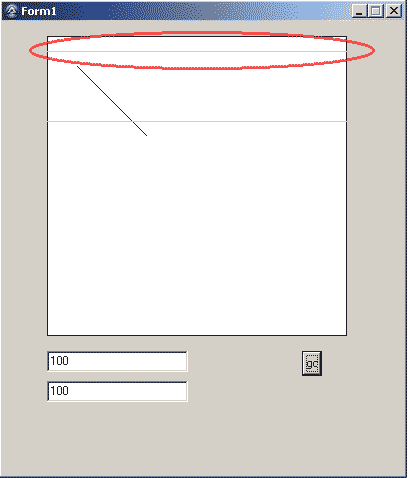

"go" pressed for new coordinates........post-29091-1195210491_thumb.gif

see how the old line is still present (circled in red)!!!!!!!!!!!!

I want the old position to dissapear, and just display the new position.

I've tried $GUI_GR_REFRESH, and $GUI_GR_CLOSE and other styles etc but it still persists.

Anyone have any ideas?

Thanks in advance!!!!!


- Table UDF - create simple data tables - Line Graph UDF GDI+ - quickly create simple line graphs with x and y axes (uses GDI+ with double buffer) - Line Graph UDF - quickly create simple line graphs with x and y axes (uses AI native graphic control) - Barcode Generator Code 128 B C - Create the 1/0 code for barcodes. - WebCam as BarCode Reader - use your webcam to read barcodes - Stereograms!!! - make your own stereograms in AutoIT - Ziggurat Gaussian Distribution RNG - generate random numbers based on normal/gaussian distribution - Box-Muller Gaussian Distribution RNG - generate random numbers based on normal/gaussian distribution - Elastic Radio Buttons - faux-gravity effects in AutoIT (from javascript)- Morse Code Generator - Generate morse code by tapping your spacebar!

Share this post


Link to post
Share on other sites
MrCreatoR

Hi,

You creating the label every time the go() func i called, how you can expect from the old line to dissapear? :P

#include <GUIConstants.au3>
Opt("GUIOnEventMode", 1)
GUICreate("Form1", 402, 454, 193, 115)
GUISetOnEvent($GUI_EVENT_CLOSE, "close")

$Input1 = GUICtrlCreateInput("30", 45, 330, 141, 21)
$Input2 = GUICtrlCreateInput("30", 45, 360, 141, 21)


$Graphic1 = GUICtrlCreateGraphic(45, 15, 300, 300)
GUICtrlSetBkColor(-1, 0xFFFFFF)
GUICtrlSetColor(-1, 0)

GUICtrlCreateButton("go", 300, 330)
GUICtrlSetOnEvent(-1, "go")

;Create the line first at the invisible positions
$Line_Label = GUICtrlCreateLabel("", -10, -10)

GUISetState()

Func go()
    GUICtrlCreateGraphic(45, 15, 300, 300)
    GUICtrlSetBkColor(-1,0xFFFFFF)
    GUICtrlSetColor(-1, 0)

    $x2 = GUICtrlRead($Input1)
    $y2 = GUICtrlRead($Input2)

    GUICtrlSetGraphic(-1, $GUI_GR_LINE, $x2, $y2)
    GUICtrlSetColor(-1, 0)

    ;Then just change the positions...
    GUICtrlSetPos($Line_Label, 45, $x2, 300, 1)
EndFunc

While 1
    Sleep(100)
WEnd

Func close()
    Exit
EndFunc



Spoiler

Using OS: Win 7 Professional, Using AutoIt Ver(s): 3.3.6.1 / 3.3.8.1

AutoIt_Rus_Community.png AutoIt Russian Community

My Work...

Spoiler

AutoIt_Icon_small.pngProjects: ATT - Application Translate Tool {new}| BlockIt - Block files & folders {new}| SIP - Selected Image Preview {new}| SISCABMAN - SciTE Abbreviations Manager {new}| AutoIt Path Switcher | AutoIt Menu for Opera! | YouTube Download Center! | Desktop Icons Restorator | Math Tasks | KeyBoard & Mouse Cleaner | CaptureIt - Capture Images Utility | CheckFileSize Program

AutoIt_Icon_small.pngUDFs: OnAutoItErrorRegister - Handle AutoIt critical errors {new}| AutoIt Syntax Highlight {new}| Opera Library! | Winamp Library | GetFolderToMenu | Custom_InputBox()! | _FileRun UDF | _CheckInput() UDF | _GUIInputSetOnlyNumbers() UDF | _FileGetValidName() UDF | _GUICtrlCreateRadioCBox UDF | _GuiCreateGrid() | _PathSplitByRegExp() | _GUICtrlListView_MoveItems - UDF | GUICtrlSetOnHover_UDF! | _ControlTab UDF! | _MouseSetOnEvent() UDF! | _ProcessListEx - UDF | GUICtrl_SetResizing - UDF! | Mod. for _IniString UDFs | _StringStripChars UDF | _ColorIsDarkShade UDF | _ColorConvertValue UDF | _GUICtrlTab_CoverBackground | CUI_App_UDF | _IncludeScripts UDF | _AutoIt3ExecuteCode | _DragList UDF | Mod. for _ListView_Progress | _ListView_SysLink | _GenerateRandomNumbers | _BlockInputEx | _IsPressedEx | OnAutoItExit Handler | _GUICtrlCreateTFLabel UDF | WinControlSetEvent UDF | Mod. for _DirGetSizeEx UDF

AutoIt_Icon_small.pngExamples:
ScreenSaver Demo - Matrix included | Gui Drag Without pause the script | _WinAttach()! | Turn Off/On Monitor | ComboBox Handler Example | Mod. for "Thinking Box" | Cool "About" Box | TasksBar Imitation Demo

Like the Projects/UDFs/Examples? Please rate the topic (up-right corner of the post header: Rating AutoIt_Rating.gif)

* === My topics === *

==================================================
==================================================







AutoIt is simple, subtle, elegant. © AutoIt Team

Share this post


Link to post
Share on other sites
andybiochem

Aha! your're right!

so.......

CODE
#include <GUIConstants.au3>

Opt("GUIOnEventMode", 1)

GUICreate("Form1", 402, 454, 193, 115)

GUISetOnEvent($GUI_EVENT_CLOSE, "close")

$Input1 = GUICtrlCreateInput("30", 45, 330, 141, 21)

$Input2 = GUICtrlCreateInput("30", 45, 360, 141, 21)

$Graphic1 = GUICtrlCreateGraphic(45, 15, 300, 300)

GUICtrlSetBkColor(-1, 0xFFFFFF)

GUICtrlSetColor(-1, 0)

GUICtrlCreateButton("go", 300, 330)

GUICtrlSetOnEvent(-1, "go")

$line = GUICtrlCreateLabel("",-1,-1, 300, 1) ;----line that has problem

GUISetState()

Func go()

GUICtrlCreateGraphic(45, 15, 300, 300)

GUICtrlSetBkColor(-1,0xFFFFFF)

GUICtrlSetColor(-1, 0)

$x2 = GUICtrlRead($Input1)

$y2 = GUICtrlRead($Input2)

GUICtrlSetGraphic(-1, $GUI_GR_LINE, $x2, $y2)

GUICtrlSetColor(-1, 0)

GUICtrlSetPos($line,45,$x2)

EndFunc

While 1

Sleep(100)

WEnd

Func close()

Exit

EndFunc

this uses GuiCtrlSetPos for the label/horizontal line.....rather than re-drawing it.

Should have spotted this!!!! but my total programming experience is now only 10 days. :P

Thanks!!!!!!!!!


- Table UDF - create simple data tables - Line Graph UDF GDI+ - quickly create simple line graphs with x and y axes (uses GDI+ with double buffer) - Line Graph UDF - quickly create simple line graphs with x and y axes (uses AI native graphic control) - Barcode Generator Code 128 B C - Create the 1/0 code for barcodes. - WebCam as BarCode Reader - use your webcam to read barcodes - Stereograms!!! - make your own stereograms in AutoIT - Ziggurat Gaussian Distribution RNG - generate random numbers based on normal/gaussian distribution - Box-Muller Gaussian Distribution RNG - generate random numbers based on normal/gaussian distribution - Elastic Radio Buttons - faux-gravity effects in AutoIT (from javascript)- Morse Code Generator - Generate morse code by tapping your spacebar!

Share this post


Link to post
Share on other sites
MrCreatoR

my total programming experience is now only 10 days

Then you make a good progress!

Thanks!!!!!!!!!

Your wellcome! :P
