er453r

Highlighted item in a listview

7 posts in this topic

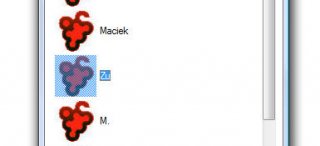

Hi. I'm using new betas listviews. How can I determine which item in a listview is highlighted? (and by highlighted I mean this blueish background, see example)

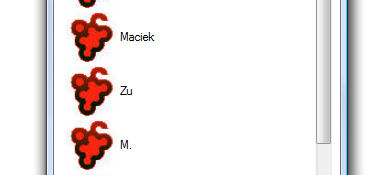

not highlighted

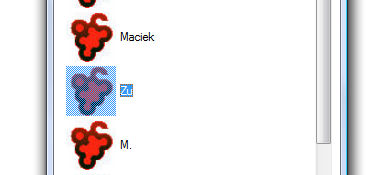

highlighted


_GUICtrlListView_GetSelectionMark is something else. It's the striped gray border, and I'm interested in the blueish things...

And the bonus question! How can I control the resizing of the the new listviews?

Share this post


Link to post
Share on other sites



Unfortunately, both don't work.

1. Selected is something else than "highlighted".

2. GUICtrlSetResizing() , ControlMove() don't work with new betas ListViews.

Share this post


Link to post
Share on other sites

#4 ·  Posted (edited)

Unfortunately, both don't work.

1. Selected is something else than "highlighted".

2. GUICtrlSetResizing() , ControlMove() don't work with new betas ListViews.

1. You'll probably have to loop through each item in the listview and do a BitAnd check on _GUICtrlListView_GetItemState ($hListView, $iIndex, $LVIS_DROPHILITED)

2. WinMove

Edited by GaryFrost

SciTE for AutoItDirections for Submitting Standard UDFs



Don't argue with an idiot; people watching may not be able to tell the difference.



Share this post


Link to post
Share on other sites

How can I use WinMove on a ListView?

Share this post


Link to post
Share on other sites

How can I use WinMove on a ListView?

#include <GuiConstantsEx.au3>
#include <GuiListView.au3>
#include <GuiImageList.au3>

Opt('MustDeclareVars', 1)

$Debug_LV = False ; Check ClassName being passed to ListView functions, set to True and use a handle to another control to see it work

Example_External() ;use UDF built listview

Func Example_External()
    Local $GUI, $hImage, $hListView

    $GUI = GUICreate("(External) ListView Get Item State", 400, 300)
    $hListView = _GUICtrlListView_Create ($GUI, "", 2, 2, 394, 268)
    _GUICtrlListView_SetExtendedListViewStyle ($hListView, BitOR($LVS_EX_FULLROWSELECT, $LVS_EX_SUBITEMIMAGES))
    GUISetState()

    ; Load images
    $hImage = _GUIImageList_Create ()
    _GUIImageList_Add ($hImage, _GUICtrlListView_CreateSolidBitMap ($hListView, 0xFF0000, 16, 16))
    _GUIImageList_Add ($hImage, _GUICtrlListView_CreateSolidBitMap ($hListView, 0x00FF00, 16, 16))
    _GUIImageList_Add ($hImage, _GUICtrlListView_CreateSolidBitMap ($hListView, 0x0000FF, 16, 16))
    _GUICtrlListView_SetImageList ($hListView, $hImage, 1)

    ; Add columns
    _GUICtrlListView_AddColumn ($hListView, "Column 1", 100)
    _GUICtrlListView_AddColumn ($hListView, "Column 2", 100)
    _GUICtrlListView_AddColumn ($hListView, "Column 3", 100)

    ; Add items
    _GUICtrlListView_AddItem ($hListView, "Row 1: Col 1", 0)
    _GUICtrlListView_AddSubItem ($hListView, 0, "Row 1: Col 2", 1, 1)
    _GUICtrlListView_AddSubItem ($hListView, 0, "Row 1: Col 3", 2, 2)
    _GUICtrlListView_AddItem ($hListView, "Row 2: Col 1", 1)
    _GUICtrlListView_AddSubItem ($hListView, 1, "Row 2: Col 2", 1, 2)
    _GUICtrlListView_AddItem ($hListView, "Row 3: Col 1", 2)

    ; Get item 1 state
    _GUICtrlListView_SetItemState ($hListView, 0, $LVIS_DROPHILITED , $LVIS_DROPHILITED )
    MsgBox (4160, "Information", "Item 1 State: " & _GUICtrlListView_GetItemState ($hListView, 0, $LVIS_DROPHILITED ))
    WinMove($hListView, "", 10, 10)

    ; Loop until user exits
    Do
    Until GUIGetMsg() = $GUI_EVENT_CLOSE
    GUIDelete()
EndFunc   ;==>Example_External

SciTE for AutoItDirections for Submitting Standard UDFs



Don't argue with an idiot; people watching may not be able to tell the difference.



Share this post


Link to post
Share on other sites

#7 ·  Posted (edited)

Thank You :P

(unfortunately this seems no to work on a tiled listview...)

Edited by er453r
