How to select volume control in the checkbox

Recommended Posts

Sorry,I English is very poor

This page was automatically translated from Chinese.

How to select volume control in the checkbox

This is some info.

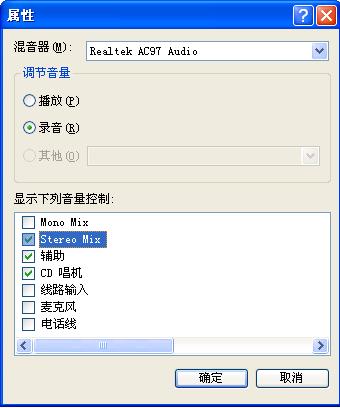

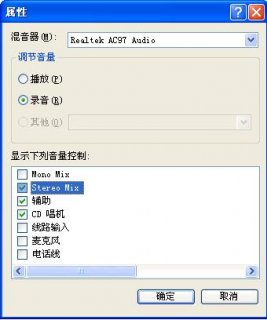

>>>> Window <<<<

Title: attribute categories: # 32770

Coordinates: 395, 182

Size: 342, 407

Style: 0x94C820C4

Expansion of style: 0x00010501

Handle: 0x001C0544

>>>> Control <<<<

Categories: SysListView32

Enumeration: 1

Category: SysListView321

ID: 1017


Coordinates: 11, 183

Size: 317, 144

Control coordinates: 113, 58

Style: 0x50114001

Expansion of style: 0x00000204

Handle: 0x002C04D8

>>>> Mouse <<<<

Coordinates: 522, 452

Cursor ID: 2

Color: 0xFFFFFF

>>>> Status bar <<<<

>>>> Visible text <<<<

Mixer (& M):

Realtek AC97 Audio

Adjust the volume players (& P)

Recordings (& R)

Other (& O)

Show the following volume control:

OK Cancel

>>>> Hidden text <<<<


I would like to be free to choose the things required, regardless of whether the current choice of the.

1 how to judge whether the current state has been select,

2 How to choose, in addition to space, or use the mouse relative quantities, is there any good way.

ControlListView ( "Properties", "", "SysListView321", "SelectAll")

Like this in the statement, although both have been selected, but did not checked

thank you!


Share this post

Link to post
Share on other sites

You need to get/set listview item checkbox?

Use _GUICtrlListView_GetItemChecked and _GUICtrlListView_SetItemChecked from GuiListView UDF.

Although I just noticed that currently _GUICtrlListView_GetItemChecked func does not support external listviews, so here's a working modified version of that function, until it gets officially fixed.

Func _GUICtrlListView_GetItemCheckedEx($hWnd, $iIndex)
    If $Debug_LV Then _GUICtrlListView_ValidateClassName($hWnd)
    Local $struct_LVITEM = DllStructCreate($tagLVITEM), $iResult, $tMemMap
    If @error Then Return SetError($LV_ERR, $LV_ERR, False)
    DllStructSetData($struct_LVITEM, "Mask", $LVIF_STATE)
    DllStructSetData($struct_LVITEM, "Item", $iIndex)
    DllStructSetData($struct_LVITEM, "StateMask", 0xffff)

    If IsHWnd($hWnd) Then
        If _WinAPI_InProcess($hWnd, $_lv_ghLastWnd) Then
            $iResult = _SendMessage($hWnd, $LVM_GETITEMA, 0, DllStructGetPtr($struct_LVITEM), 0, "wparam", "ptr") <> 0
            $pMemory = _MemInit($hWnd, DllStructGetSize($struct_LVITEM), $tMemMap)
            _MemWrite($tMemMap, DllStructGetPtr($struct_LVITEM))
            $iResult = _SendMessage($hWnd, $LVM_GETITEMA, 0, $pMemory, 0, "wparam", "ptr") <> 0
            _MemRead($tMemMap, $pMemory, DllStructGetPtr($struct_LVITEM), DllStructGetSize($struct_LVITEM))
        $iResult = GUICtrlSendMsg($hWnd, $LVM_GETITEMA, 0, DllStructGetPtr($struct_LVITEM)) <> 0
    If Not $iResult Then Return SetError($LV_ERR, $LV_ERR, False)
    Return BitAND(DllStructGetData($struct_LVITEM, "State"), 0x2000) <> 0
EndFunc ;==>_GUICtrlListView_GetItemChecked


#Include <GuiListView.au3>

$sWinTitle = "Properties"
$hListView = ControlGetHandle($sWinTitle, "Mixer", "SysListView321")

$s = ""
For $i = 0 To ControlListView($sWinTitle, "Mixer", "SysListView321", "GetItemCount")-1
    $s &= StringFormat('Index = %d\tName = %s\tChecked = %s\r\n', $i, _
                            ControlListView($sWinTitle, "Mixer", "SysListView321", "GetText", $i, 0), _
                            _GUICtrlListView_GetItemCheckedEx($hListView, $i) _
    ;If Not _GUICtrlListView_GetItemCheckedEx($hListView, $i) Then _GUICtrlListView_SetItemChecked($hListView, $i)
Edited by Siao

"be smart, drink your wine"
