kuhasu

[Solved]Pic capture!help needed!

16 posts in this topic

#1 ·  Posted (edited)

Hey guys!

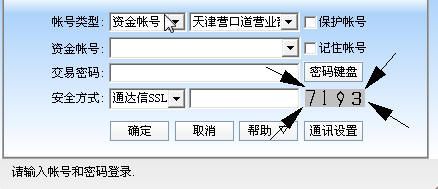

I need to capture the following 4 digits from the panel of a process,not the full screen,and the GUI doesn't appear at the same place on my desktop.

Any code for autoit or VBS?

I know v3.2.10.0 supply some screencapture fuctions, but no one can work at this condition.

Thank you for your help.

BTW,is there any code can let the pic capture work in the field of the dialog?


Edited by kuhasu

Share this post


Link to post
Share on other sites



Welcome to AutoIt!

In your AutoIt install directory, check out:

AutoIt3\Examples\GUI\Advanced\Slicer.au3

That might give you a start.

Share this post


Link to post
Share on other sites

Welcome to AutoIt!

In your AutoIt install directory, check out:

AutoIt3\Examples\GUI\Advanced\Slicer.au3

That might give you a start.

I've reviewed the script.

I don't need the caputure based on the full screen.just the region I need on a dialog/window.

Show me the code pls.Thank you!

Share this post


Link to post
Share on other sites

I've reviewed the script.

I don't need the caputure based on the full screen.just the region I need on a dialog/window.

Show me the code pls.Thank you!

You are getting nowhere.

Share this post


Link to post
Share on other sites

#5 ·  Posted (edited)

Hi,

try using the relative Coord. to your window.

Mega

Edited by Xenobiologist

Scripts & functions Organize Includes Let Scite organize the include files

Yahtzee The game "Yahtzee" (Kniffel, DiceLion)

LoginWrapper Secure scripts by adding a query (authentication)

_RunOnlyOnThis UDF Make sure that a script can only be executed on ... (Windows / HD / ...)

Internet-Café Server/Client Application Open CD, Start Browser, Lock remote client, etc.

MultipleFuncsWithOneHotkey Start different funcs by hitting one hotkey different times

Share this post


Link to post
Share on other sites

Hi,

try using the relative Coord. to your window.

Mega

Thank you man.

I just reviewed helper for finding relative Coord. to active window

but Am afraid I can not find any for pic capture....

sorry for bothering u guys.

Am new here.

Thank you.

Share this post


Link to post
Share on other sites

I know there is a C# can do this,but how can I get the same thing in autoit or VBS?

Thank you.

using System;
using System.Drawing;
using System.Collections;
using System.ComponentModel;
using System.Windows.Forms;
using System.Data;
using System.Drawing.Imaging;
public class Form1 : Form
{
private Button button1;
private System.ComponentModel.Container components = null;

public Form1 ( )
{
//初始化窗体中的各个组件
InitializeComponent ( );
}
// 清除程序中使用过的资源
protected override void Dispose ( bool disposing )
{
if ( disposing )
{
if ( components != null )
{
components.Dispose ( );
}
}
base.Dispose ( disposing );
}
private void InitializeComponent ( )
{
button1 = new Button ( );
SuspendLayout ( );
button1.Location = new System.Drawing.Point ( 64 , 40 );
button1.Name = "button1";
button1.Size = new System.Drawing.Size ( 80 , 32 );
button1.TabIndex = 0;
button1.Text = "捕获";
button1.Click += new System.EventHandler ( button1_Click );

AutoScaleBaseSize = new System.Drawing.Size ( 6 , 14 );
ClientSize = new System.Drawing.Size ( 216 , 125 );
Controls.Add ( button1 );
MaximizeBox = false;
MinimizeBox = false;
Name = "Form1";
Text = "C#捕获当前屏幕!";
ResumeLayout ( false );

}
//声明一个API函数
[ System.Runtime.InteropServices.DllImportAttribute ( "gdi32.dll" ) ]
private static extern bool BitBlt (
IntPtr hdcDest , // 目标 DC的句柄
int nXDest ,
int nYDest ,
int nWidth ,
int nHeight ,
IntPtr hdcSrc , // 源DC的句柄
int nXSrc ,
int nYSrc ,
System.Int32 dwRop // 光栅的处理数值
);

static void Main ( )
{
Application.Run ( new Form1 ( ) );
}
private void button1_Click ( object sender , System.EventArgs e )
{
//获得当前屏幕的大小
Rectangle rect = new Rectangle ( );
rect = Screen.GetWorkingArea ( this );
//创建一个以当前屏幕为模板的图象
Graphics g1 = this.CreateGraphics ( );
//创建以屏幕大小为标准的位图
Image MyImage = new Bitmap ( rect.Width , rect.Height , g1 );
Graphics g2 = Graphics.FromImage ( MyImage );
//得到屏幕的DC
IntPtr dc1 = g1.GetHdc ( );
//得到Bitmap的DC
IntPtr dc2 = g2.GetHdc ( );
//调用此API函数,实现屏幕捕获
BitBlt ( dc2 , 0 , 0 , rect.Width , rect.Height , dc1 , 0 , 0 , 13369376 );
//释放掉屏幕的DC
g1.ReleaseHdc ( dc1 );
//释放掉Bitmap的DC
g2.ReleaseHdc ( dc2 );
//以JPG文件格式来保存
MyImage.Save ( @"c:\Capture.jpg" , ImageFormat.Jpeg );
MessageBox.Show ( "当前屏幕已经保存为C盘的capture.jpg文件!" );
}
}

Share this post


Link to post
Share on other sites

Is there any help for

ScreenCapture_CaptureWnd

I tried ,but failed to run.

Thank you.

Share this post


Link to post
Share on other sites

Hi,

I tried this:

#include <ScreenCapture.au3>
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <WindowsConstants.au3>
; ScreenCaputre with realtive coords

HotKeySet('{F2}', '_capture')

Global $path = @ScriptDir & '\ScreenCaputreRelative.jpg'

GUICreate("GUI", 419, 155, 193, 125)
GUICtrlCreatePic($path, 0, 0, 436, 172, BitOR($SS_NOTIFY, $WS_GROUP, $WS_CLIPSIBLINGS))
GUISetState(@SW_SHOW)

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit
    EndSwitch
WEnd

Func _capture()
    _ScreenCapture_RelativeWindow(@DesktopDir & '\realtive.jpg', 310, 123, 371, 145)
    ConsoleWrite("! DONE" & @CRLF)
EndFunc   ;==>_capture

Func _ScreenCapture_RelativeWindow($sFileName = "", $iLeft = 0, $iTop = 0, $iRight = -1, $iBottom = -1, $fCursor = True)
    Local $iopt_WTMM = Opt("WinTitleMatchMode", 4)
    Local $iopt_WSC = Opt("WinSearchChildren", 1)
    _ScreenCapture_CaptureWnd($sFileName, WinGetHandle(WinGetTitle('active')), $iLeft, $iTop, $iRight, $iBottom, $fCursor)
    Opt("WinTitleMatchMode", $iopt_WTMM)
    Opt("WinSearchChildren", $iopt_WSC)
EndFunc   ;==>_ScreenCapture_RelativeWindow

Mega


Scripts & functions Organize Includes Let Scite organize the include files

Yahtzee The game "Yahtzee" (Kniffel, DiceLion)

LoginWrapper Secure scripts by adding a query (authentication)

_RunOnlyOnThis UDF Make sure that a script can only be executed on ... (Windows / HD / ...)

Internet-Café Server/Client Application Open CD, Start Browser, Lock remote client, etc.

MultipleFuncsWithOneHotkey Start different funcs by hitting one hotkey different times

Share this post


Link to post
Share on other sites

#10 ·  Posted (edited)

Thank you man!

I just got it!

My code here;

#include <ScreenCapture.au3>
_Main()
Opt('MustDeclareVars', 1)
Func _Main()
Local $hWnd
WinActivate("渤海证券网上交易V6.05")
WinWaitActive("渤海证券网上交易V6.05")
$hWnd = WinGetHandle("渤海证券网上交易V6.05")
 GUISetState()

_ScreenCapture_CaptureWnd ("x:\GDIPlus_Image.jpg",$hWnd,313,124,371,141)

EndFunc ;==>_Main


It costs 0.773 ,and if I del the

WinWaitActive("渤海证券网上交易V6.05")
,the time to 0.443

Is there any script can be deleted?

Thx again.

Edited by kuhasu

Share this post


Link to post
Share on other sites

Welcome!

Why GUISETSTATE?

Mega


Scripts & functions Organize Includes Let Scite organize the include files

Yahtzee The game "Yahtzee" (Kniffel, DiceLion)

LoginWrapper Secure scripts by adding a query (authentication)

_RunOnlyOnThis UDF Make sure that a script can only be executed on ... (Windows / HD / ...)

Internet-Café Server/Client Application Open CD, Start Browser, Lock remote client, etc.

MultipleFuncsWithOneHotkey Start different funcs by hitting one hotkey different times

Share this post


Link to post
Share on other sites

Welcome!

Why GUISETSTATE?

Mega

hehe,I don't know,just some sample contain....

Could u optimize the script?Thank you.I wanna it can be ran as fast as it can:)

Share this post


Link to post
Share on other sites

Hi,

this should be enough

#include <ScreenCapture.au3>
Opt('MustDeclareVars', 1)

_Main('GUI')

Func _Main(Const $title)
    WinActivate($title)
    _ScreenCapture_CaptureWnd(@DesktopDir & "\GDIPlus_Image.jpg", WinGetHandle(WinGetTitle($title)), 313, 124, 371, 141)
EndFunc  ;==>_Main

Mega


Scripts & functions Organize Includes Let Scite organize the include files

Yahtzee The game "Yahtzee" (Kniffel, DiceLion)

LoginWrapper Secure scripts by adding a query (authentication)

_RunOnlyOnThis UDF Make sure that a script can only be executed on ... (Windows / HD / ...)

Internet-Café Server/Client Application Open CD, Start Browser, Lock remote client, etc.

MultipleFuncsWithOneHotkey Start different funcs by hitting one hotkey different times

Share this post


Link to post
Share on other sites

Thank you!here's my code modified,any suggestions?

#include <ScreenCapture.au3>
#include <Date.au3>
Opt('MustDeclareVars', 1)


_Main('渤海证券网上交易V6.05')

Func _Main(Const $title)
Local $tTime, $aTime ,$bTime, $time

$tTime = _Date_Time_GetSystemTime()
$aTime = _Date_Time_SystemTimeToArray($tTime)
$bTime = $aTime[6]
$time=@Hour & " h " & @MIN & " m " & @SEC & " Sec " & $bTime


    WinActivate($title)
    _ScreenCapture_CaptureWnd("x:\orc\" & $time & ".jpg", WinGetHandle(WinGetTitle($title)), 313, 124, 371, 141)
EndFunc ;==>_Main

Share this post


Link to post
Share on other sites

With the code in http://www.autoitscript.com/forum/index.ph...mp;#entry493137

you should be able to get the logic.

Your number seems to be fixed in 4 different slices so if you make 10 bitmaps for each digit and then search in each slice for all 10 different bitmaps you should be able to read the number as shown in the picture

Share this post


Link to post
Share on other sites

With the code in http://www.autoitscript.com/forum/index.ph...mp;#entry493137

you should be able to get the logic.

Your number seems to be fixed in 4 different slices so if you make 10 bitmaps for each digit and then search in each slice for all 10 different bitmaps you should be able to read the number as shown in the picture

Thank you man,very good idea!
