monoceres

Thread Enumeration with CreateToolhelp32Snapshot

12 posts in this topic

Simple UDF for enumerating threads. Fast 'n easy :)

Not much to say really, check source for more info

Thread_Enum.au3

:)


Broken link? PM me and I'll send you the file!

Share this post


Link to post
Share on other sites



Very fast and very good. :)


When the words fail... music speaks

Share this post


Link to post
Share on other sites

Simple UDF for enumerating threads. Fast 'n easy :)

Not much to say really, check source for more info

Thread_Enum.au3

:)

Merry xmas monoceres o:)

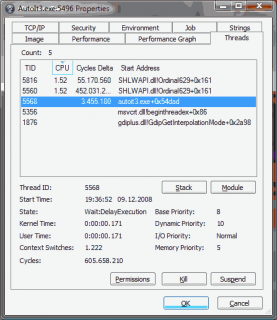

Thanks for your help but is it also possible to resolve the TID with names (see screenshot -> SHLWAPI.dll, autoit3.exe, msvcrt.dll and gdiplus.dll)?


Here an example where the screenshot comes from.

#include <WinAPi.au3>
#include <Array.au3>
Opt('MustDeclareVars', 1)
HotKeySet("{ESC}", "_Exit")
Global Const $TH32CS_SNAPTHREAD = 0x00000004
Global Const $THREADENTRY32 = "dword dwSize;dword cntUsage;dword th32ThreadId;dword th32OwnerProcessID;long tpBasePri;long tpDeltaPri;dword dwFlags;"

Global $zip_file = "c:\Test.zip"
Global $source_folder = "c:\Windows\Inf\"
Add_Folder_2_ZIP($source_folder, $zip_file)

Func Add_Folder_2_ZIP($folder, $zip_filename, $flag = 4)
    Local $hZIP, $ZIP_fileheader, $obj_ZIP, $obj_Folder, $obj_ZIP_Folder, $obj_Copy, $arr
    $hZIP = FileOpen($zip_filename, 26)
    $ZIP_fileheader = Chr(80) & Chr(75) & Chr(5) & Chr(6) & Chr(0) & Chr(0) & Chr(0) & Chr(0) & Chr(0) & Chr(0) & Chr(0) & Chr(0) & Chr(0) & Chr(0) & Chr(0) & Chr(0) & Chr(0) & Chr(0) & Chr(0) & Chr(0) & Chr(0) & Chr(0)
    FileWrite($hZIP, $ZIP_fileheader)
    FileClose($hZIP)
    $obj_ZIP = ObjCreate("Shell.Application")
    $obj_Folder = $obj_ZIP.NameSpace($folder)
    $obj_ZIP_Folder = $obj_ZIP.NameSpace($zip_filename)
    $obj_Copy = $obj_ZIP.NameSpace($zip_filename).CopyHere($obj_Folder.Items, $flag) ;add files to ZIP archive
    While 1
        Sleep(1000)
        $arr = _GetAllProcessThreads(@AutoItPID)
        _ArrayDisplay($arr)
    WEnd
EndFunc   ;==>Add_Folder_2_ZIP

Func _GetAllThreads()
    Local $call = DllCall("Kernel32.dll", "ptr", "CreateToolhelp32Snapshot", "dword", $TH32CS_SNAPTHREAD, "dword", 0)
    Local $handle = $call[0]
    Local $RetArr[1][3]
    ConsoleWrite("Handle: " & $handle & @CRLF)

    Local $te32 = DllStructCreate($THREADENTRY32)
    DllStructSetData($te32, "dwSize", DllStructGetSize($te32))
    $call = DllCall("Kernel32.dll", "int", "Thread32First", "ptr", $handle, "ptr", DllStructGetPtr($te32))
    _GetAllThreads_ArrHelper($RetArr, $te32)
    Do
        $call = DllCall("Kernel32.dll", "int", "Thread32Next", "ptr", $handle, "ptr", DllStructGetPtr($te32))
        If Not $call[0] Then ExitLoop
        _GetAllThreads_ArrHelper($RetArr, $te32)
    Until True And False
    _ArrayDelete($RetArr, 0)
    _WinAPI_CloseHandle($handle)
    Return $RetArr
EndFunc   ;==>_GetAllThreads

; Same as _GetAllThreads, but with a simple pid filter
Func _GetAllProcessThreads($iPid)
    Local $call = DllCall("Kernel32.dll", "ptr", "CreateToolhelp32Snapshot", "dword", $TH32CS_SNAPTHREAD, "dword", 0)
    Local $handle = $call[0]
    Local $RetArr[1][3]
    ConsoleWrite("Handle: " & $handle & @CRLF)

    Local $te32 = DllStructCreate($THREADENTRY32)
    DllStructSetData($te32, "dwSize", DllStructGetSize($te32))
    $call = DllCall("Kernel32.dll", "int", "Thread32First", "ptr", $handle, "ptr", DllStructGetPtr($te32))
    If DllStructGetData($te32, "th32OwnerProcessID") = $iPid Then _GetAllThreads_ArrHelper($RetArr, $te32)
    Do
        $call = DllCall("Kernel32.dll", "int", "Thread32Next", "ptr", $handle, "ptr", DllStructGetPtr($te32))
        If Not $call[0] Then ExitLoop
        If DllStructGetData($te32, "th32OwnerProcessID") = $iPid Then _GetAllThreads_ArrHelper($RetArr, $te32)
    Until True And False
    _ArrayDelete($RetArr, 0)
    _WinAPI_CloseHandle($handle)
    Return $RetArr
EndFunc   ;==>_GetAllProcessThreads

Func _GetAllThreads_ArrHelper(ByRef $arr, $TE32_Struct)
    Local $ub = UBound($arr)
    ReDim $arr[$ub + 1][3]
    $arr[$ub][0] = DllStructGetData($TE32_Struct, "th32ThreadId")
    $arr[$ub][1] = DllStructGetData($TE32_Struct, "th32OwnerProcessID")
    $arr[$ub][2] = DllStructGetData($TE32_Struct, "tpBasePri")
EndFunc   ;==>_GetAllThreads_ArrHelper

Func _Exit()
    Exit
EndFunc

Thanks,

UEZ


Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯

Share this post


Link to post
Share on other sites

Merry xmas monoceres o:)

Merry xmas you too ;)

Thanks for your help but is it also possible to resolve the TID with names (see screenshot -> SHLWAPI.dll, autoit3.exe, msvcrt.dll and gdiplus.dll)?

That is not the names of the threads but rather the modules in which they run. So what's needed is the thread address+base address of all modules+size of all modules.

I can check for a solution tomorrow.

:)

@Andreik, thanks for the comment, I always appreciate it :)


Broken link? PM me and I'll send you the file!

Share this post


Link to post
Share on other sites

#5 ·  Posted (edited)

Merry xmas you too o:)

That is not the names of the threads but rather the modules in which they run. So what's needed is the thread address+base address of all modules+size of all modules.

I can check for a solution tomorrow.

:)

@Andreik, thanks for the comment, I always appreciate it :)

Just curious, which is the highest priority that you have at your threads?

Edited by Andreik

When the words fail... music speaks

Share this post


Link to post
Share on other sites

Just curious, which is the highest priority that you have at your threads?

Win32 threads or Forum threads ? :)


Broken link? PM me and I'll send you the file!

Share this post


Link to post
Share on other sites

Win32 threads or Forum threads ? :)

Win32 :)

When the words fail... music speaks

Share this post


Link to post
Share on other sites

Win32 :)

I rarely modify the standard priority which is automatically set when creating a thread. The values you use when specifying the priority in C/C++ is not the same as returned by this function though.


Broken link? PM me and I'll send you the file!

Share this post


Link to post
Share on other sites

Nice :)

I especially liked "Until True and False" :)

Share this post


Link to post
Share on other sites

I especially liked "Until True and False" :)

Well you have to vary some things, it gets boring writing the same loops all the time :)


Broken link? PM me and I'll send you the file!

Share this post


Link to post
Share on other sites

Merry xmas monoceres ;)

Thanks for your help but is it also possible to resolve the TID with names (see screenshot -> SHLWAPI.dll, autoit3.exe, msvcrt.dll and gdiplus.dll)?


Here an example where the screenshot comes from.

#include <WinAPi.au3>
#include <Array.au3>
Opt('MustDeclareVars', 1)
HotKeySet("{ESC}", "_Exit")
Global Const $TH32CS_SNAPTHREAD = 0x00000004
Global Const $THREADENTRY32 = "dword dwSize;dword cntUsage;dword th32ThreadId;dword th32OwnerProcessID;long tpBasePri;long tpDeltaPri;dword dwFlags;"

Global $zip_file = "c:Test.zip"
Global $source_folder = "c:WindowsInf"
Add_Folder_2_ZIP($source_folder, $zip_file)

Func Add_Folder_2_ZIP($folder, $zip_filename, $flag = 4)
Local $hZIP, $ZIP_fileheader, $obj_ZIP, $obj_Folder, $obj_ZIP_Folder, $obj_Copy, $arr
$hZIP = FileOpen($zip_filename, 26)
$ZIP_fileheader = Chr(80) & Chr(75) & Chr(5) & Chr(6) & Chr(0) & Chr(0) & Chr(0) & Chr(0) & Chr(0) & Chr(0) & Chr(0) & Chr(0) & Chr(0) & Chr(0) & Chr(0) & Chr(0) & Chr(0) & Chr(0) & Chr(0) & Chr(0) & Chr(0) & Chr(0)
FileWrite($hZIP, $ZIP_fileheader)
FileClose($hZIP)
$obj_ZIP = ObjCreate("Shell.Application")
$obj_Folder = $obj_ZIP.NameSpace($folder)
$obj_ZIP_Folder = $obj_ZIP.NameSpace($zip_filename)
$obj_Copy = $obj_ZIP.NameSpace($zip_filename).CopyHere($obj_Folder.Items, $flag) ;add files to ZIP archive
While 1
Sleep(1000)
$arr = _GetAllProcessThreads(@AutoItPID)
_ArrayDisplay($arr)
WEnd
EndFunc ;==>Add_Folder_2_ZIP

Func _GetAllThreads()
Local $call = DllCall("Kernel32.dll", "ptr", "CreateToolhelp32Snapshot", "dword", $TH32CS_SNAPTHREAD, "dword", 0)
Local $handle = $call[0]
Local $RetArr[1][3]
ConsoleWrite("Handle: " & $handle & @CRLF)

Local $te32 = DllStructCreate($THREADENTRY32)
DllStructSetData($te32, "dwSize", DllStructGetSize($te32))
$call = DllCall("Kernel32.dll", "int", "Thread32First", "ptr", $handle, "ptr", DllStructGetPtr($te32))
_GetAllThreads_ArrHelper($RetArr, $te32)
Do
$call = DllCall("Kernel32.dll", "int", "Thread32Next", "ptr", $handle, "ptr", DllStructGetPtr($te32))
If Not $call[0] Then ExitLoop
_GetAllThreads_ArrHelper($RetArr, $te32)
Until True And False
_ArrayDelete($RetArr, 0)
_WinAPI_CloseHandle($handle)
Return $RetArr
EndFunc ;==>_GetAllThreads

; Same as _GetAllThreads, but with a simple pid filter
Func _GetAllProcessThreads($iPid)
Local $call = DllCall("Kernel32.dll", "ptr", "CreateToolhelp32Snapshot", "dword", $TH32CS_SNAPTHREAD, "dword", 0)
Local $handle = $call[0]
Local $RetArr[1][3]
ConsoleWrite("Handle: " & $handle & @CRLF)

Local $te32 = DllStructCreate($THREADENTRY32)
DllStructSetData($te32, "dwSize", DllStructGetSize($te32))
$call = DllCall("Kernel32.dll", "int", "Thread32First", "ptr", $handle, "ptr", DllStructGetPtr($te32))
If DllStructGetData($te32, "th32OwnerProcessID") = $iPid Then _GetAllThreads_ArrHelper($RetArr, $te32)
Do
$call = DllCall("Kernel32.dll", "int", "Thread32Next", "ptr", $handle, "ptr", DllStructGetPtr($te32))
If Not $call[0] Then ExitLoop
If DllStructGetData($te32, "th32OwnerProcessID") = $iPid Then _GetAllThreads_ArrHelper($RetArr, $te32)
Until True And False
_ArrayDelete($RetArr, 0)
_WinAPI_CloseHandle($handle)
Return $RetArr
EndFunc ;==>_GetAllProcessThreads

Func _GetAllThreads_ArrHelper(ByRef $arr, $TE32_Struct)
Local $ub = UBound($arr)
ReDim $arr[$ub + 1][3]
$arr[$ub][0] = DllStructGetData($TE32_Struct, "th32ThreadId")
$arr[$ub][1] = DllStructGetData($TE32_Struct, "th32OwnerProcessID")
$arr[$ub][2] = DllStructGetData($TE32_Struct, "tpBasePri")
EndFunc ;==>_GetAllThreads_ArrHelper

Func _Exit()
Exit
EndFunc

Thanks,

UEZ

Hey UEZ,

What is that application in that screenshot called?

It looks like an alternative task manager that allows people to kill/suspend threads.
