fusion400

Determine if screen is composed of 90% white pixels

30 posts in this topic

#1 ·  Posted (edited)

Is there any way to determine if 90% of the pixels on screen is white.

I have a program that has a very nasty bug that has to be worked around.

Sometimes lets say on average every 20th-30th time the software is started it does not start properly

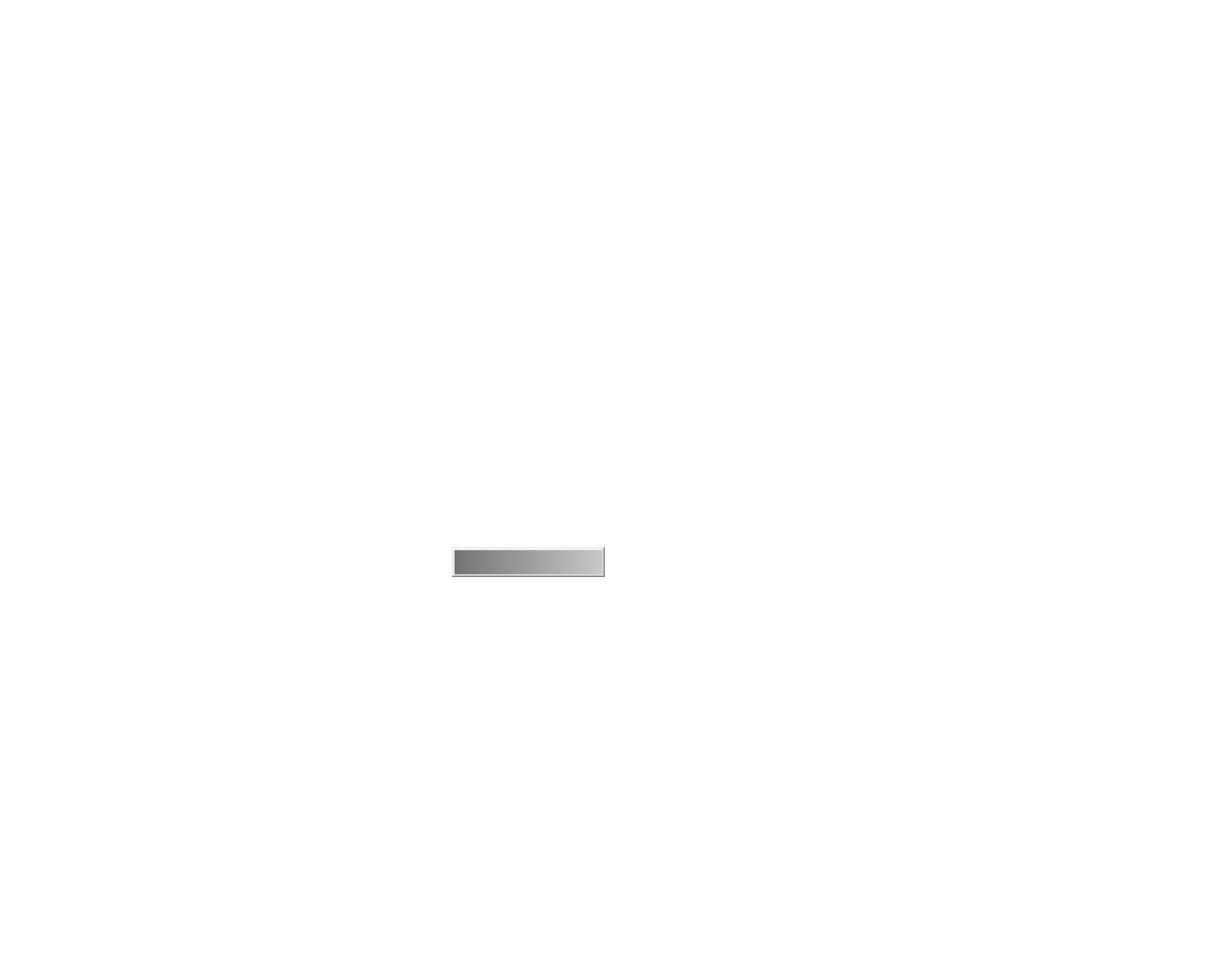

but instead shows a white screen with a rectangle. I have included the image of how it looks like.

The rectangle could be at a random place on the screen at every startup so specific pixel locations can

not be used to be 100% sure there really is a problem.

Can this be done with autoit? If it finds that 90% of the pixels are indeed white i want it to be able to kill

the process and start it again. This should loop all the time so it can detect the problem when it happens every

time.

A different solution could also be to somehow find the coordinates for the rectangle on screen and then simulate

double click on it as this would make the program run properly.

Thanks in advance


Edited by fusion400

Share this post


Link to post
Share on other sites



What is the screen supposed to look like ?

Hi i have attached a picture on my first post so you can see how it looks like.

Share this post


Link to post
Share on other sites

I would make a script that runs in the background when you run this program and use Hotkeyset() to assign a hotkey to it.

When you run into the problem you can press the hotkey which triggers the script to click the box.

Clicking the box can be done in mutliple ways. Which one is best depends on what information you have. Some functions to look at are "ControlClick(), MouseClick(), and PixelSearch().

The "90%" white method would be very cpu heavy. If you insist in using this method I'd use a For...Step...Next loop to "Pixelgetcolor" a number of pixels and have it sleep for a short amount of time if it fails. (meaning it found non-white pixels)

Hope that helps

Share this post


Link to post
Share on other sites

Ok is there anyway to have a function that loads a bitmap image of the rectangle

and then tries to find it on the screen and if there is a match then double click

this would be the most safe way to do it i think.

Share this post


Link to post
Share on other sites

Hi i have attached a picture on my first post so you can see how it looks like.

Well as far as I can tell, that picture is what it is NOT supposed to look like.

If you provide a picture of what it IS supposed to look like on startup, Im sure a solution will quickly come.


AutoIt Absolute Beginners    Require a serial    Pause Script    Video Tutorials by Morthawt   ipify

Monkey's are, like, natures humans.

Share this post


Link to post
Share on other sites

Well as far as I can tell, that picture is what it is NOT supposed to look like.

If you provide a picture of what it IS supposed to look like on startup, Im sure a solution will quickly come.

Well thats the problem that what comes after could be any kind of picture or movie with no specfic pattern at all.

The software is basically a picture and video player. It can also load touch sensitive flash applications.

Share this post


Link to post
Share on other sites

Ive use this in the past for something similar, and found it fairly swift.

Find the image and make some code to double click it.

I tried the example bmp files that are included in pics.zip to see if i can get a match that the calculator bmp is indeed in fullscreen.bmp and i use the following code:

$start = TimerInit()
$tResult=findBMP("c:\pics\fullscreen.bmp", "c:\pics\CALCULATOR.bmp", TRUE)
ConsoleWrite($tResult &  "** Full seven totalmatch time elapsed: " & TimerDiff($start) / 1000 & "  seconds" & @LF)

But it just gives an "error locking region 1" messagebox as a result so i just don't know what to do or what that means.

The console output is

False** Full seven totalmatch time elapsed: 1.9490346158473 seconds

Share this post


Link to post
Share on other sites

#10 ·  Posted (edited)

Re you saving the picture to look for as 24bit bitmap ?

And try just $tResult=findBMP("c:\pics\fullscreen.bmp", "c:\pics\CALCULATOR.bmp")

(without True)

Edit: Also, findBMP() returns an array if successful.

Edited by JohnOne

AutoIt Absolute Beginners    Require a serial    Pause Script    Video Tutorials by Morthawt   ipify

Monkey's are, like, natures humans.

Share this post


Link to post
Share on other sites

Re you saving the picture to look for as 24bit bitmap ?

And try just $tResult=findBMP("c:\pics\fullscreen.bmp", "c:\pics\CALCULATOR.bmp")

(without True)

Edit: Also, findBMP() returns an array if successful.

Yes i tried without TRUE and i still get "error locking region 1" and the console message is:

False** Full seven totalmatch time elapsed: 2.74558375270671 seconds

Share this post


Link to post
Share on other sites

Dont know what else to tell you mate

just tested it again with both 24bit bitmaps in the scriptfolder and FindBMP.au3 in scriptfolder also.

This will find the startbutton on my desktop and click it.

#include-once
#include 'FindBMP.au3'

$apos = _FindBMP('FullScreen.bmp', 'StartButton.bmp')
MouseClick('Primary',$apos[3],$apos[4])

AutoIt Absolute Beginners    Require a serial    Pause Script    Video Tutorials by Morthawt   ipify

Monkey's are, like, natures humans.

Share this post


Link to post
Share on other sites

#13 ·  Posted (edited)

Dont know what else to tell you mate

just tested it again with both 24bit bitmaps in the scriptfolder and FindBMP.au3 in scriptfolder also.

This will find the startbutton on my desktop and click it.

#include-once
#include 'FindBMP.au3'

$apos = _FindBMP('FullScreen.bmp', 'StartButton.bmp')
MouseClick('Primary',$apos[3],$apos[4])

Hi i've tried this and it does not work at all. It just says

Variable used without being declared.:

$apos = FindBMP('c:\pics\fullscreen.bmp', 'c:\pics\CALCULATOR.bmp')

$apos = FindBMP('c:\pics\fullscreen.bm^ ERROR

Edited by fusion400

Share this post


Link to post
Share on other sites

That is not pointing to a variable error, it seems to bo pointing to a syntax error.

ok the code looks like this

#include-once
#include 'FindBMP.au3'

$apos = FindBMP('c:\pics\fullscreen.bmp', 'c:\pics\CALCULATOR.bmp')
MouseClick('Primary',$apos[3],$apos[4])

I have tried also to just have the pictures in the include folder but it made no difference

still same error.

Share this post


Link to post
Share on other sites

Have you tried it with error checking ?

#include-once
#include 'FindBMP.au3'

$apos = _FindBMP('FullScreen.bmp', 'StartButton.bmp')
If @error = 1 Then
    MsgBox(0, "Error", "error with the DLLCall")
    Exit
Else
    MouseClick('Primary', $apos[3], $apos[4])
EndIf

AutoIt Absolute Beginners    Require a serial    Pause Script    Video Tutorials by Morthawt   ipify

Monkey's are, like, natures humans.

Share this post


Link to post
Share on other sites

#17 ·  Posted (edited)

Have you tried it with error checking ?

#include-once
#include 'FindBMP.au3'

$apos = _FindBMP('FullScreen.bmp', 'StartButton.bmp')
If @error = 1 Then
    MsgBox(0, "Error", "error with the DLLCall")
    Exit
Else
    MouseClick('Primary', $apos[3], $apos[4])
EndIf

I wonder if there is still some error and if i use the underscore with _FindBMP then it just says unknown function name.

Unknown function name.:

$apos = _FindBMP('FullScreen.bmp', 'StartButton.bmp')

$apos = ^ ERROR

Do we really use the same FindBMP.au3 maybe you can attach yours in a file here on the forum ?

Edited by fusion400

Share this post


Link to post
Share on other sites

Sure but I'm pretty certain its the same.

EDIT: did it error ?

Hello i am using your FindBMP.au3 but it has a different error do you have the

"../ScreenCapture/ScreenCaptureFixed.au3" file i can't seem to find it.

The FindBMP.au3 file was not the same. GDI and Screencapturefixed and some variables where included in

your file.

Share this post


Link to post
Share on other sites

Yes just include

#include <GDIPlus.au3>

#Include <ScreenCapture.au3> in your code

That is shown in the sample code in the link I gave to FindBMP

I think both are included with autoit download

fixed is specific to another script.


AutoIt Absolute Beginners    Require a serial    Pause Script    Video Tutorials by Morthawt   ipify

Monkey's are, like, natures humans.

Share this post
