GUIFrame UDF - Melba23 version - 19 May 14

Recommended Posts

[NEW VERSION] - 24 Mar 12

The previous change introduced some unwanted behaviour (reported above) so I have reverted the code as the bug is deep within the AutoIt core code and there seems no simple way to avoid the problem while also allowing controls to use accelerator letters in the titles. I believe that it is the lesser of the 2 evils to have non-draggable GUI as frames. :bye:

New UDF and zip in the first post. :oops:

M23


Public_Domain.png.2d871819fcb9957cf44f4514551a2935.png Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind

Open spoiler to see my UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

But I knew in the back of my mind that there was a problem with that style and in fact the addition of that style is what is causing the "dragging" problem. Alas there is little I can do to prevent the problem if I retain the style - as you can see from Valik's response to the Trac report #1115.

I'm just wondering why it is not possible to introduce a new extended style for the AutoIt-specific behaviour and separate it from WS_EX_CONTROLPARENT.

*GERMAN* [note: you are not allowed to remove author / modified info from my UDFs]My UDFs:[_SetImageBinaryToCtrl] [_TaskDialog] [AutoItObject] [Animated GIF (GDI+)] [ClipPut for Image] [FreeImage] [GDI32 UDFs] [GDIPlus Progressbar] [Hotkey-Selector] [Multiline Inputbox] [MySQL without ODBC] [RichEdit UDFs] [SpeechAPI Example] [WinHTTP]UDFs included in AutoIt: FTP_Ex (as FTPEx), _WinAPI_SetLayeredWindowAttributes

Share this post


Link to post
Share on other sites

ProgAndy,

Best ask Valik - from the tone of the Trac ticket the problem is too deeply buried in the core code to be changed easily or he would have done so. And I know that there are sections of that core code that Jon has marked "Here be dragons"! :oops:

M23


Public_Domain.png.2d871819fcb9957cf44f4514551a2935.png Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind

Open spoiler to see my UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

Melba,

Your GUIFrame examples are crashing in x64 mode of the current beta 3.3.9.2.

Not sure if this the right solution. but it seems to work.

Change:

Global $hGF_RegCallBack = DllCallbackRegister("_GUIFrame_SepWndProc", "lresult", "hwnd;uint;wparam;lparam")

to

Global $hGF_RegCallBack = DllCallbackRegister("_GUIFrame_SepWndProc", "lresult", "hwnd;uint;ptr;ptr")

Share this post


Link to post
Share on other sites

I'm seeing the same crash. JFX's change shouldn't be required. I'm thinking this may be related to some of the stack and callback changes that were made in the current beta runs.

@JFX

You should probably work with Melba23 to create a short reproducible script and submit a bug report to Trac, perhaps post about it in the developer forum as well, but definitely submit to Trac so trancexxx sees it.

Edited by wraithdu

Share this post


Link to post
Share on other sites

Ah, sorry thought this would be reproduce able to everyone.

For me both example script crashing while resizing a frame or even closing the window.

The crash occurs in the _WinAPI_CallWindowProc() call caused by wrong $wParam and $lParam passed to it.

Only happens with x64 beta version.

Share this post


Link to post
Share on other sites

Sorry for what? It is reproducible, at least for me. I was saying that your changes to fix the problem should not be necessary, ie the original code is supposed to work, meaning there is a bug (and therefore my suggestion to open a ticket on Trac).

Share this post


Link to post
Share on other sites

Unfortunatly there are still more then a few problems with it...

BUGs I've found:

  • On a horizontally split window, the resizing only changes the buttom (2) frame while keepping the first upper frame as is, it's just an inconvenience (one has to change the size by dragging the seperator again), BTW from browsing through it a bit it looks as though it should work and change the separator bar's position as well as top frame's size, I wonder.
  • More alarmingly, it breaks listviews, they simply are not shown until the mouse is hovered above them.
I would provide snipplets, it's just that I need to arrange it a bit and can't just C&P from my unreadble examples.

Share this post


Link to post
Share on other sites

thewizard21,

Unless you can provide reproducers it is going to be very difficult to do anything. :)

M23

Edit:

This example works fine for me - both frames resize correclty and the ListView is always visible. Do you have problems with it? ;)

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>

#include "GUIFrame.au3"

$hGUI = GUICreate("Test", 500, 500, -1, -1, BitOR($WS_MINIMIZEBOX, $WS_MAXIMIZEBOX, $WS_SIZEBOX))
GUISetState()

; Create a 1st level frame
$iFrame_A = _GUIFrame_Create($hGUI, 1)

_GUIFrame_Switch($iFrame_A, 1)
GUICtrlCreateListView("One|Two", 10, 10, 480, 200)
GUICtrlSetResizing(-1, $GUI_DOCKAUTO)

; Set resizing flag for all created frames
_GUIFrame_ResizeSet(0)

; Register the $WM_SIZE handler to permit resizing
_GUIFrame_ResizeReg()

While 1
    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            Exit
    EndSwitch
WEnd
Edited by Melba23
Added script

Public_Domain.png.2d871819fcb9957cf44f4514551a2935.png Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind

Open spoiler to see my UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

thewizard21,

Unless you can provide reproducers it is going to be very difficult to do anything. ;)

Right you are, sorry it's very messy (just a C&P snip, work in progress and all that)

#include <GUIConstantsEx.au3>
#include <WinAPI.au3>
#include <ProgressConstants.au3>
#include <WindowsConstants.au3>
#include <StaticConstants.au3>
#include <GUIEdit.au3>
#include "GUIFrame.au3"

Global $GUI_FINISHEDIN, $GUI_DATASTREAM, $GUI_PROGRESS, $GUI_LOG
Global $GUI, $GUILOGFRAME, $GUIMINWINDOWHEIGHT, $GUIMINWINDOWWIDTH, $GUI_BTN_START, $GUI_BTN_CTRLA, $GUI_PRG_TOTAL, $GUI_INPUT_PROCS = 3

Global Const $GUIMINWIDTH    =    400
Global Const $GUIMINHEIGHT    =    300

; -------------------------------------------------------------
; ---                         GUI                         ---
; -------------------------------------------------------------
Func createGUI()
    AutoItSetOption("GUIOnEventMode", TRUE)
    AutoItSetOption("GUIResizeMode", BitOR($GUI_DOCKLEFT, $GUI_DOCKRIGHT, $GUI_DOCKMENUBAR))

    $GUI = GUICreate("", $GUIMINWIDTH, $GUIMINHEIGHT, -1, -1, BitOR($GUI_SS_DEFAULT_GUI, $WS_SIZEBOX, $WS_MAXIMIZEBOX, $WS_MINIMIZEBOX, $WS_CLIPCHILDREN))

    ; set minimum width / height
    $GUIMINWINDOWWIDTH = _WinAPI_GetWindowWidth($GUI)
    $GUIMINWINDOWHEIGHT = _WinAPI_GetWindowHeight($GUI)
    GUIRegisterMsg($WM_GETMINMAXINFO, "WM_GETMINMAXINFO")

    ; ctrl-a dummy button
    $GUI_BTN_CTRLA = GUICtrlCreateDummy()
    GUICtrlSetOnEvent (-1, "GUIctrlEvent")
    Local $AccelKeys[1][2]=[["^a", $GUI_BTN_CTRLA]]
    GUISetAccelerators($AccelKeys)

    ; register system events
    GUISetOnEvent($GUI_EVENT_CLOSE, "GUIsystemEvent")
    GUISetOnEvent($GUI_EVENT_MINIMIZE, "GUIsystemEvent")
    GUISetOnEvent($GUI_EVENT_RESTORE, "GUIsystemEvent")
    GUISetOnEvent($GUI_EVENT_RESIZED, "GUIsystemEvent")

    ; start gui
    GUICtrlCreateLabel('Total progress', 10, 10, 67, 16)
    $GUI_PRG_TOTAL = GUICtrlCreateProgress( 10, 28, 380, 20, $PBS_SMOOTH)
    GUICtrlCreateLabel('<Destination Folder>', 10, 54, 100, 16, BitOr($GUI_SS_DEFAULT_LABEL, 0x0));, $SS_WHITERECT))
    GUICtrlCreateListView("Worker|Progres|Speed", 10, 74, 380, 40);, BitOR($LVS_REPORT, $WS_BORDER))
    GUISetState()

    $GUILOGFRAME = _GUIFrame_Create($GUI, 1, 200 )
    _GUIFrame_SetMin($GUILOGFRAME, 70, 30)
    _GUIFrame_Switch($GUILOGFRAME, 2)
    $GUI_LOG = GUICtrlCreateEdit( "Welcome to "&@ScriptName&@LF, 2, 2, 396, 94,  BitAND(BitOr($GUI_SS_DEFAULT_EDIT, $ES_READONLY),BitNOT($WS_HSCROLL)))
    GUICtrlSetResizing (-1, BitOR($GUI_DOCKLEFT, $GUI_DOCKRIGHT, $GUI_DOCKTOP, $GUI_DOCKBOTTOM))

    ; Register the $WM_SIZE handler to permit resizing
    _GUIFrame_ResizeSet()
    _GUIFrame_ResizeReg()

EndFunc

Func GUIEditSelectAll()
    $hWnd = _WinAPI_GetFocus()
    $class = _WinAPI_GetClassName($hWnd)
    If $class = 'Edit' Then _GUICtrlEdit_SetSel($hWnd, 0, -1)
EndFunc

Func WM_GETMINMAXINFO($hwnd, $Msg, $wParam, $lParam)
    ; registered messages functions (like this one: WM_GETMINMAXINFO) are always called with four params:
    ; When the user function is called then these 4 parameters have the following values:
    ;     1 hWnd The Window handle of the GUI in which the message appears.
    ;     2 Msg The Windows message ID.
    ;     3 wParam The first message parameter as hex value.
    ;     4 lParam The second message parameter as hex value.
    ;
    ; from microsoft's msdn about WM_GETMINMAXINFO message we get that Parameters:
    ; wParam
    ;     This parameter is not used.
    ; lParam
    ;    A pointer to a MINMAXINFO structure that contains the default maximized position and dimensions, and the default minimum and maximum tracking sizes.
    ;     An application can override the defaults by setting the members of this structure.
    ;
    ; from microsoft's msdn about MINMAXINFO stracture we learn:
    ; typedef struct tagMINMAXINFO {
    ;     POINT ptReserved;
    ;     POINT ptMaxSize;
    ;     POINT ptMaxPosition;
    ;     POINT ptMinTrackSize;
    ;     POINT ptMaxTrackSize;
    ;} MINMAXINFO, *PMINMAXINFO, *LPMINMAXINFO;
    ;
    ; from microsoft's msdn about POINT structure:
    ; typedef struct tagPOINT {
    ;     LONG x;
    ;     LONG y;
    ;} POINT, *PPOINT;
    ;
    ; So...
    ; the last parameter of our "WM_GETMINMAXINFO", "$lParam", is a pointer to a MINMAXINFO stracture of a five points passed, of which we need to change the "POINT ptMinTrackSize;" (the
    ; one before the last one, 5 points with two int values each - the forth one is 7, 8 ints).
    ;
    ; lastly:
    ; this function has to exit as fast as possible! so no logging and definatly no blocking (msgbox, etc.)

    Local $StrucMax = DllStructCreate("int;int;int;int;int;int;int;int;int;int", $lParam) ; use $lParam pointer instead of allocating new memory for the struct.
    DllStructSetData($StrucMax, 7, $GUIMINWINDOWWIDTH)
    DllStructSetData($StrucMax, 8, $GUIMINWINDOWHEIGHT)
    Return 0
EndFunc

Func GUIsystemEvent()
    Switch @GUI_CtrlId
        Case $GUI_EVENT_CLOSE
            LogLine ("exit")
            Sleep (100)
            Exit
        Case $GUI_EVENT_MINIMIZE
            ; TODO tooltips when minimizedd
        Case $GUI_EVENT_RESTORE
            ; TODO disable tooltips now that we're restored
        Case $GUI_EVENT_RESIZED
            LogLine ("resized")
    EndSwitch
EndFunc

Func GUIctrlEvent()
    Switch @GUI_CtrlId
        Case $GUI_BTN_CTRLA
            GUIEditSelectAll()
    EndSwitch
EndFunc

; recursive, logs arrays too
Func LogLine ( $line, $hdl=$GUI_LOG, $str="" )
    ;If $DEBUG Then
        If IsArray ($line) Then
            Local $i, $j
            For $j = 1 To UBound($line,0) ; handle multidimentional arrays
                If $str <> "" Then $str = "("&$str&")"
                For $i = 0 To UBound($line, $j)-1 ; handle embedded arrays
                    LogLine ($line[$i], $hdl, $str&"["&$i&"]")
                Next
            Next
        Else
            If $str <> "" Then $str = " { "&$str&" }"
            ;GUICtrlSetData($hdl, @MDAY&"."&@MON&"."&@YEAR&" "&@HOUR&":"&@MIN&":"&@SEC&"."&@MSEC&" - "& $line & @CRLF, 1) ; append
            _GUICtrlEdit_AppendText($hdl, @MDAY&"."&@MON&"."&@YEAR&" "&@HOUR&":"&@MIN&":"&@SEC&"."&@MSEC&" - "& $line & @CRLF)
        EndIf
    ;EndIf
EndFunc

createGUI()
While True
    Sleep (1000)
WEnd

Using Autoit 3.3.8.1 on windows 7 64bit (autoit 32)

BTW, I like my logline function and it's useful for files as well (change handle) and with debug level.

Share this post


Link to post
Share on other sites

thewizard21,

That is easy to fix. :)

Remember that creating the "frame" creates 2 new GUIs which overlay the original - the original just acts as an external frame. So creating controls before you create the "frames" causes all sorts fo problems as Windows tries to decide what should be shown where and when. ;)

So the solution is to create the controls after the "frames" in the correct GUI like this: :D

$GUI = GUICreate("", $GUIMINWIDTH, $GUIMINHEIGHT, -1, -1, BitOR($GUI_SS_DEFAULT_GUI, $WS_SIZEBOX, $WS_MAXIMIZEBOX, $WS_MINIMIZEBOX, $WS_CLIPCHILDREN))

    ; set minimum width / height
    $GUIMINWINDOWWIDTH = _WinAPI_GetWindowWidth($GUI)
    $GUIMINWINDOWHEIGHT = _WinAPI_GetWindowHeight($GUI)
    GUIRegisterMsg($WM_GETMINMAXINFO, "WM_GETMINMAXINFO")

    ; ctrl-a dummy button
    $GUI_BTN_CTRLA = GUICtrlCreateDummy()
    GUICtrlSetOnEvent (-1, "GUIctrlEvent")
    Local $AccelKeys[1][2]=[["^a", $GUI_BTN_CTRLA]]
    GUISetAccelerators($AccelKeys)

    ; register system events
    GUISetOnEvent($GUI_EVENT_CLOSE, "GUIsystemEvent")
    GUISetOnEvent($GUI_EVENT_MINIMIZE, "GUIsystemEvent")
    GUISetOnEvent($GUI_EVENT_RESTORE, "GUIsystemEvent")
    GUISetOnEvent($GUI_EVENT_RESIZED, "GUIsystemEvent")

    ; start gui

    GUISetState()

    $GUILOGFRAME = _GUIFrame_Create($GUI, 1, 200 )
    _GUIFrame_SetMin($GUILOGFRAME, 70, 30)
    _GUIFrame_Switch($GUILOGFRAME, 1) ; <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<< Create these controls in the top frame
    GUICtrlCreateLabel('Total progress', 10, 10, 67, 16)
    $GUI_PRG_TOTAL = GUICtrlCreateProgress( 10, 28, 380, 20, $PBS_SMOOTH)
    GUICtrlCreateLabel('<Destination Folder>', 10, 54, 100, 16, BitOr($GUI_SS_DEFAULT_LABEL, 0x0));, $SS_WHITERECT))
    GUICtrlCreateListView("Worker|Progres|Speed", 10, 74, 380, 40);, BitOR($LVS_REPORT, $WS_BORDER))
    _GUIFrame_Switch($GUILOGFRAME, 2) ; <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<< Create the others in the bottom frame
    $GUI_LOG = GUICtrlCreateEdit( "Welcome to "&@ScriptName&@LF, 2, 2, 396, 94,  BitAND(BitOr($GUI_SS_DEFAULT_EDIT, $ES_READONLY),BitNOT($WS_HSCROLL)))
    GUICtrlSetResizing (-1, BitOR($GUI_DOCKLEFT, $GUI_DOCKRIGHT, $GUI_DOCKTOP, $GUI_DOCKBOTTOM))

That works fine for me on an x86 system. Does it for you on your x64? :D

M23


Public_Domain.png.2d871819fcb9957cf44f4514551a2935.png Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind

Open spoiler to see my UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

That works fine for me on an x86 system. Does it for you on your x64? ;)

M23

works great!

There is still one issue that remains, when changing the size of the window only the lower frame expands automatically while the upper one stays the same, i.e. the separator bar stays. one needs to move it again manually.

Also, while you're at it, I would prefer a SetMin that does not do it in percentage, I mean - I want the log to be a minimum of (say, for example) 5 lines, and I don't want it to be changed to a minimum of 20 lines when maximized, I still want 5 lines and the new real estate used for the rest of the gui.

Edited by thewizard21

Share this post


Link to post
Share on other sites

thewizard21,

Light dawns! I thought you meant that you got 2 separators when dragging it - you mean that the separator stays in the same place when you resize the GUI. In my defence I was up at 3AM this morning to take my wife to the airport. :D

I think that you will need to add something in a WM_SIZING handler to use _GUIFrame_SetSepPos to get the separator to move as the GUI is resized - I will take a look into how it might work today. And while I am "at it" (as you so nicely (NOT!) put it :)) I will look at your SetMin request as well. ;)

M23


Public_Domain.png.2d871819fcb9957cf44f4514551a2935.png Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind

Open spoiler to see my UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

thewizard21,

Light dawns! I thought you meant that you got 2 separators when dragging it - you mean that the separator stays in the same place when you resize the GUI. In my defence I was up at 3AM this morning to take my wife to the airport. :D

I think that you will need to add something in a WM_SIZING handler to use _GUIFrame_SetSepPos to get the separator to move as the GUI is resized - I will take a look into how it might work today. And while I am "at it" (as you so nicely (NOT!) put it :D) I will look at your SetMin request as well. ;)

M23

Go to sleep :)

Well I guess I can handle them both (separator location and a new (well..., the same actually) SetMin numbers when the size changes).

Doing a new, and same, setmin on wm_sizing is kinda like scratching your ear with your feet, great if you're on all fours.

On the other hand, it's already kept as percentage...

Thanks for the great, prompt. replies!

Edited by thewizard21

Share this post


Link to post
Share on other sites

thewizard21,

Go to sleep

I did - and I have solved the minimum size problem. There is a new parameter in the _GUIFrame_SetMin function which determines if the size set is absolute or should be adjusted to a similar percentage of the new GUI size on resizing. The percentage resize is set as the default so that the change is not script-breaking. Have a play and see if you like it: :)

New UDF - save it as GUIFrame_Mod.au3:

#include-once

; #INDEX# ============================================================================================================
; Title .........: GUIFrame
; AutoIt Version : 3.3 +
; Language ......: English
; Description ...: Splits a GUI into slideable and resizable 2 part frames which can be further split if required
; Remarks .......: - The UDF uses OnAutoItExitRegister to call _GUIFrame_Exit to delete subclassed separator bars
;                    using the UDF created WndProc and to release the Callback on exit
;                  - If the script already has a WM_SIZE handler then do NOT use _GUIFrame_ResizeReg,
;                    but call _GUIFrame_SIZE_Handler from within the existing handler
; Author ........: Original UDF by Kip
; Modified ......; This version by Melba23 - using x64 compatible code drawn from Yashied's WinAPIEx library
; ====================================================================================================================

;#AutoIt3Wrapper_au3check_parameters=-d -w 1 -w 2 -w 3 -w 4 -w 5 -w 6

; #INCLUDES# =========================================================================================================
#include <WinAPI.au3>

; #GLOBAL VARIABLES# =================================================================================================

; Array to hold handles for each frame set
Global $aGF_HandleIndex[1][7] = [[0, 0, 0]]
; [0][0] = 0 ; Count of frames      [0][1] = Move registered flag
; [n][0] = Parent GUI handle        [n][4] = Original GUI handle
; [n][1] = First frame handle       [n][5] = Indices of first frame internal frames
; [n][2] = Second frame handle      [n][6] = Indices of second frame internal frames
; [n][3] = Separator bar handle

; Array to hold sizing percentages for each frame set
Global $aGF_SizingIndex[1][8]
; [n][0] = First frame min      [n][2] = X coord    [n][4] = Width
; [n][1] = Second frame min     [n][3] = Y coord    [n][5] = Height

; Array to hold other settings for each frame set
Global $aGF_SettingsIndex[1][3]
; [n][0] = Separator orientation (vert/horz = 0/1)
; [n][1] = Resizable frame flag (0/1)
; [n][2] = Separator size (default = 5)

; Array to hold WinProc handles for each separator
Global $aGF_SepProcIndex[1][2] = [[0, 0]]

; Store registered Callback handle
Global $hGF_RegCallBack = DllCallbackRegister("_GUIFrame_SepWndProc", "lresult", "hwnd;uint;wparam;lparam")
$aGF_SepProcIndex[0][1] = DllCallbackGetPtr($hGF_RegCallBack)

; #ONAUTOITEXIT FUNCTIONS# ===========================================================================================
OnAutoItExitRegister("_GUIFrame_Exit")

; #CURRENT# ==========================================================================================================
; _GUIFrame_Create:       Splits a GUI into 2 frames
; _GUIFrame_SetMin:       Sets minimum sizes for each frame
; _GUIFrame_ResizeSet:    Sets resizing flag for all or specified frame sets
; _GUIFrame_GetHandle:    Returns the handle of a frame element (required for further splitting)
; _GUIFrame_Switch:       Sets a frame element as current GUI
; _GUIFrame_GetSepPos:    Returns the current position of the separator
; _GUIFrame_SetSepPos:    Moves the separator bar to adjust frame sizes
; _GUIFrame_ResizeReg:    Registers WM_SIZE message for resizing
; _GUIFrame_SIZE_Handler: Called from a WM_SIZE message handler to resize frames using _GUIFrame_Move
; ====================================================================================================================

; #INTERNAL_USE_ONLY#=================================================================================================
; _GUIFrame_SepSubClass:   Sets new WndProc for frame separator bar
; _GUIFrame_SepWndProc:    New WndProc for frame separator bar
; _GUIFrame_SepPassMsg:    Passes Msg to original frame WndProc for action
; _GUIFrame_Move:          Moves and resizes frame elements and separator bars
; _GUIFrame_Exit:          Deletes all subclassed separator bars to free UDF WndProc and frees registered callback handle
; ====================================================================================================================

; #FUNCTION# =========================================================================================================
; Name...........: _GUIFrame_Create
; Description ...: Splits a GUI into 2 frames
; Syntax.........: _GUIFrame_Create($hWnd, $iSepOrient = 0, $iSepPos = 0, $iSepSize = 5, $iX = 0, $iY = 0, $iWidth = 0, $iHeight = 0, $iStyle = 0, $iExStyle = 0)
; Parameters ....: $hWnd - Handle of GUI to split
;                  $iSepOrient - Orientation of separator bar: 0 = Vertical (default), 1 = Horizontal
;                  $iSepPos - Required initial position of separator (default = centre of frame GUI)
;                  $iSepSize - Size of separator bar (default = 5, min = 3, max = 9)
;                  $iX - Left of frame area (default = 0)
;                  $iY - Top of frame area (default = 0)
;                  $iWidth - Width of frame area (default = full width)
;                  $iHeight - Height of frame area (default = full height)
;                  SiStyle - Required style value for frame elements
;                  SiExStyle - Required extended style value for frame elements
; Requirement(s).: v3.3 +
; Return values .: Success:  Returns index number of frame/separator set
;                  Failure:  Returns 0 and sets @error as follows:
;                  1 = Child limit exceeded
;                  2 = GUI creation failed
;                  2 = Separator subclassing failed
; Author ........: Kip
; Modified ......: Melba23
; Remarks .......:
; Example........: Yes
;=====================================================================================================================
Func _GUIFrame_Create($hWnd, $iSepOrient = 0, $iSepPos = 0, $iSepSize = 5, $iX = 0, $iY = 0, $iOrg_Width = 0, $iOrg_Height = 0, $iStyle = 0, $iExStyle = 0)

    Local $iSeperator_Pos, $hSeparator, $hFirstFrame, $hSecondFrame

    ; Set separator size
    Local $iSeparatorSize = 5
    Switch $iSepSize
        Case 3 To 9
            $iSeparatorSize = $iSepSize
    EndSwitch

    ; Set default sizing if no parameters set
    Local $iWidth = $iOrg_Width
    Local $iHeight = $iOrg_Height
    Local $aFullSize = WinGetClientSize($hWnd)
    If Not $iOrg_Width Then $iWidth = $aFullSize[0]
    If Not $iOrg_Height Then $iHeight = $aFullSize[1]

    ; Create parent GUI within client area
    Local $hParent = GUICreate("FrameParent", $iWidth, $iHeight, $iX, $iY, BitOR(0x40000000, $iStyle), $iExStyle, $hWnd) ; $WS_CHILD
    GUISetState(@SW_SHOW, $hParent)

    ; Confirm size of frame parent client area
    Local $aSize = WinGetClientSize($hParent)
    $iWidth = $aSize[0]
    $iHeight = $aSize[1]

    If $iSepOrient = 0 Then

        ; Set initial separator position
        $iSeperator_Pos = $iSepPos
        ; Adjust position if not within GUI or default set (=0)
        If $iSepPos > $iWidth Or $iSepPos < 1 Then
            $iSeperator_Pos = Round(($iWidth / 2) - ($iSeparatorSize / 2))
        EndIf
        ; Create separator bar and force cursor change over separator
        $hSeparator = GUICreate("", $iSeparatorSize, $iHeight, $iSeperator_Pos, 0, 0x40000000, -1, $hParent) ;$WS_CHILD
        GUICtrlCreateLabel("", 0, 0, $iSeparatorSize, $iHeight, -1, 0x00000001) ; $WS_EX_DLGMODALFRAME
        GUICtrlSetCursor(-1, 13)
        GUISetState(@SW_SHOW, $hSeparator)
        ; Create the sizable frames
        $hFirstFrame = GUICreate("", $iSeperator_Pos, $iHeight, 0, 0, 0x40000000, -1, $hParent) ;$WS_CHILD
        GUISetState(@SW_SHOW, $hFirstFrame)
        $hSecondFrame = GUICreate("", $iWidth - ($iSeperator_Pos + $iSeparatorSize), $iHeight, $iSeperator_Pos + $iSeparatorSize, 0, 0x40000000, -1, $hParent) ;$WS_CHILD
        GUISetState(@SW_SHOW, $hSecondFrame)

    Else

        $iSeperator_Pos = $iSepPos
        If $iSepPos > $iHeight Or $iSepPos < 1 Then
            $iSeperator_Pos = Round(($iHeight / 2) - ($iSeparatorSize / 2))
        EndIf
        $hSeparator = GUICreate("", $iWidth, $iSeparatorSize, 0, $iSeperator_Pos, 0x40000000,  -1, $hParent) ;$WS_CHILD
        GUICtrlCreateLabel("", 0, 0, $iWidth, $iSeparatorSize, -1, 0x01) ; $WS_EX_DLGMODALFRAME
        GUICtrlSetCursor(-1, 11)
        GUISetState(@SW_SHOW, $hSeparator)
        $hFirstFrame = GUICreate("", $iWidth, $iSeperator_Pos, 0, 0, 0x40000000,  -1, $hParent) ;$WS_CHILD
        GUISetState(@SW_SHOW, $hFirstFrame)
        $hSecondFrame = GUICreate("", $iWidth, $iHeight - ($iSeperator_Pos + $iSeparatorSize), 0, $iSeperator_Pos + $iSeparatorSize, 0x40000000,  -1, $hParent) ;$WS_CHILD
        GUISetState(@SW_SHOW, $hSecondFrame)

    EndIf

    ; Check for error creating GUIs
    If $hParent = 0 Or $hSeparator = 0 Or $hFirstFrame = 0 Or $hSecondFrame = 0 Then
        ; Delete all GUIs and return error
        GUIDelete($hParent)
        GUIDelete($hSeparator)
        GUIDelete($hFirstFrame)
        GUIDelete($hSecondFrame)
        Return SetError(2, 0, 0)
    EndIf

    ; Subclass the separator
    If _GUIFrame_SepSubClass($hSeparator) = 0 Then
        ; If Subclassing failed then delete all GUIs and return error
        GUIDelete($hParent)
        GUIDelete($hSeparator)
        GUIDelete($hFirstFrame)
        GUIDelete($hSecondFrame)
        Return SetError(3, 0, 0)
    EndIf

    ; Create new lines in the storage arrays for this frame set
    Local $iIndex = $aGF_HandleIndex[0][0] + 1
    ReDim $aGF_HandleIndex[$iIndex + 1][7]
    ReDim $aGF_SizingIndex[$iIndex + 1][8]
    ReDim $aGF_SettingsIndex[$iIndex + 1][3]

    ; Store this frame set handles/variables/defaults in the new lines
    $aGF_HandleIndex[0][0] = $iIndex
    $aGF_HandleIndex[$iIndex][0] = $hParent
    $aGF_HandleIndex[$iIndex][1] = $hFirstFrame
    $aGF_HandleIndex[$iIndex][2] = $hSecondFrame
    $aGF_HandleIndex[$iIndex][3] = $hSeparator
    $aGF_HandleIndex[$iIndex][4] = $hWnd
    $aGF_HandleIndex[$iIndex][5] = 0
    $aGF_HandleIndex[$iIndex][6] = 0
    $aGF_SizingIndex[$iIndex][0] = 0
    $aGF_SizingIndex[$iIndex][1] = 0
    $aGF_SettingsIndex[$iIndex][0] = $iSepOrient
    $aGF_SettingsIndex[$iIndex][1] = 0
    $aGF_SettingsIndex[$iIndex][2] = $iSeparatorSize

    ; Store this frame index in parent line if parent is an existing frame
    For $i = 1 To $aGF_HandleIndex[0][0] - 1
        If $aGF_HandleIndex[$i][1] = $hWnd Then
            If $aGF_HandleIndex[$i][5] = 0 Then
                $aGF_HandleIndex[$i][5] = $iIndex
            Else
                $aGF_HandleIndex[$i][5] &= "|" & $iIndex
            EndIf
            ExitLoop
        EndIf
        If $aGF_HandleIndex[$i][2] = $hWnd Then
            If $aGF_HandleIndex[$i][6] = 0 Then
                $aGF_HandleIndex[$i][6] = $iIndex
            Else
                $aGF_HandleIndex[$i][6] &= "|" & $iIndex
            EndIf
            ExitLoop
        EndIf
    Next

    ; Store coordinate and size fractions
    If $iX Then
        $aGF_SizingIndex[$iIndex][2] = $iX / $aFullSize[0]
    Else
        $aGF_SizingIndex[$iIndex][2] = 0
    EndIf
    If $iY Then
        $aGF_SizingIndex[$iIndex][3] = $iY / $aFullSize[1]
    Else
        $aGF_SizingIndex[$iIndex][3] = 0
    EndIf
    If $iOrg_Width Then
        $aGF_SizingIndex[$iIndex][4] = $iOrg_Width / $aFullSize[0]
    Else
        $aGF_SizingIndex[$iIndex][4] = 1
    EndIf
    If $iOrg_Height Then
        $aGF_SizingIndex[$iIndex][5] = $iOrg_Height / $aFullSize[1]
    Else
        $aGF_SizingIndex[$iIndex][5] = 1
    EndIf

    ; Switch back to main GUI
    GUISwitch($hWnd)

    ; Return the index for this frame
    Return $iIndex

EndFunc   ;==>_GUIFrame_Create

; #FUNCTION# =========================================================================================================
; Name...........: _GUIFrame_SetMin
; Description ...: Sets minimum sizes for frames
; Syntax.........: _GUIFrame_SetMin($iFrame, $iFirstMin = 0, $iSecondMin = 0, $fAbsolute = False)
; Parameters ....: $iFrame - Index of frame set as returned by _GUIFrame_Create
;                  $iFirstMin - Min size of first (left/top) frame - max half size
;                  $iSecondMin - Min Size of second (right/bottom) frame - max half size
;                  $fAbsolute - True = Minima fixed when GUI resized
;                             - False = Minima adjusted on resize to equivalent percentage of new GUI size (default)
; Requirement(s).: v3.3 +
; Return values .: None
; Author ........: Melba23 based on some original code by Kip
; Modified ......:
; Remarks .......: If the frame is resized, these minima are adjusted accordingly unless $fAbsolute is set
; Example........: Yes
;=====================================================================================================================
Func _GUIFrame_SetMin($iFrame, $iFirstMin = 0, $iSecondMin = 0, $fAbsolute = False)

    ; Check for valid frame index
    If $iFrame < 1 Or $iFrame > $aGF_HandleIndex[0][0] Then Return 0
    ; Get size of parent
    Local $aSize = WinGetClientSize($aGF_HandleIndex[$iFrame][0])
    ; Now check orientation and determine
    Local $iMax, $iFullSize
    If $aGF_SettingsIndex[$iFrame][0] = 0 Then
        $iMax = Floor(($aSize[0] / 2) - $aGF_SettingsIndex[$iFrame][2])
        $iFullSize = $aSize[0]
    Else
        $iMax = Floor(($aSize[1] / 2) - $aGF_SettingsIndex[$iFrame][2])
        $iFullSize = $aSize[1]
    EndIf
    ; Set minimums
    If $fAbsolute Then
        $aGF_SizingIndex[$iFrame][0] = Int($iFirstMin)
        $aGF_SizingIndex[$iFrame][1] = Int($iSecondMin)
    Else
        If $iFirstMin > $iMax Then
            $aGF_SizingIndex[$iFrame][0] = $iMax / $iFullSize
        Else
            $aGF_SizingIndex[$iFrame][0] = $iFirstMin / $iFullSize
        EndIf
        If $iSecondMin > $iMax Then
            $aGF_SizingIndex[$iFrame][1] = $iMax / $iFullSize
        Else
            $aGF_SizingIndex[$iFrame][1] = $iSecondMin / $iFullSize
        EndIf
    EndIf

EndFunc   ;==>_GUIFrame_SetMin

; #FUNCTION# =========================================================================================================
; Name...........: _GUIFrame_ResizeSet
; Description ...: Sets resizing flag for frames
; Syntax.........: _GUIFrame_ResizeSet($iFrame = 0)
; Parameters ....: $iFrame - Index of frame set as returned by _GUIFrame_Create
;                  (Default - 0 = all existing frames)
; Requirement(s).: v3.3 +
; Return values .: Success: 2 - All existing frame flags set
;                           1 - Specified flag set
;                  Failure: 0 with @error set to 1 - Invalid frame specified
; Author ........: Melba23
; Modified ......:
; Remarks .......:
; Example........: Yes
;=====================================================================================================================
Func _GUIFrame_ResizeSet($iFrame = 0)

    Switch $iFrame
        Case 0 ; Set all frames
            For $i = 1 To $aGF_HandleIndex[0][0]
                $aGF_SettingsIndex[$i][1] = 1
            Next
            Return 2
        Case 1 To $aGF_HandleIndex[0][0] ; Only valid frames accepted
            $aGF_SettingsIndex[$iFrame][1] = 1
            Return 1
        Case Else ; Error
            Return SetError(1, 0, 0)
    EndSwitch

EndFunc   ;==>_GUIFrame_ResizeSet

; #FUNCTION# =========================================================================================================
; Name...........: _GUIFrame_GetHandle
; Description ...: Returns the handle of a frame element (required for further splitting)
; Syntax.........: _GUIFrame_GetHandle($iFrame, $iElement)
; Parameters ....: $iFrame - Index of frame set as returned by _GUIFrame_Create
;                  $iElement - 1 = first (left/top) frame, 2 = second (right/bottom) frame
; Requirement(s).: v3.3 +
; Return values .: Success: Handle of frame
;                  Failure: 0 with @error set as follows
;                           1 - Invalid frame specified
;                           2 - Invalid element specified
; Author ........: Kip
; Modified ......: Melba23
; Remarks .......: _GUIFrame_Create requires a GUI handle as a parameter
; Example........: Yes
;=====================================================================================================================
Func _GUIFrame_GetHandle($iFrame, $iElement)

    ; Check valid frame index and element
    Switch $iFrame
        Case 1 To $aGF_HandleIndex[0][0]
            Switch $iElement
                Case 1, 2
                    ; Return handle
                    Return $aGF_HandleIndex[$iFrame][$iElement]
            EndSwitch
            Return SetError(2, 0, 0)
    EndSwitch
    Return SetError(1, 0, 0)

EndFunc   ;==>_GUIFrame_GetHandle

; #FUNCTION# =========================================================================================================
; Name...........: _GUIFrame_Switch
; Description ...: Sets a frame element as current GUI
; Syntax.........: _GUIFrame_Switch($iFrame, $iElement)
; Parameters ....: $iFrame - Index of frame set as returned by _GUIFrame_Create
;                  $iElement - 1 = first (left/top) frame, 2 = second (right/bottom) frame
; Requirement(s).: v3.3 +
; Return values .: None
; Author ........: Kip
; Modified ......: Melba23
; Remarks .......: Subsequent controls are created in the specified frame element
; Example........: Yes
;=====================================================================================================================
Func _GUIFrame_Switch($iFrame, $iElement)

    ; Check valid frame index and element
    Switch $iFrame
        Case 1 To $aGF_HandleIndex[0][0]
            Switch $iElement
                Case 1, 2
                    ; Switch to specified element
                    Return GUISwitch($aGF_HandleIndex[$iFrame][$iElement])
            EndSwitch
            Return SetError(2, 0, 0)
    EndSwitch
    Return SetError(1, 0, 0)

EndFunc   ;==>_GUIFrame_Switch

; #FUNCTION# =========================================================================================================
; Name...........: _GUIFrame_GetSepPos()
; Description ...: Returns the current position of the separator
; Syntax.........: _GUIFrame_GetSepPos($iFrame)
; Parameters ....: $iFrame - Index of frame set as returned by _GUIFrame_Create
; Requirement(s).: v3.3 +
; Return values .: Success: Position of separator
;                  Failure: -1 = Invalid frame specified
; Author ........: Melba23
; Remarks .......: This value can be stored and used as the initial separator position parameter in _GUIFrame_Create
;                  to restore exit position on restart
; Example........: Yes
;=====================================================================================================================
Func _GUIFrame_GetSepPos($iFrame)

    Local $iSepPos

    ; Check for valid frame index
    If $iFrame < 1 Or $iFrame > $aGF_HandleIndex[0][0] Then Return -1

    ; Get position of first frame
    Local $aFrame_Pos = WinGetPos($aGF_HandleIndex[$iFrame][1])
    ; Get position of separator
    Local $aSep_Pos = WinGetPos($aGF_HandleIndex[$iFrame][3])
    ; Check on separator orientation
    If $aGF_SettingsIndex[$iFrame][0] Then
        $iSepPos = $aSep_Pos[1] - $aFrame_Pos[1]
    Else
        $iSepPos = $aSep_Pos[0] - $aFrame_Pos[0]
    EndIf
    Return $iSepPos

EndFunc

; #FUNCTION# =========================================================================================================
; Name...........: _GUIFrame_SetSepPos()
; Description ...: Moves the separator bar to adjust frame sizes
; Syntax.........: _GUIFrame_SetSepPos($iFrame, $iSepPos)
; Parameters ....: $iFrame - Index of frame set as returned by _GUIFrame_Create
;                  $iSepos - Position of separator bar within frame
; Requirement(s).: v3.3 +
; Return values .: Success: 1
;                  Failure: 0 with @error set as follows
;                           1 - Invalid frame specified
;                           2 - Invalid separator position (outside frame)
;                           3 - Invalid separator position (below frame minimum size)
; Author ........: Melba23
; Remarks .......: This value can be stored and used as the initial separator position parameter in _GUIFrame_Create
;                  to restore exit position on restart
; Example........: Yes
;=====================================================================================================================
Func _GUIFrame_SetSepPos($iFrame, $iSepPos)

    Local $iFirstMin, $iSecondMin

    ; Check for valid frame index
    If $iFrame < 1 Or $iFrame > $aGF_HandleIndex[0][0] Then Return SetError(1, 0, 0)

    ; Check separator actually needs to move
    If $iSepPos = _GUIFrame_GetSepPos($iFrame) Then Return 1

    ; Get frame GUI size
    Local $aWinPos = WinGetPos($aGF_HandleIndex[$iFrame][0])
    ; Depending on separator orientation
    If $aGF_SettingsIndex[$iFrame][0] Then
        ; Check sep position is valid
        If $iSepPos < 0 Or $iSepPos > $aWinPos[3] Then Return SetError(2, 0, 0)
        ; Determine minima for frames
        $iFirstMin = $aWinPos[3] * $aGF_SizingIndex[$iFrame][0]
        $iSecondMin = ($aWinPos[3] * (1 - $aGF_SizingIndex[$iFrame][1])) - $aGF_SettingsIndex[$iFrame][2]
        ; Check required value is valid
        If $iSepPos < $iFirstMin Or $iSepPos > $iSecondMin Then Return SetError(3, 0, 0)
        ; Move frames and seperator
        WinMove($aGF_HandleIndex[$iFrame][1], "", 0, 0, $aWinPos[2], $iSepPos)
        WinMove($aGF_HandleIndex[$iFrame][2], "", 0, $iSepPos + $aGF_SettingsIndex[$iFrame][2], $aWinPos[2], $aWinPos[3] - ($iSepPos + $aGF_SettingsIndex[$iFrame][2]))
        WinMove($aGF_HandleIndex[$iFrame][3], "", 0, $iSepPos, $aWinPos[2], $aGF_SettingsIndex[$iFrame][2])
    Else
        If $iSepPos < 0 Or $iSepPos > $aWinPos[2] Then Return SetError(2, 0, 0)
        $iFirstMin = $aWinPos[2] * $aGF_SizingIndex[$iFrame][0]
        $iSecondMin = ($aWinPos[2] * (1 - $aGF_SizingIndex[$iFrame][1])) - $aGF_SettingsIndex[$iFrame][2]
        If $iSepPos < $iFirstMin Or $iSepPos > $iSecondMin Then Return SetError(3, 0, 0)
        WinMove($aGF_HandleIndex[$iFrame][1], "", 0, 0, $iSepPos, $aWinPos[3])
        WinMove($aGF_HandleIndex[$iFrame][2], "", $iSepPos + $aGF_SettingsIndex[$iFrame][2], 0, $aWinPos[2] - ($iSepPos + $aGF_SettingsIndex[$iFrame][2]), $aWinPos[3])
        WinMove($aGF_HandleIndex[$iFrame][3], "", $iSepPos, 0, $aGF_SettingsIndex[$iFrame][2], $aWinPos[3])
    EndIf
    Return 1

EndFunc

; #FUNCTION# =========================================================================================================
; Name...........: _GUIFrame_ResizeReg
; Description ...: Registers WM_SIZE message for resizing
; Syntax.........: _GUIFrame_ResizeReg()
; Parameters ....: None
; Requirement(s).: v3.3 +
; Return values .: Success: 1 - Message handler registered
;                  Failure: 0 with @error set to 1 - Message handler already registered
; Author ........: Melba23
; Modified ......:
; Remarks .......:
; Example........: Yes
;=====================================================================================================================
Func _GUIFrame_ResizeReg()

    ; Register the WM_SIZE message
    If $aGF_HandleIndex[0][1] = 0 Then
        Local $iRet = GUIRegisterMsg(0x05, "_GUIFrame_SIZE_Handler") ; $WM_SIZE
        If $iRet Then
            $aGF_HandleIndex[0][1] = 1
            Return 1
        EndIf
    EndIf
    Return SetError(1, 0, 0)

EndFunc   ;==>_GUIFrame_ResizeReg

; #FUNCTION# =========================================================================================================
; Name...........: _GUIFrame_SIZE_Handler
; Description ...: Used to resize frames when resizing of holding GUI occurs
; Syntax.........: _GUIFrame_SIZE_Handler($hWnd, $iMsg, $wParam, $lParam)
; Parameters ....: None
; Requirement(s).: v3.3 +
; Return values .: None
; Author ........: Melba23
; Modified ......:
; Remarks .......: If the script already has a WM_SIZE handler, then just call this function from within it
;                  and do NOT use the _GUIFrame_ResizeReg function
; Example........: Yes
;=====================================================================================================================
Func _GUIFrame_SIZE_Handler($hWnd, $iMsg, $wParam, $lParam)

    #forceref $iMsg, $wParam, $lParam
    Local $iIndex

    ; Get index of base frame GUI
    For $iIndex = 1 To $aGF_HandleIndex[0][0]
        If $aGF_HandleIndex[$iIndex][4] = $hWnd Then ExitLoop
    Next

    ; If handle not found
    If $iIndex > $aGF_HandleIndex[0][0] Then Return "GUI_RUNDEFMSG"

    ; Check if we should resize this set
    If $aGF_SettingsIndex[$iIndex][1] = 1 Then

        ; Get new base GUI size
        Local $aSize = WinGetClientSize($hWnd)
        ; Resize frames
        _GUIFrame_Move($iIndex, $aSize[0] * $aGF_SizingIndex[$iIndex][2], $aSize[1] * $aGF_SizingIndex[$iIndex][3], $aSize[0] * $aGF_SizingIndex[$iIndex][4], $aSize[1] * $aGF_SizingIndex[$iIndex][5])

        ; Adjust any resizeable internal frames - array elements are adjacent for ease of coding
        For $i = 0 To 1
            ; Adjust internal frames of first/second frame if any exist
            If $aGF_HandleIndex[$iIndex][5 + $i] <> 0 Then
                ; StringSplit the element content on "|"
                Local $aInternal = StringSplit($aGF_HandleIndex[$iIndex][5 + $i], "|")
                ; Then loop though the Number(values) found
                For $j = 1 To $aInternal[0]
                    Local $iIntIndex = Number($aInternal[$j])
                    ; Check if internal frame is resizable
                    If $aGF_SettingsIndex[$iIntIndex][1] = 1 Then
                        ; And change if so
                        _GUIFrame_SIZE_Handler($aGF_HandleIndex[$iIntIndex][4], $iMsg, $wParam, $lParam)
                    EndIf
                Next
            EndIf
        Next

    EndIf

    Return "GUI_RUNDEFMSG"

EndFunc   ;==>_GUIFrame_SIZE_Handler

; #INTERNAL_USE_ONLY#============================================================================================================
; Name...........: _GUIFrame_SepSubClass
; Description ...: Sets new WndProc for frame separator bar
; Author ........: Kip
; Modified.......: Melba23, using SetWindowLongPtr x64 compatible code drawn from Yashied's WinAPIEx library
; Remarks .......: This function is used internally by _GUIFrame_Create
; ===============================================================================================================================
Func _GUIFrame_SepSubClass($hWnd)

    Local $aRet

    ; Check separator has not already been used
    For $i = 1 To $aGF_SepProcIndex[0][0]
        If $aGF_SepProcIndex[$i][0] = $hWnd Then Return 0
    Next

    ; Store current WinProc handle in new array line
    Local $iIndex = $aGF_SepProcIndex[0][0] + 1
    ReDim $aGF_SepProcIndex[$iIndex + 1][2]
    $aGF_SepProcIndex[0][0] = $iIndex
    $aGF_SepProcIndex[$iIndex][0] = $hWnd
    ; Subclass separator bar
    If @AutoItX64 Then
        $aRet = DllCall('user32.dll', 'long_ptr', 'SetWindowLongPtrW', 'hwnd', $hWnd, 'int', -4, 'long_ptr', $aGF_SepProcIndex[0][1]) ; $GWL_WNDPROC
    Else
        $aRet = DllCall('user32.dll', 'long', 'SetWindowLongW', 'hwnd', $hWnd, 'int', -4, 'long', $aGF_SepProcIndex[0][1]) ; $GWL_WNDPROC
    EndIf
    ; Check for subclassing error
    If @error Or $aRet[0] = 0 Then Return 0
    ; Return success
    $aGF_SepProcIndex[$iIndex][1] = $aRet[0]
    Return 1

EndFunc   ;==>_GUIFrame_SepSubClass

; #INTERNAL_USE_ONLY#============================================================================================================
; Name...........: _GUIFrame_SepWndProc
; Description ...: New WndProc for frame separator bar
; Author ........: Kip
; Modified.......: Melba23
; Remarks .......: This function is used internally by _GUIFrame_SepSubClass
; ===============================================================================================================================
Func _GUIFrame_SepWndProc($hWnd, $iMsg, $wParam, $lParam)

    Local $iSubtract, $fAbsolute = False

    If $iMsg = 0x0111 Then ; WM_COMMAND

        ; Check if hWnd is a Separator bar
        For $iIndex = 1 To $aGF_HandleIndex[0][0]
            If $aGF_HandleIndex[$iIndex][3] = $hWnd Then ExitLoop
        Next
        ; If not then pass message on to org WndProc
        If $iIndex > $aGF_HandleIndex[0][0] Then Return _GUIFrame_SepPassMsg($hWnd, $iMsg, $wParam, $lParam)

        ; Extract values from array
        Local $hParent = $aGF_HandleIndex[$iIndex][0]
        Local $hFirstFrame = $aGF_HandleIndex[$iIndex][1]
        Local $hSecondFrame = $aGF_HandleIndex[$iIndex][2]
        Local $hSeparator = $aGF_HandleIndex[$iIndex][3]
        Local $iFirstMin = $aGF_SizingIndex[$iIndex][0]
        Local $iSecondMin = $aGF_SizingIndex[$iIndex][1]
        If $iFirstMin > 1 Then
            $fAbsolute = True
        EndIf
        Local $iSeparatorSize = $aGF_SettingsIndex[$iIndex][2]

        ; Get client size of the parent
        Local $aClientSize = WinGetClientSize($hParent)
        Local $iWidth = $aClientSize[0]
        Local $iHeight = $aClientSize[1]

        ; Get cursor info for the Separator
        Local $aCInfo = GUIGetCursorInfo($hSeparator)

        ; Depending on separator orientation
        If $aGF_SettingsIndex[$iIndex][0] = 0 Then

            ; Get Separator X-coord
            $iSubtract = $aCInfo[0]

            Do
                ; Get parent X-coord
                $aCInfo = GUIGetCursorInfo($hParent)
                Local $iCursorX = $aCInfo[0]

                ; Determine width of first frame
                Local $iFirstWidth = $iCursorX - $iSubtract
                ; And ensure it is at least minimum
                If $fAbsolute Then
                    If $iFirstWidth < $iFirstMin Then $iFirstWidth = $iFirstMin
                    If $iWidth - $iFirstWidth - $iSeparatorSize < $iSecondMin Then $iFirstWidth = $iWidth - $iSeparatorSize - $iSecondMin
                Else
                    If $iFirstWidth < $iWidth * $iFirstMin Then $iFirstWidth = $iWidth * $iFirstMin
                    If $iWidth - ($iFirstWidth + $iSeparatorSize) < $iWidth * $iSecondMin Then $iFirstWidth = $iWidth - ($iWidth * $iSecondMin) - $iSeparatorSize
                EndIf

                ; Move the GUIs to the correct places
                WinMove($hFirstFrame, "", 0, 0, $iFirstWidth, $iHeight)
                WinMove($hSecondFrame, "", $iFirstWidth + $iSeparatorSize, 0, $iWidth - ($iFirstWidth + $iSeparatorSize), $iHeight)
                WinMove($hSeparator, "", $iFirstWidth, 0, $iSeparatorSize, $iHeight)

                ; Do until the mouse button is released
            Until Not _WinAPI_GetAsyncKeyState(0x01)

        ElseIf $aGF_SettingsIndex[$iIndex][0] = 1 Then

            $iSubtract = $aCInfo[1]
            Do
                $aCInfo = GUIGetCursorInfo($hParent)
                Local $iCursorY = $aCInfo[1]
                Local $iFirstHeight = $iCursorY - $iSubtract
                If $fAbsolute Then
                    If $iFirstHeight < $iFirstMin Then $iFirstHeight = $iFirstMin
                    If $iHeight - $iFirstHeight - $iSeparatorSize < $iSecondMin Then $iFirstHeight = $iHeight - $iSeparatorSize - $iSecondMin
                Else
                    If $iFirstHeight < $iHeight * $iFirstMin Then $iFirstHeight = $iHeight * $iFirstMin
                    If $iHeight - ($iFirstHeight + $iSeparatorSize) < $iHeight * $iSecondMin Then $iFirstHeight = $iHeight - ($iHeight * $iSecondMin) - $iSeparatorSize
                EndIf
                WinMove($hFirstFrame, "", 0, 0, $iWidth, $iFirstHeight)
                WinMove($hSecondFrame, "", 0, $iFirstHeight + $iSeparatorSize, $iWidth, $iHeight - ($iFirstHeight + $iSeparatorSize))
                WinMove($hSeparator, "", 0, $iFirstHeight, $iWidth, $iSeparatorSize)
            Until Not _WinAPI_GetAsyncKeyState(0x01)

        EndIf

    EndIf

    ; Pass the message on to org WndProc
    Return _GUIFrame_SepPassMsg($hWnd, $iMsg, $wParam, $lParam)

EndFunc   ;==>_GUIFrame_SepWndProc

; #INTERNAL_USE_ONLY#============================================================================================================
; Name...........: _GUIFrame_SepPassMsg
; Description ...: Passes Msg to frame parent WndProc for action
; Author ........: Kip
; Modified.......: Melba23
; Remarks .......: This function is used internally by _GUIFrame_SepWndProc
; ===============================================================================================================================
Func _GUIFrame_SepPassMsg($hWnd, $iMsg, $wParam, $lParam)

    For $i = 1 To $aGF_SepProcIndex[0][0]
        If $aGF_SepProcIndex[$i][0] = $hWnd Then Return _WinAPI_CallWindowProc($aGF_SepProcIndex[$i][1], $hWnd, $iMsg, $wParam, $lParam)
    Next

EndFunc   ;==>_GUIFrame_SepPassMsg

; #INTERNAL_USE_ONLY#============================================================================================================
; Name...........: _GUIFrame_Move
; Description ...: Moves and resizes frame elements and separator bars
; Author ........: Kip
; Modified.......: Melba23
; Remarks .......: This function is used internally by _GUIFrame_SIZE_Handler
; ===============================================================================================================================
Func _GUIFrame_Move($iFrame, $iX, $iY, $iWidth = 0, $iHeight = 0)

    Local $fAbsolute = False

    ; Check valid frame index
    If $iFrame < 1 Or $iFrame > $aGF_HandleIndex[0][0] Then Return 0

    Local $iSeparatorSize = $aGF_SettingsIndex[$iFrame][2]
    Local $iTotal

    ; Set size if not specified
    If Not $iWidth Then $iWidth = _WinAPI_GetWindowWidth($aGF_HandleIndex[$iFrame][0])
    If Not $iHeight Then $iHeight = _WinAPI_GetWindowHeight($aGF_HandleIndex[$iFrame][0])

    ; Move parent
    WinMove($aGF_HandleIndex[$iFrame][0], "", $iX, $iY, $iWidth, $iHeight)

    ; Get size of first frame depending on orientation
    Local $aWinPos = WinGetClientSize($aGF_HandleIndex[$iFrame][1])
    Local $iSize = $aWinPos[0]
    If $aGF_SettingsIndex[$iFrame][0] = 1 Then $iSize = $aWinPos[1]

    ; Set frame min percentages
    Local $iFirstMin = $aGF_SizingIndex[$iFrame][0]
    Local $iSecondMin = $aGF_SizingIndex[$iFrame][1]
    If $iFirstMin > 1 Then
        $fAbsolute = True
    EndIf

    ; Depending on separator orientation
    If $aGF_SettingsIndex[$iFrame][0] = 0 Then

        ; Move frames and separator as required
        $iTotal = $iWidth
        If $fAbsolute Then
            If $iSize < $iFirstMin Then $iSize = $iFirstMin
            If $iTotal - $iSize - $iSeparatorSize < $iSecondMin Then $iSize = $iTotal - $iSecondMin - $iSeparatorSize
        Else
            If $iSize < $iWidth * $iFirstMin Then $iSize = $iWidth * $iFirstMin
            If $iTotal - $iSize - $iSeparatorSize < $iWidth * $iSecondMin Then $iSize = $iTotal - ($iWidth * $iSecondMin) - $iSeparatorSize
        EndIf
        WinMove($aGF_HandleIndex[$iFrame][1], "", 0, 0, $iSize, $iHeight)
        WinMove($aGF_HandleIndex[$iFrame][2], "", $iSize + $iSeparatorSize, 0, $iTotal - $iSize - $iSeparatorSize, $iHeight)
        WinMove($aGF_HandleIndex[$iFrame][3], "", $iSize, 0, $iSeparatorSize, $iHeight)

    ElseIf $aGF_SettingsIndex[$iFrame][0] = 1 Then

        $iTotal = $iHeight
        If $fAbsolute Then
            If $iSize < $iFirstMin Then $iSize = $iFirstMin
            If $iTotal - $iSize - $iSeparatorSize < $iSecondMin Then $iSize = $iTotal - $iSecondMin - $iSeparatorSize
        Else
            If $iSize < $iHeight * $iFirstMin Then $iSize = $iHeight * $iFirstMin
            If $iTotal - $iSize - $iSeparatorSize < $iHeight * $iSecondMin Then $iSize = $iTotal - ($iHeight * $iSecondMin) - $iSeparatorSize
        EndIf
        WinMove($aGF_HandleIndex[$iFrame][1], "", 0, 0, $iWidth, $iSize)
        WinMove($aGF_HandleIndex[$iFrame][2], "", 0, $iSize + $iSeparatorSize, $iWidth, $iTotal - $iSize - $iSeparatorSize)
        WinMove($aGF_HandleIndex[$iFrame][3], "", 0, $iSize, $iWidth, $iSeparatorSize)

    EndIf

EndFunc   ;==>_GUIFrame_Move

; #INTERNAL_USE_ONLY#============================================================================================================
; Name...........: _GUIFrame_Exit()
; Description ...: Deletes all subclassed separator bars to free UDF WndProc and frees registered callback handle
; Author ........: Melba23
; Remarks .......: Called by OnAutoItExitRegister to delete all subclassed separator bars and to free the UDF created WndProc.
; Example........: Yes
;================================================================================================================================
Func _GUIFrame_Exit()

    ; Delete all subclassed separator bars
    For $i = $aGF_HandleIndex[0][0] To 1 Step -1
        GUIDelete($aGF_HandleIndex[$i][3])
    Next
    ; Free registered Callback handle
    DllCallbackFree($hGF_RegCallBack)

EndFunc   ;==>_GUIFrame_Exit

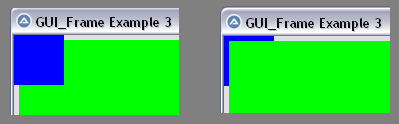

And an example to show it working - just comment out one or other of the _GUIFrame_SetMin lines to see the difference:

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>

#include "GUIFrame_Mod.au3"

Global $iSep_Pos

$hGUI = GUICreate("GUI_Frame Example 1", 500, 500, -1, -1, BitOR($WS_MINIMIZEBOX, $WS_MAXIMIZEBOX, $WS_SIZEBOX))
GUISetState()

; Create a 1st level frame
$iFrame_A = _GUIFrame_Create($hGUI, 1)
;_GUIFrame_SetMin($iFrame_A, 50, 25, True) ; This line sets the minima as absolute values
_GUIFrame_SetMin($iFrame_A, 50, 25) ; This line adjusts the minima to equivalent percentages on resizing

_GUIFrame_Switch($iFrame_A, 1)
$aWinSize = WinGetClientSize(_GUIFrame_GetHandle($iFrame_A, 2))
GUICtrlCreateLabel("", 5, 5, $aWinSize[0] - 10, $aWinSize[1] - 10)
GUICtrlSetBkColor(-1, 0x00FF00)
GUICtrlCreateLabel("", 0, 0, 50, 50)
GUICtrlSetBkColor(-1, 0x0000FF)
GUICtrlSetResizing(-1, $GUI_DOCKSIZE)
GUICtrlSetState(-1, $GUI_DISABLE)

_GUIFrame_Switch($iFrame_A, 2)
$aWinSize = WinGetClientSize(_GUIFrame_GetHandle($iFrame_A, 2))
GUICtrlCreateLabel("", 5, 5, $aWinSize[0] - 10, $aWinSize[1] - 10)
GUICtrlSetBkColor(-1, 0xFF0000)
GUICtrlSetState(-1, $GUI_DISABLE)

; Set resizing flag for all created frames
_GUIFrame_ResizeSet(0)

; Register the $WM_SIZE handler to permit resizing
_GUIFrame_ResizeReg()

While 1

    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            ; The UDF does all the tidying up as you exit
            Exit
    EndSwitch

WEnd

Now that is fixed, do you still want the separator to move on resize? If you have the minimum of the top frame set to show only the top x pixels, using the new function means that if the separator does not move when you resize you still see just the same area. This seems more logical than the separator moving to expose more of the top frame. Thoughts? ;)

M23


Public_Domain.png.2d871819fcb9957cf44f4514551a2935.png Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind

Open spoiler to see my UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

Hi M23,

Sorry it took so long, it was a holiday here, family and all and I didn't touch the computer.

The new parameter is fantastic, exactly what the doctor prescribed.

As for your question:

Now that is fixed, do you still want the separator to move on resize? If you have the minimum of the top frame set to show only the top x pixels, using the new function means that if the separator does not move when you resize you still see just the same area. This seems more logical than the separator moving to expose more of the top frame. Thoughts? ;)

M23

Yep, I still want the separator to move, moreover for my specific usage it's even desirable that the upper ('1') frame would be the sole growing one, since, I reckon, when someone wants to see more app real-estate usually they're after a larger summery of workers.

But generically I think that if we won't have such parameters (which frame grow by how much, etc.) then it should grow symmetrically like all other GUI control's defaults.

And if I hadn't said it enough already - Thanks again for this wonderful UDF.

Share this post


Link to post
Share on other sites

thewizard21,

Try this beta version - the separator is maintained at the same percentage position when the GUI is resized rather than the present release where the top/left frame remained at a fixed size as the GUI increased in size: :)

#include-once

; #INDEX# ============================================================================================================
; Title .........: GUIFrame
; AutoIt Version : 3.3 +
; Language ......: English
; Description ...: Splits a GUI into slideable and resizable 2 part frames which can be further split if required
; Remarks .......: - The UDF uses OnAutoItExitRegister to call _GUIFrame_Exit to delete subclassed separator bars
;                    using the UDF created WndProc and to release the Callback on exit
;                  - If the script already has a WM_SIZE handler then do NOT use _GUIFrame_ResizeReg,
;                    but call _GUIFrame_SIZE_Handler from within the existing handler
; Author ........: Original UDF by Kip
; Modified ......; This version by Melba23 - using x64 compatible code drawn from Yashied's WinAPIEx library
; ====================================================================================================================

; #AutoIt3Wrapper_au3check_parameters=-d -w 1 -w 2 -w 3 -w 4 -w 5 -w 6

; #INCLUDES# =========================================================================================================
#include <WinAPI.au3>

; #GLOBAL VARIABLES# =================================================================================================

; Array to hold handles for each frame set
Global $aGF_HandleIndex[1][7] = [[0, 0, 0]]
; [0][0] = 0 ; Count of frames      [0][1] = Move registered flag
; [n][0] = Parent GUI handle        [n][4] = Original GUI handle
; [n][1] = First frame handle       [n][5] = Indices of first frame internal frames
; [n][2] = Second frame handle      [n][6] = Indices of second frame internal frames
; [n][3] = Separator bar handle

; Array to hold sizing percentages for each frame set
Global $aGF_SizingIndex[1][8]
; [n][0] = First frame min      [n][2] = X coord    [n][4] = Width      [n][6] = Seperator percentage position
; [n][1] = Second frame min     [n][3] = Y coord    [n][5] = Height

; Array to hold other settings for each frame set
Global $aGF_SettingsIndex[1][3]
; [n][0] = Separator orientation (vert/horz = 0/1)
; [n][1] = Resizable frame flag (0/1)
; [n][2] = Separator size (default = 5)

; Array to hold WinProc handles for each separator
Global $aGF_SepProcIndex[1][2] = [[0, 0]]

; Store registered Callback handle
Global $hGF_RegCallBack = DllCallbackRegister("_GUIFrame_SepWndProc", "lresult", "hwnd;uint;wparam;lparam")
$aGF_SepProcIndex[0][1] = DllCallbackGetPtr($hGF_RegCallBack)

; #ONAUTOITEXIT FUNCTIONS# ===========================================================================================
OnAutoItExitRegister("_GUIFrame_Exit")

; #CURRENT# ==========================================================================================================
; _GUIFrame_Create:       Splits a GUI into 2 frames
; _GUIFrame_SetMin:       Sets minimum sizes for each frame
; _GUIFrame_ResizeSet:    Sets resizing flag for all or specified frame sets
; _GUIFrame_GetHandle:    Returns the handle of a frame element (required for further splitting)
; _GUIFrame_Switch:       Sets a frame element as current GUI
; _GUIFrame_GetSepPos:    Returns the current position of the separator
; _GUIFrame_SetSepPos:    Moves the separator bar to adjust frame sizes
; _GUIFrame_ResizeReg:    Registers WM_SIZE message for resizing
; _GUIFrame_SIZE_Handler: Called from a WM_SIZE message handler to resize frames using _GUIFrame_Move
; ====================================================================================================================

; #INTERNAL_USE_ONLY#=================================================================================================
; _GUIFrame_SepSubClass:   Sets new WndProc for frame separator bar
; _GUIFrame_SepWndProc:    New WndProc for frame separator bar
; _GUIFrame_SepPassMsg:    Passes Msg to original frame WndProc for action
; _GUIFrame_Move:          Moves and resizes frame elements and separator bars
; _GUIFrame_Exit:          Deletes all subclassed separator bars to free UDF WndProc and frees registered callback handle
; ====================================================================================================================

; #FUNCTION# =========================================================================================================
; Name...........: _GUIFrame_Create
; Description ...: Splits a GUI into 2 frames
; Syntax.........: _GUIFrame_Create($hWnd, $iSepOrient = 0, $iSepPos = 0, $iSepSize = 5, $iX = 0, $iY = 0, $iWidth = 0, $iHeight = 0, $iStyle = 0, $iExStyle = 0)
; Parameters ....: $hWnd - Handle of GUI to split
;                  $iSepOrient - Orientation of separator bar: 0 = Vertical (default), 1 = Horizontal
;                  $iSepPos - Required initial position of separator (default = centre of frame GUI)
;                  $iSepSize - Size of separator bar (default = 5, min = 3, max = 9)
;                  $iX - Left of frame area (default = 0)
;                  $iY - Top of frame area (default = 0)
;                  $iWidth - Width of frame area (default = full width)
;                  $iHeight - Height of frame area (default = full height)
;                  SiStyle - Required style value for frame elements
;                  SiExStyle - Required extended style value for frame elements
; Requirement(s).: v3.3 +
; Return values .: Success:  Returns index number of frame/separator set
;                  Failure:  Returns 0 and sets @error as follows:
;                  1 = Child limit exceeded
;                  2 = GUI creation failed
;                  2 = Separator subclassing failed
; Author ........: Kip
; Modified ......: Melba23
; Remarks .......:
; Example........: Yes
;=====================================================================================================================
Func _GUIFrame_Create($hWnd, $iSepOrient = 0, $iSepPos = 0, $iSepSize = 5, $iX = 0, $iY = 0, $iOrg_Width = 0, $iOrg_Height = 0, $iStyle = 0, $iExStyle = 0)

    Local $iSeperator_Pos, $hSeparator, $hFirstFrame, $hSecondFrame, $nSepPercent

    ; Set separator size
    Local $iSeparatorSize = 5
    Switch $iSepSize
        Case 3 To 9
            $iSeparatorSize = $iSepSize
    EndSwitch

    ; Set default sizing if no parameters set
    Local $iWidth = $iOrg_Width
    Local $iHeight = $iOrg_Height
    Local $aFullSize = WinGetClientSize($hWnd)
    If Not $iOrg_Width Then $iWidth = $aFullSize[0]
    If Not $iOrg_Height Then $iHeight = $aFullSize[1]

    ; Create parent GUI within client area
    Local $hParent = GUICreate("FrameParent", $iWidth, $iHeight, $iX, $iY, BitOR(0x40000000, $iStyle), $iExStyle, $hWnd) ; $WS_CHILD
    GUISetState(@SW_SHOW, $hParent)

    ; Confirm size of frame parent client area
    Local $aSize = WinGetClientSize($hParent)
    $iWidth = $aSize[0]
    $iHeight = $aSize[1]

    If $iSepOrient = 0 Then

        ; Set initial separator position
        $iSeperator_Pos = $iSepPos
        ; Adjust position if not within GUI or default set (=0)
        If $iSepPos > $iWidth Or $iSepPos < 1 Then
            $iSeperator_Pos = Round(($iWidth / 2) - ($iSeparatorSize / 2))
        EndIf
        ; Create separator bar and force cursor change over separator
        $hSeparator = GUICreate("", $iSeparatorSize, $iHeight, $iSeperator_Pos, 0, 0x40000000, -1, $hParent) ;$WS_CHILD
        GUICtrlCreateLabel("", 0, 0, $iSeparatorSize, $iHeight, -1, 0x00000001) ; $WS_EX_DLGMODALFRAME
        GUICtrlSetCursor(-1, 13)
        GUISetState(@SW_SHOW, $hSeparator)
        ; Create the sizable frames
        $hFirstFrame = GUICreate("", $iSeperator_Pos, $iHeight, 0, 0, 0x40000000, -1, $hParent) ;$WS_CHILD
        GUISetState(@SW_SHOW, $hFirstFrame)
        $hSecondFrame = GUICreate("", $iWidth - ($iSeperator_Pos + $iSeparatorSize), $iHeight, $iSeperator_Pos + $iSeparatorSize, 0, 0x40000000, -1, $hParent) ;$WS_CHILD
        GUISetState(@SW_SHOW, $hSecondFrame)
        ; Set seperator position percentage
        $nSepPercent = $iSeperator_Pos / $iWidth

    Else

        $iSeperator_Pos = $iSepPos
        If $iSepPos > $iHeight Or $iSepPos < 1 Then
            $iSeperator_Pos = Round(($iHeight / 2) - ($iSeparatorSize / 2))
        EndIf
        $hSeparator = GUICreate("", $iWidth, $iSeparatorSize, 0, $iSeperator_Pos, 0x40000000,  -1, $hParent) ;$WS_CHILD
        GUICtrlCreateLabel("", 0, 0, $iWidth, $iSeparatorSize, -1, 0x01) ; $WS_EX_DLGMODALFRAME
        GUICtrlSetCursor(-1, 11)
        GUISetState(@SW_SHOW, $hSeparator)
        $hFirstFrame = GUICreate("", $iWidth, $iSeperator_Pos, 0, 0, 0x40000000,  -1, $hParent) ;$WS_CHILD
        GUISetState(@SW_SHOW, $hFirstFrame)
        $hSecondFrame = GUICreate("", $iWidth, $iHeight - ($iSeperator_Pos + $iSeparatorSize), 0, $iSeperator_Pos + $iSeparatorSize, 0x40000000,  -1, $hParent) ;$WS_CHILD
        GUISetState(@SW_SHOW, $hSecondFrame)
        $nSepPercent = $iSeperator_Pos / $iHeight

    EndIf

    ; Check for error creating GUIs
    If $hParent = 0 Or $hSeparator = 0 Or $hFirstFrame = 0 Or $hSecondFrame = 0 Then
        ; Delete all GUIs and return error
        GUIDelete($hParent)
        GUIDelete($hSeparator)
        GUIDelete($hFirstFrame)
        GUIDelete($hSecondFrame)
        Return SetError(2, 0, 0)
    EndIf

    ; Subclass the separator
    If _GUIFrame_SepSubClass($hSeparator) = 0 Then
        ; If Subclassing failed then delete all GUIs and return error
        GUIDelete($hParent)
        GUIDelete($hSeparator)
        GUIDelete($hFirstFrame)
        GUIDelete($hSecondFrame)
        Return SetError(3, 0, 0)
    EndIf

    ; Create new lines in the storage arrays for this frame set
    Local $iIndex = $aGF_HandleIndex[0][0] + 1
    ReDim $aGF_HandleIndex[$iIndex + 1][7]
    ReDim $aGF_SizingIndex[$iIndex + 1][8]
    ReDim $aGF_SettingsIndex[$iIndex + 1][3]

    ; Store this frame set handles/variables/defaults in the new lines
    $aGF_HandleIndex[0][0] = $iIndex
    $aGF_HandleIndex[$iIndex][0] = $hParent
    $aGF_HandleIndex[$iIndex][1] = $hFirstFrame
    $aGF_HandleIndex[$iIndex][2] = $hSecondFrame
    $aGF_HandleIndex[$iIndex][3] = $hSeparator
    $aGF_HandleIndex[$iIndex][4] = $hWnd
    $aGF_HandleIndex[$iIndex][5] = 0
    $aGF_HandleIndex[$iIndex][6] = 0
    $aGF_SizingIndex[$iIndex][0] = 0
    $aGF_SizingIndex[$iIndex][1] = 0
    $aGF_SizingIndex[$iIndex][6] = $nSepPercent
    $aGF_SettingsIndex[$iIndex][0] = $iSepOrient
    $aGF_SettingsIndex[$iIndex][1] = 0
    $aGF_SettingsIndex[$iIndex][2] = $iSeparatorSize

    ; Store this frame index in parent line if parent is an existing frame
    For $i = 1 To $aGF_HandleIndex[0][0] - 1
        If $aGF_HandleIndex[$i][1] = $hWnd Then
            If $aGF_HandleIndex[$i][5] = 0 Then
                $aGF_HandleIndex[$i][5] = $iIndex
            Else
                $aGF_HandleIndex[$i][5] &= "|" & $iIndex
            EndIf
            ExitLoop
        EndIf
        If $aGF_HandleIndex[$i][2] = $hWnd Then
            If $aGF_HandleIndex[$i][6] = 0 Then
                $aGF_HandleIndex[$i][6] = $iIndex
            Else
                $aGF_HandleIndex[$i][6] &= "|" & $iIndex
            EndIf
            ExitLoop
        EndIf
    Next

    ; Store coordinate and size fractions
    If $iX Then
        $aGF_SizingIndex[$iIndex][2] = $iX / $aFullSize[0]
    Else
        $aGF_SizingIndex[$iIndex][2] = 0
    EndIf
    If $iY Then
        $aGF_SizingIndex[$iIndex][3] = $iY / $aFullSize[1]
    Else
        $aGF_SizingIndex[$iIndex][3] = 0
    EndIf
    If $iOrg_Width Then
        $aGF_SizingIndex[$iIndex][4] = $iOrg_Width / $aFullSize[0]
    Else
        $aGF_SizingIndex[$iIndex][4] = 1
    EndIf
    If $iOrg_Height Then
        $aGF_SizingIndex[$iIndex][5] = $iOrg_Height / $aFullSize[1]
    Else
        $aGF_SizingIndex[$iIndex][5] = 1
    EndIf

    ; Switch back to main GUI
    GUISwitch($hWnd)

    ; Return the index for this frame
    Return $iIndex

EndFunc   ;==>_GUIFrame_Create

; #FUNCTION# =========================================================================================================
; Name...........: _GUIFrame_SetMin
; Description ...: Sets minimum sizes for frames
; Syntax.........: _GUIFrame_SetMin($iFrame, $iFirstMin = 0, $iSecondMin = 0, $fAbsolute = False)
; Parameters ....: $iFrame - Index of frame set as returned by _GUIFrame_Create
;                  $iFirstMin - Min size of first (left/top) frame - max half size
;                  $iSecondMin - Min Size of second (right/bottom) frame - max half size
;                  $fAbsolute - True = Minima fixed when GUI resized
;                             - False = Minima adjusted on resize to equivalent percentage of new GUI size (default)
; Requirement(s).: v3.3 +
; Return values .: None
; Author ........: Melba23 based on some original code by Kip
; Modified ......:
; Remarks .......: If the frame is resized, these minima are adjusted accordingly unless $fAbsolute is set
; Example........: Yes
;=====================================================================================================================
Func _GUIFrame_SetMin($iFrame, $iFirstMin = 0, $iSecondMin = 0, $fAbsolute = False)

    ; Check for valid frame index
    If $iFrame < 1 Or $iFrame > $aGF_HandleIndex[0][0] Then Return 0
    ; Get size of parent
    Local $aSize = WinGetClientSize($aGF_HandleIndex[$iFrame][0])
    ; Now check orientation and determine
    Local $iMax, $iFullSize
    If $aGF_SettingsIndex[$iFrame][0] = 0 Then
        $iMax = Floor(($aSize[0] / 2) - $aGF_SettingsIndex[$iFrame][2])
        $iFullSize = $aSize[0]
    Else
        $iMax = Floor(($aSize[1] / 2) - $aGF_SettingsIndex[$iFrame][2])
        $iFullSize = $aSize[1]
    EndIf
    ; Set minimums
    If $fAbsolute Then
        $aGF_SizingIndex[$iFrame][0] = Int($iFirstMin)
        $aGF_SizingIndex[$iFrame][1] = Int($iSecondMin)
    Else
        If $iFirstMin > $iMax Then
            $aGF_SizingIndex[$iFrame][0] = $iMax / $iFullSize
        Else
            $aGF_SizingIndex[$iFrame][0] = $iFirstMin / $iFullSize
        EndIf
        If $iSecondMin > $iMax Then
            $aGF_SizingIndex[$iFrame][1] = $iMax / $iFullSize
        Else
            $aGF_SizingIndex[$iFrame][1] = $iSecondMin / $iFullSize
        EndIf
    EndIf

EndFunc   ;==>_GUIFrame_SetMin

; #FUNCTION# =========================================================================================================
; Name...........: _GUIFrame_ResizeSet
; Description ...: Sets resizing flag for frames
; Syntax.........: _GUIFrame_ResizeSet($iFrame = 0)
; Parameters ....: $iFrame - Index of frame set as returned by _GUIFrame_Create
;                  (Default - 0 = all existing frames)
; Requirement(s).: v3.3 +
; Return values .: Success: 2 - All existing frame flags set
;                           1 - Specified flag set
;                  Failure: 0 with @error set to 1 - Invalid frame specified
; Author ........: Melba23
; Modified ......:
; Remarks .......:
; Example........: Yes
;=====================================================================================================================
Func _GUIFrame_ResizeSet($iFrame = 0)

    Switch $iFrame
        Case 0 ; Set all frames
            For $i = 1 To $aGF_HandleIndex[0][0]
                $aGF_SettingsIndex[$i][1] = 1
            Next
            Return 2
        Case 1 To $aGF_HandleIndex[0][0] ; Only valid frames accepted
            $aGF_SettingsIndex[$iFrame][1] = 1
            Return 1
        Case Else ; Error
            Return SetError(1, 0, 0)
    EndSwitch

EndFunc   ;==>_GUIFrame_ResizeSet

; #FUNCTION# =========================================================================================================
; Name...........: _GUIFrame_GetHandle
; Description ...: Returns the handle of a frame element (required for further splitting)
; Syntax.........: _GUIFrame_GetHandle($iFrame, $iElement)
; Parameters ....: $iFrame - Index of frame set as returned by _GUIFrame_Create
;                  $iElement - 1 = first (left/top) frame, 2 = second (right/bottom) frame
; Requirement(s).: v3.3 +
; Return values .: Success: Handle of frame
;                  Failure: 0 with @error set as follows
;                           1 - Invalid frame specified
;                           2 - Invalid element specified
; Author ........: Kip
; Modified ......: Melba23
; Remarks .......: _GUIFrame_Create requires a GUI handle as a parameter
; Example........: Yes
;=====================================================================================================================
Func _GUIFrame_GetHandle($iFrame, $iElement)

    ; Check valid frame index and element
    Switch $iFrame
        Case 1 To $aGF_HandleIndex[0][0]
            Switch $iElement
                Case 1, 2
                    ; Return handle
                    Return $aGF_HandleIndex[$iFrame][$iElement]
            EndSwitch
            Return SetError(2, 0, 0)
    EndSwitch
    Return SetError(1, 0, 0)

EndFunc   ;==>_GUIFrame_GetHandle

; #FUNCTION# =========================================================================================================
; Name...........: _GUIFrame_Switch
; Description ...: Sets a frame element as current GUI
; Syntax.........: _GUIFrame_Switch($iFrame, $iElement)
; Parameters ....: $iFrame - Index of frame set as returned by _GUIFrame_Create
;                  $iElement - 1 = first (left/top) frame, 2 = second (right/bottom) frame
; Requirement(s).: v3.3 +
; Return values .: None
; Author ........: Kip
; Modified ......: Melba23
; Remarks .......: Subsequent controls are created in the specified frame element
; Example........: Yes
;=====================================================================================================================
Func _GUIFrame_Switch($iFrame, $iElement)

    ; Check valid frame index and element
    Switch $iFrame
        Case 1 To $aGF_HandleIndex[0][0]
            Switch $iElement
                Case 1, 2
                    ; Switch to specified element
                    Return GUISwitch($aGF_HandleIndex[$iFrame][$iElement])
            EndSwitch
            Return SetError(2, 0, 0)
    EndSwitch
    Return SetError(1, 0, 0)

EndFunc   ;==>_GUIFrame_Switch

; #FUNCTION# =========================================================================================================
; Name...........: _GUIFrame_GetSepPos()
; Description ...: Returns the current position of the separator
; Syntax.........: _GUIFrame_GetSepPos($iFrame)
; Parameters ....: $iFrame - Index of frame set as returned by _GUIFrame_Create
; Requirement(s).: v3.3 +
; Return values .: Success: Position of separator
;                  Failure: -1 = Invalid frame specified
; Author ........: Melba23
; Remarks .......: This value can be stored and used as the initial separator position parameter in _GUIFrame_Create
;                  to restore exit position on restart
; Example........: Yes
;=====================================================================================================================
Func _GUIFrame_GetSepPos($iFrame)

    Local $iSepPos

    ; Check for valid frame index
    If $iFrame < 1 Or $iFrame > $aGF_HandleIndex[0][0] Then Return -1

    ; Get position of first frame
    Local $aFrame_Pos = WinGetPos($aGF_HandleIndex[$iFrame][1])
    ; Get position of separator
    Local $aSep_Pos = WinGetPos($aGF_HandleIndex[$iFrame][3])
    ; Check on separator orientation
    If $aGF_SettingsIndex[$iFrame][0] Then
        $iSepPos = $aSep_Pos[1] - $aFrame_Pos[1]
    Else
        $iSepPos = $aSep_Pos[0] - $aFrame_Pos[0]
    EndIf
    Return $iSepPos

EndFunc

; #FUNCTION# =========================================================================================================
; Name...........: _GUIFrame_SetSepPos()
; Description ...: Moves the separator bar to adjust frame sizes
; Syntax.........: _GUIFrame_SetSepPos($iFrame, $iSepPos)
; Parameters ....: $iFrame - Index of frame set as returned by _GUIFrame_Create
;                  $iSepos - Position of separator bar within frame
; Requirement(s).: v3.3 +
; Return values .: Success: 1
;                  Failure: 0 with @error set as follows
;                           1 - Invalid frame specified
;                           2 - Invalid separator position (outside frame)
;                           3 - Invalid separator position (below frame minimum size)
; Author ........: Melba23
; Remarks .......: This value can be stored and used as the initial separator position parameter in _GUIFrame_Create
;                  to restore exit position on restart
; Example........: Yes
;=====================================================================================================================
Func _GUIFrame_SetSepPos($iFrame, $iSepPos)

    Local $iFirstMin, $iSecondMin

    ; Check for valid frame index
    If $iFrame < 1 Or $iFrame > $aGF_HandleIndex[0][0] Then Return SetError(1, 0, 0)

    ; Check separator actually needs to move
    If $iSepPos = _GUIFrame_GetSepPos($iFrame) Then Return 1

    ; Get frame GUI size
    Local $aWinPos = WinGetPos($aGF_HandleIndex[$iFrame][0])
    ; Depending on separator orientation
    If $aGF_SettingsIndex[$iFrame][0] Then
        ; Check sep position is valid
        If $iSepPos < 0 Or $iSepPos > $aWinPos[3] Then Return SetError(2, 0, 0)
        ; Determine minima for frames
        $iFirstMin = $aWinPos[3] * $aGF_SizingIndex[$iFrame][0]
        $iSecondMin = ($aWinPos[3] * (1 - $aGF_SizingIndex[$iFrame][1])) - $aGF_SettingsIndex[$iFrame][2]
        ; Check required value is valid
        If $iSepPos < $iFirstMin Or $iSepPos > $iSecondMin Then Return SetError(3, 0, 0)
        ; Move frames and seperator
        WinMove($aGF_HandleIndex[$iFrame][1], "", 0, 0, $aWinPos[2], $iSepPos)
        WinMove($aGF_HandleIndex[$iFrame][2], "", 0, $iSepPos + $aGF_SettingsIndex[$iFrame][2], $aWinPos[2], $aWinPos[3] - ($iSepPos + $aGF_SettingsIndex[$iFrame][2]))
        WinMove($aGF_HandleIndex[$iFrame][3], "", 0, $iSepPos, $aWinPos[2], $aGF_SettingsIndex[$iFrame][2])
    Else
        If $iSepPos < 0 Or $iSepPos > $aWinPos[2] Then Return SetError(2, 0, 0)
        $iFirstMin = $aWinPos[2] * $aGF_SizingIndex[$iFrame][0]
        $iSecondMin = ($aWinPos[2] * (1 - $aGF_SizingIndex[$iFrame][1])) - $aGF_SettingsIndex[$iFrame][2]
        If $iSepPos < $iFirstMin Or $iSepPos > $iSecondMin Then Return SetError(3, 0, 0)
        WinMove($aGF_HandleIndex[$iFrame][1], "", 0, 0, $iSepPos, $aWinPos[3])
        WinMove($aGF_HandleIndex[$iFrame][2], "", $iSepPos + $aGF_SettingsIndex[$iFrame][2], 0, $aWinPos[2] - ($iSepPos + $aGF_SettingsIndex[$iFrame][2]), $aWinPos[3])
        WinMove($aGF_HandleIndex[$iFrame][3], "", $iSepPos, 0, $aGF_SettingsIndex[$iFrame][2], $aWinPos[3])
    EndIf
    Return 1

EndFunc

; #FUNCTION# =========================================================================================================
; Name...........: _GUIFrame_ResizeReg
; Description ...: Registers WM_SIZE message for resizing
; Syntax.........: _GUIFrame_ResizeReg()
; Parameters ....: None
; Requirement(s).: v3.3 +
; Return values .: Success: 1 - Message handler registered
;                  Failure: 0 with @error set to 1 - Message handler already registered
; Author ........: Melba23
; Modified ......:
; Remarks .......:
; Example........: Yes
;=====================================================================================================================
Func _GUIFrame_ResizeReg()

    ; Register the WM_SIZE message
    If $aGF_HandleIndex[0][1] = 0 Then
        Local $iRet = GUIRegisterMsg(0x05, "_GUIFrame_SIZE_Handler") ; $WM_SIZE
        If $iRet Then
            $aGF_HandleIndex[0][1] = 1
            Return 1
        EndIf
    EndIf
    Return SetError(1, 0, 0)

EndFunc   ;==>_GUIFrame_ResizeReg

; #FUNCTION# =========================================================================================================
; Name...........: _GUIFrame_SIZE_Handler
; Description ...: Used to resize frames when resizing of holding GUI occurs
; Syntax.........: _GUIFrame_SIZE_Handler($hWnd, $iMsg, $wParam, $lParam)
; Parameters ....: None
; Requirement(s).: v3.3 +
; Return values .: None
; Author ........: Melba23
; Modified ......:
; Remarks .......: If the script already has a WM_SIZE handler, then just call this function from within it
;                  and do NOT use the _GUIFrame_ResizeReg function
; Example........: Yes
;=====================================================================================================================
Func _GUIFrame_SIZE_Handler($hWnd, $iMsg, $wParam, $lParam)

    #forceref $iMsg, $wParam, $lParam
    Local $iIndex

    ; Get index of base frame GUI
    For $iIndex = 1 To $aGF_HandleIndex[0][0]
        If $aGF_HandleIndex[$iIndex][4] = $hWnd Then ExitLoop
    Next

    ; If handle not found
    If $iIndex > $aGF_HandleIndex[0][0] Then Return "GUI_RUNDEFMSG"

    ; Check if we should resize this set
    If $aGF_SettingsIndex[$iIndex][1] = 1 Then

        ; Get new base GUI size
        Local $aSize = WinGetClientSize($hWnd)
        ; Resize frames
        _GUIFrame_Move($iIndex, $aSize[0] * $aGF_SizingIndex[$iIndex][2], $aSize[1] * $aGF_SizingIndex[$iIndex][3], $aSize[0] * $aGF_SizingIndex[$iIndex][4], $aSize[1] * $aGF_SizingIndex[$iIndex][5])

        ; Adjust any resizeable internal frames - array elements are adjacent for ease of coding
        For $i = 0 To 1
            ; Adjust internal frames of first/second frame if any exist
            If $aGF_HandleIndex[$iIndex][5 + $i] <> 0 Then
                ; StringSplit the element content on "|"
                Local $aInternal = StringSplit($aGF_HandleIndex[$iIndex][5 + $i], "|")
                ; Then loop though the Number(values) found
                For $j = 1 To $aInternal[0]
                    Local $iIntIndex = Number($aInternal[$j])
                    ; Check if internal frame is resizable
                    If $aGF_SettingsIndex[$iIntIndex][1] = 1 Then
                        ; And change if so
                        _GUIFrame_SIZE_Handler($aGF_HandleIndex[$iIntIndex][4], $iMsg, $wParam, $lParam)
                    EndIf
                Next
            EndIf
        Next

    EndIf

    Return "GUI_RUNDEFMSG"

EndFunc   ;==>_GUIFrame_SIZE_Handler

; #INTERNAL_USE_ONLY#============================================================================================================
; Name...........: _GUIFrame_SepSubClass
; Description ...: Sets new WndProc for frame separator bar
; Author ........: Kip
; Modified.......: Melba23, using SetWindowLongPtr x64 compatible code drawn from Yashied's WinAPIEx library
; Remarks .......: This function is used internally by _GUIFrame_Create
; ===============================================================================================================================
Func _GUIFrame_SepSubClass($hWnd)

    Local $aRet

    ; Check separator has not already been used
    For $i = 1 To $aGF_SepProcIndex[0][0]
        If $aGF_SepProcIndex[$i][0] = $hWnd Then Return 0
    Next

    ; Store current WinProc handle in new array line
    Local $iIndex = $aGF_SepProcIndex[0][0] + 1
    ReDim $aGF_SepProcIndex[$iIndex + 1][2]
    $aGF_SepProcIndex[0][0] = $iIndex
    $aGF_SepProcIndex[$iIndex][0] = $hWnd
    ; Subclass separator bar
    If @AutoItX64 Then
        $aRet = DllCall('user32.dll', 'long_ptr', 'SetWindowLongPtrW', 'hwnd', $hWnd, 'int', -4, 'long_ptr', $aGF_SepProcIndex[0][1]) ; $GWL_WNDPROC
    Else
        $aRet = DllCall('user32.dll', 'long', 'SetWindowLongW', 'hwnd', $hWnd, 'int', -4, 'long', $aGF_SepProcIndex[0][1]) ; $GWL_WNDPROC
    EndIf
    ; Check for subclassing error
    If @error Or $aRet[0] = 0 Then Return 0
    ; Return success
    $aGF_SepProcIndex[$iIndex][1] = $aRet[0]
    Return 1

EndFunc   ;==>_GUIFrame_SepSubClass

; #INTERNAL_USE_ONLY#============================================================================================================
; Name...........: _GUIFrame_SepWndProc
; Description ...: New WndProc for frame separator bar
; Author ........: Kip
; Modified.......: Melba23
; Remarks .......: This function is used internally by _GUIFrame_SepSubClass
; ===============================================================================================================================
Func _GUIFrame_SepWndProc($hWnd, $iMsg, $wParam, $lParam)

    Local $iSubtract, $fAbsolute = False

    If $iMsg = 0x0111 Then ; WM_COMMAND

        ; Check if hWnd is a Separator bar
        For $iIndex = 1 To $aGF_HandleIndex[0][0]
            If $aGF_HandleIndex[$iIndex][3] = $hWnd Then ExitLoop
        Next
        ; If not then pass message on to org WndProc
        If $iIndex > $aGF_HandleIndex[0][0] Then Return _GUIFrame_SepPassMsg($hWnd, $iMsg, $wParam, $lParam)

        ; Extract values from array
        Local $hParent = $aGF_HandleIndex[$iIndex][0]
        Local $hFirstFrame = $aGF_HandleIndex[$iIndex][1]
        Local $hSecondFrame = $aGF_HandleIndex[$iIndex][2]
        Local $hSeparator = $aGF_HandleIndex[$iIndex][3]
        Local $iFirstMin = $aGF_SizingIndex[$iIndex][0]
        Local $iSecondMin = $aGF_SizingIndex[$iIndex][1]
        If $iFirstMin > 1 Then
            $fAbsolute = True
        EndIf
        Local $iSeparatorSize = $aGF_SettingsIndex[$iIndex][2]

        ; Get client size of the parent
        Local $aClientSize = WinGetClientSize($hParent)
        Local $iWidth = $aClientSize[0]
        Local $iHeight = $aClientSize[1]

        ; Get cursor info for the Separator
        Local $aCInfo = GUIGetCursorInfo($hSeparator)

        ; Depending on separator orientation
        If $aGF_SettingsIndex[$iIndex][0] = 0 Then

            ; Get Separator X-coord
            $iSubtract = $aCInfo[0]

            Do
                ; Get parent X-coord
                $aCInfo = GUIGetCursorInfo($hParent)
                Local $iCursorX = $aCInfo[0]

                ; Determine width of first frame
                Local $iFirstWidth = $iCursorX - $iSubtract
                ; And ensure it is at least minimum
                If $fAbsolute Then
                    If $iFirstWidth < $iFirstMin Then $iFirstWidth = $iFirstMin
                    If $iWidth - $iFirstWidth - $iSeparatorSize < $iSecondMin Then $iFirstWidth = $iWidth - $iSeparatorSize - $iSecondMin
                Else
                    If $iFirstWidth < $iWidth * $iFirstMin Then $iFirstWidth = $iWidth * $iFirstMin
                    If $iWidth - ($iFirstWidth + $iSeparatorSize) < $iWidth * $iSecondMin Then $iFirstWidth = $iWidth - ($iWidth * $iSecondMin) - $iSeparatorSize
                EndIf

                ; Move the GUIs to the correct places
                WinMove($hFirstFrame, "", 0, 0, $iFirstWidth, $iHeight)
                WinMove($hSecondFrame, "", $iFirstWidth + $iSeparatorSize, 0, $iWidth - ($iFirstWidth + $iSeparatorSize), $iHeight)
                WinMove($hSeparator, "", $iFirstWidth, 0, $iSeparatorSize, $iHeight)

                ; Do until the mouse button is released
            Until Not _WinAPI_GetAsyncKeyState(0x01)

            ; Store current separator percentage position
            $aGF_SizingIndex[$iIndex][6] = $iFirstWidth / $iWidth

        ElseIf $aGF_SettingsIndex[$iIndex][0] = 1 Then

            $iSubtract = $aCInfo[1]
            Do
                $aCInfo = GUIGetCursorInfo($hParent)
                Local $iCursorY = $aCInfo[1]
                Local $iFirstHeight = $iCursorY - $iSubtract
                If $fAbsolute Then
                    If $iFirstHeight < $iFirstMin Then $iFirstHeight = $iFirstMin
                    If $iHeight - $iFirstHeight - $iSeparatorSize < $iSecondMin Then $iFirstHeight = $iHeight - $iSeparatorSize - $iSecondMin
                Else
                    If $iFirstHeight < $iHeight * $iFirstMin Then $iFirstHeight = $iHeight * $iFirstMin
                    If $iHeight - ($iFirstHeight + $iSeparatorSize) < $iHeight * $iSecondMin Then $iFirstHeight = $iHeight - ($iHeight * $iSecondMin) - $iSeparatorSize
                EndIf
                WinMove($hFirstFrame, "", 0, 0, $iWidth, $iFirstHeight)
                WinMove($hSecondFrame, "", 0, $iFirstHeight + $iSeparatorSize, $iWidth, $iHeight - ($iFirstHeight + $iSeparatorSize))
                WinMove($hSeparator, "", 0, $iFirstHeight, $iWidth, $iSeparatorSize)
            Until Not _WinAPI_GetAsyncKeyState(0x01)
            $aGF_SizingIndex[$iIndex][6] = $iFirstHeight / $iHeight

        EndIf

    EndIf

    ; Pass the message on to org WndProc
    Return _GUIFrame_SepPassMsg($hWnd, $iMsg, $wParam, $lParam)

EndFunc   ;==>_GUIFrame_SepWndProc

; #INTERNAL_USE_ONLY#============================================================================================================
; Name...........: _GUIFrame_SepPassMsg
; Description ...: Passes Msg to frame parent WndProc for action
; Author ........: Kip
; Modified.......: Melba23
; Remarks .......: This function is used internally by _GUIFrame_SepWndProc
; ===============================================================================================================================
Func _GUIFrame_SepPassMsg($hWnd, $iMsg, $wParam, $lParam)

    For $i = 1 To $aGF_SepProcIndex[0][0]
        If $aGF_SepProcIndex[$i][0] = $hWnd Then Return _WinAPI_CallWindowProc($aGF_SepProcIndex[$i][1], $hWnd, $iMsg, $wParam, $lParam)
    Next

EndFunc   ;==>_GUIFrame_SepPassMsg

; #INTERNAL_USE_ONLY#============================================================================================================
; Name...........: _GUIFrame_Move
; Description ...: Moves and resizes frame elements and separator bars
; Author ........: Kip
; Modified.......: Melba23
; Remarks .......: This function is used internally by _GUIFrame_SIZE_Handler
; ===============================================================================================================================
Func _GUIFrame_Move($iFrame, $iX, $iY, $iWidth = 0, $iHeight = 0)

    Local $fAbsolute = False

    ; Check valid frame index
    If $iFrame < 1 Or $iFrame > $aGF_HandleIndex[0][0] Then Return 0

    Local $iSeparatorSize = $aGF_SettingsIndex[$iFrame][2]
    Local $iTotal
    Local $iSize

    ; Set size if not specified
    If Not $iWidth Then $iWidth = _WinAPI_GetWindowWidth($aGF_HandleIndex[$iFrame][0])
    If Not $iHeight Then $iHeight = _WinAPI_GetWindowHeight($aGF_HandleIndex[$iFrame][0])

    ; Move parent
    WinMove($aGF_HandleIndex[$iFrame][0], "", $iX, $iY, $iWidth, $iHeight)

    ; Get size of first frame depending on orientation
    ;Local $aWinPos = WinGetClientSize($aGF_HandleIndex[$iFrame][1])
    ;Local $iSize = $aWinPos[0]
    ;If $aGF_SettingsIndex[$iFrame][0] = 1 Then $iSize = $aWinPos[1]

    ; Set frame min percentages
    Local $iFirstMin = $aGF_SizingIndex[$iFrame][0]
    Local $iSecondMin = $aGF_SizingIndex[$iFrame][1]
    If $iFirstMin > 1 Then
        $fAbsolute = True
    EndIf

    ; Set separator position percentage
    Local $nSepPercent = $aGF_SizingIndex[$iFrame][6]

    ; Depending on separator orientation
    If $aGF_SettingsIndex[$iFrame][0] = 0 Then

        ; Move frames and separator as required
        $iTotal = $iWidth
        ; Amend frame sizes separator position
        $iSize = Int($iWidth * $nSepPercent)

        ; Check for minimum sizes
        If $fAbsolute Then
            If $iSize < $iFirstMin Then $iSize = $iFirstMin
            If $iTotal - $iSize - $iSeparatorSize < $iSecondMin Then $iSize = $iTotal - $iSecondMin - $iSeparatorSize
        Else
            If $iSize < $iWidth * $iFirstMin Then $iSize = $iWidth * $iFirstMin
            If $iTotal - $iSize - $iSeparatorSize < $iWidth * $iSecondMin Then $iSize = $iTotal - ($iWidth * $iSecondMin) - $iSeparatorSize
        EndIf
        WinMove($aGF_HandleIndex[$iFrame][1], "", 0, 0, $iSize, $iHeight)
        WinMove($aGF_HandleIndex[$iFrame][2], "", $iSize + $iSeparatorSize, 0, $iTotal - $iSize - $iSeparatorSize, $iHeight)
        WinMove($aGF_HandleIndex[$iFrame][3], "", $iSize, 0, $iSeparatorSize, $iHeight)

    ElseIf $aGF_SettingsIndex[$iFrame][0] = 1 Then

        $iTotal = $iHeight
        $iSize = Int($iHeight * $nSepPercent)
        If $fAbsolute Then
            If $iSize < $iFirstMin Then $iSize = $iFirstMin
            If $iTotal - $iSize - $iSeparatorSize < $iSecondMin Then $iSize = $iTotal - $iSecondMin - $iSeparatorSize
        Else
            If $iSize < $iHeight * $iFirstMin Then $iSize = $iHeight * $iFirstMin
            If $iTotal - $iSize - $iSeparatorSize < $iHeight * $iSecondMin Then $iSize = $iTotal - ($iHeight * $iSecondMin) - $iSeparatorSize
        EndIf
        WinMove($aGF_HandleIndex[$iFrame][1], "", 0, 0, $iWidth, $iSize)
        WinMove($aGF_HandleIndex[$iFrame][2], "", 0, $iSize + $iSeparatorSize, $iWidth, $iTotal - $iSize - $iSeparatorSize)
        WinMove($aGF_HandleIndex[$iFrame][3], "", 0, $iSize, $iWidth, $iSeparatorSize)

    EndIf

EndFunc   ;==>_GUIFrame_Move

; #INTERNAL_USE_ONLY#============================================================================================================
; Name...........: _GUIFrame_Exit()
; Description ...: Deletes all subclassed separator bars to free UDF WndProc and frees registered callback handle
; Author ........: Melba23
; Remarks .......: Called by OnAutoItExitRegister to delete all subclassed separator bars and to free the UDF created WndProc.
; Example........: Yes
;================================================================================================================================
Func _GUIFrame_Exit()

    ; Delete all subclassed separator bars
    For $i = $aGF_HandleIndex[0][0] To 1 Step -1
        GUIDelete($aGF_HandleIndex[$i][3])
    Next
    ; Free registered Callback handle
    DllCallbackFree($hGF_RegCallBack)

EndFunc   ;==>_GUIFrame_Exit

I hear what you say about choosing which frame (if any) remains static and I will look into that. I have a few ideas as to how I can do it, but I want to avoid script-breaking changes if at all possible and that is what I need to think about now. ;)

M23


Public_Domain.png.2d871819fcb9957cf44f4514551a2935.png Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind

Open spoiler to see my UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

Hi Hi,

thewizard21,

Try this beta version - the separator is maintained at the same percentage position when the GUI is resized rather than the present release where the top/left frame remained at a fixed size as the GUI increased in size: ;)

Yep, very very good!

Much better now, at least as long as we don't have params to choose which frame resize.

Share this post


Link to post
Share on other sites

thewizard21,

Sorry it has taken a while, but I have been away flying and not had a lot of time to work on it. :D

Here is a new beta version of the UDF which allows you to choose which (or neither) of the frames remains static when the GUI is resized. You use a new optional parameter to the _GUIFrame_ResizeSet function to do this:

; Syntax.........: _GUIFrame_ResizeSet($iFrame = 0[, $iType = 0])
; Parameters ....: $iFrame - Index of frame set as returned by _GUIFrame_Create (Default - 0 = all existing frames)
;                  $iType  - Separator behaviour on GUI resize
;                            0 = Frames retain percentage size (default)
;                            1 = Top/left frame fixed size
;                            2 = Bottom/right frame fixed size

Here is the UDF - again save it as GUIFrame_Mod.au3:

#include-once

; #INDEX# ============================================================================================================
; Title .........: GUIFrame
; AutoIt Version : 3.3 +
; Language ......: English
; Description ...: Splits a GUI into slideable and resizable 2 part frames which can be further split if required
; Remarks .......: - The UDF uses OnAutoItExitRegister to call _GUIFrame_Exit to delete subclassed separator bars
;                    using the UDF created WndProc and to release the Callback on exit
;                  - If the script already has a WM_SIZE handler then do NOT use _GUIFrame_ResizeReg,
;                    but call _GUIFrame_SIZE_Handler from within the existing handler
; Author ........: Original UDF by Kip
; Modified ......; This version by Melba23 - using x64 compatible code drawn from Yashied's WinAPIEx library
; ====================================================================================================================

; #AutoIt3Wrapper_au3check_parameters=-d -w 1 -w 2 -w 3 -w 4 -w 5 -w 6

; #INCLUDES# =========================================================================================================
#include <WinAPI.au3>

; #GLOBAL VARIABLES# =================================================================================================

; Array to hold handles for each frame set
Global $aGF_HandleIndex[1][7] = [[0, 0, 0]]
; [0][0] = 0 ; Count of frames      [0][1] = Move registered flag
; [n][0] = Parent GUI handle        [n][4] = Original GUI handle
; [n][1] = First frame handle       [n][5] = Indices of first frame internal frames
; [n][2] = Second frame handle      [n][6] = Indices of second frame internal frames
; [n][3] = Separator bar handle

; Array to hold sizing percentages for each frame set
Global $aGF_SizingIndex[1][8]
; [n][0] = First frame min      [n][2] = X coord    [n][4] = Width      [n][6] = Seperator percentage position
; [n][1] = Second frame min     [n][3] = Y coord    [n][5] = Height     [n][7] = Resize type (0/1/2)

; Array to hold other settings for each frame set
Global $aGF_SettingsIndex[1][3]
; [n][0] = Separator orientation (vert/horz = 0/1)
; [n][1] = Resizable frame flag (0/1)
; [n][2] = Separator size (default = 5)

; Array to hold WinProc handles for each separator
Global $aGF_SepProcIndex[1][2] = [[0, 0]]

; Store registered Callback handle
Global $hGF_RegCallBack = DllCallbackRegister("_GUIFrame_SepWndProc", "lresult", "hwnd;uint;wparam;lparam")
$aGF_SepProcIndex[0][1] = DllCallbackGetPtr($hGF_RegCallBack)

; #ONAUTOITEXIT FUNCTIONS# ===========================================================================================
OnAutoItExitRegister("_GUIFrame_Exit")

; #CURRENT# ==========================================================================================================
; _GUIFrame_Create:       Splits a GUI into 2 frames
; _GUIFrame_SetMin:       Sets minimum sizes for each frame
; _GUIFrame_ResizeSet:    Sets resizing flag for all or specified frame sets
; _GUIFrame_GetHandle:    Returns the handle of a frame element (required for further splitting)
; _GUIFrame_Switch:       Sets a frame element as current GUI
; _GUIFrame_GetSepPos:    Returns the current position of the separator
; _GUIFrame_SetSepPos:    Moves the separator bar to adjust frame sizes
; _GUIFrame_ResizeReg:    Registers WM_SIZE message for resizing
; _GUIFrame_SIZE_Handler: Called from a WM_SIZE message handler to resize frames using _GUIFrame_Move
; ====================================================================================================================

; #INTERNAL_USE_ONLY#=================================================================================================
; _GUIFrame_SepSubClass:   Sets new WndProc for frame separator bar
; _GUIFrame_SepWndProc:    New WndProc for frame separator bar
; _GUIFrame_SepPassMsg:    Passes Msg to original frame WndProc for action
; _GUIFrame_Move:          Moves and resizes frame elements and separator bars
; _GUIFrame_Exit:          Deletes all subclassed separator bars to free UDF WndProc and frees registered callback handle
; ====================================================================================================================

; #FUNCTION# =========================================================================================================
; Name...........: _GUIFrame_Create
; Description ...: Splits a GUI into 2 frames
; Syntax.........: _GUIFrame_Create($hWnd, $iSepOrient = 0, $iSepPos = 0, $iSepSize = 5, $iX = 0, $iY = 0, $iWidth = 0, $iHeight = 0, $iStyle = 0, $iExStyle = 0)
; Parameters ....: $hWnd - Handle of GUI to split
;                  $iSepOrient - Orientation of separator bar: 0 = Vertical (default), 1 = Horizontal
;                  $iSepPos - Required initial position of separator (default = centre of frame GUI)
;                  $iSepSize - Size of separator bar (default = 5, min = 3, max = 9)
;                  $iX - Left of frame area (default = 0)
;                  $iY - Top of frame area (default = 0)
;                  $iWidth - Width of frame area (default = full width)
;                  $iHeight - Height of frame area (default = full height)
;                  SiStyle - Required style value for frame elements
;                  SiExStyle - Required extended style value for frame elements
; Requirement(s).: v3.3 +
; Return values .: Success:  Returns index number of frame/separator set
;                  Failure:  Returns 0 and sets @error as follows:
;                  1 = Child limit exceeded
;                  2 = GUI creation failed
;                  2 = Separator subclassing failed
; Author ........: Kip
; Modified ......: Melba23
; Remarks .......:
; Example........: Yes
;=====================================================================================================================
Func _GUIFrame_Create($hWnd, $iSepOrient = 0, $iSepPos = 0, $iSepSize = 5, $iX = 0, $iY = 0, $iOrg_Width = 0, $iOrg_Height = 0, $iStyle = 0, $iExStyle = 0)

    Local $iSeperator_Pos, $hSeparator, $hFirstFrame, $hSecondFrame, $nSepPercent

    ; Set separator size
    Local $iSeparatorSize = 5
    Switch $iSepSize
        Case 3 To 9
            $iSeparatorSize = $iSepSize
    EndSwitch

    ; Set default sizing if no parameters set
    Local $iWidth = $iOrg_Width
    Local $iHeight = $iOrg_Height
    Local $aFullSize = WinGetClientSize($hWnd)
    If Not $iOrg_Width Then $iWidth = $aFullSize[0]
    If Not $iOrg_Height Then $iHeight = $aFullSize[1]

    ; Create parent GUI within client area
    Local $hParent = GUICreate("FrameParent", $iWidth, $iHeight, $iX, $iY, BitOR(0x40000000, $iStyle), $iExStyle, $hWnd) ; $WS_CHILD
    GUISetState(@SW_SHOW, $hParent)

    ; Confirm size of frame parent client area
    Local $aSize = WinGetClientSize($hParent)
    $iWidth = $aSize[0]
    $iHeight = $aSize[1]

    If $iSepOrient = 0 Then

        ; Set initial separator position
        $iSeperator_Pos = $iSepPos
        ; Adjust position if not within GUI or default set (=0)
        If $iSepPos > $iWidth Or $iSepPos < 1 Then
            $iSeperator_Pos = Round(($iWidth / 2) - ($iSeparatorSize / 2))
        EndIf
        ; Create separator bar and force cursor change over separator
        $hSeparator = GUICreate("", $iSeparatorSize, $iHeight, $iSeperator_Pos, 0, 0x40000000, -1, $hParent) ;$WS_CHILD
        GUICtrlCreateLabel("", 0, 0, $iSeparatorSize, $iHeight, -1, 0x00000001) ; $WS_EX_DLGMODALFRAME
        GUICtrlSetCursor(-1, 13)
        GUISetState(@SW_SHOW, $hSeparator)
        ; Create the sizable frames
        $hFirstFrame = GUICreate("", $iSeperator_Pos, $iHeight, 0, 0, 0x40000000, -1, $hParent) ;$WS_CHILD
        GUISetState(@SW_SHOW, $hFirstFrame)
        $hSecondFrame = GUICreate("", $iWidth - ($iSeperator_Pos + $iSeparatorSize), $iHeight, $iSeperator_Pos + $iSeparatorSize, 0, 0x40000000, -1, $hParent) ;$WS_CHILD
        GUISetState(@SW_SHOW, $hSecondFrame)
        ; Set seperator position percentage
        $nSepPercent = $iSeperator_Pos / $iWidth

    Else

        $iSeperator_Pos = $iSepPos
        If $iSepPos > $iHeight Or $iSepPos < 1 Then
            $iSeperator_Pos = Round(($iHeight / 2) - ($iSeparatorSize / 2))
        EndIf
        $hSeparator = GUICreate("", $iWidth, $iSeparatorSize, 0, $iSeperator_Pos, 0x40000000, -1, $hParent) ;$WS_CHILD
        GUICtrlCreateLabel("", 0, 0, $iWidth, $iSeparatorSize, -1, 0x01) ; $WS_EX_DLGMODALFRAME
        GUICtrlSetCursor(-1, 11)
        GUISetState(@SW_SHOW, $hSeparator)
        $hFirstFrame = GUICreate("", $iWidth, $iSeperator_Pos, 0, 0, 0x40000000, -1, $hParent) ;$WS_CHILD
        GUISetState(@SW_SHOW, $hFirstFrame)
        $hSecondFrame = GUICreate("", $iWidth, $iHeight - ($iSeperator_Pos + $iSeparatorSize), 0, $iSeperator_Pos + $iSeparatorSize, 0x40000000, -1, $hParent) ;$WS_CHILD
        GUISetState(@SW_SHOW, $hSecondFrame)
        $nSepPercent = $iSeperator_Pos / $iHeight

    EndIf

    ; Check for error creating GUIs
    If $hParent = 0 Or $hSeparator = 0 Or $hFirstFrame = 0 Or $hSecondFrame = 0 Then
        ; Delete all GUIs and return error
        GUIDelete($hParent)
        GUIDelete($hSeparator)
        GUIDelete($hFirstFrame)
        GUIDelete($hSecondFrame)
        Return SetError(2, 0, 0)
    EndIf

    ; Subclass the separator
    If _GUIFrame_SepSubClass($hSeparator) = 0 Then
        ; If Subclassing failed then delete all GUIs and return error
        GUIDelete($hParent)
        GUIDelete($hSeparator)
        GUIDelete($hFirstFrame)
        GUIDelete($hSecondFrame)
        Return SetError(3, 0, 0)
    EndIf

    ; Create new lines in the storage arrays for this frame set
    Local $iIndex = $aGF_HandleIndex[0][0] + 1
    ReDim $aGF_HandleIndex[$iIndex + 1][7]
    ReDim $aGF_SizingIndex[$iIndex + 1][8]
    ReDim $aGF_SettingsIndex[$iIndex + 1][3]

    ; Store this frame set handles/variables/defaults in the new lines
    $aGF_HandleIndex[0][0] = $iIndex
    $aGF_HandleIndex[$iIndex][0] = $hParent
    $aGF_HandleIndex[$iIndex][1] = $hFirstFrame
    $aGF_HandleIndex[$iIndex][2] = $hSecondFrame
    $aGF_HandleIndex[$iIndex][3] = $hSeparator
    $aGF_HandleIndex[$iIndex][4] = $hWnd
    $aGF_HandleIndex[$iIndex][5] = 0
    $aGF_HandleIndex[$iIndex][6] = 0
    $aGF_SizingIndex[$iIndex][0] = 0
    $aGF_SizingIndex[$iIndex][1] = 0
    $aGF_SizingIndex[$iIndex][6] = $nSepPercent
    $aGF_SettingsIndex[$iIndex][0] = $iSepOrient
    $aGF_SettingsIndex[$iIndex][1] = 0
    $aGF_SettingsIndex[$iIndex][2] = $iSeparatorSize

    ; Store this frame index in parent line if parent is an existing frame
    For $i = 1 To $aGF_HandleIndex[0][0] - 1
        If $aGF_HandleIndex[$i][1] = $hWnd Then
            If $aGF_HandleIndex[$i][5] = 0 Then
                $aGF_HandleIndex[$i][5] = $iIndex
            Else
                $aGF_HandleIndex[$i][5] &= "|" & $iIndex
            EndIf
            ExitLoop
        EndIf
        If $aGF_HandleIndex[$i][2] = $hWnd Then
            If $aGF_HandleIndex[$i][6] = 0 Then
                $aGF_HandleIndex[$i][6] = $iIndex
            Else
                $aGF_HandleIndex[$i][6] &= "|" & $iIndex
            EndIf
            ExitLoop
        EndIf
    Next

    ; Store coordinate and size fractions
    If $iX Then
        $aGF_SizingIndex[$iIndex][2] = $iX / $aFullSize[0]
    Else
        $aGF_SizingIndex[$iIndex][2] = 0
    EndIf
    If $iY Then
        $aGF_SizingIndex[$iIndex][3] = $iY / $aFullSize[1]
    Else
        $aGF_SizingIndex[$iIndex][3] = 0
    EndIf
    If $iOrg_Width Then
        $aGF_SizingIndex[$iIndex][4] = $iOrg_Width / $aFullSize[0]
    Else
        $aGF_SizingIndex[$iIndex][4] = 1
    EndIf
    If $iOrg_Height Then
        $aGF_SizingIndex[$iIndex][5] = $iOrg_Height / $aFullSize[1]
    Else
        $aGF_SizingIndex[$iIndex][5] = 1
    EndIf

    ; Switch back to main GUI
    GUISwitch($hWnd)

    ; Return the index for this frame
    Return $iIndex

EndFunc   ;==>_GUIFrame_Create

; #FUNCTION# =========================================================================================================
; Name...........: _GUIFrame_SetMin
; Description ...: Sets minimum sizes for frames
; Syntax.........: _GUIFrame_SetMin($iFrame, $iFirstMin = 0, $iSecondMin = 0, $fAbsolute = False)
; Parameters ....: $iFrame - Index of frame set as returned by _GUIFrame_Create
;                  $iFirstMin - Min size of first (left/top) frame - max half size
;                  $iSecondMin - Min Size of second (right/bottom) frame - max half size
;                  $fAbsolute - True = Minima fixed when GUI resized
;                             - False = Minima adjusted on resize to equivalent percentage of new GUI size (default)
; Requirement(s).: v3.3 +
; Return values .: None
; Author ........: Melba23 based on some original code by Kip
; Modified ......:
; Remarks .......: If the frame is resized, these minima are adjusted accordingly unless $fAbsolute is set
; Example........: Yes
;=====================================================================================================================
Func _GUIFrame_SetMin($iFrame, $iFirstMin = 0, $iSecondMin = 0, $fAbsolute = False)

    ; Check for valid frame index
    If $iFrame < 1 Or $iFrame > $aGF_HandleIndex[0][0] Then Return 0
    ; Get size of parent
    Local $aSize = WinGetClientSize($aGF_HandleIndex[$iFrame][0])
    ; Now check orientation and determine
    Local $iMax, $iFullSize
    If $aGF_SettingsIndex[$iFrame][0] = 0 Then
        $iMax = Floor(($aSize[0] / 2) - $aGF_SettingsIndex[$iFrame][2])
        $iFullSize = $aSize[0]
    Else
        $iMax = Floor(($aSize[1] / 2) - $aGF_SettingsIndex[$iFrame][2])
        $iFullSize = $aSize[1]
    EndIf
    ; Set minimums
    If $fAbsolute Then
        $aGF_SizingIndex[$iFrame][0] = Int($iFirstMin)
        $aGF_SizingIndex[$iFrame][1] = Int($iSecondMin)
    Else
        If $iFirstMin > $iMax Then
            $aGF_SizingIndex[$iFrame][0] = $iMax / $iFullSize
        Else
            $aGF_SizingIndex[$iFrame][0] = $iFirstMin / $iFullSize
        EndIf
        If $iSecondMin > $iMax Then
            $aGF_SizingIndex[$iFrame][1] = $iMax / $iFullSize
        Else
            $aGF_SizingIndex[$iFrame][1] = $iSecondMin / $iFullSize
        EndIf
    EndIf

EndFunc   ;==>_GUIFrame_SetMin

; #FUNCTION# =========================================================================================================
; Name...........: _GUIFrame_ResizeSet
; Description ...: Sets resizing flag for frames
; Syntax.........: _GUIFrame_ResizeSet($iFrame = 0[, $iType = 0])
; Parameters ....: $iFrame - Index of frame set as returned by _GUIFrame_Create (Default - 0 = all existing frames)
;                  $iType  - Separator behaviour on GUI resize
;                            0 = Frames retain percentage size (default)
;                            1 = Top/left frame fixed size
;                            2 = Bottom/right frame fixed size
; Requirement(s).: v3.3 +
; Return values .: Success: 2 - All existing frame flags set
;                           1 - Specified flag set
;                  Failure: 0 with @error set to:
;                           1 - Invalid frame specified
;                           2 - Invalid type parameter
; Author ........: Melba23
; Modified ......:
; Remarks .......:
; Example........: Yes
;=====================================================================================================================
Func _GUIFrame_ResizeSet($iFrame = 0, $iType = 0)

    Switch $iType
        Case 0, 1, 2
            ; Valid
        Case Else
            Return SetError(2, 0, 0)
    EndSwitch

    Switch $iFrame
        Case 0 ; Set all frames
            For $i = 1 To $aGF_HandleIndex[0][0]
                $aGF_SettingsIndex[$i][1] = 1
                $aGF_SizingIndex[$i][7] = $iType
            Next
            Return 2
        Case 1 To $aGF_HandleIndex[0][0] ; Only valid frames accepted
            $aGF_SettingsIndex[$iFrame][1] = 1
            $aGF_SizingIndex[$iFrame][7] = $iType
            Return 1
        Case Else ; Error
            Return SetError(1, 0, 0)
    EndSwitch

EndFunc   ;==>_GUIFrame_ResizeSet

; #FUNCTION# =========================================================================================================
; Name...........: _GUIFrame_GetHandle
; Description ...: Returns the handle of a frame element (required for further splitting)
; Syntax.........: _GUIFrame_GetHandle($iFrame, $iElement)
; Parameters ....: $iFrame - Index of frame set as returned by _GUIFrame_Create
;                  $iElement - 1 = first (left/top) frame, 2 = second (right/bottom) frame
; Requirement(s).: v3.3 +
; Return values .: Success: Handle of frame
;                  Failure: 0 with @error set as follows
;                           1 - Invalid frame specified
;                           2 - Invalid element specified
; Author ........: Kip
; Modified ......: Melba23
; Remarks .......: _GUIFrame_Create requires a GUI handle as a parameter
; Example........: Yes
;=====================================================================================================================
Func _GUIFrame_GetHandle($iFrame, $iElement)

    ; Check valid frame index and element
    Switch $iFrame
        Case 1 To $aGF_HandleIndex[0][0]
            Switch $iElement
                Case 1, 2
                    ; Return handle
                    Return $aGF_HandleIndex[$iFrame][$iElement]
            EndSwitch
            Return SetError(2, 0, 0)
    EndSwitch
    Return SetError(1, 0, 0)

EndFunc   ;==>_GUIFrame_GetHandle

; #FUNCTION# =========================================================================================================
; Name...........: _GUIFrame_Switch
; Description ...: Sets a frame element as current GUI
; Syntax.........: _GUIFrame_Switch($iFrame, $iElement)
; Parameters ....: $iFrame - Index of frame set as returned by _GUIFrame_Create
;                  $iElement - 1 = first (left/top) frame, 2 = second (right/bottom) frame
; Requirement(s).: v3.3 +
; Return values .: None
; Author ........: Kip
; Modified ......: Melba23
; Remarks .......: Subsequent controls are created in the specified frame element
; Example........: Yes
;=====================================================================================================================
Func _GUIFrame_Switch($iFrame, $iElement)

    ; Check valid frame index and element
    Switch $iFrame
        Case 1 To $aGF_HandleIndex[0][0]
            Switch $iElement
                Case 1, 2
                    ; Switch to specified element
                    Return GUISwitch($aGF_HandleIndex[$iFrame][$iElement])
            EndSwitch
            Return SetError(2, 0, 0)
    EndSwitch
    Return SetError(1, 0, 0)

EndFunc   ;==>_GUIFrame_Switch

; #FUNCTION# =========================================================================================================
; Name...........: _GUIFrame_GetSepPos()
; Description ...: Returns the current position of the separator
; Syntax.........: _GUIFrame_GetSepPos($iFrame)
; Parameters ....: $iFrame - Index of frame set as returned by _GUIFrame_Create
; Requirement(s).: v3.3 +
; Return values .: Success: Position of separator
;                  Failure: -1 = Invalid frame specified
; Author ........: Melba23
; Remarks .......: This value can be stored and used as the initial separator position parameter in _GUIFrame_Create
;                  to restore exit position on restart
; Example........: Yes
;=====================================================================================================================
Func _GUIFrame_GetSepPos($iFrame)

    Local $iSepPos

    ; Check for valid frame index
    If $iFrame < 1 Or $iFrame > $aGF_HandleIndex[0][0] Then Return -1

    ; Get position of first frame
    Local $aFrame_Pos = WinGetPos($aGF_HandleIndex[$iFrame][1])
    ; Get position of separator
    Local $aSep_Pos = WinGetPos($aGF_HandleIndex[$iFrame][3])
    ; Check on separator orientation
    If $aGF_SettingsIndex[$iFrame][0] Then
        $iSepPos = $aSep_Pos[1] - $aFrame_Pos[1]
    Else
        $iSepPos = $aSep_Pos[0] - $aFrame_Pos[0]
    EndIf
    Return $iSepPos

EndFunc   ;==>_GUIFrame_GetSepPos

; #FUNCTION# =========================================================================================================
; Name...........: _GUIFrame_SetSepPos()
; Description ...: Moves the separator bar to adjust frame sizes
; Syntax.........: _GUIFrame_SetSepPos($iFrame, $iSepPos)
; Parameters ....: $iFrame - Index of frame set as returned by _GUIFrame_Create
;                  $iSepos - Position of separator bar within frame
; Requirement(s).: v3.3 +
; Return values .: Success: 1
;                  Failure: 0 with @error set as follows
;                           1 - Invalid frame specified
;                           2 - Invalid separator position (outside frame)
;                           3 - Invalid separator position (below frame minimum size)
; Author ........: Melba23
; Remarks .......: This value can be stored and used as the initial separator position parameter in _GUIFrame_Create
;                  to restore exit position on restart
; Example........: Yes
;=====================================================================================================================
Func _GUIFrame_SetSepPos($iFrame, $iSepPos)

    Local $iFirstMin, $iSecondMin

    ; Check for valid frame index
    If $iFrame < 1 Or $iFrame > $aGF_HandleIndex[0][0] Then Return SetError(1, 0, 0)

    ; Check separator actually needs to move
    If $iSepPos = _GUIFrame_GetSepPos($iFrame) Then Return 1

    ; Get frame GUI size
    Local $aWinPos = WinGetPos($aGF_HandleIndex[$iFrame][0])
    ; Depending on separator orientation
    If $aGF_SettingsIndex[$iFrame][0] Then
        ; Check sep position is valid
        If $iSepPos < 0 Or $iSepPos > $aWinPos[3] Then Return SetError(2, 0, 0)
        ; Determine minima for frames
        $iFirstMin = $aWinPos[3] * $aGF_SizingIndex[$iFrame][0]
        $iSecondMin = ($aWinPos[3] * (1 - $aGF_SizingIndex[$iFrame][1])) - $aGF_SettingsIndex[$iFrame][2]
        ; Check required value is valid
        If $iSepPos < $iFirstMin Or $iSepPos > $iSecondMin Then Return SetError(3, 0, 0)
        ; Move frames and seperator
        WinMove($aGF_HandleIndex[$iFrame][1], "", 0, 0, $aWinPos[2], $iSepPos)
        WinMove($aGF_HandleIndex[$iFrame][2], "", 0, $iSepPos + $aGF_SettingsIndex[$iFrame][2], $aWinPos[2], $aWinPos[3] - ($iSepPos + $aGF_SettingsIndex[$iFrame][2]))
        WinMove($aGF_HandleIndex[$iFrame][3], "", 0, $iSepPos, $aWinPos[2], $aGF_SettingsIndex[$iFrame][2])
    Else
        If $iSepPos < 0 Or $iSepPos > $aWinPos[2] Then Return SetError(2, 0, 0)
        $iFirstMin = $aWinPos[2] * $aGF_SizingIndex[$iFrame][0]
        $iSecondMin = ($aWinPos[2] * (1 - $aGF_SizingIndex[$iFrame][1])) - $aGF_SettingsIndex[$iFrame][2]
        If $iSepPos < $iFirstMin Or $iSepPos > $iSecondMin Then Return SetError(3, 0, 0)
        WinMove($aGF_HandleIndex[$iFrame][1], "", 0, 0, $iSepPos, $aWinPos[3])
        WinMove($aGF_HandleIndex[$iFrame][2], "", $iSepPos + $aGF_SettingsIndex[$iFrame][2], 0, $aWinPos[2] - ($iSepPos + $aGF_SettingsIndex[$iFrame][2]), $aWinPos[3])
        WinMove($aGF_HandleIndex[$iFrame][3], "", $iSepPos, 0, $aGF_SettingsIndex[$iFrame][2], $aWinPos[3])
    EndIf
    Return 1

EndFunc   ;==>_GUIFrame_SetSepPos

; #FUNCTION# =========================================================================================================
; Name...........: _GUIFrame_ResizeReg
; Description ...: Registers WM_SIZE message for resizing
; Syntax.........: _GUIFrame_ResizeReg()
; Parameters ....: None
; Requirement(s).: v3.3 +
; Return values .: Success: 1 - Message handler registered
;                  Failure: 0 with @error set to 1 - Message handler already registered
; Author ........: Melba23
; Modified ......:
; Remarks .......:
; Example........: Yes
;=====================================================================================================================
Func _GUIFrame_ResizeReg()

    ; Register the WM_SIZE message
    If $aGF_HandleIndex[0][1] = 0 Then
        Local $iRet = GUIRegisterMsg(0x05, "_GUIFrame_SIZE_Handler") ; $WM_SIZE
        If $iRet Then
            $aGF_HandleIndex[0][1] = 1
            Return 1
        EndIf
    EndIf
    Return SetError(1, 0, 0)

EndFunc   ;==>_GUIFrame_ResizeReg

; #FUNCTION# =========================================================================================================
; Name...........: _GUIFrame_SIZE_Handler
; Description ...: Used to resize frames when resizing of holding GUI occurs
; Syntax.........: _GUIFrame_SIZE_Handler($hWnd, $iMsg, $wParam, $lParam)
; Parameters ....: None
; Requirement(s).: v3.3 +
; Return values .: None
; Author ........: Melba23
; Modified ......:
; Remarks .......: If the script already has a WM_SIZE handler, then just call this function from within it
;                  and do NOT use the _GUIFrame_ResizeReg function
; Example........: Yes
;=====================================================================================================================
Func _GUIFrame_SIZE_Handler($hWnd, $iMsg, $wParam, $lParam)

    #forceref $iMsg, $wParam, $lParam
    Local $iIndex

    ; Get index of base frame GUI
    For $iIndex = 1 To $aGF_HandleIndex[0][0]
        If $aGF_HandleIndex[$iIndex][4] = $hWnd Then ExitLoop
    Next

    ; If handle not found
    If $iIndex > $aGF_HandleIndex[0][0] Then Return "GUI_RUNDEFMSG"

    ; Check if we should resize this set
    If $aGF_SettingsIndex[$iIndex][1] = 1 Then

        ; Get new base GUI size
        Local $aSize = WinGetClientSize($hWnd)
        ; Resize frames
        _GUIFrame_Move($iIndex, $aSize[0] * $aGF_SizingIndex[$iIndex][2], $aSize[1] * $aGF_SizingIndex[$iIndex][3], $aSize[0] * $aGF_SizingIndex[$iIndex][4], $aSize[1] * $aGF_SizingIndex[$iIndex][5])

        ; Adjust any resizeable internal frames - array elements are adjacent for ease of coding
        For $i = 0 To 1
            ; Adjust internal frames of first/second frame if any exist
            If $aGF_HandleIndex[$iIndex][5 + $i] <> 0 Then
                ; StringSplit the element content on "|"
                Local $aInternal = StringSplit($aGF_HandleIndex[$iIndex][5 + $i], "|")
                ; Then loop though the Number(values) found
                For $j = 1 To $aInternal[0]
                    Local $iIntIndex = Number($aInternal[$j])
                    ; Check if internal frame is resizable
                    If $aGF_SettingsIndex[$iIntIndex][1] = 1 Then
                        ; And change if so
                        _GUIFrame_SIZE_Handler($aGF_HandleIndex[$iIntIndex][4], $iMsg, $wParam, $lParam)
                    EndIf
                Next
            EndIf
        Next

    EndIf

    Return "GUI_RUNDEFMSG"

EndFunc   ;==>_GUIFrame_SIZE_Handler

; #INTERNAL_USE_ONLY#============================================================================================================
; Name...........: _GUIFrame_SepSubClass
; Description ...: Sets new WndProc for frame separator bar
; Author ........: Kip
; Modified.......: Melba23, using SetWindowLongPtr x64 compatible code drawn from Yashied's WinAPIEx library
; Remarks .......: This function is used internally by _GUIFrame_Create
; ===============================================================================================================================
Func _GUIFrame_SepSubClass($hWnd)

    Local $aRet

    ; Check separator has not already been used
    For $i = 1 To $aGF_SepProcIndex[0][0]
        If $aGF_SepProcIndex[$i][0] = $hWnd Then Return 0
    Next

    ; Store current WinProc handle in new array line
    Local $iIndex = $aGF_SepProcIndex[0][0] + 1
    ReDim $aGF_SepProcIndex[$iIndex + 1][2]
    $aGF_SepProcIndex[0][0] = $iIndex
    $aGF_SepProcIndex[$iIndex][0] = $hWnd
    ; Subclass separator bar
    If @AutoItX64 Then
        $aRet = DllCall('user32.dll', 'long_ptr', 'SetWindowLongPtrW', 'hwnd', $hWnd, 'int', -4, 'long_ptr', $aGF_SepProcIndex[0][1]) ; $GWL_WNDPROC
    Else
        $aRet = DllCall('user32.dll', 'long', 'SetWindowLongW', 'hwnd', $hWnd, 'int', -4, 'long', $aGF_SepProcIndex[0][1]) ; $GWL_WNDPROC
    EndIf
    ; Check for subclassing error
    If @error Or $aRet[0] = 0 Then Return 0
    ; Return success
    $aGF_SepProcIndex[$iIndex][1] = $aRet[0]
    Return 1

EndFunc   ;==>_GUIFrame_SepSubClass

; #INTERNAL_USE_ONLY#============================================================================================================
; Name...........: _GUIFrame_SepWndProc
; Description ...: New WndProc for frame separator bar
; Author ........: Kip
; Modified.......: Melba23
; Remarks .......: This function is used internally by _GUIFrame_SepSubClass
; ===============================================================================================================================
Func _GUIFrame_SepWndProc($hWnd, $iMsg, $wParam, $lParam)

    Local $iSubtract, $fAbsolute = False

    If $iMsg = 0x0111 Then ; WM_COMMAND

        ; Check if hWnd is a Separator bar
        For $iIndex = 1 To $aGF_HandleIndex[0][0]
            If $aGF_HandleIndex[$iIndex][3] = $hWnd Then ExitLoop
        Next
        ; If not then pass message on to org WndProc
        If $iIndex > $aGF_HandleIndex[0][0] Then Return _GUIFrame_SepPassMsg($hWnd, $iMsg, $wParam, $lParam)

        ; Extract values from array
        Local $hParent = $aGF_HandleIndex[$iIndex][0]
        Local $hFirstFrame = $aGF_HandleIndex[$iIndex][1]
        Local $hSecondFrame = $aGF_HandleIndex[$iIndex][2]
        Local $hSeparator = $aGF_HandleIndex[$iIndex][3]
        Local $iFirstMin = $aGF_SizingIndex[$iIndex][0]
        Local $iSecondMin = $aGF_SizingIndex[$iIndex][1]
        If $iFirstMin > 1 Or $iSecondMin > 1 Then
            $fAbsolute = True
        EndIf
        Local $iSeparatorSize = $aGF_SettingsIndex[$iIndex][2]

        ; Get client size of the parent
        Local $aClientSize = WinGetClientSize($hParent)
        Local $iWidth = $aClientSize[0]
        Local $iHeight = $aClientSize[1]

        ; Get cursor info for the Separator
        Local $aCInfo = GUIGetCursorInfo($hSeparator)

        ; Depending on separator orientation
        If $aGF_SettingsIndex[$iIndex][0] = 0 Then

            ; Get Separator X-coord
            $iSubtract = $aCInfo[0]

            Do
                ; Get parent X-coord
                $aCInfo = GUIGetCursorInfo($hParent)
                Local $iCursorX = $aCInfo[0]

                ; Determine width of first frame
                Local $iFirstWidth = $iCursorX - $iSubtract
                ; And ensure it is at least minimum
                If $fAbsolute Then
                    If $iFirstWidth < $iFirstMin Then $iFirstWidth = $iFirstMin
                    If $iWidth - $iFirstWidth - $iSeparatorSize < $iSecondMin Then $iFirstWidth = $iWidth - $iSeparatorSize - $iSecondMin
                Else
                    If $iFirstWidth < $iWidth * $iFirstMin Then $iFirstWidth = $iWidth * $iFirstMin
                    If $iWidth - ($iFirstWidth + $iSeparatorSize) < $iWidth * $iSecondMin Then $iFirstWidth = $iWidth - ($iWidth * $iSecondMin) - $iSeparatorSize
                EndIf

                ; Move the GUIs to the correct places
                WinMove($hFirstFrame, "", 0, 0, $iFirstWidth, $iHeight)
                WinMove($hSecondFrame, "", $iFirstWidth + $iSeparatorSize, 0, $iWidth - ($iFirstWidth + $iSeparatorSize), $iHeight)
                WinMove($hSeparator, "", $iFirstWidth, 0, $iSeparatorSize, $iHeight)

                ; Do until the mouse button is released
            Until Not _WinAPI_GetAsyncKeyState(0x01)

            ; Store current separator percentage position
            $aGF_SizingIndex[$iIndex][6] = $iFirstWidth / $iWidth

        ElseIf $aGF_SettingsIndex[$iIndex][0] = 1 Then

            $iSubtract = $aCInfo[1]
            Do
                $aCInfo = GUIGetCursorInfo($hParent)
                Local $iCursorY = $aCInfo[1]
                Local $iFirstHeight = $iCursorY - $iSubtract
                If $fAbsolute Then
                    If $iFirstHeight < $iFirstMin Then $iFirstHeight = $iFirstMin
                    If $iHeight - $iFirstHeight - $iSeparatorSize < $iSecondMin Then $iFirstHeight = $iHeight - $iSeparatorSize - $iSecondMin
                Else
                    If $iFirstHeight < $iHeight * $iFirstMin Then $iFirstHeight = $iHeight * $iFirstMin
                    If $iHeight - ($iFirstHeight + $iSeparatorSize) < $iHeight * $iSecondMin Then $iFirstHeight = $iHeight - ($iHeight * $iSecondMin) - $iSeparatorSize
                EndIf
                WinMove($hFirstFrame, "", 0, 0, $iWidth, $iFirstHeight)
                WinMove($hSecondFrame, "", 0, $iFirstHeight + $iSeparatorSize, $iWidth, $iHeight - ($iFirstHeight + $iSeparatorSize))
                WinMove($hSeparator, "", 0, $iFirstHeight, $iWidth, $iSeparatorSize)
            Until Not _WinAPI_GetAsyncKeyState(0x01)
            $aGF_SizingIndex[$iIndex][6] = $iFirstHeight / $iHeight

        EndIf

    EndIf

    ; Pass the message on to org WndProc
    Return _GUIFrame_SepPassMsg($hWnd, $iMsg, $wParam, $lParam)

EndFunc   ;==>_GUIFrame_SepWndProc

; #INTERNAL_USE_ONLY#============================================================================================================
; Name...........: _GUIFrame_SepPassMsg
; Description ...: Passes Msg to frame parent WndProc for action
; Author ........: Kip
; Modified.......: Melba23
; Remarks .......: This function is used internally by _GUIFrame_SepWndProc
; ===============================================================================================================================
Func _GUIFrame_SepPassMsg($hWnd, $iMsg, $wParam, $lParam)

    For $i = 1 To $aGF_SepProcIndex[0][0]
        If $aGF_SepProcIndex[$i][0] = $hWnd Then Return _WinAPI_CallWindowProc($aGF_SepProcIndex[$i][1], $hWnd, $iMsg, $wParam, $lParam)
    Next

EndFunc   ;==>_GUIFrame_SepPassMsg

; #INTERNAL_USE_ONLY#============================================================================================================
; Name...........: _GUIFrame_Move
; Description ...: Moves and resizes frame elements and separator bars
; Author ........: Kip
; Modified.......: Melba23
; Remarks .......: This function is used internally by _GUIFrame_SIZE_Handler
; ===============================================================================================================================
Func _GUIFrame_Move($iFrame, $iX, $iY, $iWidth = 0, $iHeight = 0)

    If $iFrame < 1 Or $iFrame > $aGF_HandleIndex[0][0] Then Return 0

    Local $fAbsolute = False, $iDimension, $iActual_Size_1, $iActual_Size_2, $iSize
    Local $iSeparatorSize = $aGF_SettingsIndex[$iFrame][2]

    ; Set size if not specified
    If Not $iWidth Then $iWidth = _WinAPI_GetWindowWidth($aGF_HandleIndex[$iFrame][0])
    If Not $iHeight Then $iHeight = _WinAPI_GetWindowHeight($aGF_HandleIndex[$iFrame][0])

    ; Move parent
    WinMove($aGF_HandleIndex[$iFrame][0], "", $iX, $iY, $iWidth, $iHeight)

    ; Depending on separator orientation get required width/height values
    If $aGF_SettingsIndex[$iFrame][0] = 0 Then
        $iDimension = $iWidth
        $iActual_Size_1 = _WinAPI_GetWindowWidth($aGF_HandleIndex[$iFrame][1])
        $iActual_Size_2 = _WinAPI_GetWindowWidth($aGF_HandleIndex[$iFrame][2])
    Else
        $iDimension = $iHeight
        $iActual_Size_1 = _WinAPI_GetWindowHeight($aGF_HandleIndex[$iFrame][1])
        $iActual_Size_2 = _WinAPI_GetWindowHeight($aGF_HandleIndex[$iFrame][2])
    EndIf

    ; Check resize type required
    Switch $aGF_SizingIndex[$iFrame][7]
        Case 0
            ; Determine new size for first frame using separator position percentage
            $iSize = Int($iDimension * $aGF_SizingIndex[$iFrame][6])
        Case 1
            ; Get current fixed first frame size
            $iSize = $iActual_Size_1
        Case 2
            ; Determine new first frame size with fixed second frame size
            $iSize = $iDimension - $iSeparatorSize - $iActual_Size_2
    EndSwitch

    ; Set frame min percentages
    Local $iFirstMin = $aGF_SizingIndex[$iFrame][0]
    Local $iSecondMin = $aGF_SizingIndex[$iFrame][1]
    If $iFirstMin > 1 Or $iSecondMin > 1 Then
        $fAbsolute = True
    EndIf

    ; Check for minimum size of first frame
    Local $iAdjust_Other = True
    Local $fSep_Adjusted = False

    ; Adjust first frame size
    If $fAbsolute Then
        If $iSize < $iFirstMin Then
            $iSize = $iFirstMin
            $iAdjust_Other = False
            $fSep_Adjusted = True
        EndIf
    Else
        If $iSize < $iDimension * $iFirstMin Then
            $iSize = $iDimension * $iFirstMin
            $iAdjust_Other = False
            $fSep_Adjusted = True
        EndIf
    EndIf

    ; Now adjust second frame if first not adjusted
    If $iAdjust_Other Then

        ; Find max available size for this frame
        Local $iSecondMax = $iDimension - $iFirstMin - $iSeparatorSize
        If $iSecondMax < $iSecondMin Then
            $iSecondMin = $iSecondMax
        EndIf

        ; Adjust second frame size
        If $fAbsolute Then
            If $iActual_Size_2 < $iSecondMin Then
                $iSize = $iDimension - $iSecondMin - $iSeparatorSize
                $fSep_Adjusted = True
            EndIf
        Else
            If $iActual_Size_2 < $iDimension * $iSecondMin Then
                $iSize = $iDimension - ($iDimension * $iSecondMin) - $iSeparatorSize
                $fSep_Adjusted = True
            EndIf
        EndIf
    EndIf

    ; If the separator has been moved programatically then reset percentage size of first frame
    If $fSep_Adjusted Then
        $aGF_SizingIndex[$iFrame][6] = $iSize / $iDimension
    EndIf

    ; Move and resize GUIs according to orientation
    If $aGF_SettingsIndex[$iFrame][0] = 0 Then
        WinMove($aGF_HandleIndex[$iFrame][1], "", 0, 0, $iSize, $iHeight)
        WinMove($aGF_HandleIndex[$iFrame][2], "", $iSize + $iSeparatorSize, 0, $iWidth - $iSize - $iSeparatorSize, $iHeight)
        WinMove($aGF_HandleIndex[$iFrame][3], "", $iSize, 0, $iSeparatorSize, $iHeight)
    Else
        WinMove($aGF_HandleIndex[$iFrame][1], "", 0, 0, $iWidth, $iSize)
        WinMove($aGF_HandleIndex[$iFrame][2], "", 0, $iSize + $iSeparatorSize, $iWidth, $iHeight - $iSize - $iSeparatorSize)
        WinMove($aGF_HandleIndex[$iFrame][3], "", 0, $iSize, $iWidth, $iSeparatorSize)
    EndIf

EndFunc   ;==>_GUIFrame_Move

; #INTERNAL_USE_ONLY#============================================================================================================
; Name...........: _GUIFrame_Exit()
; Description ...: Deletes all subclassed separator bars to free UDF WndProc and frees registered callback handle
; Author ........: Melba23
; Remarks .......: Called by OnAutoItExitRegister to delete all subclassed separator bars and to free the UDF created WndProc.
; Example........: Yes
;================================================================================================================================
Func _GUIFrame_Exit()

    ; Delete all subclassed separator bars
    For $i = $aGF_HandleIndex[0][0] To 1 Step -1
        GUIDelete($aGF_HandleIndex[$i][3])
    Next
    ; Free registered Callback handle
    DllCallbackFree($hGF_RegCallBack)

EndFunc   ;==>_GUIFrame_Exit

And here is a short example to show it working:

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>

#include "GUIFrame_Mod.au3"

Global $iSep_Pos

$hGUI = GUICreate("GUI_Frame Example 3", 500, 500, -1, -1, BitOR($WS_MINIMIZEBOX, $WS_MAXIMIZEBOX, $WS_SIZEBOX))
GUISetState()

; Create a 1st level frame
$iFrame_A = _GUIFrame_Create($hGUI);, 1)
_GUIFrame_SetMin($iFrame_A, 50, 125, True)  ; This line sets the minima as absolute values <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
;_GUIFrame_SetMin($iFrame_A, 50, 125)       ; This line adjusts the minima to equivalent percentages on resizing <<<<<<<<<<<<<<<<<<<<<

_GUIFrame_Switch($iFrame_A, 1)
$aWinSize = WinGetClientSize(_GUIFrame_GetHandle($iFrame_A, 2))
GUICtrlCreateLabel("", 5, 5, $aWinSize[0] - 10, $aWinSize[1] - 10)
GUICtrlSetBkColor(-1, 0x00FF00)
GUICtrlCreateLabel("", 0, 0, 50, 50)
GUICtrlSetBkColor(-1, 0x0000FF)
GUICtrlSetResizing(-1, $GUI_DOCKSIZE)
GUICtrlSetState(-1, $GUI_DISABLE)

_GUIFrame_Switch($iFrame_A, 2)
$aWinSize = WinGetClientSize(_GUIFrame_GetHandle($iFrame_A, 2))
GUICtrlCreateLabel("", 5, 5, $aWinSize[0] - 10, $aWinSize[1] - 10)
GUICtrlSetBkColor(-1, 0xFF0000)
GUICtrlSetState(-1, $GUI_DISABLE)

; Set resizing flag for all created frames
_GUIFrame_ResizeSet(0, 0) ; Adjust the second parameter to change the resizing behaviour <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<

; Register the $WM_SIZE handler to permit resizing
_GUIFrame_ResizeReg()

While 1

    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            ; The UDF does all the tidying up as you exit
            Exit
    EndSwitch

WEnd

Let me know what you think. ;)

M23

P.S. And happy to get comments from anyone else as well! :)


Public_Domain.png.2d871819fcb9957cf44f4514551a2935.png Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind

Open spoiler to see my UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

×
×
  • Create New...
