powerofos

How to create a GUI like the attached pictures ( posted script )

Recommended Posts

powerofos

Hi,

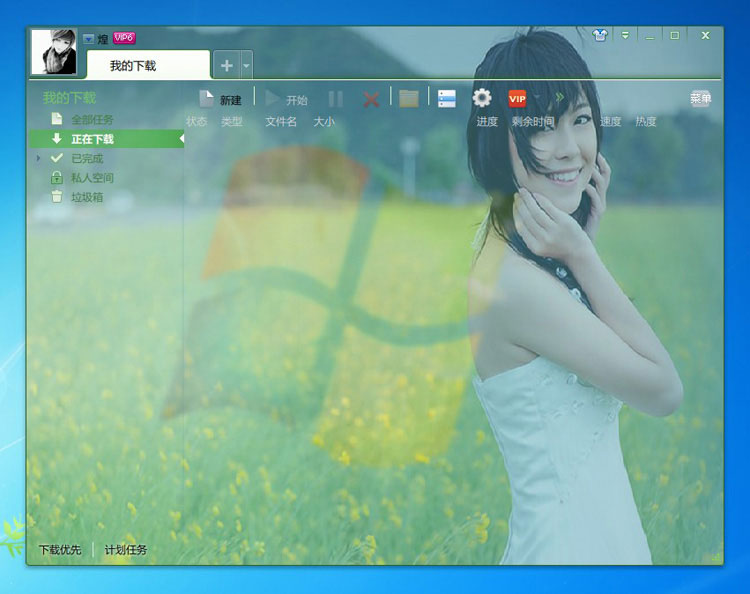

Please help me with GUI style, look at the attached pictures(with comments), i am not good at expression.

Thanks

Kim.Y

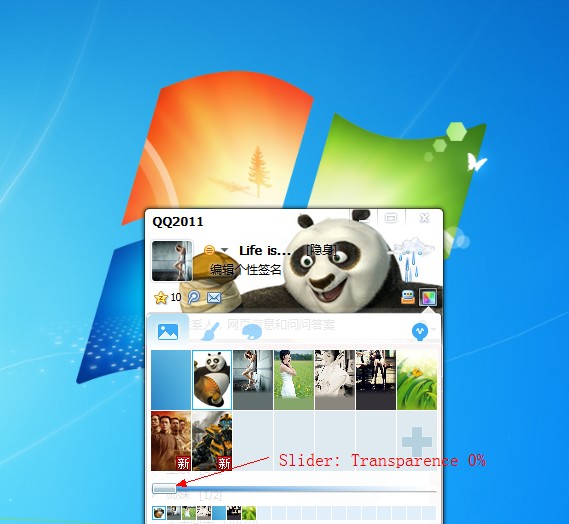

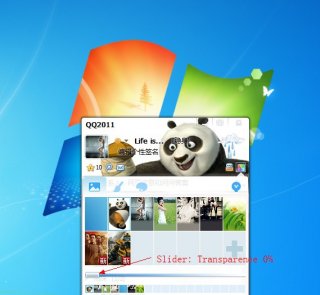

post-41874-0-73467300-1310480719_thumb.j

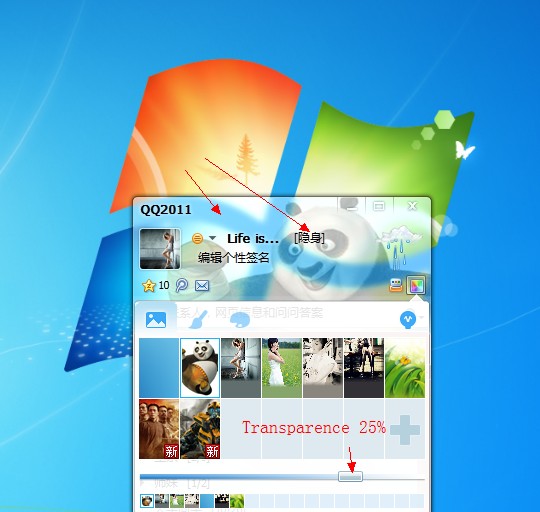

post-41874-0-03921900-1310480734_thumb.j

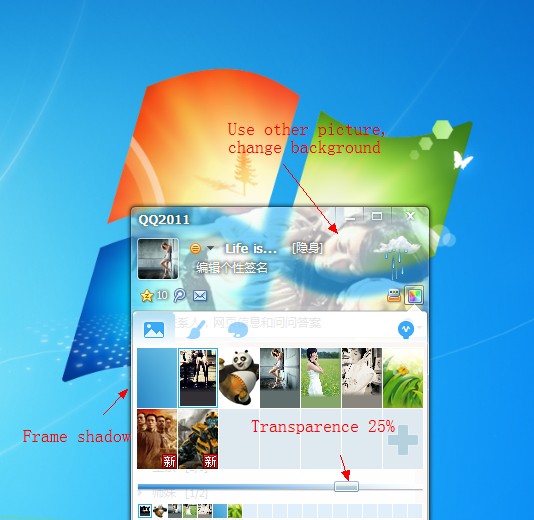

post-41874-0-56447800-1310480750_thumb.j

Edited by powerofos

Share this post


Link to post
Share on other sites
hannes08

Hi Kim,

look at WinSetTrans() in the help file on how to create transparent windows.

:)


Regards,Hannes[spoiler]If you can't convince them, confuse them![/spoiler]

Share this post


Link to post
Share on other sites
monoscout999

It looks like a nice proyect, the tabs also are BMPs and the slider have a cool skin... if i find something to that helps i will post here.

Share this post


Link to post
Share on other sites
martin

Hi Kim,

look at WinSetTrans() in the help file on how to create transparent windows.

:)

I think it's a bit more difficult than that because from the screen shots there is what looks like a child window holding the images which is not made transparent. You can do that like this

#include <windowsconstants.au3>

$g = GUICreate("", 500, 500)

GUISetState()
$c = GUICreate("", 500, 300, 0, 200, $WS_POPUP, $WS_EX_MDICHILD, $g)
$slide = GUICtrlCreateSlider(50, 100, 400, 42)
GUISetState()
GUISetBkColor(0xff0000, $c)
WinSetTrans($g, "", 150)
AdlibRegister("settrans", 100)
$lastT = 0

While 1
    $msg = GUIGetMsg()
    If $msg = -3 Then Exit

WEnd

Func settrans()
    Local $newT = GUICtrlRead($slide) * 2 + 54
    If $newT <> $lastT Then
        WinSetTrans($g, "", $newT)
        $lastT = $newT
    EndIf
EndFunc   ;==>settrans

though of course my example looks really bad, but the idea works.

EDIT:changed +55 to +54 to stop annoying flash when maximum slider value, minimum transparency, reached.

Edited by martin

Serial port communications UDF Includes functions for binary transmission and reception.printing UDF Useful for graphs, forms, labels, reports etc.Add User Call Tips to SciTE for functions in UDFs not included with AutoIt and for your own scripts.Functions with parameters in OnEvent mode and for Hot Keys One function replaces GuiSetOnEvent, GuiCtrlSetOnEvent and HotKeySet.UDF IsConnected2 for notification of status of connected state of many urls or IPs, without slowing the script.

Share this post


Link to post
Share on other sites
powerofos

:)

I think it's a bit more difficult than that because from the screen shots there is what looks like a child window holding the images which is not made transparent. You can do that like this

#include <windowsconstants.au3>

$g = GUICreate("", 500, 500)

GUISetState()
$c = GUICreate("", 500, 300, 0, 200, $WS_POPUP, $WS_EX_MDICHILD, $g)
$slide = GUICtrlCreateSlider(50, 100, 400, 42)
GUISetState()
GUISetBkColor(0xff0000, $c)
WinSetTrans($g, "", 150)
AdlibRegister("settrans", 100)
$lastT = 0

While 1
    $msg = GUIGetMsg()
    If $msg = -3 Then Exit

WEnd

Func settrans()
    Local $newT = GUICtrlRead($slide) * 2 + 54
    If $newT <> $lastT Then
        WinSetTrans($g, "", $newT)
        $lastT = $newT
    EndIf
EndFunc   ;==>settrans

though of course my example looks really bad, but the idea works.

EDIT:changed +55 to +54 to stop annoying flash when maximum slider value, minimum transparency, reached.

Hi Martin,

;)

I like your idea and i had tried it before, but i can't find a gui style which similary with the attached photo showed,

perhaps GDI and API function are required.

Kim.Y

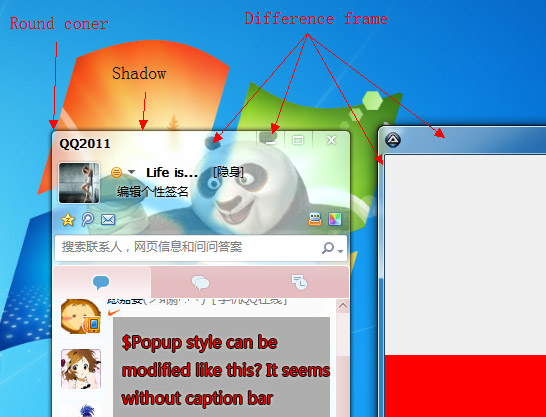

post-41874-0-02498300-1310568843_thumb.j

Share this post


Link to post
Share on other sites
powerofos

It looks like a nice proyect, the tabs also are BMPs and the slider have a cool skin... if i find something to that helps i will post here.

@monoscout999,

The key point is the GUI style but not the silder, by the way, if you can build the slider like that, please notice me.

Beautiful slider control!

:)

Kim.Y

Share this post


Link to post
Share on other sites
taietel

I've modified a little martin's code (here is a version without Adlib):

#include <windowsconstants.au3>
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
$g = GUICreate("", 500, 500, -1, -1, BitOR($WS_SYSMENU, $WS_POPUP), $WS_EX_TOOLWINDOW)
GUISetBkColor(0x111111)
$hExit = GUICtrlCreateIcon("shell32.dll", -132, 478, 6, 16, 16, BitOR($SS_NOTIFY, $WS_GROUP, $WS_TABSTOP))
GUICtrlSetCursor(-1, 0)
GUICtrlSetTip(-1, "Exit")
_RoundCorners($g, 0.9)
GUICtrlCreatePic("", 0, 0, 500,500, BitOR($GUI_SS_DEFAULT_PIC, $SS_CENTERIMAGE), $GUI_WS_EX_PARENTDRAG)
GUISetState()
$c = GUICreate("", 496, 300, 4, 198, $WS_POPUP, $WS_EX_MDICHILD, $g)
$slide = GUICtrlCreateSlider(50, 100, 400, 42)
GUICtrlSetLimit(-1, 254, 10)
GUICtrlSetData($slide, 150)
GUISetState()
GUISetBkColor(0xff0000, $c)
WinSetTrans($g, "", GUICtrlRead($slide))

While 1
 Sleep(10)
 WinSetTrans($g, "", GUICtrlRead($slide))
 $nMsg = GUIGetMsg()
 Switch $nMsg
  Case $GUI_EVENT_CLOSE, $hExit
   Exit
 EndSwitch
WEnd

Func _RoundCorners($hWnd, $iR = 1)
 Local $x, $pos
 $pos = WinGetPos($hWnd)
 If $pos[2] > $pos[3] Then
  $x = 10 * $pos[2] / $pos[3]
 Else
  $x = 10 * $pos[3] / $pos[2]
 EndIf
 Local $aResult = DllCall("gdi32.dll", "handle", "CreateRoundRectRgn", "int", 0, "int", 0, "int", $pos[2], "int", $pos[3], _
   "int", $iR * $x, "int", $iR * $x)
 Local $aRet = DllCall("user32.dll", "int", "SetWindowRgn", "hwnd", $hWnd, "handle", $aResult[0], "bool", True)
 If @error Then Return SetError(@error, @extended, False)
 Return $aRet[0]
EndFunc   ;==>_RoundCorners

thanks for the idea, martin!

Share this post


Link to post
Share on other sites
powerofos

I've modified a little martin's code (here is a version without Adlib):

#include <windowsconstants.au3>
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
$g = GUICreate("", 500, 500, -1, -1, BitOR($WS_SYSMENU, $WS_POPUP), $WS_EX_TOOLWINDOW)
GUISetBkColor(0x111111)
$hExit = GUICtrlCreateIcon("shell32.dll", -132, 478, 6, 16, 16, BitOR($SS_NOTIFY, $WS_GROUP, $WS_TABSTOP))
GUICtrlSetCursor(-1, 0)
GUICtrlSetTip(-1, "Exit")
_RoundCorners($g, 0.9)
GUICtrlCreatePic("", 0, 0, 500,500, BitOR($GUI_SS_DEFAULT_PIC, $SS_CENTERIMAGE), $GUI_WS_EX_PARENTDRAG)
GUISetState()
$c = GUICreate("", 496, 300, 4, 198, $WS_POPUP, $WS_EX_MDICHILD, $g)
$slide = GUICtrlCreateSlider(50, 100, 400, 42)
GUICtrlSetLimit(-1, 254, 10)
GUICtrlSetData($slide, 150)
GUISetState()
GUISetBkColor(0xff0000, $c)
WinSetTrans($g, "", GUICtrlRead($slide))

While 1
 Sleep(10)
 WinSetTrans($g, "", GUICtrlRead($slide))
 $nMsg = GUIGetMsg()
 Switch $nMsg
  Case $GUI_EVENT_CLOSE, $hExit
   Exit
 EndSwitch
WEnd

Func _RoundCorners($hWnd, $iR = 1)
 Local $x, $pos
 $pos = WinGetPos($hWnd)
 If $pos[2] > $pos[3] Then
  $x = 10 * $pos[2] / $pos[3]
 Else
  $x = 10 * $pos[3] / $pos[2]
 EndIf
 Local $aResult = DllCall("gdi32.dll", "handle", "CreateRoundRectRgn", "int", 0, "int", 0, "int", $pos[2], "int", $pos[3], _
   "int", $iR * $x, "int", $iR * $x)
 Local $aRet = DllCall("user32.dll", "int", "SetWindowRgn", "hwnd", $hWnd, "handle", $aResult[0], "bool", True)
 If @error Then Return SetError(@error, @extended, False)
 Return $aRet[0]
EndFunc   ;==>_RoundCorners

thanks for the idea, martin!

@taietel,

Thanks for your modified version.

A new attached photo, maybe GDI and API function are required.

:)

Regards

Kim.Y

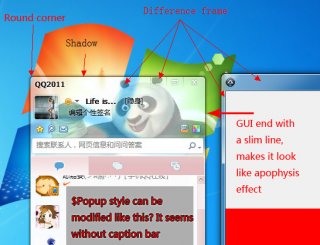

post-41874-0-59745700-1310573991_thumb.j

Edited by powerofos

Share this post


Link to post
Share on other sites
taietel

powerofos, that can be done easily :) . Search for GDIP UDF of Authenticity, WinAPIEx UDF of Yashied, examples of UEZ (master of the GDI) etc. This will be a really nice project!

Share this post


Link to post
Share on other sites
martin

powerofos, that can be done easily :) . Search for GDIP UDF of Authenticity, WinAPIEx UDF of Yashied, examples of UEZ (master of the GDI) etc. This will be a really nice project!

Here's how you can shape the non-transparent bit an dhave a slider bar a bit like the one show in post 1. (Using taietel's example)

#include <windowsconstants.au3>
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <GDIPlus.au3>

Const $STM_SETIMAGE = 0x0172
Const $IMAGE_BITMAP = 0

$g = GUICreate("", 500, 500, -1, -1, BitOR($WS_SYSMENU, $WS_POPUP), $WS_EX_TOOLWINDOW)
GUISetBkColor(0x111111)
$hExit = GUICtrlCreateIcon("shell32.dll", -132, 478, 6, 16, 16, BitOR($SS_NOTIFY, $WS_GROUP, $WS_TABSTOP))
GUICtrlSetCursor(-1, 0)
GUICtrlSetTip(-1, "Exit")
_RoundCorners($g, 0.9)
GUICtrlCreatePic("", 0, 0, 500, 500, BitOR($GUI_SS_DEFAULT_PIC, $SS_CENTERIMAGE), $GUI_WS_EX_PARENTDRAG)
GUISetState()
$c = GUICreate("", 496, 300, 4, 198, $WS_POPUP, $WS_EX_MDICHILD, $g)
$Pic = GUICtrlCreatePic("", 50, 100, 400, 12)

GUICtrlSetState(-1, $GUI_DISABLE)

#region make slider
$hPic = GUICtrlGetHandle($Pic)
_GDIPlus_Startup()

$wGraph = _GDIPlus_GraphicsCreateFromHWND($c)
;_GDIPlus_GraphicsDispose($SheetWindowGraph)
$MainImage = _GDIPlus_BitmapCreateFromGraphics(400, 12, $wGraph)
;_GDIPlus_BitmapDispose($MainImage)
$MainGraphic = _GDIPlus_ImageGetGraphicsContext($MainImage)
_GDIPlus_GraphicsClear($MainGraphic, 0xFFF00FFF)
;_GDIPlus_GraphicsSetSmoothingMode($MainGraphic, 0); 2)
For $n = 0 To 400
    $hPen = _GDIPlus_PenCreate(0xff0000FF + Int($n * 255 / 400) * 2 ^ 8 + Int($n * 255 / 400) * 2 ^ 16, 1);+ $n*2^16/400  + $n*255/400;// Bitshift(Int($n*255/400),1) +
    _GDIPlus_GraphicsDrawLine($MainGraphic, $n, 0, $n, 12, $hPen)
    _GDIPlus_PenDispose($hPen)
Next

$hbmp = _GDIPlus_BitmapCreateHBITMAPFromBitmap($MainImage)
$aBmp = DllCall("user32.dll", "hwnd", "SendMessage", "hwnd", $hPic, "int", $STM_SETIMAGE, "int", $IMAGE_BITMAP, "int", $hbmp)
If $aBmp[0] <> 0 Then _WinAPI_DeleteObject($aBmp[0])
_WinAPI_DeleteObject($hbmp)
_GDIPlus_Shutdown()


$B = GUICtrlCreateButton("", 50, 95, 30, 22)
#endregion make slider

$chk1 = GUICtrlCreateCheckbox("fade background", 100, 140)
$chk2 = GUICtrlCreateCheckbox("fade foreground", 100, 170)

#region make shaped cutout
$aM_Mask = DllCall("gdi32.dll", "long", "CreateRectRgn", "long", 0, "long", 0, "long", 496, "long", 300)

$rct = DllStructCreate("int;int;int;inr", $aM_Mask[0])

$Dia = 200
For $j = 0 To $Dia / 3;the arch height
    $startx = 0
    $starty = $j
    $endx = Round(0.4 + $Dia / 2 - Sqrt($Dia * $Dia / 4 - ($Dia / 2 - $j) ^ 2), 0)

    $endy = $starty

    addRegion( $aM_Mask, $startx, $starty, $endx, $endy + 1)

    $startx = $Dia - $endx
    $endx = $Dia + 1
    addRegion( $aM_Mask, $startx, $starty, $endx, $endy + 1)
Next
DllCall("user32.dll", "long", "SetWindowRgn", "hwnd", $c, "long", $aM_Mask[0], "int", 1)
#endregion make shaped cutout

GUISetState()
GUISetBkColor(0xff0000, $c)

$lastpos = 0
$newpos = 0

While 1
    Sleep(10)
    $ci = GUIGetCursorInfo($c)
    ConsoleWrite($ci[4] & @CRLF)
    If $ci[2] And $ci[4] = $B Then
        $startx = $ci[0]
        $startb = ControlGetPos($c, "", $B)
        While $ci[2]
            $ci = GUIGetCursorInfo($c)
            $newpos = $startb[0] + $ci[0] - $startx
            If $newpos < 60 Then $newpos = 50
            If $newpos > 420 Then $newpos = 420
            If $newpos <> $lastpos Then
                ControlMove($c, "", $B, $newpos, 95)
                If GUICtrlRead($chk1) = $GUI_CHECKED Then WinSetTrans($g, "", 255 - ($newpos - 50) * 254 / 400)
                If GUICtrlRead($chk2) = $GUI_CHECKED Then WinSetTrans($c, "", 255 - ($newpos - 50) * 254 / 400)
                $lastpos = $newpos
            EndIf
        WEnd
    EndIf

    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE, $hExit
            Exit
    EndSwitch
WEnd

Func addRegion($MMask, $sx, $sy, $ex, $ey)
    Local $aMask = DllCall("gdi32.dll", "long", "CreateRectRgn", "long", $sx, "long", $sy, "long", $ex, "long", $ey)
    DllCall("gdi32.dll", "long", "CombineRgn", "long", $MMask[0], "long", $aMask[0], "long", $MMask[0], "int", 3)
EndFunc   ;==>addRegion


Func _RoundCorners($hWnd, $iR = 1)
    Local $x, $pos
    $pos = WinGetPos($hWnd)
    If $pos[2] > $pos[3] Then
        $x = 10 * $pos[2] / $pos[3]
    Else
        $x = 10 * $pos[3] / $pos[2]
    EndIf
    Local $aResult = DllCall("gdi32.dll", "handle", "CreateRoundRectRgn", "int", 0, "int", 0, "int", $pos[2], "int", $pos[3], _
            "int", $iR * $x, "int", $iR * $x)
    Local $aRet = DllCall("user32.dll", "int", "SetWindowRgn", "hwnd", $hWnd, "handle", $aResult[0], "bool", True)
    If @error Then Return SetError(@error, @extended, False)
    Return $aRet[0]
EndFunc   ;==>_RoundCorners

EDIT: Tidied code a bit, added option to fade sections.

Edited by martin

Serial port communications UDF Includes functions for binary transmission and reception.printing UDF Useful for graphs, forms, labels, reports etc.Add User Call Tips to SciTE for functions in UDFs not included with AutoIt and for your own scripts.Functions with parameters in OnEvent mode and for Hot Keys One function replaces GuiSetOnEvent, GuiCtrlSetOnEvent and HotKeySet.UDF IsConnected2 for notification of status of connected state of many urls or IPs, without slowing the script.

Share this post


Link to post
Share on other sites
monoscout999

matbe some DWM functions, the pic seem to have the blur effect from aero but i can´t find the way to put the pic in the windows.. there an example of the function DwmExtendFrameIntoClientArea in the winapiex UDF

We only need to find a way to put a pic inside, and do the trasparent effect, and find out how to put the icons in the tabs..

#Include <Constants.au3>
#Include <GUITab.au3>
#Include <WinAPIEx.au3>

Opt('MustDeclareVars', 1)
Opt('TrayAutoPause', 0)

If Not _WinAPI_DwmIsCompositionEnabled() Then
    MsgBox(16, 'Error', 'Require Windows Vista or later with enabled Aero theme.')
    Exit
EndIf

Global Const $PRF_CLIENT = 0x04

Global $hForm, $hTab, $tMARGINS, $hDll, $pDll, $hProc

OnAutoItExitRegister('OnAutoItExit')

; Create GUI
$hForm = GUICreate('MyGUI', 400, 400)
GUICtrlCreateTab(0, 60, 402, 341, $WS_CLIPCHILDREN)
$hTab = GUICtrlGetHandle(-1)
GUICtrlCreateTabItem('Tab 1')
GUICtrlCreateButton('Button', 150, 167, 100, 26)
_WinAPI_SetParent(GUICtrlGetHandle(-1), $hTab)
GUICtrlCreateTabItem('Tab 2')
GUICtrlCreateEdit('', 14, 34, 372, 292)
_WinAPI_SetParent(GUICtrlGetHandle(-1), $hTab)
GUICtrlCreateTabItem('Tab 3')
GUICtrlCreateTabItem('')
GUISetBkColor(0)

; Register Tab window proc
$hDll = DllCallbackRegister('_WinProc', 'ptr', 'hwnd;uint;wparam;lparam')
$pDll = DllCallbackGetPtr($hDll)
$hProc = _WinAPI_SetWindowLongEx($hTab, $GWL_WNDPROC, $pDll)

; Create the "sheet of glass" effect for the Tab client area. You must call this function whenever DWM composition is toggled.
$tMARGINS = DllStructCreate($tagMARGINS)
DllStructSetData($tMARGINS, 1, 2)
DllStructSetData($tMARGINS, 2, 2)
DllStructSetData($tMARGINS, 3, 82)
DllStructSetData($tMARGINS, 4, 2)
_WinAPI_DwmExtendFrameIntoClientArea($hForm, $tMARGINS)

GUISetState()

Do
Until GUIGetMsg() = -3

Func _CreateClipRgn($hWnd)

    Local $tRECT, $hTmp, $hRgn, $Ht, $Count, $Sel

    $Count = _GUICtrlTab_GetItemCount($hWnd)
    $Sel = _GUICtrlTab_GetCurSel($hWnd)
    $hRgn = _WinAPI_CreateNullRgn()
    For $i = 0 To $Count - 1
        $tRECT = _GUICtrlTab_GetItemRectEx($hWnd, $i)
        If $i = $Sel Then
            $hTmp = _WinAPI_CreateRectRgn(DllStructGetData($tRECT, 1) - 2, DllStructGetData($tRECT, 2) - 2, DllStructGetData($tRECT, 3) + 2, DllStructGetData($tRECT, 4))
            $Ht = DllStructGetData($tRECT, 4) - DllStructGetData($tRECT, 2) + 2
        Else
            If $i = $Count - 1 Then
                $hTmp = _WinAPI_CreateRectRgn(DllStructGetData($tRECT, 1), DllStructGetData($tRECT, 2), DllStructGetData($tRECT, 3) - 2, DllStructGetData($tRECT, 4))
            Else
                $hTmp = _WinAPI_CreateRectRgn(DllStructGetData($tRECT, 1), DllStructGetData($tRECT, 2), DllStructGetData($tRECT, 3), DllStructGetData($tRECT, 4))
            EndIf
        EndIf
        _WinAPI_CombineRgn($hRgn, $hRgn, $hTmp, $RGN_OR)
        _WinAPI_DeleteObject($hTmp)
    Next
    $tRECT = _WinAPI_GetClientRect($hWnd)
    $hTmp = _WinAPI_CreateRectRgn(DllStructGetData($tRECT, 1), DllStructGetData($tRECT, 2) + $Ht, DllStructGetData($tRECT, 3) - 2, DllStructGetData($tRECT, 4) - 1)
    _WinAPI_CombineRgn($hRgn, $hRgn, $hTmp, $RGN_OR)
    _WinAPI_DeleteObject($hTmp)
    Return $hRgn
EndFunc   ;==>_CreateClipRgn

Func _WinProc($hWnd, $iMsg, $wParam, $lParam)
    If _WinAPI_IsThemeActive() Then
        Switch $iMsg
            Case $WM_ERASEBKGND

                Local $tRECT, $hBrush, $hRgn, $hPrev

                $hPrev = _WinAPI_GetClipRgn($wParam)
                $hRgn = _CreateClipRgn($hWnd)
                _WinAPI_ExtSelectClipRgn($wParam, $hRgn, $RGN_DIFF)
                $tRECT = _WinAPI_GetClientRect($hWnd)
                $hBrush = _WinAPI_CreateSolidBrush(0)
                _WinAPI_FillRect($wParam, DllStructGetPtr($tRECT), $hBrush)
                _WinAPI_SelectClipRgn($wParam, $hPrev)
                _WinAPI_DeleteObject($hBrush)
                _WinAPI_DeleteObject($hRgn)
                Return 1
            Case $WM_PAINT

                Local $tPAINTSTRUCT, $hDC, $hRgn

                $hDC = _WinAPI_BeginPaint($hWnd, $tPAINTSTRUCT)
                $hRgn = _CreateClipRgn($hWnd)
                _WinAPI_ExtSelectClipRgn($hDC, $hRgn, $RGN_AND)
                _WinAPI_CallWindowProc($hProc, $hWnd, $WM_PRINTCLIENT, $hDC, $PRF_CLIENT)
                _WinAPI_DeleteObject($hRgn)
                _WinAPI_EndPaint($hWnd, $tPAINTSTRUCT)
                Return 0
        EndSwitch
    EndIf
    Return _WinAPI_CallWindowProc($hProc, $hWnd, $iMsg, $wParam, $lParam)
EndFunc   ;==>_WinProc

Func OnAutoItExit()
    _WinAPI_SetWindowLongEx($hTab, $GWL_WNDPROC, $hProc)
    DllCallbackFree($hDll)
EndFunc   ;==>OnAutoItExit

Share this post


Link to post
Share on other sites
monoscout999

Another version with slide

#Include <Constants.au3>
#Include <GUITab.au3>
#Include <WinAPIEx.au3>

Opt('MustDeclareVars', 1)
Opt('TrayAutoPause', 0)
If Not _WinAPI_DwmIsCompositionEnabled() Then
    MsgBox(16, 'Error', 'Require Windows Vista or later with enabled Aero theme.')
    Exit
EndIf

Global Const $PRF_CLIENT = 0x04

Global $hForm, $hTab, $tMARGINS, $hDll, $pDll, $hProc, $slider, $hSlider

OnAutoItExitRegister('OnAutoItExit')

; Create GUI
$hForm = GUICreate('MyGUI', 400, 400)
GUICtrlCreateTab(0, 60, 402, 341, $WS_CLIPCHILDREN)
$hTab = GUICtrlGetHandle(-1)
GUICtrlCreateTabItem('Tab 1')
GUIRegisterMsg($WM_NOTIFY, "WM_NOTIFY")
$slider = GUICtrlCreateslider(10, 167, 380, 26)
Guictrlsetlimit(-1,255,0)
$hSlider = GUICtrlGetHandle(-1)
_WinAPI_SetParent(GUICtrlGetHandle(-1), $hTab)
GUICtrlCreateTabItem('Tab 2')
GUICtrlCreateEdit('', 14, 34, 372, 292)
_WinAPI_SetParent(GUICtrlGetHandle(-1), $hTab)
GUICtrlCreateTabItem('Tab 3')
GUICtrlCreateTabItem('')
GUISetBkColor(0)

; Register Tab window proc
$hDll = DllCallbackRegister('_WinProc', 'ptr', 'hwnd;uint;wparam;lparam')
$pDll = DllCallbackGetPtr($hDll)
$hProc = _WinAPI_SetWindowLongEx($hTab, $GWL_WNDPROC, $pDll)

; Create the "sheet of glass" effect for the Tab client area. You must call this function whenever DWM composition is toggled.
$tMARGINS = DllStructCreate($tagMARGINS)
DllStructSetData($tMARGINS, 1, 2)
DllStructSetData($tMARGINS, 2, 2)
DllStructSetData($tMARGINS, 3, 82)
DllStructSetData($tMARGINS, 4, 2)
_WinAPI_DwmExtendFrameIntoClientArea($hForm, $tMARGINS)

GUISetState()

Do

Until GUIGetMsg() = -3

Func WM_NOTIFY($hWnd, $iMsg, $iwParam, $ilParam)
    #forceref $hWnd, $iMsg, $iwParam
    Local $hWndFrom, $iIDFrom, $iCode, $tNMHDR, $hWndSlider
    $hWndSlider = $hSlider
    If Not IsHWnd($hSlider) Then $hWndSlider = GUICtrlGetHandle($hSlider)

    $tNMHDR = DllStructCreate($tagNMHDR, $ilParam)
    $hWndFrom = HWnd(DllStructGetData($tNMHDR, "hWndFrom"))
    $iIDFrom = DllStructGetData($tNMHDR, "IDFrom")
    $iCode = DllStructGetData($tNMHDR, "Code")
    Switch $hWndFrom
        Case $hWndSlider
            winsettrans($hWnd,"", (Guictrlread($Slider)-255)*-1)

    EndSwitch
    Return "GUI_RUNDEFMSG"
EndFunc   ;==>WM_NOTIFY
Func _CreateClipRgn($hWnd)

    Local $tRECT, $hTmp, $hRgn, $Ht, $Count, $Sel

    $Count = _GUICtrlTab_GetItemCount($hWnd)
    $Sel = _GUICtrlTab_GetCurSel($hWnd)
    $hRgn = _WinAPI_CreateNullRgn()
    For $i = 0 To $Count - 1
        $tRECT = _GUICtrlTab_GetItemRectEx($hWnd, $i)
        If $i = $Sel Then
            $hTmp = _WinAPI_CreateRectRgn(DllStructGetData($tRECT, 1) - 2, DllStructGetData($tRECT, 2) - 2, DllStructGetData($tRECT, 3) + 2, DllStructGetData($tRECT, 4))
            $Ht = DllStructGetData($tRECT, 4) - DllStructGetData($tRECT, 2) + 2
        Else
            If $i = $Count - 1 Then
                $hTmp = _WinAPI_CreateRectRgn(DllStructGetData($tRECT, 1), DllStructGetData($tRECT, 2), DllStructGetData($tRECT, 3) - 2, DllStructGetData($tRECT, 4))
            Else
                $hTmp = _WinAPI_CreateRectRgn(DllStructGetData($tRECT, 1), DllStructGetData($tRECT, 2), DllStructGetData($tRECT, 3), DllStructGetData($tRECT, 4))
            EndIf
        EndIf
        _WinAPI_CombineRgn($hRgn, $hRgn, $hTmp, $RGN_OR)
        _WinAPI_DeleteObject($hTmp)
    Next
    $tRECT = _WinAPI_GetClientRect($hWnd)
    $hTmp = _WinAPI_CreateRectRgn(DllStructGetData($tRECT, 1), DllStructGetData($tRECT, 2) + $Ht, DllStructGetData($tRECT, 3) - 2, DllStructGetData($tRECT, 4) - 1)
    _WinAPI_CombineRgn($hRgn, $hRgn, $hTmp, $RGN_OR)
    _WinAPI_DeleteObject($hTmp)
    Return $hRgn
EndFunc   ;==>_CreateClipRgn

Func _WinProc($hWnd, $iMsg, $wParam, $lParam)
    If _WinAPI_IsThemeActive() Then
        Switch $iMsg
            Case $WM_ERASEBKGND

                Local $tRECT, $hBrush, $hRgn, $hPrev

                $hPrev = _WinAPI_GetClipRgn($wParam)
                $hRgn = _CreateClipRgn($hWnd)
                _WinAPI_ExtSelectClipRgn($wParam, $hRgn, $RGN_DIFF)
                $tRECT = _WinAPI_GetClientRect($hWnd)
                $hBrush = _WinAPI_CreateSolidBrush(0)
                _WinAPI_FillRect($wParam, DllStructGetPtr($tRECT), $hBrush)
                _WinAPI_SelectClipRgn($wParam, $hPrev)
                _WinAPI_DeleteObject($hBrush)
                _WinAPI_DeleteObject($hRgn)
                Return 1
            Case $WM_PAINT

                Local $tPAINTSTRUCT, $hDC, $hRgn

                $hDC = _WinAPI_BeginPaint($hWnd, $tPAINTSTRUCT)
                $hRgn = _CreateClipRgn($hWnd)
                _WinAPI_ExtSelectClipRgn($hDC, $hRgn, $RGN_AND)
                _WinAPI_CallWindowProc($hProc, $hWnd, $WM_PRINTCLIENT, $hDC, $PRF_CLIENT)
                _WinAPI_DeleteObject($hRgn)
                _WinAPI_EndPaint($hWnd, $tPAINTSTRUCT)
                Return 0
        EndSwitch
    EndIf
    Return _WinAPI_CallWindowProc($hProc, $hWnd, $iMsg, $wParam, $lParam)
EndFunc   ;==>_WinProc

Func OnAutoItExit()
    _WinAPI_SetWindowLongEx($hTab, $GWL_WNDPROC, $hProc)
    DllCallbackFree($hDll)
EndFunc   ;==>OnAutoItExit

Share this post


Link to post
Share on other sites
powerofos

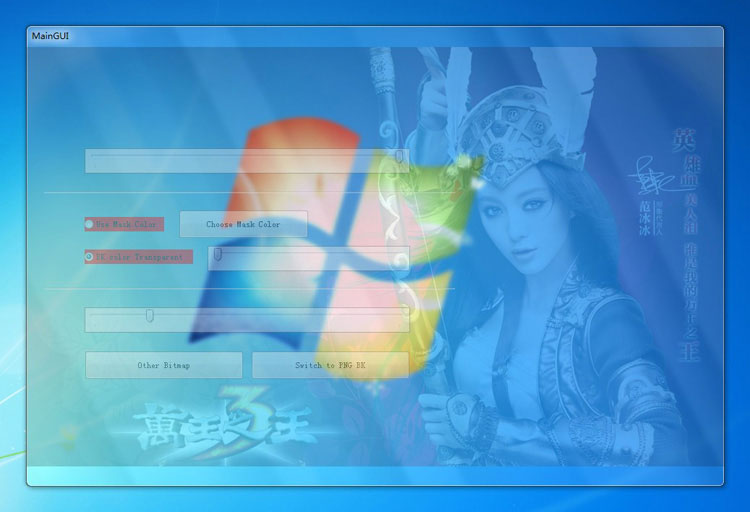

matbe some DWM functions, the pic seem to have the blur effect from aero but i can´t find the way to put the pic in the windows.. there an example of the function DwmExtendFrameIntoClientArea in the winapiex UDF

We only need to find a way to put a pic inside, and do the trasparent effect, and find out how to put the icons in the tabs..

#Include <Constants.au3>
#Include <GUITab.au3>
#Include <WinAPIEx.au3>

Opt('MustDeclareVars', 1)
Opt('TrayAutoPause', 0)

If Not _WinAPI_DwmIsCompositionEnabled() Then
    MsgBox(16, 'Error', 'Require Windows Vista or later with enabled Aero theme.')
    Exit
EndIf

Global Const $PRF_CLIENT = 0x04

Global $hForm, $hTab, $tMARGINS, $hDll, $pDll, $hProc

OnAutoItExitRegister('OnAutoItExit')

; Create GUI
$hForm = GUICreate('MyGUI', 400, 400)
GUICtrlCreateTab(0, 60, 402, 341, $WS_CLIPCHILDREN)
$hTab = GUICtrlGetHandle(-1)
GUICtrlCreateTabItem('Tab 1')
GUICtrlCreateButton('Button', 150, 167, 100, 26)
_WinAPI_SetParent(GUICtrlGetHandle(-1), $hTab)
GUICtrlCreateTabItem('Tab 2')
GUICtrlCreateEdit('', 14, 34, 372, 292)
_WinAPI_SetParent(GUICtrlGetHandle(-1), $hTab)
GUICtrlCreateTabItem('Tab 3')
GUICtrlCreateTabItem('')
GUISetBkColor(0)

; Register Tab window proc
$hDll = DllCallbackRegister('_WinProc', 'ptr', 'hwnd;uint;wparam;lparam')
$pDll = DllCallbackGetPtr($hDll)
$hProc = _WinAPI_SetWindowLongEx($hTab, $GWL_WNDPROC, $pDll)

; Create the "sheet of glass" effect for the Tab client area. You must call this function whenever DWM composition is toggled.
$tMARGINS = DllStructCreate($tagMARGINS)
DllStructSetData($tMARGINS, 1, 2)
DllStructSetData($tMARGINS, 2, 2)
DllStructSetData($tMARGINS, 3, 82)
DllStructSetData($tMARGINS, 4, 2)
_WinAPI_DwmExtendFrameIntoClientArea($hForm, $tMARGINS)

GUISetState()

Do
Until GUIGetMsg() = -3

Func _CreateClipRgn($hWnd)

    Local $tRECT, $hTmp, $hRgn, $Ht, $Count, $Sel

    $Count = _GUICtrlTab_GetItemCount($hWnd)
    $Sel = _GUICtrlTab_GetCurSel($hWnd)
    $hRgn = _WinAPI_CreateNullRgn()
    For $i = 0 To $Count - 1
        $tRECT = _GUICtrlTab_GetItemRectEx($hWnd, $i)
        If $i = $Sel Then
            $hTmp = _WinAPI_CreateRectRgn(DllStructGetData($tRECT, 1) - 2, DllStructGetData($tRECT, 2) - 2, DllStructGetData($tRECT, 3) + 2, DllStructGetData($tRECT, 4))
            $Ht = DllStructGetData($tRECT, 4) - DllStructGetData($tRECT, 2) + 2
        Else
            If $i = $Count - 1 Then
                $hTmp = _WinAPI_CreateRectRgn(DllStructGetData($tRECT, 1), DllStructGetData($tRECT, 2), DllStructGetData($tRECT, 3) - 2, DllStructGetData($tRECT, 4))
            Else
                $hTmp = _WinAPI_CreateRectRgn(DllStructGetData($tRECT, 1), DllStructGetData($tRECT, 2), DllStructGetData($tRECT, 3), DllStructGetData($tRECT, 4))
            EndIf
        EndIf
        _WinAPI_CombineRgn($hRgn, $hRgn, $hTmp, $RGN_OR)
        _WinAPI_DeleteObject($hTmp)
    Next
    $tRECT = _WinAPI_GetClientRect($hWnd)
    $hTmp = _WinAPI_CreateRectRgn(DllStructGetData($tRECT, 1), DllStructGetData($tRECT, 2) + $Ht, DllStructGetData($tRECT, 3) - 2, DllStructGetData($tRECT, 4) - 1)
    _WinAPI_CombineRgn($hRgn, $hRgn, $hTmp, $RGN_OR)
    _WinAPI_DeleteObject($hTmp)
    Return $hRgn
EndFunc   ;==>_CreateClipRgn

Func _WinProc($hWnd, $iMsg, $wParam, $lParam)
    If _WinAPI_IsThemeActive() Then
        Switch $iMsg
            Case $WM_ERASEBKGND

                Local $tRECT, $hBrush, $hRgn, $hPrev

                $hPrev = _WinAPI_GetClipRgn($wParam)
                $hRgn = _CreateClipRgn($hWnd)
                _WinAPI_ExtSelectClipRgn($wParam, $hRgn, $RGN_DIFF)
                $tRECT = _WinAPI_GetClientRect($hWnd)
                $hBrush = _WinAPI_CreateSolidBrush(0)
                _WinAPI_FillRect($wParam, DllStructGetPtr($tRECT), $hBrush)
                _WinAPI_SelectClipRgn($wParam, $hPrev)
                _WinAPI_DeleteObject($hBrush)
                _WinAPI_DeleteObject($hRgn)
                Return 1
            Case $WM_PAINT

                Local $tPAINTSTRUCT, $hDC, $hRgn

                $hDC = _WinAPI_BeginPaint($hWnd, $tPAINTSTRUCT)
                $hRgn = _CreateClipRgn($hWnd)
                _WinAPI_ExtSelectClipRgn($hDC, $hRgn, $RGN_AND)
                _WinAPI_CallWindowProc($hProc, $hWnd, $WM_PRINTCLIENT, $hDC, $PRF_CLIENT)
                _WinAPI_DeleteObject($hRgn)
                _WinAPI_EndPaint($hWnd, $tPAINTSTRUCT)
                Return 0
        EndSwitch
    EndIf
    Return _WinAPI_CallWindowProc($hProc, $hWnd, $iMsg, $wParam, $lParam)
EndFunc   ;==>_WinProc

Func OnAutoItExit()
    _WinAPI_SetWindowLongEx($hTab, $GWL_WNDPROC, $hProc)
    DllCallbackFree($hDll)
EndFunc   ;==>OnAutoItExit

@monoscout999,

"bingo"

I agree, that's what i done in my initial script, but i found i can't put the picture as the GUI background.

So i tried another GUI style, $popup.

What $popup brings to me? No shadow, no round corner, no frame, i just can't build a GUI look like the attached photo.

:)

Kim.Y

Share this post


Link to post
Share on other sites
powerofos

Thanks, Martin

Nice slider emample for me. :)

Kim.Y

Edited by powerofos

Share this post


Link to post
Share on other sites
powerofos

tip also did a fine job

Thanks taietel,

Yeah, i learnt something from tip's example, thanks tip

:)

Kim.Y

Share this post


Link to post
Share on other sites
monoscout999

This is way too hard... i got this

Posted Image

Posted Image

I use a tool called Restoration 2007 ( too hard to find ) Is like the resource hack, but with this i can open the aero.msstyles file and look for the PNGs files used by AERO theme. i need to modify many permission of windows before attempt to change anything of this file. and i don´t know if this file is exchangeable or not if you want to try here you got my hack file ( do a backup of yours before replace it with this and rename this file also ) Link to aero.msstyles file Also i left here a guide for customize win7 Guide, there also have the link for the program Restoration 2007 and a fully guide of how to change and customize your win7...

I think there must be an easiest and better way to do this.

Share this post


Link to post
Share on other sites
powerofos

This is way too hard... i got this

Posted Image

Posted Image

I use a tool called Restoration 2007 ( too hard to find ) Is like the resource hack, but with this i can open the aero.msstyles file and look for the PNGs files used by AERO theme. i need to modify many permission of windows before attempt to change anything of this file. and i don´t know if this file is exchangeable or not if you want to try here you got my hack file ( do a backup of yours before replace it with this and rename this file also ) Link to aero.msstyles file Also i left here a guide for customize win7 Guide, there also have the link for the program Restoration 2007 and a fully guide of how to change and customize your win7...

I think there must be an easiest and better way to do this.

Wow, good idea! :)

I will try it on.

I think i need more time to figure it out, thanks a lot.

Kim.Y

Share this post


Link to post
Share on other sites
monoscout999

Wow, good idea! :)

I will try it on.

I think i need more time to figure it out, thanks a lot.

Kim.Y

As i already says... is too hard!! i`m still looking for a simple way to do it.

Share this post


Link to post
Share on other sites
powerofos

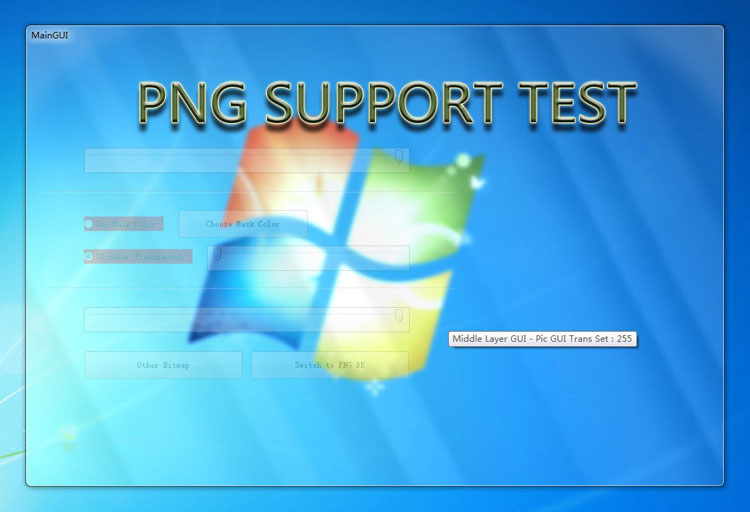

After a few day's working, i got a idea to approach my target,

i wish some one can give me a help so that i could make the script more consummate.

Please look at my sample script.

So far i still have a few questions to go on thinking:

1, Automate round corner fitting the Main GUI.(second GUI, third GUI and Main GUI, looks like "all in one")

2, Size of the original background picture is smaller then my major GUI.

3, Take a useful region from a picture if the target picture is too bigger to my main GUI.

post-41874-0-77520500-1310923839_thumb.j

post-41874-0-18479900-1310923849_thumb.j

post-41874-0-22829100-1310923863_thumb.j

;Code by Powerofos
#Include <GDIPlus.au3>
#Include <File.au3>
#Include <Misc.au3>
#include <GUIConstantsEx.au3>
#include <WinAPI.au3>
#Include <WinAPIEx.au3>
#Include <Constants.au3>
#Include <GUIConstantsEx.au3>
#Include <FontConstants.au3>
#Include <WindowsConstants.au3>
#include <StaticConstants.au3>

;~ #include "X_Init.au3" ;My private UDF.au3

OnAutoItExitRegister('OnAutoItExit')
_GDIPlus_Startup()


;====================================================================================================
;Init` data
Global $DefPicGUI_Trans = 55
Global $DefCtrlGUI_Trans = 55
Global $Width = 950         ;Size of major GUI
Global $Height = 600
Global $TipsOnOff = 0
Global $DefMaskColor = 0xABABAB
Global $DefChooseADD = ""
Global $CurBKOriSize[2]
Global Const $AC_SRC_ALPHA = 1
Global $Background_Pic = @ScriptDir&"\BK.jpg"        ;picture path
;~ Global $Background_Pic = @ScriptDir&"\BK2.png"       ;picture path

Global $MainGUI = GUICreate("MainGUI",$Width,$Height,-1,-1,BitOR($WS_POPUP,$WS_CAPTION))
GUISetBkColor(0x000000,$MainGUI)
$DwnLabel = GUICtrlGetHandle(GUICtrlCreateLabel("",0,0,$Width,$Height))
GUICtrlSetState(-1,$GUI_DISABLE)

Global $RegDllCall,$RegDllGetPtr,$RegDllProc
$RegDllCall = DllCallbackRegister("_WinProc","ptr","hwnd;uint;wparam;lparam")
$RegDllGetPtr = DllCallbackGetPtr($RegDllCall)
$RegDllProc = _WinAPI_SetWindowLong($DwnLabel,$GWL_WNDPROC,$RegDllGetPtr)

;~ Global $CtrlTest = GUICtrlCreateButton("MainGUI_CtrlTest",24,10,120,48) ;For Z order test
_WinAPI_DwmExtendFrameIntoClientArea($MainGUI)

Global $fSize_X = _WinAPI_GetSystemMetrics($SM_CXFRAME)
Global $fSize_Y = _WinAPI_GetSystemMetrics($SM_CYCAPTION)
Global $fSize_OffSet = 1
If $fSize_OffSet <> "" Then
    $fSize_X = $fSize_X-$fSize_OffSet
    $fSize_Y = $fSize_Y+$fSize_X
EndIf




;====================================================================================================
Global $Width2 = $Width+$fSize_X*2
Global $Height2 = $Height-20
$PicGUI = GUICreate("PicGUI",$Width2,$Height2,-$fSize_X,0,$WS_POPUP,BitOR($WS_EX_LAYERED,$WS_EX_MDICHILD),$MainGUI)
;~ $PicGUI = GUICreate("PicGUI",$Width,$Height,-$fSize_X,-$fSize_Y,$WS_POPUP,BitOR($WS_EX_LAYERED,$WS_EX_MDICHILD),$MainGUI)
_GDIPlus_DrawImageAsBackground($PicGUI,$Width2,$Height2,$Background_Pic,$DefPicGUI_Trans)
;~ Global $fSize_X2 = _WinAPI_GetSystemMetrics($SM_CXFRAME)
;~ Global $fSize_Y2 = _WinAPI_GetSystemMetrics($SM_CYCAPTION)
;~ Global $fSize_OffSet2 = 1
Global $fSize_X2 = 3
Global $fSize_Y2 = 3



;====================================================================================================

$CtrlGUI = GUICreate("",$Width2,$Height2,$fSize_X2,$fSize_Y2,$WS_POPUP,BitOR($WS_EX_LAYERED,$WS_EX_MDICHILD),$PicGUI)
GUISetBkColor($DefMaskColor,$CtrlGUI)
_WinAPI_SetLayeredWindowAttributes($CtrlGUI,0x010101)

$Slider3 = GUICtrlCreateSlider(80,140,450,35, $WS_BORDER)
GUICtrlSetData(-1,100)

GUICtrlCreateLabel("Seperate",24,200,570,20,$SS_ETCHEDHORZ)

GUIStartGroup()
$Radio1 = GUICtrlCreateRadio("Use Mask Color", 80,235,110,20)
GUICtrlSetState(-1,$gui_checked)
GUICtrlSetBkColor(-1,0xff0000) ;make me click the radio more easier in case of transparent GUI background
$Radio2 = GUICtrlCreateRadio("BK color Transparent ",80,280,150,20)
GUICtrlSetBkColor(-1,0xff0000)
GUIStartGroup()
$MaskBTN = GUICtrlCreateButton("Choose Mask Color",210,225,180,40)
$Slider2 = GUICtrlCreateSlider(250,275,280,35, $WS_BORDER)
GUICtrlSetData(-1,($DefCtrlGUI_Trans-55)/2)
_WinAPI_SetLayeredWindowAttributes($CtrlGUI, 0x010101, $DefCtrlGUI_Trans) ;Set Control GUI

GUICtrlCreateLabel("Seperate",24,333,570,20,$SS_ETCHEDHORZ)

$Slider = GUICtrlCreateSlider(80,360,450,35, $WS_BORDER)
GUICtrlSetData(-1,$DefPicGUI_Trans/255*100)
Global $SkinBTN = GUICtrlCreateButton("Other Bitmap",80,420,220,40)
Global $SwitchPNGBTN = GUICtrlCreateButton("Switch to PNG BK",310,420,220,40)



;====================================================================================================
;~ _GuiHole($PicGUI, $Width+14, 0, 300, $pic_H, $pic_w,$pic_H) ;cut the part of picture which over of main gui
GUISetState(@SW_SHOW,$CtrlGUI)
GUISetState(@SW_SHOW,$PicGUI)
GUISetState(@SW_SHOW,$MainGUI)


HotKeySet("{F2}","RoundCorner")
AdlibRegister("TipsProc",6000)

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
;~      Case $CtrlTest
;~          MsgBox(0,"","MainGUI_BTN")


        Case $SkinBTN
            SkinLoader()


        Case $SwitchPNGBTN
            If FileExists(@ScriptDir&"\BK2.png") Then
                $Background_Pic = @ScriptDir&"\BK2.png"
                _GDIPlus_DrawImageAsBackground($PicGUI,$Width2,$Height2,$Background_Pic,$DefPicGUI_Trans)
            Else
                MsgBox(0,"Error","No exist file: "&@ScriptDir&"\BK2.png")
            EndIf


        Case $Slider3
            Local $trans = Round(GUICtrlRead($Slider3)*2 + 55)
            WinSetTrans("MainGUI","",$trans)
            $TipsOnOff = 1
            ToolTip("Set MainGUI Trans:"&$trans)
            AdlibRegister("TipsProc",6000)


        Case $Slider2
            If BitAND(GUICtrlRead($Radio1), $GUI_CHECKED) = $GUI_CHECKED Then
                Local $trans = Round(GUICtrlRead($Slider2)*2 + 55)
                _WinAPI_SetLayeredWindowAttributes($CtrlGUI, 0x010101, $trans)
                $DefCtrlGUI_Trans = $trans
                $TipsOnOff = 1
                ToolTip("Use Mask Color:"&$DefMaskColor&"  |  Trans:"&$trans)
                AdlibRegister("TipsProc",6000)
            Else
                Local $trans = Round(GUICtrlRead($Slider2)*2 + 55)
                _WinAPI_SetLayeredWindowAttributes($CtrlGUI, $DefMaskColor, $trans)
                $DefCtrlGUI_Trans = $trans
                $TipsOnOff = 1
                ToolTip("BK color Transparent:Trans:"&$trans)
                AdlibRegister("TipsProc",6000)
            EndIf


        Case $Slider
            Local $trans = Round(GUICtrlRead($Slider)/100*255)
            _GDIPlus_DrawImageAsBackground($PicGUI,$Width2,$Height2,$Background_Pic,$trans)
            $DefPicGUI_Trans = $trans
            $TipsOnOff = 1
            ToolTip("Middle Layer GUI - Pic GUI Trans Set:"&$trans)
            AdlibRegister("TipsProc",6000)


        Case $Radio1
            If BitAND(GUICtrlRead($Radio1), $GUI_CHECKED) = $GUI_CHECKED Then
                _WinAPI_SetLayeredWindowAttributes($CtrlGUI, 0x010101, $DefCtrlGUI_Trans)
            EndIf


        Case $Radio2
            If BitAND(GUICtrlRead($Radio2), $GUI_CHECKED) = $GUI_CHECKED Then
                _WinAPI_SetLayeredWindowAttributes($CtrlGUI, $DefMaskColor, $DefCtrlGUI_Trans)
            EndIf


        Case $MaskBTN
            If BitAND(GUICtrlRead($Radio1), $GUI_CHECKED) = $GUI_CHECKED Then
                Local $NewColor = _ChooseColor(2,$DefMaskColor,2);,$CtrlGUI)
                If $NewColor = -1 Then ContinueLoop
                $DefMaskColor = $NewColor
                GUISetBkColor($DefMaskColor, $CtrlGUI)
                _WinAPI_SetLayeredWindowAttributes($CtrlGUI, 0x010101, $DefCtrlGUI_Trans)
            Else
                $TipsOnOff = 1
                ToolTip("Please switch mode by click the left side first radio")
                AdlibRegister("TipsProc",6000)
            EndIf


        Case $GUI_EVENT_CLOSE
            Exit
    EndSwitch
WEnd


Func SkinLoader()
    Local $FileOpen = FileOpenDialog("Bitmap selector",$DefChooseADD,"Bitmap(*.jpg;*.bmp;*png)",1)
    If @error Then Return
    $Background_Pic = $FileOpen
    _GDIPlus_DrawImageAsBackground($PicGUI,$Width2,$Height2,$Background_Pic,$DefPicGUI_Trans)
    Local $szDrive,$szDir,$szFName,$szExt
    _PathSplit(@ScriptFullPath,$szDrive,$szDir,$szFName,$szExt)
    $DefChooseADD = $szDrive&$szDir
EndFunc


Func RoundCorner()
    Local $RoundCorner = _WinAPI_CreateRoundRectRgn(0,0,$Width2,$Height2,$Width2/30,$Height2/30)
    _WinAPI_SetWindowRgn($PicGUI,$RoundCorner)

    Local $RoundCorner = _WinAPI_CreateRoundRectRgn(0,0,$Width2,$Height2,$Width2/30,$Height2/30)
    _WinAPI_SetWindowRgn($PicGUI,$RoundCorner)
EndFunc


Func TipsProc()
    If $TipsOnOff Then
        $TipsOnOff = 0
        ToolTip("")
    EndIf
    ReduceMemory() ;memory free, set transparent makes memory increase, amount 2000KB
EndFunc


Func _WinProc($hWnd, $iMsg, $wParam, $lParam)
    Switch $iMsg
        Case $WM_PAINT
            Local $hDC, $tPAINTSTRUCT
            $hDC = _WinAPI_BeginPaint($hWnd, $tPAINTSTRUCT)
            _WinAPI_EndPaint($hWnd, $tPAINTSTRUCT)
            Return 0
    EndSwitch
    Return _WinAPI_CallWindowProc($RegDllProc, $hWnd, $iMsg, $wParam, $lParam)
EndFunc   ;==>_WinProc


Func ReduceMemory()
    If @AutoItPID <> -1 Then
        Local $AI_Handle = DllCall("kernel32.dll","int","OpenProcess","int",0x1f0fff,"int",False,"int",@AutoItPID)
        Local $AI_Return = DllCall("psapi.dll","int","EmptyWorkingSet","long",$AI_Handle[0])
        DllCall("kernel32.dll","int","CloseHandle","int",$AI_Handle[0])
    Else
        Local $AI_Return = DllCall("psapi.dll","int","EmptyWorkingSet","long",-1)
    EndIf
    Return $AI_Return[0]
EndFunc


Func OnAutoItExit()
    _WinAPI_SetWindowLong($DwnLabel,$GWL_WNDPROC,$RegDllProc)
    DllCallbackFree($RegDllCall)
EndFunc


Func _GDIPlus_DrawImageAsBackground($ihWnd,$iRetain_W,$iRetain_H,$iBK_Path,$iTrans)
    Local $LoadedImage,$iCurBKOriSize[2],$hScreenDC,$hMemDC,$hBitmap,$hSelObj,$tSize,$pSize,$tSource,$pSource,$tBlend,$pBlend
    $LoadedImage = _GDIPlus_ImageLoadFromFile($iBK_Path)
    $iCurBKOriSize[0] = _GDIPlus_ImageGetWidth($LoadedImage)
    $iCurBKOriSize[1] = _GDIPlus_ImageGetHeight($LoadedImage)
    ;此处应 检测尺寸是否大于 主窗口, 否则 激发相应 function
;~  $CurBKOriSize = $iCurBKOriSize ;储存切换背景图后的新背景图原尺寸
    $hScreenDC = _WinAPI_GetDC(0)
    $hMemDC = _WinAPI_CreateCompatibleDC($hScreenDC)
    $hBitmap = _GDIPlus_BitmapCreateHBITMAPFromBitmap($LoadedImage)
    $hSelObj = _WinAPI_SelectObject($hMemDC,$hBitmap)
    $tSize = DllStructCreate($tagSIZE)
    $pSize = DllStructGetPtr($tSize)
    DllStructSetData($tSize,"X",$iRetain_W)
    DllStructSetData($tSize,"Y",$iRetain_H)
;~     DllStructSetData($tSize,"X",_GDIPlus_ImageGetWidth($LoadedImage))
;~     DllStructSetData($tSize,"Y",_GDIPlus_ImageGetWidth($LoadedImage))
    $tSource = DllStructCreate($tagPOINT)
    $pSource = DllStructGetPtr($tSource)
    $tBlend = DllStructCreate($tagBLENDFUNCTION)
    $pBlend = DllStructGetPtr($tBlend)
    DllStructSetData($tBlend,"Alpha",$iTrans)
    DllStructSetData($tBlend,"Format",$AC_SRC_ALPHA)
    _WinAPI_UpdateLayeredWindow($ihWnd,$hScreenDC,0,$pSize,$hMemDC,$pSource,0,$pBlend,$ULW_ALPHA)
    _WinAPI_ReleaseDC(0,$hScreenDC)
    _WinAPI_SelectObject($hMemDC,$hSelObj)
    _WinAPI_DeleteObject($hBitmap)
    _WinAPI_DeleteDC($hMemDC)
EndFunc

The dimension of the background picture must bigger then: 950X600, in not, please amend the script.

Kim.Y

SampleScript.rar

Edited by powerofos

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
Sign in to follow this

×

Important Information

We have placed cookies on your device to help make this website better. You can adjust your cookie settings, otherwise we'll assume you're okay to continue.
