timmy2

What's wrong with this picture (when displayed with GUICtrlCreatePic)?

6 posts in this topic

Here's a simple script I'm testing the ScreenCapture function with.

#include <ScreenCapture.au3>
#include <WindowsConstants.au3>
#include <GUIConstantsEx.au3>

; Capture region
_ScreenCapture_Capture(@ScriptDir & "\image.bmp", 290,18,1465,652,0)

$form=GUICreate("Test",1175,634,290,18,BitOR($WS_SYSMENU,$WS_POPUP),$WS_EX_COMPOSITED)


$PSimage=GUICtrlCreatePic(@ScriptDir & "\image.bmp", 0,0,1175,634)
GUISetState(@SW_SHOW)

MsgBox(0,"","Test of screen cap and display.")

.

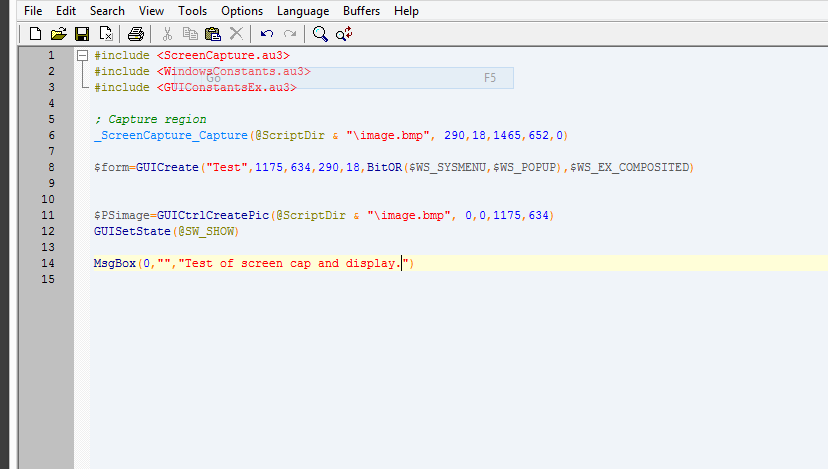

The above script captures an area of the screen (the SciTE editor with this script open), writes it to image.bmp, and displays image.bmp. The problem I'm having is when image.bmp is displayed using GUICtrlCreatePic the result is fuzzy.  Here's a SnagIt screen capture of what GUICtrlCreatePic displays.




Attached is image.bmp, which is sharp and equivalent to seeing the actual script open in SciTE on-screen.

Any suggestions for displaying an accurate rendition of ScreenCapture's output? (Must be borderless, no chrome, etc. -- equivalent to what my test script yields.)






Share this post


Link to post
Share on other sites



You can use e.g. GDI+ to display any image supported by GDI+ ->

Br,

UEZ


Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯  ٩(●̮̮̃•̃)۶ ٩(-̮̮̃-̃)۶ૐ

Share this post


Link to post
Share on other sites

#3 ·  Posted (edited)

For the specific example in the first post the cause for the flicker is possibly that the picture is resized.

If you make a screen capture with this command you'll get a much better picture:

_ScreenCapture_Capture(@ScriptDir & "\image.bmp", 290,18,1465-1,652-1,0)

If you need to resize the image you should not do it as simple as this. Use GDIPlus as UEZ has proposed or use a proper program.

Edited by LarsJ

Share this post


Link to post
Share on other sites

Thank you, LarsJ!!

I had no intention of resizing; just capturing the screen area and displaying it at 100%. I thought the screen capture dimensions in my example are 1175x634, so I could use the same values in GUICreate and GUITCtrlCreatePic. Why the need to capture one pixel less than the space (or am I just being dense)?

Share this post


Link to post
Share on other sites

You have miscalculated the size of the rectangle you're capturing. The formula to calculate the width of a rectangle on screen with left and right borders x1 and x2 when both borders are included is:

width = x2 - x1 + 1
Same for height. The size of the captured rectangle in the first post is 1176x635.

Share this post


Link to post
Share on other sites

You have miscalculated the size of the rectangle you're capturing. The formula to calculate the width of a rectangle on screen with left and right borders x1 and x2 when both borders are included is:

width = x2 - x1 + 1
Same for height. The size of the captured rectangle in the first post is 1176x635.





Thank you, LarsJ!
