j0kky

WinApi_GetAdaptersAddresses

10 posts in this topic

#1 ·  Posted (edited)

Hi guys,

there is no UDF wrappers for GetAdaptersAddresses API... till now :)

Here you are:

; #FUNCTION# ====================================================================================================================
; Name...........: _WinAPI_GetAdaptersAddresses
; Description ...: Retrieves the addresses associated with the adapters on the local computer.
; Syntax.........: _WinAPI_GetAdaptersAddresses($iFamily = 2, $iShowAll = 1, $iShowTunnel = 0)
; Parameters ....: $iFamily - IP type.
;                  |0 - Both
;                  |2 - IPv4 (default)
;                  |23 - IPv6
;                  $iShowAll - Presentation mode
;                  |0 - Short: only Unicast address(es) and Friendly Name columns are returned
;                  |1 - Long (default): all columns are returned but Anycast and Multicast columns return only the first address (it is not an array)
;                  |2 - Complete: all columns are returned, Anycast and Multicast columns return an array with the complete list of addresses
;                  $iShowTunnel - Shows or not tunnel interfaces
;                  |0 - Don't show (default)
;                  |1 - Show
; Return values .: On success it returns a bidimensional array: on rows there is the adapter list, these are the columns
;                  |0 - Preferred unicast address(es), it returns an array of addresses only if $iFamily == 0
;                  |1 - Friendly name
;                  |2 - Anycast addresses: if $iShowAll == 1 it returns the first anycast address of the list,
;                       if $iShowAll == 2 it returns an array with the complete list of anycast addresses
;                  |3 - Multicast addresses: if $iShowAll == 1 it returns the first multicast address of the list,
;                       if $iShowAll == 2 it returns an array with the complete list of multicast addresses
;                  |4 - DNS Server 1 address
;                  |5 - DNS Server 2 address
;                  |6 - Adapter Name
;                  |7 - Description
;                  |8 - MAC address
;                  |9 - Interface Type
;                  for example $array[2][8] represents the MAC address of the third adapter
;
;                  On failure it returns 0 and sets @error to non zero (these values are useful only for debugging reasons):
;                  |1 - incorrect parameters
;                  |2 - DllOpen error
;                  |3 - DllCall error

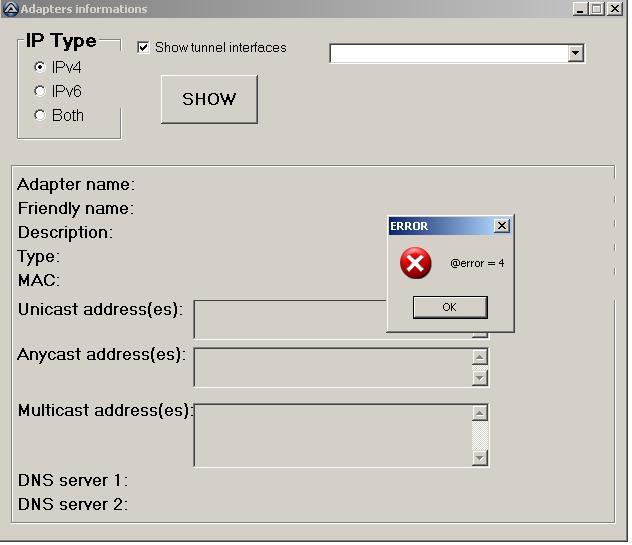

;                  |4 - _WinAPI_GetString error
;                  |5 - Query for IPv6 addresses and IPv6 is not installed on the OS
; Author ........: j0kky
; Modified ......: 1.1.3 13/02/15
; Remarks .......: This function is fully compatible with all OS from Windows XP onwards, there can be some problem using this function
;                  with $iFamily == 23 if the OS is prior to Windows XP SP1
; Link ..........: https://msdn.microsoft.com/en-us/library/windows/desktop/aa365915(v=vs.85).aspx
; ===============================================================================================================================
#include <WinAPIMisc.au3>
Func _WinAPI_GetAdaptersAddresses($iFamily = 2, $iShowAll = 1, $iShowTunnel = 0)
    If Not ($iFamily == 0 Or $iFamily == 2 Or $iFamily == 23) Or _
            Not ($iShowAll == 0 Or $iShowAll == 1 Or $iShowAll == 2) Or _
            Not ($iShowTunnel == 0 Or $iShowTunnel == 1) Then Return SetError(1, 0, 0)

    Local $aRet
    If $iFamily == 23 Then
        $aRet = DllCall("Ws2_32.dll", "int", "WSCEnumProtocols", "ptr", Null, "ptr", Null, "dword*", Null, "ptr", Null)
        Local $tlpProtocolBuffer = DllStructCreate("byte[" & $aRet[3] & "]")
        Local $plpProtocolBuffer = DllStructGetPtr($tlpProtocolBuffer)
        $aRet = DllCall("Ws2_32.dll", "int", "WSCEnumProtocols", "ptr", Null, "ptr", $plpProtocolBuffer, "dword*", $aRet[3], "ptr", Null)
        Local $tagWSAPROTOCOL_INFOW = "dword dwServiceFlags1; dword dwServiceFlags2; dword dwServiceFlags3; dword dwServiceFlags4; dword dwServiceFlags5; byte ProviderId[16]; " & _
                "dword dwCatalogEntryId; " & _
                "STRUCT; int ChainLen; dword ChainEntries[7]; ENDSTRUCT;" & _ ;ProtocolChain
                "int iVersion; int iAddressFamily; int iMaxSockAddr; int iMinSockAddr; int iSocketType; int iProtocol; int iProtocolMaxOffset; int iNetworkByteOrder; " & _
                "int iSecurityScheme; dword dwMessageSize; dword dwProviderReserved; wchar szProtocol[256]"
        Local $tWSAPROTOCOL_INFOW, $size
        For $i = 0 To $aRet[0] - 1
            If $i == 0 Then
                $tWSAPROTOCOL_INFOW = DllStructCreate($tagWSAPROTOCOL_INFOW, $plpProtocolBuffer)
            Else
                $tWSAPROTOCOL_INFOW = DllStructCreate($tagWSAPROTOCOL_INFOW, $plpProtocolBuffer + $size)
            EndIf
            If DllStructGetData($tWSAPROTOCOL_INFOW, "iAddressFamily") == 23 Then ExitLoop
            If $i == ($aRet[0] - 1) Then Return SetError(5, 0, 0) ;if IPv6 is not installed on the system
            $size += DllStructGetSize($tWSAPROTOCOL_INFOW)
        Next
    EndIf

    $hIphlpapi = DllOpen("Iphlpapi.dll")
    If @error Then Return SetError(2, 0, 0)

    $aRet = DllCall($hIphlpapi, "ULONG", "GetAdaptersAddresses", "ULONG", $iFamily, "ULONG", 0, "ptr", Null, "ptr", Null, "dword*", 0)
    If @error Then
        DllClose($hIphlpapi)
        Return SetError(3, 0, 0)
    EndIf

    Local $tbuffer_AdapterAddresses = DllStructCreate("byte[" & $aRet[5] & "]")
    Local $pbuffer_AdapterAddresses = DllStructGetPtr($tbuffer_AdapterAddresses)
    DllCall($hIphlpapi, "ULONG", "GetAdaptersAddresses", "ULONG", $iFamily, "ULONG", 0, "ptr", Null, "ptr", $pbuffer_AdapterAddresses, "dword*", $aRet[5])
    If @error Then
        DllClose($hIphlpapi)
        Return SetError(3, 0, 0)
    EndIf
    DllClose($hIphlpapi)

    Local Const $tagIP_ADAPTER_ADDRESSES = "ulong Length; dword IfIndex; ptr Next; ptr AdapterName; ptr FirstUnicastAddress; ptr FirstAnycastAddress; " & _
            "ptr FirstMulticastAddress; ptr FirstDnsServerAddress; ptr DnsSuffix; ptr Description; ptr FriendlyName; byte PhysicalAddress[8]; dword PhysicalAddressLength; " & _
            "dword Flags; dword Mtu; dword IfType; int OperStatus" ;valid on Windows XP
    #cs
        "dword Ipv6IfIndex; dword ZoneIndices[16]; ptr FirstPrefix; " & _ ;added on WinXP SP1
        "uint64 TransmitLinkSpeed; uint64 ReceiveLinkSpeed; ptr FirstWinsServerAddress; ptr FirstGatewayAddress; ulong Ipv4Metric; ulong Ipv6Metric; uint64 Luid; " & _
        "STRUCT; ptr Dhcpv4ServerlpSockaddr; int Dhcpv4ServeriSockaddrLength; ENDSTRUCT; " & _ ;Dhcpv4Server
        "uint CompartmentId; byte NetworkGuid[16]; int ConnectionType; int TunnelType; " & _
        "STRUCT; ptr Dhcpv6ServerlpSockaddr; int Dhcpv6ServeriSockaddrLength; ENDSTRUCT; " & _ ;Dhcpv6Server
        "byte Dhcpv6ClientDuid[130]; ulong Dhcpv6ClientDuidLength; ulong Dhcpv6Iaid; " & _ ;added on WinVista
        "ptr FirstDnsSuffix" ;added on WinVista SP1
    #ce

    Local Const $tagIP_ADAPTER_UNICAST_ADDRESS = "ulong Length; dword Flags; ptr Next; " & _
            "STRUCT; ptr AddresslpSockaddr; int AddressiSockaddrLength; ENDSTRUCT; " & _ ;Address
            "int PrefixOrigin; int SuffixOrigin; int DadState; ulong ValidLifetime; ulong PreferredLifetime; ulong LeaseLifetime"
    #cs
        "byte OnLinkPrefixLength" ;added on WinVista
    #ce

    Local $tIP_ADAPTER_ADDRESSES = DllStructCreate($tagIP_ADAPTER_ADDRESSES, $pbuffer_AdapterAddresses)

    Local $nAdapter = 0, $pUnicastAddress, $tIP_ADAPTER_UNICAST_ADDRESS, $plpSockaddr, $iSockaddrLength, $tbuffer_lpszAddressString, $pbuffer_lpszAddressString
    Local Const $IfOperStatusUp = 1, $IF_TYPE_SOFTWARE_LOOPBACK = 24, $IF_TYPE_TUNNEL = 131, $IpDadStatePreferred = 4, $pNull = Ptr(0)

    If $iShowAll Then
        Local $nColumns = 10
        Local Const $tagIP_ADAPTER_ANYCAST_ADDRESS = "ulong Length; dword Flags; ptr Next; " & _
                "STRUCT; ptr AddresslpSockaddr; int AddressiSockaddrLength; ENDSTRUCT" ;Address
        Local Const $tagIP_ADAPTER_MULTICAST_ADDRESS = $tagIP_ADAPTER_ANYCAST_ADDRESS
        Local Const $tagIP_ADAPTER_DNS_SERVER_ADDRESS = "ulong Length; dword Reserved; ptr Next; " & _
                "STRUCT; ptr AddresslpSockaddr; int AddressiSockaddrLength; ENDSTRUCT" ;Address
        Local $pAnycastAddress, $tIP_ADAPTER_ANYCAST_ADDRESS, $pMulticastAddress, $tIP_ADAPTER_MULTICAST_ADDRESS, $pDnsServerAddress, $tADAPTER_DNS_SERVER_ADDRESS, $sMAC
        Local Const $IF_TYPE_ETHERNET_CSMACD = 6, $IF_TYPE_IEEE80211 = 71, $IF_TYPE_IEEE1394 = 144
    Else
        Local $nColumns = 2
    EndIf

    Local $aResult[$nAdapter][$nColumns]

    $hWs2_32 = DllOpen("Ws2_32.dll")
    If @error Then Return SetError(2, 0, 0)
    TCPStartup()

    Do
        If DllStructGetData($tIP_ADAPTER_ADDRESSES, "OperStatus") == $IfOperStatusUp And _
                Not (DllStructGetData($tIP_ADAPTER_ADDRESSES, "IfType") == $IF_TYPE_SOFTWARE_LOOPBACK) And _
                (Not (DllStructGetData($tIP_ADAPTER_ADDRESSES, "IfType") == $IF_TYPE_TUNNEL) Or $iShowTunnel) Then
            ;if it's connected and it is not a loopback and it is a tunnel interface (only if $iShowTunnel == 1)

            $nAdapter += 1
            ReDim $aResult[$nAdapter][$nColumns]

            ;Unicast address(es)
            $pUnicastAddress = DllStructGetData($tIP_ADAPTER_ADDRESSES, "FirstUnicastAddress")
            $tIP_ADAPTER_UNICAST_ADDRESS = DllStructCreate($tagIP_ADAPTER_UNICAST_ADDRESS, $pUnicastAddress)
            If Not $iFamily Then Local $aAddresses[0], $iCounter = -1

            Do
                ;write the PREFERRED address for this adapter, it writes both IPV4 and IPV6 preferred addresses in an array if $iFamily == 0
                If DllStructGetData($tIP_ADAPTER_UNICAST_ADDRESS, "DadState") == $IpDadStatePreferred Then
                    $plpSockaddr = DllStructGetData($tIP_ADAPTER_UNICAST_ADDRESS, "AddresslpSockaddr")
                    $iSockaddrLength = DllStructGetData($tIP_ADAPTER_UNICAST_ADDRESS, "AddressiSockaddrLength")
                    $aRet = DllCall($hWs2_32, "int", "WSAAddressToString", "ptr", $plpSockaddr, "int", $iSockaddrLength, "ptr", Null, "byte*", Null, "dword*", 0)
                    If @error Then
                        DllClose($hWs2_32)
                        Return SetError(3, 0, 0)
                    EndIf

                    $tbuffer_lpszAddressString = DllStructCreate("wchar[" & $aRet[5] & "]")
                    $pbuffer_lpszAddressString = DllStructGetPtr($tbuffer_lpszAddressString)
                    $aRet = DllCall($hWs2_32, "int", "WSAAddressToStringW", "ptr", $plpSockaddr, "int", $iSockaddrLength, "ptr", Null, "ptr", $pbuffer_lpszAddressString, "dword*", $aRet[5])
                    If @error Then
                        DllClose($hWs2_32)
                        Return SetError(3, 0, 0)
                    EndIf

                    If $iFamily Then
                        $aResult[$nAdapter - 1][0] = _WinAPI_GetString($pbuffer_lpszAddressString)
                        If @error And @error <> 10 Then
                            DllClose($hWs2_32)
                            Return SetError(4, 0, 0)
                        EndIf
                        ExitLoop
                    Else
                        $iCounter = UBound($aAddresses)
                        ReDim $aAddresses[$iCounter + 1]
                        $aAddresses[$iCounter] = _WinAPI_GetString($pbuffer_lpszAddressString)
                        If @error And @error <> 10 Then
                            DllClose($hWs2_32)
                            Return SetError(4, 0, 0)
                        EndIf
                    EndIf
                EndIf

                $pUnicastAddress = DllStructGetData($tIP_ADAPTER_UNICAST_ADDRESS, "Next")
                If Not ($pUnicastAddress == $pNull) Then
                    $tIP_ADAPTER_UNICAST_ADDRESS = DllStructCreate($tagIP_ADAPTER_UNICAST_ADDRESS, $pUnicastAddress)
                EndIf
            Until $pUnicastAddress == $pNull

            If Not $iFamily Then
                If $iCounter < 0 Then ReDim $aAddresses[1] ;if there is no preferred unicast addresses for this adapter, I don't know if it can happens
                $aResult[$nAdapter - 1][0] = $aAddresses
            EndIf

            ;FriendlyName
            $aResult[$nAdapter - 1][1] = _WinAPI_GetString(DllStructGetData($tIP_ADAPTER_ADDRESSES, "FriendlyName"))
            If @error And @error <> 10 Then
                DllClose($hWs2_32)
                Return SetError(4, 0, 0)
            EndIf

            If $iShowAll Then

                ;Anycast address, it shows only the first one if $iShowAll == 1
                $pAnycastAddress = DllStructGetData($tIP_ADAPTER_ADDRESSES, "FirstAnycastAddress")
                If Not ($pAnycastAddress == $pNull) Then
                    $tIP_ADAPTER_ANYCAST_ADDRESS = DllStructCreate($tagIP_ADAPTER_ANYCAST_ADDRESS, $pAnycastAddress)
                    If $iShowAll == 2 Then Local $aAddresses[0]
                    While $pMulticastAddress <> $pNull
                        $plpSockaddr = DllStructGetData($tIP_ADAPTER_ANYCAST_ADDRESS, "AddresslpSockaddr")
                        $iSockaddrLength = DllStructGetData($tIP_ADAPTER_ANYCAST_ADDRESS, "AddressiSockaddrLength")
                        $aRet = DllCall($hWs2_32, "int", "WSAAddressToString", "ptr", $plpSockaddr, "int", $iSockaddrLength, "ptr", Null, "byte*", Null, "dword*", 0)
                        If @error Then
                            DllClose($hWs2_32)
                            Return SetError(3, 0, 0)
                        EndIf

                        $tbuffer_lpszAddressString = DllStructCreate("wchar[" & $aRet[5] & "]")
                        $pbuffer_lpszAddressString = DllStructGetPtr($tbuffer_lpszAddressString)
                        $aRet = DllCall($hWs2_32, "int", "WSAAddressToStringW", "ptr", $plpSockaddr, "int", $iSockaddrLength, "ptr", Null, "ptr", $pbuffer_lpszAddressString, "dword*", $aRet[5])
                        If @error Then
                            DllClose($hWs2_32)
                            Return SetError(3, 0, 0)
                        EndIf

                        If $iShowAll == 2 Then
                            $iCounter = UBound($aAddresses)
                            ReDim $aAddresses[$iCounter + 1]
                            $aAddresses[$iCounter] = _WinAPI_GetString($pbuffer_lpszAddressString)
                            If @error And @error <> 10 Then
                                DllClose($hWs2_32)
                                Return SetError(4, 0, 0)
                            EndIf
                        Else
                            $aResult[$nAdapter - 1][2] = _WinAPI_GetString($pbuffer_lpszAddressString)
                            If @error And @error <> 10 Then
                                DllClose($hWs2_32)
                                Return SetError(4, 0, 0)
                            EndIf
                            ExitLoop
                        EndIf

                        $pAnycastAddress = DllStructGetData($tIP_ADAPTER_ANYCAST_ADDRESS, "Next")
                        If Not ($pAnycastAddress == $pNull) Then
                            $tIP_ADAPTER_ANYCAST_ADDRESS = DllStructCreate($tagIP_ADAPTER_ANYCAST_ADDRESS, $pAnycastAddress)
                        EndIf
                    WEnd

                    If $iShowAll == 2 Then
                        If $aAddresses[0] Then $aResult[$nAdapter - 1][2] = $aAddresses
                    EndIf
                EndIf

                ;Multicast address, it shows only the first one if $iShowAll == 1
                $pMulticastAddress = DllStructGetData($tIP_ADAPTER_ADDRESSES, "FirstMulticastAddress")
                If Not ($pMulticastAddress == $pNull) Then
                    $tIP_ADAPTER_MULTICAST_ADDRESS = DllStructCreate($tagIP_ADAPTER_MULTICAST_ADDRESS, $pMulticastAddress)
                    If $iShowAll == 2 Then Local $aAddresses[0]
                    While $pMulticastAddress <> $pNull
                        $plpSockaddr = DllStructGetData($tIP_ADAPTER_MULTICAST_ADDRESS, "AddresslpSockaddr")
                        $iSockaddrLength = DllStructGetData($tIP_ADAPTER_MULTICAST_ADDRESS, "AddressiSockaddrLength")
                        $aRet = DllCall($hWs2_32, "int", "WSAAddressToString", "ptr", $plpSockaddr, "int", $iSockaddrLength, "ptr", Null, "byte*", Null, "dword*", 0)
                        If @error Then
                            DllClose($hWs2_32)
                            Return SetError(3, 0, 0)
                        EndIf

                        $tbuffer_lpszAddressString = DllStructCreate("wchar[" & $aRet[5] & "]")
                        $pbuffer_lpszAddressString = DllStructGetPtr($tbuffer_lpszAddressString)
                        $aRet = DllCall($hWs2_32, "int", "WSAAddressToStringW", "ptr", $plpSockaddr, "int", $iSockaddrLength, "ptr", Null, "ptr", $pbuffer_lpszAddressString, "dword*", $aRet[5])
                        If @error Then
                            DllClose($hWs2_32)
                            Return SetError(3, 0, 0)
                        EndIf

                        If $iShowAll == 2 Then
                            $iCounter = UBound($aAddresses)
                            ReDim $aAddresses[$iCounter + 1]
                            $aAddresses[$iCounter] = _WinAPI_GetString($pbuffer_lpszAddressString)
                            If @error And @error <> 10 Then
                                DllClose($hWs2_32)
                                Return SetError(4, 0, 0)
                            EndIf
                        Else
                            $aResult[$nAdapter - 1][3] = _WinAPI_GetString($pbuffer_lpszAddressString)
                            If @error And @error <> 10 Then
                                DllClose($hWs2_32)
                                Return SetError(4, 0, 0)
                            EndIf
                            ExitLoop
                        EndIf

                        $pMulticastAddress = DllStructGetData($tIP_ADAPTER_MULTICAST_ADDRESS, "Next")
                        If Not ($pMulticastAddress == $pNull) Then
                            $tIP_ADAPTER_MULTICAST_ADDRESS = DllStructCreate($tagIP_ADAPTER_MULTICAST_ADDRESS, $pMulticastAddress)
                        EndIf
                    WEnd

                    If $iShowAll == 2 Then
                        If $aAddresses[0] Then $aResult[$nAdapter - 1][3] = $aAddresses
                    EndIf
                EndIf

                ;DnsServer 1 and 2
                $pDnsServerAddress = DllStructGetData($tIP_ADAPTER_ADDRESSES, "FirstDnsServerAddress")
                If Not ($pDnsServerAddress == $pNull) Then
                    $tADAPTER_DNS_SERVER_ADDRESS = DllStructCreate($tagIP_ADAPTER_DNS_SERVER_ADDRESS, $pDnsServerAddress)
                    For $iCounter = 4 To 5
                        $plpSockaddr = DllStructGetData($tADAPTER_DNS_SERVER_ADDRESS, "AddresslpSockaddr")
                        $iSockaddrLength = DllStructGetData($tADAPTER_DNS_SERVER_ADDRESS, "AddressiSockaddrLength")
                        $aRet = DllCall($hWs2_32, "int", "WSAAddressToString", "ptr", $plpSockaddr, "int", $iSockaddrLength, "ptr", Null, "byte*", Null, "dword*", 0)
                        If @error Then
                            DllClose($hWs2_32)
                            Return SetError(3, 0, 0)
                        EndIf

                        $tbuffer_lpszAddressString = DllStructCreate("wchar[" & $aRet[5] & "]")
                        $pbuffer_lpszAddressString = DllStructGetPtr($tbuffer_lpszAddressString)
                        $aRet = DllCall($hWs2_32, "int", "WSAAddressToStringW", "ptr", $plpSockaddr, "int", $iSockaddrLength, "ptr", Null, "ptr", $pbuffer_lpszAddressString, "dword*", $aRet[5])
                        If @error Then
                            DllClose($hWs2_32)
                            Return SetError(3, 0, 0)
                        EndIf

                        $aResult[$nAdapter - 1][$iCounter] = _WinAPI_GetString($pbuffer_lpszAddressString)
                        If @error And @error <> 10 Then
                            DllClose($hWs2_32)
                            Return SetError(4, 0, 0)
                        EndIf

                        $pDnsServerAddress = DllStructGetData($tADAPTER_DNS_SERVER_ADDRESS, "Next")
                        If Not ($pDnsServerAddress == $pNull) Then
                            $tADAPTER_DNS_SERVER_ADDRESS = DllStructCreate($tagIP_ADAPTER_DNS_SERVER_ADDRESS, $pDnsServerAddress)
                        Else
                            ExitLoop
                        EndIf
                    Next
                EndIf

                ;AdapterName
                $aResult[$nAdapter - 1][6] = _WinAPI_GetString(DllStructGetData($tIP_ADAPTER_ADDRESSES, "AdapterName"), False)
                If @error And @error <> 10 Then
                    DllClose($hWs2_32)
                    Return SetError(4, 0, 0)
                EndIf

                ;Description
                $aResult[$nAdapter - 1][7] = _WinAPI_GetString(DllStructGetData($tIP_ADAPTER_ADDRESSES, "Description"))
                If @error And @error <> 10 Then
                    DllClose($hWs2_32)
                    Return SetError(4, 0, 0)
                EndIf

                ;MAC
                $sMAC = String(DllStructGetData($tIP_ADAPTER_ADDRESSES, "PhysicalAddress"))
                $aResult[$nAdapter - 1][8] = StringRegExpReplace( _
                        StringTrimRight(StringTrimLeft($sMAC, 2), _ ;0x
                        StringLen($sMAC) - ((DllStructGetData($tIP_ADAPTER_ADDRESSES, "PhysicalAddressLength") * 2) + 2)), _
                        "(.{2})(?!$)", "$1-") ;from 0xG4V4B5B4V2N2000000 to G4-V4-B5-B4-V2-N2

                ;IfType
                Switch DllStructGetData($tIP_ADAPTER_ADDRESSES, "IfType")
                    Case $IF_TYPE_ETHERNET_CSMACD
                        Switch @OSVersion
                            Case "WIN_XP", "WIN_XPe", "WIN_2003"
                                $aResult[$nAdapter - 1][9] = "Ethernet or wireless network interface"
                            Case Else
                                $aResult[$nAdapter - 1][9] = "Ethernet network interface"
                        EndSwitch
                    Case $IF_TYPE_IEEE80211
                        $aResult[$nAdapter - 1][9] = "Wireless network interface"
                    Case $IF_TYPE_TUNNEL
                        $aResult[$nAdapter - 1][9] = "Tunnel type encapsulation network interface"
                    Case $IF_TYPE_IEEE1394
                        $aResult[$nAdapter - 1][9] = "Firewire network interface"
                    Case Else
                        $aResult[$nAdapter - 1][9] = "Other type of network interface"
                EndSwitch

            EndIf
        EndIf

        $pbuffer_AdapterAddresses = DllStructGetData($tIP_ADAPTER_ADDRESSES, "Next")
        If Not ($pbuffer_AdapterAddresses == $pNull) Then
            $tIP_ADAPTER_ADDRESSES = DllStructCreate($tagIP_ADAPTER_ADDRESSES, $pbuffer_AdapterAddresses)

        EndIf
    Until $pbuffer_AdapterAddresses == $pNull

    TCPShutdown()
    DllClose($hWs2_32)
    Return $aResult
EndFunc   ;==>_WinAPI_GetAdaptersAddresses

It is really useful because it can retrieve all informations needed for every adapters and it works with IPv6 too (opposite of GetAdaptersInfo, that supports only IPv4).

I've made it compatible with every OS (from Windows XP).

Test it and report any bug in this topic, please!

I've attached an example about how it can be used, enjoy it :)

EDIT:

Last UDF version: 13th February 2015

GetAdaptersAddresses.au3

Edited by j0kky
4 people like this

Share this post


Link to post
Share on other sites



Nice work j0kky.  :thumbsup:

Br,

UEZ


Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯  ٩(●̮̮̃•̃)۶ ٩(-̮̮̃-̃)۶ૐ

Share this post


Link to post
Share on other sites

i got this error after i tick IPv6 & click show


Share this post


Link to post
Share on other sites

#5 ·  Posted (edited)

Which Operative System and Service Pack do you have?

EDIT:

And what happens if you click on "both" and then on show? Is it the same output of "IPv4"?

Edited by j0kky

Share this post


Link to post
Share on other sites

hey

latest autoit

windows xp sp3 pro

ipv4

post-87546-0-09023100-1423388026_thumb.j

Share this post


Link to post
Share on other sites

@Spider001: thank you for the feedback, there is an error in _WinApi_GetString documentation:



If the pointer is incorrect, _WinAPI_GetString() does not set the @error flag but always returns an empty string.

False, if the pointer is incorrect or the buffer is empty, it sets @error to 10, example:

_WinAPI_GetString(Ptr(0))
_WinAPI_GetString(Ptr(Random(1, 10000)))

always return an empty string and set @error to 10.

I've modified suitably the UDF in the first post :)

Test it and report any bug, please!

Share this post


Link to post
Share on other sites

no error's

but i don't now if this is normal no data on the last listview's ?

post-87546-0-38711500-1423474047_thumb.j

Share this post


Link to post
Share on other sites

#10 ·  Posted (edited)

Finally I solved the issue with Windows XP:

WSAAddressToString on WinXP doesn't like the Null pointer as fourth parameter:

$aRet = DllCall($hWs2_32, "int", "WSAAddressToString", "ptr", $plpSockaddr, "int", $iSockaddrLength, "ptr", Null, "ptr", Null, "dword*", 0)

so, this is the workaround:

$aRet = DllCall($hWs2_32, "int", "WSAAddressToString", "ptr", $plpSockaddr, "int", $iSockaddrLength, "ptr", Null, "byte*", Null, "dword*", 0)

I've edited the first post with the correct UDF and the new example script.

Thanks to Spider001 for testing my scripts :)

Test it and report any bug in this topic, please!

Edited by j0kky
1 person likes this

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!


Register a new account

Sign in

Already have an account? Sign in here.


Sign In Now

  • Similar Content

    • NHD
      By NHD
      Hi,
      I've been translated code from FreeBasic to AutoIt. And it didn't work correctly.
      Please help me!
      FreeBasic:
      #Include Once "windows.bi" #Define _RGB(r,g,b) BGR(b,g,r) CONST GRADIENT_FILL_RECT_H = 0 CONST GRADIENT_FILL_RECT_V = 1 Dim Shared hInstance As HINSTANCE ' This dll is located in Windows directory DECLARE FUNCTION Gradientfill Lib "MSIMG32" ALIAS "GradientFill" _ (hDC AS HDC, pVertex As PTRIVERTEX, dwNumVertex As Integer,pMesh AS PGRADIENT_RECT, dwNumMesh As Integer, dwMode As Integer) As Integer '******************************************************************** ' A FB Control Template '******************************************************************** Declare Function NiceButt(ByVal hWnd as HWND,byval Msg as UINT,byval wParam as WPARAM,byval lParam as LPARAM) as LRESULT Declare FUNCTION IsMouseOver (hWnd As HWND )As Integer Declare SUB Draw_Gradient (hdc as HDC, x As Integer, y As integer, w As integer, h As Integer, r As integer, g As integer, b As integer) Declare FUNCTION Register_NiceButt()As Integer ' 'Windows calls this function when the dll is loaded. /'Function DllMain alias "MAIN"(byval hModule as HMODULE,byval reason as Integer,byval lpReserved as LPVOID) as BOOL Select case reason case DLL_PROCESS_ATTACH hInstance=hModule Register_NiceButt() MessageBox(GetActiveWindow(),"OK","OK",MB_OK) Return 0 case DLL_PROCESS_DETACH ' end select return TRUE end function '/ FUNCTION Register_NiceButt()As Integer Export DIM wc AS WNDCLASSEX DIM szClassName As String szClassName = "NiceButt" wc.cbSize = SIZEOF(WNDCLASSEX) wc.style = CS_HREDRAW OR CS_VREDRAW OR CS_GLOBALCLASS wc.hInstance = GetmoduleHandle(0) 'hInstance wc.hbrBackground = Cast(HBRUSH,COLOR_BTNFACE+1) wc.lpszClassName = StrPtr(szClassName) wc.lpfnWndProc = @NiceButt wc.cbClsExtra = 0 wc.cbWndExtra = 0 wc.hIcon = 0 wc.hCursor = 0 wc.lpszMenuName = 0 wc.hIconSm = 0 FUNCTION = RegisterClassEx(@wc) END FUNCTION '******************************************************************** ' Custom Control Procedure '******************************************************************** Function NiceButt(ByVal hWnd as HWND,byval Msg as UINT,byval wParam as WPARAM,byval lParam as LPARAM) as LRESULT STATIC As Integer ButtDown,mouseover STATIC Captured AS HWND SELECT Case Msg '************************** CASE WM_CREATE '************************** DIM Region AS HRGN DIM Rct AS RECT DIM As Integer x, y, w, h ButtDown = FALSE GetClientRect (hWnd,@Rct) ' <<-- Get the size of our control x = Rct.left y = Rct.top w = Rct.right - Rct.left h = Rct.bottom - Rct.top 'Region = CreateRoundRectRgn(10,10,w,h, h * 0.90 , h * 0.90 ) 'SetWindowRgn (hWnd,Region,True) InvalidateRect(hWnd,0,0) 'EXIT FUNCTION ' ******************* CASE WM_PAINT ' ******************* DIM hDC AS HDC DIM ps AS PAINTSTRUCT DIM hPen AS HPEN DIM hBrush AS HBRUSH DIM hOldBrush AS HBRUSH DIM Rct AS RECT DIM Size AS SIZE DIM T As ZString*2048 DIM As Integer i DIM As Integer XCtr DIM As Integer YCtr DIM As Integer x,y,w,h DIM As Integer r,g,b ' ******************* GetClientRect (hWnd,@Rct) ' <<-- Get the size of our control x = Rct.left y = Rct.top w = Rct.right - Rct.left h = Rct.bottom - Rct.top XCtr = (Rct.left + Rct.right) / 2 ' Horizontal center of our ctrl YCtr = (Rct.top + Rct.bottom) / 2 ' Vertical center of our ctrl GetWindowText(hWnd,T ,255) ' Grab a copy of control caption '********************************** ' Draw our control '********************************** hDC = BeginPaint (hWnd, @ps) GetTextExtentPoint32(hDC, T , LEN(T),@Size) ' Get caption size r = 30 : g = 90 : b = 90 Draw_Gradient (hDC, x, y, w, h, r, g, b) SetBkMode (hDC,TRANSPARENT) IF ButtDown THEN SetTextColor(hDC,_RGB(255,0,0)) TextOut(hDC, XCtr-(Size.cx/2)+1, YCtr-(Size.cy/2)+1,T,LEN(T)) ELSE SetTextColor(hDC,_RGB(0,0,255)) TextOut(hDC, XCtr-Size.cx/2, YCtr-Size.cy/2,T,LEN(T)) END IF EndPaint (hWnd,@ps) 'EXIT FUNCTION '****************************** CASE WM_LBUTTONUP '****************************** IF hWnd = Captured THEN DIM hParent AS HWND ReleaseCapture() ButtDown = FALSE InvalidateRect(hWnd,0,0) hParent=GetParent(hWnd) SendMessage(hParent,WM_COMMAND,MAKELONG(GetWindowLong(hWnd,GWL_ID), BN_CLICKED),Cast(LONG,hWnd)) END IF 'EXIT FUNCTION '****************************** CASE WM_LBUTTONDOWN '****************************** SetCapture(hWnd) Captured = hWnd ButtDown = TRUE SetFocus (hWnd) InvalidateRect(hWnd,0,0) 'EXIT FUNCTION '****************************** CASE WM_MOUSEMOVE '****************************** IF ButtDown THEN IF IsMouseOver(hWnd) THEN ButtDown = TRUE InvalidateRect(hWnd,0,0) ELSE ReleaseCapture() ButtDown = FALSE InvalidateRect(hWnd,0,0) END IF END IF 'EXIT FUNCTION '****************************** CASE WM_MOVING '****************************** ReleaseCapture() ButtDown = FALSE InvalidateRect(hWnd,0,0) 'EXIT FUNCTION '****************************** CASE WM_SIZE '****************************** ReleaseCapture() ButtDown = FALSE InvalidateRect(hWnd,0,0) 'EXIT FUNCTION END Select Return DefWindowProc(hwnd,Msg,wparam,lparam) END FUNCTION SUB Draw_Gradient (hdc as HDC, x As Integer, y As integer, w As integer, h As Integer, r As integer, g As integer, b As integer) DIM Vert(2) AS TRIVERTEX DIM Rect AS GRADIENT_RECT '****************************************************** Vert (0).x = 0 Vert (0).y = 0 Vert (0).Red = 65535-(65535-(r*256)) Vert (0).Green = 65535-(65535-(g*256)) Vert (0).Blue = 65535-(65535-(b*256)) Vert (0).Alpha = 0 '****************************************************** Vert (1).x = w Vert (1).y = h/2 Vert (1).Red = 65535-(65535-(255*256)) Vert (1).Green = 65535-(65535-(255*256)) Vert (1).Blue = 65535-(65535-(255*256)) Vert (1).Alpha = 0 '****************************************************** Rect.UpperLeft = 0 Rect.LowerRight = 1 '****************************************************** Gradientfill(hdc,@Vert(0),2,@Rect,1,GRADIENT_FILL_RECT_V) '****************************************************** Vert (0).x = 0 Vert (0).y = h/2 Vert (0).Red = 65535-(65535-(255*256)) Vert (0).Green = 65535-(65535-(255*256)) Vert (0).Blue = 65535-(65535-(255*256)) Vert (0).Alpha = 0 '****************************************************** Vert (1).x = w Vert (1).y = h Vert (1).Red = 65535-(65535-(r*256)) Vert (1).Green = 65535-(65535-(g*256)) Vert (1).Blue = 65535-(65535-(b*256)) Vert (1).Alpha = 0 '****************************************************** Rect.UpperLeft = 0 Rect.LowerRight = 1 '****************************************************** Gradientfill(hdc,@Vert(0),2,@Rect,1,GRADIENT_FILL_RECT_V) END SUB FUNCTION IsMouseOver (hWnd As HWND )As Integer DIM Rect As RECT DIM Pt As POINT GetWindowRect (hWnd, @Rect) GetCursorPos(@Pt) FUNCTION = PtInRect (@Rect, Pt) END FUNCTION
      AutoIt:
      #include-once #include <WinAPI.au3> #include <WinAPIGdi.au3> #include <WinAPISys.au3> #include <GUIConstantsEx.au3> #include <WindowsConstants.au3> ;~ #Include <windows.bi> Global Const $_tagRect = "struct;long left;long top;long right;long bottom;endstruct" Global Const $_tagSize = "struct;long cx;long cy;endstruct" Global Const $_tagGradient_Rect = "struct;ulong UpperLeft;ulong LowerRight;endstruct" Global Const $_tagPoint = "struct;long x;long y;endstruct" Global Const $_tagTrivertex = "struct;long x;long y;int Red;int Greed;int Blue;int Alpha;endstruct" Global Const $_tagPaintStruct = "struct;handle hdc;bool fErase;long left;long top;long right;long bottom;bool fRestore;bool fIncUpdate;byte rgbReserved[32];endstruct" Global Const $_tagWNDCLASSEX = "struct;uint cbSize;uint style;ptr lpfnWndProc;int cbClsExtra;int cbWndExtra;ptr hInstance;ptr hIcon;" & _ "ptr hCursor; ptr hbrBackground; ptr lpszMenuName;ptr lpszClassName;ptr hIconSm;endstruct" Global Const $CS_VREDRAW = 0x0001, $CS_HREDRAW =0x0002, $CS_GLOBALCLASS = 0x4000 Global Const $BN_CLICKED = 0 ;~ #Define _RGB(r,g,b) BGR(b,g,r) Global Const $GRADIENT_FILL_RECT_H = 0 Global Const $GRADIENT_FILL_RECT_V = 1 ;~ Dim Shared hInstance As HINSTANCE ;~ ' This dll is located in Windows directory ;~ DECLARE FUNCTION Gradientfill Lib "MSIMG32" ALIAS "GradientFill" _ ;~ (hDC AS HDC, pVertex As PTRIVERTEX, dwNumVertex As Integer,pMesh AS PGRADIENT_RECT, dwNumMesh As Integer, dwMode As Integer) As Integer ;~ '******************************************************************** ;~ ' A FB Control Template ;~ '******************************************************************** ;~ Declare Function NiceButt(ByVal hWnd as HWND,byval Msg as UINT,byval wParam as WPARAM,byval lParam as LPARAM) as LRESULT ;~ Declare FUNCTION IsMouseOver (hWnd As HWND )As Integer ;~ Declare SUB Draw_Gradient (hdc as HDC, x As Integer, y As integer, w As integer, h As Integer, r As integer, g As integer, b As integer) ;~ Declare FUNCTION Register_NiceButt()As Integer #cs ' 'Windows calls this function when the dll is loaded. /'Function DllMain alias "MAIN"(byval hModule as HMODULE,byval reason as Integer,byval lpReserved as LPVOID) as BOOL Select case reason case DLL_PROCESS_ATTACH hInstance=hModule Register_NiceButt() MessageBox(GetActiveWindow(),"OK","OK",MB_OK) Return 0 case DLL_PROCESS_DETACH ' end select return True end function '/ #ce #Region ### START Koda GUI section ### Form= $Form1 = GUICreate("Form1", 615, 437, 192, 124) RegisterButton() Global $Ctrl = _winapi_CreateWindowEx(0, "TestButton", "Test", BitOR($WS_VISIBLE, $WS_CHILD), 10, 10, 80, 30, $Form1) ConsoleWrite(@CRLF & $Ctrl) GUISetState(@SW_SHOW) _WinAPI_UpdateWindow($Form1) #EndRegion ### END Koda GUI section ### While 1 $nMsg = GUIGetMsg() Switch $nMsg Case $GUI_EVENT_CLOSE Exit EndSwitch WEnd Func RegisterButton() Local $hDll = DllCallbackRegister('TestButtonProc', 'lresult', 'hwnd;uint;wparam;lparam') ;~ DIM wc AS WNDCLASSEX ;~ DIM szClassName As String Local $sClass = "TestButton" Local $wc = DllStructCreate($_tagWNDCLASSEX & ';wchar szClassName[' & (StringLen($sClass) + 1) & ']') ;~ szClassName = "NiceButt" ;~ wc.cbSize = SIZEOF(WNDCLASSEX) $wc.cbSize = DllStructGetPtr($wc, 'szClassName') - DllStructGetPtr($wc) ;~ wc.style = CS_HREDRAW OR CS_VREDRAW OR CS_GLOBALCLASS $wc.style = BitOR($CS_HREDRAW, $CS_VREDRAW, $CS_GLOBALCLASS) ;~ wc.hInstance = GetmoduleHandle(0) 'hInstance $wc.hInstance = _WinAPI_GetModuleHandle(0) ;~ wc.hbrBackground = Cast(HBRUSH,COLOR_BTNFACE+1) ;/// $wc.hbrBackground = _WinAPI_CreateSolidBrush(_WinAPI_GetSysColor($COLOR_BTNFACE)) ;~ wc.lpszClassName = StrPtr(szClassName) $wc.lpszClassName = DllStructGetPtr($wc, 'szClassName') ;~ wc.lpfnWndProc = @NiceButt $wc.lpfnWndProc = DllCallbackGetPtr($hDll) ;~ wc.cbClsExtra = 0 $wc.cbClsExtra = 0 ;~ wc.cbWndExtra = 0 $wc.cbWndExtra = 0 ;~ wc.hIcon = 0 $wc.hIcon = 0 ;~ wc.hCursor = 0 $wc.hCursor = 0 ;~ wc.lpszMenuName = 0 $wc.lpszMenuName = 0 ;~ wc.hIconSm = 0 $wc.hIconSm = 0 $wc.szClassName = $sClass ;~ FUNCTION = RegisterClassEx(@wc) Local $aRet = _WinAPI_RegisterClassEx($wc) Return $aRet ;~ END FUNCTION EndFunc ;******************************************************************** ; Custom Control Procedure ;******************************************************************** ;~ Function NiceButt(ByVal hWnd as HWND,byval Msg as UINT,byval wParam as WPARAM,byval lParam as LPARAM) as LRESULT Func TestButtonProc($hWnd, $iMsg, $wParam, $lParam) Static $bBtnDown, $bMouseOver, $hCaptured Switch $iMsg Case $WM_CREATE Local $Rct = DllStructCreate($_tagRect) Local $iX, $iY, $iW, $iH $bBtnDown = False GetClientRect($hWnd, $Rct) $iX = $Rct.left $iY = $Rct.top $iW = $Rct.right - $Rct.left $iH = $Rct.bottom - $Rct.top InvalidateRect($hWnd, 0, False) ;~ EXIT FUNCTION ;~ Return 0 Case $WM_PAINT Local $ps ;= DllStructCreate($_tagPaintStruct) Local $hPen, $hBrush, $hOldBrush Dim $Rct = DllStructCreate($_tagRect) Dim $Size = DllStructCreate($_tagSize) Dim $T = "", $i Dim $XCtr, $YCtr Dim $iX, $iY, $iW, $iH Dim $iR, $iG, $iB GetClientRect($hWnd, $Rct) $iX = $Rct.left $iY = $Rct.top $iW = $Rct.right - $Rct.left $iH = $Rct.bottom - $Rct.top $XCtr = ($Rct.left + $Rct.right) / 2 $YCtr = ($Rct.top + $Rct.bottom) / 2 ;~ GetWindowText(hWnd,T ,255) ' Grab a copy of control caption ;~ DllCall("user32.dll", "int", "GetWindowTextW", "hwnd", $hWnd, "LPTSTR ", $T, "int", 255) ; not work $T = "Test" ;********************************** ; Draw our control ;********************************** Local $hDC = BeginPaint($hWnd, $ps) ;~ GetTextExtentPoint32(hDC, T , LEN(T),@Size) ' Get caption size GetTextExtentPoint32($hDC, $T, StringLen($T), $Size) $iR = 30 $iG = 90 $iB = 90 Draw_Gradient($hDC, $iX, $iY, $iW, $iH, $iR, $iG, $iB) SetBkMode($hDC, $TRANSPARENT) If $bBtnDown Then ;~ SetTextColor(hDC,_RGB(255,0,0)) SetTextColor($hDC, Dec(0xFF0000)) TextOut($hDC, $XCtr-($Size.cx/2)+1, $YCtr-($Size.cy/2)+1, $T) Else ;~ SetTextColor(hDC,_RGB(0,0,255)) SetTextColor($hDC, Dec(0x0000FF)) TextOut($hDC, $XCtr-$Size.cx/2, $YCtr-$Size.cy/2, $T) EndIf EndPaint($hWnd, $ps) ;~ EXIT FUNCTION ;~ Return 0 Case $WM_LBUTTONUP If $hWnd = $hCaptured Then ReleaseCapture() $bBtnDown = False InvalidateRect($hWnd, 0, 0) Local $hParent = GetParent($hWnd) ;~ SendMessage(hParent,WM_COMMAND,MAKELONG(GetWindowLong(hWnd,GWL_ID), BN_CLICKED),Cast(LONG,hWnd)) DllCall("user32.dll", "LRESULT", "SendMessageW", _ "hwnd", $hParent, _ "uint", $WM_COMMAND, _ "WPARAM", _WinAPI_MakeLong(_WinAPI_GetWindowLong($hWnd, $GWL_ID), $BN_CLICKED), _ "LPARAM", $hWnd) EndIf ;~ EXIT FUNCTION Return 0 Case $WM_LBUTTONDOWN SetCapture($hWnd) $hCaptured = $hWnd $bBtnDown = True SetFocus($hWnd) InvalidateRect($hWnd, 0, False) ;~ EXIT FUNCTION Return 0 Case $WM_MOUSEMOVE If $bBtnDown Then If IsMouseOver($hWnd) Then $bBtnDown = True InvalidateRect($hWnd, 0, False) ELSE ReleaseCapture() $bBtnDown = False InvalidateRect($hWnd, 0, False) EndIf EndIf ;~ EXIT FUNCTION ;~ Return 0 Case $WM_MOVING ReleaseCapture() $bBtnDown = False InvalidateRect($hWnd, 0, False) ;~ EXIT FUNCTION ;~ Return 0 Case $WM_SIZE ReleaseCapture() $bBtnDown = False InvalidateRect($hWnd, 0, False) ;~ EXIT FUNCTION ;~ Return 0 EndSwitch ;~ Return _WinAPI_DefWindowProc($hWnd, $iMsg, $wParam, $lParam) Return DllCall("user32.dll", "lresult", "DefWindowProcW", "hwnd", $hWnd, "uint", $iMsg, "wparam", $wParam, _ "lparam", $lParam)[0] EndFunc ;~ SUB Draw_Gradient (hdc as HDC, x As Integer, y As integer, w As integer, h As Integer, r As integer, g As integer, b As integer) Func Draw_Gradient($hDC, $iX, $iY, $iW, $iH, $iR, $iG, $iB) ;~ DIM Vert(2) AS TRIVERTEX Local $Vert[2] $Vert[0] = DllStructCreate($_tagTrivertex) $Vert[1] = DllStructCreate($_tagTrivertex) ;~ DIM Rect AS GRADIENT_RECT Local $Rect = DllStructCreate($_tagGradient_Rect) ;~ Vert (0).x = 0 $Vert[0].x = 0 ;~ Vert (0).y = 0 $Vert[0].y = 0 ;~ Vert (0).Red = 65535-(65535-(r*256)) $Vert[0].Red = 65535-(65535-($iR*256)) ;~ Vert (0).Green = 65535-(65535-(g*256)) $Vert[0].Green = 65535-(65535-($iG*256)) ;~ Vert (0).Blue = 65535-(65535-(b*256)) $Vert[0].Blue = 65535-(65535-($iB*256)) ;~ Vert (0).Alpha = 0 $Vert[0].Alpha = 0 ;~ '****************************************************** ;~ Vert (1).x = w $Vert[1].x = $iW ;~ Vert (1).y = h/2 $Vert[1].y = $iH/2 ;~ Vert (1).Red = 65535-(65535-(255*256)) $Vert[1].Red = 65535-(65535-(255*256)) ;~ Vert (1).Green = 65535-(65535-(255*256)) $Vert[1].Green = 65535-(65535-(255*256)) ;~ Vert (1).Blue = 65535-(65535-(255*256)) $Vert[1].Blue = 65535-(65535-(255*256)) ;~ Vert (1).Alpha = 0 $Vert[1].Alpha = 0 ;~ '****************************************************** ;~ Rect.UpperLeft = 0 $Rect.UpperLeft = 0 ;~ Rect.LowerRight = 1 $Rect.LowerRight = 1 ;~ '****************************************************** ;~ Gradientfill(hdc,@Vert(0),2,@Rect,1,GRADIENT_FILL_RECT_V) GradientFill($hDC, $Vert[0], 2, $Rect, 1, $GRADIENT_FILL_RECT_V) ;~ '****************************************************** ;~ Vert (0).x = 0 $Vert[0].x = 0 ;~ Vert (0).y = h/2 $Vert[0].y = $iH/2 ;~ Vert (0).Red = 65535-(65535-(255*256)) $Vert[0].Red = 65535-(65535-(255*256)) ;~ Vert (0).Green = 65535-(65535-(255*256)) $Vert[0].Green = 65535-(65535-(255*256)) ;~ Vert (0).Blue = 65535-(65535-(255*256)) $Vert[0].Blue = 65535-(65535-(255*256)) ;~ Vert (0).Alpha = 0 $Vert[0].Alpha = 0 ;~ '****************************************************** ;~ Vert (1).x = w $Vert[1].x = $iW ;~ Vert (1).y = h $Vert[1].y = $iH ;~ Vert (1).Red = 65535-(65535-(r*256)) $Vert[1].Red = 65535-(65535-($iR*256)) ;~ Vert (1).Green = 65535-(65535-(g*256)) $Vert[1].Green = 65535-(65535-($iG*256)) ;~ Vert (1).Blue = 65535-(65535-(b*256)) $Vert[1].Blue = 65535-(65535-($iB*256)) ;~ Vert (1).Alpha = 0 $Vert[1].Alpha = 0 ;~ '****************************************************** ;~ Rect.UpperLeft = 0 $Rect.UpperLeft = 0 ;~ Rect.LowerRight = 1 $Rect.LowerRight = 1 ;~ '****************************************************** ;~ Gradientfill(hdc,@Vert(0),2,@Rect,1,GRADIENT_FILL_RECT_V) GradientFill($hDC, $Vert[0], 2, $Rect, 1, $GRADIENT_FILL_RECT_V) ;~ END SUB EndFunc Func IsMouseOver($hWnd) Local $Rect = DllStructCreate($_tagRect) Local $Pt = DllStructCreate($_tagPoint) GetWindowRect ($hWnd, $Rect) GetCursorPos($Pt) Return PtInRect($Rect, $Pt) EndFunc Func _RGB($iR, $iG, $iB) Return ('0x' & Hex($iR, 2) & Hex($iG, 2) & Hex($iB, 2)) EndFunc Func _BGR($iB, $iG, $iR) Return ('0x' & Hex($iB, 2) & Hex($iG, 2) & Hex($iR, 2)) EndFunc Func InvalidateRect($hWnd, $tRECT = 0, $bErase = True) DllCall("user32.dll", "bool", "InvalidateRect", "hwnd", $hWnd, "struct*", $tRECT, "bool", $bErase) EndFunc Func SetFocus($hWnd) DllCall("user32.dll", "hwnd", "SetFocus", "hwnd", $hWnd) EndFunc Func PtInRect($tRect, $tPoint) Local $aRet = DllCall("user32.dll", "bool", "PtInRect", "ptr", DllStructGetPtr($tRect), "struct*", $tPoint) If IsArray($aRet) Then Return $aRet[0] Return False EndFunc Func GetWindowRect($hWnd, ByRef $tRect) DllCall("user32.dll", "bool", "GetWindowRect", "hwnd", $hWnd, "struct*", $tRect) EndFunc Func GetCursorPos(ByRef $tPoint) DllCall("user32.dll", "bool", "GetCursorPos", "struct*", $tPoint) EndFunc Func SetCapture($hWnd) DllCall("user32.dll", "hwnd", "SetCapture", "hwnd", $hWnd) EndFunc Func ReleaseCapture() DllCall("user32.dll", "bool", "ReleaseCapture") EndFunc Func SetTextColor($hDC, $iColor) DllCall("gdi32.dll", "INT", "SetTextColor", "handle", $hDC, "INT", $iColor) EndFunc Func BeginPaint($hWnd, ByRef $tPAINTSTRUCT) $tPAINTSTRUCT = DllStructCreate($tagPAINTSTRUCT) Local $aRet = DllCall('user32.dll', 'handle', 'BeginPaint', 'hwnd', $hWnd, 'struct*', $tPAINTSTRUCT) If @error Then Return SetError(@error, @extended, 0) Return $aRet[0] EndFunc Func GetTextExtentPoint32($hDC, $sText, $iTextLen, ByRef $tSize) DllCall("gdi32.dll", "bool", "GetTextExtentPoint32W", "handle", $hDC, "wstr", $sText, "int", $iTextLen, "struct*", $tSize) EndFunc Func GradientFill($hDC, $tVertex, $nVertex, $tMesh, $nMesh, $ulMode) DllCall("Msimg32.dll", "BOOL", "GradientFill", _ "handle", $hDC, _ "struct*", $tVertex, _ "ulong", $nVertex, _ "struct*", $tMesh, _ "ulong", $nMesh, _ "ulong", $ulMode) EndFunc Func GetParent($hWnd) Local $aResult = DllCall("user32.dll", "hwnd", "GetParent", "hwnd", $hWnd) If @error Then Return SetError(@error, @extended, 0) Return $aResult[0] EndFunc Func SetBkMode($hDC, $iBkMode) Local $aResult = DllCall("gdi32.dll", "int", "SetBkMode", "handle", $hDC, "int", $iBkMode) If @error Then Return SetError(@error, @extended, 0) Return $aResult[0] EndFunc Func EndPaint($hWnd, ByRef $tPAINTSTRUCT) Local $aRet = DllCall('user32.dll', 'bool', 'EndPaint', 'hwnd', $hWnd, 'struct*', $tPAINTSTRUCT) If @error Then Return SetError(@error, @extended, False) Return $aRet[0] EndFunc Func GetClientRect($hWnd, ByRef $tRect) Local $aRet = DllCall("user32.dll", "bool", "GetClientRect", "hwnd", $hWnd, "struct*", $tRect) If @error Or Not $aRet[0] Then Return SetError(@error + 10, @extended, 0) Return $tRect EndFunc Func TextOut($hDC, $iX, $iY, $sText, $iTextLen = Default) If $iTextLen = Default Then $iTextLen = StringLen($sText) DllCall('gdi32.dll', 'bool', 'TextOutW', 'handle', $hDC, 'int', $iX, 'int', $iY, 'wstr', $sText, 'int', $iTextLen) EndFunc
    • r0ash
      By r0ash
      Hey guys, MattDiesel over Stackoverflow mentioned this beautiful piece of code
      #include <WindowsConstants.au3> #include <WinAPI.au3> Local $IDM_FONT = 33 Local $hWindow = WinGetHandle("Untitled - Notepad") _WinAPI_PostMessage($hWindow, $WM_COMMAND, $IDM_FONT, 0) Local $hFontWin = WinWait("Font") $select = ControlCommand($hFontWin, "", "ComboBox1", "GetCurrentSelection", "") WinClose($hFontWin) MsgBox(0,"", $select) I realized that _WinAPI_PostMessage can trigger menu click event, even if Notepad is minimized.
      How do we know what is the decimal value of *any menu item or sub-menu item*? How we know "Format > Font" menu-item is 33 as wParam to _WinAPI_PostMessage()? Have a look at snapshot.
      Regards.

    • chacoya121
      By chacoya121
      plz help explain between GDI+ and Winapi, is it desktop inside another desktop, 3 layer dimension?
      i can't get the picture
      1. u get desktop u can visual see
      2. then u create GDI+ startup another desktop screen dimension?
      3. then u have Winapi command inside GDI+, is this another desktop screen dimension? cuz GDI+ could create bitmap that is one dimension? Winapi get windowDC also another dimension?
      plz help and explain, with picture would be nice, im not good with visualize ("dumb newbie"), still learning
      newbie to programming world
      thankyou.
    • IErrors
      By IErrors
      I am working on some functionality to detect whether a standard keyboard was used for input in my UI or if a barcode scanner (that acts like a keyboard) was used. Instead of dealing with a scanner SDK, I decided I would read from the raw input to get device info and make a determination.
      I discovered while testing with multiple UIs is that when the WM_INPUT message is received and the function called, the $hWnd param is always the same (apparently whatever handle I set the "hTarget" to in the RAWINPUTDEVICE struct).
      Is this normal behavior??
      Using the test code below, no matter what window you give input to the $hWnd param never changes.
      #include <WindowsConstants.au3> #include <GUIConstantsEx.au3> #include <WinAPISys.au3> $Form1 = GUICreate("Form 1", 300, 300, -1, 10) ConsoleWrite("$Form1 = " & $Form1 & @CRLF) $Edit1 = GUICtrlCreateEdit("", 0, 0, 300, 300) GUISetState(@SW_SHOW, $Form1) $Form2 = GUICreate("Form 2", 300, 300, -1, 350) ConsoleWrite("$Form2 = " & $Form2 & @CRLF) $Edit2 = GUICtrlCreateEdit("", 0, 0, 300, 300) GUISetState(@SW_SHOW, $Form2) GUIRegisterMsg($WM_INPUT, "WM_INPUT") ; https://msdn.microsoft.com/en-us/library/ms645590(v=vs.85).aspx $tRID = DllStructCreate($tagRAWINPUTDEVICE) ; https://msdn.microsoft.com/en-us/library/ms645565(v=vs.85).aspx DllStructSetData($tRID, "UsagePage", 1) DllStructSetData($tRID, "Usage", 6) DllStructSetData($tRID, "Flags", 0) DllStructSetData($tRID, "hTarget", $Form1) ; According to the struct def, if hTarget=NULL then it should follow keyboard focus. - nope :( $pRID = DllStructGetPtr($tRID) _WinAPI_RegisterRawInputDevices($pRID) ; https://msdn.microsoft.com/en-us/library/ms645600(v=vs.85).aspx Do Until GUIGetMsg() = $GUI_EVENT_CLOSE Func WM_INPUT($hWnd, $iMsg, $wParam, $lParam) ConsoleWrite("hWnd = " & $hWnd & " | Title = " & WinGetTitle($hWnd) & @CRLF) ConsoleWrite("Active Window = " & WinGetTitle("[ACTIVE]") & @CRLF) Return $GUI_RUNDEFMSG EndFunc ;==>WM_INPUT
    • Adrian123
      By Adrian123
      Hi I need help with the code bellow, my goal is to make faster sqlite queries to Sqlite because _SQLite_GetTable2d seams to be slow on big tables.
      Thank you :

      https://www.autoitscript.com/forum/topic/182469-using-controls-to-edit-cells-in-a-listview/

      Well my code is faster but a I have 2 issues :
      1 Memory leaks
      2 Listview ( virtual) a little slow when scrolling (column headers delay )
      Please help I am not a WinApi specialist. (The hugetable its actuality much bigger I'm limited by upload size)
      Thank You.

      #comments-start C++ Source of Dll #include <vector> #include <string> #include <stdio.h> #include <string.h> #include "sqlite3.h" using namespace std; extern "C" { // A function adding two integers and returning the result char * SqliteSelect(char * path ,char * sSql , char * rowsep, char * tabsep ) { std::string rez=""; bool once=true; sqlite3 *db; if ( sqlite3_open_v2(path, &db,SQLITE_OPEN_READONLY, NULL) == SQLITE_OK) { sqlite3_stmt *stmt; if (sqlite3_prepare_v2(db, sSql, -1, &stmt, 0) == SQLITE_OK) { int nCols = sqlite3_column_count(stmt); while (sqlite3_step(stmt) == SQLITE_ROW) { for (int nCol = 0; nCol < nCols; nCol++) { if (once==true) { rez+=(char *) sqlite3_column_name(stmt, nCol); if (nCol < nCols-1 ) { rez+=tabsep; } else { rez+=rowsep; once=false; // sqlite3_reset(stmt); nCol=0; } } if (once==false){ if ( sqlite3_column_text(stmt, nCol)!=nullptr) { rez+=(char *) sqlite3_column_text(stmt, nCol); } if (nCol < nCols-1 ) rez+=tabsep; } } rez+=rowsep; } } else { return (char *)sqlite3_errmsg(db); sqlite3_close(db); } sqlite3_close(db); } char *cstr = new char[rez.length() + 1]; strcpy(cstr, rez.c_str()); return cstr; } char * SqliteExec(char * path ,char * sSql ) { std::string rez="Error: "; sqlite3 *db; char *error; if ( sqlite3_open_v2(path, &db,SQLITE_OPEN_READWRITE, NULL) == SQLITE_OK) { sqlite3_exec(db, "BEGIN TRANSACTION", NULL, NULL,&error); if( sqlite3_exec(db, sSql, NULL, NULL, &error) != SQLITE_OK ) { rez+= (char *)sqlite3_errmsg(db); sqlite3_exec(db, "ROLLBACK", NULL, NULL, &error); sqlite3_close(db); } sqlite3_exec(db, "END TRANSACTION", NULL, NULL, &error); sqlite3_close(db); if (rez=="Error: " ) { rez="OK"; } char *cstr = new char[rez.length() + 1]; strcpy(cstr, rez.c_str()); return cstr; } } } #comments-end #include <GuiListView.au3> #include <GUIConstantsEx.au3> #include <StaticConstants.au3> #include <WindowsConstants.au3> #include <WinAPIvkeysConstants.au3> #include <WinAPIShellEx.au3> #include <GuiEdit.au3> Opt( "MustDeclareVars", 1 ) Global $hListView, $iItem = -1, $iSubItem = 0, $aRect Global $idComboOpen, $idComboClose, $bComboOpen = False, $bComboDoNotOpen = False Global $bEditEscape = True, $bEditUpDown = False, $bListboxOpen = False Global $bComboOpenOnEnter = True Global $bComboOpenOnSpace = False Global $bComboOpenOnDoubleClick = True Global $bListboxAcceptClickEnter = True Global $hEdit ;Global $Table Func __SQLite_StringToUtf8Struct($sString) Local $aResult = DllCall("kernel32.dll", "int", "WideCharToMultiByte", "uint", 65001, "dword", 0, "wstr", $sString, "int", -1, _ "ptr", 0, "int", 0, "ptr", 0, "ptr", 0) If @error Then Return SetError(1, @error, "") ; DllCall error Local $tText = DllStructCreate("char[" & $aResult[0] & "]") $aResult = DllCall("kernel32.dll", "int", "WideCharToMultiByte", "uint", 65001, "dword", 0, "wstr", $sString, "int", -1, _ "struct*", $tText, "int", $aResult[0], "ptr", 0, "ptr", 0) If @error Then Return SetError(2, @error, "") ; DllCall error Return $tText EndFunc ;==>__SQLite_StringToUtf8Struct Global $Headers ,$RowsArray Global $TabSep =@TAB Example() Func Compare_Headers($ArrayIni,$Array_) If UBound($ArrayIni)<> UBound($Array_) Then Return 1 EndIf For $R=0 to UBound($ArrayIni)-1 if $ArrayIni[$R] <> $Array_[$R] Then Return 1 EndIf Next Return 0 EndFunc #include <File.au3> Func nCheckDB( $sDBname , $SSQL , $idListView ) Local $iniH =$Headers; GUICtrlSendMsg( $idListView, $LVM_SETITEMCOUNT,0, 0) Local $RowSep =@LF Local $tFilename = __SQLite_StringToUtf8Struct($sDBname) Local $tSsql = __SQLite_StringToUtf8Struct($SSQL ) Local $hDLL = DllOpen("libSlqiteFaster.dll") Local $Arrx = DllCall($hDLL,"STR" ,"SqliteSelect", "struct*", $tFilename ,"struct*" ,$tSsql ,"struct*" ,__SQLite_StringToUtf8Struct($RowSep) ,"struct*" ,__SQLite_StringToUtf8Struct($TabSep) ) DllClose($hDLL) $RowsArray= StringSplit($Arrx[0],$RowSep) $Headers=StringSplit($RowsArray[1],$TabSep) Local $iCols = $Headers[0] Local $iRows = $RowsArray[0] If Compare_Headers( $iniH,$Headers)=1 Then While _GUICtrlListView_GetColumnCount($idListView)>0 _GUICtrlListView_DeleteColumn ( $idListView, 0 ) WEnd For $i = 1 To $iCols _GUICtrlListView_AddColumn( $idListView,$Headers[ $i ], 75 ) Next EndIf GUICtrlSendMsg( $idListView, $LVM_SETITEMCOUNT, $iRows-2, 0 ) ;$RowsArray=0 ;$Headers=0 $iRows=0 $iCols=0 $tFilename=0 $tSsql=0 EndFunc Func Example() Local $hGui = GUICreate( "LV_", @DesktopWidth-20, @DesktopHeight-40,-1,-1, $WS_SIZEBOX+$WS_MAXIMIZEBOX+ $WS_MINIMIZEBOX ) Global $Button3 = GUICtrlCreateButton("Ne3", 400, 0, 75, 25) Global $Button1 = GUICtrlCreateButton("NeSmler", 100, 0, 75, 25) Local $idListView Local $pListViewCallback Local $pEditCallback Local $pListCommand Local $pGuiCallback ;MsgBox(0,"","STOP") $idListView= GUICtrlCreateListView( "", 10, 40, @DesktopWidth-20-20, @DesktopHeight-80-100,$LVS_OWNERDATA ) ;$LVS_NOCOLUMNHEADER _GUICtrlListView_SetExtendedListViewStyle( $idListView, BitOR($LVS_EX_FULLROWSELECT, $LVS_EX_BORDERSELECT,$LVS_EX_DOUBLEBUFFER, $LVS_EX_GRIDLINES) ) ; $LVS_EX_DOUBLEBUFFER+$LVS_EX_FULLROWSELECT + GUICtrlSetResizing($hGui, $GUI_DOCKBORDERS) $hListView = GUICtrlGetHandle( $idListView ) ; Subclass ListView to handle messages related to ComboBox ; ComboBox open and close events $idComboOpen = GUICtrlCreateDummy() $idComboClose = GUICtrlCreateDummy() GUIRegisterMsg( $WM_NOTIFY, "WM_NOTIFY" ) ; Subclass callback functions $pListViewCallback= DllCallbackGetPtr( DllCallbackRegister( "ListViewCallback", "lresult", "hwnd;uint;wparam;lparam;uint_ptr;dword_ptr" ) ) $pEditCallback = DllCallbackGetPtr( DllCallbackRegister( "EditCallback", "lresult", "hwnd;uint;wparam;lparam;uint_ptr;dword_ptr" ) ) $pListCommand = DllCallbackGetPtr( DllCallbackRegister( "ListCommand", "lresult", "hwnd;uint;wparam;lparam;uint_ptr;dword_ptr" ) ) $pGuiCallback = DllCallbackGetPtr( DllCallbackRegister( "GuiCallback", "lresult", "hwnd;uint;wparam;lparam;uint_ptr;dword_ptr" ) ) _WinAPI_SetWindowSubclass( $hListView, $pListViewCallback, 9998, 0 ) ; Show GUI GUISetState( @SW_SHOW ) ; Message loop While 1 Switch GUIGetMsg() Case $Button3 GuiSetState(@SW_LOCK, $hGui) nCheckDB("bigtable.sqlite" ,"SELECT * FROM hugetable;",$idListView ) GuiSetState(@SW_UNLOCK, $hGui) Case $Button1 GuiSetState(@SW_LOCK, $hGui) For $i = 0 To _GUICtrlListView_GetColumnCount($idListView)-1 _GUICtrlListView_SetColumnWidth ( $hListView, $i, $LVSCW_AUTOSIZE_USEHEADER ) ;$LVSCW_AUTOSIZE Next GuiSetState(@SW_UNLOCK, $hGui) #cs Local $S_PH = "C:\\Users\\achis\\Desktop\\PP2C 24.11.2015_OK\\Prod.sqlite" Local $SSQLi ="UPDATE sumbomLVL_Static Set part='10000611' WHERE rowid=1 ;" Local $hDLL = DllOpen("libSlqiteFaster.dll") Local $Arrx = DllCall($hDLL,"STR" ,"SqliteExec", "struct*", __SQLite_StringToUtf8Struct($S_PH) ,"struct*" ,__SQLite_StringToUtf8Struct($SSQLi) ) MsgBox ( 0,"",$Arrx[0]) DllClose($hDLL) #ce Case $idComboOpen If $bComboOpen Then ; If another ComboBox is open then delete it _WinAPI_RemoveWindowSubclass( $hEdit, $pEditCallback, 9999 ) ;_WinAPI_RemoveWindowSubclass( $hListView, $pListCommand, 9999 ) _WinAPI_RemoveWindowSubclass( $hGui, $pGuiCallback, 9999 ) _GUICtrlEdit_Destroy( $hEdit ) EndIf $hEdit = _GUICtrlEdit_Create( $hListView,_GUICtrlListView_GetItemText( $hListView, $iItem, $iSubItem ), $aRect[0], $aRect[1], $aRect[2] - $aRect[0],20,$ES_AUTOHSCROLL ) _GUICtrlEdit_SetSel( $hEdit, 0, -1 ) ; Create subclasses to handle Windows messages _WinAPI_SetWindowSubclass( $hEdit, $pEditCallback, 9999, 0 ) ; Messages from the Edit control of the ComboBox ;_WinAPI_SetWindowSubclass( $hListView, $pListCommand, 9999, 0 ) ; WM_COMMAND messages from Listbox part of ComboBox _WinAPI_SetWindowSubclass( $hGui, $pGuiCallback, 9999, 0 ) ; Handle GUI messages related to ComboBox control ; Set focus to ComboBox ; Subclasses are used only when ComboBox is open _WinAPI_SetFocus( $hEdit ) $bComboOpen = True Case $idComboClose If Not $bComboOpen Then ContinueLoop If GUICtrlRead( $idComboClose ) Then Local $c_item = StringSplit($RowsArray[$iItem+2],$TabSep)[$iSubItem+1] Local $T = StringSplit( $RowsArray[$iItem+2],$TabSep) $T[$iSubItem] =_GUICtrlEdit_GetText( $hEdit ) $RowsArray[$iItem+2]=_ArrayToString($T,$TabSep) _WinAPI_SetFocus( $hListView ) ; Set focus to ListView EndIf ; Delete ComboBox control _WinAPI_RemoveWindowSubclass( $hEdit, $pEditCallback, 9999 ) ;_WinAPI_RemoveWindowSubclass( $hListView, $pListCommand, 9999 ) _WinAPI_RemoveWindowSubclass( $hGui, $pGuiCallback, 9999 ) _GUICtrlEdit_Destroy( $hEdit ) $bComboOpen = False Case $GUI_EVENT_PRIMARYDOWN, $GUI_EVENT_SECONDARYDOWN If Not $bComboOpen Then ContinueLoop ; Clicks in Listbox part of ComboBox should not delete it If $bListboxOpen Then ContinueLoop ; Clicks in Edit part of ComboBox should not delete it Local $aPos = MouseGetWindowPos( $hListView ) If Not ( $aPos[0] > $aRect[0] And $aPos[0] < $aRect[2] And $aPos[1] > $aRect[1] And $aPos[1] < $aRect[1] + 20 ) Then GUICtrlSendToDummy( $idComboClose ) ; Delete ComboBox Local $aSize = WinGetPos( $hListView ) If $aPos[0] > 0 And $aPos[1] > 0 And $aPos[0] < $aSize[2] And $aPos[1] < $aSize[3] Then _ _WinAPI_SetFocus( $hListView ) ; Set focus to ListView if mouse click is inside ListView EndIf Case $GUI_EVENT_CLOSE Exit If Not $bEditEscape Then ExitLoop $bEditEscape = False EndSwitch WEnd ; Cleanup GUIDelete() EndFunc Func WM_NOTIFY( $hWnd, $iMsg, $wParam, $lParam ) Local Static $bNotXP = Not ( @OSVersion = "WIN_XP" ) Local Static $tRect = DllStructCreate( $tagRECT ) Local Static $hBrush = _WinAPI_CreateSolidBrush( 0xFFFF00 ) Local Static $tText = DllStructCreate( "wchar[50]" ) Local Static $pText = DllStructGetPtr( $tText ) Local $tNMHDR = DllStructCreate( $tagNMHDR, $lParam ) Local $hWndFrom = HWnd( DllStructGetData( $tNMHDR, "hWndFrom" ) ) Local $iCode = DllStructGetData( $tNMHDR, "Code" ) Switch $hWndFrom Case $hListView Switch $iCode Case $LVN_GETDISPINFOW Local $tNMLVDISPINFO = DllStructCreate( $tagNMLVDISPINFO, $lParam ) ; $LV_DISPINFO *lpdi = ($LV_DISPINFO *)$lParam; If BitAND( DllStructGetData( $tNMLVDISPINFO, "Mask" ), $LVIF_TEXT ) Then Local $iIndex = DllStructGetData( $tNMLVDISPINFO, "Item" ) Local $Subindex = DllStructGetData($tNMLVDISPINFO,"SubItem") Local $sItem = StringSplit($RowsArray[$iIndex+2],$TabSep)[$Subindex+1] ; $aResult[$iIndex][DllStructGetData($tNMLVDISPINFO,"SubItem")] DllStructSetData( $tText, 1, $sItem ) DllStructSetData( $tNMLVDISPINFO, "Text", $pText ) DllStructSetData( $tNMLVDISPINFO, "TextMax", StringLen( $sItem ) ) EndIf Case $NM_CUSTOMDRAW Local $tNMLVCustomDraw = DllStructCreate( $tagNMLVCUSTOMDRAW, $lParam ) Local $dwDrawStage = DllStructGetData( $tNMLVCustomDraw, "dwDrawStage" ) Switch $dwDrawStage ; Specifies the drawing stage ; Stage 1 Case $CDDS_PREPAINT ; Before the paint cycle begins Return $CDRF_NOTIFYITEMDRAW ; Stage 2 will be carried out ; Stage 2 Case $CDDS_ITEMPREPAINT ; Before an item is painted If Not _GUICtrlListView_GetItemState( $hListView, DllStructGetData( $tNMLVCUSTOMDRAW, "dwItemSpec" ), $LVIS_FOCUSED ) Then Return $CDRF_NEWFONT ; Default drawing of item $iItem = DllStructGetData( $tNMLVCUSTOMDRAW, "dwItemSpec" ) Return $CDRF_NOTIFYSUBITEMDRAW ; Stage 3 will be carried out ; Stage 3 Case BitOR( $CDDS_ITEMPREPAINT, $CDDS_SUBITEM ) ; Before a subitem is painted Return $CDRF_NOTIFYPOSTPAINT ; Stage 4 will be carried out ; Stage 4 Case BitOR( $CDDS_ITEMPOSTPAINT, $CDDS_SUBITEM ) ; After a subitem has been painted If DllStructGetData( $tNMLVCustomDraw, "iSubItem" ) = $iSubItem Then Local $hDC = DllStructGetData( $tNMLVCUSTOMDRAW, "hdc" ) ; Device context $aRect = _GUICtrlListView_GetSubItemRect( $hListView, $iItem, $iSubItem ) ; Subitem rectangle $aRect[2] = $aRect[0] + _GUICtrlListView_GetColumnWidth( $hListView, $iSubItem ) DllStructSetData( $tRect, "Left", $aRect[0]+4 ) DllStructSetData( $tRect, "Top", $aRect[1] ) DllStructSetData( $tRect, "Right", $aRect[2] ) DllStructSetData( $tRect, "Bottom", $aRect[3] ) _WinAPI_FillRect( $hDC, $tRect, $hBrush ) ; Fill subitem background _WinAPI_SetTextColor( $hDC, 0x000000 ) ; Set black text color DllStructSetData( $tRect, "Left", DllStructGetData( $tRect, "Left" ) + 2 ) ; Adjust rectangle If $bNotXP Then DllStructSetData( $tRect, "Top", DllStructGetData( $tRect, "Top" ) + 2 ) _WinAPI_DrawText( $hDC, StringSplit($RowsArray[$iItem+2],$TabSep)[$iSubItem+1], $tRect, $DT_WORD_ELLIPSIS ) ; Draw text EndIf Return $CDRF_NEWFONT ; $CDRF_NEWFONT must be returned after changing font or colors EndSwitch Case $NM_CLICK If Not $bComboDoNotOpen And Not $bComboOpenOnDoubleClick And $iItem > -1 And $iSubItem > -1 Then _ GUICtrlSendToDummy( $idComboOpen ) ; Send message to open ComboBox Case $NM_DBLCLK If $bComboOpenOnDoubleClick And $iItem > -1 And $iSubItem > -1 Then _ GUICtrlSendToDummy( $idComboOpen ) ; Send message to open ComboBox EndSwitch EndSwitch Return $GUI_RUNDEFMSG EndFunc ; Handle ListView messages related to ComboBox Func ListViewCallback( $hWnd, $iMsg, $wParam, $lParam, $iSubclassId, $pData ) Switch $iMsg ; Open ComboBox on Enter key Case $WM_GETDLGCODE Switch $wParam Case $VK_RETURN If Not $bComboDoNotOpen And $bComboOpenOnEnter And $iItem > -1 And $iSubItem > -1 Then _GUICtrlListView_SetItemSelected( $hListView, -1, False ) _GUICtrlListView_SetItemSelected( $hListView, $iItem ) GUICtrlSendToDummy( $idComboOpen ) EndIf EndSwitch ; Manage multiple selections ; Prevent ComboBox from opening ; Manage keyboard events Case $WM_KEYDOWN Switch $wParam Case $VK_SHIFT, $VK_CONTROL $bComboDoNotOpen = True ; Manage keyboard events Case $VK_LEFT If Not $bComboDoNotOpen And $iSubItem > 0 Then $iSubItem -= 1 _GUICtrlListView_RedrawItems( $hListView, $iItem, $iItem ) Case $VK_RIGHT If Not $bComboDoNotOpen And $iSubItem < _GUICtrlListView_GetColumnCount( $hListView ) - 1 Then $iSubItem += 1 _GUICtrlListView_RedrawItems( $hListView, $iItem, $iItem ) Case $VK_SPACE If Not $bComboDoNotOpen And $bComboOpenOnSpace And $iItem > -1 And $iSubItem > -1 Then _GUICtrlListView_SetItemSelected( $hListView, -1, False ) GUICtrlSendToDummy( $idComboOpen ) EndIf EndSwitch Case $WM_KEYUP Switch $wParam Case $VK_SHIFT, $VK_CONTROL $bComboDoNotOpen = False EndSwitch ; Left click in ListView ; Sent on single and double click ; Determines item/subitem of the cell that's clicked Case $WM_LBUTTONDOWN Local $aHit = _GUICtrlListView_SubItemHitTest( $hListView ) If $bComboOpen Then ; If another ComboBox is open then delete it _GUICtrlEDIT_Destroy( $hEdit ) GUICtrlSendToDummy( $idComboClose ) _WinAPI_SetFocus( $hListView ) EndIf If $aHit[0] > -1 And $aHit[1] > -1 Then $iItem = $aHit[0] $iSubItem = $aHit[1] _GUICtrlListView_RedrawItems( $hListView, $iItem, $iItem ) EndIf ; Delete ComboBox on right click in ListView and on left ; or right click in non-client ListView area (Scrollbars). Case $WM_RBUTTONDOWN, $WM_NCLBUTTONDOWN, $WM_NCRBUTTONDOWN _GUICtrlEDIT_Destroy( $hEdit ) GUICtrlSendToDummy( $idComboClose ) _WinAPI_SetFocus( $hListView ) EndSwitch ; Call next function in subclass chain Return DllCall( "comctl32.dll", "lresult", "DefSubclassProc", "hwnd", $hWnd, "uint", $iMsg, "wparam", $wParam, "lparam", $lParam )[0] #forceref $iSubclassId, $pData EndFunc ; Messages from the Edit control of the ComboBox Func EditCallback( $hWnd, $iMsg, $wParam, $lParam, $iSubclassId, $pData ) Switch $iMsg ; Dialog codes Case $WM_GETDLGCODE Switch $wParam Case $VK_TAB ; Close GUICtrlSendToDummy( $idComboClose, True ) Case $VK_RETURN ; Accept and close GUICtrlSendToDummy( $idComboClose, True ) Case $VK_ESCAPE ; Close GUICtrlSendToDummy( $idComboClose, True ) _WinAPI_SetFocus( $hListView ) $bEditEscape = True EndSwitch ; Double click in Edit part of ComboBox Case $WM_LBUTTONDBLCLK Local $aPos = MouseGetWindowPos( $hListView ) If $aPos[0] > $aRect[0] And $aPos[0] < $aRect[2] And $aPos[1] > $aRect[1] And $aPos[1] < $aRect[1] + 20 Then _ GUICtrlSendToDummy( $idComboClose, True ) ; Accept and close EndSwitch ; Call next function in subclass chain Return DllCall( "comctl32.dll", "lresult", "DefSubclassProc", "hwnd", $hWnd, "uint", $iMsg, "wparam", $wParam, "lparam", $lParam )[0] #forceref $iSubclassId, $pData EndFunc ; Handle GUI messages related to ComboBox control Func GuiCallback( $hWnd, $iMsg, $wParam, $lParam, $iSubclassId, $pData ) Switch $iMsg ; Delete ComboBox on left or right mouse click in non-client GUI area and on GUI deactivate Case $WM_NCLBUTTONDOWN, $WM_NCRBUTTONDOWN, $WM_ACTIVATE _GUICtrlEDIT_Destroy( $hEdit ) GUICtrlSendToDummy( $idComboClose ) EndSwitch ; Call next function in subclass chain Return DllCall( "comctl32.dll", "lresult", "DefSubclassProc", "hwnd", $hWnd, "uint", $iMsg, "wparam", $wParam, "lparam", $lParam )[0] #forceref $iSubclassId, $pData EndFunc ; Get mouse pos relative to window Func MouseGetWindowPos( $hWindow ) Local $aPos = MouseGetPos() Local $tPoint = DllStructCreate( "int X;int Y" ) DllStructSetData( $tPoint, "X", $aPos[0] ) DllStructSetData( $tPoint, "Y", $aPos[1] ) _WinAPI_ScreenToClient( $hWindow, $tPoint ) $aPos[0] = DllStructGetData( $tPoint, "X" ) $aPos[1] = DllStructGetData( $tPoint, "Y" ) Return $aPos EndFunc



      OnefolderWorking.zip
