likehu

Unknown window appears during script run

3 posts in this topic

#1 ·  Posted (edited)

Hello

I have wrote a script which capture 4 different regions on the screen then try to find a specific image in these regions and in case of success changes label text in my GUI. For screen scraping and image comparison script uses _ScreenCapture and FindBMP function.

I put it in a loop with 1 second break.

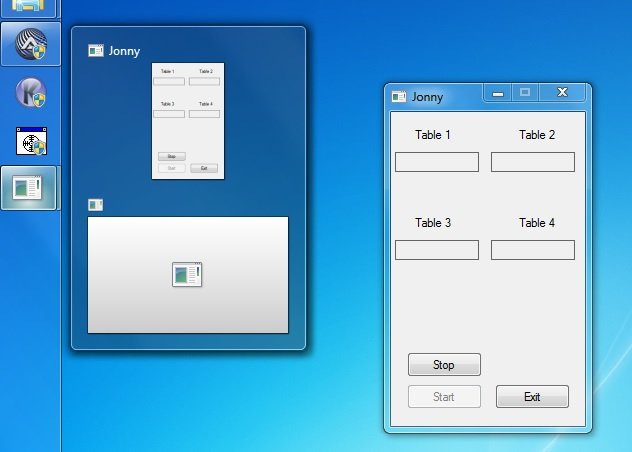

And all works great while after a couple of minutes hidden window appears and my script freezes. No text, no messages, no titles. When I try to close this window from windows taskbar it blinks on the center of the screen and hides again. Only “End Task” from task manages can close this window and script.

The situation is the same when run it form SciTE or as EXE file. I also tried 2 different versions of Autoit, newest and previous.

I can’t understand the cause of the problem. Is it a FindBMP function error or some overflow? Strange that it appears in a couple of minutes after totally normal work (images in the regions found and label changes continuously). I also tried to stop and start scanning every 1 min with help of buttons in GUI and nothing helps. Hidden window appears in 5-10 mins.

Please advice from what steps I have to start to remove this window. Do I need to upload all script here?

Untitled.thumb.jpg.54006fb5f6a79bac3f3b4

Edited by likehu

Share this post


Link to post
Share on other sites



#3 ·  Posted (edited)

Yes, agree  :) but i can't find anything about this window.

Here is my image finder script.

All other files (bmp icons ant ini file with coordinates) in the zip file in attachment. So I have started script in the SciTE or with EXE and after 5-10 mins that window blinks on desktop and dissappears. And script freezes.

Just to explain shortly what this script does. There are 6 different icons and 4 big main areas on desktop and script try to find each icon on specific area inside every big main area. All this done in For..Next loop.

Please help.

#pragma compile(Console, False)
#pragma compile(x64, True)
#pragma compile(Compatibility, Win10)
#pragma compile(Stripper, True)

AutoItSetOption("GuiOnEventMode", 1)

#Region Variables
;~ Const $bDebug = True
Const $bDebug = False
Const $cMatchLinePercentage = 0.99 ;Minimum matching, put on 1 if exact matching is needed on all lines

;~ Constants for type of picture matching
Const $c24RGBFullMatch = 1 ;Load as 24 bits and full match
Const $c24RGBPartialMatch = 2 ;Load as 24 bits and partial match
Const $c16RGBFullMatch = 3 ;Load as 16 bits and full match
Const $c16RGBPartialMatch = 4 ;Load as 16 bits and partial match

;~ array with BMP coords for every room
Global $aBMPCoords[7][21][2]

Global $cLB         ;search area coord for left begin
Global $cLE         ;search area coord for left end
Global $cTB         ;search area coord for top begin
Global $cTE         ;search area coord for top end

Global $fBMPSample
Global $bSearchResult

Global $Form1_1, $btnStart, $btnStop, $btnExit, $startFlag
#EndRegion Variables

#Region Includes
#include <GDIPlus.au3>
#include <ScreenCapture.au3>
#include <string.au3>
#include <Array.au3>
#include <ButtonConstants.au3>
#include <EditConstants.au3>
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <WindowsConstants.au3>
#include <MsgBoxConstants.au3>
#include <bmpsearch.au3>
#EndRegion Includes

#Region ### START Koda GUI section ### Form=
$Form1_1 = GUICreate("Jonny", 194, 314, -510, 11)
GUISetOnEvent($GUI_EVENT_CLOSE, "_exit")

$lblt1 = GUICtrlCreateLabel("Table 1", 24, 16, 40, 17)
$lblt2 = GUICtrlCreateLabel("Table 2", 128, 16, 40, 17)
$lblt3 = GUICtrlCreateLabel("Table 3", 24, 104, 40, 17)
$lblt4 = GUICtrlCreateLabel("Table 4", 128, 104, 40, 17)

$lblr1 = GUICtrlCreateLabel("", 4, 40, 84, 20, $WS_BORDER)
$lblr2 = GUICtrlCreateLabel("", 100, 40, 84, 20, $WS_BORDER)
$lblr3 = GUICtrlCreateLabel("", 4, 128, 84, 20, $WS_BORDER)
$lblr4 = GUICtrlCreateLabel("", 100, 128, 84, 20, $WS_BORDER)

$btnStart = GUICtrlCreateButton("Start", 16, 272, 75, 25)
GUICtrlSetOnEvent(-1, "start")

$btnStop = GUICtrlCreateButton("Stop", 16, 240, 75, 25)
GUICtrlSetOnEvent(-1, "stop")

$btnExit = GUICtrlCreateButton("Exit", 104, 272, 75, 25)
GUICtrlSetOnEvent(-1, "_exit")

$dmyInterrupt = GUICtrlCreateDummy()
GUICtrlSetOnEvent($dmyInterrupt, "interrupt")
GUIRegisterMsg($WM_COMMAND, "interrupt")

GUISetState(@SW_SHOW)
#EndRegion ### END Koda GUI section ###

Main()

Func Main()
    f_SearchBMPArray()
    While 1
        Sleep(500)
    WEnd
EndFunc   ;==>Main

Func start()
    $startFlag = True
    GUICtrlSetState($btnStart, $GUI_DISABLE)

    While $startFlag
        f_ReadTables()
        Sleep(500)
    WEnd
    Return
EndFunc   ;==>start

Func f_ReadTables()
    $start = TimerInit()

    For $t = 1 To 4         ;check each of the 4 big main areas
        Local $Counter = 0, $LabelPoinet

        For $i = 1 To 6     ;insert needed coordinates for each icon depends of the number of big main area
            Switch $t
                Case 1
                    $cLB = Number($aBMPCoords[$i][5][1])
                    $cLE = Number($aBMPCoords[$i][6][1])
                    $cTB = Number($aBMPCoords[$i][7][1])
                    $cTE = Number($aBMPCoords[$i][8][1])
                    $LabelPoinet = $lblr1
                Case 2
                    $cLB = Number($aBMPCoords[$i][9][1])
                    $cLE = Number($aBMPCoords[$i][10][1])
                    $cTB = Number($aBMPCoords[$i][11][1])
                    $cTE = Number($aBMPCoords[$i][12][1])
                    $LabelPoinet = $lblr2
                Case 3
                    $cLB = Number($aBMPCoords[$i][13][1])
                    $cLE = Number($aBMPCoords[$i][14][1])
                    $cTB = Number($aBMPCoords[$i][15][1])
                    $cTE = Number($aBMPCoords[$i][16][1])
                    $LabelPoinet = $lblr3
                Case 4
                    $cLB = Number($aBMPCoords[$i][17][1])
                    $cLE = Number($aBMPCoords[$i][18][1])
                    $cTB = Number($aBMPCoords[$i][19][1])
                    $cTE = Number($aBMPCoords[$i][20][1])
                    $LabelPoinet = $lblr4
                Case Else
                    ExitLoop
            EndSwitch

            $fBMPSample = @ScriptDir & $aBMPCoords[$i][3][1]
            f_Shots($aBMPCoords[$i][1][1], $fBMPSample, $cLB, $cLE, $cTB, $cTE)

            If $bSearchResult = False Then
                $Counter = $Counter + 1
            Else
                $Counter = 0
                GUICtrlSetData($LabelPoinet, $aBMPCoords[$i][1][1])
                ExitLoop
            EndIf
        Next

        If $Counter = 6 Then
            GUICtrlSetData($LabelPoinet, '')
        EndIf
    Next
EndFunc   ;==>f_ReadTables

Func f_Shots($RoomName, $SearchBMP, $cLB, $cTB, $cLE, $cTE)
    _GDIPlus_Startup()
    $hBMP = _ScreenCapture_Capture('', $cLB, $cTB, $cLE, $cTE, False)
    $bSearchResult = findBMP($hBMP, $SearchBMP, $c16RGBPartialMatch)    ;Find needed image
    _GDIPlus_Shutdown()
EndFunc   ;==>f_Shots

Func f_SearchBMPArray() ;create array with bmp paths and coordinates
    Local $aSectionNames = IniReadSectionNames(@ScriptDir & "\BMPCoord.ini")
    For $i = 1 To $aSectionNames[0]
        $aBMPCoords[$i][0][0] = $aSectionNames[$i]

        Local $aSectionValues = IniReadSection(@ScriptDir & "\BMPCoord.ini", $aSectionNames[$i])
        For $k = 1 To $aSectionValues[0][0]
            $aBMPCoords[$i][$k][0] = $aSectionValues[$k][0]
            $aBMPCoords[$i][$k][1] = $aSectionValues[$k][1]
        Next
    Next
EndFunc   ;==>f_SearchBMPArray

Func stop()
    $startFlag = False
    GUICtrlSetState($btnStart, $GUI_ENABLE)
    Return
EndFunc   ;==>stop

Func interrupt($hWnd, $Msg, $wParam, $lParam)
    If (BitAND($wParam, 0x0000FFFF) = $btnStop) Or (BitAND($wParam, 0x0000FFFF) = $btnExit) Then
        $startFlag = False
    EndIf
    Return $GUI_RUNDEFMSG
EndFunc   ;==>interrupt

Func _exit()
    Exit
EndFunc   ;==>_exit



imagefinder.zip

Edited by likehu
