KHCCData

Trouble getting ControlID

4 posts in this topic

My company has just updated its database and I need to transfer client information into the new database (ChildPlus.net, a thin client app), and have been trying to automate data entry. And failing.

It seemed like AutoIt should work for what I need, but instances and handles for fields change between records, and it doesn’t seem to respond properly to the name of the control either. I have most of the data in csv or excel files, it’s just that controlsend/click do not attach to the fields. I don’t see a way besides instance and class(nn) as names aren’t working.

I cannot just save mouse positions as the text reflow works against it, and there are not enough key commands to be able to script it easily.

The field has two distinct areas, the outer one has a .net name, and the inner just has class and instance(the instance changes if other menu commands are selected, and the class is the same for every field in the application). I can use ControlGetText("ChildPlus.net","","[CLASS:WindowsForms10.EDIT.app.0.3c47a4f_r17_ad1; INSTANCE:24]") for the inner field, but just the first time as the instance changes once I've clicked something else. ControlGetText("ChildPlus.net","","[NAME:txtAlternateID]") produces nothing.

Outer field:

>>>> Window <<<<
Title:    ChildPlus.net
Class:    WindowsForms10.Window.8.app.0.3c47a4f_r17_ad1
Position:    -8, -8
Size:    1616, 876
Style:    0x17CF0000
ExStyle:    0x00050100
Handle:    0x00000000000104EC

>>>> Control <<<<
Class:    WindowsForms10.Window.b.app.0.3c47a4f_r17_ad1
Instance:    234
ClassnameNN:    WindowsForms10.Window.b.app.0.3c47a4f_r17_ad1234
Name:    txtAlternateID
Advanced (Class):    [NAME:txtAlternateID]
ID:    855648
Text:
Position:    945, 575
Size:    285, 28
ControlClick Coords:    133, 2
Style:    0x56000000
ExStyle:    0x00010000
Handle:    0x00000000000D0E60

>>>> Mouse <<<<
Position:    1078, 599
Cursor ID:    0
Color:    0x000000



Inner Field:

>>>> Window <<<<
Title:    ChildPlus.net
Class:    WindowsForms10.Window.8.app.0.3c47a4f_r17_ad1
Position:    -8, -8
Size:    1616, 876
Style:    0x17CF0000
ExStyle:    0x00050100
Handle:    0x00000000000104EC

>>>> Control <<<<
Class:    WindowsForms10.EDIT.app.0.3c47a4f_r17_ad1
Instance:    24
ClassnameNN:    WindowsForms10.EDIT.app.0.3c47a4f_r17_ad124
Name:
Advanced (Class):    [CLASS:WindowsForms10.EDIT.app.0.3c47a4f_r17_ad1; INSTANCE:24]
ID:    1443764
Text:
Position:    950, 579
Size:    275, 20
ControlClick Coords:    71, 12
Style:    0x560100C0
ExStyle:    0x00000000
Handle:    0x00000000001607B4

>>>> Mouse <<<<
Position:    1021, 613
Cursor ID:    0
Color:    0xFFFFFF



Share this post


Link to post
Share on other sites



Try to run as admin.

Saludos

Share this post


Link to post
Share on other sites

#3 ·  Posted (edited)

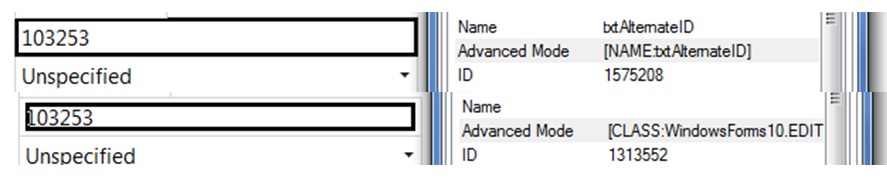

Here for instance is a sample client id field I am trying to get text from. The outer control is named and that would be best IF i could use it, but it's only the inner control that holds text. And the instance and control ID change for that inner box.
Is there a way to get CLASSNN for the control contained inside [NAME:txtAlternateID] ?





double boxed control.jpg

Edited by KHCCData
picture shown in preview, but not in post

Share this post


Link to post
Share on other sites

KHCCData  you are on the wrong path.

This is a job for a database (or system) administrator. He can finish this kind of job in a matter of minutes.

Share this post


Link to post
