Hi Everyone, Happy New Year :sorcerer:

Well, I have a script that gather information about a given switch here at work that output data in a txt file:

txt.thumb.png.f40d19f18ad3e27fa32e256139

What I'd like to do first is to put the file in a list view with the possibility to sort the ports by VLAN, by ports or by Status (and also delete all that concern Duplex / Speed / Type).

In a second time, I'd like to bold and color "connected" in green / "disconnected" in red and "err-disabled" in gray. Then, I'd like also to apply a certain color depending on the VLAN number (I have the list of them).

And to finish (sorry ^^) when I double click on a list item, I'd like to retrieve information of the selected line for me to do some operation on it.

I know this is quite an ask but this is something I don't know how to (don't worry, I've done some researches before) do and also, I'm not familiar with arrays at all.

Many thanks for those who can help :)

I've uploaded the output txt file: EPES18.txt

Edited by 31290

~~~ Doom Shall Never Die, Only The Players ~~~

Share this post


Link to post
Share on other sites
Melba23

31290,

This should get you started:

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <MsgBoxConstants.au3>
#include <StringConstants.au3>
#include <Array.au3>
#include <GuiListView.au3>

; Read file and replace tabs
$sContent = StringReplace(FileRead("EPES18.txt"), @TAB, " ")
; Expand possible single space before connection status
$sExpanded = StringRegExpReplace($sContent, "(\x20(connected|notconnect|err-disabled))", " $1")
; Replace multiple spaces with | delimiter - max 19 to allow for empty fields
$sDelimed = StringRegExpReplace($sExpanded, "(\x20{2,19})", "|")
; Split on @CRLF
$aLines = StringSplit($sDelimed, @CRLF, $STR_ENTIRESPLIT)

;_ArrayDisplay($aLines, "", Default, 8)

$hGUI = GUICreate("Test", 500, 500)

; Create ListView with first 4 headers
$cLV = GUICtrlCreateListView(StringRegExpReplace($aLines[1], "(?U)^(.*\|.*\|.*\|.*)\|.*$", "$1"), 10, 10, 480, 380)
GUICtrlSetBkColor($cLV, 0x808080)
; Set column widths
For $i = 0 To 3
    _GUICtrlListView_SetColumnWidth($cLV, $i, 110)
Next
; Add content of first 4 fields in each line
For $i = 2 To $aLines[0]
    $cLVItem = GUICtrlCreateListViewItem(StringRegExpReplace($alines[$i], "(?U)^(.*\|.*\|.*\|.*)\|.*$", "$1"), $cLV)
    ; Colour according to status
    If StringInStr($alines[$i], "|connected|") Then
        GUICtrlSetColor($cLVItem, 0x00FF00)
    ElseIf StringInStr($alines[$i], "|notconnect|") Then
        GUICtrlSetColor($cLVItem, 0xFF0000)
    Else
        GUICtrlSetColor($cLVItem, 0xC4C4C4)
    EndIf

Next

GUISetState()

; Set sort state
Local $aSortSense[_GUICtrlListView_GetColumnCount($cLV)]

GUIRegisterMsg($WM_NOTIFY, "_WM_NOTIFY")

While 1
    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            Exit
    EndSwitch

WEnd



Func _WM_NOTIFY($hWnd, $imsg, $wParam, $lParam)

    ; Struct = $tagNMHDR and "int Item;int SubItem" from $tagNMLISTVIEW

    Local $tStruct = DllStructCreate("hwnd;uint_ptr;int_ptr;int;int", $lParam)
    If @error Then Return

    Local $iCode = BitAND(DllStructGetData($tStruct, 3), 0xFFFFFFFF)
    Switch $iCode

        Case $LVN_COLUMNCLICK
            ; Get column index
            Local $iCol = DllStructGetData($tStruct, 5)
            ; Sort column
            _GUICtrlListView_SimpleSort($cLV, $aSortSense, $iCol)
        Case $NM_DBLCLK
            $iRow = DllStructGetData($tStruct, 4)
            ; Row 0 in ListView is row 2 in the array
            MsgBox($MB_SYSTEMMODAL, "Row Data", $aLines[$iRow + 2])
    EndSwitch

EndFunc

M23

Edit; I amended the file slightly to add some "err-disabled" lines:

Edited by Melba23
  • Like 2

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites
31290

M23!

That's exactly this kind I'd like!!! So much thanks!!! Now I can try to understand how things work and for sure, my knowledge will grow. :)

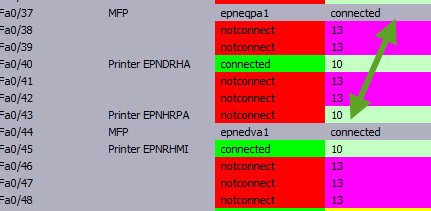

Is it possible to color vlans according to their numbers stored in a txt file? For example, if Vlan 13 or Vlan 31 is in a txt file, then color it in bleu. In fact, I'd like to be able to color items in a row depending on their value... Not sure this is well expressed :/

Therefore, and as you can see, if I sort the list by the ports twice, I got this:

ports.thumb.png.b39dd05ab6df36508c85a76e

Any ideas?



Many thanks again!


~~~ Doom Shall Never Die, Only The Players ~~~

Share this post


Link to post
Share on other sites
Melba23

31290,

Colouring individual sub-items on a line is much more complicated - LarsJ shows how you can do it here.

Sorting is done alphabetically - so there is no simple way to avoid that return listing. The alternative would be to extract the data into an array, split the alpha and numeric sections, sort the latter numerically, recombine and then reload the ListView - certainly doable, but a bit of a faff.

M23

  • Like 1

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites
31290

M23,

Yeah, that seems to be a hard job. So in this case, do you think locking up sorting in column only is possible?

One last question for you and I won't disturb you anymore :)

How can I isolate every items? I tried to play with DllStructGetData but it seems that this is not working. I'd like to get the portnumber (item one), the description (item 2), the state (item 3) and the Vlan (item 4)

data.thumb.png.f875e79f8b8165e60aa89fc8b

By the way, huge thanks to you for the help you provided to me! :drinks:


~~~ Doom Shall Never Die, Only The Players ~~~

Share this post


Link to post
Share on other sites
Melba23

31290,

locking up sorting in column only is possible

Do you mean that you want to prevent sorting in certain columns?

To get the separate items from the data, use StringSplit to get the different elements into an array and then select the ones you want:

Case $NM_DBLCLK
    $iRow = DllStructGetData($tStruct, 4)
    ; Row 0 in ListView is row 2 in the array
    $sData = $aLines[$iRow + 2]
    ; Split
    $aData = StringSplit($sData, "|")
    MsgBox($MB_SYSTEMMODAL, "Row Data", $aData[1] & @CRLF & $aData[2] & @CRLF & $aData[3] & @CRLF & $aData[4])

By the way, do not use a MsgBox inside the handler in your final script - I only did so here for a quick demonstration. I suggest you set a flag or action a dummy control so that you do not block the handler's return.

M23

  • Like 1

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites
31290

Thanks M23 :) that's very very kind of you.

31290,

Do you mean that you want to prevent sorting in certain columns?



Yes, I did a typo here :) People will need to sort columns but if not possible, I'll add a label warning them. But thinking about it, I think this won't be possible... But you never know.

By the way, do not use a MsgBox inside the handler in your final script - I only did so here for a quick demonstration. I suggest you set a flag or action a dummy control so that you do not block the handler's return.

M23

Yes, some items will be set to a global variable for future treatment, set in a txt file and sent to the switch for configuring a port according to our needs :)

Thanks.




~~~ Doom Shall Never Die, Only The Players ~~~

Share this post


Link to post
Share on other sites
Melba23

31290,

If you want to prevent sorting certain columns, then just check which column was clicked inside the handler - this prevents the first column being sorted:

Case $LVN_COLUMNCLICK
    ; Get column index
    Local $iCol = DllStructGetData($tStruct, 5)
    If $iCol <> 0 Then
        ; Sort column
        _GUICtrlListView_SimpleSort($cLV, $aSortSense, $iCol)
    EndIf

M23:



  • Like 1

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites
31290

So Cool M23! You rock, as usual!

Many many thanks again for your precious help! Keep going :)

Bye Bye


~~~ Doom Shall Never Die, Only The Players ~~~

Share this post


Link to post
Share on other sites
Melba23

31290,

Here is LarsJ's code integrated into mine - I enjoyed doing that:

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <StringConstants.au3>
#include <Array.au3>
#include <GuiListView.au3>

; Read file and replace tabs
$sContent = StringReplace(FileRead("EPES18.txt"), @TAB, " ")
; Replace orphaned dashes
$sNoDashes = StringReplace($sContent, " - ", "  ")
; Expand possible single space before connection status
$sExpanded = StringRegExpReplace($sNoDashes, "(\x20(connected|notconnect|err-disabled))", " $1")
; Replace multiple spaces with | delimiter - max 19 to allow for empty fields
$sDelimed = StringRegExpReplace($sExpanded, "(\x20{2,19})", "|")
; Split on @CRLF
$aLines = StringSplit($sDelimed, @CRLF, $STR_ENTIRESPLIT)
;_ArrayDisplay($aLines, "", Default, 8)

$hGUI = GUICreate("Test", 500, 500)

; Create ListView with first 4 headers
$cLV = GUICtrlCreateListView(StringRegExpReplace($aLines[1], "(?U)^(.*\|.*\|.*\|.*)\|.*$", "$1"), 10, 10, 480, 380)
; Set column widths
For $i = 0 To 3
    _GUICtrlListView_SetColumnWidth($cLV, $i, 110)
Next
; Add content of first 4 fields in each line
For $i = 2 To $aLines[0]
    $cLVItem = GUICtrlCreateListViewItem(StringRegExpReplace($aLines[$i], "(?U)^(.*\|.*\|.*\|.*)\|.*$", "$1"), $cLV)
Next

GUIRegisterMsg($WM_NOTIFY, "_WM_NOTIFY")

GUISetState()

; Set sort state
Local $aSortSense[_GUICtrlListView_GetColumnCount($cLV)]

While 1
    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            Exit
    EndSwitch

WEnd



Func _WM_NOTIFY($hWnd, $imsg, $wParam, $lParam)

    ; Struct = $tagNMHDR and "int Item;int SubItem" from $tagNMLISTVIEW

    Local $tStruct = DllStructCreate("hwnd;uint_ptr;int_ptr;int;int", $lParam)
    If @error Then Return

    Local $iCode = BitAND(DllStructGetData($tStruct, 3), 0xFFFFFFFF)
    Switch $iCode



        Case $LVN_COLUMNCLICK
            ; Get column index
            Local $iCol = DllStructGetData($tStruct, 5)
            If $iCol <> 0 Then
                ; Sort column
                _GUICtrlListView_SimpleSort($cLV, $aSortSense, $iCol)
            EndIf

        Case $NM_DBLCLK
            $iRow = DllStructGetData($tStruct, 4)
            ; Row 0 in ListView is row 2 in the array
            $sData = $aLines[$iRow + 2]
            ; Split
            $aData = StringSplit($sData, "|")
            ConsoleWrite("Row Data: " & $aData[1] & " - " & $aData[2] & " - " & $aData[3] & " - " & $aData[4] & @‌CRLF)

        Case $NM_CUSTOMDRAW
            Local $tNMLVCUSTOMDRAW = DllStructCreate($tagNMLVCUSTOMDRAW, $lParam)
            Local $dwDrawStage = DllStructGetData($tNMLVCUSTOMDRAW, "dwDrawStage")
            Switch $dwDrawStage ; Holds a value that specifies the drawing stage
                Case $CDDS_PREPAINT
                    ; Before the paint cycle begins
                    Return $CDRF_NOTIFYITEMDRAW ; Notify the parent window of any item-related drawing operations
                Case $CDDS_ITEMPREPAINT
                    ; Before painting an item
                    Return $CDRF_NOTIFYSUBITEMDRAW ; Notify the parent window of any subitem-related drawing operations
                Case BitOR($CDDS_ITEMPREPAINT, $CDDS_SUBITEM)
                    ; Before painting a subitem

                    Local $iItem = DllStructGetData($tNMLVCUSTOMDRAW, "dwItemSpec") ; Item index
                    Local $iSubItem = DllStructGetData($tNMLVCUSTOMDRAW, "iSubItem") ; Subitem index
                    ; Gte text of item
                    $sText = _GUICtrlListView_GetItemText($cLV, $iItem, $iSubItem)
                    ; Set default back colour
                    $iBkColour = 0xC0B0B0
                    ; Now check for our spoecific items
                    Switch $iSubItem

                        Case 2 ; connection
                            Switch $sText

                                Case "connected"
                                    $iBkColour = 0x00FF00
                                Case "notconnect"
                                    $iBkColour = 0x0000FF
                                Case "err-disabled"
                                    $iBkColour = 0xC4C4C4
                            EndSwitch

                        Case 3 ; vlan

                            Switch $sText

                                Case "trunk"
                                    $iBkColour = 0x00FFFF
                                Case "1"
                                    $iBkColour = 0xFFFF00
                                Case "10"
                                    $iBkColour = 0xC4FFC4
                                Case "13"
                                    $iBkColour = 0xFF00FF
                            EndSwitch

                    EndSwitch

                    ; Set required back colour
                    DllStructSetData($tNMLVCUSTOMDRAW, "ClrTextBk", $iBkColour)

                    Return $CDRF_NEWFONT ; $CDRF_NEWFONT must be returned after changing font or colors

            EndSwitch



    EndSwitch



EndFunc   ;==>_WM_NOTIFY

It looks as if the file parsing could do with a bit more work - there are a couple of lines where the delimiters are not correct. It does not help that the file uses a mixture of spaces and tabs to separate the items on each line - and on some lines there are items missing. Can you get the file in a more reasonable CSV format or are you stuck with what you have posted?

M23

Edit: Recoded the file parsing - it now works for the test file, but I would still recommend trying to get a better delimited file initially as the parsing requirements are a bit arbitrary at the moment.

Edited by Melba23
  • Like 1

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites
31290

M23,

I have no words for that! Really! That's totally awesome :D Thanks!

To give you the answer, I cannot output to any other file extension because of putty (and more especially plink). If you want, here the code I use to gather a switch information:

Run(@ComSpec & ' /c '&$testvariable&'PLINK.EXE '&$currentSwitch&' -l '&$username&' -pw '&$ClearPwd&' sh ver > '&$testvariable&'info'&$currentSwitch&'.txt', @SystemDir, @SW_HIDE, $STDERR_CHILD + $STDOUT_CHILD)

For sure, a tab delimited file would be easier to deal with. In that case, isn't that possible to transform the txt file in a tab delimited csv one?
Because on some lines, I have this:

2016-01-14_14-31-06.thumb.png.01974bbeeb

The port state is in the Vlan column :/

Thanks :)


~~~ Doom Shall Never Die, Only The Players ~~~

Share this post


Link to post
Share on other sites
Melba23

31290,

As I mentioned above, the file contains both spaces and tabs as well as many missing "Name" fields - all this makes the converting of the file to a suitably delimited form quite tricky. I will look again at how it might be done, but no promises.

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites
Melba23

31290,

I have completely recoded the delimiter parsing section to deal with the annoying "Name" section - please test this and see if it works for you:

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <StringConstants.au3>
#include <Array.au3>
#include <GuiListView.au3>

; Read file into array
$aLines = FileReadToArray("EPES18.txt")

; Deal with title line
$aLines[0] = StringRegExpReplace($aLines[0], "(\x20+)", "|")
; Now the other lines
For $i = 1 To UBound($aLines) - 1
    ; Extract line
    $sLine = $aLines[$i]
    ; Replace tabs with spaces
    $sLine = StringReplace($sLine, @TAB, " ")
    ; Extract possible name field
    $sName = StringRegExpReplace($sLine, "(?U)^.*(\x20.*\x20)(connected|notconnect|err-disabled).*$", "$1")
    ; Convert multiple spaces to singles
    $sStrippedName = StringRegExpReplace($sName, "\x20+", " ")
    ; Set placeholder if no name field
    If $sStrippedName = " " Then $sStrippedName = " ~ "
    ; Replace original name string in line with stripped version - add spaces to ensure multiple spaces before and after
    $sLine = StringReplace($sLine, $sName, " " & $sStrippedName & " ")
    ; Set delimiters by replacing multiple spaces
    $sLine = StringRegExpReplace($sLine, "(\x20{2,19})", "|")
    ; Remove placeholders
    $sLine = StringReplace($sLine, "~", "")
    ; Replace existing line with delimited line
    $aLines[$i] = $sLine

Next

$hGUI = GUICreate("Test", 500, 500)

; Create ListView with first 4 headers
$cLV = GUICtrlCreateListView(StringRegExpReplace($aLines[0], "(?U)^(.*\|.*\|.*\|.*)\|.*$", "$1"), 10, 10, 480, 380)
; Set column widths
For $i = 0 To 3
    _GUICtrlListView_SetColumnWidth($cLV, $i, 110)
Next
; Add content of first 4 fields in each line
For $i = 1 To UBound($aLines) - 1
    $cLVItem = GUICtrlCreateListViewItem(StringRegExpReplace($aLines[$i], "(?U)^(.*\|.*\|.*\|.*)\|.*$", "$1"), $cLV)
Next

GUIRegisterMsg($WM_NOTIFY, "_WM_NOTIFY")

GUISetState()

; Set sort state
Local $aSortSense[_GUICtrlListView_GetColumnCount($cLV)]

While 1
    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            Exit
    EndSwitch



WEnd







Func _WM_NOTIFY($hWnd, $imsg, $wParam, $lParam)

    ; Struct = $tagNMHDR and "int Item;int SubItem" from $tagNMLISTVIEW



    Local $tStruct = DllStructCreate("hwnd;uint_ptr;int_ptr;int;int", $lParam)
    If @error Then Return

    Local $iCode = BitAND(DllStructGetData($tStruct, 3), 0xFFFFFFFF)
    Switch $iCode







        Case $LVN_COLUMNCLICK
            ; Get column index
            Local $iCol = DllStructGetData($tStruct, 5)
            If $iCol <> 0 Then
                ; Sort column
                _GUICtrlListView_SimpleSort($cLV, $aSortSense, $iCol)
            EndIf



        Case $NM_DBLCLK
            $iRow = DllStructGetData($tStruct, 4)
            ; Row 0 in ListView is row 2 in the array
            $sData = $aLines[$iRow + 2]
            ; Split
            $aData = StringSplit($sData, "|")
            ConsoleWrite("Row Data: " & $aData[1] & " - " & $aData[2] & " - " & $aData[3] & " - " & $aData[4] & @CRLF)

        Case $NM_CUSTOMDRAW
            Local $tNMLVCUSTOMDRAW = DllStructCreate($tagNMLVCUSTOMDRAW, $lParam)
            Local $dwDrawStage = DllStructGetData($tNMLVCUSTOMDRAW, "dwDrawStage")
            Switch $dwDrawStage ; Holds a value that specifies the drawing stage
                Case $CDDS_PREPAINT
                    ; Before the paint cycle begins
                    Return $CDRF_NOTIFYITEMDRAW ; Notify the parent window of any item-related drawing operations
                Case $CDDS_ITEMPREPAINT
                    ; Before painting an item
                    Return $CDRF_NOTIFYSUBITEMDRAW ; Notify the parent window of any subitem-related drawing operations
                Case BitOR($CDDS_ITEMPREPAINT, $CDDS_SUBITEM)
                    ; Before painting a subitem



                    Local $iItem = DllStructGetData($tNMLVCUSTOMDRAW, "dwItemSpec") ; Item index
                    Local $iSubItem = DllStructGetData($tNMLVCUSTOMDRAW, "iSubItem") ; Subitem index
                    ; Gte text of item
                    $sText = _GUICtrlListView_GetItemText($cLV, $iItem, $iSubItem)
                    ; Set default back colour
                    $iBkColour = 0xC4C4C4
                    ; Now check for our spoecific items
                    Switch $iSubItem



                        Case 2 ; connection
                            Switch $sText



                                Case "connected"
                                    $iBkColour = 0x00FF00
                                Case "notconnect"
                                    $iBkColour = 0x0000FF
                                Case "err-disabled"
                                    $iBkColour = 0xC4C4C4
                            EndSwitch



                        Case 3 ; vlan



                            Switch $sText



                                Case "trunk"
                                    $iBkColour = 0x00FFFF
                                Case "1"
                                    $iBkColour = 0xFFFF00
                                Case "10"
                                    $iBkColour = 0xC4FFC4
                                Case "13"
                                    $iBkColour = 0xFF00FF
                            EndSwitch



                    EndSwitch



                    ; Set required back colour
                    DllStructSetData($tNMLVCUSTOMDRAW, "ClrTextBk", $iBkColour)

                    Return $CDRF_NEWFONT ; $CDRF_NEWFONT must be returned after changing font or colors



            EndSwitch







    EndSwitch







EndFunc   ;==>_WM_NOTIFY

If you still have problems, then please let me see the file containing the lines causing difficulty so I can refine the process further.

M23

  • Like 1

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites
31290

M23,

This is perfectly working now, no more bad formatting.

I'd like to thank you again for all you did for me, have a great weekend (if any ^^). I'll buy you a beer sometimes!

Au revoir et merci encore! (Yeah, I'm French ^^)


~~~ Doom Shall Never Die, Only The Players ~~~

Share this post


Link to post
Share on other sites
Melba23

31290,

Il n'y a pas de quoi.

M23

  • Like 1

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites
31290

M23,

I Need one more little hand, I promise, I stop after that :)

I realized that I was able to gather one last very essential value to the list view, but that one is coming from an other txt file (still no csv).

What I'd like to do, is to integrate a fifth column, named "IP Phone" (or something else I don't care for now) with "Yes" or "No" depending if the corresponding port is listed in the output text file.

I've attached 2 of them so you can see the structure of them (the idmul.txt that all the ports are configured to support ip phone, VLAN 100 for us)

ipphone.thumb.png.6f2183384b8a6b45cf0f44
I hope my explanations are clear enough for you ;) So much thanks :D

idmul.txt

id.txt

idmul.txt


~~~ Doom Shall Never Die, Only The Players ~~~

Share this post


Link to post
Share on other sites
Melba23

31290,

Easy! Just replace the existing GUI and ListView creation lines in the earlier script with these:

; This is where we parse the main file

; Read IP Phone ID file
$sID = Fileread("id.txt")

$hGUI = GUICreate("Test", 500, 500)

; Create ListView with first 4 headers plus "IP Phone"
$cLV = GUICtrlCreateListView(StringRegExpReplace($aLines[0], "(?U)^(.*\|.*\|.*\|.*)\|.*$", "$1") & "|IP Phone", 10, 10, 480, 380)
; Set column widths
For $i = 0 To 4
    _GUICtrlListView_SetColumnWidth($cLV, $i, 90)
Next
; Add content of first 4 fields in each line plus the IP Phone result
For $i = 1 To UBound($aLines) - 1
    ; Assume not IP Phone
    $sIPPhone = "|N"
    ; Look for the port ID in the file - it will be preceded by a space and followed by either a comma or an EOL
    If StringRegExp($sID, " " & StringRegExpReplace($aLines[$i], "(?U)^(.*)\|.*$", "$1") & "[,\x0D]") Then
        ; If found change the set value
        $sIPPhone = "|Y"
    EndIf
    ; Add fields and IP Phone to the ListView
    $cLVItem = GUICtrlCreateListViewItem(StringRegExpReplace($aLines[$i], "(?U)^(.*\|.*\|.*\|.*)\|.*$", "$1") & $sIPPhone, $cLV)
    Next

GUIRegisterMsg($WM_NOTIFY, "_WM_NOTIFY")

GUISetState()

That works fine for me with your test files - does it work for you too?

And never be afraid to ask - I come here to help and to keep my "little grey cells" in good condition!

M23







Edited by Melba23
Additional comments

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites
31290

M23,

On 1/15/2016 at 5:50 PM, Melba23 said:

And never be afraid to ask - I come here to help and to keep my "little grey cells" in good condition!

That's very kind of you because with your help, I can learn more about things I don't handle. :)

Yes, it is working fine with my files, just a few ajustments to fill my needs bu this is perfect.

One question though :D :

I'm trying to get the value of the IPPhone variable defined by this:

Global $sIPPhone = "|Not Set"
    ; Look for the port ID in the file - it will be preceded by a space and followed by either a comma or an EOL
    If StringRegExp($sID, " " & StringRegExpReplace($aLines[$i], "(?U)^(.*)\|.*$", "$1") & "[,\x0D]") Then
        ; If found change the set value
       Global $sIPPhone = "|Set"
    EndIf

and doing this:

Global $aIPPhone = StringTrimLeft($sIPPhone,1)
            ; Global $aIPPhone = _GUICtrlListView_GetItemTextArray ( $cLV , 5)
            MsgBox($MB_SYSTEMMODAL, "Row Data", $aData[1] & @CRLF & $aData[2] & @CRLF & $aData[3] & @CRLF & $aData[4] & @CRLF & $aIPPhone )

All I get is the "Not Set" value when double clicking on the line were it is "Set":

2016-01-18_09-38-15.png.f8c25723a80d528b
I also tried to get the value with the "_GUICtrlListView_GetItemTextArray" function and by creating an other array but nothing seems to work here :/ Can you please help on this?

Oh and I just saw something: When I move the msgbox into the listview, every thing goes white :) Is it something expected?

That was just a remark as when a technician will double click on a port, the listview GUI will be disabled and enabled when operation on said port will be acknowleded.

Thanks :)


~~~ Doom Shall Never Die, Only The Players ~~~

Share this post


Link to post
Share on other sites
Melba23

31290,

This works fine for me:

Case $NM_DBLCLK
    $iRow = DllStructGetData($tStruct, 4)
    ConsoleWrite("Row Data: " & _GUICtrlListView_GetItemTextString($cLV, $iRow) & @CRLF)

As I mentioned above, you should not be using a MsgBox (or any other blocking function) inside a Windows message handler - when the Help file says you should return from the handler ASAP it means it! By blocking the handler you are blocking the flow of Windows messages inside the app and risking a serious crash. In this case, you are blocking the WM_NOTIFY messages which we use to colour the ListView when repainting - hence you get no repaint.  If you want to test, use a ConsoleWrite as I did above, or a flag in the idle loop (let me know if you want to see how that can be done).

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites
31290

M23,

I understood what you said about not using a MsgBox, but I wanted to be sure that all values (port name, description, vlan and IPPhone) were get because I have to display them separately in a new GUI when double clicking on a port. After that, I have operations to perform on said values (change Vlan, change description, etc...)

That's why:

MsgBox($MB_SYSTEMMODAL, "Row Data", $aData[1] & @CRLF & $aData[2] & @CRLF & $aData[3] & @CRLF & $aData[4] & @CRLF & $aIPPhone )

Is a way for me to be sure of that. To avoid the loss of painting, I can minimize the GUI while the Ports Operations GUI is opened and in anycases, I have to reload almost everything to display updates (generate all the files, etc... But I've already done that)

28 minutes ago, Melba23 said:

If you want to test, use a ConsoleWrite as I did above, or a flag in the idle loop (let me know if you want to see how that can be done).

If you have time, yes of course, all is good to take :)

Thanks :)


~~~ Doom Shall Never Die, Only The Players ~~~

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Similar Content

    • Trisha
      By Trisha
      Hello,
      I Have clicked on save as option to save a file, while doing that I need to rename a file appending with sysdate. I have searched in google find the below one line of code:
      FileMove("C:\somefile.txt", "C:\somefile1.txt"), When I am trying to append with sysdate. It is not happening. Please help me out  with the small issue.
    • Bilgus
      By Bilgus
      Draw Path Points allows you to make line paths for drawing with gdi
      You can even load an image and trace the outline
      Save and load functionality undo and redo zoom and scale; Don't Forget Rotate!
      ;Draw Path Points BILGUS 2018 ;Includes #include <File.au3> #include <GDIPlus.au3> #include <GUIConstants.au3> #include <GuiEdit.au3> #include <GuiListView.au3> #include <GuiTab.au3> #include <Misc.au3> If OnAutoItExitRegister("_Exit") <> 0 Then _GDIPlus_Startup() ;initialize GDI+ ConsoleWrite("GDI+ Started" & @CRLF) EndIf Opt("MouseCoordMode", 2) ;Relative coords to the client area of the active window Opt("PixelCoordMode", 2) ;Relative coords to the client area of the active window Global $g_iXScale = 8 Global $g_iYScale = $g_iXScale Global $g_sFileSave = @ScriptDir & "\DrawPath.txt" ;Default Global $g_bClosePath = False Global $g_bShowImage = False Global $g_sImagefile = "" Global $g_iUndo_Max = 50 Global $g_asUndo_Files[1] = [""] Global $g_asRedo_Files[1] = [""] Global $g_aPath_Points[1][2] = [[0, 0]] Global $g_aPath_Rot_Points Global $g_hForm1 = GUICreate("Draw Path Points", 615, 437, 192, 124) Global $g_hSelSquare = GUICtrlCreateLabel("", 0, 0, 0, 0, $SS_BLACKFRAME, $WS_EX_TOPMOST) GUICtrlSetState(-1, $GUI_HIDE) ;------------------------------------------------------------------------------- Global Enum $eC1_delete, $eC1_del_all, $eC1_update, $eC1_shift_dn, $eC1_shift_up, _ $eC1_closepath, $eC1_showimg, $eC1_lock, $eC1_undo, $eC1_redo, $aCtl1_LAST Global $g_ahCtl1[$aCtl1_LAST] Control_Create_Group1() ;------------------------------------------------------------------------------- Global Enum $eC2_zin, $eC2_zout, $eC2_dgroup, $eC2_decx, $eC2_incx, $eC2_decy, _ $eC2_incy, $eC2_edit_rot, $eC2_rot, $eC2_ud_rot, $eC2_rev, $eC2_toall, $aCtl2_LAST Global $g_ahCtl2[$aCtl2_LAST] Control_Create_Group2() ;------------------------------------------------------------------------------- Global $g_hBtn_load = GUICtrlCreateButton("Load", 5, 1, 35, 20) Global $g_hBtn_save = GUICtrlCreateButton("Save", 40, 1, 35, 20) Global $g_hBtn_arr_disp = GUICtrlCreateButton("Array", 75, 1, 35, 20) Global $g_hEdit_encoded = GUICtrlCreateEdit("", 115, 2, 50, 18, $ES_READONLY + $ES_AUTOHSCROLL, $WS_EX_STATICEDGE + $WS_EX_TRANSPARENT) Global $g_hList1 = GUICtrlCreateListView("#|x|y", 5, 24, 161, 201, $LVS_SHOWSELALWAYS Or $LVS_SINGLESEL) Global $g_hList1_LVN = GUICtrlCreateDummy() ;listview notifications Global $g_hImage1 = GUICtrlCreatePic("", 200, 16, 400, 400, -1, $WS_EX_LAYERED) Global $g_hTab1 = GUICtrlCreateTab(1, 225, 20, 500, $TCS_VERTICAL) GUICtrlCreateTabItem(" ") GUICtrlSetState(-1, $GUI_SHOW) ; will be display first GUICtrlCreateTabItem(" ") GUICtrlCreateTabItem("") ; end tabitem definition For $i = 0 To UBound($g_ahCtl2) - 1 GUICtrlSetState($g_ahCtl2[$i], $GUI_HIDE) Next GUIRegisterMsg($WM_NOTIFY, "WM_NOTIFY") List_Update() List_Index() GUISetState(@SW_SHOW) State_Save($g_aPath_Points) Points_Update($g_aPath_Points) Global $g_nMsg = 0 While 1 $g_nMsg = GUIGetMsg() If $g_nMsg > 0 And $g_nMsg <> $g_ahCtl2[$eC2_ud_rot] And $g_nMsg <> $g_ahCtl2[$eC2_edit_rot] And GUICtrlRead($g_ahCtl2[$eC2_edit_rot]) <> 0 Then ;ConsoleWrite("Cancel_Rotate? " & $g_nMsg & @CRLF) If MsgBox($MB_ICONQUESTION + $MB_OKCANCEL + $MB_DEFBUTTON2, "Save?", "Save Rotated Points?", 10) == $IDOK Then _GUICtrlEdit_SetText($g_ahCtl2[$eC2_edit_rot], "0") $g_aPath_Points = $g_aPath_Rot_Points State_Save($g_aPath_Points) List_Update(List_Index()) Else _GUICtrlEdit_SetText($g_ahCtl2[$eC2_edit_rot], "0") Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage, List_Index()) ;, True) EndIf EndIf Switch $g_nMsg Case $GUI_EVENT_CLOSE Exit Case $g_hTab1 Tab1_Select() Case $g_hSelSquare ;ConsoleWrite("SelSquare" & @CRLF) SelSquare_Drag() Case $g_hList1 ;ConsoleWrite("List1 " & $g_nMsg & @CRLF) Local $iIndex = List_Index() If $iIndex <> -1 Then Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage, $iIndex) _GUICtrlListView_SetItemSelected($g_hList1, $iIndex, True, True) EndIf Case $g_hList1_LVN Point_Selected($g_aPath_Points, $g_hImage1, List_Index()) Case $g_hList1_LVN Case $g_hImage1 Image1_Clicked() Case $g_hBtn_save Btn_save_Clicked() Case $g_hBtn_load Btn_load_Clicked() Case $g_hBtn_arr_disp _ArrayDisplay($g_aPath_Points) ;------------------------------------------------------------------- Case $g_ahCtl1[$eC1_shift_up] $iIndex = List_Index() Point_Swap($iIndex, -1) Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage) Case $g_ahCtl1[$eC1_shift_dn] $iIndex = List_Index() Point_Swap($iIndex, 1) Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage) Case $g_ahCtl1[$eC1_del_all] $g_aPath_Points = 0 Global $g_aPath_Points[1][2] = [[0, 0]] List_Update() Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage) Case $g_ahCtl1[$eC1_delete] $iIndex = List_Index() Point_Delete($iIndex) _GUICtrlListView_ClickItem($g_hList1, $iIndex) Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage) Case $g_ahCtl1[$eC1_redo] $g_aPath_Points = State_Restore($g_aPath_Points, False) List_Update() Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage) Case $g_ahCtl1[$eC1_undo] $g_aPath_Points = State_Restore($g_aPath_Points, True) List_Update() Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage) Case $g_ahCtl1[$eC1_update] List_Update(List_Index()) Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage) Ascii_Points($g_aPath_Points) _GUICtrlEdit_SetSel($g_hEdit_encoded, 0, -1) Case $g_ahCtl1[$eC1_closepath] $g_bClosePath = Control_IsChecked($g_ahCtl1[$eC1_closepath]) List_Update(List_Index()) Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage) If $g_bClosePath Then GUICtrlSetState($g_ahCtl2[$eC2_rev], $GUI_DISABLE) Else GUICtrlSetState($g_ahCtl2[$eC2_rev], $GUI_ENABLE) EndIf Case $g_ahCtl1[$eC1_showimg] If Not $g_bShowImage Then $g_sImagefile = FileOpenDialog("Select an image", SplitDir($g_sImagefile), "All Files(*.*)", 0, SplitFileName($g_sImagefile), $g_hForm1) EndIf $g_bShowImage = Control_IsChecked($g_ahCtl1[$eC1_showimg]) List_Update(List_Index()) Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage) ;------------------------------------------------------------------- Case $g_ahCtl2[$eC2_zin] If Control_IsChecked($g_ahCtl2[$eC2_toall]) Then Points_Scale(1, 1) Else $g_iXScale += 1 $g_iYScale += 1 Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage) EndIf _GUICtrlListView_ClickItem($g_hList1, List_Index()) Case $g_ahCtl2[$eC2_zout] If Control_IsChecked($g_ahCtl2[$eC2_toall]) Then Points_Scale(-1, -1) Else $g_iXScale -= 1 $g_iYScale -= 1 Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage) EndIf _GUICtrlListView_ClickItem($g_hList1, List_Index()) Case $g_ahCtl2[$eC2_rev] $iIndex = List_Index() $g_aPath_Points = Points_Reverse($g_aPath_Points) Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage, $iIndex) ;, True) List_Update($iIndex) Case $g_ahCtl2[$eC2_edit_rot] ;ConsoleWrite("Rotate" & @CRLF) $iIndex = List_Index() Local $iDegrees = GUICtrlRead($g_ahCtl2[$eC2_edit_rot]) $g_aPath_Rot_Points = Points_Rotate($g_aPath_Points, $iDegrees) Points_Update($g_aPath_Rot_Points, $g_bClosePath, $g_bShowImage, $iIndex) ;, True) Case $g_ahCtl2[$eC2_incx] Point_Adjust(1, 0, Control_IsChecked($g_ahCtl2[$eC2_toall])) Case $g_ahCtl2[$eC2_decx] Point_Adjust(-1, 0, Control_IsChecked($g_ahCtl2[$eC2_toall])) Case $g_ahCtl2[$eC2_incy] Point_Adjust(0, 1, Control_IsChecked($g_ahCtl2[$eC2_toall])) Case $g_ahCtl2[$eC2_decy] Point_Adjust(0, -1, Control_IsChecked($g_ahCtl2[$eC2_toall])) EndSwitch WEnd ;---------------------------------------------------------------------------------------------------- Func _Exit() _GDIPlus_Shutdown() ConsoleWrite("GDI+ Stopped" & @CRLF) State_Destroy() EndFunc ;==>_Exit Func Ascii_Points($aPts) ;encodes points into an ascii string Local Const $iChrOffset = 33 Local Const $iMaxOffset = 126 - $iChrOffset If Not IsArray($aPts) Then Return Local $sAscEnc = StringFormat("%03i%05i", $iChrOffset, UBound($aPts) * 2 + 8) If _ArrayMin($aPts) >= 0 And (_ArrayMax($aPts) - _ArrayMin($aPts)) <= $iMaxOffset Then For $i = 0 To UBound($aPts) - 1 $sAscEnc = $sAscEnc & Chr($aPts[$i][0] + $iChrOffset) & Chr($aPts[$i][1] + $iChrOffset) Next EndIf _GUICtrlEdit_SetText($g_hEdit_encoded, $sAscEnc) EndFunc ;==>Ascii_Points Func Btn_load_Clicked() ConsoleWrite("Load: " & SplitDir($g_sFileSave) & @CRLF) $g_sFileSave = FileOpenDialog("Select a save file", SplitDir($g_sFileSave), "All Files(*.*)", 0, SplitFileName($g_sFileSave), $g_hForm1) _FileReadToArray($g_sFileSave, $g_aPath_Points, 0, ",") If @error Then Dim $g_aPath_Points[1][2] = [[0, 0]] Else State_Destroy() State_Save($g_aPath_Points) EndIf List_Update() Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage) EndFunc ;==>Btn_load_Clicked Func Btn_save_Clicked() List_Update(List_Index()) $g_sFileSave = FileOpenDialog("Select a save file", SplitDir($g_sFileSave), "All Files(*.*)", 0, SplitFileName($g_sFileSave), $g_hForm1) _FileWriteFromArray($g_sFileSave, $g_aPath_Points, 0, Default, ",") EndFunc ;==>Btn_save_Clicked Func Control_Create_Group1() Local $iX = 30 Local $iY = 225 $g_ahCtl1[$eC1_delete] = GUICtrlCreateButton("Delete", $iX + 0, $iY + 0, 50, 20) $g_ahCtl1[$eC1_shift_dn] = GUICtrlCreateButton("+", $iX + 70, $iY + 0, 20, 20) $g_ahCtl1[$eC1_shift_up] = GUICtrlCreateButton("-", $iX + 95, $iY + 0, 20, 20) $g_ahCtl1[$eC1_del_all] = GUICtrlCreateButton("Delete All", $iX + 0, $iY + 25, 50, 20) $g_ahCtl1[$eC1_update] = GUICtrlCreateButton("Update", $iX + 70, $iY + 25, 50, 20) $g_ahCtl1[$eC1_undo] = GUICtrlCreateButton("Undo", $iX + 0, $iY + 50, 50, 20) $g_ahCtl1[$eC1_redo] = GUICtrlCreateButton("Redo", $iX + 70, $iY + 50, 50, 20) GUICtrlSetState($g_ahCtl1[$eC1_undo], $GUI_DISABLE) GUICtrlSetState($g_ahCtl1[$eC1_redo], $GUI_DISABLE) $g_ahCtl1[$eC1_closepath] = GUICtrlCreateCheckbox("Complete", $iX + 0, $iY + 70, 65, 25) $g_ahCtl1[$eC1_showimg] = GUICtrlCreateCheckbox("Image", $iX + 0, $iY + 90, 65, 25) $g_ahCtl1[$eC1_lock] = GUICtrlCreateCheckbox("Locked", $iX + 0, $iY + 110, 65, 25) EndFunc ;==>Control_Create_Group1 Func Control_Create_Group2() Local $iX = 30 Local $iY = 225 $g_ahCtl2[$eC2_rev] = GUICtrlCreateButton("Reverse", $iX + 0, $iY + 0, 50, 20) $g_ahCtl2[$eC2_edit_rot] = GUICtrlCreateInput("0", $iX + 0, $iY + 25, 40, 20) $g_ahCtl2[$eC2_ud_rot] = GUICtrlCreateUpdown(-1) GUICtrlSetLimit($eC2_ud_rot, 360, -360) $g_ahCtl2[$eC2_rot] = GUICtrlCreateButton("", $iX + 40, $iY + 25, 10, 20) $g_ahCtl2[$eC2_dgroup] = GUICtrlCreateGroup("Coords", 5 + $iX + 70, $iY + 0, 55, 70) $g_ahCtl2[$eC2_decy] = GUICtrlCreateButton("-", 24 + $iX + 70, 16 + $iY + 0, 17, 17) $g_ahCtl2[$eC2_incy] = GUICtrlCreateButton("+", 24 + $iX + 70, 48 + $iY + 0, 17, 17) $g_ahCtl2[$eC2_decx] = GUICtrlCreateButton("-", 8 + $iX + 70, 32 + $iY + 0, 17, 17) $g_ahCtl2[$eC2_incx] = GUICtrlCreateButton("+", 40 + $iX + 70, 32 + $iY + 0, 17, 17) GUICtrlCreateGroup("", -99, -99, 1, 1) $g_ahCtl2[$eC2_zout] = GUICtrlCreateButton("Zoom -", $iX + 0, $iY + 75, 50, 20) $g_ahCtl2[$eC2_zin] = GUICtrlCreateButton("Zoom +", $iX + 75, $iY + 75, 50, 20) $g_ahCtl2[$eC2_toall] = GUICtrlCreateCheckbox("Apply to all", $iX + 0, $iY + 100, 80, 25) EndFunc ;==>Control_Create_Group2 Func Control_IsChecked($IdCtrl) Return (BitAND(GUICtrlRead($IdCtrl), $GUI_CHECKED) = $GUI_CHECKED) EndFunc ;==>Control_IsChecked Func GDI_Draw_ArrayPoints(ByRef $aPts, $hImage, $g_bClosePath, $iX, $iY, $sFileName, $iSelected = -1) Local $hWnd = GUICtrlGetHandle($hImage) If UBound($aPts) > 1 Then Local $aPoints = GDI_Points($aPts, $iX, $iY) Else Local $aPoints[1][2] = [[0, 0]] EndIf Local $hGraphics = _GDIPlus_GraphicsCreateFromHWND($hWnd) ;create a graphics object from a window handle _GDIPlus_GraphicsClear($hGraphics, 0xFFFFFFFF) If FileExists($sFileName) Then Local $hBitmap = _GDIPlus_BitmapCreateFromFile($sFileName) Local Const $iWidth = ScaleX(_GDIPlus_ImageGetWidth($hBitmap)) Local Const $iHeight = ScaleY(_GDIPlus_ImageGetHeight($hBitmap)) Local $hBitmap_Scaled = _GDIPlus_ImageResize($hBitmap, $iWidth, $iHeight) ;resize image _GDIPlus_BitmapDispose($hBitmap) ;Done with initial bitmap _GDIPlus_GraphicsDrawImage($hGraphics, $hBitmap_Scaled, 0, 0) _GDIPlus_BitmapDispose($hBitmap_Scaled) EndIf Local $hPen = _GDIPlus_PenCreate(0xFFFF0000, ScaleX(1)) Local $hEndCap = _GDIPlus_ArrowCapCreate(1, 1) _GDIPlus_PenSetCustomEndCap($hPen, $hEndCap) If $g_bClosePath Then _GDIPlus_GraphicsDrawPolygon($hGraphics, $aPoints, $hPen) Local $iX0, $iY0, $iX1, $iY1 For $i = 1 To $aPoints[0][0] If Not $g_bClosePath And $i < $aPoints[0][0] Then $iX0 = $aPoints[$i][0] $iY0 = $aPoints[$i][1] $iX1 = $aPoints[$i + 1][0] $iY1 = $aPoints[$i + 1][1] _GDIPlus_GraphicsDrawLine($hGraphics, $iX0, $iY0, $iX1, $iY1, $hPen) EndIf Next _GDIPlus_ArrowCapDispose($hEndCap) _GDIPlus_PenDispose($hPen) _GDIPlus_GraphicsDispose($hGraphics) Point_Selected($aPts, $hImage, $iSelected) EndFunc ;==>GDI_Draw_ArrayPoints Func GDI_Line_hPath_From_Points($aPts, $iXorig, $iYorig) ;Returns hpath object be sure to delete it when finished Local $hPath = _GDIPlus_PathCreate() ;Create new path object Local $aPoints = GDI_Points($aPts, $iXorig, $iYorig) Local $iX0, $iY0, $iX1, $iY1 If IsArray($aPoints) Then For $i = 1 To $aPoints[0][0] - 1 $iX0 = $aPoints[$i][0] $iY0 = $aPoints[$i][1] $iX1 = $aPoints[$i + 1][0] $iY1 = $aPoints[$i + 1][1] _GDIPlus_PathAddLine($hPath, $iX0, $iY0, $iX1, $iY1) Next EndIf Return $hPath ;_GDIPlus_PathDispose($hPath) EndFunc ;==>GDI_Line_hPath_From_Points Func GDI_Points($aPts, $iXo, $iYO) Local $aGDIPts If IsArray($aPts) And UBound($aPts) > 1 Then Local $aGDIPts[UBound($aPts) + 1][2] $aGDIPts[0][0] = UBound($aPts) For $i = 1 To $aGDIPts[0][0] ;Build points list $aGDIPts[$i][0] = ScaleX($aPts[$i - 1][0]) + $iXo $aGDIPts[$i][1] = ScaleY($aPts[$i - 1][1]) + $iYO Next Else Local $aGDIPts[1][2] = [[0, 0]] EndIf Return $aGDIPts EndFunc ;==>GDI_Points Func Image1_Clicked() If Not Control_IsChecked($g_ahCtl1[$eC1_lock]) Then Local $aCPos = ControlGetPos(GUICtrlGetHandle($g_hImage1), "", 0) Local $aPos = MouseGetPos() If IsArray($aPos) And IsArray($aCPos) Then Local $iXn = Int(($aPos[0] - $aCPos[0] + ScaleX(1) / 2) / ScaleX(1)) Local $iYn = Int(($aPos[1] - $aCPos[1] + ScaleY(1) / 2) / ScaleY(1)) Point_Add(List_Index(), $iXn, $iYn) EndIf Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage) Else ToolTip("Locked") Sleep(500) ToolTip("") EndIf EndFunc ;==>Image1_Clicked Func List_Index() Static Local $hWndList1 = GUICtrlGetHandle($g_hList1) Local $iIndex = _GUICtrlListView_GetSelectionMark($hWndList1) If _GUICtrlListView_GetItemSelected($g_hList1, $iIndex) Then Return $iIndex Return -1 EndFunc ;==>List_Index Func List_Update($iIndex = -1) Static $hWnd_List1 = GUICtrlGetHandle($g_hList1) _GUICtrlListView_BeginUpdate($g_hList1) _GUICtrlListView_DeleteAllItems($hWnd_List1) For $i = 0 To UBound($g_aPath_Points) - 1 GUICtrlCreateListViewItem($i & "|" & $g_aPath_Points[$i][0] & "|" & $g_aPath_Points[$i][1], $g_hList1) Next If $iIndex > -1 Then _GUICtrlListView_ClickItem($g_hList1, $iIndex) _GUICtrlListView_EnsureVisible($g_hList1, $iIndex) EndIf _GUICtrlListView_EndUpdate($g_hList1) EndFunc ;==>List_Update Func Point_Add($iIndex, $iX, $iY) If $iIndex <> -1 Then _ArrayInsert($g_aPath_Points, $iIndex, $iX & "|" & $iY, 0) _GUICtrlListView_InsertItem($g_hList1, $iIndex, $iIndex) _GUICtrlListView_SetItemText($g_hList1, $iIndex, $iX, 1) _GUICtrlListView_SetItemText($g_hList1, $iIndex, $iY, 2) _GUICtrlListView_EnsureVisible($g_hList1, $iIndex) Else _ArrayAdd($g_aPath_Points, $iX & "|" & $iY, 0) GUICtrlCreateListViewItem(UBound($g_aPath_Points) - 1 & "|" & $iX & "|" & $iY, $g_hList1) _GUICtrlListView_EnsureVisible($g_hList1, UBound($g_aPath_Points) - 1) EndIf State_Save($g_aPath_Points) EndFunc ;==>Point_Add Func Point_Adjust($iX, $iY, $bToAll) If Not $bToAll Then Local $iIndex = List_Index() If $iIndex == -1 And IsArray($g_aPath_Points) Then $iIndex = UBound($g_aPath_Points) - 1 If $iIndex == -1 Then Return $g_aPath_Points[$iIndex][0] += $iX $g_aPath_Points[$iIndex][1] += $iY _GUICtrlListView_SetItemText($g_hList1, $iIndex, $g_aPath_Points[$iIndex][0], 1) _GUICtrlListView_SetItemText($g_hList1, $iIndex, $g_aPath_Points[$iIndex][1], 2) If $iIndex <> UBound($g_aPath_Points) - 1 Then _GUICtrlListView_ClickItem($g_hList1, $iIndex) Else For $i = 0 To UBound($g_aPath_Points) - 1 $g_aPath_Points[$i][0] += $iX $g_aPath_Points[$i][1] += $iY Next List_Update(List_Index()) EndIf State_Save($g_aPath_Points) Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage) EndFunc ;==>Point_Adjust Func Point_Delete($iIndex) If $iIndex <> -1 Then _ArrayDelete($g_aPath_Points, $iIndex) _GUICtrlListView_DeleteItem($g_hList1, $iIndex) State_Save($g_aPath_Points) ;List_Update($iIndex) EndIf EndFunc ;==>Point_Delete Func Point_Modify($iIndex, $iX, $iY) If $iIndex <> -1 Then $g_aPath_Points[$iIndex][0] = $iX $g_aPath_Points[$iIndex][1] = $iY _GUICtrlListView_SetItemText($g_hList1, $iIndex, $iX, 1) _GUICtrlListView_SetItemText($g_hList1, $iIndex, $iY, 2) _GUICtrlListView_EnsureVisible($g_hList1, $iIndex) State_Save($g_aPath_Points) EndIf EndFunc ;==>Point_Modify Func Point_Selected($aPts, $hImage, $iIndex) If $iIndex > -1 Then GUICtrlSetState($g_hSelSquare, $GUI_HIDE) Local $hWnd = GUICtrlGetHandle($hImage) Local $aPos = ControlGetPos($hWnd, "", 0) If IsArray($aPos) And IsArray($aPts) Then _WinAPI_RedrawWindow($hWnd, Default, Default, $RDW_ERASENOW) Local $iXs = ScaleX($aPts[$iIndex][0]) + $aPos[0] - ScaleX(1) / 2 Local $iYs = ScaleY($aPts[$iIndex][1]) + $aPos[1] - ScaleY(1) / 2 WinMove(GUICtrlGetHandle($g_hSelSquare), "", $iXs, $iYs, ScaleX(1), ScaleY(1)) GUICtrlSetState($g_hSelSquare, $GUI_SHOW) ;ConsoleWrite("Point_Selected" & @CRLF) Else ConsoleWriteError("Error: Point_Selected" & @CRLF) EndIf EndIf EndFunc ;==>Point_Selected Func Point_Swap($iIndex1, $iNext) _GUICtrlListView_BeginUpdate($g_hList1) Local $iIndex2 = 0 Local $aTmp = 0 If $iIndex1 <> -1 Then $iIndex2 = $iIndex1 + $iNext If $iIndex2 > UBound($g_aPath_Points) - 1 Then $iIndex2 = 0 ElseIf $iIndex2 < 0 Then $iIndex2 = UBound($g_aPath_Points) - 1 EndIf _ArraySwap($g_aPath_Points, $iIndex1, $iIndex2) Local $iX1 = _GUICtrlListView_GetItemText($g_hList1, $iIndex1, 2) Local $iY1 = _GUICtrlListView_GetItemText($g_hList1, $iIndex1, 2) Local $iX2 = _GUICtrlListView_GetItemText($g_hList1, $iIndex2, 2) Local $iY2 = _GUICtrlListView_GetItemText($g_hList1, $iIndex2, 2) _GUICtrlListView_SetItemText($g_hList1, $iIndex1, $iX2, 1) _GUICtrlListView_SetItemText($g_hList1, $iIndex1, $iY2, 2) _GUICtrlListView_SetItemText($g_hList1, $iIndex2, $iX1, 1) _GUICtrlListView_SetItemText($g_hList1, $iIndex2, $iY1, 2) _GUICtrlListView_ClickItem($g_hList1, $iIndex2) _GUICtrlListView_EnsureVisible($g_hList1, $iIndex2) Else ;ConsoleWrite("Array Shift" & @CRLF) If $iNext > 0 Then ;ARRAY SHIFT -- Melba23 Local $iUBound = UBound($g_aPath_Points) ; Get size of array $aTmp = _ArrayExtract($g_aPath_Points, 0, $iUBound - 2) ; Extract all but last _ArrayInsert($aTmp, 0, _ArrayExtract($g_aPath_Points, $iUBound - 1, Default)) ; Insert last at top $g_aPath_Points = $aTmp Else $aTmp = _ArrayExtract($g_aPath_Points, 1, Default) ; Extract all but top row _ArrayAdd($aTmp, _ArrayExtract($g_aPath_Points, 0, 0)) ; Add top row at bottom $g_aPath_Points = $aTmp EndIf List_Update(List_Index()) Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage) EndIf State_Save($g_aPath_Points) _GUICtrlListView_EndUpdate($g_hList1) EndFunc ;==>Point_Swap Func Points_Reverse($aPts) Local $hPath = GDI_Line_hPath_From_Points($aPts, 0, 0) ;_GDIPlus_PathFlatten($hPath) _GDIPlus_PathReverse($hPath) Local $aPoints = _GDIPlus_PathGetPoints($hPath) _GDIPlus_PathDispose($hPath) If IsArray($aPoints) Then ;ConsoleWrite("Flipped_Points" & @CRLF) Global $aPts_Rev[$aPoints[0][0]][2] For $i = 1 To $aPoints[0][0] $aPts_Rev[$i - 1][0] = Int($aPoints[$i][0] / ScaleX(1)) $aPts_Rev[$i - 1][1] = Int($aPoints[$i][1] / ScaleY(1)) Next Return $aPts_Rev Else Return $aPts EndIf EndFunc ;==>Points_Reverse Func Points_Rotate($aPts, $iDegrees) Local $hPath = GDI_Line_hPath_From_Points($aPts, 0, 0) ;_GDIPlus_PathFlatten($hPath) Local $hPen = _GDIPlus_PenCreate(0x0, ScaleX(1)) Local $aBounds = _GDIPlus_PathGetWorldBounds($hPath, 0, $hPen) _GDIPlus_PenDispose($hPen) If IsArray($aBounds) Then Local $hMatrix = _GDIPlus_MatrixCreate() _GDIPlus_MatrixTranslate($hMatrix, $aBounds[0] + $aBounds[2] / 2, $aBounds[1] + $aBounds[3] / 2) _GDIPlus_MatrixRotate($hMatrix, $iDegrees) _GDIPlus_MatrixTranslate($hMatrix, -($aBounds[0] + $aBounds[2] / 2), -($aBounds[1] + $aBounds[3] / 2)) _GDIPlus_PathTransform($hPath, $hMatrix) _GDIPlus_MatrixDispose($hMatrix) EndIf Local $aPoints = _GDIPlus_PathGetPoints($hPath) _GDIPlus_PathDispose($hPath) If IsArray($aPoints) Then ;ConsoleWrite("Rotate_Points" & @CRLF) Dim $aPts_Rev[$aPoints[0][0]][2] For $i = 1 To $aPoints[0][0] $aPts_Rev[$i - 1][0] = Int($aPoints[$i][0] / ScaleX(1)) $aPts_Rev[$i - 1][1] = Int($aPoints[$i][1] / ScaleY(1)) Next Return $aPts_Rev Else Return $aPts EndIf EndFunc ;==>Points_Rotate Func Points_Scale($iScaleX, $iScaleY) For $i = 0 To UBound($g_aPath_Points) - 1 If $iScaleX > 0 Then $g_aPath_Points[$i][0] *= 2 Else $g_aPath_Points[$i][0] /= 2 EndIf If $iScaleY > 0 Then $g_aPath_Points[$i][1] *= 2 Else $g_aPath_Points[$i][1] /= 2 EndIf Next State_Save($g_aPath_Points) List_Update(List_Index()) Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage) EndFunc ;==>Points_Scale Func Points_Update($aPts, $g_bClosePath = False, $b_Show_Image = True, $iSelected = -1) Local $_Image_File = $g_sImagefile If Not $b_Show_Image Then $_Image_File = "" GDI_Draw_ArrayPoints($aPts, $g_hImage1, $g_bClosePath, 0, 0, $_Image_File, $iSelected) EndFunc ;==>Points_Update Func ScaleX($iX) Local $iXs = $g_iXScale If $iXs == 0 Then $iXs = -1 If $iXs > 0 Then $iX = $iX * $iXs Else $iX = $iX / Abs($iXs) EndIf Return $iX EndFunc ;==>ScaleX Func ScaleY($iY) Local $iYs = $g_iYScale If $iYs == 0 Then $iYs = -1 If $iYs > 0 Then $iY = $iY * $iYs Else $iY = $iY / Abs($iYs) EndIf Return $iY EndFunc ;==>ScaleY Func SelSquare_Drag() Local $iIndex = List_Index() If $iIndex <> -1 Then Local $cInfo = GUIGetCursorInfo($g_hForm1) Local $aPosSelOrig = ControlGetPos($g_hForm1, "", $g_hSelSquare) If IsArray($aPosSelOrig) Then Local $iSubtractX = $cInfo[0] - $aPosSelOrig[0] Local $iSubtractY = $cInfo[1] - $aPosSelOrig[1] EndIf If IsArray($cInfo) Then Do $cInfo = GUIGetCursorInfo($g_hForm1) ControlMove($g_hForm1, "", $g_hSelSquare, $cInfo[0] - $iSubtractX, $cInfo[1] - $iSubtractY) Until Not $cInfo[2] EndIf Local $aPosSelNew = ControlGetPos($g_hForm1, "", $g_hSelSquare) If IsArray($aPosSelNew) And IsArray($aPosSelOrig) Then Local $iXm = $g_aPath_Points[$iIndex][0] + Int(($aPosSelNew[0] - $aPosSelOrig[0]) / ScaleX(1)) Local $iYm = $g_aPath_Points[$iIndex][1] + Int(($aPosSelNew[1] - $aPosSelOrig[1]) / ScaleY(1)) Point_Modify($iIndex, $iXm, $iYm) Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage, $iIndex) EndIf EndIf EndFunc ;==>SelSquare_Drag Func SplitDir($FullPath) Local $sDrive, $sDir, $sDummy _PathSplit($FullPath, $sDrive, $sDir, $sDummy, $sDummy) Return $sDrive & $sDir EndFunc ;==>SplitDir Func SplitFileName($FullPath) Local $sDummy, $sFileName, $sExt _PathSplit($FullPath, $sDummy, $sDummy, $sFileName, $sExt) Return $sFileName & "" & $sExt EndFunc ;==>SplitFileName Func State_Cleanup(ByRef $a1) If (UBound($a1) > $g_iUndo_Max + 2) Then Local $a1Rem = _ArrayExtract($a1, 1, Default) $a1Rem[0] = $a1[0] Local $sTmp = $a1[1] If $sTmp <> "" And FileExists($sTmp) Then FileDelete($sTmp) ;ConsoleWrite("Cleanup Delete (UnD) " & $sTmp & @CRLF) EndIf $a1 = $a1Rem EndIf EndFunc ;==>State_Cleanup Func State_Destroy($bRedo_Only = False) Local $sTmp While (UBound($g_asRedo_Files) > 1) $sTmp = _ArrayPop($g_asRedo_Files) If $sTmp <> "" And FileExists($sTmp) Then FileDelete($sTmp) ;ConsoleWrite(", Delete (ReD) " & $sTmp) If @error Then ConsoleWriteError("Failed to Delete " & $sTmp) EndIf WEnd GUICtrlSetState($g_ahCtl1[$eC1_redo], $GUI_DISABLE) If $bRedo_Only Then Return While (UBound($g_asUndo_Files) > 1) $sTmp = _ArrayPop($g_asUndo_Files) If $sTmp <> "" And FileExists($sTmp) Then FileDelete($sTmp) ;ConsoleWrite(", Delete (UnD)" & $sTmp) If @error Then ConsoleWriteError("Failed to Delete " & $sTmp) EndIf WEnd GUICtrlSetState($g_ahCtl1[$eC1_undo], $GUI_DISABLE) EndFunc ;==>State_Destroy Func State_Is_Diff(ByRef $a1, ByRef $a2) Local $bIsDiff = True If UBound($a1) = UBound($a2) Then $bIsDiff = False For $i = UBound($a1) - 1 To 0 Step -1 If $a1[$i][0] == $a2[$i][0] And $a1[$i][1] == $a2[$i][1] Then ContinueLoop Else ;ConsoleWrite("Diff " & $i & @CRLF) $bIsDiff = True ExitLoop EndIf Next Else ;ConsoleWrite("Diff " & @CRLF) EndIf Return $bIsDiff EndFunc ;==>State_Is_Diff Func State_Restore(ByRef $aPts, $bUndo) Local $sTmp = "" Local $aRes If $bUndo Then $sTmp = _ArrayPop($g_asUndo_Files) ;ConsoleWrite(", Restore (UnD)" & $sTmp) If $sTmp <> "" And FileExists($sTmp) Then _ArrayAdd($g_asRedo_Files, $sTmp) _FileReadToArray($sTmp, $aRes, 0, ",") If UBound($g_asUndo_Files) < 2 Then GUICtrlSetState($g_ahCtl1[$eC1_undo], $GUI_DISABLE) If UBound($g_asRedo_Files) > 2 Then GUICtrlSetState($g_ahCtl1[$eC1_redo], $GUI_ENABLE) If UBound($g_asUndo_Files) > 1 And Not State_Is_Diff($aPts, $aRes) Then Return State_Restore($aPts, $bUndo) If Not @error Then Return $aRes Else ConsoleWriteError("Failed to Restore " & $sTmp) EndIf Else $sTmp = _ArrayPop($g_asRedo_Files) ;ConsoleWrite(", Restore (ReD) " & $sTmp) If $sTmp <> "" And FileExists($sTmp) Then _ArrayAdd($g_asUndo_Files, $sTmp) _FileReadToArray($sTmp, $aRes, 0, ",") If UBound($g_asRedo_Files) < 2 Then GUICtrlSetState($g_ahCtl1[$eC1_redo], $GUI_DISABLE) If UBound($g_asUndo_Files) > 2 Then GUICtrlSetState($g_ahCtl1[$eC1_undo], $GUI_ENABLE) If UBound($g_asRedo_Files) > 1 And Not State_Is_Diff($aPts, $aRes) Then Return State_Restore($aPts, $bUndo) If Not @error Then Return $aRes Else ConsoleWriteError("Failed to Restore " & $sTmp) EndIf EndIf Return $aPts EndFunc ;==>State_Restore Func State_Save($aPts) If $g_iUndo_Max < 1 Then Return Local $sTmp = _TempFile(@TempDir, "DPP_") If UBound($g_asRedo_Files) > 2 Then _ArrayAdd($g_asUndo_Files, _ArrayPop($g_asRedo_Files)) _ArrayAdd($g_asUndo_Files, $sTmp) _FileWriteFromArray($sTmp, $aPts, 0, Default, ",") If UBound($g_asRedo_Files) > 2 Then State_Destroy(True) State_Cleanup($g_asUndo_Files) ;ConsoleWrite("Save State " & UBound($g_asUndo_Files) & " " & $sTmp & @CRLF) If UBound($g_asUndo_Files) > 2 Then GUICtrlSetState($g_ahCtl1[$eC1_undo], $GUI_ENABLE) If @error Then MsgBox(0, @ScriptName & " Error", "Unable to create undo file " & $sTmp) GUICtrlSetState($g_ahCtl1[$eC1_undo], $GUI_DISABLE) GUICtrlSetState($g_ahCtl1[$eC1_redo], $GUI_DISABLE) $g_iUndo_Max = 0 EndIf EndFunc ;==>State_Save Func Tab1_Select() Local $iStateCtl1, $iStateCtl2 Local $tabindex = GUICtrlRead($g_hTab1) ;ConsoleWrite("tab" & $tabindex + 1 & "_selected" & @CRLF) Select Case $tabindex = 0 $iStateCtl1 = $GUI_SHOW $iStateCtl2 = $GUI_HIDE Case $tabindex = 1 $iStateCtl1 = $GUI_HIDE $iStateCtl2 = $GUI_SHOW Case Else _GUICtrlTab_ActivateTab($g_hTab1, 0) Return EndSelect For $i = 0 To UBound($g_ahCtl1) - 1 GUICtrlSetState($g_ahCtl1[$i], $iStateCtl1) Next For $i = 0 To UBound($g_ahCtl2) - 1 GUICtrlSetState($g_ahCtl2[$i], $iStateCtl2) Next EndFunc ;==>Tab1_Select Func WM_NOTIFY($hWnd, $iMsg, $wParam, $lParam) Static Local $hWndList1 = GUICtrlGetHandle($g_hList1) If Not IsHWnd($hWndList1) Then $hWndList1 = GUICtrlGetHandle($g_hList1) If @error Then Return $GUI_RUNDEFMSG If $wParam = $g_hList1 Then Local $tNMHDR = DllStructCreate($tagNMHDR, $lParam) Switch DllStructGetData($tNMHDR, "Code") Case $LVN_KEYDOWN, $NM_CLICK GUICtrlSendToDummy($g_hList1_LVN, $lParam) EndSwitch EndIf Return $GUI_RUNDEFMSG EndFunc ;==>WM_NOTIFY


      DrawPathPoints.au3
    • Ascer
      By Ascer
      1. Description.
      Udf working with MSDN System.Collections.ArrayList. Allow you to make fast operations on huge arrays, speed is even x10 better than basic _ArrayAdd.  Not prefered for small arrays < 600 items. 2. Requirements
      .NET Framework 1.1 - 4.5 (on this version Microsoft destroy old rules) System Windows 3. Possibilities.
      ;=============================================================================================================== ; UDF Name: List.au3 ; ; Date: 2018-02-17, 10:52 ; Description: Simple udf to create System Collections as ArrayList and make multiple actions on them. ; ; Function(s): _ListCreate -> Creates a new list ; _ListCapacity -> Gets a list size in bytes ; _ListCount -> Gets items count in list ; _ListIsFixedSize -> Get bool if list if fixed size ; _ListIsReadOnly -> Get bool if list is read only ; _ListIsSynchronized -> Get bool if list is synchronized ; _ListGetItem -> Get item on index ; _ListSetItem -> Set item on index ; ; _ListAdd -> Add item at end of list ; _ListClear -> Remove all list items ; _ListClone -> Duplicate list in new var ; _ListContains -> Get bool if item is in list ; _ListGetHashCode -> Get hash code for list ; _ListGetRange -> Get list with items between indexs ; _ListIndexOf -> Get index of item ; _ListInsert -> Insert a new item on index ; _ListInsertRange -> Insert list into list on index ; _ListLastIndexOf -> Get index last of item ; _ListRemove -> Remove first found item ; _ListRemoveAt -> Remove item in index ; _ListRemoveRange -> Remove items between indexs ; _ListReverse -> Reverse all items in list ; _ListSetRange -> Set new value for items in range ; _ListSort -> Sort items in list (speed of reading) ; _ListToString -> Get list object name ; _ListTrimToSize -> Remove unused space in list ; ; Author(s): Ascer ;=============================================================================================================== 4. Downloads
      List.au3 5. Examples
      SpeedTest _ArrayAdd vs ListAdd SpeedTest ArraySearch vs ListIndexOf Basic usage - crating guild with members
    • nacerbaaziz
      By nacerbaaziz
      can we  create a list box with  Columns?
      welcome everybody
      Dears I have a question if you let me
      can we  create a list box with  Columns?
      i know we can create a list view with Columns
      but my question is about the list box
      I'm waiting your responses
      Thank you in advance
    • lewisg
      By lewisg
      Suddenly a RunWait command has stop working after 2 years of no errors, issues, or problems. The code uses RunWait to start Plink.exe, a command-line remote connection tool similar to UNIX ssh. I'm using it to ssh to a linux (Centos) machine, run a Perl script, and redirect the output to a file on a PC running the AutoIt script.

      $FilePath = "C:\AutoIT\LED" $FilePathPlus = $FilePath & "\plink.exe" $Code1 = RunWait(@ComSpec & " /c " & $FilePathPlus & " -ssh -l root -pw ?????? 10.170.4.163 /usr/local/nagios/etc/led.pl > C:\AutoIT\LED\led.txt ", @SW_SHOW) ConsoleWrite('@@ Debug(' & @ScriptLineNumber & ') : @ComSpec & " /c " & $FilePathPlus & " -ssh -l root -pw ????? 10.170.4.163 /usr/local/nagios/etc/led.pl > C:\AutoIT\LED\led.txt " = ' & @ComSpec & " /c " & $FilePathPlus & " -ssh -l root -pw ?????? 10.170.4.163 /usr/local/nagios/etc/led.pl > C:\AutoIT\LED\led.txt " & @CRLF & '>Error code: ' & @error & @CRLF) ;### Debug Console The ConsoleWrite output when cut-n-pasted into a DOS box produces the expected file so I know it works. I've also tried many variations of the function moving, adding, and changing the " and ' (quote) marks. Also tried it without the @ComSpec macro and other related functions...e.g.  ShellExecuteWait , etc.
      The PC is a Windows 10 64bit and AutoIT is version 3.3.14.2.
      Searching here and Google has not yielded any clues that helped.
×
