Desktop View Changer With Icon Position Saving(Xp+) & Icon Size(Vista+)


Bilgus
 Share

Recommended Posts

I made a program for changing the desktop view to list, icon, details about 10 years ago in VB.

When I switched to win 7 a few years ago It stopped working properly and by then I had lost the source.

Last week I got to looking at the 'newer' versions of Autoit and realized it had the api capability to bring this program back to life. (BTW, I really like what auto it has evolved into)

Here is my DeskViewChanger application it now saves icon positions

Works in Xp and W7 Haven't tried 8 and I believe 10 has the functionality already

In Win7:

When you choose autorun and click a view it also adds an entry to desktop context menu if Run as Admin

Should be able to run as limited for everything else though



In WINXP:

details view makes/saves a solid background to add to the backimage property.

Otherwise,on refresh it makes background picture show through and is not redrawn properly

No context menu for XP either couldn't justify jumping through hoops to support it



Note:

There is a warning when not compiled about side effects, when desktop scaling is on the Detail view is the wrong size

This is only when Aero is enabled and goes away with an added manifest to the compiled exe. Thanks RFTC

List view is actually small icons view as listview didn't work right.

Icon positions are saved to an Ini file and if exist are restored upon setting that view

The program must now be compiled in the proper architecture in order to use the save icon position feature.

Although, the basic view change works with any arch.

I used item count of the listview to check against Ini section names so might be a problem if you don't have unique desktop items

Not sure since I used the subitem (shortcut type) in addition to the name as the section names should make every entry unique

If not let me know.

Ambiguous Icon Names could be a problem instead the icons are listed under the same section and therefore icons with the same name can get switched between themselves in this case add Item Type to the report view header and the script will use this to name icon position sections.

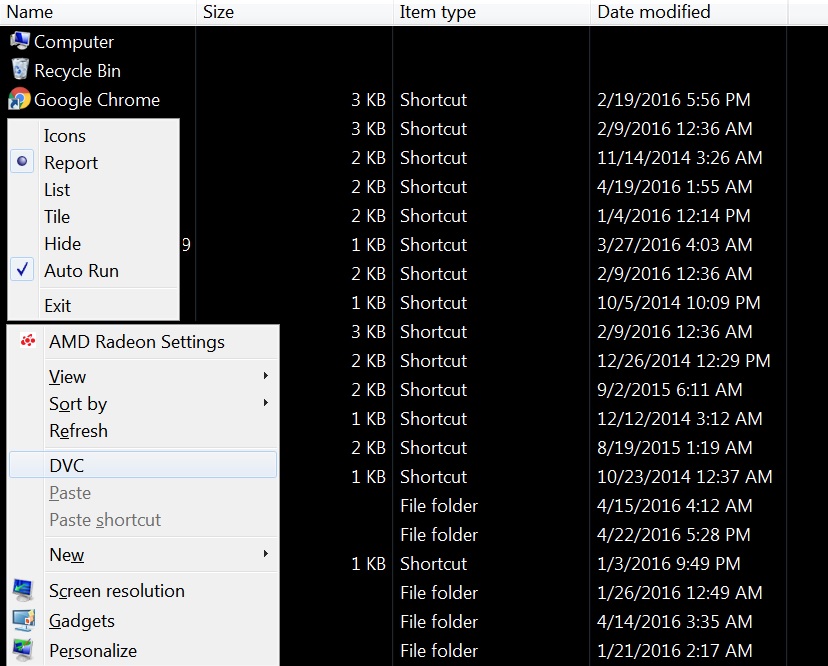

DVC.jpg.43ae2794dc045581389fbad8c4b050fdDVC.png.392a8bdb99bfefe6cc05be7b509e72f4





#Region ;**** Directives created by AutoIt3Wrapper_GUI ****
#AutoIt3Wrapper_Compile_Both=y
#AutoIt3Wrapper_Res_HiDpi=Y
#EndRegion ;**** Directives created by AutoIt3Wrapper_GUI ****

;DVC-DESK VIEW CHANGE
;Bilgus
;Finds and changes desktop listview Icon, Report, List, Tile; Saves and restores Icon positions
;For Win XP-8
;Changes Icon Size (Vista+)

Opt("MustDeclareVars", 1)

#include <SendMessage.au3>
#include <GuiListView.au3>
#include <GDIPlus.au3>
#include <WinAPI.au3>
;-Menu Constants-GUIConstantsEx.au3
Global Const $GUI_CHECKED = 1, $GUI_UNCHECKED = 4, $GUI_ENABLE = 64, $GUI_DISABLE = 128

;-MenuOption
Global $GLOBAL_idOptionsAuto = 0 ;used in Script_Exit

;-Desktop Listview
Global Const $GLOBAL_hListView = _DesktopLV_GetHandle(_WinAPI_GetDesktopWindow()) ;ControlGetHandle($hWnd, '', '[CLASS:SysListView32; INSTANCE:1]')

If Not (Script_IsCompiled()) Then DllCall("User32.dll","bool","SetProcessDPIAware");Thanks RTFC

If $GLOBAL_hListView = 0 Then
    MsgBox(0, @ScriptName & " ERROR", "SysListView32: No hListView ")
    Script_Exit()
EndIf

;#CS
    ;Debug
    ;Debug_GetLvMStyles($GLOBAL_hListView)
    ;Debug_GetHDStyles($GLOBAL_hListView)
    ;Debug_GetWSStyles($GLOBAL_hListView)
;#CE

If $CmdLine[0] > 1 Then
    If Script_CheckCmdLine($GLOBAL_hListView) Then _Menu_InitDisplayItems($GLOBAL_hListView, MouseGetPos(0), MouseGetPos(1)) ;menu display on current mouse position
Else
    _Menu_InitDisplayItems($GLOBAL_hListView) ;menu centered over hidden Gui window
EndIf
Script_Exit()
;____________==>Main

Func Create_SolidBG_BGR($iBGR)
    ;creates a solid color background (BGR) the size of the monitor for detail view in xp
    Local $iRGB = BitShift($iBGR, -16)
    $iRGB += BitAND($iBGR, 0xff00)
    $iRGB += BitShift($iBGR, 16)
    Local $iColor = BitAND($iRGB, 0xffffff)
    _GDIPlus_Startup()

    Local Const $sBgImagePath = @ScriptDir & "\ReportBg.jpg"
    ;create an empty bitmap
    Local Const $hBitmap = _GDIPlus_BitmapCreateFromScan0(@DesktopWidth, @DesktopHeight, $GDIP_PXF32ARGB)
    Local Const $hContext = _GDIPlus_ImageGetGraphicsContext($hBitmap) ;create a context to the bitmap handle to do some GDI+ operations
    Local Const $iBgColor = 0xFF000000 + $iColor ;define background color -> ARGB
    _GDIPlus_GraphicsClear($hContext, $iBgColor) ;clear empty bitmap with new color

    ;save result as JPG (conversation is done automatically)
    FileDelete($sBgImagePath)
    _GDIPlus_ImageSaveToFile($hBitmap, $sBgImagePath)

    _GDIPlus_BitmapDispose($hBitmap) ;release bitmap
    _GDIPlus_GraphicsDispose($hContext)
    _GDIPlus_Shutdown()

    FileSetAttrib($sBgImagePath, "+ASH") ;Archive, System, Hidden
    Return $sBgImagePath
EndFunc   ;==>Create_SolidBG_BGR

Func _Desktop_DefView_SetIconSz($hWnd, $iSize) ;$hwnd of DefView, $iSize 0-4 smallest to largest

    ;EXLARGEICONS=0, MEDICONS=1, LARGEICONS=2,SMALLICONS=3, SMALLESTICONS=4
    ;Made this up from watching Window Messages (fires menu messages I think)
    ;(IFolderView2::SetViewModeAndIconSize. is probably how WE should be doing this)
    If @OSVersion = "WIN_XP" Then Return 0
    ;Works on Windows 7/8, Sends icon size to defView based on ListView view

    If $iSize < 0 Or $iSize > 4 Or @OSVersion = "WIN_XP" Then Return 0
    Local $aLvtoDv[5] = [4, 3, 1, 2, 0]
    ;Extra Large Icons = &H704D -28749<-----Index 0
    ;Medium Icons = &H704E      -28750; Large Icons = &H704F       -28751;
    ;Small Icons = &H7050       -28752; Smallest Icons = &H7051    -28753

    Local Const $WM_COMMAND = 0x111
    Local $iMsg = $WM_COMMAND
    Local $wParam = 28749 + $aLvtoDv[Int($iSize)] ;FVM_??
    Local Const $lParam = 0
    _SendMessage($hWnd, $iMsg, $wParam, $lParam)
    If @error Then
        MsgBox(0, "_Desktop_DefView_SetIconSz", "_SendMessage Error: " & @error)
        Exit
    EndIf

    Return 1
EndFunc   ;==>_Desktop_DefView_SetIconSz

Func _DesktopLV_GetHandle($hWndParent)
    ;Grabs array of all windows, searches for the desktop syslistview

    Local $hRet = 0, $aWin = _WinAPI_EnumChildWindows($hWndParent, 0)
    ;_arraydisplay($aWin )

    If Not (@error Or $aWin[0][0] = 0) Then
        For $i = $aWin[0][0] To 1 Step -1
            If $aWin[$i][1] = "SysListView32" And _WinAPI_GetWindowLong($aWin[$i][0], $GWL_ID) = 1 Then ;'KaFu'
                ;ConsoleWrite(_WinAPI_GetClassName(_WinAPI_GetParent($aWin[$i][0])))
                If StringInStr(_WinAPI_GetClassName(_WinAPI_GetParent($aWin[$i][0])), "SHELLDLL_DefView") > 0 Then ;SHELLDLL_DefView
                    $hRet = $aWin[$i][0]
                    ExitLoop
                EndIf
            EndIf
        Next
    EndIf
    If @error Then
        MsgBox(0, "_DesktopLV_GetHandle " & @error, "Error: " & _WinAPI_GetLastError() & " " & _WinAPI_GetLastErrorMessage())
        Exit
    EndIf

    Return $hRet
EndFunc   ;==>_DesktopLV_GetHandle

Func _DesktopLV_InitView($hListView, $iView, $iIconSz)
    ;Sets the Properties and window styles and ListviewExstyles for different views
    Local Const $HDS_BUTTONS = 0x00000002, $HDS_NOSIZING = 0x0800
    Local Const $SB_VERT = 1, $SB_HORZ = 0
    Local Const $COLOR_DESKTOP = 1, $CLR_NONE = 0xFFFFFFFF

    Local Const $iDetailsLvExStyle = BitOR($LVS_EX_AUTOSIZECOLUMNS, $LVS_EX_HEADERDRAGDROP) ;, $LVS_EX_FULLROWSELECT);$LVS_EX_HEADERDRAGDROP;
    Local $aWinClient, $sBgImagePath = ""
    Local $bgr_BkColor = _WinAPI_GetSysColor($COLOR_DESKTOP)
    Local $LVCurStyle = _WinAPI_GetWindowLong($hListView, $GWL_STYLE)
    Local $hHeader, $iHDCurStyle

    _Desktop_DefView_SetIconSz(_WinAPI_GetParent($hListView), $iIconSz) ;set icon size in vista+ using the parent def_View

    If $iView = $LV_VIEW_DETAILS Then

        $aWinClient = _GetWorkingArea() ;Set Details View to only primary desktop size
        If @OSVersion = "WIN_XP" Then $sBgImagePath = Create_SolidBG_BGR($bgr_BkColor) ; Create/Set the Background Image
        _GUICtrlListView_SetExtendedListViewStyle($hListView, $iDetailsLvExStyle, BitOR($iDetailsLvExStyle, $LVS_EX_FULLROWSELECT)) ;add DetailsEXstyle, remove fullrowsel
        _GUICtrlListView_SetBkColor($hListView, $bgr_BkColor)
        _WinAPI_SetWindowLong($hListView, $GWL_STYLE, BitOR($LVS_REPORT, BitAND($LVCurStyle, BitNOT($LVS_NOSCROLL)))) ;remove no scroll
        $hHeader = _GUICtrlListView_GetHeader($hListView)
        $iHDCurStyle = _WinAPI_GetWindowLong($hHeader, $GWL_STYLE)
        _WinAPI_SetWindowLong($hHeader, $GWL_STYLE, BitOR($HDS_BUTTONS, BitAND($iHDCurStyle, BitNOT($HDS_NOSIZING)))) ;add Header Buttons, remove no sizing

        _GUICtrlHeader_SetItemText($hHeader, 0, "") ;Get rid of Name

        For $i = 1 To _GUICtrlHeader_GetItemCount($hHeader)
            _GUICtrlListView_JustifyColumn($hListView, $i, 1) ;1=Text is right aligned
            ;If _GUICtrlHeader_GetItemText($hHeader, $i) = "Item Type" Then
            ;EndIf
        Next

    Else
        _GUICtrlListView_SetBkColor($hListView, $CLR_NONE)
        $aWinClient = _GetWinRect(_WinAPI_GetParent($hListView))
        _GUICtrlListView_SetExtendedListViewStyle($hListView, 0, $iDetailsLvExStyle) ;Remove DetailsEXstyle
        _WinAPI_SetWindowLong($hListView, $GWL_STYLE, BitOR($LVS_NOSCROLL, BitAND($LVCurStyle, BitNOT($LVS_REPORT)))) ;Add No Scroll and remove report
        _GUIScrollBars_ShowScrollBar($hListView, $SB_VERT, False) ;remove scrollbar possibly added by details view
    EndIf

    _GUICtrlListView_SetBkImage($hListView, $sBgImagePath, 1) ;Tiled
    WinMove($hListView, "", -1, -1, $aWinClient[2], $aWinClient[3]) ;Fixed random off by 20 px error after report view (hopefully)
    WinMove($hListView, "", 0, 0, $aWinClient[2], $aWinClient[3])
EndFunc   ;==>_DesktopLV_InitView

Func DesktopLV_Item_RestorePos($hListView, $iView) ;Reads ini file and matches names then sets position of desktop icons
    Local Const $vDefault = "NA"
    Local $aSectionNames = [0]
    Local $aPos[2], $aItem
    Local $sItemsNotFound = "", $sItemsNew = ""
    Local $sIniFile = DesktopLV_Item_SavePos($hListView, $iView, False)
    Local $iCount = 0

    If FileExists($sIniFile) Then

        $aSectionNames = IniReadSectionNames($sIniFile)
        For $i = 1 To $aSectionNames[0] ;Reset Count on any items that were ambiguous
            ;ConsoleWrite("R: " & IniRead($sIniFile, $aSectionNames[$i], "Ct", 0) & " : " & $aSectionNames[$i] & "  ")
            IniWrite($sIniFile, $aSectionNames[$i], "Ct", 0)
        Next
        $aItem = _DesktopLV_Item_SaveRestoreSections($hListView) ;$aItem[$i] = $aTextItems[$i] & "-" & $aSubItems[$i]

        For $i = 1 To $aItem[0]

            $iCount = IniRead($sIniFile, $aItem[$i], "Ct", 0) + 1
            $aPos[0] = IniRead($sIniFile, $aItem[$i], "X" & $iCount, $vDefault)
            $aPos[1] = IniRead($sIniFile, $aItem[$i], "Y" & $iCount, $vDefault)
            If $aPos[0] = $vDefault Or $aPos[1] = $vDefault Then
                $aPos[0] = IniRead($sIniFile, "DEFAULT", "X", $vDefault)
                $aPos[1] = IniRead($sIniFile, "DEFAULT", "Y", $vDefault)
                If Not ($aPos[0] = $vDefault) And Not ($aPos[1] = $vDefault) Then

                    If $sItemsNew = "" Then
                        $sItemsNew = "Placed in Default position, New items: " & @CRLF & $aItem[$i]
                    Else
                        $sItemsNew &= ", " & @CRLF & $aItem[$i]
                    EndIf
                EndIf
            EndIf
            IniWrite($sIniFile, $aItem[$i], "Ct", $iCount)

            If Not ($aPos[0] = $vDefault) And Not ($aPos[1] = $vDefault) Then
                _GUICtrlListView_SetItemPosition($hListView, $i - 1, $aPos[0], $aPos[1])

            Else ;No DEFAULT POS FOUND , New items just leave them where they sit but give user a message
                If $sItemsNotFound = "" Then
                    $sItemsNotFound = "Make a Folder called DEFAULT to set a Position for unknown items." & _
                            @CRLF & "You may Delete The Default Folder after you Save positions twice(2x)" & _
                            @CRLF & "No Position found for new items: " & @CRLF & $aItem[$i]
                Else
                    $sItemsNotFound &= ", " & @CRLF & $aItem[$i]
                EndIf
            EndIf

        Next
        If Not ($sItemsNotFound = "") Then
            ToolTip($sItemsNotFound, 0, 0)
            Sleep(5000)
        EndIf
        If Not ($sItemsNew = "") Then
            ToolTip($sItemsNew, 0, 0)
            Sleep(2000)
        EndIf


    EndIf

EndFunc   ;==>DesktopLV_Item_RestorePos

Func _DesktopLV_Item_SaveRestoreSections($hListView)

    Local $iHeaderPos = 1, $hHeader = _GUICtrlListView_GetHeader($hListView)

    For $i = 1 To _GUICtrlHeader_GetItemCount($hHeader) ;prefer these if not there go with subitem 1
        If _GUICtrlHeader_GetItemText($hHeader, $i) = "Size" Then $iHeaderPos = _GUICtrlHeader_GetItemOrder($hHeader, $i)
        If _GUICtrlHeader_GetItemText($hHeader, $i) = "Item Type" Then $iHeaderPos = _GUICtrlHeader_GetItemOrder($hHeader, $i)
    Next

    Local $aTextItems = _GUICtrl_ListView_GetItemsText_Array($hListView, 0) ;Names

    Local $aSubItems = _GUICtrl_ListView_GetItemsText_Array($hListView, $iHeaderPos)

    If Not ($aTextItems[0] = $aSubItems[0]) Then MsgBox(48, "An Error Occurred ", "Item and subitem count differs")
    Local $aItem[$aTextItems[0] + 1]
    $aItem[0] = $aTextItems[0]
    For $i = 1 To $aTextItems[0]
        If $aSubItems[$i] = "" Then
            $aItem[$i] = $aTextItems[$i] ;will have ambiguity with icon names
        Else
            $aItem[$i] = $aTextItems[$i] & " - " & StringRegExpReplace($aSubItems[$i], "[0123456789]", "")

        EndIf
    Next
    ;_ArrayDisplay($aItem)
    Return $aItem
EndFunc   ;==>_DesktopLV_Item_SaveRestoreSections

Func DesktopLV_Item_SavePos($hListView, $iView, $bEnable = True) ;Writes ini file section = [ItemName - Subitem2] X= Y= position
    Local Const $vDefault = "NA"
    Local $iCount = 0
    Local $iRetMsgBox = 0
    Local $aSectionNames = [0]
    Local $sCompiledArch = "X86"
    If @AutoItX64 Then $sCompiledArch = "X64"
    Local $sIniFile = @ScriptDir & "\IconPos" & $sCompiledArch & "_" & $iView & "_" & @DesktopWidth & "x" & @DesktopHeight & ".ini"
    If $bEnable And Script_OsArch_is_CompiledArch() Then

        If FileExists($sIniFile) Then
            $iRetMsgBox = MsgBox(36, "Save Icon Positions", "Overwrite existing layout?")
            If $iRetMsgBox = 6 Then
                $iRetMsgBox = 0
            Else
                $iRetMsgBox = MsgBox(35, "Delete Icon Positions", "Layout already exists, Delete?")
                Switch $iRetMsgBox
                    Case 2 ;cancel ---> Flags: 1, 3, 5, 6

                    Case 6 ;Yes ---> Flags: 3, 4
                        FileDelete($sIniFile)
                        Return $sIniFile
                    Case 7 ;No ---> Flags: 3, 4

                EndSwitch
            EndIf

        EndIf
        If $iRetMsgBox = 0 Then
            Local $aPos[2]

            $aPos[0] = IniRead($sIniFile, "DEFAULT", "X", $vDefault) ;Grab default position values if user configured them
            $aPos[1] = IniRead($sIniFile, "DEFAULT", "Y", $vDefault)
            If $aPos[0] = $vDefault Or $aPos[1] = $vDefault Then
                $aPos[0] = IniRead($sIniFile, "DEFAULT", "X1", $vDefault) ;Grab default position values if user has a folder named Default
                $aPos[1] = IniRead($sIniFile, "DEFAULT", "Y1", $vDefault)
            EndIf
            FileDelete($sIniFile)
            FileWrite($sIniFile, $sIniFile & @CRLF & "Icons Saved " & _
                    @HOUR & ":" & @MIN & "." & @SEC & " M" & @MON & "/D" & @MDAY & "/Y" & @YEAR)
            IniWrite($sIniFile, "DEFAULT", "X", $aPos[0])
            IniWrite($sIniFile, "DEFAULT", "Y", $aPos[1])
            ;Local $iCount = _GUICtrlListView_GetItemCount($hListView)

            Local $aItem = _DesktopLV_Item_SaveRestoreSections($hListView)

            For $i = 1 To $aItem[0]

                $aPos = _GUICtrlListView_GetItemPosition($hListView, $i - 1)

                $iCount = IniRead($sIniFile, $aItem[$i], "Ct", 0) + 1
                IniWrite($sIniFile, $aItem[$i], "Ct", $iCount)
                IniWrite($sIniFile, $aItem[$i], "X" & $iCount, $aPos[0])
                IniWrite($sIniFile, $aItem[$i], "Y" & $iCount, $aPos[1])
                ConsoleWrite("S: " & IniRead($sIniFile, $aItem[$i], "Ct", 0) & " : " & $aItem & "  ")
            Next

            $aSectionNames = IniReadSectionNames($sIniFile)
            $iCount = _GUICtrlListView_GetItemCount($hListView)
            If $iCount > 0 Then
                If $iCount > $aSectionNames[0] Then
                    MsgBox(48, "An Error Occurred, Not All Names Are Unique", $aSectionNames[0] & " of " & $iCount & " Positions were unique" & _
                            @CRLF & "There could be some mismatch in order when restored" & _
                            @CRLF & "Try adding 'Item Type' to the report view")
                    ;_ArrayDisplay($aSectionNames, "Desktop Items Found", "", 16)
                EndIf
            EndIf
        EndIf

    EndIf
    Return $sIniFile
EndFunc   ;==>DesktopLV_Item_SavePos

Func DesktopLV_SetView($hListView, $iView, $IconSz = -1) ;LV_VIEW_ICON=0;LV_VIEW_DETAILS=1;LV_VIEW_SMALLICON=2;LV_VIEW_LIST=3;LV_VIEW_TILE=4;
    Local Const $SHCNE_ASSOCCHANGED = 0x8000000
    Local Const $SHCNF_FLUSH = 0x00001000
    ;-Made Up Constants-
    Local Enum $eDV_ICON_SMALL, $eDV_ICON_MEDSMALL, $eDV_ICON_MED, $eDV_ICON_LARGE, $eDV_ICON_EXLARGE

    If $iView < 0 Or $iView > 5 Then $iView = 0

    _WinAPI_ShowWindow($hListView, @SW_HIDE)
    If $iView < 5 Then
        _GUICtrlListView_BeginUpdate($hListView)

        If $IconSz = -1 Then ;Use Default Icon Size
            Switch $iView
                Case $LV_VIEW_ICON
                    _DesktopLV_InitView($hListView, $iView, $eDV_ICON_MEDSMALL)
                Case $LV_VIEW_DETAILS
                    _DesktopLV_InitView($hListView, $iView, $eDV_ICON_SMALL)
                Case $LV_VIEW_SMALLICON
                    _DesktopLV_InitView($hListView, $iView, $eDV_ICON_SMALL)
                Case $LV_VIEW_LIST
                    _DesktopLV_InitView($hListView, $iView, $eDV_ICON_SMALL)
                Case $LV_VIEW_TILE
                    _DesktopLV_InitView($hListView, $iView, $eDV_ICON_MED)
            EndSwitch
        Else ;User Selected Icon Size
            _DesktopLV_InitView($hListView, $iView, $IconSz)
        EndIf
        _GUI_Control_ListView_SetView($hListView, $iView) ;Send message to listview
        ;_GUICtrlListView_SetView($hListView,$iView);<HAS PARAMETERS MIXED UP
        _WinAPI_ShellChangeNotify($SHCNE_ASSOCCHANGED, $SHCNF_FLUSH) ;Refresh Icons
        _GUICtrlListView_EnsureVisible($hListView, 0) ;First Item Visible
        _GUICtrlListView_EndUpdate($hListView)
        ;ControlSend($hListView, "", 0, "{F5}") ; RefreshDesktop ;Locks icon positions not needed

        DesktopLV_Item_RestorePos($hListView, $iView)
        _WinAPI_ShowWindow($hListView, @SW_SHOW)
    EndIf
EndFunc   ;==>DesktopLV_SetView

Func _GetWinRect($hWnd)
    Local $tRect = DllStructCreate($tagRECT)
    $tRect = _WinAPI_GetWindowRect($hWnd)
    If @error Then
        MsgBox(0, "_GetWinRect", "Error: " & _WinAPI_GetLastError() & " " & _WinAPI_GetLastErrorMessage())
        Exit
    EndIf
    Return _Get_tRects_Array($tRect)
EndFunc   ;==>_GetWinRect

Func _Get_tRects_Array($tRect)
    ;Returns [X,Y,W,H]
    If DllStructGetSize($tRect) = 16 Then
        Local $aArray[4] = [DllStructGetData($tRect, "Left"), DllStructGetData($tRect, "Top"), (DllStructGetData($tRect, "Right") - DllStructGetData($tRect, "Left")), (DllStructGetData($tRect, "Bottom") - DllStructGetData($tRect, "Top"))]
        Return $aArray
    EndIf
EndFunc   ;==>_Get_tRects_Array

Func _GetWorkingArea()
    Local $SPI_GETWORKAREA = 48
    Local $tRect = DllStructCreate($tagRECT)
    _WinAPI_SystemParametersInfo($SPI_GETWORKAREA, 0, $tRect)
    Return _Get_tRects_Array($tRect)
EndFunc   ;==>_GetWorkingArea

Func _GUI_Control_ListView_SetView($hListView, $iView) ; The one under _GUICtrlListView_SetView has the params Mixed up
    If $iView < 0 Or $iView > 4 Then Return 0
    Local $bRet

    If IsHWnd($hListView) Then
        $bRet = _SendMessage($hListView, $LVM_SETVIEW, $iView) <> -1
    Else
        $bRet = GUICtrlSendMsg($hListView, $LVM_SETVIEW, $iView, 0) <> -1
    EndIf
    ;EndIf
    If @error Then
        MsgBox(0, "LV_SetView", "_SendMessage Error: " & _WinAPI_GetLastError() & " " & _WinAPI_GetLastErrorMessage())
        Exit
    EndIf
    Return $bRet
EndFunc   ;==>_GUI_Control_ListView_SetView

Func _GuiCreate_Popup($Title, $iX = -1, $iY = -1, $iW = 0, $iH = 0)
    Local Const $WS_POPUP = 0x80000000
    Local $Gui = GUICreate($Title, $iW, $iH, $iX, $iY, $WS_POPUP)
    Return $Gui
EndFunc   ;==>_GuiCreate_Popup

Func _GUICtrl_ListView_GetItemsText_Array($hWnd, $iSubItem = 0)
    ; Author ........: Paul Campbell (PaulIA)
    ;Modified to grab Text of every item to an array 1 based, 0 holds count. Ex.[0=3][1=MyComputer][2=Recycle bin][3=My Stuff]
    ;Must be compiled to proper arch to work
    ;NOT the same as _GUICtrlListView_GetItemTextArray it works on a single item and returns all subitems
    ;This one works on all items and returns one subitem each
    Local $iCount = _GUICtrlListView_GetItemCount($hWnd)
    Local $aReturn[$iCount + 1]
    $aReturn[0] = $iCount

    Local $tBuffer, $bUnicode = _GUICtrlListView_GetUnicodeFormat($hWnd)

    If $bUnicode Then
        $tBuffer = DllStructCreate("wchar Text[4096]")
    Else
        $tBuffer = DllStructCreate("char Text[4096]")
    EndIf

    Local $pBuffer = DllStructGetPtr($tBuffer)
    Local $tItem = DllStructCreate($tagLVITEM)

    DllStructSetData($tItem, "SubItem", $iSubItem)
    DllStructSetData($tItem, "TextMax", 4096)
    If IsHWnd($hWnd) Then
        If _WinAPI_InProcess($hWnd, $__g_hLVLastWnd) Then

            DllStructSetData($tItem, "Text", $pBuffer)
            For $i = 1 To $iCount
                _SendMessage($hWnd, $LVM_GETITEMTEXTW, $i, $tItem, 0, "wparam", "struct*")
                $aReturn[$i] = DllStructGetData($tBuffer, "Text")
                DllStructSetData($tBuffer, "Text", "")
            Next

        Else
            Local $iItem = DllStructGetSize($tItem)
            Local $tMemMap, $pMemory = _MemInit($hWnd, $iItem + 4096, $tMemMap)
            Local $pText = $pMemory + $iItem
            DllStructSetData($tItem, "Text", $pText)
            For $i = 1 To $iCount
                _MemWrite($tMemMap, $tItem, $pMemory, $iItem)
                If $bUnicode Then
                    _SendMessage($hWnd, $LVM_GETITEMTEXTW, $i - 1, $pMemory, 0, "wparam", "ptr")
                Else
                    _SendMessage($hWnd, $LVM_GETITEMTEXTA, $i - 1, $pMemory, 0, "wparam", "ptr")
                EndIf
                _MemRead($tMemMap, $pText, $tBuffer, 4096)
                $aReturn[$i] = DllStructGetData($tBuffer, "Text")
                DllStructSetData($tBuffer, "Text", "")
            Next
            _MemFree($tMemMap)
        EndIf
    Else
        Local $pItem = DllStructGetPtr($tItem)

        DllStructSetData($tItem, "Text", $pBuffer)
        For $i = 1 To $iCount
            If $bUnicode Then
                GUICtrlSendMsg($hWnd, $LVM_GETITEMTEXTW, $i, $pItem)
            Else
                GUICtrlSendMsg($hWnd, $LVM_GETITEMTEXTA, $i, $pItem)
            EndIf
            $aReturn[$i] = DllStructGetData($tBuffer, "Text")
            DllStructSetData($tBuffer, "Text", "")
        Next
    EndIf
    Return $aReturn ;DllStructGetData($tBuffer, "Text")
EndFunc   ;==>_GUICtrl_ListView_GetItemsText_Array

Func _GUIScrollBars_ShowScrollBar($hWnd, $iBar, $bShow = True)
    Local $aResult = DllCall("user32.dll", "bool", "ShowScrollBar", "hwnd", $hWnd, "int", $iBar, "bool", $bShow)
    If @error Then Return SetError(@error, @extended, False)
    Return $aResult[0]
EndFunc   ;==>_GUIScrollBars_ShowScrollBar

Func _Menu_AutoStart($GLOBAL_idOptionsAuto, $aMenuOptViewStyle, $aMenuOptIconSize)
    ;Checks for autorun entry, saves currently selected view when checked
    If BitAND(GUICtrlRead($GLOBAL_idOptionsAuto), $GUI_CHECKED) Then
        GUICtrlSetState($GLOBAL_idOptionsAuto, $GUI_UNCHECKED)
        If Script_IsCompiled() Then Script_RunOnStartup(False, 0)
    Else
        ;GUICtrlSetState($GLOBAL_idOptionsAuto, $GUI_CHECKED)
        If Script_IsCompiled() Then
            _Menu_OptionChecked($aMenuOptViewStyle)
            GUICtrlSetState($GLOBAL_idOptionsAuto, $GUI_CHECKED)
            For $i = 0 To UBound($aMenuOptViewStyle, 1) - 1
                If BitAND(GUICtrlRead($aMenuOptViewStyle[$i][2]), $GUI_CHECKED) Then
                    Script_RunOnStartup(True, _Menu_OptionChecked($aMenuOptViewStyle) & " " & _Menu_OptionChecked($aMenuOptIconSize))
                EndIf
            Next

        EndIf
    EndIf

EndFunc   ;==>_Menu_AutoStart


Func _Menu_InitDisplayItems($hListView, $iX = -1, $iY = -1)
    Local $sView = _GUICtrlListView_GetView($hListView) ;msgbox(0,"",$sView)
    Local Const $GUI_EVENT_NONE = 0, $GUI_EVENT_CLOSE = -3, $GUI_EVENT_SECONDARYDOWN = -8, $GUI_EVENT_MOUSEMOVE = -11
    Local $idOptionsView, $idOptionsSize

    ;[[Name, Value, Handle],[]]
    Local $aMenuOptViewStyle[5][3] = [["Icons", 0, ""], ["Report", 1, ""], ["List", 2, ""], ["Tile", 4, ""], ["Hide", 5, ""]]
    Local Const $iUB_aMenuOpt_ViewStyle = UBound($aMenuOptViewStyle, 1) - 1

    Local $aMenuOptIconSize[6][3] = [["Small", 0, ""], ["MedSmall", 1, ""], ["Medium", 2, ""], ["Large", 3, ""], ["ExLarge", 4, ""], ["Default", -1, ""]]
    Local Const $iUB_aMenuOpt_IconSize = UBound($aMenuOptIconSize, 1) - 1

    ;LV_VIEW_ICON=0;LV_VIEW_DETAILS=1;LV_VIEW_SMALLICON=2;LV_VIEW_LIST=3;LV_VIEW_TILE=4;
    Local Const $hGui = _GuiCreate_Popup("DVC", $iX, $iY)
    $idOptionsView = GUICtrlCreateContextMenu() ;$idOptionsDummy)

    For $i = 0 To $iUB_aMenuOpt_ViewStyle
        $aMenuOptViewStyle[$i][2] = GUICtrlCreateMenuItem($aMenuOptViewStyle[$i][0], $idOptionsView, -1, 1)
    Next

    If Not (@OSVersion = "WIN_XP") Then

        $idOptionsSize = GUICtrlCreateMenu("Size", $idOptionsView)
        For $i = 0 To $iUB_aMenuOpt_IconSize
            $aMenuOptIconSize[$i][2] = GUICtrlCreateMenuItem($aMenuOptIconSize[$i][0], $idOptionsSize, -1, 1)
        Next
        Menu_SetItem_Checked($aMenuOptIconSize[5][2], True) ;Default Size
    EndIf

    GUICtrlCreateMenuItem("", $idOptionsView, -1, 0) ;Seperator

    Local Const $idOptionsSave = GUICtrlCreateMenuItem("Save Positions", $idOptionsView)

    $GLOBAL_idOptionsAuto = GUICtrlCreateMenuItem("Auto Run", $idOptionsView) ;_Exit uses this value

    Local Const $idOptionsExit = GUICtrlCreateMenuItem("Exit", $idOptionsView)

    For $i = 0 To $iUB_aMenuOpt_ViewStyle
        If $sView = $aMenuOptViewStyle[$i][1] Then
            Menu_SetItem_Checked($idOptionsSave, FileExists(DesktopLV_Item_SavePos($hListView, $aMenuOptViewStyle[$i][1], False)))
            GUICtrlSetState($aMenuOptViewStyle[$i][2], $GUI_CHECKED)
            ExitLoop
        EndIf
    Next

    Menu_SetItem_Checked($GLOBAL_idOptionsAuto, Script_RunOnStartupCheck())
    If Script_OsArch_is_CompiledArch() = False Then GUICtrlSetState($idOptionsSave, $GUI_DISABLE)
    If Script_IsCompiled() = False Then GUICtrlSetState($GLOBAL_idOptionsAuto, $GUI_DISABLE)

    GUISetState(@SW_SHOW)
    _Menu_Popup($hGui, $idOptionsView)

    ;Menu Message Loop
    Local $idMsg
    While 1
        $idMsg = GUIGetMsg()

        Switch $idMsg

            Case $idOptionsSave
                _Menu_SaveIconLayout($idOptionsSave, $aMenuOptViewStyle, $hListView)

            Case $idOptionsExit, $GUI_EVENT_CLOSE ;;;;
                ;msgbox(0,"",$idMsg)
                ExitLoop

            Case $GLOBAL_idOptionsAuto ;
                _Menu_AutoStart($GLOBAL_idOptionsAuto, $aMenuOptViewStyle, $aMenuOptIconSize)

            Case 0
                If $iX - $iY = 0 Then
                    _Menu_Popup($hGui, $idOptionsView)
                    If Script_OsArch_is_CompiledArch() = False Then GUICtrlSetState($idOptionsSave, $GUI_DISABLE)
                    If Script_IsCompiled() = False Then GUICtrlSetState($GLOBAL_idOptionsAuto, $GUI_DISABLE)
                Else
                    ExitLoop
                EndIf

            Case $GUI_EVENT_MOUSEMOVE
                ContinueLoop

            Case -13 To -3
                ;ConsoleWrite($idMsg)
                Sleep(100)

            Case Else
                ;ConsoleWrite($idMsg)
                ToolTip("", 0, 0)
                If _Menu_OptionArray($idMsg, $GLOBAL_idOptionsAuto, $aMenuOptViewStyle, $aMenuOptIconSize, $hListView) = True Then ;Traverse options array for Clicked Item
                    $sView = _GUICtrlListView_GetView($hListView)
                    For $i = 0 To $iUB_aMenuOpt_ViewStyle ;check for saved icon positions
                        If $sView = $aMenuOptViewStyle[$i][1] Then
                            Menu_SetItem_Checked($idOptionsSave, FileExists(DesktopLV_Item_SavePos($hListView, $aMenuOptViewStyle[$i][1], False)))
                            ExitLoop
                        EndIf
                    Next
                Else
                    If _Menu_OptionSize_Array($idMsg, $aMenuOptViewStyle, $aMenuOptIconSize, $hListView) = True Then ;Traverse OptionsSize array for Clicked Item
                    EndIf
                EndIf

        EndSwitch
        If Script_OsArch_is_CompiledArch() = False Then GUICtrlSetState($idOptionsSave, $GUI_DISABLE)
        If Script_IsCompiled() = False Then GUICtrlSetState($GLOBAL_idOptionsAuto, $GUI_DISABLE)
    WEnd

    Script_Exit()
EndFunc   ;==>_Menu_InitDisplayItems

Func _Menu_OptionArray($idMsg, $GLOBAL_idOptionsAuto, $aMenuOptViewStyle, $aMenuOptIconSize, $hListView)
    Local $bRet = False
    Local $iIconSz
    For $i = 0 To UBound($aMenuOptViewStyle, 1) - 1

        If $idMsg = $aMenuOptViewStyle[$i][2] Then
            $iIconSz = _Menu_OptionChecked($aMenuOptIconSize)
            DesktopLV_SetView($hListView, $aMenuOptViewStyle[$i][1], $iIconSz) ;Set Selected View

            If Script_IsCompiled() Then

                If BitAND(GUICtrlRead($GLOBAL_idOptionsAuto), $GUI_CHECKED) Then
                    Script_RunOnStartup(True, $aMenuOptViewStyle[$i][1] & " " & $iIconSz) ;Save to autorun if so desired
                    ToolTip("On Start: " & $aMenuOptViewStyle[$i][0], 0, 0)
                    Sleep(1000)

                EndIf
            EndIf
            $bRet = True

        Else
            GUICtrlSetState($aMenuOptViewStyle[$i][2], $GUI_ENABLE) ;Uncheck+Enable the other items
        EndIf
    Next
    Return $bRet
EndFunc   ;==>_Menu_OptionArray

Func _Menu_OptionChecked($aMenuOptViewStyle) ;Returns the Value of the checked item
    Local $iRet = -1
    For $i = 0 To UBound($aMenuOptViewStyle, 1) - 1
        If BitAND(GUICtrlRead($aMenuOptViewStyle[$i][2]), $GUI_CHECKED) Then
            $iRet = $aMenuOptViewStyle[$i][1]
            ExitLoop
        EndIf
    Next

    Return $iRet
EndFunc   ;==>_Menu_OptionChecked

Func _Menu_OptionSize_Array($idMsg, $aMenuOptViewStyle, $aMenuOptIconSize, $hListView)
    Local $bRet = False
    For $i = 0 To UBound($aMenuOptIconSize, 1) - 1

        If $idMsg = $aMenuOptIconSize[$i][2] Then
            For $j = 0 To UBound($aMenuOptViewStyle, 1) - 1
                If BitAND(GUICtrlRead($aMenuOptViewStyle[$j][2]), $GUI_CHECKED) Then
                    DesktopLV_SetView($hListView, $aMenuOptViewStyle[$j][1], $aMenuOptIconSize[$i][1])
                EndIf
            Next
            $bRet = True
            ExitLoop
        EndIf
    Next
    Return $bRet
EndFunc   ;==>_Menu_OptionSize_Array

Func _Menu_Popup($hWnd, $idContext) ;Popup menu over left top of supplied hwnd
    Local $aPos = [0, 0, 0, 0]
    Local $hMenu = GUICtrlGetHandle($idContext)

    $aPos = WinGetPos($hWnd, "")

    DllCall("user32.dll", "bool", "TrackPopupMenu", "handle", $hMenu, "uint", 128, "int", $aPos[0], "int", $aPos[1], "int", 0, "hwnd", $hWnd, "ptr", 0)
    If @error Then Return SetError(@error, @extended, 0)
    ;_GUICtrlMenu_TrackPopupMenu($hMenu, $hWnd, $aPos[0], $aPos[1], 1, 1, 1)
    ;DllCall("user32.dll", "int", "TrackPopupMenuEx", "hwnd", $hMenu, "int", 0, "int", $aPos[0], "int", $aPos[1] + $aPos[3], "hwnd", $hWnd, "ptr", 0)
    Return $hMenu
EndFunc   ;==>_Menu_Popup

Func _Menu_SaveIconLayout($idOptionsSave, $aMenuOptViewStyle, $hListView) ;Saves Icon positions checks the option if file was saved or exists
    Local $sIniFile = ""
    For $i = 0 To UBound($aMenuOptViewStyle, 1) - 1
        If BitAND(GUICtrlRead($aMenuOptViewStyle[$i][2]), $GUI_CHECKED) Then
            Menu_SetItem_Checked($idOptionsSave, FileExists(DesktopLV_Item_SavePos($hListView, $aMenuOptViewStyle[$i][1])))
            ExitLoop
        EndIf
    Next
    ;Menu_SetItem_Checked($idOptionsSave, FileExists($sIniFile))
EndFunc   ;==>_Menu_SaveIconLayout

Func Menu_SetItem_Checked($idOptions, $bChecked) ;Checks or Unchecks an item

    If $bChecked Then
        GUICtrlSetState($idOptions, $GUI_CHECKED)
    Else
        GUICtrlSetState($idOptions, $GUI_UNCHECKED)
    EndIf

EndFunc   ;==>Menu_SetItem_Checked

Func _WinAPI_EnumChildWindows($hWnd, $bVisible = True) ;#include <WinAPISys.au3>
    If Not _WinAPI_GetWindow($hWnd, 5) Then Return SetError(2, 0, 0) ; $GW_CHILD

    Local $hEnumProc = DllCallbackRegister('__EnumWindowsProc', 'bool', 'hwnd;lparam')

    Dim $__g_vEnum[101][2] = [[0]]
    DllCall('user32.dll', 'bool', 'EnumChildWindows', 'hwnd', $hWnd, 'ptr', DllCallbackGetPtr($hEnumProc), 'lparam', $bVisible)
    If @error Or Not $__g_vEnum[0][0] Then
        $__g_vEnum = @error + 10
    EndIf
    DllCallbackFree($hEnumProc)
    If $__g_vEnum Then Return SetError($__g_vEnum, 0, 0)

    __Inc($__g_vEnum, -1)
    Return $__g_vEnum
EndFunc   ;==>_WinAPI_EnumChildWindows

Func _WinAPI_ShellChangeNotify($iEvent, $iFlags, $iItem1 = 0, $iItem2 = 0) ;#include <WinAPIShellEx.au3>
    ; Author.........: Yashied
    Local $sTypeOfItem1 = 'dword_ptr', $sTypeOfItem2 = 'dword_ptr'
    If IsString($iItem1) Then
        $sTypeOfItem1 = 'wstr'
    EndIf
    If IsString($iItem2) Then
        $sTypeOfItem2 = 'wstr'
    EndIf

    DllCall('shell32.dll', 'none', 'SHChangeNotify', 'long', $iEvent, 'uint', $iFlags, $sTypeOfItem1, $iItem1, $sTypeOfItem2, $iItem2)
    If @error Then Return SetError(@error, @extended, 0)

    Return 1
EndFunc   ;==>_WinAPI_ShellChangeNotify
;====>Main

Func Script_CheckCmdLine($hListView)
    Local $bRet = False
    If $CmdLine[0] > 1 Then
        If StringUpper($CmdLine[1]) = "/STARTUP" Then ;/startup and view #0- to 5#  and Size 0 to 4
            ;_ArrayDisplay($CmdLine)
            Local $iIconSz = -1
            If $CmdLine[0] > 2 Then $iIconSz = Int($CmdLine[3]) ;Icon Size specified
            DesktopLV_SetView($hListView, Int($CmdLine[2]), $iIconSz)
            Exit
        Else ;at least any 2 random command line args. ;Used for context menu popup on DVC
            $bRet = True
        EndIf
    EndIf
    Return $bRet
EndFunc   ;==>Script_CheckCmdLine

Func Script_Exit()
    If Script_IsCompiled() And GUICtrlGetState($GLOBAL_idOptionsAuto) = $GUI_UNCHECKED Then Script_RunOnStartup(False, 0)
    GUIDelete()
    _WinAPI_CoUninitialize()
    Exit
EndFunc   ;==>Script_Exit

Func Script_IsCompiled()
    Local $bIsCompiled = False
    If StringUpper(StringRight(@ScriptName, 4)) = ".EXE" Then $bIsCompiled = True
    Return $bIsCompiled
EndFunc   ;==>Script_IsCompiled

Func Script_OsArch_is_CompiledArch()
    Local $bRet = True
    If @OSArch = "X64" Then $bRet = @AutoItX64
    Return $bRet
EndFunc   ;==>Script_OsArch_is_CompiledArch

Func Script_RunOnStartup($bEnable, $sCmds)
    Local $sName = StringTrimRight(@ScriptName, 4)

    If $bEnable = False Then
        RegWrite("HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Run", @ScriptName, "REG_SZ", "")

        RegDelete("HKCR\Directory\Background\shell\" & $sName)
    Else
        RegWrite("HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Run", @ScriptName, "REG_SZ", @ScriptFullPath & " /StartUp " & $sCmds)
        If Not (@OSVersion = "WIN_XP") Then
            RegWrite("HKCR\Directory\Background\shell\" & $sName)
            RegWrite("HKCR\Directory\Background\shell\" & $sName, "", "REG_SZ", $sName)
            RegWrite("HKCR\Directory\Background\shell\" & $sName & "\command", "", "REG_SZ", Chr(34) & @ScriptFullPath & Chr(34) & " /Mouse 1")
        EndIf
    EndIf

EndFunc   ;==>Script_RunOnStartup

Func Script_RunOnStartupCheck()
    If StringInStr(RegRead("HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Run", @ScriptName), @ScriptFullPath & " /StartUp") Then
        Return True
    Else
        Return False
    EndIf
EndFunc   ;==>Script_RunOnStartupCheck



#cs
    ;;#include <ListViewConstants.au3>
    Func Debug_GetLvMStyles($hListView)
    Local $LVStyle = _WinAPI_GetWindowLong($hListView, -16)
    Local $LVExStyle = _GUICtrlListView_GetExtendedListViewStyle($hListView)
    Local $sLVSTYLES
    Local $sLVExSTYLES
    If @error Then
    ConsoleWrite(" Error Debug_GetLvMStyles Couldn't retrieve Styles")
    Return
    EndIf
    If BitAND($LVStyle, $LVS_ALIGNLEFT) Then $sLVSTYLES &= "$LVS_ALIGNLEFT, "
    If BitAND($LVStyle, $LVS_ALIGNMASK) Then $sLVSTYLES &= "$LVS_ALIGNMASK, "
    If BitAND($LVStyle, $LVS_ALIGNTOP) Then $sLVSTYLES &= "$LVS_ALIGNTOP, "
    If BitAND($LVStyle, $LVS_AUTOARRANGE) Then $sLVSTYLES &= "$LVS_AUTOARRANGE, "
    If BitAND($LVStyle, $LVS_DEFAULT) Then $sLVSTYLES &= "LVS_DEFAULT,"
    If BitAND($LVStyle, $LVS_EDITLABELS) Then $sLVSTYLES &= "LVS_EDITLABELS, "
    If BitAND($LVStyle, $LVS_ICON) Then $sLVSTYLES &= "LVS_ICON, "
    If BitAND($LVStyle, $LVS_LIST) Then $sLVSTYLES &= "LVS_LIST, "
    If BitAND($LVStyle, $LVS_NOCOLUMNHEADER) Then $sLVSTYLES &= "LVS_NOCOLUMNHEADER, "
    If BitAND($LVStyle, $LVS_NOLABELWRAP) Then $sLVSTYLES &= "LVS_NOLABELWRAP, "
    If BitAND($LVStyle, $LVS_NOSCROLL) Then $sLVSTYLES &= "LVS_NOSCROLL, "
    If BitAND($LVStyle, $LVS_NOSORTHEADER) Then $sLVSTYLES &= "LVS_NOSORTHEADER, "
    If BitAND($LVStyle, $LVS_OWNERDATA) Then $sLVSTYLES &= "LVS_OWNERDATA, "
    If BitAND($LVStyle, $LVS_OWNERDRAWFIXED) Then $sLVSTYLES &= "LVS_OWNERDRAWFIXED, "
    If BitAND($LVStyle, $LVS_REPORT) Then $sLVSTYLES &= "LVS_REPORT, "
    If BitAND($LVStyle, $LVS_SHAREIMAGELISTS) Then $sLVSTYLES &= "LVS_SHAREIMAGELISTS, "
    If BitAND($LVStyle, $LVS_SHOWSELALWAYS) Then $sLVSTYLES &= "LVS_SHOWSELALWAYS, "
    If BitAND($LVStyle, $LVS_SINGLESEL) Then $sLVSTYLES &= "LVS_SINGLESEL, "
    If BitAND($LVStyle, $LVS_SMALLICON) Then $sLVSTYLES &= "LVS_SMALLICON, "
    If BitAND($LVStyle, $LVS_SORTASCENDING) Then $sLVSTYLES &= "LVS_SORTASCENDING, "
    If BitAND($LVStyle, $LVS_SORTDESCENDING) Then $sLVSTYLES &= "LVS_SORTDESCENDING, "
    If BitAND($LVStyle, $LVS_TYPEMASK) Then $sLVSTYLES &= "LVS_TYPEMASK, "
    If BitAND($LVStyle, $LVS_TYPESTYLEMASK) Then $sLVSTYLES &= "LVS_TYPESTYLEMASK, "

    If BitAND($LVExStyle, $LVS_EX_AUTOAUTOARRANGE) Then $sLVExSTYLES &= "$LVS_EX_AUTOARRANGE, "
    If BitAND($LVExStyle, $LVS_EX_AUTOCHECKSELECT) Then $sLVExSTYLES &= "$LVS_EX_AUTOCHECKSELECT, "
    If BitAND($LVExStyle, $LVS_EX_AUTOSIZECOLUMNS) Then $sLVExSTYLES &= "$LVS_EX_AUTOSIZECOLUMNS, "
    If BitAND($LVExStyle, $LVS_EX_BORDERSELECT) Then $sLVExSTYLES &= "$LVS_EX_BORDERSELECT, "
    If BitAND($LVExStyle, $LVS_EX_CHECKBOXES) Then $sLVExSTYLES &= "$LVS_EX_CHECKBOXES, "
    If BitAND($LVExStyle, $LVS_EX_COLUMNOVERFLOW) Then $sLVExSTYLES &= "$LVS_EX_COLUMNOVERFLOW, "
    If BitAND($LVExStyle, $LVS_EX_COLUMNSNAPPOINTS) Then $sLVExSTYLES &= "$LVS_EX_COLUMNSNAPPOINTS, "
    If BitAND($LVExStyle, $LVS_EX_DOUBLEBUFFER) Then $sLVExSTYLES &= "$LVS_EX_DOUBLEBUFFER, "
    If BitAND($LVExStyle, $LVS_EX_FLATSB) Then $sLVExSTYLES &= "$LVS_EX_FLATSB, "
    If BitAND($LVExStyle, $LVS_EX_FULLROWSELECT) Then $sLVExSTYLES &= "$LVS_EX_FULLROWSELECT, "
    If BitAND($LVExStyle, $LVS_EX_GRIDLINES) Then $sLVExSTYLES &= "$LVS_EX_GRIDLINES, "
    If BitAND($LVExStyle, $LVS_EX_HEADERDRAGDROP) Then $sLVExSTYLES &= "$LVS_EX_HEADERDRAGDROP, "
    If BitAND($LVExStyle, $LVS_EX_HEADERINALLVIEWS) Then $sLVExSTYLES &= "$LVS_EX_HEADERINALLVIEWS, "
    If BitAND($LVExStyle, $LVS_EX_HIDELABELS) Then $sLVExSTYLES &= "$LVS_EX_HIDELABELS, "
    If BitAND($LVExStyle, $LVS_EX_INFOTIP) Then $sLVExSTYLES &= "$LVS_EX_INFOTIP, "
    If BitAND($LVExStyle, $LVS_EX_JUSTIFYCOLUMNS) Then $sLVExSTYLES &= "$LVS_EX_JUSTIFYCOLUMNS, "
    If BitAND($LVExStyle, $LVS_EX_LABELTIP) Then $sLVExSTYLES &= "$LVS_EX_LABELTIP, "
    If BitAND($LVExStyle, $LVS_EX_MULTIWORKAREAS) Then $sLVExSTYLES &= "$LVS_EX_MULTIWORKAREAS, "
    If BitAND($LVExStyle, $LVS_EX_ONECLICKACTIVATE) Then $sLVExSTYLES &= "$LVS_EX_ONECLICKACTIVATE, "
    If BitAND($LVExStyle, $LVS_EX_REGIONAL) Then $sLVExSTYLES &= "$LVS_EX_REGIONAL, "
    If BitAND($LVExStyle, $LVS_EX_SIMPLESELECT) Then $sLVExSTYLES &= "$LVS_EX_SIMPLESELECT, "
    If BitAND($LVExStyle, $LVS_EX_SNAPTOGRID) Then $sLVExSTYLES &= "$LVS_EX_SNAPTOGRID, "
    If BitAND($LVExStyle, $LVS_EX_SUBITEMIMAGES) Then $sLVExSTYLES &= "$LVS_EX_SUBITEMIMAGES, "
    If BitAND($LVExStyle, $LVS_EX_TRACKSELECT) Then $sLVExSTYLES &= "$LVS_EX_TRACKSELECT, "
    If BitAND($LVExStyle, $LVS_EX_TRANSPARENTBKGND) Then $sLVExSTYLES &= "$LVS_EX_TRANSPARENTBACKGROUND, "
    If BitAND($LVExStyle, $LVS_EX_TRANSPARENTSHADOWTEXT) Then $sLVExSTYLES &= "$LVS_EX_TRANSPARENTTEXTSHADOW, "
    If BitAND($LVExStyle, $LVS_EX_TWOCLICKACTIVATE) Then $sLVExSTYLES &= "$LVS_EX_TWOCLICKACTIVATE, "
    If BitAND($LVExStyle, $LVS_EX_UNDERLINECOLD) Then $sLVExSTYLES &= "$LVS_EX_UNDERLINECOLD, "
    If BitAND($LVExStyle, $LVS_EX_UNDERLINEHOT) Then $sLVExSTYLES &= "$LVS_EX_UNDERLINEHOT, "
    ConsoleWrite("Lv Styles= " & $sLVSTYLES & @CRLF)
    ConsoleWrite("Lv Ex Styles= " & $sLVExSTYLES & @CRLF)

    EndFunc   ;==>Debug_GetLvMStyles

    ;;#include <HeaderConstants.au3>
    Func Debug_GetHDStyles($hListView)
    Local $hHeader = _GUICtrlListView_GetHeader($hListView)
    Local $HDStyle = _WinAPI_GetWindowLong($hHeader, -16)
    Local $sHDSTYLES
    If @error Then
    ConsoleWrite(" Error Debug_GetHDStyles Couldn't retrieve Styles")
    Return
    EndIf
    If BitAND($HDStyle, $HDS_BUTTONS) Then $sHDSTYLES &= "$HDS_STYLES, " ;0x00000002 ; Each item in the control looks and behaves like a push button
    If BitAND($HDStyle, $HDS_CHECKBOXES) Then $sHDSTYLES &= "$HDS_CHECKBOXES, " ;0x00000400 ; Allows the placing of checkbo       ;es on header items on Vista
    If BitAND($HDStyle, $HDS_DRAGDROP) Then $sHDSTYLES &= "$HDS_DRAGDROP, " ;0x00000040 ; Allows drag-and-drop reordering of header items
    If BitAND($HDStyle, $HDS_FILTERBAR) Then $sHDSTYLES &= "$HDS_FILTERBAR, " ;0x00000100 ; Include a filter bar as part of the standard header control
    If BitAND($HDStyle, $HDS_FLAT) Then $sHDSTYLES &= "$HDS_FLAT, " ;0x00000200 ; Control is drawn flat when XP is running in classic mode
    If BitAND($HDStyle, $HDS_FULLDRAG) Then $sHDSTYLES &= "$HDS_FULLDRAG, " ;0x00000080 ; Column contents are displayed while the user resizes a column
    If BitAND($HDStyle, $HDS_HIDDEN) Then $sHDSTYLES &= "$HDS_HIDDEN, " ;0x00000008 ; Indicates a header control that is intended to be hidden
    If BitAND($HDStyle, $HDS_HORZ) Then $sHDSTYLES &= "$HDS_HORZ, " ;0x00000000 ; Creates a header control with a horizontal orientation
    If BitAND($HDStyle, $HDS_HOTTRACK) Then $sHDSTYLES &= "$HDS_HOTTRACK, " ;0x00000004 ; Enables hot tracking
    If BitAND($HDStyle, $HDS_NOSIZING) Then $sHDSTYLES &= "$HDS_NOSIZING, " ;0x0800 ; The user cannot drag the divider on the header control on Vista
    If BitAND($HDStyle, $HDS_OVERFLOW) Then $sHDSTYLES &= "$HDS_OVERFLOW, " ;0x1000 ; A button is displayed when not all items can be displayed within the header control's rectangle on Vista
    If BitAND($HDStyle, $HDS_DEFAULT) Then $sHDSTYLES &= "$HDS_DEFAULT, " ;0x00000046 ; Default header style $HDS_DRAGDROP + $HDS_HOTTRACK + $HDS_BUTTONS
    ConsoleWrite("Header Styles= " & $sHDSTYLES & @CRLF)
    EndFunc   ;==>Debug_GetHDStyles

    Func Debug_GetWSStyles($hWnd)
    #include <WindowsConstants.au3>
    Local $WSStyle = _WinAPI_GetWindowLong($hWnd, -16)
    Local $sWSSTYLES
    Local $WSEXStyle = _WinAPI_GetWindowLong($hWnd, -20) ;_GUICtrlListView_GetExtendedListViewStyle($hListView);
    Local $sWSEXSTYLES
    If @error Then
    ConsoleWrite(" Error Debug_GetWSStyles Couldn't retrieve Styles")
    Return
    EndIf
    If BitAND($WSStyle, $WS_OVERLAPPED) Then $sWSSTYLES &= "$WS_OVERLAPPED, "
    If BitAND($WSStyle, $WS_TILED) Then $sWSSTYLES &= "$WS_TILED, "
    If BitAND($WSStyle, $WS_MAXIMIZEBOX) Then $sWSSTYLES &= "$WS_MAXIMIZEBOX, " ;0x00010000
    If BitAND($WSStyle, $WS_MINIMIZEBOX) Then $sWSSTYLES &= "$WS_MINIMIZEBOX, " ;0x00020000
    If BitAND($WSStyle, $WS_TABSTOP) Then $sWSSTYLES &= "$WS_TABSTOP, " ;0x00010000
    If BitAND($WSStyle, $WS_GROUP) Then $sWSSTYLES &= "$WS_GROUP, " ;0x00020000
    If BitAND($WSStyle, $WS_SIZEBOX) Then $sWSSTYLES &= "$WS_SIZEBOX, " ;0x00040000
    If BitAND($WSStyle, $WS_THICKFRAME) Then $sWSSTYLES &= "$WS_THICKFRAME, "
    If BitAND($WSStyle, $WS_SYSMENU) Then $sWSSTYLES &= "$WS_SYSMENU, " ;0x00080000
    If BitAND($WSStyle, $WS_HSCROLL) Then $sWSSTYLES &= "$WS_HSCROLL, " ;0x00100000
    If BitAND($WSStyle, $WS_VSCROLL) Then $sWSSTYLES &= "$WS_VSCROLL, " ;0x00200000
    If BitAND($WSStyle, $WS_DLGFRAME) Then $sWSSTYLES &= "$WS_DLGFRAME, " ;0x00400000
    If BitAND($WSStyle, $WS_BORDER) Then $sWSSTYLES &= "$WS_BORDER, " ;0x00800000
    If BitAND($WSStyle, $WS_CAPTION) Then $sWSSTYLES &= "$WS_CAPTION, " ;0x00C00000
    If BitAND($WSStyle, $WS_OVERLAPPEDWINDOW) Then $sWSSTYLES &= "$WS_OVERLAPPEDWINDOW, "
    If BitAND($WSStyle, $WS_TILEDWINDOW) Then $sWSSTYLES &= "$WS_TILEDWINDOW, "
    If BitAND($WSStyle, $WS_MAXIMIZE) Then $sWSSTYLES &= "$WS_MAXIMIZE, " ;0x01000000
    If BitAND($WSStyle, $WS_CLIPCHILDREN) Then $sWSSTYLES &= "$WS_CLIPCHILDREN, " ;0x02000000
    If BitAND($WSStyle, $WS_CLIPSIBLINGS) Then $sWSSTYLES &= "$WS_CLIPSIBLINGS, " ;0x04000000
    If BitAND($WSStyle, $WS_DISABLED) Then $sWSSTYLES &= "$WS_DISABLED, " ;0x08000000
    If BitAND($WSStyle, $WS_VISIBLE) Then $sWSSTYLES &= "$WS_VISIBLE, " ;0x10000000
    If BitAND($WSStyle, $WS_MINIMIZE) Then $sWSSTYLES &= "$WS_MINIMIZE, " ;0x20000000
    If BitAND($WSStyle, $WS_ICONIC) Then $sWSSTYLES &= "$WS_ICONIC, "
    If BitAND($WSStyle, $WS_CHILD) Then $sWSSTYLES &= "$WS_CHILD, " ;0x40000000
    If BitAND($WSStyle, $WS_CHILDWINDOW) Then $sWSSTYLES &= "$WS_CHILDWINDOW, "
    If BitAND($WSStyle, $WS_POPUP) Then $sWSSTYLES &= "$WS_POPUP, " ;0x80000000
    If BitAND($WSStyle, $WS_POPUPWINDOW) Then $sWSSTYLES &= "$WS_POPUPWINDOW, " ;0x80880000

    If BitAND($WSEXStyle, $WS_EX_ACCEPTFILES) Then $sWSEXSTYLES &= "$WS_EX_ACCEPTFILES, " ;0x00000010
    If BitAND($WSEXStyle, $WS_EX_APPWINDOW) Then $sWSEXSTYLES &= "$WS_EX_APPWINDOW, " ;0x00040000
    If BitAND($WSEXStyle, $WS_EX_COMPOSITED) Then $sWSEXSTYLES &= "$WS_EX_COMPOSITED, " ;0x02000000
    If BitAND($WSEXStyle, $WS_EX_CONTROLPARENT) Then $sWSEXSTYLES &= "$WS_EX_CONTROLPARENT, " ;0x10000
    If BitAND($WSEXStyle, $WS_EX_CLIENTEDGE) Then $sWSEXSTYLES &= "$WS_EX_CLIENTEDGE, " ;0x00000200
    If BitAND($WSEXStyle, $WS_EX_CONTEXTHELP) Then $sWSEXSTYLES &= "$WS_EX_CONTEXTHELP, " ;0x00000400
    If BitAND($WSEXStyle, $WS_EX_DLGMODALFRAME) Then $sWSEXSTYLES &= "$WS_EX_DLGMODALFRAME, " ;0x00000001
    If BitAND($WSEXStyle, $WS_EX_LAYERED) Then $sWSEXSTYLES &= "$WS_EX_LAYERED, " ;0x00080000
    If BitAND($WSEXStyle, $WS_EX_LAYOUTRTL) Then $sWSEXSTYLES &= "$WS_EX_LAYOUTRTL, " ;0x400000
    If BitAND($WSEXStyle, $WS_EX_LEFT) Then $sWSEXSTYLES &= "$WS_EX_LEFT, " ;0x00000000
    If BitAND($WSEXStyle, $WS_EX_LEFTSCROLLBAR) Then $sWSEXSTYLES &= "$WS_EX_LEFTSCROLLBAR, " ;0x00004000
    If BitAND($WSEXStyle, $WS_EX_LTRREADING) Then $sWSEXSTYLES &= "$WS_EX_LTRREADING, " ;0x00000000
    If BitAND($WSEXStyle, $WS_EX_MDICHILD) Then $sWSEXSTYLES &= "$WS_EX_MDICHILD, " ;0x00000040
    If BitAND($WSEXStyle, $WS_EX_NOACTIVATE) Then $sWSEXSTYLES &= "$WS_EX_NOACTIVATE, " ;0x08000000
    If BitAND($WSEXStyle, $WS_EX_NOINHERITLAYOUT) Then $sWSEXSTYLES &= "$WS_EX_NOINHERITLAYOUT, " ;0x00100000
    If BitAND($WSEXStyle, $WS_EX_NOPARENTNOTIFY) Then $sWSEXSTYLES &= "$WS_EX_NOPARENTNOTIFY, " ;0x00000004
    If BitAND($WSEXStyle, $WS_EX_RIGHT) Then $sWSEXSTYLES &= "$WS_EX_RIGHT, " ;0x00001000
    If BitAND($WSEXStyle, $WS_EX_RIGHTSCROLLBAR) Then $sWSEXSTYLES &= "$WS_EX_RIGHTSCROLLBAR, " ;0x00000000
    If BitAND($WSEXStyle, $WS_EX_RTLREADING) Then $sWSEXSTYLES &= "$WS_EX_RTLREADING, " ;0x2000
    If BitAND($WSEXStyle, $WS_EX_STATICEDGE) Then $sWSEXSTYLES &= "$WS_EX_STATICEDGE, " ;0x00020000
    If BitAND($WSEXStyle, $WS_EX_TOOLWINDOW) Then $sWSEXSTYLES &= "$WS_EX_TOOLWINDOW, " ;0x00000080
    If BitAND($WSEXStyle, $WS_EX_TOPMOST) Then $sWSEXSTYLES &= "$WS_EX_TOPMOST, " ;0x00000008
    If BitAND($WSEXStyle, $WS_EX_TRANSPARENT) Then $sWSEXSTYLES &= "$WS_EX_TRANSPARENT, " ;0x00000020
    If BitAND($WSEXStyle, $WS_EX_WINDOWEDGE) Then $sWSEXSTYLES &= "$WS_EX_WINDOWEDGE, " ;0x00000100
    If BitAND($WSEXStyle, $WS_EX_OVERLAPPEDWINDOW) Then $sWSEXSTYLES &= "$WS_EX_OVERLAPPEDWINDOW, "
    If BitAND($WSEXStyle, $WS_EX_PALETTEWINDOW) Then $sWSEXSTYLES &= "$WS_EX_PALETTEWINDOW, "
    ConsoleWrite("WS Styles= " & $sWSSTYLES & @CRLF)
    ConsoleWrite("WS EX Styles= " & $sWSEXSTYLES & @CRLF)
    EndFunc   ;==>Debug_GetWSStyles
#CE







Edited by Bilgus
added Icon position saving, 5.10.16 Added Icon Size + Code Cleanup, 5.11.16 Removed requirement for compiling to size properly
Link to comment
Share on other sites

The only question I have with using that built-in is whether or not *.a3x files utilize a manifest the way a compiled .exe does.

If not then my function does exactly what I want.

Thanks for the feedback :)

Link to comment
Share on other sites

  • 2 weeks later...
On 4/26/2016 at 1:01 PM, Bilgus said:

The program also works in windows 8 as well

See updated code above with the Icon position saving feature

See First post for updated code With Vista+ you now can set Icon Size

Icon Size doesn't recall the position like the other options Ive not bothered to look it up it just sets what you select

Code was cleaned up hopefully I didn't take out functionality with xp  Still works with XP

I added a Default Position for any new Icons, by default new icons are left in their original positions

To set a Default position: Make a Folder named DEFAULT and place it where you want new icons placed

Then: Save Twice and this position becomes your new default (after you save twice you can delete the Default folder)

Be sure to choose overwrite YES when you save new positions and in the future and the position will carry over to the new save

Otherwise choose overwrite NO and it will ask you to delete the save point doing this also removes restore fuctionality

Remember non compiled code has a problem with desktop scaling. Compile to Proper OS ARCH or icon saving will not work

Edited by Bilgus
more directions
Link to comment
Share on other sites

  • 9 months later...
  • 2 weeks later...
  • 1 month later...
On 25.02.2017 at 3:48 PM, Bilgus said:

Icons > size > small? but I personally like List > size > small better



Thank You!

Please, write au3 code, how set Small icon View on Desktop

I compile you au3 code in exe file

I run exe file

After run exe file , Icons on my Desktop set Small icon

Thank ou!

Link to comment
Share on other sites

  • Developers

@SharkyEXE,

What is this "You write code for me" question number 3 in this forum?
You seem to misunderstand what support means! It means you write the code and ask when you have a question!

Jos

SciTE4AutoIt3 Full installer Download page   - Beta files       Read before posting     How to post scriptsource   Forum etiquette  Forum Rules

Live for the present,
Dream of the future,
Learn from the past.
  :)

Link to comment
Share on other sites

  • 2 weeks later...

Actually as long as you run it as administrator first and click autorun it will run at startup with whatever setting you choose or you can call the exe the same way as the autorun does it..

List, Sz Small = C:\Program Files\DVC\DVC_x64.exe /StartUp 2 -1

Icons, Sz Small = C:\Program Files\DVC\DVC_x64.exe /StartUp 0 0

if using 32-bit then it would be DVC.exe instead of DVC_x64.exe and I believe the .a3x file to be similar

Edited by Bilgus
Link to comment
Share on other sites

  • 8 months later...

Bilgus

Hello

I need function example _Desktop_DefView_SetIconSz

Func _Desktop_DefView_SetIconSz($hWnd, $iSize) ;$hwnd of DefView, $iSize 0-4 smallest to largest

    ;EXLARGEICONS=0, MEDICONS=1, LARGEICONS=2,SMALLICONS=3, SMALLESTICONS=4
    ;Made this up from watching Window Messages (fires menu messages I think)
    ;(IFolderView2::SetViewModeAndIconSize. is probably how WE should be doing this)
    If @OSVersion = "WIN_XP" Then Return 0
    ;Works on Windows 7/8, Sends icon size to defView based on ListView view

    If $iSize < 0 Or $iSize > 4 Or @OSVersion = "WIN_XP" Then Return 0
    Local $aLvtoDv[5] = [4, 3, 1, 2, 0]
    ;Extra Large Icons = &H704D -28749<-----Index 0
    ;Medium Icons = &H704E      -28750; Large Icons = &H704F       -28751;
    ;Small Icons = &H7050       -28752; Smallest Icons = &H7051    -28753

    Local Const $WM_COMMAND = 0x111
    Local $iMsg = $WM_COMMAND
    Local $wParam = 28749 + $aLvtoDv[Int($iSize)] ;FVM_??
    Local Const $lParam = 0
    _SendMessage($hWnd, $iMsg, $wParam, $lParam)
    If @error Then
        MsgBox(0, "_Desktop_DefView_SetIconSz", "_SendMessage Error: " & @error)
        Exit
    EndIf

    Return 1
EndFunc   ;==>_Desktop_DefView_SetIconSz

I call this function example _Desktop_DefView_SetIconSz (4)

_Desktop_DefView_SetIconSz(4)

Func _Desktop_DefView_SetIconSz($hWnd, $iSize) ;$hwnd of DefView, $iSize 0-4 smallest to largest

    ;EXLARGEICONS=0, MEDICONS=1, LARGEICONS=2,SMALLICONS=3, SMALLESTICONS=4
    ;Made this up from watching Window Messages (fires menu messages I think)
    ;(IFolderView2::SetViewModeAndIconSize. is probably how WE should be doing this)
    If @OSVersion = "WIN_XP" Then Return 0
    ;Works on Windows 7/8, Sends icon size to defView based on ListView view

    If $iSize < 0 Or $iSize > 4 Or @OSVersion = "WIN_XP" Then Return 0
    Local $aLvtoDv[5] = [4, 3, 1, 2, 0]
    ;Extra Large Icons = &H704D -28749<-----Index 0
    ;Medium Icons = &H704E      -28750; Large Icons = &H704F       -28751;
    ;Small Icons = &H7050       -28752; Smallest Icons = &H7051    -28753

    Local Const $WM_COMMAND = 0x111
    Local $iMsg = $WM_COMMAND
    Local $wParam = 28749 + $aLvtoDv[Int($iSize)] ;FVM_??
    Local Const $lParam = 0
    _SendMessage($hWnd, $iMsg, $wParam, $lParam)
    If @error Then
        MsgBox(0, "_Desktop_DefView_SetIconSz", "_SendMessage Error: " & @error)
        Exit
    EndIf

    Return 1
EndFunc   ;==>_Desktop_DefView_SetIconSz

and Icons on My desktop was Small icon

Thank You!

Link to comment
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
 Share

  • Recently Browsing   0 members

    • No registered users viewing this page.
×
×
  • Create New...
