GDI outline text scaled in gui

Recommended Posts

marcoauto

ciao,

I need to scale an outlined GDI text in a GUI. The problem is that I can't do this. The outline is often out of the GUI

I started from this script:

https://www.autoitscript.com/autoit3/docs/libfunctions/_GDIPlus_PathTransform.htm

that fit a string to windows and I changed

 $aBounds = _GDIPlus_PathGetWorldBounds($hPath) ;Get bounding rectangle of the path

$aBounds = _GDIPlus_PathGetWorldBounds($hPath) ;Get bounding rectangle of the path

with

$aBounds = _GDIPlus_PathGetWorldBounds($hPath,$hMatrix,$hPen) ;Get bounding rectangle of the path with pen size

but doesn't work

so, I tried to change other thins, but nothing... Sometimes works, but if I change the string often result change

This is my script:

#include <GUIConstantsEx.au3>
#include <GDIPlus.au3>
#include <array.au3>

Example()

Func Example()
    Local $iW, $iH, $hGUI, $hGraphic, $hBrush, $hPen, $hPath, $hFamily, $tLayout, $hMatrix, $aBounds

    ; Create GUI
    $iW = 650
    $iH = 300
    $hGUI = GUICreate("GDI+", $iW, $iH)
    GUISetState(@SW_SHOW)

    ; Draw a string using path
    _GDIPlus_Startup()
    $hGraphic = _GDIPlus_GraphicsCreateFromHWND($hGUI) ;Create a graphics object from a window handle
    _GDIPlus_GraphicsSetSmoothingMode($hGraphic, $GDIP_SMOOTHINGMODE_HIGHQUALITY) ;Sets the graphics object rendering quality (antialiasing)
;~  _GDIPlus_GraphicsClear($hGraphic, 0xFF000000)

    $MergedImageBackgroundColor = 0x00000000
    _GDIPlus_GraphicsClear($hGraphic, $MergedImageBackgroundColor)

    $hBrush = _GDIPlus_BrushCreateSolid(0xFFDD2200)
    $stroke_size = 15
    $hPen = _GDIPlus_PenCreate(0xFFFFBB00, $stroke_size)    ;stroke size in pixel
        $hPen2 = _GDIPlus_PenCreate(0xFFFFff00, 2)  ;stroke size in pixel
    _GDIPlus_PenSetLineJoin($hPen,$GDIP_PENSETLINEJOIN_ROUND)

    $hPath = _GDIPlus_PathCreate() ;Create new path object
;~  $fSize = 20
    $hFamily = _GDIPlus_FontFamilyCreate("Myriad Pro") ;Create font family object
    $tLayout = _GDIPlus_RectFCreate() ;Create string bounding rectangle X=0, Y=0

    Local $hFormat = _GDIPlus_StringFormatCreate()
    _GDIPlus_PathAddString($hPath, "autoitForeverLollipop", $tLayout, $hFamily);, 0, $fSize, $hFormat) ;Add the outline of the string to the path
;~     _GDIPlus_PathAddString($hPath, $sText, $tLayout, $hFamily, 0, $fSize, $hFormat)

    ; Tranform Path to fit to window
    $aBounds = _GDIPlus_PathGetWorldBounds($hPath) ;Get bounding rectangle of the path
    $aPoints = _GDIPlus_PathGetPoints($hPath)
    ConsoleWrite($aBounds[0] & @CRLF)
    ConsoleWrite($aBounds[1] & @CRLF)
    ConsoleWrite($aBounds[2] & @CRLF)
    ConsoleWrite($aBounds[3] & @CRLF)
    ConsoleWrite($aPoints[$aPoints[0][0]][0] & " - " & $aPoints[1][0] & " + 2*" & $stroke_size & " = " & $aPoints[$aPoints[0][0]][0]-$aPoints[1][0]+2*$stroke_size & @CRLF)
;~ $aBounds[0] = $aBounds[0]

    $aBoundsNp = _GDIPlus_PathGetWorldBounds($hPath,0,$hPen) ;Get bounding rectangle of the path with pen
    ConsoleWrite($aBoundsNp[0] & @CRLF)
    ConsoleWrite($aBoundsNp[1] & @CRLF)
    ConsoleWrite($aBoundsNp[2] & @CRLF)
    ConsoleWrite($aBoundsNp[3] & @CRLF)
    ConsoleWrite($iW & " / 2 = "  & $iW / 2 & @CRLF)
    ConsoleWrite("$ih / 2 = "  & $iH / 2 & @CRLF)
;~  ConsoleWrite($iW & " $aBounds[2] = "  & $iW / $aBounds[2] & @CRLF)
    ConsoleWrite($iW & " $aBoundsNp[2] = "  & $iW / $aBoundsNp[2] & @CRLF)
    ConsoleWrite($iH & " $aBoundsNp[3] = "  & $iH / $aBoundsNp[3] & @CRLF)
;~ _GDIPlus_GraphicsDrawPath($hGraphic, $hPath, $hPen) ;Draw path to graphics handle (GUI)
;~  _GDIPlus_GraphicsFillPath($hGraphic, $hPath, $hBrush) ;Fill path to graphics handle (GUI)
    $hMatrix = _GDIPlus_MatrixCreate()
    $iW = $iW - $stroke_size ;+ $stroke_size
    $iH = $iH - $stroke_size
    ConsoleWrite(" -$aBounds[0]+1*$stroke_size/72 = " &  -$aBounds[0]+1*$stroke_size/72 & @CRLF)
    ConsoleWrite(" -1.8+1*$stroke_size/72 = " &  -1.8+1*$stroke_size/72 & @CRLF)
    _GDIPlus_MatrixTranslate($hMatrix, -$aBounds[0]+2*$stroke_size/72, -$aBounds[1]+1*$stroke_size/72) ;Translate Matrix to the offset of the bounding rectangle
;~  _GDIPlus_MatrixTranslate($hMatrix, -1.59166666666667+0*($stroke_size/72), -$aBounds[1]+1*$stroke_size/72) ;Translate Matrix to the offset of the bounding rectangle
;~  _GDIPlus_MatrixScale($hMatrix, $iW / $aBounds[2], $iH / $aBounds[3], True) ;Scale Matrix
    _GDIPlus_MatrixScale($hMatrix, $iW / $aBounds[2], $iH / $aBounds[3], True) ;Scale Matrix
    _GDIPlus_PathTransform($hPath, $hMatrix) ;Translate and Scale Path

    $aBoundsNp = _GDIPlus_PathGetWorldBounds($hPath,0,$hPen) ;Get bounding rectangle of the path with pen
    ConsoleWrite($aBoundsNp[0] & @CRLF)
    ConsoleWrite($aBoundsNp[1] & @CRLF)
    ConsoleWrite($aBoundsNp[2] & @CRLF)
    ConsoleWrite($aBoundsNp[3] & @CRLF)

;~  _GDIPlus_GraphicsFillPath($hGraphic, $hPath, $hBrush) ;Fill path to graphics handle (GUI)
    _GDIPlus_GraphicsDrawPath($hGraphic, $hPath, $hPen) ;Draw path to graphics handle (GUI)
    _GDIPlus_GraphicsFillPath($hGraphic, $hPath, $hBrush) ;Fill path to graphics handle (GUI)

    ; Loop until the user exits.
    Do
    Until GUIGetMsg() = $GUI_EVENT_CLOSE

    ; Clean up resources
    _GDIPlus_MatrixDispose($hMatrix)
    _GDIPlus_FontFamilyDispose($hFamily)
    _GDIPlus_PathDispose($hPath)
    _GDIPlus_PenDispose($hPen)
    _GDIPlus_BrushDispose($hBrush)
    _GDIPlus_GraphicsDispose($hGraphic)
    _GDIPlus_Shutdown()
EndFunc   ;==>Example

if you change the line

_GDIPlus_PathAddString($hPath, "autoitForeverLollipop", $tLayout, $hFamily);, 0, $fSize, $hFormat) ;Add the outline of the string to the path

with a smaller string

_GDIPlus_PathAddString($hPath, "autoitFitted", $tLayout, $hFamily);, 0, $fSize, $hFormat) ;Add the outline of the string to the path

the result is ok

Can someone can help me?

Thankyou

Share this post


Link to post
Share on other sites
UEZ

After I installed the font "Myriad Pro" your script worked unchanged properly. The result is ok.


Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯  ٩(●̮̮̃•̃)۶ ٩(-̮̮̃-̃)۶ૐ

Share this post


Link to post
Share on other sites
marcoauto

Can you please change

_GDIPlus_PathAddString($hPath, "autoitFitted", $tLayout, $hFamily);, 0, $fSize, $hFormat) ;Add the outline of the string to the path

with

_GDIPlus_PathAddString($hPath, "123", $tLayout, $hFamily);, 0, $fSize, $hFormat) ;Add the outline of the string to the path

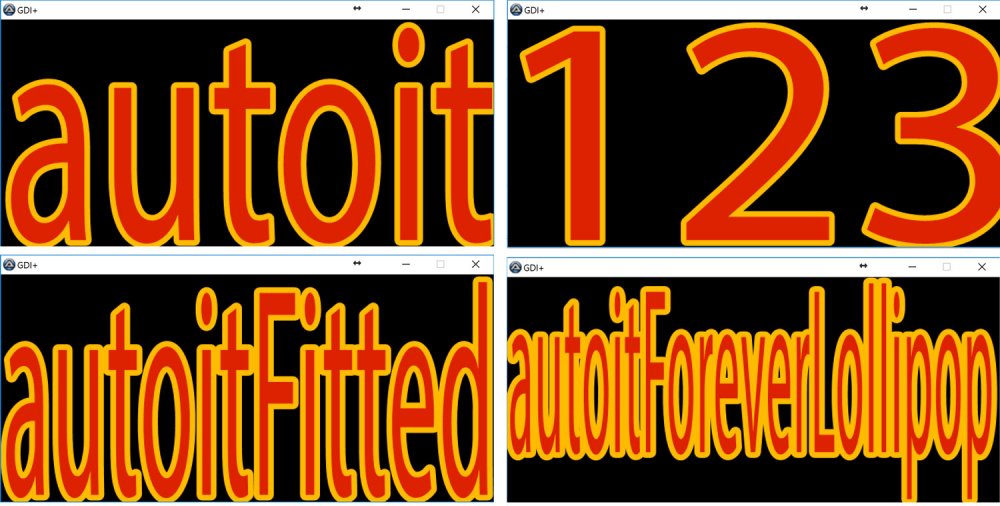

and tell me if the result is ok? Because for me is not ok. I've attached an image where you can see that the only correct result is where the string is "Autofitted". The other three string are wrong: "autoit" is cut to the right and a bit on the bottom, same thing for "123" and "autoitForeverLollipop" is cut on the left.

I think I'm wrong somewhere...

After hours of tests I tried to divide by 72 the $strokeSize of the pen. I've tried 72 because the screen is 72dpi but I don't know if is a good idea.

these problems there are with all fonts that I've tried (Arial, too)

thanks and sorry for my bad english

marco


Share this post


Link to post
Share on other sites
UEZ

Does this work for you?

#include <GDIPlus.au3>
#include <GUIConstantsEx.au3>

Example()

Func Example()
    Local $iW, $iH, $hGUI, $hGraphic, $hBrush, $hPen, $hPath, $hFamily, $tLayout, $hMatrix, $aBounds

    ; Create GUI
    $iW = 800
    $iH = 400
    $hGUI = GUICreate("GDI+", $iW, $iH)
    GUISetState(@SW_SHOW)

    ; Draw a string using path
    _GDIPlus_Startup()
    $hGraphic = _GDIPlus_GraphicsCreateFromHWND($hGUI) ;Create a graphics object from a window handle
    _GDIPlus_GraphicsSetSmoothingMode($hGraphic, $GDIP_SMOOTHINGMODE_HIGHQUALITY) ;Sets the graphics object rendering quality (antialiasing)
    _GDIPlus_GraphicsClear($hGraphic, 0xFF000000)

    $hBrush = _GDIPlus_BrushCreateSolid(0xFFDD2200)
    $iPenWidth = 8
    $hPen = _GDIPlus_PenCreate(0xFFFFBB00, $iPenWidth)

    $hPath = _GDIPlus_PathCreate() ;Create new path object

    $hFamily = _GDIPlus_FontFamilyCreate("Arial") ;Create font family object
    $tLayout = _GDIPlus_RectFCreate() ;Create string bounding rectangle X=0, Y=0
    _GDIPlus_PathAddString($hPath, "123", $tLayout, $hFamily) ;Add the outline of the string to the path

    ; Tranform Path to fit to window
    $aBounds = _GDIPlus_PathGetWorldBounds($hPath) ;Get bounding rectangle of the path

    $hMatrix = _GDIPlus_MatrixCreate()
    _GDIPlus_MatrixTranslate($hMatrix, -$aBounds[0], -$aBounds[1]) ;Translate Matrix to the offset of the bounding rectangle
    _GDIPlus_MatrixScale($hMatrix, ($iW - Ceiling(($iPenWidth + 1) / 2)) / $aBounds[2], ($iH - Ceiling(($iPenWidth + 1)/ 2)) / $aBounds[3], True) ;Scale Matrix
    _GDIPlus_PathTransform($hPath, $hMatrix) ;Translate and Scale Path

    _GDIPlus_GraphicsFillPath($hGraphic, $hPath, $hBrush) ;Fill path to graphics handle (GUI)
    _GDIPlus_GraphicsDrawPath($hGraphic, $hPath, $hPen) ;Draw path to graphics handle (GUI)

    ; Loop until the user exits.
    Do
    Until GUIGetMsg() = $GUI_EVENT_CLOSE

    ; Clean up resources
    _GDIPlus_MatrixDispose($hMatrix)
    _GDIPlus_FontFamilyDispose($hFamily)
    _GDIPlus_PathDispose($hPath)
    _GDIPlus_PenDispose($hPen)
    _GDIPlus_BrushDispose($hBrush)
    _GDIPlus_GraphicsDispose($hGraphic)
    _GDIPlus_Shutdown()
EndFunc   ;==>Example




Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯  ٩(●̮̮̃•̃)۶ ٩(-̮̮̃-̃)۶ૐ

Share this post


Link to post
Share on other sites
marcoauto

ciao Uez,

thanks for the reply, but unfortunately, the bug is still there.

If you write "Autoit" you will see the error

But I have found the solution. This works!!!!

Thankyou for the help!

#include <GDIPlus.au3>
#include <GUIConstantsEx.au3>

Example()

Func Example()
    Local $iW, $iH, $hGUI, $hGraphic, $hBrush, $hPen, $hPath, $hFamily, $tLayout, $hMatrix, $aBounds

    ; Create GUI
    $iW = 800
    $iH = 400
    $hGUI = GUICreate("GDI+", $iW, $iH)
    GUISetState(@SW_SHOW)

    ; Draw a string using path
    _GDIPlus_Startup()
    $hGraphic = _GDIPlus_GraphicsCreateFromHWND($hGUI) ;Create a graphics object from a window handle
    _GDIPlus_GraphicsSetSmoothingMode($hGraphic, $GDIP_SMOOTHINGMODE_HIGHQUALITY) ;Sets the graphics object rendering quality (antialiasing)
    _GDIPlus_GraphicsClear($hGraphic, 0xFF000000)

    $hBrush = _GDIPlus_BrushCreateSolid(0xFFDD2200)
    $iPenWidth = 16
    $hPen = _GDIPlus_PenCreate(0xFFFFBB00, $iPenWidth)
    _GDIPlus_PenSetLineJoin($hPen,$GDIP_PENSETLINEJOIN_ROUND)

    $hPath = _GDIPlus_PathCreate() ;Create new path object

    $hFamily = _GDIPlus_FontFamilyCreate("Arial") ;Create font family object
    $tLayout = _GDIPlus_RectFCreate() ;Create string bounding rectangle X=0, Y=0
    _GDIPlus_PathAddString($hPath, "Autoit", $tLayout, $hFamily) ;Add the outline of the string to the path

    ; Tranform Path to fit to window
    $aBounds = _GDIPlus_PathGetWorldBounds($hPath) ;Get bounding rectangle of the path
    $hMatrix = _GDIPlus_MatrixCreate()
    _GDIPlus_MatrixScale($hMatrix, ($iW - $iPenWidth) / ($aBounds[2]), ($iH - $iPenWidth) / $aBounds[3], False) ;Scale Matrix
    _GDIPlus_PathTransform($hPath, $hMatrix) ;Translate and Scale Path

    $aBounds = _GDIPlus_PathGetWorldBounds($hPath)
    _GDIPlus_MatrixSetElements($hMatrix, 1, 0, 0, 1, 0, 0) ;Reset Matrix
    _GDIPlus_MatrixTranslate($hMatrix, -$aBounds[0]+$iPenWidth/2, -$aBounds[1]+$iPenWidth/2)
    _GDIPlus_PathTransform($hPath, $hMatrix) ;Translate and Scale Path

    _GDIPlus_GraphicsDrawPath($hGraphic, $hPath, $hPen) ;Draw path to graphics handle (GUI)
    _GDIPlus_GraphicsFillPath($hGraphic, $hPath, $hBrush) ;Fill path to graphics handle (GUI)

    ; Loop until the user exits.
    Do
    Until GUIGetMsg() = $GUI_EVENT_CLOSE

    ; Clean up resources
    _GDIPlus_MatrixDispose($hMatrix)
    _GDIPlus_FontFamilyDispose($hFamily)
    _GDIPlus_PathDispose($hPath)
    _GDIPlus_PenDispose($hPen)
    _GDIPlus_BrushDispose($hBrush)
    _GDIPlus_GraphicsDispose($hGraphic)
    _GDIPlus_Shutdown()
EndFunc   ;==>Example



Share this post


Link to post
Share on other sites
UEZ

@marcoauto: well done! :thumbsup:

Even shorter:

...
    ; Tranform Path to fit to window
    $aBounds = _GDIPlus_PathGetWorldBounds($hPath) ;Get bounding rectangle of the path
    $hMatrix = _GDIPlus_MatrixCreate()
    _GDIPlus_MatrixTranslate($hMatrix, -$aBounds[0], -$aBounds[1]) ;Translate Matrix to the offset of the bounding rectangle
    _GDIPlus_MatrixScale($hMatrix, ($iW - $iPenWidth) / $aBounds[2], ($iH - $iPenWidth) / $aBounds[3], True) ;Scale Matrix
    _GDIPlus_PathTransform($hPath, $hMatrix) ;Translate and Scale Path
    _GDIPlus_MatrixSetElements($hMatrix, 1, 0, 0, 1, 0, 0)
    _GDIPlus_MatrixTranslate($hMatrix, $iPenWidth / 2, $iPenWidth / 2)
    _GDIPlus_PathTransform($hPath, $hMatrix)

    _GDIPlus_GraphicsFillPath($hGraphic, $hPath, $hBrush) ;Fill path to graphics handle (GUI)
    _GDIPlus_GraphicsDrawPath($hGraphic, $hPath, $hPen) ;Draw path to graphics handle (GUI)
...
  • Like 1

Please don't send me any personal message and ask for support! I will not reply!

Selection of finest graphical examples at Codepen.io

The own fart smells best!
Her 'sikim hıyar' diyene bir avuç tuz alıp koşma!
¯\_(ツ)_/¯  ٩(●̮̮̃•̃)۶ ٩(-̮̮̃-̃)۶ૐ

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Similar Content

    • vin1
      By vin1
      i need a script that can replace words in text with other words from a words list
      it has to have 2 edit boxes input/output and a button "run"
      from word_list.txt it choses which word to replace with. words are separated with commas for multiple choice







      ; AutoIt GUI Example ; Created: 17/01/2005 - CyberSlug ; Modifed: 05/12/2011 - guinness ; Modifed: 09/06/2014 - mLipok #Region INCLUDE #include <AVIConstants.au3> #include <GuiConstantsEx.au3> #include <TreeViewConstants.au3> #EndRegion INCLUDE #Region GUI GUICreate("Sample GUI", 400, 420) GUISetIcon(@SystemDir & "\mspaint.exe", 0) #EndRegion GUI #Region EDIT GUICtrlCreateEdit(@CRLF & " Sample Edit Control", 10, 10, 380, 175) GUICtrlSetTip(-1, '#Region EDIT') #EndRegion EDIT #Region EDIT2 GUICtrlCreateEdit(@CRLF & " Sample Edit Control", 10, 185, 380, 175) GUICtrlSetTip(-1, '#Region EDIT') #EndRegion EDIT2 #Region BUTTON GUICtrlCreateButton("Sample Button", 10, 360, 100, 30) GUICtrlSetTip(-1, '#Region BUTTON') #EndRegion BUTTON #Region GUI MESSAGE LOOP GUISetState(@SW_SHOW) While 1 Switch GUIGetMsg() Case $GUI_EVENT_CLOSE ExitLoop EndSwitch WEnd GUIDelete() #EndRegion GUI MESSAGE LOOP
    • Ambient
      By Ambient
      I have tried several way sto get this to work to no avail. Any help would be appreciated. #include <ListViewConstants.au3> #include <GuiListView.au3> #include "GuiListViewEx.au3" $idItem = GUICtrlCreateListViewItem($r & " | " & $c & $adoRs.Fields("TransactionAmount").value & " | " & $Timestamp & " | " & _StringProper($adoRs.Fields("Tillid").value) & @CRLF & @CRLF & "Card Number : " & $cardnum & " " , $idListView) ConsoleWrite( "IDITEM" & $idItem) If STRINGLEFT($adoRs.Fields("TransactionAmount").value,1)= "-" Then Consolewrite(" String is Negative" & @CRLF) ;Drops in Here as expected ;GUICtrlSetColor(-1, $COLOR_RED) ; Colour line if item is negative this didn' work $TxC= _GUICtrlListView_SetTextColor($hListView, $CLR_RED) ; I also tried $TxC= _GUICtrlListView_SetTextColor(-1, 0xFF0000) CONSOLEWRITE("TEXTCOLOUR RETURNED " & $TxC & @crlf) ; This is returning True ELSE Consolewrite(" String is NOT Negative" & @CRLF) EndIf
    • AndyS19
      By AndyS19
      I want to copy just the selected text in an input control and put it to the clipboard, but GuiCtrlRead() always reads all of the text in the control.
      In this test code, when I highlight a  portion of the left control's text and press ^C, I want to copy just that text to the clipboard; but when I highlight a  portion of the right control's text and press ^C, I want to copy all of its text to the clipboard.
      #include <Debug.au3> _DebugSetup(@ScriptName & "_debug.txt", False, 2, "") _DebugOut("=============== " & @MON & "/" & @MDAY & "/" & @YEAR & " " & @HOUR & ":" & @MIN & ":" & @SEC & " ====================") #include <GUIConstants.au3> #include <WinAPI.au3> #include <Array.au3> Opt("GUICloseOnESC", 1) ; ESC closes GUI? (0 = no, 1 = yes) Opt("GUIOnEventMode", 1) ; Set OnEvent mode Opt('MustDeclareVars', 1) OnAutoItExitRegister("Event_GUIClose") Opt("GUIEventOptions", 1) ;0=default, 1=just notification, 2=GuiCtrlRead tab index Opt("WinTitleMatchMode", -2) ;1=start, 2=subStr, 3=exact, 4=advanced, -1 to -4=Nocase Global $hWnd_MainWin, $iID_Left, $iID_Right _Main() Func _Main() $hWnd_MainWin = GUICreate("test7", 200, 300) $iID_Left = GUICtrlCreateInput("AAA BBB CCC (get Selected text)", 10, 30, 200, 25) GUICtrlSetOnEvent($iID_Left, "handle_left_btn") $iID_Right = GUICtrlCreateInput("DDD EEE FFF (get All text)", 10, 60, 200, 25) GUICtrlSetOnEvent($iID_Right, "handle_right_btn") Local $aAccelKeys[1][2] = [["^c", $hWnd_MainWin]] GUISetAccelerators($aAccelKeys) GUISetOnEvent($GUI_EVENT_CLOSE, 'Event_GUIClose') GUISetState() ; Make everything visible While 1 Sleep(127) WEnd EndFunc ;==>_Main Func handle_CTRL_C_key() ConsoleWrite("+++: handle_CTRL_C_key() entered" & @CRLF) Local $hCtrl, $ctrlID, $control_classname, $text $control_classname = ControlGetFocus($hWnd_MainWin) $hCtrl = ControlGetHandle($hWnd_MainWin, "", $control_classname) $ctrlID = _WinAPI_GetDlgCtrlID($hCtrl) If ($ctrlID = $iID_Left) Then $text = GUICtrlRead($ctrlID) ClipPut($text) ConsoleWrite("+++: Copied selected text:" & @CRLF & "==>" & $text & "<==" & @CRLF) ElseIf ($ctrlID = $iID_Right) Then $text = GUICtrlRead($ctrlID) ClipPut($text) ConsoleWrite("+++: Copied all text:" & @CRLF & "==>" & $text & "<==" & @CRLF) EndIf EndFunc ;==>handle_CTRL_C_key Func Event_GUIClose() Exit (99) EndFunc ;==>Event_GUIClose Func handle_left_btn() ConsoleWrite("+++: handle_left_btn() entered" & @CRLF) EndFunc ;==>handle_left_btn Func handle_right_btn() ConsoleWrite("+++: handle_right_btn() entered" & @CRLF) EndFunc ;==>handle_right_btn

    • jdegraff
      By jdegraff
      I'm trying to add a bit of functionality to the FastStone File Rename dialog. I can access every control that I need to except the one that contains the files to be renamed. If I do some exploring in a vbScript shell I get
      :c  = "TTntTreeView.UnicodeClass1"
      :?aut.ControlTreeView(win,"",c,"GetItemCount","","")
      5
      You can see that the treeview control reports having five items, which is the number displayed. If I manually select (mouse) item #3 I can see the result by
      :?aut.ControlTreeView(win,"",c,"GetSelected","1","")
      #3
      But I do not know how to get the text for the selected item. If "#3" is the item reference then I should be able to
      :?aut.ControlTreeView(win,"",c,"GetText","1","#3")
      or
      :?aut.ControlTreeView(win,"",c,"GetText","1","#3")
      if I go strictly by the help file, but it returns nothing.
      :?aut.ControlTreeView(win,"",c,"Exists","","3")
      1
      So it appears that item 3 exists, but
      :?aut.ControlTreeView(win,"",c,"GetText","","3")
      does not have any text???
      :?aut.ControlTreeView(win,"",c,"Exists","","9")
      1
      and it also appears item 9 exists (it does not)
      :?aut.ControlTreeView(win,"",c,"Select","","")
      1
      causes the first item to be selected, as does
      :?aut.ControlTreeView(win,"",c,"Select","","3")
      1
      Here is the output from the Window Info tool
      >>>> Window <<<<
      Title:  Batch Image Convert / Rename
      Class:  TBatchConvert
      Position:   501, 83
      Size:   760, 520
      Style:  0x16CD0000
      ExStyle:    0x00010100
      Handle: 0x0000000001950796
      >>>> Control <<<<
      Class:  TTntTreeView.UnicodeClass
      Instance:   1
      ClassnameNN:    TTntTreeView.UnicodeClass1
      Name:
      Advanced (Class):   [CLASS:TTntTreeView.UnicodeClass; INSTANCE:1]
      ID: 37030040
      Text:
      Position:   354, 79
      Size:   378, 188
      ControlClick Coords:    108, 86
      Style:  0x54010039
      ExStyle:    0x00000200
      Handle: 0x0000000002350898
      >>>> Mouse <<<<
      Position:   970, 279
      Cursor ID:  0
      Color:  0xE1E1E1
      >>>> StatusBar <<<<
      >>>> ToolsBar <<<<
      >>>> Visible Text <<<<
      Batch Rename
      ...
      D:\temp\picsave\
      Images + Videos (*.jpg;*.jpe;*.jpeg;*.bmp;*.gif;*.tif;*.tiff;*.cur;*.ico;*.png;*.pcx;*.jp2;*.j2k;*.tga;*.ppm;*.wmf;*.psd;*.crw;*.nef;*.cr2;*.orf;*.raf;*.dng;*.mrw;*.pef;*.srf;*.arw;*.rw2;*.x3f;*.sr2;*.srw;*.nrw;*.rwl;*.eps;*.avi;*.mpeg;*.mpg;*.wmv;*.mov;*.mp4;*.mts;*.mkv;*.m4v)
      Search and Replace
      Use Filename Template
      No Sort
      Clear
      Remove
      Add All
      Add
      Preview
      Close
      Rename
      No Change
      ?




    • Bilgus
      By Bilgus
      Draw Path Points allows you to make line paths for drawing with gdi
      You can even load an image and trace the outline
      Save and load functionality undo and redo zoom and scale; Don't Forget Rotate!
      ;Draw Path Points BILGUS 2018 ;Includes #include <File.au3> #include <GDIPlus.au3> #include <GUIConstants.au3> #include <GuiEdit.au3> #include <GuiListView.au3> #include <GuiTab.au3> #include <Misc.au3> If OnAutoItExitRegister("_Exit") <> 0 Then _GDIPlus_Startup() ;initialize GDI+ ConsoleWrite("GDI+ Started" & @CRLF) EndIf Opt("MouseCoordMode", 2) ;Relative coords to the client area of the active window Opt("PixelCoordMode", 2) ;Relative coords to the client area of the active window Global $g_iXScale = 8 Global $g_iYScale = $g_iXScale Global $g_sFileSave = @ScriptDir & "\DrawPath.txt" ;Default Global $g_bClosePath = False Global $g_bShowImage = False Global $g_sImagefile = "" Global $g_iUndo_Max = 50 Global $g_asUndo_Files[1] = [""] Global $g_asRedo_Files[1] = [""] Global $g_aPath_Points[1][2] = [[0, 0]] Global $g_aPath_Rot_Points Global $g_hForm1 = GUICreate("Draw Path Points", 615, 437, 192, 124) Global $g_hSelSquare = GUICtrlCreateLabel("", 0, 0, 0, 0, $SS_BLACKFRAME, $WS_EX_TOPMOST) GUICtrlSetState(-1, $GUI_HIDE) ;------------------------------------------------------------------------------- Global Enum $eC1_delete, $eC1_del_all, $eC1_update, $eC1_shift_dn, $eC1_shift_up, _ $eC1_closepath, $eC1_showimg, $eC1_lock, $eC1_undo, $eC1_redo, $aCtl1_LAST Global $g_ahCtl1[$aCtl1_LAST] Control_Create_Group1() ;------------------------------------------------------------------------------- Global Enum $eC2_zin, $eC2_zout, $eC2_dgroup, $eC2_decx, $eC2_incx, $eC2_decy, _ $eC2_incy, $eC2_edit_rot, $eC2_rot, $eC2_ud_rot, $eC2_rev, $eC2_toall, $aCtl2_LAST Global $g_ahCtl2[$aCtl2_LAST] Control_Create_Group2() ;------------------------------------------------------------------------------- Global $g_hBtn_load = GUICtrlCreateButton("Load", 5, 1, 35, 20) Global $g_hBtn_save = GUICtrlCreateButton("Save", 40, 1, 35, 20) Global $g_hBtn_arr_disp = GUICtrlCreateButton("Array", 75, 1, 35, 20) Global $g_hEdit_encoded = GUICtrlCreateEdit("", 115, 2, 50, 18, $ES_READONLY + $ES_AUTOHSCROLL, $WS_EX_STATICEDGE + $WS_EX_TRANSPARENT) Global $g_hList1 = GUICtrlCreateListView("#|x|y", 5, 24, 161, 201, $LVS_SHOWSELALWAYS Or $LVS_SINGLESEL) Global $g_hList1_LVN = GUICtrlCreateDummy() ;listview notifications Global $g_hImage1 = GUICtrlCreatePic("", 200, 16, 400, 400, -1, $WS_EX_LAYERED) Global $g_hTab1 = GUICtrlCreateTab(1, 225, 20, 500, $TCS_VERTICAL) GUICtrlCreateTabItem(" ") GUICtrlSetState(-1, $GUI_SHOW) ; will be display first GUICtrlCreateTabItem(" ") GUICtrlCreateTabItem("") ; end tabitem definition For $i = 0 To UBound($g_ahCtl2) - 1 GUICtrlSetState($g_ahCtl2[$i], $GUI_HIDE) Next GUIRegisterMsg($WM_NOTIFY, "WM_NOTIFY") List_Update() List_Index() GUISetState(@SW_SHOW) State_Save($g_aPath_Points) Points_Update($g_aPath_Points) Global $g_nMsg = 0 While 1 $g_nMsg = GUIGetMsg() If $g_nMsg > 0 And $g_nMsg <> $g_ahCtl2[$eC2_ud_rot] And $g_nMsg <> $g_ahCtl2[$eC2_edit_rot] And GUICtrlRead($g_ahCtl2[$eC2_edit_rot]) <> 0 Then ;ConsoleWrite("Cancel_Rotate? " & $g_nMsg & @CRLF) If MsgBox($MB_ICONQUESTION + $MB_OKCANCEL + $MB_DEFBUTTON2, "Save?", "Save Rotated Points?", 10) == $IDOK Then _GUICtrlEdit_SetText($g_ahCtl2[$eC2_edit_rot], "0") $g_aPath_Points = $g_aPath_Rot_Points State_Save($g_aPath_Points) List_Update(List_Index()) Else _GUICtrlEdit_SetText($g_ahCtl2[$eC2_edit_rot], "0") Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage, List_Index()) ;, True) EndIf EndIf Switch $g_nMsg Case $GUI_EVENT_CLOSE Exit Case $g_hTab1 Tab1_Select() Case $g_hSelSquare ;ConsoleWrite("SelSquare" & @CRLF) SelSquare_Drag() Case $g_hList1 ;ConsoleWrite("List1 " & $g_nMsg & @CRLF) Local $iIndex = List_Index() If $iIndex <> -1 Then Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage, $iIndex) _GUICtrlListView_SetItemSelected($g_hList1, $iIndex, True, True) EndIf Case $g_hList1_LVN Point_Selected($g_aPath_Points, $g_hImage1, List_Index()) Case $g_hList1_LVN Case $g_hImage1 Image1_Clicked() Case $g_hBtn_save Btn_save_Clicked() Case $g_hBtn_load Btn_load_Clicked() Case $g_hBtn_arr_disp _ArrayDisplay($g_aPath_Points) ;------------------------------------------------------------------- Case $g_ahCtl1[$eC1_shift_up] $iIndex = List_Index() Point_Swap($iIndex, -1) Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage) Case $g_ahCtl1[$eC1_shift_dn] $iIndex = List_Index() Point_Swap($iIndex, 1) Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage) Case $g_ahCtl1[$eC1_del_all] $g_aPath_Points = 0 Global $g_aPath_Points[1][2] = [[0, 0]] List_Update() Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage) Case $g_ahCtl1[$eC1_delete] $iIndex = List_Index() Point_Delete($iIndex) _GUICtrlListView_ClickItem($g_hList1, $iIndex) Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage) Case $g_ahCtl1[$eC1_redo] $g_aPath_Points = State_Restore($g_aPath_Points, False) List_Update() Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage) Case $g_ahCtl1[$eC1_undo] $g_aPath_Points = State_Restore($g_aPath_Points, True) List_Update() Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage) Case $g_ahCtl1[$eC1_update] List_Update(List_Index()) Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage) Ascii_Points($g_aPath_Points) _GUICtrlEdit_SetSel($g_hEdit_encoded, 0, -1) Case $g_ahCtl1[$eC1_closepath] $g_bClosePath = Control_IsChecked($g_ahCtl1[$eC1_closepath]) List_Update(List_Index()) Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage) If $g_bClosePath Then GUICtrlSetState($g_ahCtl2[$eC2_rev], $GUI_DISABLE) Else GUICtrlSetState($g_ahCtl2[$eC2_rev], $GUI_ENABLE) EndIf Case $g_ahCtl1[$eC1_showimg] If Not $g_bShowImage Then $g_sImagefile = FileOpenDialog("Select an image", SplitDir($g_sImagefile), "All Files(*.*)", 0, SplitFileName($g_sImagefile), $g_hForm1) EndIf $g_bShowImage = Control_IsChecked($g_ahCtl1[$eC1_showimg]) List_Update(List_Index()) Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage) ;------------------------------------------------------------------- Case $g_ahCtl2[$eC2_zin] If Control_IsChecked($g_ahCtl2[$eC2_toall]) Then Points_Scale(1, 1) Else $g_iXScale += 1 $g_iYScale += 1 Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage) EndIf _GUICtrlListView_ClickItem($g_hList1, List_Index()) Case $g_ahCtl2[$eC2_zout] If Control_IsChecked($g_ahCtl2[$eC2_toall]) Then Points_Scale(-1, -1) Else $g_iXScale -= 1 $g_iYScale -= 1 Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage) EndIf _GUICtrlListView_ClickItem($g_hList1, List_Index()) Case $g_ahCtl2[$eC2_rev] $iIndex = List_Index() $g_aPath_Points = Points_Reverse($g_aPath_Points) Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage, $iIndex) ;, True) List_Update($iIndex) Case $g_ahCtl2[$eC2_edit_rot] ;ConsoleWrite("Rotate" & @CRLF) $iIndex = List_Index() Local $iDegrees = GUICtrlRead($g_ahCtl2[$eC2_edit_rot]) $g_aPath_Rot_Points = Points_Rotate($g_aPath_Points, $iDegrees) Points_Update($g_aPath_Rot_Points, $g_bClosePath, $g_bShowImage, $iIndex) ;, True) Case $g_ahCtl2[$eC2_incx] Point_Adjust(1, 0, Control_IsChecked($g_ahCtl2[$eC2_toall])) Case $g_ahCtl2[$eC2_decx] Point_Adjust(-1, 0, Control_IsChecked($g_ahCtl2[$eC2_toall])) Case $g_ahCtl2[$eC2_incy] Point_Adjust(0, 1, Control_IsChecked($g_ahCtl2[$eC2_toall])) Case $g_ahCtl2[$eC2_decy] Point_Adjust(0, -1, Control_IsChecked($g_ahCtl2[$eC2_toall])) EndSwitch WEnd ;---------------------------------------------------------------------------------------------------- Func _Exit() _GDIPlus_Shutdown() ConsoleWrite("GDI+ Stopped" & @CRLF) State_Destroy() EndFunc ;==>_Exit Func Ascii_Points($aPts) ;encodes points into an ascii string Local Const $iChrOffset = 33 Local Const $iMaxOffset = 126 - $iChrOffset If Not IsArray($aPts) Then Return Local $sAscEnc = StringFormat("%03i%05i", $iChrOffset, UBound($aPts) * 2 + 8) If _ArrayMin($aPts) >= 0 And (_ArrayMax($aPts) - _ArrayMin($aPts)) <= $iMaxOffset Then For $i = 0 To UBound($aPts) - 1 $sAscEnc = $sAscEnc & Chr($aPts[$i][0] + $iChrOffset) & Chr($aPts[$i][1] + $iChrOffset) Next EndIf _GUICtrlEdit_SetText($g_hEdit_encoded, $sAscEnc) EndFunc ;==>Ascii_Points Func Btn_load_Clicked() ConsoleWrite("Load: " & SplitDir($g_sFileSave) & @CRLF) $g_sFileSave = FileOpenDialog("Select a save file", SplitDir($g_sFileSave), "All Files(*.*)", 0, SplitFileName($g_sFileSave), $g_hForm1) _FileReadToArray($g_sFileSave, $g_aPath_Points, 0, ",") If @error Then Dim $g_aPath_Points[1][2] = [[0, 0]] Else State_Destroy() State_Save($g_aPath_Points) EndIf List_Update() Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage) EndFunc ;==>Btn_load_Clicked Func Btn_save_Clicked() List_Update(List_Index()) $g_sFileSave = FileOpenDialog("Select a save file", SplitDir($g_sFileSave), "All Files(*.*)", 0, SplitFileName($g_sFileSave), $g_hForm1) _FileWriteFromArray($g_sFileSave, $g_aPath_Points, 0, Default, ",") EndFunc ;==>Btn_save_Clicked Func Control_Create_Group1() Local $iX = 30 Local $iY = 225 $g_ahCtl1[$eC1_delete] = GUICtrlCreateButton("Delete", $iX + 0, $iY + 0, 50, 20) $g_ahCtl1[$eC1_shift_dn] = GUICtrlCreateButton("+", $iX + 70, $iY + 0, 20, 20) $g_ahCtl1[$eC1_shift_up] = GUICtrlCreateButton("-", $iX + 95, $iY + 0, 20, 20) $g_ahCtl1[$eC1_del_all] = GUICtrlCreateButton("Delete All", $iX + 0, $iY + 25, 50, 20) $g_ahCtl1[$eC1_update] = GUICtrlCreateButton("Update", $iX + 70, $iY + 25, 50, 20) $g_ahCtl1[$eC1_undo] = GUICtrlCreateButton("Undo", $iX + 0, $iY + 50, 50, 20) $g_ahCtl1[$eC1_redo] = GUICtrlCreateButton("Redo", $iX + 70, $iY + 50, 50, 20) GUICtrlSetState($g_ahCtl1[$eC1_undo], $GUI_DISABLE) GUICtrlSetState($g_ahCtl1[$eC1_redo], $GUI_DISABLE) $g_ahCtl1[$eC1_closepath] = GUICtrlCreateCheckbox("Complete", $iX + 0, $iY + 70, 65, 25) $g_ahCtl1[$eC1_showimg] = GUICtrlCreateCheckbox("Image", $iX + 0, $iY + 90, 65, 25) $g_ahCtl1[$eC1_lock] = GUICtrlCreateCheckbox("Locked", $iX + 0, $iY + 110, 65, 25) EndFunc ;==>Control_Create_Group1 Func Control_Create_Group2() Local $iX = 30 Local $iY = 225 $g_ahCtl2[$eC2_rev] = GUICtrlCreateButton("Reverse", $iX + 0, $iY + 0, 50, 20) $g_ahCtl2[$eC2_edit_rot] = GUICtrlCreateInput("0", $iX + 0, $iY + 25, 40, 20) $g_ahCtl2[$eC2_ud_rot] = GUICtrlCreateUpdown(-1) GUICtrlSetLimit($eC2_ud_rot, 360, -360) $g_ahCtl2[$eC2_rot] = GUICtrlCreateButton("", $iX + 40, $iY + 25, 10, 20) $g_ahCtl2[$eC2_dgroup] = GUICtrlCreateGroup("Coords", 5 + $iX + 70, $iY + 0, 55, 70) $g_ahCtl2[$eC2_decy] = GUICtrlCreateButton("-", 24 + $iX + 70, 16 + $iY + 0, 17, 17) $g_ahCtl2[$eC2_incy] = GUICtrlCreateButton("+", 24 + $iX + 70, 48 + $iY + 0, 17, 17) $g_ahCtl2[$eC2_decx] = GUICtrlCreateButton("-", 8 + $iX + 70, 32 + $iY + 0, 17, 17) $g_ahCtl2[$eC2_incx] = GUICtrlCreateButton("+", 40 + $iX + 70, 32 + $iY + 0, 17, 17) GUICtrlCreateGroup("", -99, -99, 1, 1) $g_ahCtl2[$eC2_zout] = GUICtrlCreateButton("Zoom -", $iX + 0, $iY + 75, 50, 20) $g_ahCtl2[$eC2_zin] = GUICtrlCreateButton("Zoom +", $iX + 75, $iY + 75, 50, 20) $g_ahCtl2[$eC2_toall] = GUICtrlCreateCheckbox("Apply to all", $iX + 0, $iY + 100, 80, 25) EndFunc ;==>Control_Create_Group2 Func Control_IsChecked($IdCtrl) Return (BitAND(GUICtrlRead($IdCtrl), $GUI_CHECKED) = $GUI_CHECKED) EndFunc ;==>Control_IsChecked Func GDI_Draw_ArrayPoints(ByRef $aPts, $hImage, $g_bClosePath, $iX, $iY, $sFileName, $iSelected = -1) Local $hWnd = GUICtrlGetHandle($hImage) If UBound($aPts) > 1 Then Local $aPoints = GDI_Points($aPts, $iX, $iY) Else Local $aPoints[1][2] = [[0, 0]] EndIf Local $hGraphics = _GDIPlus_GraphicsCreateFromHWND($hWnd) ;create a graphics object from a window handle _GDIPlus_GraphicsClear($hGraphics, 0xFFFFFFFF) If FileExists($sFileName) Then Local $hBitmap = _GDIPlus_BitmapCreateFromFile($sFileName) Local Const $iWidth = ScaleX(_GDIPlus_ImageGetWidth($hBitmap)) Local Const $iHeight = ScaleY(_GDIPlus_ImageGetHeight($hBitmap)) Local $hBitmap_Scaled = _GDIPlus_ImageResize($hBitmap, $iWidth, $iHeight) ;resize image _GDIPlus_BitmapDispose($hBitmap) ;Done with initial bitmap _GDIPlus_GraphicsDrawImage($hGraphics, $hBitmap_Scaled, 0, 0) _GDIPlus_BitmapDispose($hBitmap_Scaled) EndIf Local $hPen = _GDIPlus_PenCreate(0xFFFF0000, ScaleX(1)) Local $hEndCap = _GDIPlus_ArrowCapCreate(1, 1) _GDIPlus_PenSetCustomEndCap($hPen, $hEndCap) If $g_bClosePath Then _GDIPlus_GraphicsDrawPolygon($hGraphics, $aPoints, $hPen) Local $iX0, $iY0, $iX1, $iY1 For $i = 1 To $aPoints[0][0] If Not $g_bClosePath And $i < $aPoints[0][0] Then $iX0 = $aPoints[$i][0] $iY0 = $aPoints[$i][1] $iX1 = $aPoints[$i + 1][0] $iY1 = $aPoints[$i + 1][1] _GDIPlus_GraphicsDrawLine($hGraphics, $iX0, $iY0, $iX1, $iY1, $hPen) EndIf Next _GDIPlus_ArrowCapDispose($hEndCap) _GDIPlus_PenDispose($hPen) _GDIPlus_GraphicsDispose($hGraphics) Point_Selected($aPts, $hImage, $iSelected) EndFunc ;==>GDI_Draw_ArrayPoints Func GDI_Line_hPath_From_Points($aPts, $iXorig, $iYorig) ;Returns hpath object be sure to delete it when finished Local $hPath = _GDIPlus_PathCreate() ;Create new path object Local $aPoints = GDI_Points($aPts, $iXorig, $iYorig) Local $iX0, $iY0, $iX1, $iY1 If IsArray($aPoints) Then For $i = 1 To $aPoints[0][0] - 1 $iX0 = $aPoints[$i][0] $iY0 = $aPoints[$i][1] $iX1 = $aPoints[$i + 1][0] $iY1 = $aPoints[$i + 1][1] _GDIPlus_PathAddLine($hPath, $iX0, $iY0, $iX1, $iY1) Next EndIf Return $hPath ;_GDIPlus_PathDispose($hPath) EndFunc ;==>GDI_Line_hPath_From_Points Func GDI_Points($aPts, $iXo, $iYO) Local $aGDIPts If IsArray($aPts) And UBound($aPts) > 1 Then Local $aGDIPts[UBound($aPts) + 1][2] $aGDIPts[0][0] = UBound($aPts) For $i = 1 To $aGDIPts[0][0] ;Build points list $aGDIPts[$i][0] = ScaleX($aPts[$i - 1][0]) + $iXo $aGDIPts[$i][1] = ScaleY($aPts[$i - 1][1]) + $iYO Next Else Local $aGDIPts[1][2] = [[0, 0]] EndIf Return $aGDIPts EndFunc ;==>GDI_Points Func Image1_Clicked() If Not Control_IsChecked($g_ahCtl1[$eC1_lock]) Then Local $aCPos = ControlGetPos(GUICtrlGetHandle($g_hImage1), "", 0) Local $aPos = MouseGetPos() If IsArray($aPos) And IsArray($aCPos) Then Local $iXn = Int(($aPos[0] - $aCPos[0] + ScaleX(1) / 2) / ScaleX(1)) Local $iYn = Int(($aPos[1] - $aCPos[1] + ScaleY(1) / 2) / ScaleY(1)) Point_Add(List_Index(), $iXn, $iYn) EndIf Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage) Else ToolTip("Locked") Sleep(500) ToolTip("") EndIf EndFunc ;==>Image1_Clicked Func List_Index() Static Local $hWndList1 = GUICtrlGetHandle($g_hList1) Local $iIndex = _GUICtrlListView_GetSelectionMark($hWndList1) If _GUICtrlListView_GetItemSelected($g_hList1, $iIndex) Then Return $iIndex Return -1 EndFunc ;==>List_Index Func List_Update($iIndex = -1) Static $hWnd_List1 = GUICtrlGetHandle($g_hList1) _GUICtrlListView_BeginUpdate($g_hList1) _GUICtrlListView_DeleteAllItems($hWnd_List1) For $i = 0 To UBound($g_aPath_Points) - 1 GUICtrlCreateListViewItem($i & "|" & $g_aPath_Points[$i][0] & "|" & $g_aPath_Points[$i][1], $g_hList1) Next If $iIndex > -1 Then _GUICtrlListView_ClickItem($g_hList1, $iIndex) _GUICtrlListView_EnsureVisible($g_hList1, $iIndex) EndIf _GUICtrlListView_EndUpdate($g_hList1) EndFunc ;==>List_Update Func Point_Add($iIndex, $iX, $iY) If $iIndex <> -1 Then _ArrayInsert($g_aPath_Points, $iIndex, $iX & "|" & $iY, 0) _GUICtrlListView_InsertItem($g_hList1, $iIndex, $iIndex) _GUICtrlListView_SetItemText($g_hList1, $iIndex, $iX, 1) _GUICtrlListView_SetItemText($g_hList1, $iIndex, $iY, 2) _GUICtrlListView_EnsureVisible($g_hList1, $iIndex) Else _ArrayAdd($g_aPath_Points, $iX & "|" & $iY, 0) GUICtrlCreateListViewItem(UBound($g_aPath_Points) - 1 & "|" & $iX & "|" & $iY, $g_hList1) _GUICtrlListView_EnsureVisible($g_hList1, UBound($g_aPath_Points) - 1) EndIf State_Save($g_aPath_Points) EndFunc ;==>Point_Add Func Point_Adjust($iX, $iY, $bToAll) If Not $bToAll Then Local $iIndex = List_Index() If $iIndex == -1 And IsArray($g_aPath_Points) Then $iIndex = UBound($g_aPath_Points) - 1 If $iIndex == -1 Then Return $g_aPath_Points[$iIndex][0] += $iX $g_aPath_Points[$iIndex][1] += $iY _GUICtrlListView_SetItemText($g_hList1, $iIndex, $g_aPath_Points[$iIndex][0], 1) _GUICtrlListView_SetItemText($g_hList1, $iIndex, $g_aPath_Points[$iIndex][1], 2) If $iIndex <> UBound($g_aPath_Points) - 1 Then _GUICtrlListView_ClickItem($g_hList1, $iIndex) Else For $i = 0 To UBound($g_aPath_Points) - 1 $g_aPath_Points[$i][0] += $iX $g_aPath_Points[$i][1] += $iY Next List_Update(List_Index()) EndIf State_Save($g_aPath_Points) Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage) EndFunc ;==>Point_Adjust Func Point_Delete($iIndex) If $iIndex <> -1 Then _ArrayDelete($g_aPath_Points, $iIndex) _GUICtrlListView_DeleteItem($g_hList1, $iIndex) State_Save($g_aPath_Points) ;List_Update($iIndex) EndIf EndFunc ;==>Point_Delete Func Point_Modify($iIndex, $iX, $iY) If $iIndex <> -1 Then $g_aPath_Points[$iIndex][0] = $iX $g_aPath_Points[$iIndex][1] = $iY _GUICtrlListView_SetItemText($g_hList1, $iIndex, $iX, 1) _GUICtrlListView_SetItemText($g_hList1, $iIndex, $iY, 2) _GUICtrlListView_EnsureVisible($g_hList1, $iIndex) State_Save($g_aPath_Points) EndIf EndFunc ;==>Point_Modify Func Point_Selected($aPts, $hImage, $iIndex) If $iIndex > -1 Then GUICtrlSetState($g_hSelSquare, $GUI_HIDE) Local $hWnd = GUICtrlGetHandle($hImage) Local $aPos = ControlGetPos($hWnd, "", 0) If IsArray($aPos) And IsArray($aPts) Then _WinAPI_RedrawWindow($hWnd, Default, Default, $RDW_ERASENOW) Local $iXs = ScaleX($aPts[$iIndex][0]) + $aPos[0] - ScaleX(1) / 2 Local $iYs = ScaleY($aPts[$iIndex][1]) + $aPos[1] - ScaleY(1) / 2 WinMove(GUICtrlGetHandle($g_hSelSquare), "", $iXs, $iYs, ScaleX(1), ScaleY(1)) GUICtrlSetState($g_hSelSquare, $GUI_SHOW) ;ConsoleWrite("Point_Selected" & @CRLF) Else ConsoleWriteError("Error: Point_Selected" & @CRLF) EndIf EndIf EndFunc ;==>Point_Selected Func Point_Swap($iIndex1, $iNext) _GUICtrlListView_BeginUpdate($g_hList1) Local $iIndex2 = 0 Local $aTmp = 0 If $iIndex1 <> -1 Then $iIndex2 = $iIndex1 + $iNext If $iIndex2 > UBound($g_aPath_Points) - 1 Then $iIndex2 = 0 ElseIf $iIndex2 < 0 Then $iIndex2 = UBound($g_aPath_Points) - 1 EndIf _ArraySwap($g_aPath_Points, $iIndex1, $iIndex2) Local $iX1 = _GUICtrlListView_GetItemText($g_hList1, $iIndex1, 2) Local $iY1 = _GUICtrlListView_GetItemText($g_hList1, $iIndex1, 2) Local $iX2 = _GUICtrlListView_GetItemText($g_hList1, $iIndex2, 2) Local $iY2 = _GUICtrlListView_GetItemText($g_hList1, $iIndex2, 2) _GUICtrlListView_SetItemText($g_hList1, $iIndex1, $iX2, 1) _GUICtrlListView_SetItemText($g_hList1, $iIndex1, $iY2, 2) _GUICtrlListView_SetItemText($g_hList1, $iIndex2, $iX1, 1) _GUICtrlListView_SetItemText($g_hList1, $iIndex2, $iY1, 2) _GUICtrlListView_ClickItem($g_hList1, $iIndex2) _GUICtrlListView_EnsureVisible($g_hList1, $iIndex2) Else ;ConsoleWrite("Array Shift" & @CRLF) If $iNext > 0 Then ;ARRAY SHIFT -- Melba23 Local $iUBound = UBound($g_aPath_Points) ; Get size of array $aTmp = _ArrayExtract($g_aPath_Points, 0, $iUBound - 2) ; Extract all but last _ArrayInsert($aTmp, 0, _ArrayExtract($g_aPath_Points, $iUBound - 1, Default)) ; Insert last at top $g_aPath_Points = $aTmp Else $aTmp = _ArrayExtract($g_aPath_Points, 1, Default) ; Extract all but top row _ArrayAdd($aTmp, _ArrayExtract($g_aPath_Points, 0, 0)) ; Add top row at bottom $g_aPath_Points = $aTmp EndIf List_Update(List_Index()) Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage) EndIf State_Save($g_aPath_Points) _GUICtrlListView_EndUpdate($g_hList1) EndFunc ;==>Point_Swap Func Points_Reverse($aPts) Local $hPath = GDI_Line_hPath_From_Points($aPts, 0, 0) ;_GDIPlus_PathFlatten($hPath) _GDIPlus_PathReverse($hPath) Local $aPoints = _GDIPlus_PathGetPoints($hPath) _GDIPlus_PathDispose($hPath) If IsArray($aPoints) Then ;ConsoleWrite("Flipped_Points" & @CRLF) Global $aPts_Rev[$aPoints[0][0]][2] For $i = 1 To $aPoints[0][0] $aPts_Rev[$i - 1][0] = Int($aPoints[$i][0] / ScaleX(1)) $aPts_Rev[$i - 1][1] = Int($aPoints[$i][1] / ScaleY(1)) Next Return $aPts_Rev Else Return $aPts EndIf EndFunc ;==>Points_Reverse Func Points_Rotate($aPts, $iDegrees) Local $hPath = GDI_Line_hPath_From_Points($aPts, 0, 0) ;_GDIPlus_PathFlatten($hPath) Local $hPen = _GDIPlus_PenCreate(0x0, ScaleX(1)) Local $aBounds = _GDIPlus_PathGetWorldBounds($hPath, 0, $hPen) _GDIPlus_PenDispose($hPen) If IsArray($aBounds) Then Local $hMatrix = _GDIPlus_MatrixCreate() _GDIPlus_MatrixTranslate($hMatrix, $aBounds[0] + $aBounds[2] / 2, $aBounds[1] + $aBounds[3] / 2) _GDIPlus_MatrixRotate($hMatrix, $iDegrees) _GDIPlus_MatrixTranslate($hMatrix, -($aBounds[0] + $aBounds[2] / 2), -($aBounds[1] + $aBounds[3] / 2)) _GDIPlus_PathTransform($hPath, $hMatrix) _GDIPlus_MatrixDispose($hMatrix) EndIf Local $aPoints = _GDIPlus_PathGetPoints($hPath) _GDIPlus_PathDispose($hPath) If IsArray($aPoints) Then ;ConsoleWrite("Rotate_Points" & @CRLF) Dim $aPts_Rev[$aPoints[0][0]][2] For $i = 1 To $aPoints[0][0] $aPts_Rev[$i - 1][0] = Int($aPoints[$i][0] / ScaleX(1)) $aPts_Rev[$i - 1][1] = Int($aPoints[$i][1] / ScaleY(1)) Next Return $aPts_Rev Else Return $aPts EndIf EndFunc ;==>Points_Rotate Func Points_Scale($iScaleX, $iScaleY) For $i = 0 To UBound($g_aPath_Points) - 1 If $iScaleX > 0 Then $g_aPath_Points[$i][0] *= 2 Else $g_aPath_Points[$i][0] /= 2 EndIf If $iScaleY > 0 Then $g_aPath_Points[$i][1] *= 2 Else $g_aPath_Points[$i][1] /= 2 EndIf Next State_Save($g_aPath_Points) List_Update(List_Index()) Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage) EndFunc ;==>Points_Scale Func Points_Update($aPts, $g_bClosePath = False, $b_Show_Image = True, $iSelected = -1) Local $_Image_File = $g_sImagefile If Not $b_Show_Image Then $_Image_File = "" GDI_Draw_ArrayPoints($aPts, $g_hImage1, $g_bClosePath, 0, 0, $_Image_File, $iSelected) EndFunc ;==>Points_Update Func ScaleX($iX) Local $iXs = $g_iXScale If $iXs == 0 Then $iXs = -1 If $iXs > 0 Then $iX = $iX * $iXs Else $iX = $iX / Abs($iXs) EndIf Return $iX EndFunc ;==>ScaleX Func ScaleY($iY) Local $iYs = $g_iYScale If $iYs == 0 Then $iYs = -1 If $iYs > 0 Then $iY = $iY * $iYs Else $iY = $iY / Abs($iYs) EndIf Return $iY EndFunc ;==>ScaleY Func SelSquare_Drag() Local $iIndex = List_Index() If $iIndex <> -1 Then Local $cInfo = GUIGetCursorInfo($g_hForm1) Local $aPosSelOrig = ControlGetPos($g_hForm1, "", $g_hSelSquare) If IsArray($aPosSelOrig) Then Local $iSubtractX = $cInfo[0] - $aPosSelOrig[0] Local $iSubtractY = $cInfo[1] - $aPosSelOrig[1] EndIf If IsArray($cInfo) Then Do $cInfo = GUIGetCursorInfo($g_hForm1) ControlMove($g_hForm1, "", $g_hSelSquare, $cInfo[0] - $iSubtractX, $cInfo[1] - $iSubtractY) Until Not $cInfo[2] EndIf Local $aPosSelNew = ControlGetPos($g_hForm1, "", $g_hSelSquare) If IsArray($aPosSelNew) And IsArray($aPosSelOrig) Then Local $iXm = $g_aPath_Points[$iIndex][0] + Int(($aPosSelNew[0] - $aPosSelOrig[0]) / ScaleX(1)) Local $iYm = $g_aPath_Points[$iIndex][1] + Int(($aPosSelNew[1] - $aPosSelOrig[1]) / ScaleY(1)) Point_Modify($iIndex, $iXm, $iYm) Points_Update($g_aPath_Points, $g_bClosePath, $g_bShowImage, $iIndex) EndIf EndIf EndFunc ;==>SelSquare_Drag Func SplitDir($FullPath) Local $sDrive, $sDir, $sDummy _PathSplit($FullPath, $sDrive, $sDir, $sDummy, $sDummy) Return $sDrive & $sDir EndFunc ;==>SplitDir Func SplitFileName($FullPath) Local $sDummy, $sFileName, $sExt _PathSplit($FullPath, $sDummy, $sDummy, $sFileName, $sExt) Return $sFileName & "" & $sExt EndFunc ;==>SplitFileName Func State_Cleanup(ByRef $a1) If (UBound($a1) > $g_iUndo_Max + 2) Then Local $a1Rem = _ArrayExtract($a1, 1, Default) $a1Rem[0] = $a1[0] Local $sTmp = $a1[1] If $sTmp <> "" And FileExists($sTmp) Then FileDelete($sTmp) ;ConsoleWrite("Cleanup Delete (UnD) " & $sTmp & @CRLF) EndIf $a1 = $a1Rem EndIf EndFunc ;==>State_Cleanup Func State_Destroy($bRedo_Only = False) Local $sTmp While (UBound($g_asRedo_Files) > 1) $sTmp = _ArrayPop($g_asRedo_Files) If $sTmp <> "" And FileExists($sTmp) Then FileDelete($sTmp) ;ConsoleWrite(", Delete (ReD) " & $sTmp) If @error Then ConsoleWriteError("Failed to Delete " & $sTmp) EndIf WEnd GUICtrlSetState($g_ahCtl1[$eC1_redo], $GUI_DISABLE) If $bRedo_Only Then Return While (UBound($g_asUndo_Files) > 1) $sTmp = _ArrayPop($g_asUndo_Files) If $sTmp <> "" And FileExists($sTmp) Then FileDelete($sTmp) ;ConsoleWrite(", Delete (UnD)" & $sTmp) If @error Then ConsoleWriteError("Failed to Delete " & $sTmp) EndIf WEnd GUICtrlSetState($g_ahCtl1[$eC1_undo], $GUI_DISABLE) EndFunc ;==>State_Destroy Func State_Is_Diff(ByRef $a1, ByRef $a2) Local $bIsDiff = True If UBound($a1) = UBound($a2) Then $bIsDiff = False For $i = UBound($a1) - 1 To 0 Step -1 If $a1[$i][0] == $a2[$i][0] And $a1[$i][1] == $a2[$i][1] Then ContinueLoop Else ;ConsoleWrite("Diff " & $i & @CRLF) $bIsDiff = True ExitLoop EndIf Next Else ;ConsoleWrite("Diff " & @CRLF) EndIf Return $bIsDiff EndFunc ;==>State_Is_Diff Func State_Restore(ByRef $aPts, $bUndo) Local $sTmp = "" Local $aRes If $bUndo Then $sTmp = _ArrayPop($g_asUndo_Files) ;ConsoleWrite(", Restore (UnD)" & $sTmp) If $sTmp <> "" And FileExists($sTmp) Then _ArrayAdd($g_asRedo_Files, $sTmp) _FileReadToArray($sTmp, $aRes, 0, ",") If UBound($g_asUndo_Files) < 2 Then GUICtrlSetState($g_ahCtl1[$eC1_undo], $GUI_DISABLE) If UBound($g_asRedo_Files) > 2 Then GUICtrlSetState($g_ahCtl1[$eC1_redo], $GUI_ENABLE) If UBound($g_asUndo_Files) > 1 And Not State_Is_Diff($aPts, $aRes) Then Return State_Restore($aPts, $bUndo) If Not @error Then Return $aRes Else ConsoleWriteError("Failed to Restore " & $sTmp) EndIf Else $sTmp = _ArrayPop($g_asRedo_Files) ;ConsoleWrite(", Restore (ReD) " & $sTmp) If $sTmp <> "" And FileExists($sTmp) Then _ArrayAdd($g_asUndo_Files, $sTmp) _FileReadToArray($sTmp, $aRes, 0, ",") If UBound($g_asRedo_Files) < 2 Then GUICtrlSetState($g_ahCtl1[$eC1_redo], $GUI_DISABLE) If UBound($g_asUndo_Files) > 2 Then GUICtrlSetState($g_ahCtl1[$eC1_undo], $GUI_ENABLE) If UBound($g_asRedo_Files) > 1 And Not State_Is_Diff($aPts, $aRes) Then Return State_Restore($aPts, $bUndo) If Not @error Then Return $aRes Else ConsoleWriteError("Failed to Restore " & $sTmp) EndIf EndIf Return $aPts EndFunc ;==>State_Restore Func State_Save($aPts) If $g_iUndo_Max < 1 Then Return Local $sTmp = _TempFile(@TempDir, "DPP_") If UBound($g_asRedo_Files) > 2 Then _ArrayAdd($g_asUndo_Files, _ArrayPop($g_asRedo_Files)) _ArrayAdd($g_asUndo_Files, $sTmp) _FileWriteFromArray($sTmp, $aPts, 0, Default, ",") If UBound($g_asRedo_Files) > 2 Then State_Destroy(True) State_Cleanup($g_asUndo_Files) ;ConsoleWrite("Save State " & UBound($g_asUndo_Files) & " " & $sTmp & @CRLF) If UBound($g_asUndo_Files) > 2 Then GUICtrlSetState($g_ahCtl1[$eC1_undo], $GUI_ENABLE) If @error Then MsgBox(0, @ScriptName & " Error", "Unable to create undo file " & $sTmp) GUICtrlSetState($g_ahCtl1[$eC1_undo], $GUI_DISABLE) GUICtrlSetState($g_ahCtl1[$eC1_redo], $GUI_DISABLE) $g_iUndo_Max = 0 EndIf EndFunc ;==>State_Save Func Tab1_Select() Local $iStateCtl1, $iStateCtl2 Local $tabindex = GUICtrlRead($g_hTab1) ;ConsoleWrite("tab" & $tabindex + 1 & "_selected" & @CRLF) Select Case $tabindex = 0 $iStateCtl1 = $GUI_SHOW $iStateCtl2 = $GUI_HIDE Case $tabindex = 1 $iStateCtl1 = $GUI_HIDE $iStateCtl2 = $GUI_SHOW Case Else _GUICtrlTab_ActivateTab($g_hTab1, 0) Return EndSelect For $i = 0 To UBound($g_ahCtl1) - 1 GUICtrlSetState($g_ahCtl1[$i], $iStateCtl1) Next For $i = 0 To UBound($g_ahCtl2) - 1 GUICtrlSetState($g_ahCtl2[$i], $iStateCtl2) Next EndFunc ;==>Tab1_Select Func WM_NOTIFY($hWnd, $iMsg, $wParam, $lParam) Static Local $hWndList1 = GUICtrlGetHandle($g_hList1) If Not IsHWnd($hWndList1) Then $hWndList1 = GUICtrlGetHandle($g_hList1) If @error Then Return $GUI_RUNDEFMSG If $wParam = $g_hList1 Then Local $tNMHDR = DllStructCreate($tagNMHDR, $lParam) Switch DllStructGetData($tNMHDR, "Code") Case $LVN_KEYDOWN, $NM_CLICK GUICtrlSendToDummy($g_hList1_LVN, $lParam) EndSwitch EndIf Return $GUI_RUNDEFMSG EndFunc ;==>WM_NOTIFY


      DrawPathPoints.au3
×

Important Information

We have placed cookies on your device to help make this website better. You can adjust your cookie settings, otherwise we'll assume you're okay to continue.
