rootx

GDI responsive GUI Help [SOLVED]

9 posts in this topic

#1 ·  Posted (edited)

how can I fit the image when the GUI is maximized? I would like to always measure the 50% height and width of the GUI and is always in the bottom right poistion, and does not lose its quality.

THX



#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <WindowsConstants.au3>
#include <GDIPlus.au3>
#include <Array.au3>
#include <WinAPI.au3>

#Region ### START Koda GUI section ### Form=
$Form1 = GUICreate("Form1", 615, 437, 192, 124,BitOR($GUI_SS_DEFAULT_GUI,$WS_MAXIMIZEBOX,$WS_TABSTOP))

_GDIPlus_Startup()
        $hImage = _GDIPlus_ImageLoadFromFile(@ScriptDir&"\img.jpg")
        $hGraphics = _GDIPlus_GraphicsCreateFromHWND($Form1)
        $resimg = _GDIPlus_ImageResize($hImage,200,300)
        _GDIPlus_GraphicsDrawImage($hGraphics, $resimg, 0, 0)

GUIRegisterMsg($WM_PAINT, "MY_WM_PAINT")
;GUIRegisterMsg($WM_SIZE, "WM_SIZE")
GUISetState(@SW_SHOW,$Form1)


#EndRegion ### END Koda GUI section ###

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit

    EndSwitch
WEnd

Func MY_WM_PAINT($hWnd, $iMsg, $wParam, $lParam)
    #forceref $hWnd, $iMsg, $wParam, $lParam
    _WinAPI_RedrawWindow($Form1, 0, 0, $RDW_UPDATENOW)
    _GDIPlus_GraphicsDrawImage($hGraphics, $resimg, 300, 0)
    _WinAPI_RedrawWindow($Form1, 0, 0, $RDW_VALIDATE)
    Return $GUI_RUNDEFMSG
EndFunc   ;==>MY_WM_PAINT

;Func WM_SIZE($hWnd, $iMsg, $iwParam, $ilParam)
;    #forceref $hWnd, $iMsg, $iwParam, $ilParam
;    Local $xClient, $yClient
;    $xClient = BitAND($ilParam, 0x0000FFFF)
;    $yClient = BitShift($ilParam, 16)
;   _WinAPI_RedrawWindow($Form1, 0, 0, $RDW_UPDATENOW)
;   _GDIPlus_GraphicsDrawImage($hGraphics, $resimg, $xClient/2, $yClient/2)
;   _WinAPI_RedrawWindow($Form1, 0, 0, $RDW_VALIDATE)
;   ConsoleWrite($xClient & "   "&$yClient&@CR)
;    Return $GUI_RUNDEFMSG
;EndFunc



Edited by rootx

Share this post


Link to post
Share on other sites



#2 ·  Posted

Not sure I understand. Do you want the image to be drawn to fit the GUI window or do you want the image to be drawn starting at the exact midpoint of the GUI (width and height)? Making it be drawn in the bottom right corner of the GUI.

1 person likes this

Share this post


Link to post
Share on other sites

#3 ·  Posted

Here's how you would do it if you want the image to fit the width and height of the window

#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <WindowsConstants.au3>
#include <GDIPlus.au3>
#include <Array.au3>
#include <WinAPI.au3>

Global Const $SIZE_RESTORED = 0
Global Const $SIZE_MAXIMIZED = 2

#Region ### START Koda GUI section ### Form=
$Form1 = GUICreate("Form1", 615, 437, 192, 124, BitOR($GUI_SS_DEFAULT_GUI, $WS_MAXIMIZEBOX, $WS_TABSTOP, $WS_SIZEBOX))

_GDIPlus_Startup()
$hImage = _GDIPlus_ImageLoadFromFile(@ScriptDir & "\img.jpg")
$hGraphics = _GDIPlus_GraphicsCreateFromHWND($Form1)
Global $resimg = _GDIPlus_ImageResize($hImage, 615, 437)
_GDIPlus_GraphicsDrawImage($hGraphics, $resimg, 0, 0)

GUIRegisterMsg($WM_PAINT, MY_WM_PAINT)
GUIRegisterMsg($WM_SIZE, WM_SIZE)

GUISetState(@SW_SHOW, $Form1)


#EndRegion ### END Koda GUI section ###

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit
    EndSwitch
WEnd

Func MY_WM_PAINT($hWnd, $iMsg, $wParam, $lParam)
    #forceref $hWnd, $iMsg, $wParam, $lParam
    _GDIPlus_GraphicsDrawImage($hGraphics, $resimg, 0, 0)
    _WinAPI_RedrawWindow($Form1, 0, 0, $RDW_VALIDATE)
    Return $GUI_RUNDEFMSG
EndFunc   ;==>MY_WM_PAINT

Func WM_SIZE($hWndFrom, $iMsg, $wParam, $lParam)
    Local $iLoWord = _WinAPI_LoWord($lParam) ; Width
    Local $iHiWord = _WinAPI_HiWord($lParam) ; Height

    Switch ($hWndFrom)
        Case $Form1
            Switch ($wParam)
                Case $SIZE_RESTORED, $SIZE_MAXIMIZED
                    ; The old graphic is based off the size of the old size, destroy it
                    _GDIPlus_GraphicsDispose($hGraphics)
                    ; And recreate it with the size of the new size
                    $hGraphics = _GDIPlus_GraphicsCreateFromHWND($Form1)
                    ; resize the image to the new width/height
                    $resimg = _GDIPlus_ImageResize($hImage, $iLoWord, $iHiWord)
                    ; Implicitly calls MY_WM_PAINT after this, based on the order of window messages received from Windows
            EndSwitch
    EndSwitch

    Return $GUI_RUNDEFMSG
EndFunc   ;==>WM_SIZE

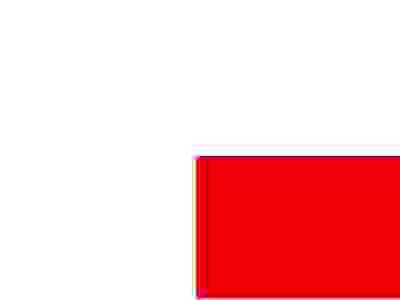

And here's how you could draw it in the bottom right quadrant of the GUI

#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <WindowsConstants.au3>
#include <GDIPlus.au3>
#include <Array.au3>
#include <WinAPI.au3>

Global Const $SIZE_RESTORED = 0
Global Const $SIZE_MAXIMIZED = 2

Global $iWidth = 615
Global $iHeight = 437

#Region ### START Koda GUI section ### Form=
$Form1 = GUICreate("Form1", $iWidth, $iHeight, 192, 124, BitOR($GUI_SS_DEFAULT_GUI, $WS_MAXIMIZEBOX, $WS_TABSTOP, $WS_SIZEBOX))

_GDIPlus_Startup()
$hImage = _GDIPlus_ImageLoadFromFile(@ScriptDir & "\img.jpg")
$hGraphics = _GDIPlus_GraphicsCreateFromHWND($Form1)
Global $resimg = _GDIPlus_ImageResize($hImage, $iWidth / 2, $iHeight / 2)
_GDIPlus_GraphicsDrawImage($hGraphics, $resimg, 0, 0)

GUIRegisterMsg($WM_PAINT, MY_WM_PAINT)
GUIRegisterMsg($WM_SIZE, WM_SIZE)

GUISetState(@SW_SHOW, $Form1)


#EndRegion ### END Koda GUI section ###

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit
    EndSwitch
WEnd

Func MY_WM_PAINT($hWnd, $iMsg, $wParam, $lParam)
    #forceref $hWnd, $iMsg, $wParam, $lParam
    _GDIPlus_GraphicsDrawImage($hGraphics, $resimg, $iWidth / 2, $iHeight / 2)
    _WinAPI_RedrawWindow($Form1, 0, 0, $RDW_VALIDATE)
    Return $GUI_RUNDEFMSG
EndFunc   ;==>MY_WM_PAINT

Func WM_SIZE($hWndFrom, $iMsg, $wParam, $lParam)
    Local $iLoWord = _WinAPI_LoWord($lParam) ; Width
    Local $iHiWord = _WinAPI_HiWord($lParam) ; Height

    Switch ($hWndFrom)
        Case $Form1
            Switch ($wParam)
                Case $SIZE_RESTORED, $SIZE_MAXIMIZED
                    $iWidth = $iLoWord
                    $iHeight = $iHiWord
                    ; The old graphic is based off the size of the old size, destroy it
                    _GDIPlus_GraphicsDispose($hGraphics)
                    ; And recreate it with the size of the new size
                    $hGraphics = _GDIPlus_GraphicsCreateFromHWND($Form1)
                    ; resize the image to the new width/height
                    $resimg = _GDIPlus_ImageResize($hImage, $iLoWord / 2, $iHiWord / 2)
                    ; Implicitly calls MY_WM_PAINT after this, based on the order of window messages received from Windows
            EndSwitch
    EndSwitch

    Return $GUI_RUNDEFMSG
EndFunc   ;==>WM_SIZE



1 person likes this

Share this post


Link to post
Share on other sites

#4 ·  Posted

Thx, me cupla I try to explain you.

usually I use GUICtrlSetResizing to have a responsive gui... but with the object PIC the image does not maintain a good quality. Now I'm trying with GDI.


Share this post


Link to post
Share on other sites

#5 ·  Posted

THX THX THX.

Share this post


Link to post
Share on other sites

#6 ·  Posted (edited)

Wait, don't leave yet. Gimme a few minutes and I'll create one better that will be a little less graphics intensive and get rid of that flashing. (Been a while since I've done some GDI+ stuff so I gotta remember how I did this lol)

Edited by InunoTaishou

Share this post


Link to post
Share on other sites

#7 ·  Posted (edited)

This should do it. Won't redraw and refresh while it's being sized but it will be updated after you release the size box and will be updated upon Maximize/restore. Gets rid of the flashing

#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <WindowsConstants.au3>
#include <GDIPlus.au3>
#include <Array.au3>
#include <WinAPI.au3>

_GDIPlus_Startup()

#Region ### START Koda GUI section ### Form=
$Form1 = GUICreate("Form1", 615, 437, 192, 124, BitOR($GUI_SS_DEFAULT_GUI, $WS_MAXIMIZEBOX, $WS_TABSTOP, $WS_SIZEBOX))
Global $picImage = GUICtrlCreatePic("", 615 / 2, 437 / 2, 615 / 2, 437 / 2)
GUICtrlSetResizing($picImage, $GUI_DOCKRIGHT + $GUI_DOCKBOTTOM)

Global $hImage = _GDIPlus_ImageLoadFromFile(@ScriptDir & "\img.jpg")
Global $hBitmap = _GDIPlus_BitmapCreateFromScan0(@DesktopWidth, @DesktopHeight)
Global $hGraphics = _GDIPlus_ImageGetGraphicsContext($hBitmap)

Resize()

GUISetState(@SW_SHOW, $Form1)

#EndRegion ### END Koda GUI section ###

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            _GDIPlus_GraphicsDispose($hGraphics)
            _GDIPlus_BitmapDispose($hBitmap)
            _GDIPlus_ImageDispose($hImage)
            Exit
        Case $GUI_EVENT_RESIZED, $GUI_EVENT_MAXIMIZE, $GUI_EVENT_RESTORE
            Resize()
    EndSwitch
WEnd

Func Resize()
    Local $aSize = ControlGetPos($Form1, "", $picImage)
    _GDIPlus_GraphicsClear($hGraphics, 0x00000000)
    _GDIPlus_GraphicsDrawImageRect($hGraphics, $hImage, 0, 0, $aSize[2], $aSize[3])
    Local $hHBitmap = _GDIPlus_BitmapCreateHBITMAPFromBitmap($hBitmap)
    _WinAPI_DeleteObject(GUICtrlSendMsg($picImage, $STM_SETIMAGE, $IMAGE_BITMAP, $hHBitmap))
EndFunc

Been a long time since I've draw graphics in memory, not directly on the HWND, and then set an image from memory. So I had to remember the order of the bitmaps/graphics lol

Idk what your project entails but maybe you might want a complex GDI+ intensive project to look at to see how you can manage objects. I started this a long time ago, before I left for basic, and never finished it. It was going to be a puzzle style game. I finished the menu portion of it but never finished the puzzle part of it. I used a lot of structs to hold all of my GDI+ objects, windows, etc. As well as using array of string with the function calls to manage the structs (Why have 20 lines to destroy my GDI+ objects when I could have 1 for loop going through and calling the function needed for the struct specified). It's pretty cool though. Creating a context menu (right click) on the GUI and the options displayed are specific to the image you're over (or no image if you're not over one).

http://www.mediafire.com/file/2t37tatmogjg33y/PuzzleIt.7z

Edited by InunoTaishou
1 person likes this

Share this post


Link to post
Share on other sites

#8 ·  Posted

this is really what I wanted to do, thanks. :ILA2:

Share this post


Link to post
Share on other sites

#9 ·  Posted

No problemo. I've only ever shown that to one other person but I'm sure anyone who finds it might find it useful.

One cool thing I'd like to point out (it's not in the script because I never made it an option) is it will support just Vertical scrolling and just Horizontal scrolling. If you go down to line 306

SetWorkspaceStruct($tWorkspaceMenu, $tControlMenu, BitOR($SCROLL_VSCROLL, $SCROLL_HSCROLL), 3, 1.0, False)

At the moment the menu will scroll left/right and up/down (Ctrl + Mouse wheel will go left/right). If you change this line to this

SetWorkspaceStruct($tWorkspaceMenu, $tControlMenu, $SCROLL_HSCROLL, 3, 1.0, False)

It will make all of the picture fit vertically and only scroll left/right. The opposite is the same for

SetWorkspaceStruct($tWorkspaceMenu, $tControlMenu, $SCROLL_VSCROLL, 3, 1.0, False)

So it will fit all of the images horizontally and then scroll up/down

Alt + Mouse wheel will zoom in/out. Resizing the menu and making all of the pieces bigger/smaller (Just takes a minute because it's going to resize all of the large images to fit the menu again). There's a lot to go through. I know I didn't comment a lot of things. I planned on finishing it and releasing it but real life got in the way and never had the time go dig through it again.

Share this post
