KickStarter15

Shorten the code

24 posts in this topic

#1 ·  Posted

Hi Experts,

I have this code that I need to shorten it.

If GUICtrlRead($Error1) = $GUI_CHECKED Then
         GUICtrlSetState($Edit1, $GUI_Enable)
        Else
         GUICtrlSetState($Edit1, $GUI_Disable)
       EndIf
      Case $Error2
       If GUICtrlRead($Error2) = $GUI_CHECKED Then
         GUICtrlSetState($Edit2, $GUI_Enable)
        Else
         GUICtrlSetState($Edit2, $GUI_Disable)
      EndIf
      Case $Error3
       If GUICtrlRead($Error3) = $GUI_CHECKED Then
         GUICtrlSetState($Edit3, $GUI_Enable)
        Else
         GUICtrlSetState($Edit3, $GUI_Disable)
      EndIf
      Case $Error4
       If GUICtrlRead($Error4) = $GUI_CHECKED Then
         GUICtrlSetState($Edit4, $GUI_Enable)
        Else
         GUICtrlSetState($Edit4, $GUI_Disable)
      EndIf
      Case $Error5
       If GUICtrlRead($Error5) = $GUI_CHECKED Then
         GUICtrlSetState($Edit5, $GUI_Enable)
        Else
         GUICtrlSetState($Edit5, $GUI_Disable)
      EndIf
      Case $Error6
       If GUICtrlRead($Error6) = $GUI_CHECKED Then
         GUICtrlSetState($Edit6, $GUI_Enable)
        Else
         GUICtrlSetState($Edit6, $GUI_Disable)
      EndIf
      Case $Error7
       If GUICtrlRead($Error7) = $GUI_CHECKED Then
         GUICtrlSetState($Edit7, $GUI_Enable)
        Else
         GUICtrlSetState($Edit7, $GUI_Disable)
      EndIf
      Case $Error8
       If GUICtrlRead($Error8) = $GUI_CHECKED Then
         GUICtrlSetState($Edit8, $GUI_Enable)
        Else
         GUICtrlSetState($Edit8, $GUI_Disable)
      EndIf
      Case $Error9
       If GUICtrlRead($Error9) = $GUI_CHECKED Then
         GUICtrlSetState($Edit9, $GUI_Enable)
        Else
         GUICtrlSetState($Edit9, $GUI_Disable)
      EndIf
      Case $Error10
       If GUICtrlRead($Error10) = $GUI_CHECKED Then
         GUICtrlSetState($Edit10, $GUI_Enable)
        Else
         GUICtrlSetState($Edit10, $GUI_Disable)
      EndIf

$Error is a checkbox that when ticked $EditBox will disable and enable as shown above. I need to shorten this code for easy tracking and if I need to add more checkbox.

This is just simple but could not compile one. Funny...:sweating:



Thanks in advance Experts,

KS15

Share this post


Link to post
Share on other sites



#2 ·  Posted

Here is a basic example:

a. Create ComboBox.txt with the following text:
Text is CSV with the following parameters

  1. Varx = CheckBox Variable id
  2. Label x = CheckBox Label
  3. x Position
  4. y Position
  5. width
  6. height
  7. Editx = InputBox Variable associated with CheckBox

Var1,Label 1,5,5,100,20,Edit1
Var2,Label 2,5,25,100,20,Edit2
Var3,Label 3,5,45,100,20,Edit3
Var4,Label 4,5,65,100,20,Edit4
Var5,Label 5,5,85,100,20,Edit5

You can then use something like the following for automatically toggling $GUI_Disable/$GU_Enable

#Include <Array.au3>
#include <File.au3>
#include <GUIConstantsEx.au3>

Global $aCheckBox[0], $aInputBox[0]

_Example()

Func _Example()
    Local $aFileRead, $aStringSplit
    Local $idCancel
    GUICreate('', 210, 140)
    _FileReadToArray('CheckBox.txt', $aFileRead)
    ReDim $aCheckBox[$aFileRead[0]]
    ReDim $aInputBox[$aFileRead[0]]
    For $i = 1 To $aFileRead[0]
        $aStringSplit = StringSplit($aFileRead[$i], ',', 2)
        If UBound($aStringSplit) -1  = 6 Then
            Assign($aStringSplit[0], GUICtrlCreateCheckbox($aStringSplit[1], Number($aStringSplit[2]), Number($aStringSplit[3]), Number($aStringSplit[4]), Number($aStringSplit[5])), 2)
            Assign($aStringSplit[6], GUICtrlCreateInput('', Number($aStringSplit[2]) + Number($aStringSplit[4]), Number($aStringSplit[3]), Number($aStringSplit[4]), Number($aStringSplit[5])), 2)
            $aCheckBox[$i - 1] = $aStringSplit[0]
            $aInputBox[$i - 1] = $aStringSplit[6]
        EndIf
    Next
    $idCancel = GUICtrlCreateButton('Cancel', 5, 110, 95, 25)
    GUISetState()
    AdlibRegister("CheckBox")
    While 1
        Switch GUIGetMsg()
            Case $GUI_EVENT_CLOSE, $idCancel
                ExitLoop
        EndSwitch
    WEnd
EndFunc

Func CheckBox()
    For $i = 0 To UBound($aCheckBox) - 1
        If GUICtrlRead(Eval($aCheckBox[$i])) = $GUI_CHECKED Then
            GUICtrlSetState(Eval($aInputBox[$i]), 64)
        Else
            ConsoleWrite("Checkbox" & $aCheckBox[$i] & @CRLF & "InputBox" & $aInputBox[$i] & @CRLF)
            GUICtrlSetState(Eval($aInputBox[$i]), 128)
        EndIf
    Next
EndFunc



1 person likes this

Share this post


Link to post
Share on other sites

#3 ·  Posted (edited)

Another example.

#include <GUIConstantsEx.au3>
#include <MsgBoxConstants.au3>
#include <WindowsConstants.au3>
#include <EditConstants.au3>

_Checkbox_EditCtrl()

Func _Checkbox_EditCtrl()
    Local $hGUI = GUICreate("Example", 400, 410)
    Local $Number = 20, $iRows = 10, $iSpacing = 5
    Local $Error[$Number] ; Array holding Checkbox controls ids
    Local $Edit[$Number] ; Array holding Edit controls ids

    ; Create checkbox controls.
    For $i = 0 To $Number - 1 ; id's are sequentially numbered starting at $Error[0]
        $Error[$i] = GUICtrlCreateCheckbox("ChkBx" & $i + 1, $iSpacing + (Int($i / $iRows) * 190), ((40 * Mod($i, $iRows)) + $iSpacing), 80, 20) ;
    Next
    ; Create Edit controls.
    For $i = 0 To $Number - 1 ;  id's are sequentially numbered starting at $Edit[0]
        $Edit[$i] = GUICtrlCreateEdit("Edit" & $i + 1, $iSpacing + 80 + (Int($i / $iRows) * 190), ((40 * Mod($i, $iRows)) + $iSpacing), 95, 40, BitOR($ES_WANTRETURN, $WS_VSCROLL, $WS_HSCROLL, $ES_AUTOVSCROLL), BitOR($WS_EX_CLIENTEDGE, $WS_EX_ACCEPTFILES)) ;
        GUICtrlSetState($Edit[$i], $GUI_Disable)
    Next
    GUISetState(@SW_SHOW, $hGUI)

    While 1
        $msg = GUIGetMsg()
        Switch $msg
            Case $GUI_EVENT_CLOSE ;, $idClose
                ExitLoop
            Case $Error[0] To $Error[($Number - 1)]
                $iIndex = $msg - $Error[0] ; Array Index
                GUICtrlSetState($Edit[$iIndex], (BitAND(GUICtrlRead($Error[$iIndex]), $GUI_CHECKED) = $GUI_CHECKED ? BitOR($GUI_Enable, $GUI_FOCUS) : $GUI_Disable))
        EndSwitch
    WEnd
    GUIDelete($hGUI)
EndFunc   ;==>_Checkbox_EditCtrl



Edited by Malkey
Commented out un-needed $idClose variable. Making CheckBox 6 exit script.
2 people like this

Share this post


Link to post
Share on other sites

#4 ·  Posted

@Subz

He was looking for something more comptact :D

@KickStarter15

Look at the code below, and ask if you don't understand something.

#include <MsgBoxConstants.au3>
#include <Array.au3>

; These are your checkboxes, declared as Local or Global ( for use them in functions )

Local $checkbox_First, $checkbox_Second, $checkbox_Third

; These are your edits

Local $edit_First, $edit_Second, $edit_Third

Local $aCheckboxes[] = [$checkbox_First, $checkbox_Second, $checkbox_Third] ; You can work with more checkboxes as you want...

Local $aEdits[] = [$edit_First, $edit_Second, $edit_Third] ; Same as above

; The user checks checkboxes in the GUI
;
; 0 = NOT CHECKED
; 1 = CHECKED

$aCheckboxes[0] = 1
$aCheckboxes[1] = 0
$aCheckboxes[2] = 1

For $i = 0 To UBound($aCheckboxes) - 1
    If($aCheckboxes[$i] == 1) Then ; $GUI_CHECKED
        ConsoleWrite("The checkbox " & $aCheckboxes[$i] & " is checked." & @CRLF)
        $aEdits[$i] = 1
    Else
        ConsoleWrite("The checkbox " & $aCheckboxes[$i] & " is not checked." & @CRLF)
        $aEdits[$i] = 0
    EndIf
Next

; Show edits status

_ArrayDisplay($aEdits, "Edits Status")




Click here to see my signature:

Spoiler

I will always thank you for the time you spent for me.
I'm here to ask, and from your response, I'd like to learn.
By my knowledge, I can help someone else, and "that someone" could help in turn another, and so on.

Share this post


Link to post
Share on other sites

#5 ·  Posted

@FrancescoDiMuro Technically all the answers are the same, i.e. hold the control handles in an Array then query them in a loop, Malkey and i have just include the creation of the Gui, I used AdlibRegister function to detect the changes and Malkey used black magic :)

Share this post


Link to post
Share on other sites

#6 ·  Posted

Hi Experts,

It's more complex than I though:lol:, I never though that simple code can cause beast combinations. Thank you so much guys for sharing, I'll check all of these given sample ideas and see what comes up. I'll let you know the result.



KS15

Share this post


Link to post
Share on other sites

#7 ·  Posted (edited)

If you don't want to create an array of controls you can also try this, but it isn't as short as the other solutions in here.



Execute(GUICtrlRead($Error1) = $GUI_CHECKED ? GUICtrlSetState($Edit1, $GUI_Enable) :  GUICtrlSetState($Edit1, $GUI_Disable))
Execute(GUICtrlRead($Error2) = $GUI_CHECKED ? GUICtrlSetState($Edit2, $GUI_Enable) :  GUICtrlSetState($Edit2, $GUI_Disable))
Execute(GUICtrlRead($Error3) = $GUI_CHECKED ? GUICtrlSetState($Edit3, $GUI_Enable) :  GUICtrlSetState($Edit3, $GUI_Disable))
Execute(GUICtrlRead($Error4) = $GUI_CHECKED ? GUICtrlSetState($Edit4, $GUI_Enable) :  GUICtrlSetState($Edit4, $GUI_Disable))
Execute(GUICtrlRead($Error5) = $GUI_CHECKED ? GUICtrlSetState($Edit5, $GUI_Enable) :  GUICtrlSetState($Edit5, $GUI_Disable))
Execute(GUICtrlRead($Error6) = $GUI_CHECKED ? GUICtrlSetState($Edit6, $GUI_Enable) :  GUICtrlSetState($Edit6, $GUI_Disable))
Execute(GUICtrlRead($Error7) = $GUI_CHECKED ? GUICtrlSetState($Edit7, $GUI_Enable) :  GUICtrlSetState($Edit7, $GUI_Disable))
Execute(GUICtrlRead($Error8) = $GUI_CHECKED ? GUICtrlSetState($Edit8, $GUI_Enable) :  GUICtrlSetState($Edit8, $GUI_Disable))
Execute(GUICtrlRead($Error9) = $GUI_CHECKED ? GUICtrlSetState($Edit9, $GUI_Enable) :  GUICtrlSetState($Edit9, $GUI_Disable))
Execute(GUICtrlRead($Error10) = $GUI_CHECKED ? GUICtrlSetState($Edit10, $GUI_Enable) :  GUICtrlSetState($Edit10, $GUI_Disable))



Edited by Floops

Share this post


Link to post
Share on other sites

#8 ·  Posted

Here it is Experts,

@Subz, Amazing combinations you've got there and it's more efficient to use if I'll be using CheckBox.txt as source database:), With it I can easily add how many checkboxes and edited boxes i need. One question, in the below code, do I have to declare "Number($aStringSplit[6])" or just leave it as is. It's confusing me if that affects, however when tested, all are well without adding "Number($aStringSplit[6])" after the 5th.

Assign($aStringSplit[0], GUICtrlCreateCheckbox($aStringSplit[1], Number($aStringSplit[2]), Number($aStringSplit[3]), Number($aStringSplit[4]), Number($aStringSplit[5])), 2)



@Malkey, Simplicity is the best policy indeed as what the below code emphasis.

Local $Number = 20, $iRows = 10, $iSpacing = 5

However, when ticking ChxBx6, GUI closed. Considering that it was already declared as value in range from the above code. Why is that so?:sweating:

For $i = 0 To $Number - 1 ; id's are sequentially numbered starting at $Error[0]
  $Error[$i] = GUICtrlCreateCheckbox("ChkBx" & $i + 1, $iSpacing + (Int($i / $iRows) * 190), ((40 * Mod($i, $iRows)) + $iSpacing), 80, 20) ;
Next
    ; Create Edit controls.
For $i = 0 To $Number - 1 ;  id's are sequentially numbered starting at $Edit[0]
  $Edit[$i] = GUICtrlCreateEdit("Edit" & $i + 1, $iSpacing + 80 + (Int($i / $iRows) * 190), ((40 * Mod($i, $iRows)) + $iSpacing), 95, 40, BitOR($ES_WANTRETURN, $WS_VSCROLL, $WS_HSCROLL, $ES_AUTOVSCROLL), BitOR($WS_EX_CLIENTEDGE, $WS_EX_ACCEPTFILES)) ; GUICtrlSetState($Edit[$i], $GUI_Disable)
Next



@FrancescoDiMuro, The less code the better isn't it....:lol: with those 18 lines of code my problem solved actually. But, still I need to declare those additional checkboxes and editboxes in the below line which can cause +1 in declared line right?. Possible count of checkboxes and editboxes to be added in my code is around 1 to 50 (but of course all of these are scrolled down and up to hide them GUI).

Local $checkbox_First, $checkbox_Second, $checkbox_Third, $checkbox_Forth
Local $edit_First, $edit_Second, $edit_Third, $edit_Forth
Local $aCheckboxes[] = [$checkbox_First, $checkbox_Second, $checkbox_Third, $checkbox_Forth]
Local $aEdits[] = [$edit_First, $edit_Second, $edit_Third, $edit_Forth]



@Floops, Thanks for sharing but it's just the same as what I posted here in this forum. Appreciated.^_^

Share this post


Link to post
Share on other sites

#9 ·  Posted (edited)

@KickStarter15

Just fixed it.  I had copied an example from AutoIt help file which had an exit button that I deleted. But I left the variable, $idClose in the Switch exit Case. It now works as it is supposed to.

Also, you can vary the number of check boxes by just varying  the variable, $Number.

Malkey

Edit:  I found out why pressing CheckBox6 use to exit the script in my example above.

In the include file "MsgBoxConstants.au3" there is "Global Const $IDCLOSE = 8".   The id for CheckBox6 in $Error[5] is also 8. That is why when $idClose is in the Switch exit Case, and, CheckBox6 is pressed,  then $msg = 8.  And $msg is first matched with $idClose and exits script.

Edited by Malkey

Share this post


Link to post
Share on other sites

#10 ·  Posted

@KickStarter15 Yes, my example is the same as yours functionality-wise. But it is more compact and easily expandable by just duplicating the line (CTRL + D in Scite). It's an alternative to using an array while still trying to keep it compact. Just wanted to throw out a different approach to the problem. :)

Share this post


Link to post
Share on other sites

#11 ·  Posted

Sorry for the confusion the Array is 0 based so in actual fact $aStringSplit[5] is the 6th parameter.  Hope that makes sense.

Share this post


Link to post
Share on other sites

#12 ·  Posted

@Subz, Now I get it, so basically still need to declare in that line the succeeding "$aStringSplit[]" of how many checkboxes I wanted.^_^

6 minutes ago, Subz said:

in actual fact $aStringSplit[5] is the 6th parameter

@Floops, Yes, agreed. That could help as well with some of my codes on-going right now but most probably I'll use an array as well for this concern.

Share this post


Link to post
Share on other sites

#13 ·  Posted

@Malkey, Thanks, just tested. It is now working. Now all I need to do is combine it to my code and see what comes up.:lol:

Share this post


Link to post
Share on other sites

#14 ·  Posted (edited)

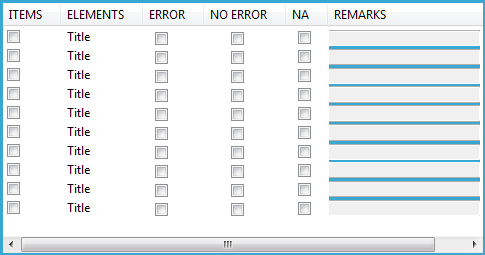

@Subz and @Malkey, Guys, I made the script combining your both suggestions and it work as I needed. Thank you so much for your time, greatly appreciated Guys...^_^



@Malkey I made 300 checkboxes and 100 EditBoxes and it only consumes 18 lines.

Local $Number = 100, $iRows = 100, $iSpacing = 205
    Local $Error[$Number]
    Local $nError[$Number]
    Local $NA[$Number]
    Local $Edit[$Number]
        For $i = 0 To $Number - 1
        $Error[$i] = GUICtrlCreateCheckbox("", $iSpacing + -40 + (Int($i / $iRows)), ((27.7 * Mod($i, $iRows)) + $iSpacing), 15, 20)
    Next
    For $j = 0 To $Number - 1
        $nError[$j] = GUICtrlCreateCheckbox("", $iSpacing + 70 + (Int($j / $iRows)), ((27.7 * Mod($j, $iRows)) + $iSpacing), 15, 20)
    Next
    For $x = 0 To $Number - 1
        $NA[$x] = GUICtrlCreateCheckbox("", $iSpacing + 172 + (Int($x / $iRows)), ((27.7 * Mod($x, $iRows)) + $iSpacing), 15, 20)
    Next
    For $i = 0 To $Number - 1
        $Edit[$i] = GUICtrlCreateEdit("", $iSpacing + 400 + (Int($i / $iRows)), ((27.7 * Mod($i, $iRows)) + $iSpacing), 240, 24, BitOR($ES_AUTOVSCROLL, $ES_WANTRETURN)) ;
        GUICtrlSetState($Edit[$i], $GUI_Disable)
    Next



Edited by KickStarter15
Edited with additional

Share this post


Link to post
Share on other sites

#15 ·  Posted

@Malkey, Good day, I have few little questions and need help with the below.

Q1: Why does "For...To...Next" below won't allow something like this:

Local $Number = 10, $iRows = 10, $iSpacing = 205
    Local $Error[$Number]
    Local $nError[$Number]
    Local $NA[$Number]
    Local $Edit[$Number]
   For $i = 0 To $Number - 1
        $Error[$i] = GUICtrlCreateCheckbox("", $iSpacing + -40 + (Int($i / $iRows)), ((27.7 * Mod($i, $iRows)) + $iSpacing), 15, 20)
        $nError[$i] = GUICtrlCreateCheckbox("", $iSpacing + 70 + (Int($i / $iRows)), ((27.7 * Mod($i, $iRows)) + $iSpacing), 15, 20)
        $NA[$i] = GUICtrlCreateCheckbox("", $iSpacing + 172 + (Int($i / $iRows)), ((27.7 * Mod($i, $iRows)) + $iSpacing), 15, 20)
        $Edit[$i] = GUICtrlCreateEdit("", $iSpacing + 250 + (Int($i / $iRows)), ((27.7 * Mod($i, $iRows)) + $iSpacing), 240, 24, BitOR($ES_AUTOVSCROLL, $ES_WANTRETURN))
        GUICtrlSetState($Edit[$i], $GUI_Disable)
    Next

Q2: How can I add above code in my $ListView, I did something like the below but I think I'm not doing it right.

For $i = 1 To 10
    ListView = GUICtrlCreateListView("ITEMS|ELEMENTS|ERROR|NO ERROR|NA|REMARKS", 100, 50, 480, 250, Default)
    GUICtrlCreateListViewItem($Error & $i&"|"&$nError & $i&"|"&$NA & $i&"|"&$Edit & $i, $ListView)
Next

Share this post


Link to post
Share on other sites

#16 ·  Posted

Q1 answer; The GUICtrlCreateCheckbox()'s and the GUICtrlCreateEdit() needs a Graphic User Interface (GUI or a window) to have those controls (Ctrl) to be created on.  So you need to create a GUI (GUICreate()) for the Checkbox controls and the Edit control.



Q2 answer: With this line,

ListView = GUICtrlCreateListView("ITEMS|ELEMENTS|ERROR|NO ERROR|NA|REMARKS", 100, 50, 480, 250, Default)

inside the For-Next loop, a ListView control will be created 10 times.

- ListView should be a variable, $ListView.

- Arrays are zero based.  So the For-Next should be from zero to 10 - 1.  $Error[0], $nError[0], $NA[0], and $Edit[0] are the first elements in each array. $i has to start at zero, 0.  The last index has to be total number of elements in the array minus one.

#include <GUIConstantsEx.au3>
#include <MsgBoxConstants.au3>
#include <WindowsConstants.au3>
#include <EditConstants.au3>

_Checkbox_EditCtrl()

Func _Checkbox_EditCtrl()
    Local $hGUI = GUICreate("Example", 1010, 1000)
    Local $Number = 10, $iRows = 10, $iSpacing = 305
    Local $Error[$Number]
    Local $nError[$Number]
    Local $NA[$Number]
    Local $Edit[$Number]
    For $i = 0 To $Number - 1
        $Error[$i] = GUICtrlCreateCheckbox("", $iSpacing + -40 + (Int($i / $iRows)), ((27.7 * Mod($i, $iRows)) + $iSpacing), 15, 20)
        $nError[$i] = GUICtrlCreateCheckbox("", $iSpacing + 70 + (Int($i / $iRows)), ((27.7 * Mod($i, $iRows)) + $iSpacing), 15, 20)
        $NA[$i] = GUICtrlCreateCheckbox("", $iSpacing + 172 + (Int($i / $iRows)), ((27.7 * Mod($i, $iRows)) + $iSpacing), 15, 20)
        $Edit[$i] = GUICtrlCreateEdit("Edit " & ($i + 1), $iSpacing + 250 + (Int($i / $iRows)), ((27.7 * Mod($i, $iRows)) + $iSpacing), 240, 24, BitOR($ES_AUTOVSCROLL, $ES_WANTRETURN))
        GUICtrlSetState($Edit[$i], $GUI_Disable)
    Next

    Local $Listview = GUICtrlCreateListView("ITEMS|ELEMENTS|ERROR|NO ERROR|NA|REMARKS", $iSpacing - 40, 40, 480, 250, Default)
    For $i = 0 To 9
        GUICtrlCreateListViewItem($i + 1 & "|" & $Error[$i] & "|" & $nError[$i] & "|" & $NA[$i] & "|" & $Edit[$i] & "|" & GUICtrlRead($Edit[$i]), $Listview)
    Next

    GUISetState(@SW_SHOW, $hGUI)

    While 1
        $msg = GUIGetMsg()
        Switch $msg
            Case $GUI_EVENT_CLOSE
                ;ConsoleWrite( $idClose & "  " & $msg & "  " & $Error[5] &   @CRLF)
                ExitLoop
        EndSwitch
    WEnd

    GUIDelete($hGUI)
EndFunc   ;==>_Checkbox_EditCtrl





Share this post


Link to post
Share on other sites

#17 ·  Posted (edited)

Case $Error[0] To $Error[($Number - 1)]
                $iIndex = $msg - $Error[0] ; Array Index

For the above to work, the ID's contained in the array, $Error, must be created sequentially for the ID's in the array to contain sequential numbers.  I used each control created in its own loop.



Edit: It is simpler to create  each control created in its own loop.   But it is possible to create all the controls in one For - Next loop.  This example is for three columns of CheckBox controls and one column of Edit controls.

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <EditConstants.au3>
#include <ListViewConstants.au3>
; https://www.autoitscript.com/forum/topic/188445-shorten-the-code/?do=findComment&comment=1353698

_Checkbox_EditCtrl()


Func _Checkbox_EditCtrl()
    Opt("GUICoordMode", 2) ;1=absolute, 0=relative, 2=cell
    Global $hGUI = GUICreate("Example", 1270, 900, -1, -1, BitOR($WS_SIZEBOX, $WS_MAXIMIZEBOX, $WS_MINIMIZEBOX, $WS_SIZEBOX))
    Global $Number = 20 * 4, $iCols = 4, $iHSpacing = 60, $iVSpacing = 10, $iBorder = 20, $Listview
    Global $aID[$Number]

    $idButt0 = GUICtrlCreateButton("All ChkBx A", 1, 1)
    GUICtrlSetPos($idButt0, 1160, 750, 100, 25) ; Used with Opt("GUICoordMode", 2)
    GUICtrlSetResizing($idButt0, $GUI_DOCKBOTTOM + $GUI_DOCKHEIGHT + $GUI_DOCKWIDTH)

    $idButt1 = GUICtrlCreateButton("All ChkBx B", -1, 5) ; Auto increase previous "top" by 5.  "-1" indicates no increment.
    GUICtrlSetResizing($idButt1, $GUI_DOCKBOTTOM + $GUI_DOCKHEIGHT + $GUI_DOCKWIDTH)

    $idButt2 = GUICtrlCreateButton("All ChkBx C", -1, 5) ; Auto increase previous "top" by 5.  "-1" indicates no increment.
    GUICtrlSetResizing($idButt2, $GUI_DOCKBOTTOM + $GUI_DOCKHEIGHT + $GUI_DOCKWIDTH)

    $idButt3 = GUICtrlCreateButton("Refresh List Virw", -1, 5) ; Auto increase previous "top" by 5.  "-1" indicates no increment.
    GUICtrlSetResizing($idButt3, $GUI_DOCKBOTTOM + $GUI_DOCKHEIGHT + $GUI_DOCKWIDTH)

    For $i = 0 To $Number - 1 Step 4
        $aID[$i] = GUICtrlCreateCheckbox("CheckBox " & (Int($i / 4) + 1) & " A", 1, 1)
        GUICtrlSetPos($aID[$i], $iBorder + $iHSpacing * (Mod($i, $iCols)), ((44 * Int($i / $iCols)) + $iVSpacing), 90, 20) ; Used with Opt("GUICoordMode", 2)
        $aID[$i + 1] = GUICtrlCreateCheckbox("CheckBox " & (Int($i / 4) + 1) & " B", $iHSpacing, -1) ; Auto increase previous "left" by $iHSpacing.  "-1" indicates no increment.
        $aID[$i + 2] = GUICtrlCreateCheckbox("CheckBox " & (Int($i / 4) + 1) & " C", $iHSpacing, -1) ; Auto increase previous "left" by $iHSpacing.  "-1" indicates no increment.
        $aID[$i + 3] = GUICtrlCreateEdit("Edit " & (Int($i / 4) + 1), $iHSpacing, -1, 240, 44, _
                BitOR($ES_WANTRETURN, $WS_VSCROLL, $WS_HSCROLL, $ES_AUTOVSCROLL), BitOR($WS_EX_CLIENTEDGE, $WS_EX_ACCEPTFILES)) ; Auto increase previous "left" by $iHSpacing, and change "width" and "height" to 240 and 44.  "-1" indicates no increment.
    Next

    ListViewData()

    GUISetState(@SW_SHOW, $hGUI)

    While 1
        $msg = GUIGetMsg()
        Switch $msg
            Case $GUI_EVENT_CLOSE
                ExitLoop
            Case $aID[0] To $aID[(UBound($aID) - 1)]
                For $j = 0 To $aID[UBound($aID) - 1] - 1
                    $iIndex = ($msg - $aID[0] - Mod($j, $iCols)) / $iCols ; Array Index
                    If $iIndex - Int($iIndex) = 0 Then
                        ConsoleWrite("Col:" & Mod($j, $iCols) & "  Row:" & $iIndex & "  " & GUICtrlRead($aID[$iIndex * $iCols + $iCols - 1]) & @CRLF)
                        ExitLoop
                    EndIf
                Next
            Case $idButt3
                GUICtrlDelete($Listview)
                ListViewData()
            Case $idButt0
                _AllCheck_Uncheck(0) ; Column 0 of checkboxes A
            Case $idButt1
                _AllCheck_Uncheck(1) ; Column 1 of checkboxes B
            Case $idButt2
                _AllCheck_Uncheck(2) ; Column 2 of checkboxes C

        EndSwitch
    WEnd
    GUIDelete($hGUI)
EndFunc   ;==>_Checkbox_EditCtrl

Func ListViewData()
    $Listview = GUICtrlCreateListView("ITEMS|ChkBx A|ChkBx B|ChkBx C|Edit's id|Content of Edit", 1, 1, 1, 1, -1, $LVS_EX_CHECKBOXES)
    GUICtrlSetPos($Listview, 720, $iVSpacing, 530, 500) ;
    For $i = 0 To UBound($aID) - 1 Step 4
        GUICtrlCreateListViewItem((Int($i / 4) + 1) & "|" & _
                BitAND(GUICtrlRead($aID[$i]), $GUI_CHECKED) & "|" & _
                BitAND(GUICtrlRead($aID[$i + 1]), $GUI_CHECKED) & "|" & _
                BitAND(GUICtrlRead($aID[$i + 2]), $GUI_CHECKED) & "|" & _
                $aID[$i + 3] & "|" & _
                GUICtrlRead($aID[$i + 3]), $Listview)
    Next
EndFunc   ;==>ListViewData

Func _AllCheck_Uncheck($iStart)
    For $j = $iStart To $aID[$Number - 8] Step 4
        If BitAND(GUICtrlRead($aID[$j]), $GUI_CHECKED) = $GUI_CHECKED Then
            GUICtrlSetState($aID[$j], 4) ; $GUI_UNCHECKED (4)
        Else
            GUICtrlSetState($aID[$j], 1) ; $GUI_CHECKED (1)
        EndIf
    Next
EndFunc   ;==>_AllCheck_Uncheck



Edited by Malkey
Proof of concept. & Added $LVS_EX_CHECKBOXES

Share this post


Link to post
Share on other sites

#18 ·  Posted (edited)

@Malkey, Sorry for the late response, just got back from vacation. Anyway, thanks for the suggestions you gave and it also helped my a lot with my current project right now its an add-on idea to my GUI.

However, would it be possible to have it like this:

Global $ListView = GUICtrlCreateListView("ITEMS|ELEMENTS|ERROR|NO ERROR|NA|REMARKS", 150, 200, 480, 250, Default, $LVS_EX_CHECKBOXES)
For $i = 1 To 10
     GUICtrlCreateListViewItem("|Title|"&, $ListView)
Next

Like, I want "$LVS_EX_CHECKBOXES" to be replaced with $Error[$i], $nError[$i], $NA[$i] as checkboxes? and of course, the editbox as well.

I have attached a sample $Listview with what I wanted to be. Hope this helps.:sweating:

CheckBoxEditBox in ListView.png

Kind of, something like that... Editbox in Remarks column, checkboxes are in their designed column as well.



Thanks in advance.^_^

Edited by KickStarter15

Share this post


Link to post
Share on other sites

#19 ·  Posted

See my example of post #17  for non sequential control ids (all sets of checkbox and edit controls created in one "For - Next" loop)
Note: The only check boxes are in the first column of the ListView.

Here is a ListViewData() function for sequential control ids (each set of check boxes and edit controls created in their own loop).
Note: There is one ListView control created for each column arranged next to each other horizontally.   There may be another way of having multiple columns of check boxes in a ListView of which I am unaware.

#include <GUIConstantsEx.au3>
#include <MsgBoxConstants.au3>
#include <WindowsConstants.au3>
#include <EditConstants.au3>
#include <ListViewConstants.au3>

_Checkbox_EditCtrl()


Func _Checkbox_EditCtrl()
    Local $hGUI = GUICreate("Example", 1100, 900)
    Global $Number = 20, $iRows = $Number, $iSpacing = 5
    Global $Error[$Number] ; Array holding Checkbox controls ids
    Global $Edit[$Number] ; Array holding Edit controls ids

    ; Create checkbox controls.
    For $i = 0 To $Number - 1 ; id's are sequentially numbered starting at $Error[0]
        $Error[$i] = GUICtrlCreateCheckbox("ChkBx" & $i + 1, $iSpacing + (Int($i / $iRows) * 190), ((40 * Mod($i, $iRows)) + $iSpacing), 80, 20) ;
    Next

    ; Create Edit controls.
    For $i = 0 To $Number - 1 ;  id's are sequentially numbered starting at $Edit[0]
        $Edit[$i] = GUICtrlCreateEdit("Edit" & $i + 1, $iSpacing + 80 + (Int($i / $iRows) * 190), ((40 * Mod($i, $iRows)) + $iSpacing), 95, 40, BitOR($ES_WANTRETURN, $WS_VSCROLL, $WS_HSCROLL, $ES_AUTOVSCROLL), BitOR($WS_EX_CLIENTEDGE, $WS_EX_ACCEPTFILES)) ;
        GUICtrlSetState($Edit[$i], $GUI_Disable)
    Next
    ListViewData()
    GUISetState(@SW_SHOW, $hGUI)

    While 1
        $msg = GUIGetMsg()
        Switch $msg
            Case $GUI_EVENT_CLOSE
                ExitLoop
            Case $Error[0] To $Error[(UBound($Error) - 1)]
                $Number = $msg - $Error[0] ; Array Index
                GUICtrlSetState($Edit[$Number], (BitAND(GUICtrlRead($Error[$Number]), $GUI_CHECKED) = $GUI_CHECKED ? BitOR($GUI_Enable, $GUI_FOCUS) : $GUI_Disable))
        EndSwitch
    WEnd
    GUIDelete($hGUI)
EndFunc   ;==>_Checkbox_EditCtrl


Func ListViewData()
    Local $iLeft = 400, $iWidth = 100
    Local $aTitles = StringSplit("ITEMS|ELEMENTS|ERROR|NO ERROR|NA|Content of Edit", "|", 2) ;  $STR_NOCOUNT (2)
    Local $aListview[UBound($aTitles)]

    ;Items
    $aListview[0] = GUICtrlCreateListView($aTitles[0], $iLeft, 10, $iWidth * 0.7, 500, -1, $LVS_EX_FULLROWSELECT)
    For $j = 0 To $Number - 1
        GUICtrlCreateListViewItem($j+1, $aListview[0])
    Next

    ; ELEMENTS|ERROR|NO ERROR|NA
    For $i = 1 To UBound($aTitles) - 2
        $aListview[$i] = GUICtrlCreateListView($aTitles[$i], $iLeft + $i * 100, 10, $iWidth, 500, -1, $LVS_EX_CHECKBOXES)
        For $j = 0 To $Number - 1
            GUICtrlCreateListViewItem("", $aListview[$i])
        Next
    Next

    ; Content of Edit
    $aListview[UBound($aTitles) - 1] = GUICtrlCreateListView($aTitles[UBound($aTitles) - 1], $iLeft + ($i + 1) * 80, 10, $iWidth * 2, 500, -1, $LVS_EX_FULLROWSELECT)
    For $j = 0 To $Number - 1
        GUICtrlCreateListViewItem(GUICtrlRead($Edit[$j]), $aListview[UBound($aTitles) - 1])
    Next
EndFunc   ;==>ListViewData



Share this post


Link to post
Share on other sites

#20 ·  Posted

49 minutes ago, Malkey said:

(each set of check boxes and edit controls created in their own loop)

Hmmm, I see, that is why in my searching there is no solution in creating one listview with multiple columns of checkboxes.:'(

Ok, so basically, different Listview will be created with checkboxes in it, that would be fine. But when resizing the $Listview, these $Listview() will not be tagged as one scrolling, I mean as one. Is there a way to group them as one? I know it is impossible but maybe you have any idea how.:D

At this moment, I'm using your code in creating listview with checkboxes in every loop but I'll keep looking for solution on how they will be tagged as one scrolling (ups and downs).

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!


Register a new account

Sign in

Already have an account? Sign in here.


Sign In Now
