Shorten the code

[KickStarter15]

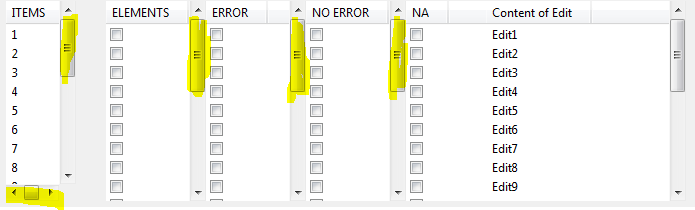

In the attached, I want to eliminate highlighted scrollbar and use only the last scrollbar found in last listview. Can that be done?

[Malkey]

I found an example here.  It uses two images of a check box, one clicked and the other an unclicked check box. It solves the scroll problem.
I have just started modifying the example for understanding.   Here it is so far.

expandcollapse popup

#Region ;**** Directives created by AutoIt3Wrapper_GUI ****
#AutoIt3Wrapper_UseX64=n
#EndRegion ;**** Directives created by AutoIt3Wrapper_GUI ****
;https://www.autoitscript.com/forum/topic/139314-custom-listview-icons-checkboxes-multiline-edit-in-place/?do=findComment&comment=978424
#include <Array.au3>
#include <GDIPlus.au3>
#include <GuiConstantsEx.au3>
#include <GuiListView.au3>
#include <GuiImageList.au3>
#include <WinAPI.au3>
#include <WindowsConstants.au3>

;#include <APIConstants.au3>
#include <WinAPIEx.au3> ; from http://www.autoitscript.com/forum/topic/98712-winapiex-udf/

Global Const $ODT_LISTVIEW = 102
Global Const $ODA_DRAWENTIRE = 0x1

; ####################################
; adjustment of the icon positioning, according to windows version
Global $iAdjustV = 0
If $__WINVER > 0x0600 Then $iAdjustV = 1 ; $__WINVER defined in WinAPIEx, $__WINVER > 0x0600 means Vista+
; ####################################

_GDIPlus_Startup()

$hGUI = GUICreate("ListView Set Item State", 400, 300)

$cButton_CheckAll = GUICtrlCreateButton("Check All", 10, 275, 100, 20)
$cButton_UncheckAll = GUICtrlCreateButton("UnCheck All", 120, 275, 100, 20)
$cButton_StatesToArray = GUICtrlCreateButton("States to Array", 230, 275, 100, 20)

; comment one of the lines below to reproduce each example (don't leave both uncommented!)
; EXAMPLE 1 (WITH OWNERDRAW):
$cListView = GUICtrlCreateListView("", 2, 2, 394, 268, BitOR($LVS_REPORT, $LVS_OWNERDRAWFIXED, $LVS_SHOWSELALWAYS))
; EXAMPLE 2 (WITHOUT OWNERDRAW):
;$cListView = GUICtrlCreateListView("", 2, 2, 394, 268, BitOR($LVS_REPORT, $LVS_SHOWSELALWAYS))

$hListView = GUICtrlGetHandle($cListView)
_GUICtrlListView_SetExtendedListViewStyle($hListView, BitOR($LVS_EX_FULLROWSELECT, $LVS_EX_SUBITEMIMAGES))

$hIml_Listview = _GUIImageList_Create(16, 16, 5, 3)

$hBitmap_Icon = _Load_BMP_From_Mem(_Icon_Image_Checkbox_Unchecked(), True)
_GUIImageList_Add($hIml_Listview, $hBitmap_Icon)
_WinAPI_DeleteObject($hBitmap_Icon)

$hBitmap_Icon = _Load_BMP_From_Mem(_Icon_Image_Checkbox_Checked(), True)
_GUIImageList_Add($hIml_Listview, $hBitmap_Icon)
_WinAPI_DeleteObject($hBitmap_Icon)

_GUICtrlListView_SetImageList($hListView, $hIml_Listview, 1)

; Add columns
For $i = 1 To 3
    _GUICtrlListView_AddColumn($hListView, "Column " & $i, 120)
Next

; Add items
For $row = 1 To 20
    _GUICtrlListView_AddItem($hListView, "Row " & $row & ": Col 1", 0)
    _GUICtrlListView_AddSubItem($hListView, $row - 1, "Row " & $row & ": Col 2", 1, 0)
    _GUICtrlListView_AddSubItem($hListView, $row - 1, "Row " & $row & ": Col 3", 2, 0)
Next


GUIRegisterMsg($WM_NOTIFY, "WM_NOTIFY")
GUIRegisterMsg($WM_DRAWITEM, "WM_DRAWITEM")
GUISetState()

; Loop until user exits
While 1
    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            ExitLoop

        Case $cButton_CheckAll
            _LV_ImgCheckboxes_CheckAll($hListView)

        Case $cButton_UncheckAll
            _LV_ImgCheckboxes_UncheckAll($hListView)

        Case $cButton_StatesToArray
            $aLVStates = _LV_ImgCheckboxes_StatesToArray($hListView)
            _ArrayDisplay($aLVStates)

    EndSwitch
WEnd

GUIDelete()
_GUIImageList_Destroy($hIml_Listview)
_GDIPlus_Shutdown()
Exit

Func _LV_ImgCheckboxes_CheckAll($hWnd)
    _GUICtrlListView_BeginUpdate($hWnd)
    For $i = 0 To _GUICtrlListView_GetItemCount($hWnd) - 1
        For $y = 0 To _GUICtrlListView_GetColumnCount($hWnd) - 1
            _GUICtrlListView_SetItemImage($hWnd, $i, 1, $y)
        Next
    Next
    _GUICtrlListView_EndUpdate($hWnd)
EndFunc   ;==>_LV_ImgCheckboxes_CheckAll

Func _LV_ImgCheckboxes_UncheckAll($hWnd)
    _GUICtrlListView_BeginUpdate($hWnd)
    For $i = 0 To _GUICtrlListView_GetItemCount($hWnd) - 1
        For $y = 0 To _GUICtrlListView_GetColumnCount($hWnd) - 1
            _GUICtrlListView_SetItemImage($hWnd, $i, 0, $y)
        Next
    Next
    _GUICtrlListView_EndUpdate($hWnd)
EndFunc   ;==>_LV_ImgCheckboxes_UncheckAll

Func _LV_ImgCheckboxes_StatesToArray($hWnd)
    Local $iColumns = _GUICtrlListView_GetColumnCount($hWnd)
    If $iColumns = 0 Then Return SetError(1)
    Local $iItems = _GUICtrlListView_GetItemCount($hWnd)
    If $iItems = 0 Then Return SetError(2)
    Local $aStates[$iItems][$iColumns]
    For $i = 0 To $iItems - 1
        For $y = 0 To $iColumns - 1
            $aStates[$i][$y] = _GUICtrlListView_GetItemImage($hWnd, $i, $y)
        Next
    Next
    Return $aStates
EndFunc   ;==>_LV_ImgCheckboxes_StatesToArray

Func WM_NOTIFY($hWnd, $Msg, $wParam, $lParam)
    Local $tNMHDR = DllStructCreate($tagNMHDR, $lParam)
    Local $hWndFrom = DllStructGetData($tNMHDR, "hWndFrom")
    Local $nNotifyCode = DllStructGetData($tNMHDR, "Code")
    Switch $hWndFrom
        Case $hListView
            Switch $nNotifyCode
                Case $NM_CLICK
                    Local $tINFO = DllStructCreate($tagNMITEMACTIVATE, $lParam)
                    Local $iItem = DllStructGetData($tINFO, "Index")
                    Local $iSubitem = DllStructGetData($tINFO, "SubItem")
                    _GUICtrlListView_SetItemImage($hListView, $iItem, Not _GUICtrlListView_GetItemImage($hListView, $iItem, $iSubitem), $iSubitem)
            EndSwitch
    EndSwitch
    Return $GUI_RUNDEFMSG
EndFunc   ;==>WM_NOTIFY

Func WM_DRAWITEM($hWnd, $Msg, $wParam, $lParam)
    Local $tagDRAWITEMSTRUCT, $iBrushColor, $cID, $itmID, $itmAction, $itmState, $hItm, $hDC
    ;ConsoleWrite(TimerInit() & @TAB & "WM_DRAWITEM" & @CRLF)
    $tagDRAWITEMSTRUCT = DllStructCreate( _
            "uint cType;" & _
            "uint cID;" & _
            "uint itmID;" & _
            "uint itmAction;" & _
            "uint itmState;" & _
            "hwnd hItm;" & _
            "hwnd hDC;" & _
            "int itmRect[4];" & _
            "dword itmData" _
            , $lParam)
    If DllStructGetData($tagDRAWITEMSTRUCT, "cType") <> $ODT_LISTVIEW Then Return $GUI_RUNDEFMSG

    $cID = DllStructGetData($tagDRAWITEMSTRUCT, "cID")
    $itmID = DllStructGetData($tagDRAWITEMSTRUCT, "itmID")
    $itmAction = DllStructGetData($tagDRAWITEMSTRUCT, "itmAction")
    $itmState = DllStructGetData($tagDRAWITEMSTRUCT, "itmState")
    $hItm = DllStructGetData($tagDRAWITEMSTRUCT, "hItm")
    $hDC = DllStructGetData($tagDRAWITEMSTRUCT, "hDC")

    Local $aDefaultVariables[9] = [$tagDRAWITEMSTRUCT, $iBrushColor, $cID, $itmID, $itmAction, $itmState, $hItm, $hDC]
    Switch $cID ; will look for ControlID, not window handle.
        Case $cListView
            Switch $itmAction
                Case $ODA_DRAWENTIRE
                    ConsoleWrite("test" & @CRLF)
                    Local $aRowColors[2] = [0xFDFDFD, 0xEEDDBB]
                    Local $aRectMargins[4] = [6, -1, 0, 0]
                    Local $aTextFormatting[3] = [BitOR($DT_VCENTER, $DT_SINGLELINE), _
                            BitOR($DT_VCENTER, $DT_SINGLELINE), _
                            BitOR($DT_VCENTER, $DT_SINGLELINE)]
                    __WM_DRAWITEM_ListView($hListView, $aDefaultVariables, $aRowColors, $aRectMargins, $aTextFormatting)
            EndSwitch
    EndSwitch
    Return $GUI_RUNDEFMSG
EndFunc   ;==>WM_DRAWITEM

Func __WM_DRAWITEM_ListView(ByRef $hListView, ByRef $aDefaultVariables, ByRef $aRowColors, ByRef $aRectMargins, ByRef $aTextFormatting)
    Local $iSubItemCount = _GUICtrlListView_GetColumnCount($hListView)
    If UBound($aTextFormatting) < $iSubItemCount Then
        ConsoleWrite("!> Error: invalid parameters in __WM_DRAWITEM_ListView()" & @CRLF)
        Return
    EndIf

    Local $tagDRAWITEMSTRUCT, $iBrushColor, $cID, $itmID, $itmAction, $itmState, $hItm, $hDC

    $tagDRAWITEMSTRUCT = $aDefaultVariables[0]
    $iBrushColor = $aDefaultVariables[1]
    $cID = $aDefaultVariables[2]
    $itmID = $aDefaultVariables[3]
    $itmAction = $aDefaultVariables[4]
    $itmState = $aDefaultVariables[5]
    $hItm = $aDefaultVariables[6]
    $hDC = $aDefaultVariables[7]

    If _GUICtrlListView_GetItemSelected($hListView, $itmID) Then
        $iBrushColor = $aRowColors[1]
    Else
        $iBrushColor = $aRowColors[0]
    EndIf

    ; create a brush with the desired color:
    Local $aBrush = DllCall("gdi32.dll", "hwnd", "CreateSolidBrush", "int", $iBrushColor)

    ; get the rectangle for the whole row and fill it:
    Local $iLeft = DllStructGetData($tagDRAWITEMSTRUCT, "itmRect", 1)
    DllStructSetData($tagDRAWITEMSTRUCT, "itmRect", $iLeft + 0, 1) ; +0 is the left margin
    _WinAPI_FillRect($hDC, DllStructGetPtr($tagDRAWITEMSTRUCT, "itmRect"), $aBrush[0])

    ; draw the text in each subitem
    For $i = 0 To $iSubItemCount - 1
        ; get subitem text:
        Local $iSubItmText = _GUICtrlListView_GetItemText($hListView, $itmID, $i)
        ; get subitem coordinates for drawing its respective text:
        Local $aSubItmRect = _GUICtrlListView_GetSubItemRect($hListView, $itmID, $i)
        ; the function above accepts not only subitems (one-based index), but also main item (index=0)
        ; pass the coordinates to a DLL struct:
        Local $iSubItmRect = DllStructCreate("int Left;int Top;int Right;int Bottom")
        DllStructSetData($iSubItmRect, 1, $aSubItmRect[0] + $aRectMargins[0]) ; left margin
        DllStructSetData($iSubItmRect, 2, $aSubItmRect[1] + $aRectMargins[1]) ; upper margin
        DllStructSetData($iSubItmRect, 3, $aSubItmRect[2] + $aRectMargins[2]) ; right margin
        DllStructSetData($iSubItmRect, 4, $aSubItmRect[3] + $aRectMargins[3]) ; bottom margin
        Local $tRect = DllStructGetPtr($iSubItmRect)

        Local $hIcon = _GUIImageList_GetIcon($hIml_Listview, _GUICtrlListView_GetItemImage($hListView, $itmID, $i))

        If $i = 0 Then
            DllStructSetData($iSubItmRect, "Left", DllStructGetData($iSubItmRect, "Left") + 12)
            _WinAPI_DrawIconEx($hDC, DllStructGetData($iSubItmRect, "Left") - 16, DllStructGetData($iSubItmRect, "Top") + $iAdjustV, $hIcon, 16, 16)
            DllStructSetData($iSubItmRect, "Left", DllStructGetData($iSubItmRect, "Left") + 2)
        Else
            _WinAPI_DrawIconEx($hDC, DllStructGetData($iSubItmRect, "Left"), DllStructGetData($iSubItmRect, "Top") + $iAdjustV, $hIcon, 16, 16)
            DllStructSetData($iSubItmRect, "Left", DllStructGetData($iSubItmRect, "Left") + 6 + 18)
        EndIf

        _GUIImageList_DestroyIcon($hIcon)

        If $aTextFormatting[$i] = -1 Then
            ; do nothing (don't draw)
        Else
            _WinAPI_DrawText($hDC, $iSubItmText, $tRect, $aTextFormatting[$i])
        EndIf

    Next
EndFunc   ;==>__WM_DRAWITEM_ListView

; Based on File to Base64 String Code Generator
; by UEZ
; http://www.autoitscript.com/forum/topic/...ng-code-generator-v103-build-2

;======================================================================================
; Function Name:        Load_BMP_From_Mem
; Description:      Loads an image which is saved as a binary string and converts it to a bitmap or hbitmap
;
; Parameters:         $bImage:    the binary string which contains any valid image which is supported by GDI+
; Optional:       $hHBITMAP:  if false a bitmap will be created, if true a hbitmap will be created
;
; Remark:             hbitmap format is used generally for GUI internal images, $bitmap is more a GDI+ image format
;                     Don't forget _GDIPlus_Startup() and _GDIPlus_Shutdown()
;
; Requirement(s):     GDIPlus.au3, Memory.au3 and _GDIPlus_BitmapCreateDIBFromBitmap() from WinAPIEx.au3
; Return Value(s):    Success: handle to bitmap (GDI+ bitmap format) or hbitmap (WinAPI bitmap format),
;                     Error: 0
; Error codes:      1: $bImage is not a binary string
;                     2: unable to create stream on HGlobal
;                     3: unable to create bitmap from stream
;
; Author(s):            UEZ
; Additional Code:    thanks to progandy for the MemGlobalAlloc and tVARIANT lines and
;                     Yashied for _GDIPlus_BitmapCreateDIBFromBitmap() from WinAPIEx.au3
; Version:          v0.97 Build 2012-01-04 Beta
;=======================================================================================
Func _Load_BMP_From_Mem($bImage, $hHBITMAP = False)
    If Not IsBinary($bImage) Then Return SetError(1, 0, 0)
    Local $aResult
    Local Const $memBitmap = Binary($bImage) ;load image  saved in variable (memory) and convert it to binary
    Local Const $len = BinaryLen($memBitmap) ;get length of image
    Local Const $hData = _MemGlobalAlloc($len, $GMEM_MOVEABLE) ;allocates movable memory  ($GMEM_MOVEABLE = 0x0002)
    Local Const $pData = _MemGlobalLock($hData) ;translate the handle into a pointer
    Local $tMem = DllStructCreate("byte[" & $len & "]", $pData) ;create struct
    DllStructSetData($tMem, 1, $memBitmap) ;fill struct with image data
    _MemGlobalUnlock($hData) ;decrements the lock count  associated with a memory object that was allocated with GMEM_MOVEABLE
    $aResult = DllCall("ole32.dll", "int", "CreateStreamOnHGlobal", "handle", $pData, "int", True, "ptr*", 0) ;Creates a stream object that uses an HGLOBAL memory handle to store the stream contents
    If @error Then SetError(2, 0, 0)
    Local Const $hStream = $aResult[3]
    $aResult = DllCall($__g_hGDIPDll, "uint", "GdipCreateBitmapFromStream", "ptr", $hStream, "int*", 0) ;Creates a Bitmap object based on an IStream COM interface
    If @error Then SetError(3, 0, 0)
    Local Const $hBitmap = $aResult[2]
    Local $tVARIANT = DllStructCreate("word vt;word r1;word r2;word r3;ptr data; ptr")
    DllCall("oleaut32.dll", "long", "DispCallFunc", "ptr", $hStream, "dword", 8 + 8 * @AutoItX64, _
            "dword", 4, "dword", 23, "dword", 0, "ptr", 0, "ptr", 0, "ptr", DllStructGetPtr($tVARIANT)) ;release memory from $hStream to avoid memory leak
    $tMem = 0
    $tVARIANT = 0
    If $hHBITMAP Then
        Local Const $hHBmp = _GDIPlus_BitmapCreateDIBFromBitmap($hBitmap)
        _GDIPlus_BitmapDispose($hBitmap)
        Return $hHBmp
    EndIf
    Return $hBitmap
EndFunc   ;==>_Load_BMP_From_Mem

Func _Decompress_Binary_String_to_Bitmap($Base64String)
    $Base64String = Binary($Base64String)
    Local $iSize_Source = BinaryLen($Base64String)
    Local $pBuffer_Source = _WinAPI_CreateBuffer($iSize_Source)
    DllStructSetData(DllStructCreate('byte[' & $iSize_Source & ']', $pBuffer_Source), 1, $Base64String)
    Local $pBuffer_Decompress = _WinAPI_CreateBuffer(8388608)
    Local $Size_Decompressed = _WinAPI_DecompressBuffer($pBuffer_Decompress, 8388608, $pBuffer_Source, $iSize_Source)
    Local $b_Result = Binary(DllStructGetData(DllStructCreate('byte[' & $Size_Decompressed & ']', $pBuffer_Decompress), 1))
    _WinAPI_FreeMemory($pBuffer_Source)
    _WinAPI_FreeMemory($pBuffer_Decompress)
    Return $b_Result
EndFunc   ;==>_Decompress_Binary_String_to_Bitmap

Func _Icon_Image_Checkbox_Unchecked()
    Local $Base64String
    $Base64String &= '7rBIAAABABAQEAFwCAAAaAUAABYAAMwAKAAYAJAAIAAYAVwZAQBAAQIYDgCAgAAAANfc3ADZ3t4AANvg4ADe4uIAAOLl5QDl6OgAAOns7ADs7+8AAO/x8QDx8/MAAPT19QD29/cAAPj5+QD6+/sAAPz9/QD+/v7wAP///xNc/wB/AD8A/z8APwA/AD8APwA/AD8ACAAb4HYLAAEJAOEBCgsMAA0ODxAREhISbeIBCQcC4gEIBwLiAQfbBwLiAQYHAuIBBQcC4gG2BAcC4gEDBwLiAQIHAv/jAQcC5AEGAuIB7BceAOCfHgN/AG0A4QZhAA=='
    Return _Decompress_Binary_String_to_Bitmap(_Base64Decode($Base64String))
EndFunc   ;==>_Icon_Image_Checkbox_Unchecked

Func _Icon_Image_Checkbox_Checked()
    Local $Base64String
    $Base64String &= 'z7BIAAABABAQEAFwCAAAaAUAABYAAMwAKAAYAJAAIAAYAVwZAQBAAQIYDgCAgAAAAISEhADe3t5AAN7n5wDnAQbvCO8A7wEG9/cA9/EABv///xN4/wE/AD8A/z8APwA/AD8AHwAMAOB6CwAGAQkA4QEHCAkJCR4KAgDjAQcC5AEHCAKDAwLiAQYHBwICAwI54gEFBsABAwLjAQUCxgIkBOIBBAUCRQbjAVgEBQUCAuQBAwUCCPPkAQUCBwjkAQYC4gHsF3seAOCfA38AbQDhBmEA'
    Return _Decompress_Binary_String_to_Bitmap(_Base64Decode($Base64String))
EndFunc   ;==>_Icon_Image_Checkbox_Checked

Func _Base64Decode($input_string)
    Local $struct = DllStructCreate("int")
    Local $a_Call = DllCall("Crypt32.dll", "int", "CryptStringToBinary", "str", $input_string, "int", 0, "int", 1, "ptr", 0, "ptr", DllStructGetPtr($struct, 1), "ptr", 0, "ptr", 0)
    If @error Or Not $a_Call[0] Then Return SetError(1, 0, "")
    Local $a = DllStructCreate("byte[" & DllStructGetData($struct, 1) & "]")
    $a_Call = DllCall("Crypt32.dll", "int", "CryptStringToBinary", "str", $input_string, "int", 0, "int", 1, "ptr", DllStructGetPtr($a), "ptr", DllStructGetPtr($struct, 1), "ptr", 0, "ptr", 0)
    If @error Or Not $a_Call[0] Then Return SetError(2, 0, "")
    Return DllStructGetData($a, 1)
EndFunc   ;==>_Base64Decode



[UEZ]

Load_BMP_From_Mem is meanwhile integrated as _GDIPlus_BitmapCreateFromMemory.

Edited May 16, 2017 by UEZ

[KickStarter15]

@Malkey, It's a beast, wow but there's a beauty in it. I knew there is something that can solved this problem. Thank you so much Malkey for this, now all I need to do is study this code and learn from it. There are codes here which I really don't understand well, but time is unlimited and I know I can manage to understand this in a while.

Big big help you've made Malkey. Thank you!



KS15
