DoofGore

GUI Stay on Top ON OFF Button

Recommended Posts

DoofGore

Hello All, My first post I know this is pretty noobish but I'm trying to find a way to make this gui working.. searched but as I'm new to autoit I don't understand much...

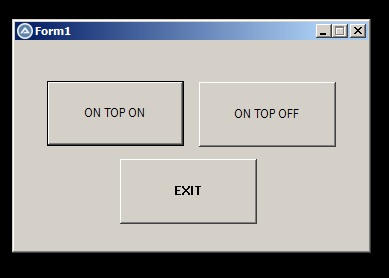

I want to make this gui on top if we press ON TOP button and off on top function when we press on top off.. Created gui with koda ... any help would be appreciated

Regards,



#include <ButtonConstants.au3>
#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#Region ### START Koda GUI section ### Form=
Global $Form1 = GUICreate("Form1", 353, 209, 192, 114)
Global $ONTOPON = GUICtrlCreateButton("ON TOP ON", 32, 40, 137, 65)
Global $exit = GUICtrlCreateButton("EXIT", 105, 118, 137, 65)
GUICtrlSetFont(-1, 8, 800, 0, "MS Sans Serif")
Global $ONTOPOFF = GUICtrlCreateButton("ON TOP OFF", 184, 41, 137, 65)
GUISetState(@SW_SHOW)
#EndRegion ### END Koda GUI section ###

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit

        Case $ONTOPON

        Case $ONTOPOFF

        Case $exit
            Exit


    EndSwitch
WEnd




Share this post


Link to post
Share on other sites
Melba23

DoofGore,

WinSetOnTop should be the solution for which you are looking.

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites
DoofGore

Hello Melba23 I am playing around with WinSetOnTop but i didn't really understand it... it would be great if someone just explain how this is gona work.. Sorry for this noobish post..

Share this post


Link to post
Share on other sites
JLogan3o13

@DoofGore Did you read the help file entry for WinSetOnTop? It explains what it does pretty simply. Where exactly are you confused?


√-1 2^3 ∑ π, and it was delicious!

Share this post


Link to post
Share on other sites
DoofGore
1 minute ago, JLogan3o13 said:

@DoofGore Did you read the help file entry for WinSetOnTop? It explains what it does pretty simply. Where exactly are you confused?

I am confused how to write this function to set the gui on top on button click : Can you please provide some examples? So I can learn it how to make this function work.. Thanks

Share this post


Link to post
Share on other sites
Bilgus
Posted (edited)

UH there is an example in the helpfile?

https://www.autoitscript.com/autoit3/docs/functions/WinSetOnTop.htm

;Example
#include <AutoItConstants.au3>

Example()

Func Example()
    ; Retrieve the handle of the active window.
    Local $hWnd = WinGetHandle("[ACTIVE]")

    ; Set the active window as being ontop using the handle returned by WinGetHandle.
    WinSetOnTop($hWnd, "", $WINDOWS_ONTOP)

    ; Wait for 2 seconds to display the change.
    Sleep(2000)

    ; Remove the "topmost" state from the active window.
    WinSetOnTop($hWnd, "", $WINDOWS_NOONTOP)
EndFunc   ;==>Example
#include <ButtonConstants.au3>
#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#Region ### START Koda GUI section ### Form=
Global $Form1 = GUICreate("Form1", 353, 209, 192, 114)
Global $ONTOPON = GUICtrlCreateButton("ON TOP ON", 32, 40, 137, 65)
Global $exit = GUICtrlCreateButton("EXIT", 105, 118, 137, 65)
GUICtrlSetFont(-1, 8, 800, 0, "MS Sans Serif")
Global $ONTOPOFF = GUICtrlCreateButton("ON TOP OFF", 184, 41, 137, 65)
GUISetState(@SW_SHOW)
#EndRegion ### END Koda GUI section ###

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit

        Case $ONTOPON
            Example($Form1, True)
        Case $ONTOPOFF
            Example($Form1, False)
        Case $exit
            Exit


    EndSwitch
WEnd


Func Example($hWnd, $bTrue)

    If Not IsHwnd($hWnd) Then Msgbox(0,"Error" "Invalid hWnd")
    If $bTrue Then
        ; Set the active window as being ontop using the handle YOU supply.
        WinSetOnTop($hWnd, "", $WINDOWS_ONTOP)
    Else
        ; Remove the "topmost" state from the handle YOU supply.
        WinSetOnTop($hWnd, "", $WINDOWS_NOONTOP)
    EndIF
EndFunc   ;==>Example
#include <AutoItConstants.au3>

    If Not IsHwnd($hWnd) Then Msgbox(0,"Error", "Invalid hWnd")



Edited by Bilgus
Couple Errors..
  • Thanks 1

Share this post


Link to post
Share on other sites
DoofGore

@Bilgus Thank you so much .... This is what i was asking for .. will give it a try now...

Share this post


Link to post
Share on other sites
DoofGore
Posted (edited)

Made Some changes and its working..  Thank you so much ... :)

#include <ButtonConstants.au3>
#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <MsgBoxConstants.au3>
#include <AutoItConstants.au3>
#Region ### START Koda GUI section ### Form=
Global $Form1 = GUICreate("Form1", 353, 209, 192, 114)
Global $ONTOPON = GUICtrlCreateButton("ON TOP ON", 32, 40, 137, 65)
Global $exit = GUICtrlCreateButton("EXIT", 105, 118, 137, 65)
GUICtrlSetFont(-1, 8, 800, 0, "MS Sans Serif")
Global $ONTOPOFF = GUICtrlCreateButton("ON TOP OFF", 184, 41, 137, 65)
GUISetState(@SW_SHOW)
#EndRegion ### END Koda GUI section ###

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit

        Case $ONTOPON
            Example($Form1, True)
        Case $ONTOPOFF
            Example($Form1, False)
        Case $exit
            Exit


    EndSwitch
WEnd


Func Example($Form1, $bTrue)
    ; Retrieve the handle of the active window.
    Local $hWnd = WinGetHandle("[ACTIVE]")
    If $bTrue Then
        ; Set the active window as being ontop using the handle returned by WinGetHandle.
        WinSetOnTop($hWnd, "", $WINDOWS_ONTOP)
    Else
        ; Wait for 2 seconds to display the change.
        Sleep(2000)

        ; Remove the "topmost" state from the active window.
        WinSetOnTop($hWnd, "", $WINDOWS_NOONTOP)
    EndIf
EndFunc   ;==>Example



Edited by DoofGore
