Help in line reflection inside rectangle {GDIPlus}

Recommended Posts

Alex1986
Posted (edited)

Hello

i have problem in the code

code:

#include <GDIPlus.au3>
#include <GUIConstantsEx.au3>

AutoItSetOption("MouseCoordMode", 2)
AutoItSetOption("GUIOnEventMode", 1)

Global Const $iW = 400, $iH = 400, $iBgColor = 0xF0F0F0
Global Const $hGUI = GUICreate("", $iW, $iH)
GUISetBkColor($iBgColor, $hGUI)
GUISetState()

_GDIPlus_Startup()
Global Const $hGraphic = _GDIPlus_GraphicsCreateFromHWND($hGUI)
Global Const $hPen1 = _GDIPlus_PenCreate(0xFF0000FF)
Global Const $hPen2 = _GDIPlus_PenCreate(0xFFFF0000)
Global Const $hBitmap = _GDIPlus_BitmapCreateFromScan0($iW, $iH)
Global Const $hCtxt = _GDIPlus_ImageGetGraphicsContext($hBitmap)
_GDIPlus_GraphicsSetSmoothingMode($hCtxt, 5)
_GDIPlus_GraphicsSetPixelOffsetMode($hCtxt, 4)

Global Const $iPosX = 50, $iPosY = 50, $iWidth = 300, $iHeight = 300
Global Const $fDeg = ACos(-1) / 180, $fRad = 180 / ACos(-1), $iWh = $iW / 2, $iHh = $iH / 2
Global $fDiameter1 = 30, $fRadius1 = $fDiameter1 / 2, _ ;circle 1
       $fDiameter2 = 30, $fRadius2 = $fDiameter2 / 2, _ ;circle 2
       $mpos, $mwx, $mwy, $pd

GUISetOnEvent($GUI_EVENT_CLOSE, "_Exit")

Do
    _GDIPlus_GraphicsClear($hCtxt, 0xFF000000 + $iBgColor)
    _GDIPlus_GraphicsDrawRect($hCtxt, $iPosX, $iPosY, $iWidth, $iHeight, $hPen1)
$iWidthh = @DesktopWidth
        $iHeighth = @DesktopHeight
    ; circle1
    _GDIPlus_GraphicsDrawEllipse($hCtxt , $iWh - $fRadius1, $iHh - $fRadius1, $fDiameter1 , $fDiameter1 , $hPen1)
    _GDIPlus_GraphicsDrawEllipse($hCtxt , $iWh  , $iHh  , 1 , 1 , $hPen1)
    ; circle2
    $mpos = MouseGetPos() ;get the mouse position
    $mwx = $mpos[0] - $iWh ;get the x coordinate
    $mwy = $iHh - $mpos[1] ;get the y coordinate
    $pd = Sqrt($iWh * $iHh + $mpos[0] * $mpos[1]) ;calculate the distance between mouse position and center
    $fAngle = 2 * -ATan($mwy / ($mwx + Sqrt($mwx * $mwx + $mwy * $mwy))) * $fRad ; calculate the angle between center and mouse position -> trigonometry ;-)

    $fDistance = $fRadius2 + $fRadius1 ;calculate the distance between both circles so that they always touch each other

    ;calculate x/y position of 2nd circle with a little adjustment
    $X1 = $iWh - $fRadius2 + Cos($fAngle * $fDeg) * ($fDistance + 1)
    $Y1 = $iHh - $fRadius2 + Sin($fAngle * $fDeg) * ($fDistance + 1)

    $hPos = MouseGetPos()

    $iWidthh = $iWh
    $iHeighth = $iHh
    $iMPosX = $hPos[0] < $iPosX ? $iPosX : $hPos[0] > $iPosX + $iWidthh ? $iPosX + $iWidthh : $hPos[0]
    $iMPosY = $hPos[1] < $iPosY ? $iPosY : $hPos[1] > $iPosY + $iHeighth ? $iPosY + $iHeighth : $hPos[1]

    $X1 = $iWh - $fRadius2 + Cos($fAngle * $fDeg) * ($fDistance + 1)
    $Y1 = $iHh - $fRadius2 + Sin($fAngle * $fDeg) * ($fDistance + 1)

    $X2 = $iWh - $fRadius1 + Cos($fAngle * $fDeg) * ($fDistance  - $iMPosX)
    $Y2 = $iHh - $fRadius1 + Sin($fAngle * $fDeg) * ($fDistance  - $iMPosY)

    _GDIPlus_GraphicsDrawEllipse($hCtxt , $X1 + $fRadius2, $Y1 + $fRadius2 , 1, 1, $hPen2) ;center of circle 2

    _GDIPlus_GraphicsDrawEllipse($hCtxt , $X1 , $Y1 , $fDiameter2 , $fDiameter2 , $hPen2) ;circle 2

    _GDIPlus_GraphicsDrawline($hCtxt , $X1 + $fRadius2 , $Y1 + $fRadius2 , $X2 + $fRadius2  , $Y2 + $fRadius2  , $hPen2)

    _GDIPlus_GraphicsDrawImageRect($hGraphic, $hBitmap, 0, 0, $iW, $iH)
Until Not Sleep(30)

Func _Exit()
    _GDIPlus_GraphicsDispose($hGraphic)
    _GDIPlus_GraphicsDispose($hCtxt)
    _GDIPlus_BitmapDispose($hBitmap)
    _GDIPlus_PenDispose($hPen1)
    _GDIPlus_PenDispose($hPen2)
    _GDIPlus_Shutdown()
    GUIDelete()
    Exit
EndFunc



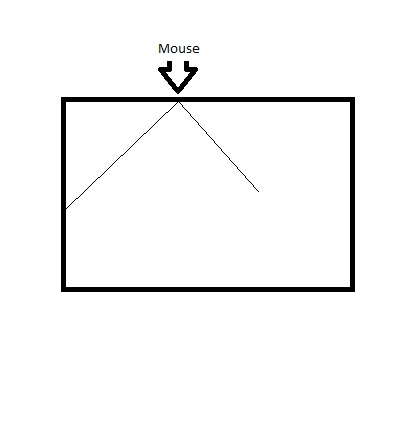

I want to reflect the line inside the rectangle, and also the red line does not cut the mid-diameter of the blue circle well


Edited by Alex1986

Share this post


Link to post
Share on other sites
Alex1986

,.....

Share this post


Link to post
Share on other sites
JLogan3o13
Posted (edited)

@Alex1986 please do not bump your post without waiting 24 hours. Everyone here is a volunteer, and the person best suited to answer the question may be on the other side of the world. This may be the most important thing in the world to you, but show some patience.

Edited by JLogan3o13

√-1 2^3 ∑ π, and it was delicious!

Share this post


Link to post
Share on other sites
Alex1986
Posted (edited)

No one wants to help me :(
posted the topic 24 hours ago.








this simple code , to make it easier for you to help me

#include <GDIplus.au3>

AutoItSetOption("MouseCoordMode", 0)

Global Const $iW = 400, $iH = 400, $iBgColor = 0xF0F0F0
Global Const $hGUI = GUICreate("", $iW, $iH)
GUISetBkColor($iBgColor, $hGUI)
GUISetState()

_GDIPlus_Startup()
$hGraphic = _GDIPlus_GraphicsCreateFromHWND($hGUI)
$hPen = _GDIPlus_PenCreate()
$hBitmap = _GDIPlus_BitmapCreateFromScan0($iW, $iH)
$hCtxt = _GDIPlus_ImageGetGraphicsContext($hBitmap)
_GDIPlus_GraphicsSetSmoothingMode($hCtxt, 4)

Global Const $iPosX = 50, $iPosY = 50, $iWidth = 300, $iHeight = 300

Global $iMPosX, $iMPosY
Do
    _GDIPlus_GraphicsClear($hCtxt, 0xFF000000 + $iBgColor)
    _GDIPlus_GraphicsDrawRect($hCtxt, $iPosX, $iPosY, $iWidth, $iHeight, $hPen)
    $hPos = GUIGetCursorInfo($hGUI)
    $iMPosX = $hPos[0] < $iPosX ? $iPosX : $hPos[0] > $iPosX + $iWidth ? $iPosX + $iWidth : $hPos[0]
    $iMPosY = $hPos[1] < $iPosY ? $iPosY : $hPos[1] > $iPosY + $iHeight ? $iPosY + $iHeight : $hPos[1]
    _GDIPlus_GraphicsDrawLine($hCtxt, $iW / 2, $iH / 2, $iMPosX, $iMPosY, $hPen)
    _GDIPlus_GraphicsDrawImageRect($hGraphic, $hBitmap, 0, 0, $iW, $iH)
Until GUIGetMsg() = -3

_GDIPlus_GraphicsDispose($hGraphic)
_GDIPlus_GraphicsDispose($hCtxt)
_GDIPlus_BitmapDispose($hBitmap)
_GDIPlus_PenDispose($hPen)
_GDIPlus_Shutdown()
GUIDelete()





Edited by Alex1986

Share this post


Link to post
Share on other sites
Alex1986

up  , 48 h

Share this post


Link to post
Share on other sites
seandisanti

I'm sorry, I'm not really sure what you're asking. Are you getting an error with your code? What is it doing that it shouldn't be doing, or what do you need help with?

Share this post


Link to post
Share on other sites
LarsJ

You can start with this:

#include <GDIPlus.au3>
#include <GUIConstantsEx.au3>

AutoItSetOption("MouseCoordMode", 2)
AutoItSetOption("GUIOnEventMode", 1)

Global Const $iW = 400, $iH = 400, $iBgColor = 0xF0F0F0
Global Const $hGUI = GUICreate("", $iW, $iH)
GUISetBkColor($iBgColor, $hGUI)
GUISetState()

_GDIPlus_Startup()
Global Const $hGraphic = _GDIPlus_GraphicsCreateFromHWND($hGUI)
Global Const $hPen1 = _GDIPlus_PenCreate(0xFF0000FF) ; blå
Global Const $hPen2 = _GDIPlus_PenCreate(0xFFFF0000)
Global Const $hBitmap = _GDIPlus_BitmapCreateFromScan0($iW, $iH)
Global Const $hCtxt = _GDIPlus_ImageGetGraphicsContext($hBitmap)
_GDIPlus_GraphicsSetSmoothingMode($hCtxt, 5)
_GDIPlus_GraphicsSetPixelOffsetMode($hCtxt, 4)

Global Const $iPosX = 50, $iPosY = 50, $iWidth = 300, $iHeight = 300
Global Const $fDeg = ACos(-1) / 180, $fRad = 180 / ACos(-1), $iWh = $iW / 2, $iHh = $iH / 2
Global $fDiameter = 30, $fRadius = $fDiameter / 2, _ ; circles
       $mpos, $mwx, $mwy, $pd

GUISetOnEvent($GUI_EVENT_CLOSE, "_Exit")

Do
  _GDIPlus_GraphicsClear($hCtxt, 0xFF000000 + $iBgColor)
  _GDIPlus_GraphicsDrawRect($hCtxt, $iPosX, $iPosY, $iWidth, $iHeight, $hPen1)
  $iWidthh = @DesktopWidth
  $iHeighth = @DesktopHeight
  ; circle1
  _GDIPlus_GraphicsDrawEllipse($hCtxt , $iWh - $fRadius, $iHh - $fRadius, $fDiameter , $fDiameter , $hPen1)
  _GDIPlus_GraphicsDrawEllipse($hCtxt , $iWh  , $iHh  , 1 , 1 , $hPen1)
  ; circle2
  $mpos = MouseGetPos() ;get the mouse position
  $mwx = $mpos[0] - $iWh ;get the x coordinate
  $mwy = $iHh - $mpos[1] ;get the y coordinate
  $pd = Sqrt($iWh * $iHh + $mpos[0] * $mpos[1]) ;calculate the distance between mouse position and center
  $fAngle = 2 * -ATan($mwy / ($mwx + Sqrt($mwx * $mwx + $mwy * $mwy))) * $fRad ; calculate the angle between center and mouse position -> trigonometry ;-)

  $fDistance = $fDiameter ;calculate the distance between both circles so that they always touch each other

  ;calculate x/y position of 2nd circle with a little adjustment
  $x = $iWh - $fRadius + Cos($fAngle * $fDeg) * ($fDistance + 1)
  $y = $iHh - $fRadius + Sin($fAngle * $fDeg) * ($fDistance + 1)

  $hPos = MouseGetPos()

  $iWidthh = $iWh
  $iHeighth = $iHh
  $iMPosX = $hPos[0] < $iPosX ? $iPosX : $hPos[0] > $iPosX + $iWidthh ? $iPosX + $iWidthh : $hPos[0]
  $iMPosY = $hPos[1] < $iPosY ? $iPosY : $hPos[1] > $iPosY + $iHeighth ? $iPosY + $iHeighth : $hPos[1]

  $x = $iWh + Cos($fAngle * $fDeg) * ($fDistance + 1)
  $y = $iHh + Sin($fAngle * $fDeg) * ($fDistance + 1)

  _GDIPlus_GraphicsDrawEllipse($hCtxt , $x, $y, 1, 1, $hPen2) ;center of circle 2

  _GDIPlus_GraphicsDrawEllipse($hCtxt , $x - $fRadius , $y - $fRadius , $fDiameter , $fDiameter , $hPen2) ;circle 2

  ;_GDIPlus_GraphicsDrawline($hCtxt , $x, $y, 200  , 200  , $hPen2)

  $m = ( 200 - $y ) / ( 200 - $x ) ; slope
  $fSqrt = 4 * Sqrt( $fDiameter )
  If $x < 200 - $fSqrt Then
    ; Right line section
    $x1 = $x
    $y1 = $m * $x1 - $m * 200 + 200
    $x2 = 350
    $y2 = $m * $x2 - $m * 200 + 200
    _GDIPlus_GraphicsDrawline($hCtxt, $x1, $y1, $x2, $y2, $hPen2)
    _GDIPlus_GraphicsDrawline($hCtxt, $x2, $y2, $x1, $y2 + $y2 - $y1, $hPen2)
  ElseIf $x >= 200 - $fSqrt And $x <= 200 + $fSqrt Then
    If $y < 200 Then
      ; Bottom line section
      $y1 = $y
      $x1 = ( $y1 - 200 ) / $m + 200
      $y2 = 350
      $x2 = ( $y2 - 200 ) / $m + 200
      _GDIPlus_GraphicsDrawline($hCtxt, $x1, $y1, $x2, $y2, $hPen2)
      _GDIPlus_GraphicsDrawline($hCtxt, $x2, $y2, $x2 + $x2 - $x1, $y1, $hPen2)
    Else
      ; Top line section
      $y1 = $y
      $x1 = ( $y1 - 200 ) / $m + 200
      $y2 = 50
      $x2 = ( $y2 - 200 ) / $m + 200
      _GDIPlus_GraphicsDrawline($hCtxt, $x1, $y1, $x2, $y2, $hPen2)
      _GDIPlus_GraphicsDrawline($hCtxt, $x2, $y2, $x2 + $x2 - $x1, $y1, $hPen2)
    EndIf
  Else ; $x > 200 + $fSqrt
    ; Left line section
    $x1 = $x
    $y1 = $m * $x1 - $m * 200 + 200
    $x2 = 50
    $y2 = $m * $x2 - $m * 200 + 200
    _GDIPlus_GraphicsDrawline($hCtxt, $x1, $y1, $x2, $y2, $hPen2)
    _GDIPlus_GraphicsDrawline($hCtxt, $x2, $y2, $x1, $y2 + $y2 - $y1, $hPen2)
  EndIf

  _GDIPlus_GraphicsDrawImageRect($hGraphic, $hBitmap, 0, 0, $iW, $iH)
Until Not Sleep(10)

Func _Exit()
    _GDIPlus_GraphicsDispose($hGraphic)
    _GDIPlus_GraphicsDispose($hCtxt)
    _GDIPlus_BitmapDispose($hBitmap)
    _GDIPlus_PenDispose($hPen1)
    _GDIPlus_PenDispose($hPen2)
    _GDIPlus_Shutdown()
    GUIDelete()
    Exit
EndFunc



  • Thanks 1

Share this post


Link to post
Share on other sites
LarsJ

The zip file below contains small scripts that develops the code in five steps. The final GUI looks like this:

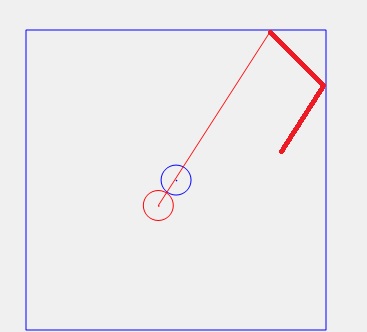

When you move the mouse in a circle, the red circle rolls around the periphery of the blue circle.

From the center of the red circle, a line is drawn through the center of the blue circle until it hits one of the edges of the square.

Here the line is reflected until it hits a new edge and is reflected again.

Note check for invalid angles this way:

If $fAngle == "-1.#IND" Then

You should try it. It looks pretty amazing.

Alex1986, Interesting topic.

Reflection.7z

  • Thanks 1

Share this post


Link to post
Share on other sites
Alex1986
Posted (edited)

Thank You LarsJ :thumbsup:



If the rectangular shape is how we do this

Why is this number 200 repeated and 350 ?

        $m = ( 200 - $y ) / ( 200 - $x ) ; Slope
        If $x <= 200 - $fSqrt Or $x > 200 + $fSqrt Then
            ; Right/left line sections of square
            $x1 = $x
            $y1 = $m * $x1 - $m * 200 + 200
            $x2 = $x < 200 ? 350 : 50
            $y2 = $m * $x2 - $m * 200 + 200
            _GDIPlus_GraphicsDrawline( $hCtxt, $x1, $y1, $x2, $y2, $hRed )
        ElseIf $x > 200 - $fSqrt And $x <= 200 + $fSqrt Then
            ; Bottom/top line sections of square
            $y1 = $y
            $x1 = ( $y1 - 200 ) / $m + 200
            $y2 = $y < 200 ? 350 : 50
            $x2 = ( $y2 - 200 ) / $m + 200
            _GDIPlus_GraphicsDrawline( $hCtxt, $x1, $y1, $x2, $y2, $hRed )
        EndIf





#include <GDIPlus.au3>
#include <GUIConstantsEx.au3>

AutoItSetOption( "GUIOnEventMode", 1 )
AutoItSetOption( "MouseCoordMode", 2 )
AutoItSetOption( "MustDeclareVars", 1 )

Global $iW = 600, $iH = 400, $iBgColor = 0xF0F0F0
Global $hGUI = GUICreate("", $iW, $iH)

_GDIPlus_Startup()
Global $hGraphic = _GDIPlus_GraphicsCreateFromHWND($hGUI)
Global $hBlue = _GDIPlus_PenCreate(0xFF0000FF) ; Blue
Global $hRed = _GDIPlus_PenCreate(0xFFFF0000) ; Red
Global $hBitmap = _GDIPlus_BitmapCreateFromScan0($iW, $iH)
Global $hCtxt = _GDIPlus_ImageGetGraphicsContext($hBitmap)

Example()

Func Example()
    GUISetOnEvent($GUI_EVENT_CLOSE, "_Exit")
    GUISetBkColor($iBgColor, $hGUI)

    _GDIPlus_GraphicsSetSmoothingMode($hCtxt, 5)
    _GDIPlus_GraphicsSetPixelOffsetMode($hCtxt, 4)

    Local $iPosX = 25, $iPosY = 50, $iWidth = 550, $iHeight = 300
    Local $fDeg = ACos(-1) / 180, $fRad = 180 / ACos(-1), $iWh = $iW / 2, $iHh = $iH / 2
    Local $fDiameter = 30, $fRadius = $fDiameter / 2, _
          $mpos, $mwx, $mwy, $pd, $fAngle, $fDistance, $x, $y
    Local $m, $fSqrt = 4 * Sqrt( $fDiameter ), $x1, $y1, $x2, $y2

    GUISetState()
    Do
        ; Square
        _GDIPlus_GraphicsClear($hCtxt, 0xFF000000 + $iBgColor)
        _GDIPlus_GraphicsDrawRect($hCtxt, $iPosX, $iPosY, $iWidth, $iHeight, $hBlue)

        ; Blue circle
        _GDIPlus_GraphicsDrawEllipse($hCtxt , $iWh - $fRadius, $iHh - $fRadius, $fDiameter , $fDiameter , $hBlue)
        _GDIPlus_GraphicsDrawEllipse($hCtxt , $iWh  , $iHh  , 1 , 1 , $hBlue)

        ; Red circle
        $mpos = MouseGetPos() ;get the mouse position
        $mwx = $mpos[0] - $iWh ;get the x coordinate
        $mwy = $iHh - $mpos[1] ;get the y coordinate
        $fAngle = 2 * -ATan($mwy / ($mwx + Sqrt($mwx * $mwx + $mwy * $mwy))) * $fRad ; calculate the angle between center and mouse position -> trigonometry ;-)

        $fDistance = $fRadius + $fRadius ;calculate the distance between both circles so that they always touch each other

        ; Center of red circle
        If $fAngle == "-1.#IND" Then
            $x = 169
            $y = 200
        Else
            $x = $iWh + Cos($fAngle * $fDeg) * ($fDistance + 1)
            $y = $iHh + Sin($fAngle * $fDeg) * ($fDistance + 1)
        EndIf

        _GDIPlus_GraphicsDrawEllipse( $hCtxt, $x, $y, 1, 1, $hRed )                                         ; Draw center of red circle
        _GDIPlus_GraphicsDrawEllipse( $hCtxt, $x - $fRadius, $y - $fRadius, $fDiameter, $fDiameter, $hRed ) ; Draw red circle


        ; Draw line from red center to square
        $m = ( 200 - $y ) / ( 200 - $x ) ; Slope
        If $x <= 200 - $fSqrt Or $x > 200 + $fSqrt Then
            ; Right/left line sections of square
            $x1 = $x
            $y1 = $m * $x1 - $m * 200 + 200
            $x2 = $x < 200 ? 350 : 50
            $y2 = $m * $x2 - $m * 200 + 200
            _GDIPlus_GraphicsDrawline( $hCtxt, $x1, $y1, $x2, $y2, $hRed )
        ElseIf $x > 200 - $fSqrt And $x <= 200 + $fSqrt Then
            ; Bottom/top line sections of square
            $y1 = $y
            $x1 = ( $y1 - 200 ) / $m + 200
            $y2 = $y < 200 ? 350 : 50
            $x2 = ( $y2 - 200 ) / $m + 200
            _GDIPlus_GraphicsDrawline( $hCtxt, $x1, $y1, $x2, $y2, $hRed )
        EndIf

        _GDIPlus_GraphicsDrawImageRect( $hGraphic, $hBitmap, 0, 0, $iW, $iH )                               ; Draw square
    Until Not Sleep(10)
EndFunc

Func _Exit()
    _GDIPlus_GraphicsDispose($hGraphic)
    _GDIPlus_GraphicsDispose($hCtxt)
    _GDIPlus_BitmapDispose($hBitmap)
    _GDIPlus_PenDispose($hBlue)
    _GDIPlus_PenDispose($hRed)
    _GDIPlus_Shutdown()
    GUIDelete()
    Exit
EndFunc



Edited by Alex1986

Share this post


Link to post
Share on other sites
LarsJ
Posted (edited)

The coordinates of the circle center and the sides of the rectangle are used all the time and are therefore repeated many times.

The zip file below contains small scripts that develops the code in five steps.

This is the final code:

#include <GDIPlus.au3>
#include <GUIConstantsEx.au3>

AutoItSetOption( "GUIOnEventMode", 1 )
AutoItSetOption( "MouseCoordMode", 2 )
AutoItSetOption( "MustDeclareVars", 1 )

Global $iW = 600, $iH = 400, $iBgColor = 0xF0F0F0
Global $hGUI = GUICreate("", $iW, $iH)

_GDIPlus_Startup()
Global $hGraphic = _GDIPlus_GraphicsCreateFromHWND($hGUI)
Global $hBlue = _GDIPlus_PenCreate(0xFF0000FF) ; Blue
Global $hRed = _GDIPlus_PenCreate(0xFFFF0000) ; Red
Global $hBitmap = _GDIPlus_BitmapCreateFromScan0($iW, $iH)
Global $hCtxt = _GDIPlus_ImageGetGraphicsContext($hBitmap)

Example()

Func Example()
  GUISetOnEvent($GUI_EVENT_CLOSE, "_Exit")
  GUISetBkColor($iBgColor, $hGUI)

  _GDIPlus_GraphicsSetSmoothingMode($hCtxt, 5)
  _GDIPlus_GraphicsSetPixelOffsetMode($hCtxt, 4)

  Local $iPosX = 25, $iPosY = 25, $iWidth = 550, $iHeight = 350, $fSlope = $iHeight / $iWidth
  Local $fDeg = ACos(-1) / 180, $fRad = 180 / ACos(-1), $iWh = $iW / 2, $iHh = $iH / 2
  Local $fDiameter = 30, $fRadius = $fDiameter / 2, _
        $mpos, $mwx, $mwy, $pd, $fAngle, $fDistance, $x, $y
  Local $m1, $m2, $x1, $y1, $x2, $y2, $i = 1

  GUISetState()
  Do
    ; Square
    _GDIPlus_GraphicsClear($hCtxt, 0xFF000000 + $iBgColor)
    _GDIPlus_GraphicsDrawRect($hCtxt, $iPosX, $iPosY, $iWidth, $iHeight, $hBlue)

    ; Blue circle
    _GDIPlus_GraphicsDrawEllipse($hCtxt , $iWh - $fRadius, $iHh - $fRadius, $fDiameter , $fDiameter , $hBlue)
    _GDIPlus_GraphicsDrawEllipse($hCtxt , $iWh  , $iHh  , 1 , 1 , $hBlue)

    ; Red circle
    $mpos = MouseGetPos() ;get the mouse position
    $mwx = $mpos[0] - $iWh ;get the x coordinate
    $mwy = $iHh - $mpos[1] ;get the y coordinate
    $fAngle = 2 * -ATan($mwy / ($mwx + Sqrt($mwx * $mwx + $mwy * $mwy))) * $fRad ; calculate the angle between center and mouse position -> trigonometry ;-)

    $fDistance = $fRadius + $fRadius ;calculate the distance between both circles so that they always touch each other

    ; Center of red circle
    If $fAngle == "-1.#IND" Then
      $x = 269
      $y = 200
    Else
      $x = $iWh + Cos($fAngle * $fDeg) * ($fDistance + 1)
      $y = $iHh + Sin($fAngle * $fDeg) * ($fDistance + 1)
    EndIf

    _GDIPlus_GraphicsDrawEllipse( $hCtxt, $x, $y, 1, 1, $hRed )                                         ; Draw center of red circle
    _GDIPlus_GraphicsDrawEllipse( $hCtxt, $x - $fRadius, $y - $fRadius, $fDiameter, $fDiameter, $hRed ) ; Draw red circle
    ;_GDIPlus_GraphicsDrawline( $hCtxt, $x, $y, 300, 200, $hRed )                                        ; Draw line from red center to blue center

    #cs Formulas
    Slope for line through points a and b
    $m = ( $yb - $ya ) / ( $xb - $xa ) =>
    $m * ( $xb - $xa ) = ( $yb - $ya ) =>

    Calculate $xa if $ya is known
    $xb - $xa = ( $yb - $ya ) / $m     =>
    -$xa = ( $yb - $ya ) / $m - $xb    =>
    $xa = $xb - ( $yb - $ya ) / $m

    Calculate $ya if $xa is known
    $yb - $ya = $m * ( $xb - $xa )     =>
    -$ya = $m * ( $xb - $xa ) - $yb    =>
    $ya = $yb - $m * ( $xb - $xa )
    #ce

    ; Draw line from red center to rectangle
    $m1 = ( 200 - $y ) / ( 300 - $x ) ; Slope
    If $m1 > -$fSlope And $m1 < $fSlope Then
      ; Right/left line sections of rectangle
      $x1 = $x
      $y1 = $m1 * $x1 - $m1 * 300 + 200
      $x2 = $x < 300 ? 575 : 25
      $y2 = $m1 * $x2 - $m1 * 300 + 200
      _GDIPlus_GraphicsDrawline( $hCtxt, $x1, $y1, $x2, $y2, $hRed )

      ; Draw first reflection line (mirror line)
      ; The line starts in $x2, $y2 where the previous line stopped
      ; The end point $x1, $y2 + $y2 - $y1 is the reflection of the previous start point about the horizontal line $y = $y2
      ;_GDIPlus_GraphicsDrawline( $hCtxt, $x2, $y2, $x1, $y2 + $y2 - $y1, $hRed )

      ; Note that this part of the code is still about the red line from the center of the red circle to the right/left line sections of the rectangle
      ; The first reflection line we drew above is either too short or too long, it should end exactly on one of the four rectangle lines
      ; From the start and end points of the first reflection line we can calculate the slope of the line
      $m2 = ( $y2 - $y1 ) / ( $x1 - $x2 ) ; $m2 = ( $yb - $ya ) / ( $xb - $xa ) with a = ($x2, $y2) and b = ($x1, $y2 + $y2 - $y1)
      $y1 = $y2 + $y2 - $y1
      $y1 = $y1 < 200 ? 25 : 375 ; $ya is known
      $x1 = $x2 - ( $y2 - $y1 ) / $m2 ; $xa = $xb - ( $yb - $ya ) / $m
      If $x1 < 25 Or $x1 > 575 Then
        $x1 = $x1 < 25 ? 25 : 575 ; $xa is known
        $y1 = $y2 - $m2 * ( $x2 - $x1 ) ; $ya = $yb - $m * ( $xb - $xa )
      EndIf
      _GDIPlus_GraphicsDrawline( $hCtxt, $x2, $y2, $x1, $y1, $hRed )

      ; Draw second reflection line, slope = $m1
      If $y1 > 25 And $y1 < 375 Then
        $y2 = $y1 < 200 ? 25 : 375 ; $ya is known
        $x2 = $x1 - ( $y1 - $y2 ) / $m1 ; $xa = $xb - ( $yb - $ya ) / $m
        If $x2 < 25 Or $x2 > 575 Then
          $x2 = $x2 < 25 ? 25 : 575 ; $xa is known
          $y2 = $y1 - $m1 * ( $x1 - $x2 ) ; $ya = $yb - $m * ( $xb - $xa )
        EndIf
      Else ; $y1 = 25 Or $y1 = 375
        $x2 = $x < 300 ? 25 : 575 ; $xa is known
        $y2 = $y1 - $m1 * ( $x1 - $x2 ) ; $ya = $yb - $m * ( $xb - $xa )
      EndIf
      _GDIPlus_GraphicsDrawline( $hCtxt, $x1, $y1, $x2, $y2, $hRed )
    Else
      ; Bottom/top line sections of rectangle
      $y1 = $y
      $x1 = ( $y1 - 200 ) / $m1 + 300
      $y2 = $y < 200 ? 375 : 25
      $x2 = ( $y2 - 200 ) / $m1 + 300
      _GDIPlus_GraphicsDrawline( $hCtxt, $x1, $y1, $x2, $y2, $hRed )
      ;_GDIPlus_GraphicsDrawline( $hCtxt, $x2, $y2, $x2 + $x2 - $x1, $y1, $hRed )
      $m2 = ( $y1 - $y2 ) / ( $x2 - $x1 ) ; $m2 = ( $yb - $ya ) / ( $xb - $xa ) with a = ($x2, $y2) and b = ($x2 + $x2 - $x1, $y1)
      $x1 = $x2 + $x2 - $x1
      $x1 = $x1 < 300 ? 25 : 575 ; $xa is known
      $y1 = $y2 - $m2 * ( $x2 - $x1 ) ; $ya = $yb - $m * ( $xb - $xa )
      If $y1 < 25 Or $y1 > 375 Then
        $y1 = $y1 < 25 ? 25 : 375 ; $ya is known
        $x1 = $x2 - ( $y2 - $y1 ) / $m2 ; $xa = $xb - ( $yb - $ya ) / $m
      EndIf
      _GDIPlus_GraphicsDrawline( $hCtxt, $x2, $y2, $x1, $y1, $hRed )

      ; Draw second reflection line, slope = $m1
      If $x1 > 25 And $x1 < 575 Then
        $x2 = $x1 < 300 ? 25 : 575 ; $xa is known
        $y2 = $y1 - $m1 * ( $x1 - $x2 ) ; $ya = $yb - $m * ( $xb - $xa )
        If $y2 < 25 Or $y2 > 375 Then
          $y2 = $y2 < 25 ? 25 : 375 ; $ya is known
          $x2 = $x1 - ( $y1 - $y2 ) / $m1 ; $xa = $xb - ( $yb - $ya ) / $m
        EndIf
      Else ; $x1 = 25 Or $x1 = 575
        $y2 = $y < 200 ? 25 : 375 ; $ya is known
        $x2 = $x1 - ( $y1 - $y2 ) / $m1 ; $xa = $xb - ( $yb - $ya ) / $m
      EndIf
      _GDIPlus_GraphicsDrawline( $hCtxt, $x1, $y1, $x2, $y2, $hRed )
    EndIf

    _GDIPlus_GraphicsDrawImageRect( $hGraphic, $hBitmap, 0, 0, $iW, $iH )                               ; Draw square
  Until Not Sleep(10)
EndFunc

Func _Exit()
  _GDIPlus_GraphicsDispose($hGraphic)
  _GDIPlus_GraphicsDispose($hCtxt)
  _GDIPlus_BitmapDispose($hBitmap)
  _GDIPlus_PenDispose($hBlue)
  _GDIPlus_PenDispose($hRed)
  _GDIPlus_Shutdown()
  GUIDelete()
  Exit
EndFunc

ReflectionRect.7z

Edited by LarsJ

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
Sign in to follow this

×
