Getting state from a Check Box in another program

DazGizmo
 Share

Recommended Posts

DazGizmo Seeker

DazGizmo

Posted
Posted

Really battling with this one as I cannot get the info of the state of the Checkbox... using and testing many references for "IsChecked" to no avail...

Anything I am doing wrong or you can suggest please?

Tries:

1. ControlFocus($hWnd, "Material Editor", "[HANDLE:0x00000000000814B4]") ;Fresnel True
            Send("{+}")

2.  ControlCommand($hWnd, "Material Editor", "[CLASSNN:WindowsForms10.BUTTON.app.0.32b818c_r12_ad118]", "IsChecked", "")

3. ControlCommand($hWnd, "Material Editor", "[NAME:FresnelCheckBox]", "IsChecked", "")



These work but do the same thing:

ControlCommand($hWnd, "Material Editor", "[NAME:FresnelCheckBox]", "Check", "")  ;will uncheck if already checked

ControlCommand($hWnd, "Material Editor", "[NAME:FresnelCheckBox]", "UnCheck", "") ;will check if already unchecked

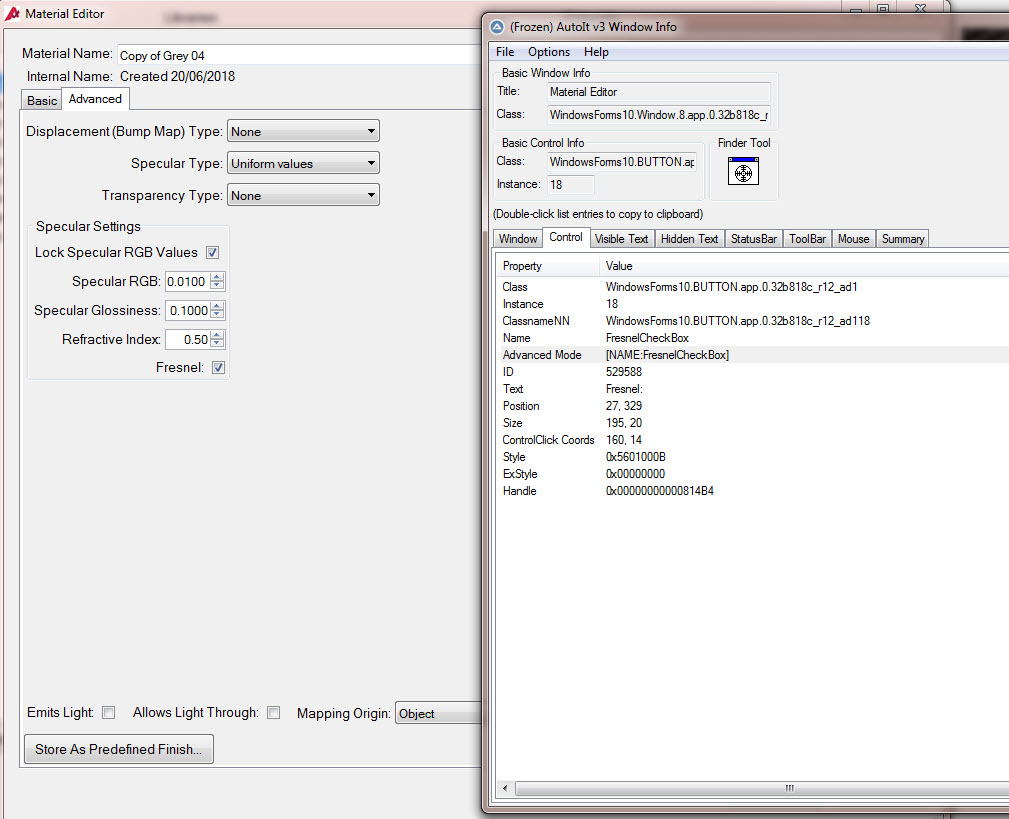

ARtiCAD V21 - Cannot get ticked state from the Fresnel Tick Box.jpg

Malkey Universalist

Malkey

Posted
Posted

Try this example.
It successfully returned the state of a checkbox in the AutoIt help file.

I have modified this script for your  needs.

#include <GUIConstantsEx.au3>
#include <MsgBoxConstants.au3>

Example()


Func Example()
    Local $sWinTitle = "Material Editor" ; Tested on "AutoIt Help (v3.3.14.5)" window.
    WinActivate($sWinTitle, "")
    WinWaitActive($sWinTitle, "")

    ;If _IsChecked($sWinTitle, 'Button4') Then ; Again tested on 'Button4' - Under Search tab of AutoIt Help Window.
    If _IsChecked($sWinTitle, "WindowsForms10.BUTTON.app.0.32b818c_r12_ad118") Then
        MsgBox(0, "", "The checkbox is checked.")
    Else
        MsgBox(0, "", "The checkbox is not checked.")
    EndIf
EndFunc   ;==>Example

; Modified from GUICtrlCreateCheckbox function example in AutoIt Help file.
Func _IsChecked($sWinTitle, $sControlClassnameNN)
    ;Return BitAND(GUICtrlRead($idControlID), $GUI_CHECKED) = $GUI_CHECKED
    Return ControlCommand($sWinTitle, "", $sControlClassnameNN, "IsChecked", "")
EndFunc   ;==>_IsChecked



DazGizmo Seeker

DazGizmo

Posted
  • Author
Posted
  On 6/20/2018 at 10:50 PM, Malkey said:

Try this example.
It successfully returned the state of a checkbox in the AutoIt help file.

I have modified this script for your  needs.

#include <GUIConstantsEx.au3>
#include <MsgBoxConstants.au3>

Example()


Func Example()
    Local $sWinTitle = "Material Editor" ; Tested on "AutoIt Help (v3.3.14.5)" window.
    WinActivate($sWinTitle, "")
    WinWaitActive($sWinTitle, "")

    ;If _IsChecked($sWinTitle, 'Button4') Then ; Again tested on 'Button4' - Under Search tab of AutoIt Help Window.
    If _IsChecked($sWinTitle, "WindowsForms10.BUTTON.app.0.32b818c_r12_ad118") Then
        MsgBox(0, "", "The checkbox is checked.")
    Else
        MsgBox(0, "", "The checkbox is not checked.")
    EndIf
EndFunc   ;==>Example

; Modified from GUICtrlCreateCheckbox function example in AutoIt Help file.
Func _IsChecked($sWinTitle, $sControlClassnameNN)
    ;Return BitAND(GUICtrlRead($idControlID), $GUI_CHECKED) = $GUI_CHECKED
    Return ControlCommand($sWinTitle, "", $sControlClassnameNN, "IsChecked", "")
EndFunc   ;==>_IsChecked



Expand

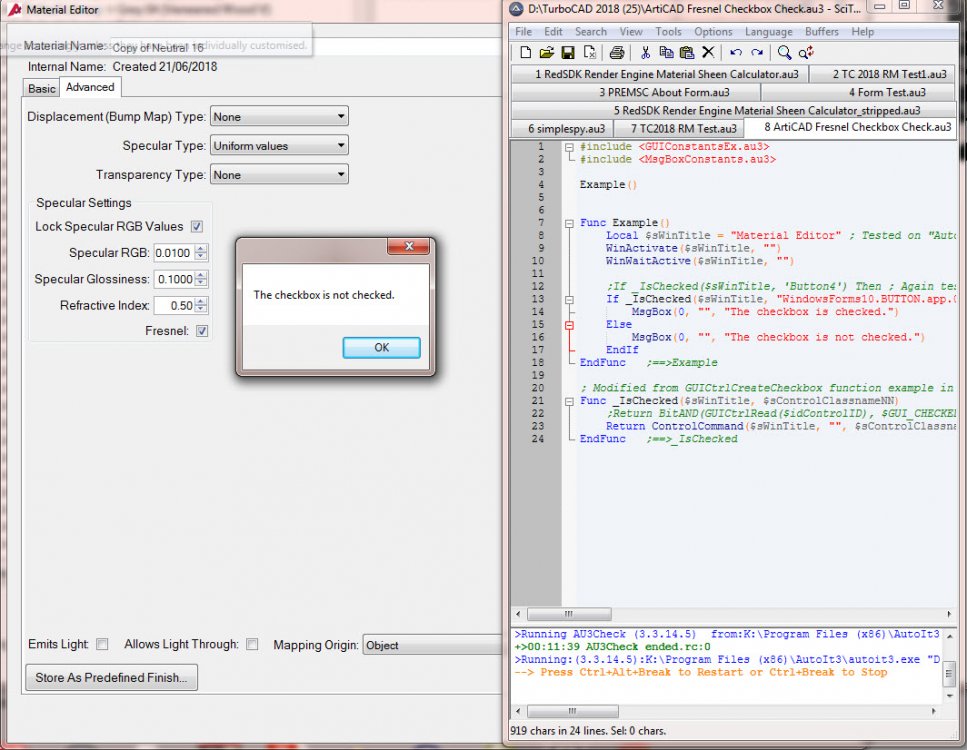

Many Thanks Malkey for your efforts but it is not returning the correct state as it says Not Checked when It is Checked....
Could it be anything to do with the program being 64bit?

ArtiCAD V21 - Fresnel Checkbox code not returning correct state.jpg

jdelaney Universalist

jdelaney

Posted
Posted (edited)

I believe that windowform controls use a type of guid at runtime for the ID and class...you should probably use the name.

https://www.autoitscript.com/autoit3/docs/intro/controls.htm

[NAME:FresnelCheckBox]

Use ControlGetHandle to first get the handle of the control...output that so that you can check that you even have the correct 'button' before even sending it (the handle) to the _IsChecked function.



Try this:

Func Example()
    Local $sWinTitle = "Material Editor"
    $hWin = WinGetHandle($sWinTitle)
    If Not IsHWnd($hWind) Then
        MsgBox(1,1,"window does not exist")
        Return False
    EndIf
    WinActivate($hWin)
    $hControl = ControlGetHandle($hWin,"","[NAME:FresnelCheckBox]")
    If Not IsHWnd($hControl) Then
        MsgBox(1,1,"couldn't identify control")
        Return False
    EndIf

    MsgBox(1,1,"Control found with handle=[" & $hControl & "]")

    If _IsChecked($hWin,$hControl) Then
        MsgBox(0, "", "The checkbox is checked.")
    Else
        MsgBox(0, "", "The checkbox is not checked.")
    EndIf
EndFunc   ;==>Example

Func _IsChecked($hWindow,$hControl)
    Return ControlCommand($hWindow,"",$hControl,"IsChecked","")
EndFunc   ;==>_IsChecked



In regards to your 64bit question: no, that does not matter.

Edited by jdelaney
IEbyXPATH-Grab IE DOM objects by XPATH IEscriptRecord-Makings of an IE script recorder ExcelFromXML-Create Excel docs without excel installed GetAllWindowControls-Output all control data on a given window.
DazGizmo Seeker

DazGizmo

Posted
  • Author
Posted
  On 6/21/2018 at 12:32 AM, jdelaney said:

I believe that windowform controls use a type of guid at runtime for the ID and class...you should probably use the name.

https://www.autoitscript.com/autoit3/docs/intro/controls.htm

[NAME:FresnelCheckBox]

Use ControlGetHandle to first get the handle of the control...output that so that you can check that you even have the correct 'button' before even sending it (the handle) to the _IsChecked function.



Try this:

Func Example()
    Local $sWinTitle = "Material Editor"
    $hWin = WinGetHandle($sWinTitle)
    If Not IsHWnd($hWind) Then
        MsgBox(1,1,"window does not exist")
        Return False
    EndIf
    WinActivate($hWin)
    $hControl = ControlGetHandle($hWin,"","[NAME:FresnelCheckBox]")
    If Not IsHWnd($hControl) Then
        MsgBox(1,1,"couldn't identify control")
        Return False
    EndIf

    MsgBox(1,1,"Control found with handle=[" & $hControl & "]")

    If _IsChecked($hWin,$hControl) Then
        MsgBox(0, "", "The checkbox is checked.")
    Else
        MsgBox(0, "", "The checkbox is not checked.")
    EndIf
EndFunc   ;==>Example

Func _IsChecked($hWindow,$hControl)
    Return ControlCommand($hWindow,"",$hControl,"IsChecked","")
EndFunc   ;==>_IsChecked



In regards to your 64bit question: no, that does not matter.

Expand

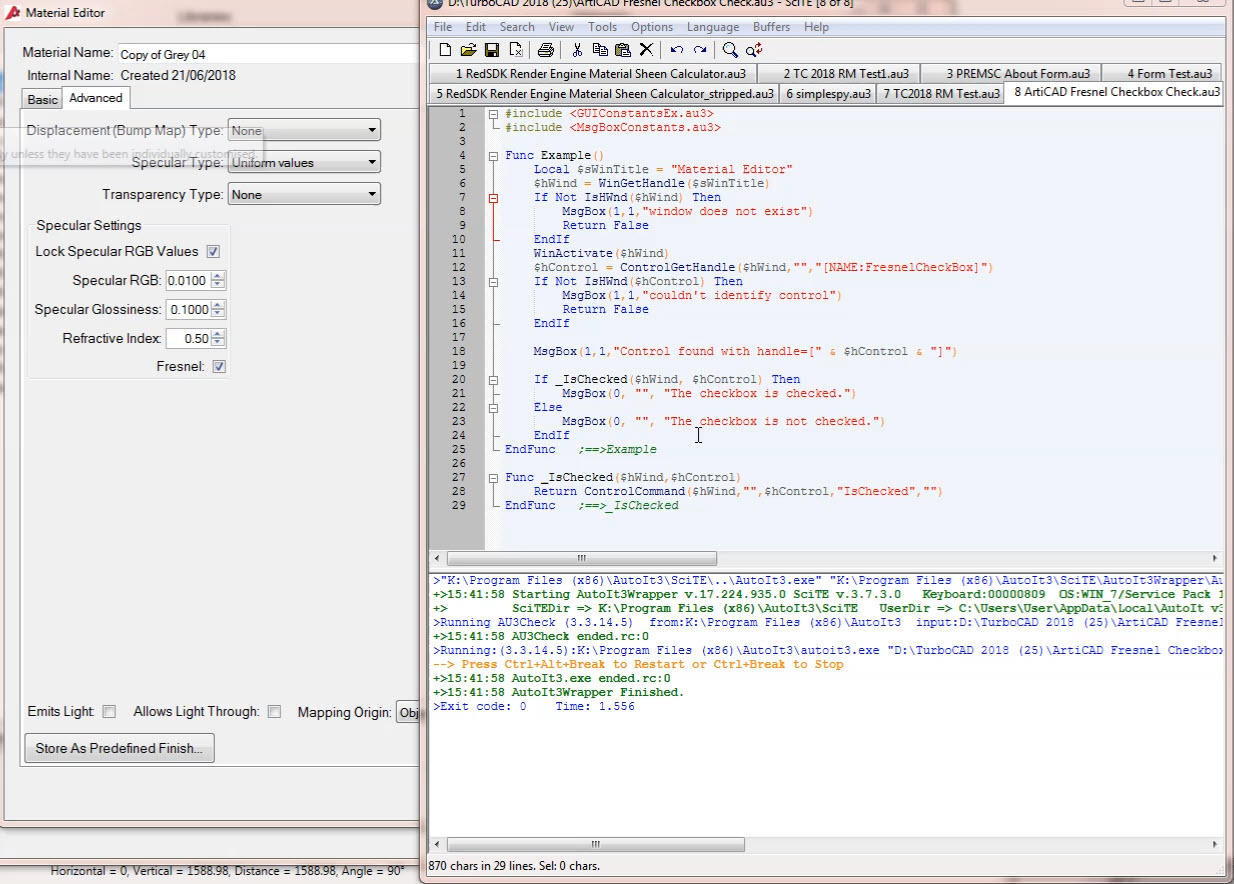

Thanks for your input but when I run it nothing happens, no msgbox's show up at all... I did change $hWin to $hWind and the Func _IsChecked ($hWindow to $hWind.....

ArtiCAD V21 - Fresnel Checkbox code not returning any infojpg.jpg

DazGizmo Seeker

DazGizmo

Posted
  • Author
Posted
  On 6/21/2018 at 7:45 PM, jdelaney said:

Did the handle returned match then handle of the control in the spy tool?



If they match, then work still needs to be done on _ischecked

Expand

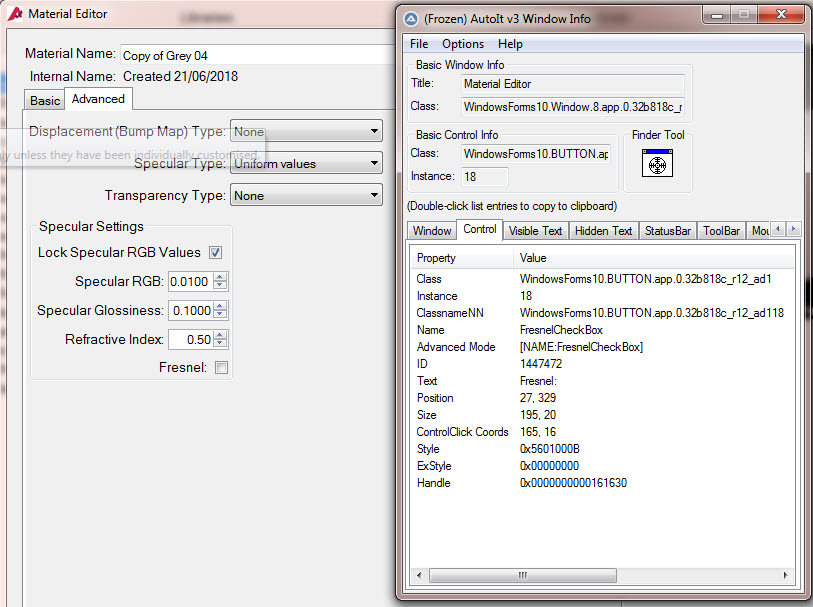

I think they are the same.... not showing as many zero's though:


ArtiCAD 21 - Fresnel Checkbox Spytool results.jpg

Danyfirex Universalist

Danyfirex

Posted
Posted

I think BM_GETCHECK does not work with Net checkbox. You will need to hanble it with pixel color check. you could do this get a checkbox capture and check color or use pixelgetcolor.



Saludos

:hyper: Danysys.com :ninja:


       AutoIt...

  Reveal hidden contents



DazGizmo Seeker

DazGizmo

Posted
  • Author
Posted
  On 6/22/2018 at 3:18 PM, junkew said:

Check FAQ31 and check with simplespy what you get back. With IUIAutomation you should be able to get state of your checkbox



Expand

Yes, I have looked at your SimplySpy...... How would I go about coding the state and using it some pointers would be great... this is what I get running control+W:


https://www.autoitscript.com/forum/topic/153520-iuiautomation-ms-framework-automate-chrome-ff-ie/?do=findComment&comment=1156373
At least we have an element title: [Fresnel:] class: [WindowsForms10.BUTTON.app.0.32b818c_r12_ad1]

Having the following values for all properties:
Title is: <Fresnel:>    Class   := <WindowsForms10.BUTTON.app.0.32b818c_r12_ad1>    controltype:= <UIA_CheckBoxControlTypeId>   ,<50002>    , (0000C352)    517;544;195;20
*** Parent Information top down ***
11: Title is: <Edit Default Material Selections>    Class   := <WindowsForms10.Window.8.app.0.32b818c_r12_ad1>  controltype:= <UIA_WindowControlTypeId> ,<50032>    , (0000C370)    191;147;1538;906
"Title:=Edit Default Material Selections;controltype:=UIA_WindowControlTypeId;class:=WindowsForms10.Window.8.app.0.32b818c_r12_ad1""
10: Title is: <Material Editor> Class   := <WindowsForms10.Window.8.app.0.32b818c_r12_ad1>  controltype:= <UIA_WindowControlTypeId> ,<50032>    , (0000C370)    482;185;955;830
"Title:=Material Editor;controltype:=UIA_WindowControlTypeId;class:=WindowsForms10.Window.8.app.0.32b818c_r12_ad1""
9: Title is: <> Class   := <WindowsForms10.Window.8.app.0.32b818c_r12_ad1>  controltype:= <UIA_PaneControlTypeId>   ,<50033>    , (0000C371)    505;230;908;725
"Title:=;controltype:=UIA_PaneControlTypeId;class:=WindowsForms10.Window.8.app.0.32b818c_r12_ad1""
8: Title is: <> Class   := <WindowsForms10.Window.8.app.0.32b818c_r12_ad1>  controltype:= <UIA_PaneControlTypeId>   ,<50033>    , (0000C371)    505;230;602;725
"Title:=;controltype:=UIA_PaneControlTypeId;class:=WindowsForms10.Window.8.app.0.32b818c_r12_ad1""
7: Title is: <> Class   := <WindowsForms10.Window.8.app.0.32b818c_r12_ad1>  controltype:= <UIA_PaneControlTypeId>   ,<50033>    , (0000C371)    505;230;602;725
"Title:=;controltype:=UIA_PaneControlTypeId;class:=WindowsForms10.Window.8.app.0.32b818c_r12_ad1""
6: Title is: <> Class   := <WindowsForms10.Window.8.app.0.32b818c_r12_ad1>  controltype:= <UIA_PaneControlTypeId>   ,<50033>    , (0000C371)    505;230;602;725
"Title:=;controltype:=UIA_PaneControlTypeId;class:=WindowsForms10.Window.8.app.0.32b818c_r12_ad1""
5: Title is: <> Class   := <WindowsForms10.SysTabControl32.app.0.32b818c_r12_ad1>   controltype:= <UIA_TabControlTypeId>    ,<50018>    , (0000C362)    505;273;602;682
"Title:=;controltype:=UIA_TabControlTypeId;class:=WindowsForms10.SysTabControl32.app.0.32b818c_r12_ad1""
4: Title is: <Advanced> Class   := <WindowsForms10.Window.8.app.0.32b818c_r12_ad1>  controltype:= <UIA_PaneControlTypeId>   ,<50033>    , (0000C371)    509;297;594;654
"Title:=Advanced;controltype:=UIA_PaneControlTypeId;class:=WindowsForms10.Window.8.app.0.32b818c_r12_ad1""
3: Title is: <Colour:>  Class   := <WindowsForms10.Window.8.app.0.32b818c_r12_ad1>  controltype:= <UIA_PaneControlTypeId>   ,<50033>    , (0000C371)    509;297;594;654
"Title:=Colour:;controltype:=UIA_PaneControlTypeId;class:=WindowsForms10.Window.8.app.0.32b818c_r12_ad1""
2: Title is: <> Class   := <WindowsForms10.Window.8.app.0.32b818c_r12_ad1>  controltype:= <UIA_PaneControlTypeId>   ,<50033>    , (0000C371)    509;401;594;475
"Title:=;controltype:=UIA_PaneControlTypeId;class:=WindowsForms10.Window.8.app.0.32b818c_r12_ad1""
1: Title is: <Specular Settings>    Class   := <WindowsForms10.Window.8.app.0.32b818c_r12_ad1>  controltype:= <UIA_PaneControlTypeId>   ,<50033>    , (0000C371)    513;404;203;163
"Title:=Specular Settings;controltype:=UIA_PaneControlTypeId;class:=WindowsForms10.Window.8.app.0.32b818c_r12_ad1""
0: Title is: <No texture selected.> Class   := <WindowsForms10.Window.8.app.0.32b818c_r12_ad1>  controltype:= <UIA_PaneControlTypeId>   ,<50033>    , (0000C371)    517;421;195;143
"Title:=No texture selected.;controltype:=UIA_PaneControlTypeId;class:=WindowsForms10.Window.8.app.0.32b818c_r12_ad1""


;~ *** Standard code maintainable ***
#include "UIAWrappers.au3"
AutoItSetOption("MustDeclareVars", 1)

_UIA_setVar("oP1","Title:=Edit Default Material Selections;controltype:=UIA_WindowControlTypeId;class:=WindowsForms10.Window.8.app.0.32b818c_r12_ad1")  ;Edit Default Material Selections
_UIA_setVar("oP2","Title:=Material Editor;controltype:=UIA_WindowControlTypeId;class:=WindowsForms10.Window.8.app.0.32b818c_r12_ad1")   ;Material Editor
_UIA_setVar("oP3","Title:=;controltype:=UIA_PaneControlTypeId;class:=WindowsForms10.Window.8.app.0.32b818c_r12_ad1")    ;
_UIA_setVar("oP4","Title:=;controltype:=UIA_PaneControlTypeId;class:=WindowsForms10.Window.8.app.0.32b818c_r12_ad1")    ;
_UIA_setVar("oP5","Title:=;controltype:=UIA_PaneControlTypeId;class:=WindowsForms10.Window.8.app.0.32b818c_r12_ad1")    ;
_UIA_setVar("oP6","Title:=;controltype:=UIA_PaneControlTypeId;class:=WindowsForms10.Window.8.app.0.32b818c_r12_ad1")    ;
_UIA_setVar("oP7","Title:=;controltype:=UIA_TabControlTypeId;class:=WindowsForms10.SysTabControl32.app.0.32b818c_r12_ad1")  ;
_UIA_setVar("oP8","Title:=Advanced;controltype:=UIA_PaneControlTypeId;class:=WindowsForms10.Window.8.app.0.32b818c_r12_ad1")    ;Advanced
_UIA_setVar("oP9","Title:=Colour:;controltype:=UIA_PaneControlTypeId;class:=WindowsForms10.Window.8.app.0.32b818c_r12_ad1") ;Colour:
_UIA_setVar("oP10","Title:=;controltype:=UIA_PaneControlTypeId;class:=WindowsForms10.Window.8.app.0.32b818c_r12_ad1")   ;
_UIA_setVar("oP11","Title:=Specular Settings;controltype:=UIA_PaneControlTypeId;class:=WindowsForms10.Window.8.app.0.32b818c_r12_ad1")  ;Specular Settings
_UIA_setVar("oP12","Title:=No texture selected.;controltype:=UIA_PaneControlTypeId;class:=WindowsForms10.Window.8.app.0.32b818c_r12_ad1")   ;No texture selected.

_UIA_setVar("Fresnel:.mainwindow","title:=Fresnel:;classname:=WindowsForms10.BUTTON.app.0.32b818c_r12_ad1")

;~ Actions split away from logical/technical definition above can come from configfiles

;~_UIA_Action("oP1","highlight")
_UIA_Action("oP1","setfocus")
;~_UIA_Action("oP2","highlight")
_UIA_Action("oP2","setfocus")
;~_UIA_Action("oP3","highlight")
_UIA_Action("oP3","setfocus")
;~_UIA_Action("oP4","highlight")
_UIA_Action("oP4","setfocus")
;~_UIA_Action("oP5","highlight")
_UIA_Action("oP5","setfocus")
;~_UIA_Action("oP6","highlight")
_UIA_Action("oP6","setfocus")
;~_UIA_Action("oP7","highlight")
_UIA_Action("oP7","setfocus")
;~_UIA_Action("oP8","highlight")
_UIA_Action("oP8","setfocus")
;~_UIA_Action("oP9","highlight")
_UIA_Action("oP9","setfocus")
;~_UIA_Action("oP10","highlight")
_UIA_Action("oP10","setfocus")
;~_UIA_Action("oP11","highlight")
_UIA_Action("oP11","setfocus")
;~_UIA_Action("oP12","highlight")
_UIA_Action("oP12","setfocus")

_UIA_action("Fresnel:.mainwindow","setfocus")


;~ *** Standard code Flexible***
#include "UIAWrappers.au3"
AutoItSetOption("MustDeclareVars", 1)

Local $oP11=_UIA_getObjectByFindAll($UIA_oDesktop, "Title:=Edit Default Material Selections;controltype:=UIA_WindowControlTypeId;class:=WindowsForms10.Window.8.app.0.32b818c_r12_ad1", $treescope_children)
_UIA_Action($oP11,"setfocus")
Local $oP10=_UIA_getObjectByFindAll($oP11, "Title:=Material Editor;controltype:=UIA_WindowControlTypeId;class:=WindowsForms10.Window.8.app.0.32b818c_r12_ad1", $treescope_children)
_UIA_Action($oP10,"setfocus")
Local $oP9=_UIA_getObjectByFindAll($oP10, "Title:=;controltype:=UIA_PaneControlTypeId;class:=WindowsForms10.Window.8.app.0.32b818c_r12_ad1", $treescope_children)
_UIA_Action($oP9,"setfocus")
Local $oP8=_UIA_getObjectByFindAll($oP9, "Title:=;controltype:=UIA_PaneControlTypeId;class:=WindowsForms10.Window.8.app.0.32b818c_r12_ad1", $treescope_children)
_UIA_Action($oP8,"setfocus")
Local $oP7=_UIA_getObjectByFindAll($oP8, "Title:=;controltype:=UIA_PaneControlTypeId;class:=WindowsForms10.Window.8.app.0.32b818c_r12_ad1", $treescope_children)
_UIA_Action($oP7,"setfocus")
Local $oP6=_UIA_getObjectByFindAll($oP7, "Title:=;controltype:=UIA_PaneControlTypeId;class:=WindowsForms10.Window.8.app.0.32b818c_r12_ad1", $treescope_children)
_UIA_Action($oP6,"setfocus")
Local $oP5=_UIA_getObjectByFindAll($oP6, "Title:=;controltype:=UIA_TabControlTypeId;class:=WindowsForms10.SysTabControl32.app.0.32b818c_r12_ad1", $treescope_children)
_UIA_Action($oP5,"setfocus")
Local $oP4=_UIA_getObjectByFindAll($oP5, "Title:=Advanced;controltype:=UIA_PaneControlTypeId;class:=WindowsForms10.Window.8.app.0.32b818c_r12_ad1", $treescope_children)
_UIA_Action($oP4,"setfocus")
Local $oP3=_UIA_getObjectByFindAll($oP4, "Title:=Colour:;controltype:=UIA_PaneControlTypeId;class:=WindowsForms10.Window.8.app.0.32b818c_r12_ad1", $treescope_children)
_UIA_Action($oP3,"setfocus")
Local $oP2=_UIA_getObjectByFindAll($oP3, "Title:=;controltype:=UIA_PaneControlTypeId;class:=WindowsForms10.Window.8.app.0.32b818c_r12_ad1", $treescope_children)
_UIA_Action($oP2,"setfocus")
Local $oP1=_UIA_getObjectByFindAll($oP2, "Title:=Specular Settings;controltype:=UIA_PaneControlTypeId;class:=WindowsForms10.Window.8.app.0.32b818c_r12_ad1", $treescope_children)
_UIA_Action($oP1,"setfocus")
Local $oP0=_UIA_getObjectByFindAll($oP1, "Title:=No texture selected.;controltype:=UIA_PaneControlTypeId;class:=WindowsForms10.Window.8.app.0.32b818c_r12_ad1", $treescope_children)
_UIA_Action($oP0,"setfocus")
_UIA_setVar("Fresnel:.mainwindow","title:=Fresnel:;classname:=WindowsForms10.BUTTON.app.0.32b818c_r12_ad1")
_UIA_action("Fresnel:.mainwindow","setfocus")


*** Detailed properties of the highlighted element ***
UIA_title:= <Fresnel:>
UIA_text:= <Fresnel:>
UIA_regexptitle:= <Fresnel:>
UIA_class:= <WindowsForms10.BUTTON.app.0.32b818c_r12_ad1>
UIA_regexpclass:= <WindowsForms10.BUTTON.app.0.32b818c_r12_ad1>
UIA_iaccessiblechildId:= <0>
UIA_id:= <FresnelCheckBox>
UIA_handle:= <71774>
UIA_RuntimeId:= <42;71774>
UIA_BoundingRectangle:= <517;544;195;20>
UIA_ProcessId:= <10116>
UIA_ControlType:= <50002>
UIA_LocalizedControlType:= <check box>
UIA_Name:= <Fresnel:>
UIA_HasKeyboardFocus:= <False>
UIA_IsKeyboardFocusable:= <True>
UIA_IsEnabled:= <True>
UIA_AutomationId:= <FresnelCheckBox>
UIA_ClassName:= <WindowsForms10.BUTTON.app.0.32b818c_r12_ad1>
UIA_Culture:= <0>
UIA_IsControlElement:= <True>
UIA_IsContentElement:= <True>
UIA_IsPassword:= <False>
UIA_NativeWindowHandle:= <71774>
UIA_IsOffscreen:= <False>
UIA_Orientation:= <0>
UIA_FrameworkId:= <WinForm>
UIA_IsRequiredForForm:= <False>
UIA_IsDockPatternAvailable:= <False>
UIA_IsExpandCollapsePatternAvailable:= <False>
UIA_IsGridItemPatternAvailable:= <False>
UIA_IsGridPatternAvailable:= <False>
UIA_IsInvokePatternAvailable:= <True>
UIA_IsMultipleViewPatternAvailable:= <False>
UIA_IsRangeValuePatternAvailable:= <False>
UIA_IsScrollPatternAvailable:= <False>
UIA_IsScrollItemPatternAvailable:= <False>
UIA_IsSelectionItemPatternAvailable:= <False>
UIA_IsSelectionPatternAvailable:= <False>
UIA_IsTablePatternAvailable:= <False>
UIA_IsTableItemPatternAvailable:= <False>
UIA_IsTextPatternAvailable:= <False>
UIA_IsTogglePatternAvailable:= <True>
UIA_IsTransformPatternAvailable:= <False>
UIA_IsValuePatternAvailable:= <False>
UIA_IsWindowPatternAvailable:= <False>
UIA_ValueIsReadOnly:= <True>
UIA_RangeValueValue:= <0>
UIA_RangeValueIsReadOnly:= <True>
UIA_RangeValueMinimum:= <0>
UIA_RangeValueMaximum:= <0>
UIA_RangeValueLargeChange:= <0>
UIA_RangeValueSmallChange:= <0>
UIA_ScrollHorizontalScrollPercent:= <0>
UIA_ScrollHorizontalViewSize:= <100>
UIA_ScrollVerticalScrollPercent:= <0>
UIA_ScrollVerticalViewSize:= <100>
UIA_ScrollHorizontallyScrollable:= <False>
UIA_ScrollVerticallyScrollable:= <False>
UIA_SelectionCanSelectMultiple:= <False>
UIA_SelectionIsSelectionRequired:= <False>
UIA_GridRowCount:= <0>
UIA_GridColumnCount:= <0>
UIA_GridItemRow:= <0>
UIA_GridItemColumn:= <0>
UIA_GridItemRowSpan:= <1>
UIA_GridItemColumnSpan:= <1>
UIA_DockDockPosition:= <5>
UIA_ExpandCollapseExpandCollapseState:= <3>
UIA_MultipleViewCurrentView:= <0>
UIA_WindowCanMaximize:= <False>
UIA_WindowCanMinimize:= <False>
UIA_WindowWindowVisualState:= <0>
UIA_WindowWindowInteractionState:= <0>
UIA_WindowIsModal:= <False>
UIA_WindowIsTopmost:= <False>
UIA_SelectionItemIsSelected:= <False>
UIA_TableRowOrColumnMajor:= <2>
UIA_ToggleToggleState:= <1>
UIA_TransformCanMove:= <False>
UIA_TransformCanResize:= <False>
UIA_TransformCanRotate:= <False>
UIA_IsLegacyIAccessiblePatternAvailable:= <True>
UIA_LegacyIAccessibleChildId:= <0>
UIA_LegacyIAccessibleName:= <Fresnel:>
UIA_LegacyIAccessibleRole:= <44>
UIA_LegacyIAccessibleState:= <1048592>
UIA_LegacyIAccessibleDefaultAction:= <Uncheck>
UIA_IsDataValidForForm:= <False>
UIA_ProviderDescription:= <[pid:9884,hwnd:0x1185E Main:Nested [pid:10116,hwnd:0x1185E Main(parent link):Microsoft: MSAA Proxy (unmanaged:UIAutomationCore.dll)]; Hwnd(parent link):Microsoft: HWND Proxy (unmanaged:uiautomationcore.dll)]>
UIA_IsItemContainerPatternAvailable:= <False>
UIA_IsVirtualizedItemPatternAvailable:= <False>
UIA_IsSynchronizedInputPatternAvailable:= <False>



DazGizmo Seeker

DazGizmo

Posted
  • Author
Posted
  On 6/22/2018 at 2:06 PM, Danyfirex said:

I think BM_GETCHECK does not work with Net checkbox. You will need to hanble it with pixel color check. you could do this get a checkbox capture and check color or use pixelgetcolor.



Saludos

Expand

Thanks for your input Saludos.... I have read in a few places about grabbing the pixel colour but would rather find a better method if possible...

AdamUL Universalist

AdamUL

Posted
Posted

Check the @error value returned by _IsChecked to make sure the ControlCommand function is not throwing an error.  Replace the _IsChecked call with the following.

Local $iIsChecked = _IsChecked($hWin, $hControl)
    Local $iIsCheckedError = @error

    If $iIsChecked And Not $iIsCheckedError Then
        MsgBox(0, "", "The checkbox is checked.")
    ElseIf Not $iIsChecked And Not $iIsCheckedError Then
        MsgBox(0, "", "The checkbox is not checked.")
    Else
        MsgBox(16, "ERROR!", 'Error with ControlCommand "IsChecked"')
    EndIf

Also, when I have had to automate some hard to automate controls to I've use a loop with IsChecked and and UnCheck.  Example below.

Global $sDialogTitle = "[CLASS:WindowsForms10.Window.8.app.0.32b818c_r12_ad1; TEXT:Material Editor]"
Global $sDialogText = ""
Global $sControlInfo = "[CLASS:WindowsForms10.BUTTON.app.0.32b818c_r12_ad1; TEXT:Fresnel:]"

While ControlCommand($sDialogTitle, $sDialogText, $sControlInfo, "IsChecked", "")
    ControlCommand($sDialogTitle, $sDialogText, $sControlInfo, "UnCheck", "")
WEnd



Adam



  • 1 year later...
shuaua Seeker

shuaua

Posted
Posted (edited)

The _ChkBoxCommand function below may be helpful.

You must first get the relative X and Y coordinates within the control. To do so, you can use this tool:
https://github.com/J2TEAM/AutoIt-UDF-Collection/blob/master/UDF/Auto Infor (mini).au3

For more details, see remarks.

; CHECKBOX COMMAND =================================================================================================
; Name............: _ChkBoxCommand
; Description ....: Executes a command in a non-standard Windows checkbox, using PixelGetColor and a set of
;                   auxiliary functions.
; Parameters .....: $title - the title/hWnd/class of the window to access.
;                   $text - the text of the window to access.
;                   $controlID - the control to interact with.
;                   $command - the command to send to the checkbox, "IsChecked", "Check", "UnCheck".
;                   $xGetPixel - the x position to get pixel within the control.
;                   $yGetPixel - the y position to get pixel within the control.
;                   $colorUnchecked: the color of checkbox when is uncheked.
; Remarks ........: The X and Y positions are relative within the control. You must get them beforehand. To do so,
;                   you can use this tool:
;                   https://github.com/J2TEAM/AutoIt-UDF-Collection/blob/master/UDF/Auto%20Infor%20(mini).au3
;                   Just run the tool above, put the mouse pointer over a pixel when the chekbox is checked and
;                   write down the ControClick coordinates. This pixel will be compared to $colorUnchecked.
;                   Since the relative position of a checkbox within the control will probably always be the same in
;                   the same third party program, no matter the window, you can set a default value to X and Y.
; Author .........: shuaua
; ==================================================================================================================
Func _ChkBoxCommand($title, $text, $controlID, $command, $xGetPixel = 8, $yGetPixel = 8, $colorUnchecked = 0xFFFFFF)
    Switch $command
        Case "IsChecked"
            Return _IsCheckedPixel($title, $text, $controlID, $xGetPixel, $yGetPixel, $colorUnchecked)
        Case "UnCheck"
            If _IsCheckedPixel($title, $text, $controlID, $xGetPixel, $yGetPixel, $colorUnchecked) Then _
                ControlClick($title, $text, $controlID, "primary", 1, $xGetPixel, $yGetPixel)
            If _IsCheckedPixel($title, $text, $controlID, $xGetPixel, $yGetPixel, $colorUnchecked) Then _
                BitAND(ControlFocus($title, $text, $controlID), Send("{SPACE}"))
            If _IsCheckedPixel($title, $text, $controlID, $xGetPixel, $yGetPixel, $colorUnchecked) Then _
                Return 0
        Case "Check"
            If Not _IsCheckedPixel($title, $text, $controlID, $xGetPixel, $yGetPixel, $colorUnchecked) Then _
                ControlClick($title, $text, $controlID, "primary", 1, $xGetPixel, $yGetPixel)
            If Not _IsCheckedPixel($title, $text, $controlID, $xGetPixel, $yGetPixel, $colorUnchecked) Then _
                BitAND(ControlFocus($title, $text, $controlID), Send("{SPACE}"))
            If Not _IsCheckedPixel($title, $text, $controlID, $xGetPixel, $yGetPixel, $colorUnchecked) Then _
                Return 0
        Case Else
            Return SetError(1)
        EndSwitch
    Return 1
EndFunc

; VERIFIES IF A CHECKBOX IS CHECKED (USING PIXELGETCOLOR) ==========================================================
; Name............: _IsCheckedPixel
; Description ....: Verifies if a checkbox is checked, using PixelGetColor.
; Parameters .....: $title - the title/hWnd/class of the window to access.
;                   $text - the text of the window to access.
;                   $controlID - the control to interact with.
;                   $xGetPixel - the x position to get pixel within the control.
;                   $yGetPixel - the y position to get pixel within the control.
;                   $colorUnchecked: the color of checkbox when is uncheked.
; Remarks ........: The X and Y positions are relative within the control. You must get them beforehand. To do so,
;                   you can use this tool:
;                   https://github.com/J2TEAM/AutoIt-UDF-Collection/blob/master/UDF/Auto%20Infor%20(mini).au3
;                   Just run the tool above, put the mouse pointer over a pixel when the chekbox is checked and
;                   write down the ControClick coordinates. This pixel will be compared to $colorUnchecked.
;                   Since the relative position of a checkbox within the control will probably always be the same in
;                   the same third party program, no matter the window, you can set a default value to X and Y.
; Author .........: shuaua
; ==================================================================================================================
Func _IsCheckedPixel($title, $text, $controlID, $xGetPixel = 8, $yGetPixel = 8, $colorUnchecked = 0xFFFFFF)
    Local $ctrlPos = WinGetPos(ControlGetHandle($title, $text, $controlID))
    If Not IsArray($ctrlPos) Then Return SetError(1)
    Local $pxColor = PixelGetColor($ctrlPos[0]+$xGetPixel, $ctrlPos[1]+$yGetPixel)
    If $pxColor == $colorUnchecked Then Return False
    Return True
EndFunc



Edited by shuaua
seadoggie01 Universalist

seadoggie01

Posted
Posted
  On 6/21/2018 at 12:32 AM, jdelaney said:

In regards to your 64bit question: no, that does not matter.

Expand

(Not that I don't believe you) How do you know, is there a way to tell? I've had issues with controls in a 32-bit program before, and I'd love to know if I was missing something :)

All my code provided is Public Domain... but it may not work. ;) Use it, change it, break it, whatever you want.

  Reveal hidden contents

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
 Share
Go to topic listing

  • Recently Browsing   0 members

    • No registered users viewing this page.
×
×
  • Create New...
